基于联盟链技术的商业建筑转供电主体需求响应策略

doi:10.11930/j.issn.1004-9649.202309098

中国电力 ›› 2024, Vol. 57 ›› Issue (12): 109-119.DOI: 10.11930/j.issn.1004-9649.202309098

基于联盟链技术的商业建筑转供电主体需求响应策略

唐志辉¹(), 张欣¹(), 宁艺飞¹(), 黄璜¹, 余昆², 华昊辰², 曹佳伟², 郑云天²

1. 国网江苏省电力有限公司南京供电分公司，江苏南京　210008
2. 河海大学电气与动力工程学院，江苏南京　210024

收稿日期:2023-09-21 接受日期:2024-04-01 出版日期:2024-12-28 发布日期:2024-12-27
作者简介:唐志辉（1995—），男，硕士，从事电价电费管理工作，E-mail：tang@jeffery.top
宁艺飞（1990—），男，通信作者，博士，工程师，从事电价电费管理工作，E-mail：yf_ning_hhu@126.com
基金资助:
国网江苏省电力有限公司重点科技项目（面向转供电环境的用电服务区块链关键技术开发服务，J2022096）。

Demand Response Strategy for Commercial Building Power Supply Conversion Entities Based on Alliance Chain Technology

Zhihui TANG¹(), Xin ZHANG¹(), Yifei NING¹(), Huang HUANG¹, Kun YU², Haochen HUA², Jiawei CAO², Yuntian ZHENG²

1. Nanjing Power Supply Company of State Grid Jiangsu Electric Power Co., Ltd., Nanjing 210008, China
2. School of Electrical and Power Engineering, Hohai University, Nanjing 210024, China

Received:2023-09-21 Accepted:2024-04-01 Online:2024-12-28 Published:2024-12-27
Supported by:
This work is supported by Key Science and Technology Project of State Grid Jiangsu Electric Power Co., Ltd. (Development Services for Key Blockchain Technologies of Electricity Services in the Context of Power Conversion, No.J2022096).

摘要/Abstract

摘要：

商业建筑柔性资源丰富，可以有效参与需求响应，但商业建筑中普遍存在的转供电行为会造成终端用户参与需求响应积极性不足。一方面，需求响应的结算信息不透明，终端用户对转供电主体缺乏信任；另一方面，转供电主体忽略了终端用户的用电效用，激励机制不合理。针对上述问题，将联盟链技术用于商业建筑转供电需求响应环节，构建基于联盟链的商业建筑转供电需求响应系统，实现需求响应的去中心化与可信传递。针对转供电环境下公共区域和终端用户用电特点，提出考虑商业建筑转供电特征的需求响应策略。将该联盟链系统用于南京市某小型商业建筑环境下进行验证，实现了联盟链在商业建筑需求响应过程中的透明化交易与结算功能。仿真结果表明，该策略成功将转供电主体的用电成本降低了33.6%，证实了所提出策略的有效性。

关键词: 商业建筑, 联盟链, 转供电主体, 需求响应策略

Abstract:

Commercial buildings have abundant flexible resources and can effectively participate in demand response. However, widespread power supply conversion in commercial buildings can lead to insufficient enthusiasm for end users to participate in demand response. On the one hand the settlement information of demand response is not transparent and end users lack trust in the power supply conversion entities, on the other hand, the main power supply conversion entities have ignored the electricity utility of end users, and the incentive mechanism is unreasonable. To address above issues, by applying the alliance chain technology to the demand response of commercial building power supply conversion, this article constructs an alliance chain-based commercial building power supply conversion demand response system to achieve decentralized and reliable transfer of demand response. Based on the electricity consumption characteristics of public areas and end users in the context of power supply conversion, a demand response strategy is proposed with consideration of the power supply conversion characteristics of commercial buildings. The proposed alliance chain system was validated in a small commercial building environment in Nanjing, achieving transparent transaction and settlement functions of the alliance chain in the demand response process of commercial buildings. At the same time, simulation results show that the proposed strategy successfully reduces the electricity consumption cost of the power supply conversion entities by 33.6%, confirming the effectiveness of the proposed strategy.

Key words: commercial building, alliance chain, power supply conversion entities, demand response strategy

唐志辉, 张欣, 宁艺飞, 黄璜, 余昆, 华昊辰, 曹佳伟, 郑云天. 基于联盟链技术的商业建筑转供电主体需求响应策略[J]. 中国电力, 2024, 57(12): 109-119.

Zhihui TANG, Xin ZHANG, Yifei NING, Huang HUANG, Kun YU, Haochen HUA, Jiawei CAO, Yuntian ZHENG. Demand Response Strategy for Commercial Building Power Supply Conversion Entities Based on Alliance Chain Technology[J]. Electric Power, 2024, 57(12): 109-119.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202309098

https://www.electricpower.com.cn/CN/Y2024/V57/I12/109

图/表 11

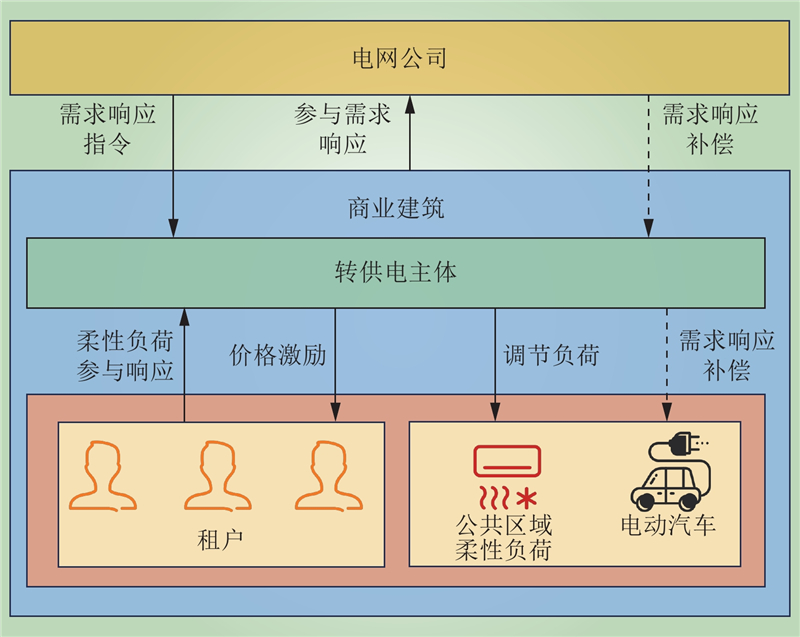

图 1 转供电场景下的需求响应业务关系

Fig.1 Demand response business relationship in power supply conversion scenarios

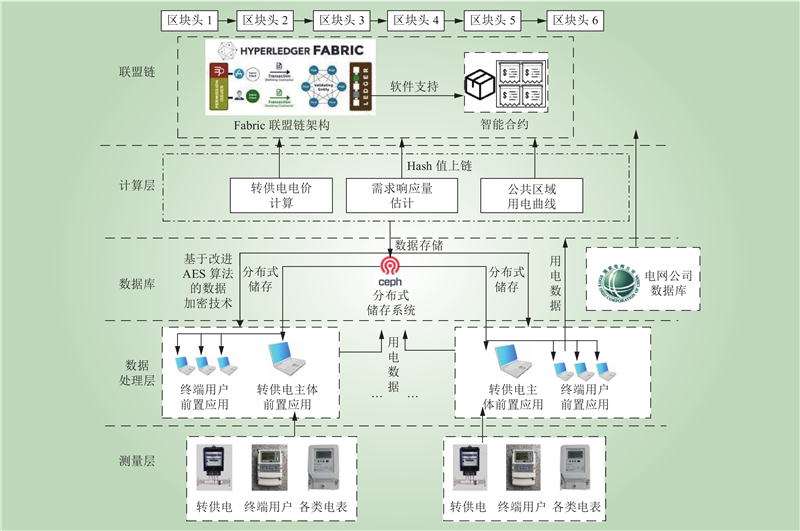

图 2 基于联盟链的商业建筑转供电需求响应系统架构

Fig.2 Alliance chain-based commercial building power supply conversion demand response system architecture

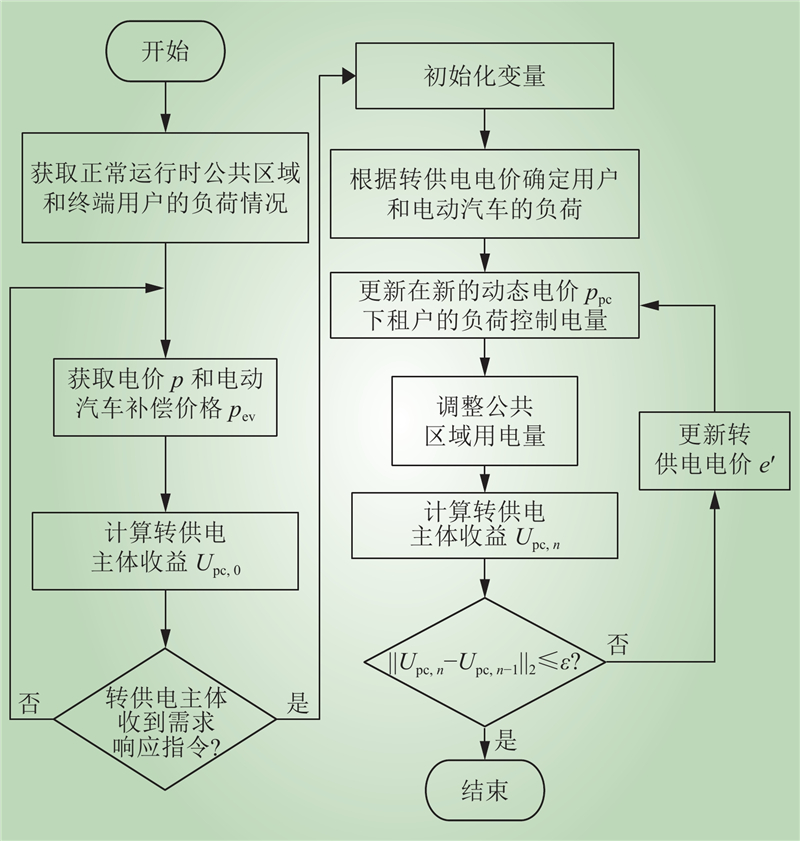

图 3 双层博弈模型优化算法流程

Fig.3 Optimization algorithm flow chart for double-layer game model

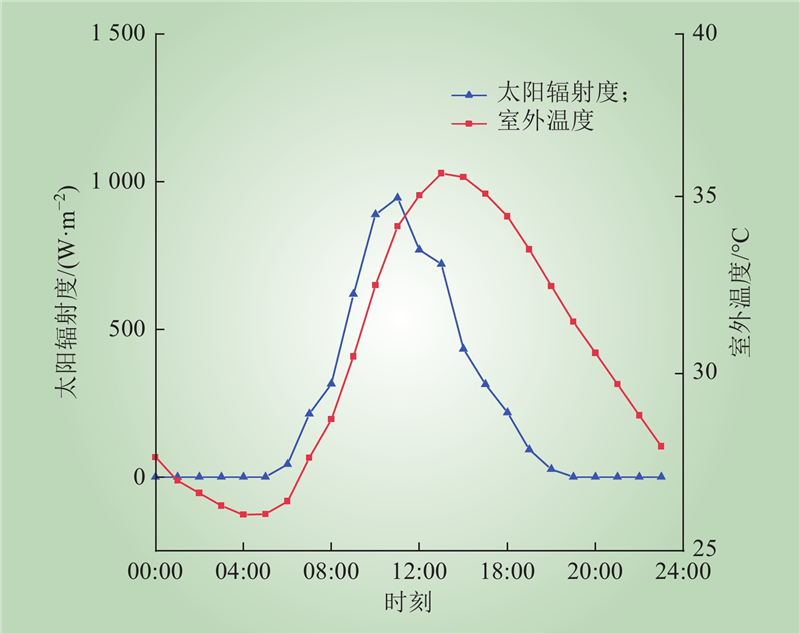

图 4 室外温度和太阳辐照度

Fig.4 Outdoor temperature and solar irradiance

图 5 各用户无需求响应的基本负荷

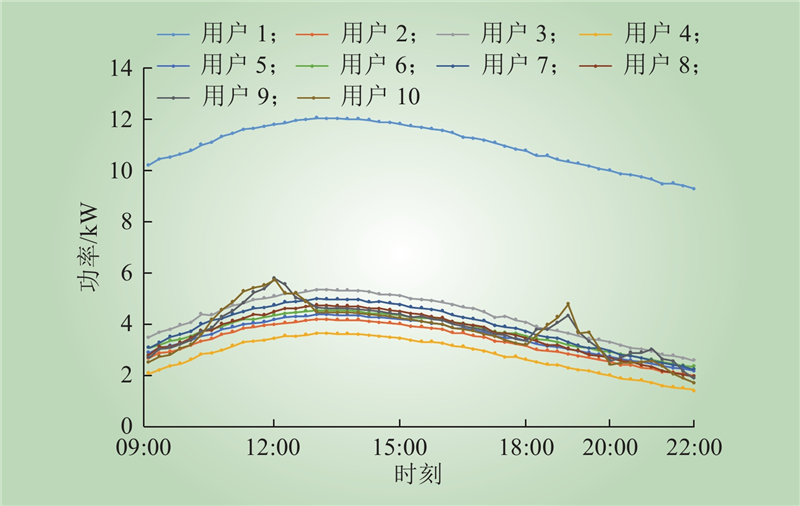

Fig.5 Base load without demand response of different users

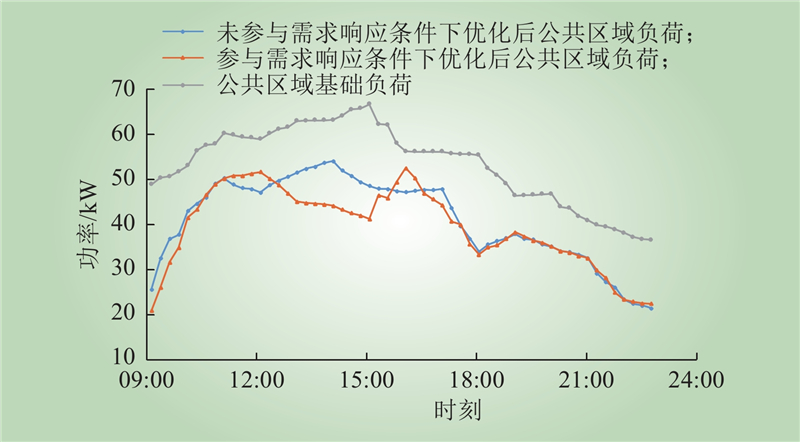

图 6 公共区域无需求响应的基本负荷

Fig.6 Base load without demand response of public areas

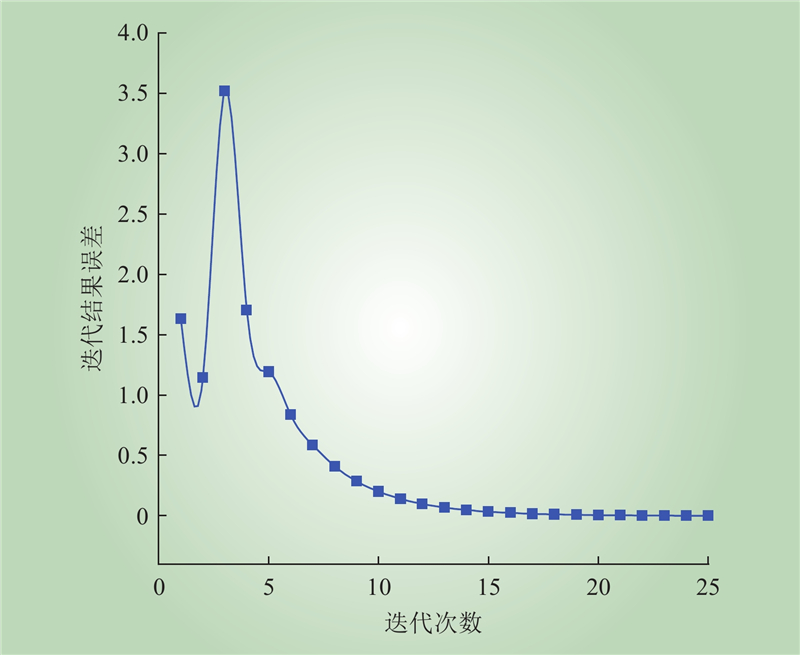

图 7 转供电电价优化的迭代结果

Fig.7 Iteration result of power supply conversion price optimization

表 1 优化后的转供电电价

Table 1 Power supply conversion electricity prices after optimization

时段	参与需求响应优化后电价/(元·(kW·h)^–1)	未参与需求响应优化后电价/(元·(kW·h)^–1)
09:00—10:00	1.28	1.28
10:00—11:00	1.28	1.31
11:00—12:00	1.26	1.31
12:00—13:00	1.28	1.30
13:00—14:00	1.31	1.31
14:00—15:00	1.30	1.26
15:00—16:00	1.32	1.32
16:00—17:00	1.30	1.30
17:00—18:00	1.25	1.26
18:00—19:00	1.22	1.31
19:00—20:00	1.26	1.22
20:00—21:00	1.21	1.31
21:00—22:00	1.21	1.21
22:00—23:00	1.31	1.31

表 2 优化后的电动汽车充电电量

Table 2 Electric vehicle charging capacity after optimization

车辆	期望充电量/(kW·h)	实际充电量/(kW·h)
1	30	27.6
2	20	18.5
3	15	12.9

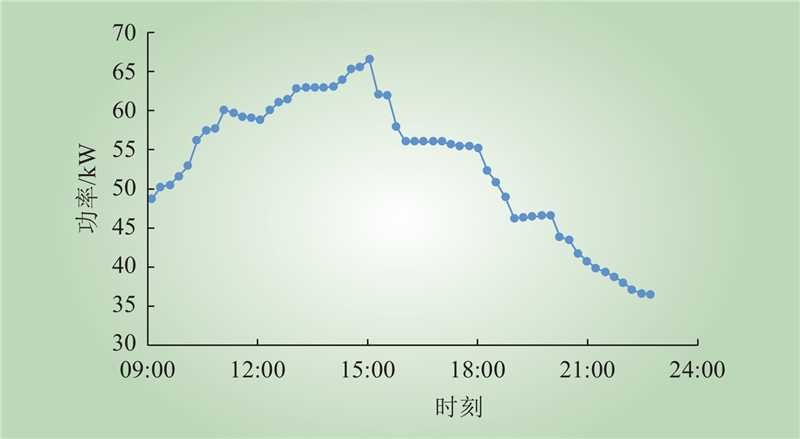

图 8 公共区域负荷

Fig.8 Load of public areas

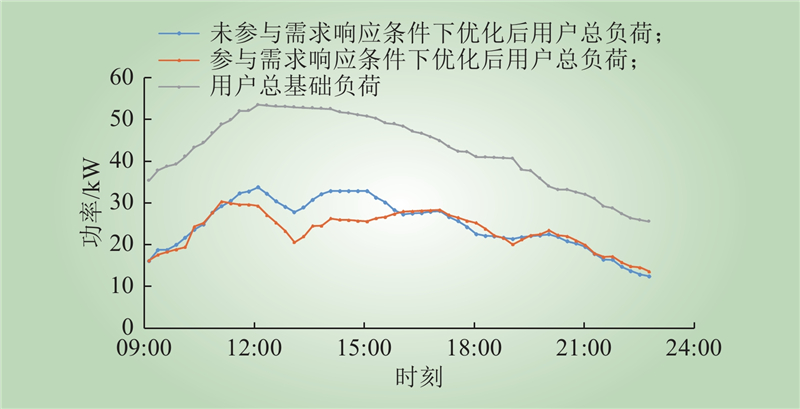

图 9 用户总负荷

Fig.9 Total user load
