Evaluation of Weakening Effect of Stator Parallel Branch Circuit on Main Field Asymmetry

CHEN Bingbing(), WU Yucai(), JI Xuan(), ZHU Xinkai()

Hebei Key Laboratory of Green and Efficient New Electrical Materials and Equipment (North China Electric Power University), Baoding 071003, China

Received:2024-04-22 Online:2025-05-30 Published:2025-05-28
Supported by:
This work is supported by National Natural Science Foundation of China (Evolution Mechanism and Targeted Defense of Rotor Insulation Deterioration Induced by Thermal Expansion Effect of Thermal Power Units With Deep Peak Regulation, No.52277048; Complex Rotor Vibration Characteristics and Shafting Damage Mechanisms of Distributed Condensers in New Energy Collection Station Under Dynamic Conditions, No.52307053).

摘要/Abstract

摘要：

转子绕组匝间短路是汽轮发电机的一种弱特征电气故障，使得故障检测较为困难。本文研究了汽轮发电机定子绕组并联支路内部环流对转子绕组匝间短路所产生的不对称磁场的弱化效应，推导了故障状态下励磁磁场表达式，得到定子绕组并联支路环流表达式，以及环流所产生的磁场表达式，发现了环流磁场对原本不对称磁场的抵消作用。以一台300 MW汽轮发电机为例进行有限元仿真，证明了汽轮发电机定子绕组并联支路结构对转子绕组匝间短路故障特征的弱化效应，研究结论有助于分析转子绕组匝间短路故障特征的外在表象、原因，也为故障诊断阶段的特征提取提供了理论支持。

关键词: 汽轮发电机, 转子绕组匝间短路, 诊断, 并联支路环流法, 不对称磁场

Abstract:

The short circuit between turns of the rotor winding is a weak characteristic electrical fault of the turbine generator, which makes the fault detection difficult. This paper investigates the weakening effect of the circulating magnetic field inside the parallel branch of the stator winding of a turbine generator on the asymmetric magnetic field generated by the rotor winding turn-to-turn short-circuit, derives the expression of the excitation magnetic field under the fault condition, obtains the expression of the circulating current of the parallel branch of the stator winding and the expression of the magnetic field generated by the circulating current, and finds out the offsetting effect of the circulating field on the original asymmetric magnetic field. A 300MW steam turbine generator is used as an example to carry out finite element simulation, which proves the weakening effect of the parallel branch structure of the stator winding on the short-circuit fault characteristics of the rotor winding, and the research conclusion is helpful to analyze the external appearance and causes of the short-circuit fault characteristics between turns of the rotor winding, and also provides theoretical support for the feature extraction in the fault diagnosis stage.

Key words: turbine generator, rotor winding inter-turn short circuit, diagnosis, parallel branch loop method, asymmetric magnetic field

陈冰兵, 武玉才, 纪璇, 朱新凯. 定子并联支路对主磁场不对称度的弱化效果评估[J]. 中国电力, 2025, 58(5): 189-198.

CHEN Bingbing, WU Yucai, JI Xuan, ZHU Xinkai. Evaluation of Weakening Effect of Stator Parallel Branch Circuit on Main Field Asymmetry[J]. Electric Power, 2025, 58(5): 189-198.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202404088

https://www.electricpower.com.cn/CN/Y2025/V58/I5/189

图/表 15

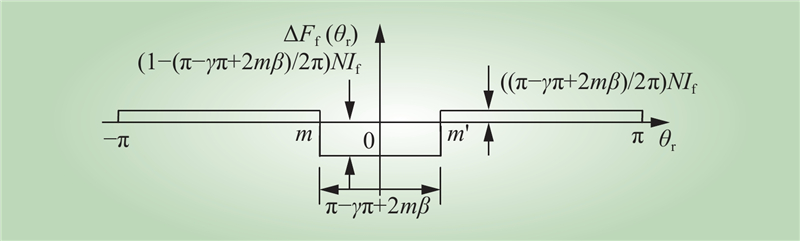

图 1 短路线匝磁势分布

Fig.1 Short-circuit turn potential distribution

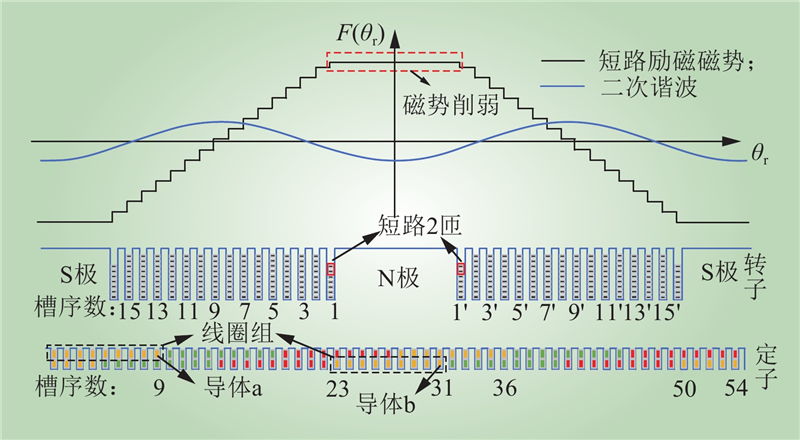

图 2 汽轮发电机转子绕组短路状态时转子磁势分布

Fig.2 Rotor magnetic potential distribution in the short-circuit condition of the rotor winding of a turbine generator

图 3 导体a运动轨迹

Fig.3 Trajectory of conductor a

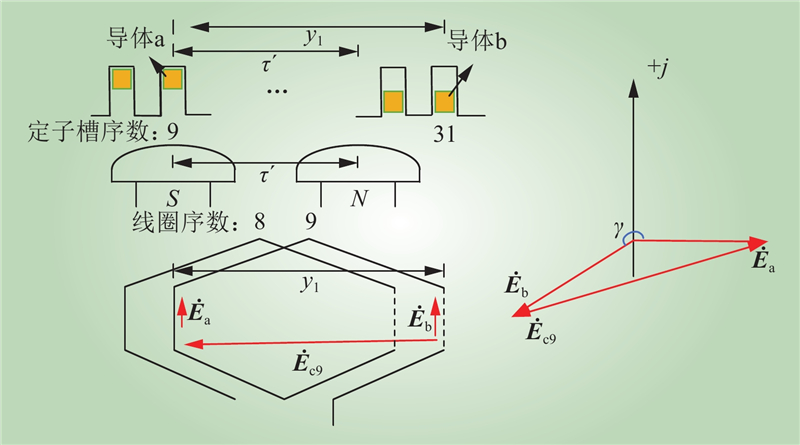

图 4 长距线圈模型及其电动势向量

Fig.4 Long distance coil model and its electromotive force vector

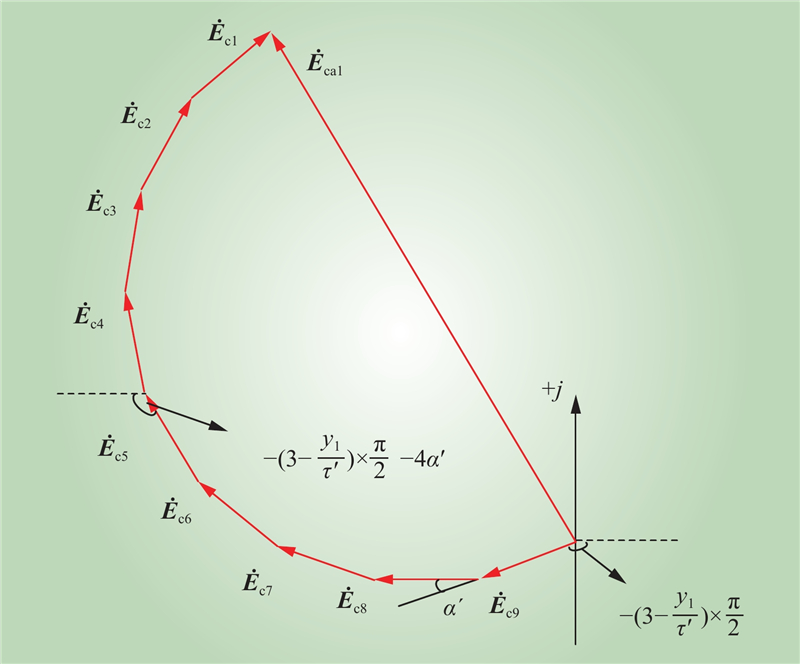

图 5 一组线圈的电动势向量

Fig.5 The electric potential vector of a set of coils

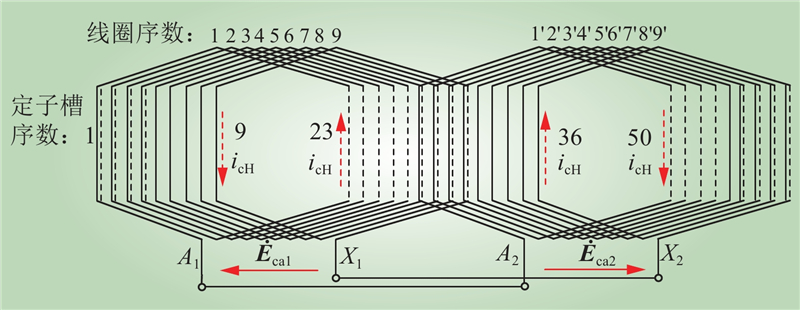

图 6 定子一相绕组结构

Fig.6 Stator one-phase winding structure

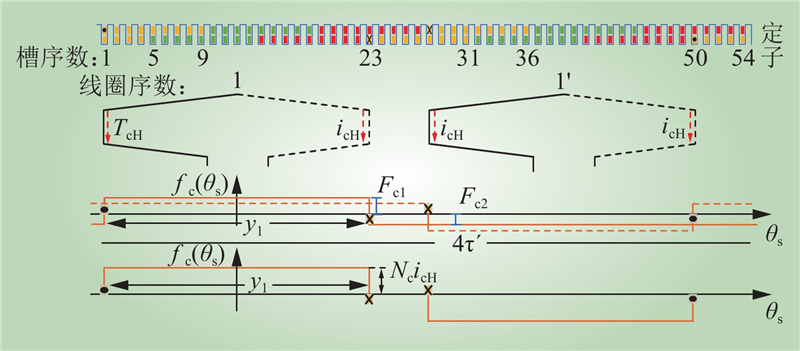

图 7 线圈磁势

Fig.7 Coil magnetic potential

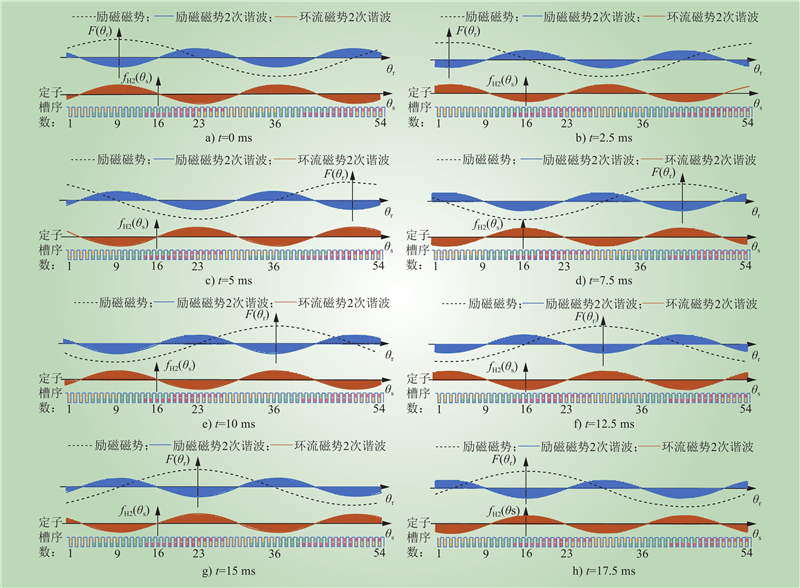

图 8 磁势对比

Fig.8 Magnetic potential contrast

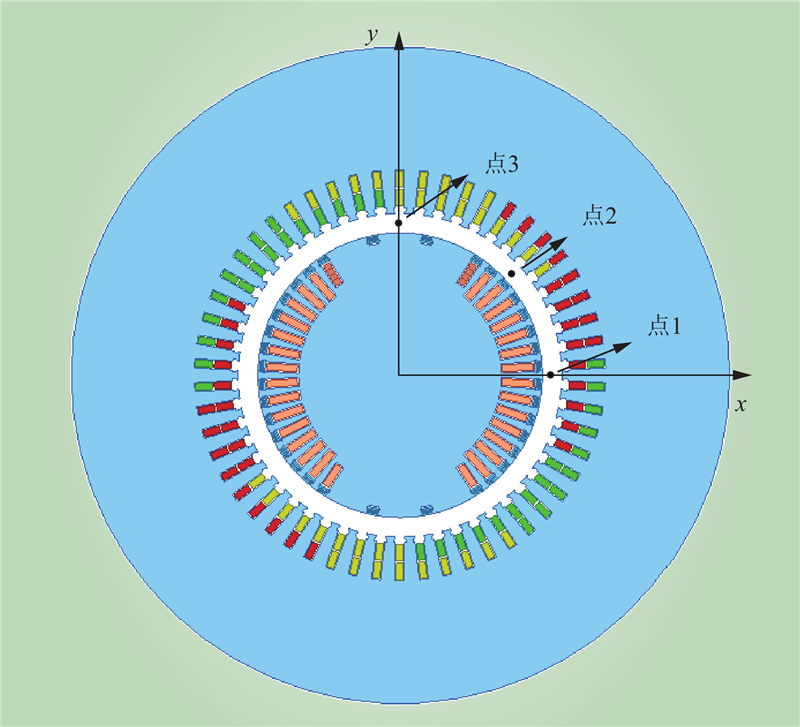

图 9 发电机二维模型

Fig.9 2 D model of generator

表 1 QFSN-300-2-20 B型汽轮发电机基本参数

Table 1 Basic parameters of QFSN-300-2-20 B turbine generator

项目	数值	项目	数值
额定功率/MW	300	额定功率因数	0.85
额定电压/kV	20	同步电抗标幺值	1.85477
额定电流/kA	10.19	定子绕组电阻/Ω	0.001658
相数	3	磁极数	2
额定励磁电流/A	2075	转速/(r·min^–1)	3000
接法	YY

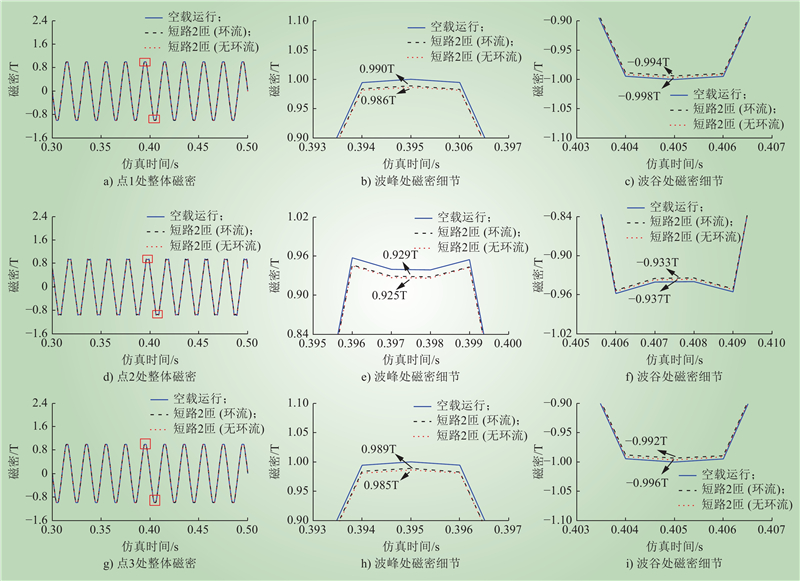

图 10 不同观测点位置下磁密对比

Fig.10 Magnetic density contrast at different observation points

表 2 不同观测点位置下磁密对比

Table 2 Magnetic density contrast at different observation points 单位：T

观测点	波峰		波谷		不对称度		削弱程度
观测点	环流	无环流	环流	无环流	环流	无环流	削弱程度
1	0.990	0.986	–0.994	–0.998	0.004	0.012	0.008
2	0.929	0.925	–0.933	–0.937	0.004	0.012	0.008
3	0.919	0.915	–0.923	–0.927	0.004	0.012	0.008

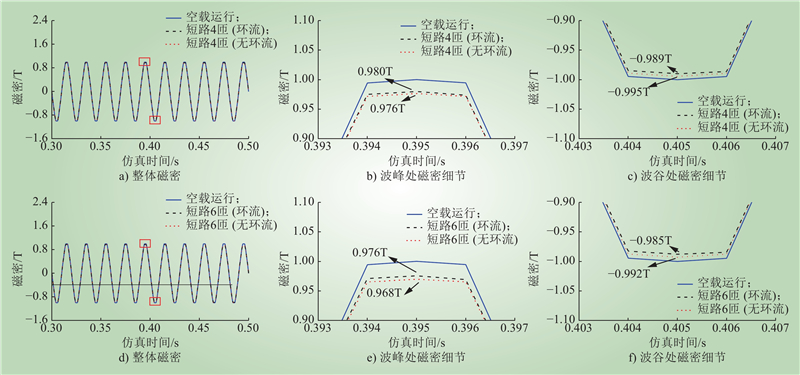

图 11 不同短路程度下磁密对比

Fig.11 Magnetic density contrast under different degrees of short circuit

表 3 不同短路程度下的磁密对比

Table 3 Magnetic density contrast under different degrees of short circuit 单位：T

短路匝数	波峰		波谷		不对称度		削弱程度
短路匝数	环流	无环流	环流	无环流	环流	无环流	削弱程度
2	0.990	0.986	–0.994	–0.998	0.004	0.012	0.008
4	0.980	0.976	–0.989	–0.995	0.009	0.019	0.010
6	0.976	0.968	–0.985	–0.992	0.009	0.024	0.015

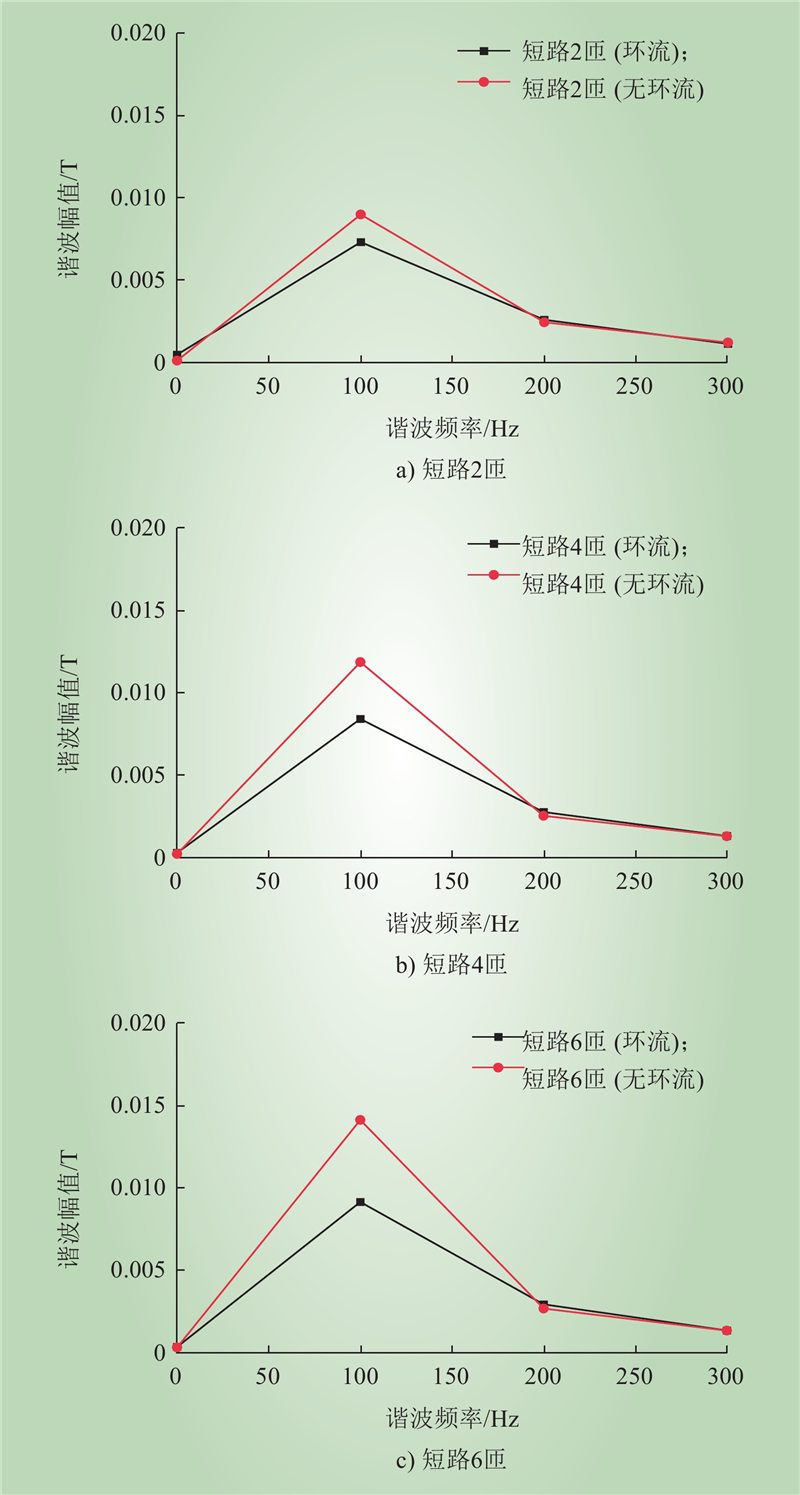

图 12 点1处磁密的谐波分析

Fig.12 Harmonic analysis of magnetic density at point 1
