基于高频阻抗谱的干式空心电抗器匝间短路故障诊断方法

doi:10.11930/j.issn.1004-9649.202309025

中国电力 ›› 2024, Vol. 57 ›› Issue (10): 218-224.DOI: 10.11930/j.issn.1004-9649.202309025

• 电网 • 上一篇

基于高频阻抗谱的干式空心电抗器匝间短路故障诊断方法

刘贺千¹(), 张健¹(), 张海月²(), 杨洪达¹, 陈世玉¹, 申昱博¹, 王磊¹

1. 国网黑龙江省电力有限公司电力科学研究院，黑龙江哈尔滨　150030
2. 工程电介质及其应用教育部重点实验室（哈尔滨理工大学），黑龙江哈尔滨　150080

收稿日期:2023-09-06 接受日期:2024-09-10 出版日期:2024-10-28 发布日期:2024-10-25
作者简介:刘贺千（1989—），男，博士，从事电力设备状态诊断技术研究，E-mail：heqian_liu@163.com
张健（1981—），男，硕士，高级工程师（教授级），从事电力设备状态监测及故障诊断研究，E-mail：13946077726@139.com
张海月（1997—），女，硕士，从事电力设备无损检测评估技术研究，E-mail：2819495983@qq.com
基金资助:
国网黑龙江省电力有限公司科技项目（52243723000L）；国家自然科学基金资助项目（51977051）。

A Fault Diagnosis Method for Interturn Short Circuit of Dry-Type Air-Core Reactor Based on High Frequency Impedance Spectrum

Heqian LIU¹(), Jian ZHANG¹(), Haiyue ZHANG²(), Hongda YANG¹, Shiyu CHEN¹, Yubo SHEN¹, Lei WANG¹

1. Electric Power Research Institute, State Grid Heilongjiang Electric Power Company Limited, Harbin 150030, China
2. Key Laboratory of Engineering Dielectrics and Its Application Ministry of Education (Harbin University of Science and Technology), Harbin 150080, China

Received:2023-09-06 Accepted:2024-09-10 Online:2024-10-28 Published:2024-10-25
Supported by:
This work is supported by Science & Technology Project of State Grid Heilongjiang Electric Power Company Limited (No.52243723000L) and National Natural Science Foundation of China (No.51977051).

摘要/Abstract

摘要：

提出了一种利用宽频阻抗谱对干式空心电抗器匝间短路故障进行有效检测的方法。首先，依据多导体传输线理论构建高频下完好电抗器的等值分布电路模型，并且根据分布等值电路参数计算公式构建其等值仿真模型，分析电抗器宽频阻抗谱的高频特性；其次，对发生匝间短路故障电抗器的宽频阻抗的幅度谱和相位谱进行仿真，分析电感参数变化对电抗器阻抗谱谐振频率的影响规律；最后，在实验室中对小型干式空心电抗器进行试验测试，验证了该方法的有效性。

关键词: 干式空心电抗器, 阻抗谱, 匝间短路, 故障诊断, 高频特性

Abstract:

A detection method for interturn short circuit fault in dry-type air-core reactor is proposed using broadband impedance spectroscopy. Firstly, an equivalent distributed circuit model of intact reactor under high frequency is constructed based on the theory of multi-conductor transmission lines, and an equivalent simulation model is established based on the parameter calculation equation of the distributed equivalent circuit to analyze the high-frequency characteristics of the reactor broadband impedance spectrum. Secondly, the amplitude spectrum and phase spectrum of the broadband impedance of the reactor with interturn short circuit fault are simulated to analyze the influence of inductance parameters on the resonant frequency of the reactor impedance spectrum. Finally, an experimental testing was conducted on a small dry-type air-core reactor in the laboratory, which has verified the effectiveness of the proposed method.

Key words: dry-type air-core reactor, impedance spectrum, interturn short circuit, fault diagnosis, high frequency characteristics

刘贺千, 张健, 张海月, 杨洪达, 陈世玉, 申昱博, 王磊. 基于高频阻抗谱的干式空心电抗器匝间短路故障诊断方法[J]. 中国电力, 2024, 57(10): 218-224.

Heqian LIU, Jian ZHANG, Haiyue ZHANG, Hongda YANG, Shiyu CHEN, Yubo SHEN, Lei WANG. A Fault Diagnosis Method for Interturn Short Circuit of Dry-Type Air-Core Reactor Based on High Frequency Impedance Spectrum[J]. Electric Power, 2024, 57(10): 218-224.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202309025

https://www.electricpower.com.cn/CN/Y2024/V57/I10/218

图/表 11

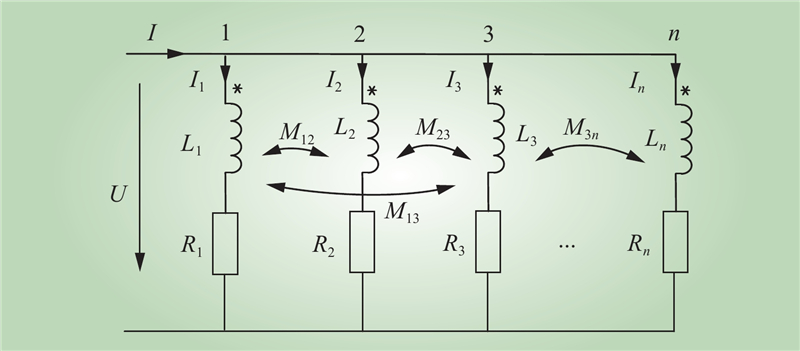

图 1 完好电抗器的等效电路

Fig.1 Equivalent circuit of intact reactor

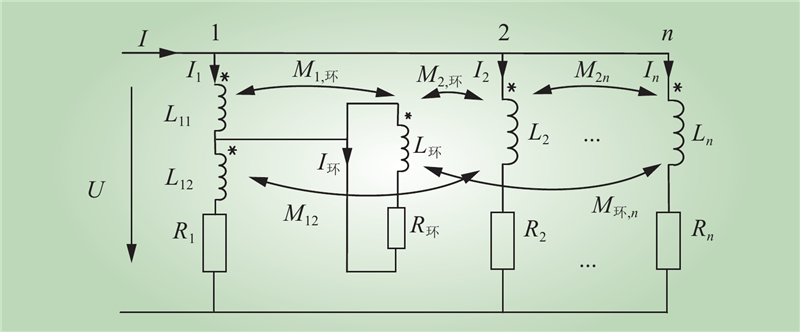

图 2 故障电抗器的等效电路

Fig.2 Equivalent circuit of reactor with interturn short circuit fault

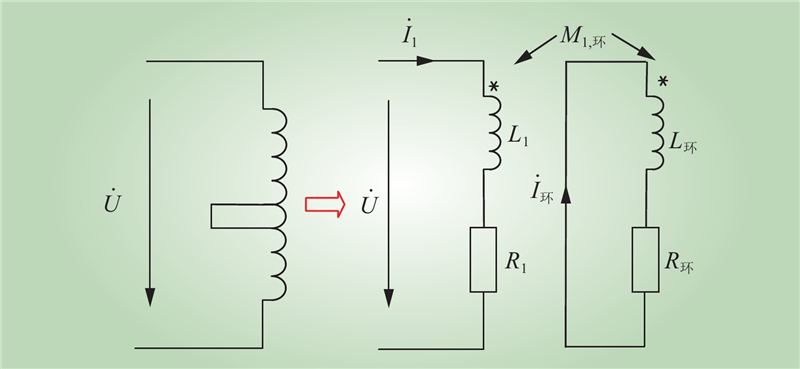

图 3 匝间短路部分等效电路

Fig.3 Equivalent circuit of interturn short circuit

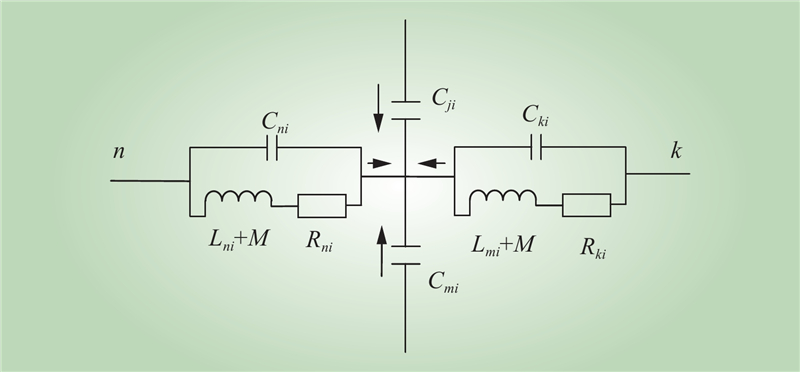

图 4 节点电路

Fig.4 Node circuit

图 5 节点电路

Fig.5 Node circuit

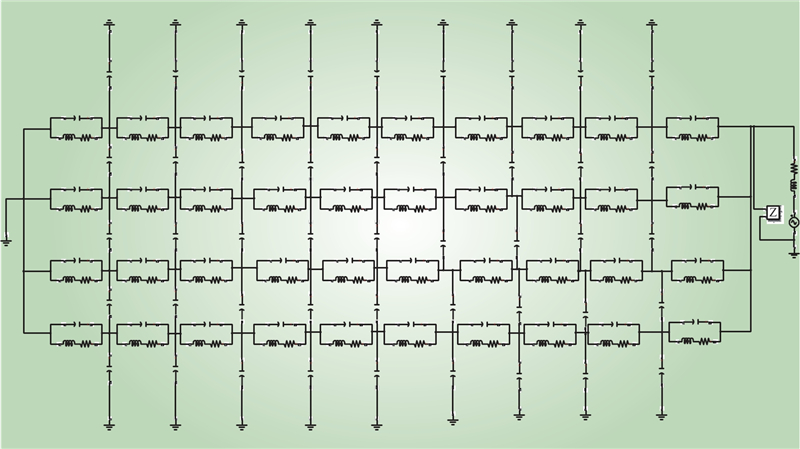

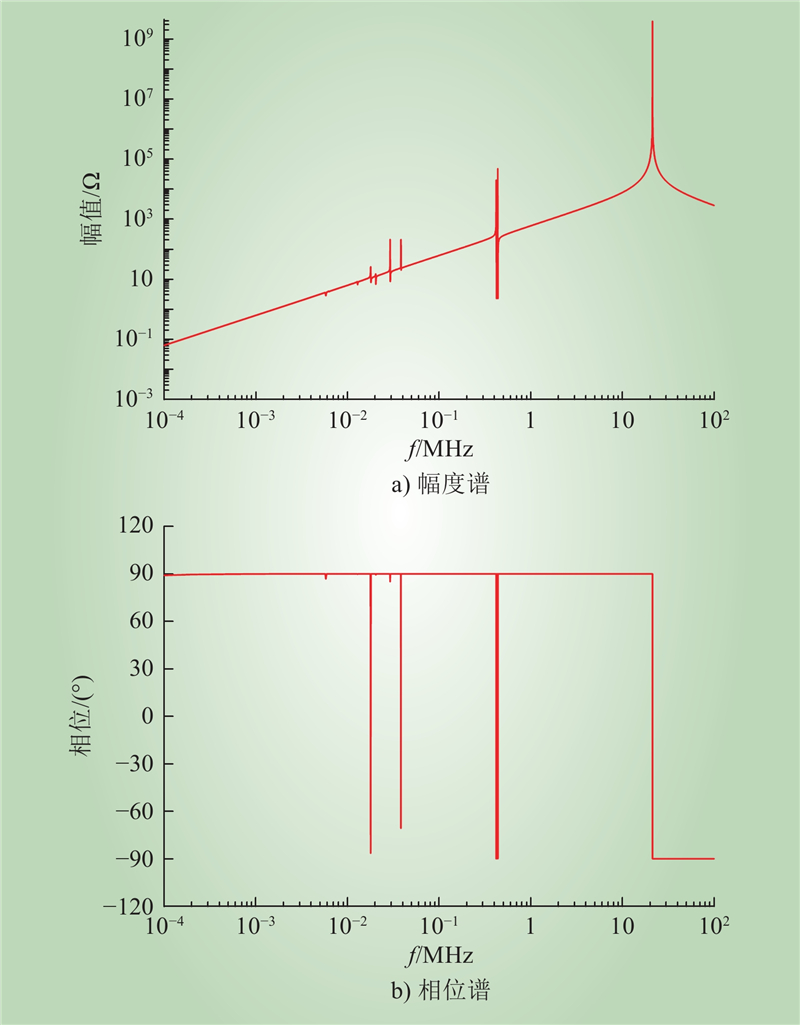

图 6 完好电抗器仿真电路

Fig.6 Simulation circuit of intact reactor

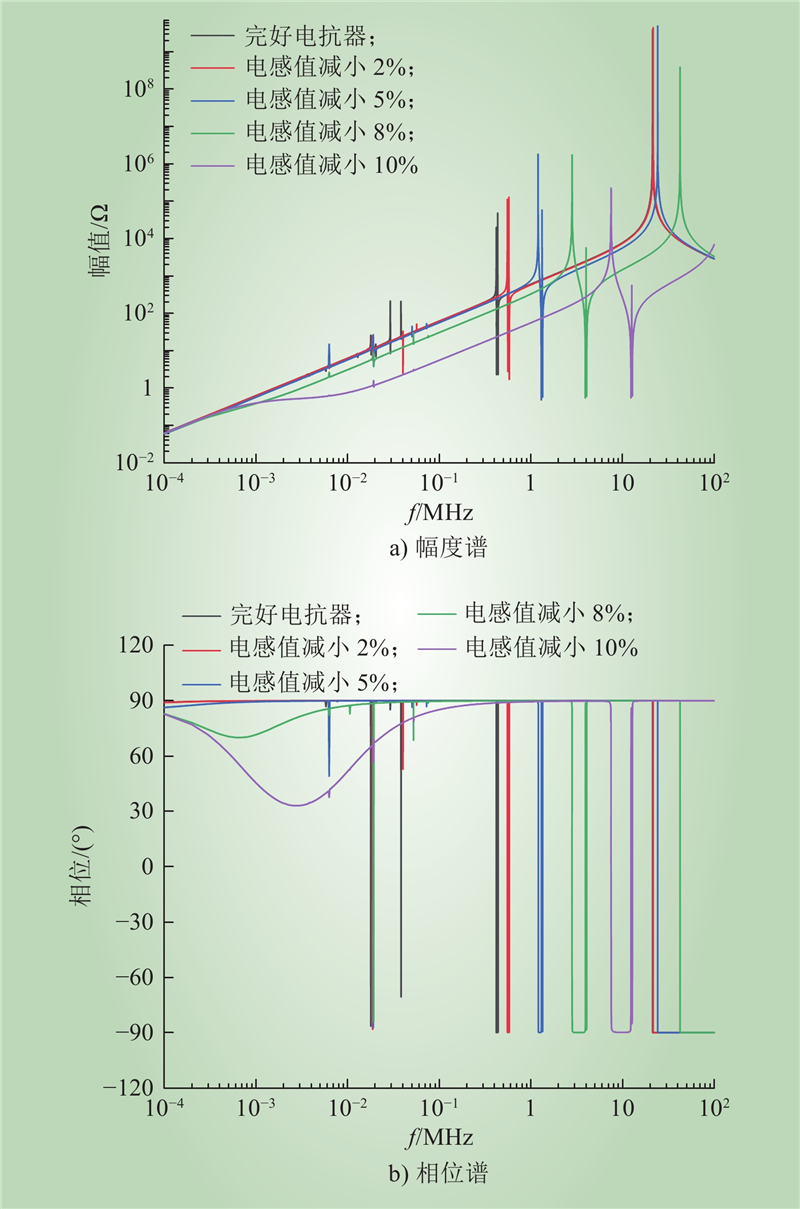

图 7 首端含匝间短路的电抗器阻抗谱

Fig.7 The impedance spectrum of reactor with interturn short circuit at the head end

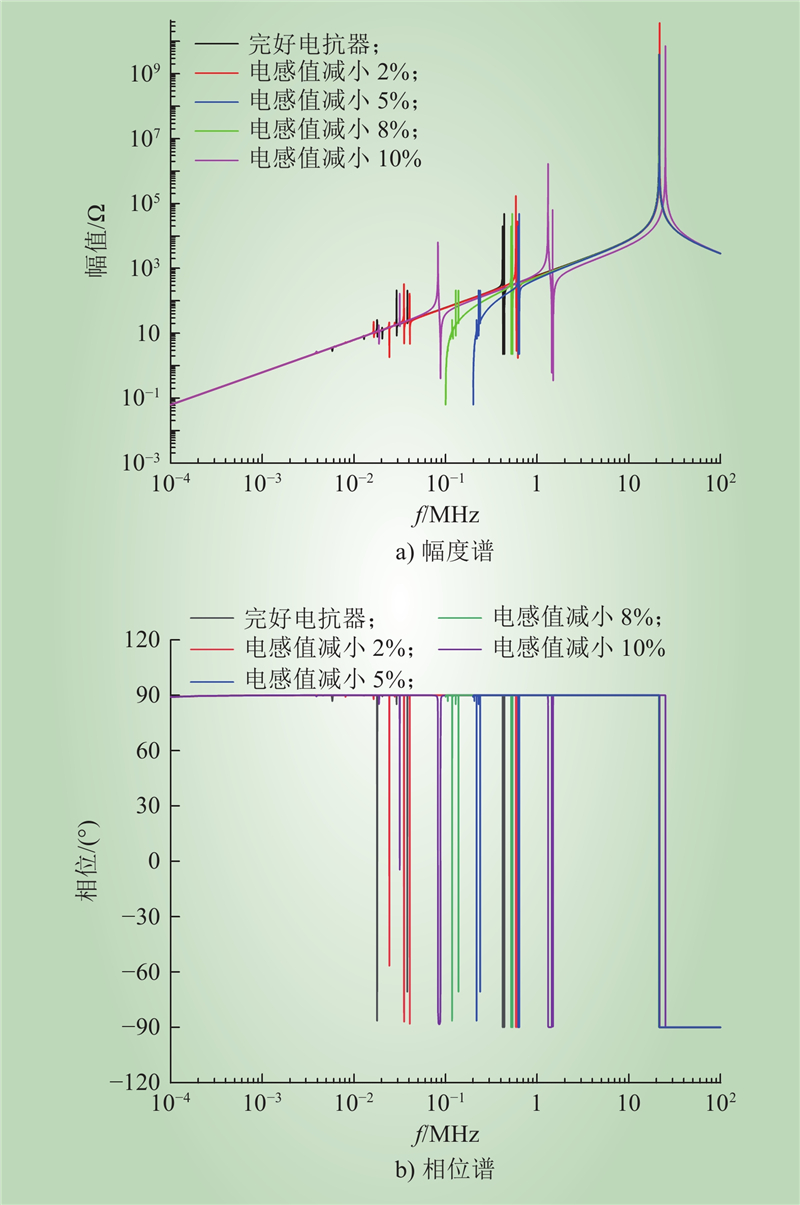

图 8 中部含匝间短路的电抗器阻抗谱

Fig.8 The impedance spectrum of reactor with interturn short circuit in the middle

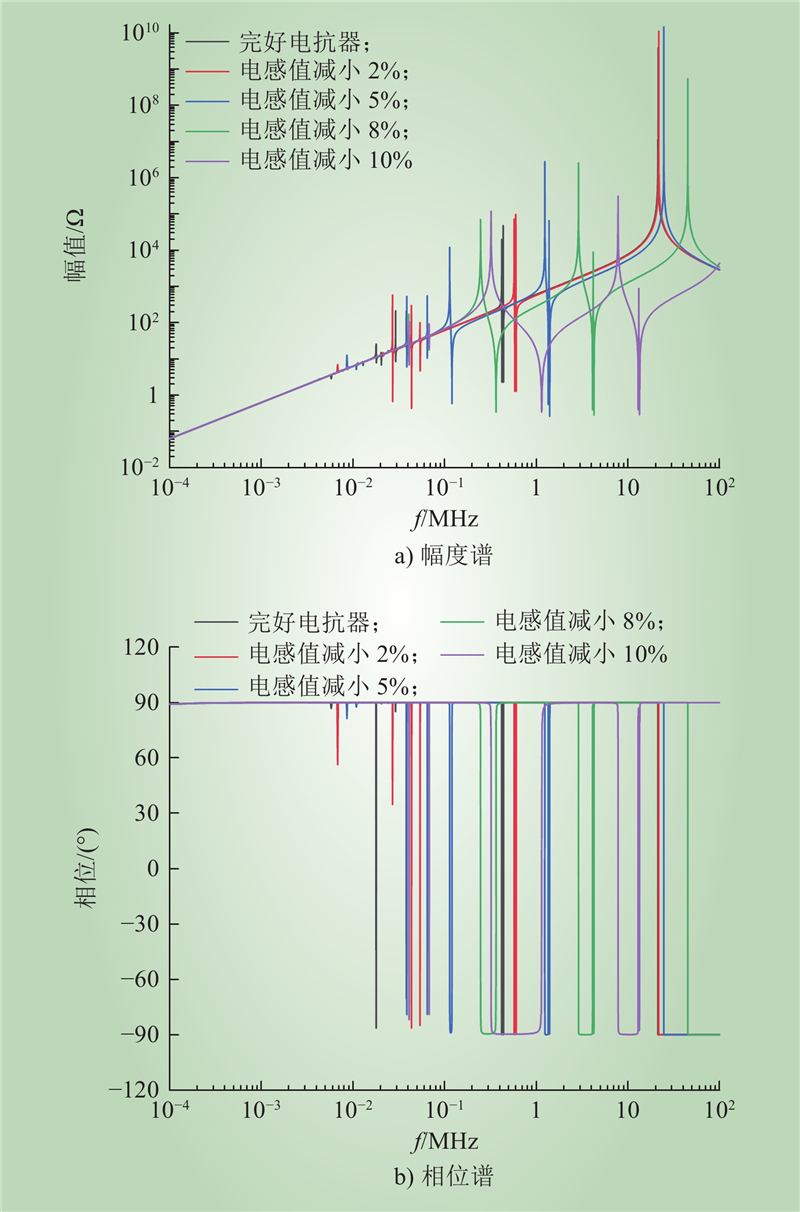

图 9 末端含匝间短路的电抗器阻抗谱

Fig.9 The impedance spectrum of the reactor with interturn short circuit at the end

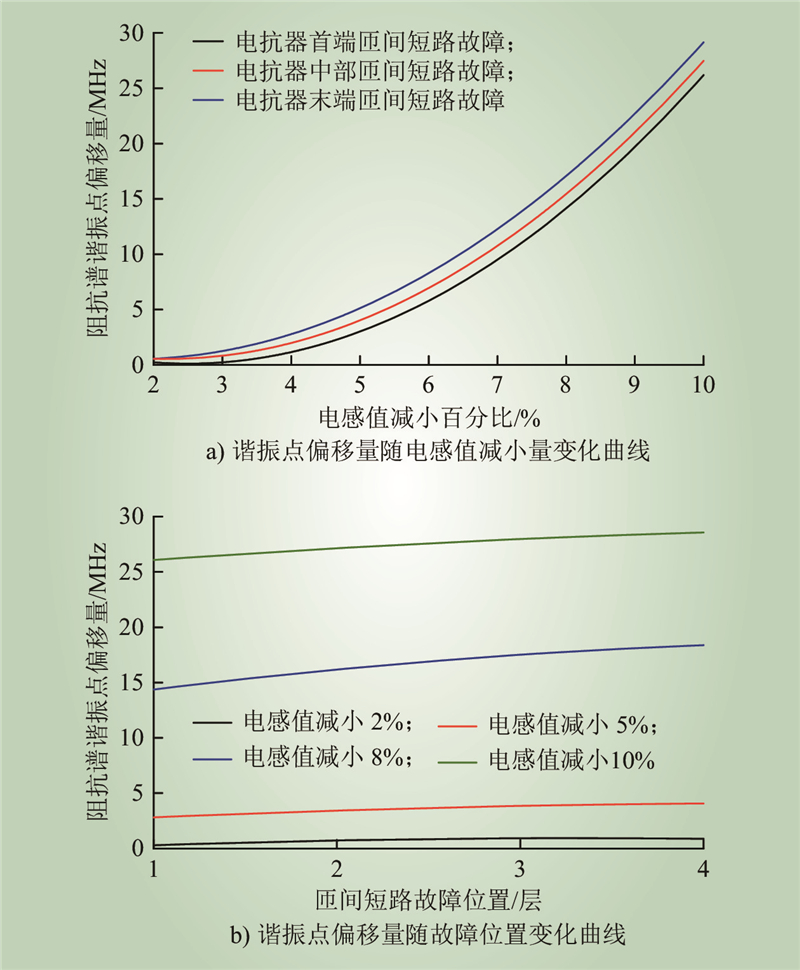

图 10 特征参量随故障程度和故障位置变化曲线

Fig.10 Curves of characteristic parameters varying with fault degree and fault location

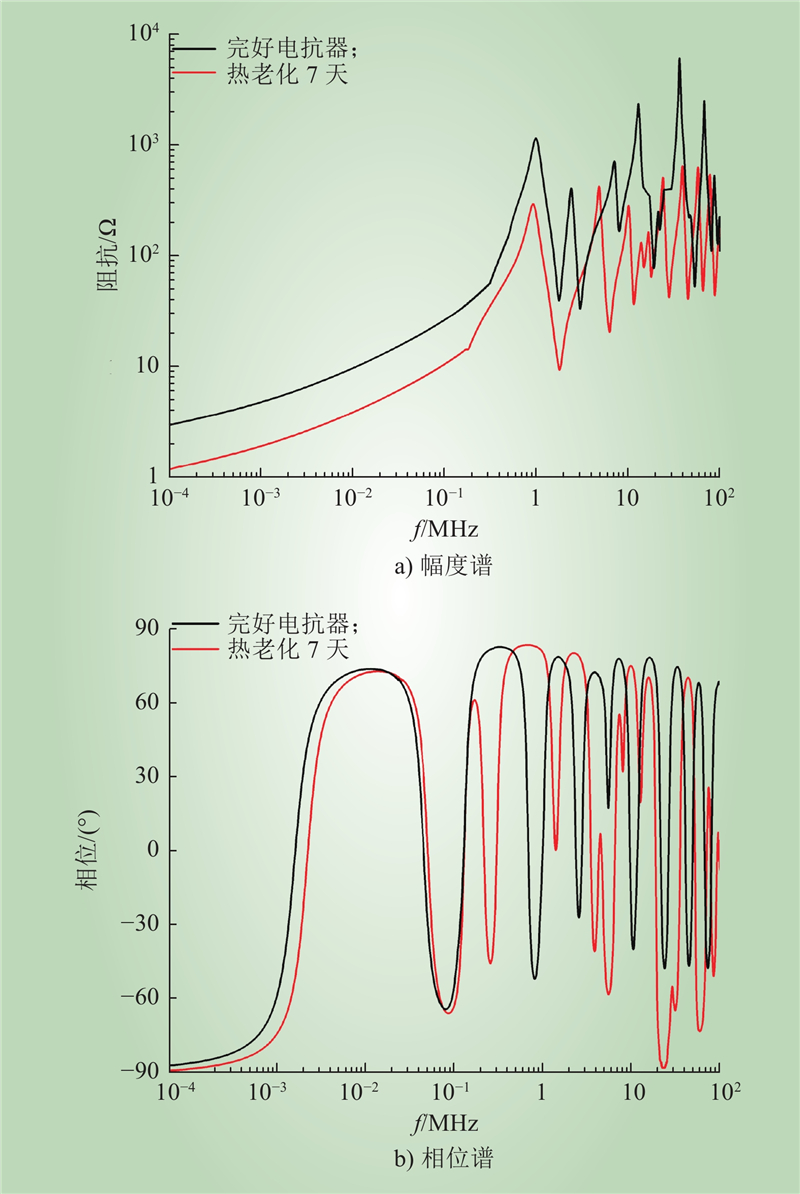

图 11 匝间短路故障阻抗谱

Fig.11 The tested impedance spectrum of interturn short circuit fault

参考文献 20

1	王硕, 霍慧娟, 徐丹, 等. 计及特高压交流工程建设的区域碳减排测算及分摊[J]. 中国电力, 2024, 57 (7): 163- 172.
	WANG Shuo, HUO Huijuan, XU Dan, et al. Calculation and sharing of regional carbon emission reduction considering construction of ultra high voltage AC projects[J]. Electric Power, 2024, 57 (7): 163- 172.
2	张孜怡. 基于高频扫频法的干式空心电抗器故障检测方法的研究[D]. 哈尔滨: 哈尔滨理工大学, 2022.
	ZHANG Ziyi. Research on fault detection method of dry-type air-core reactor based on high frequency sweep method[D].Harbin: Harbin University of Science and Technology, 2022.
3	张书鑫, 赵若凡, 刘鸿鹏. 模块化高压大容量DC/DC变换器综述[J]. 东北电力大学学报, 2024, 44 (1): 52- 60.
	ZHANG Shuxin, ZHAO Ruofan, LIU Hongpeng. Review of modular high voltage and large capacity DC/DC converter[J]. Journal of Northeast Electric Power University, 2024, 44 (1): 52- 60.
4	李文明, 苏亮. 园区直流微电网的故障分析及保护配置方案研究[J]. 中国电力, 2019, 52 (5): 119- 126.
	LI Wenming, SU Liang. Fault analysis and protection allocation research of park DC microgrid[J]. Electric Power, 2019, 52 (5): 119- 126.
5	刘堃, 李凯, 范彩云, 等. 换流阀饱和电抗器发热机理与燃烧仿真分析[J]. 南方电网技术, 2022, 16 (9): 18- 25.
	LIU Kun, LI Kai, FAN Caiyun, et al. Heating mechanism and combustion simulation analysis of saturated reactor in converter valve[J]. Southern Power System Technology, 2022, 16 (9): 18- 25.
6	马向辉, 张梓铭, 吴冇, 等. 2 GW海上风电对称单极与对称双极柔直送出方案技术经济性对比[J]. 南方电网技术, 2024, 18 (2): 30- 38.
	MA Xianghui, ZHANG Ziming, WU Mao, et al. Technical and economical comparisons of 2 GW offshore wind power transmission schemes by symmetrical monopole and symmetrical bipolar VSC-HVDC[J]. Southern Power System Technology, 2024, 18 (2): 30- 38.
7	张宇辉, 邵毕成, 孔祥旭, 等. 基于EWT和改进Prony算法的超高压线路单相自适应重合闸故障识别方法[J]. 东北电力大学学报, 2022, 42 (4): 28- 34.
	ZHANG Yuhui, SHAO Bicheng, KONG Xiangxu, et al. Single phase adaptive reclosing fault property identification method for EHV transmission lines based on EWT and improved prony algorithm[J]. Journal of Northeast Electric Power University, 2022, 42 (4): 28- 34.
8	陈凯, 王威儒, 童准. 基于电容换流的多端口直流限流断路器[J]. 东北电力大学学报, 2023, 43 (6): 32- 41.
	CHEN Kai, WANG Weiru, TONG Zhun. Multi-port current-limiting DC circuit breaker based on capacitor commutation[J]. Journal of Northeast Electric Power University, 2023, 43 (6): 32- 41.
9	陈炜, 吴晓文, 袁发庭, 等. 基于电磁-热-力多物理场仿真的铁心电抗器结构参数分层优化方法研究[J]. 智慧电力, 2024, 52 (4): 116- 124.
	CHEN Wei, WU Xiaowen, YUAN Fating, et al. Structural parameters hierarchical optimization of iron core reactors based on electromagnetic-thermal-force multi-physics simulation[J]. Smart Power, 2024, 52 (4): 116- 124.
10	袁发庭, 韩毅凛, 唐波, 等. 基于多岛遗传算法的干式空心电抗器热磁联合优化方法[J]. 南方电网技术, 2023, 17 (10): 42- 52.
	YUAN Fating, HAN Yilin, TANG Bo, et al. Thermal and magnetic joint optimization method of dry-type air core reactor based on multi-island genetic algorithm[J]. Southern Power System Technology, 2023, 17 (10): 42- 52.
11	金恩淑, 张弼弘, 胡晓晨, 等. 基于限流电抗器电压的柔性直流配电线路单端量保护新方法[J]. 东北电力大学学报, 2024, 44 (3): 64- 73.
	JIN Enshu, ZHANG Bihong, HU Xiaochen, et al. A new method of single-terminal protection for flexible DC distribution lines based on current-limiting reactor voltage[J]. Journal of Northeast Electric Power University, 2024, 44 (3): 64- 73.
12	ZHAO Z Y, YAO C G, TANG C, et al. Diagnosing transformer winding deformation faults based on the analysis of binary image obtained from FRA signature[J]. IEEE Access, 2019, 7, 40463- 40474. DOI
13	MUGARRA A, GUERRERO J M, MAYORA H, et al. Improvement in inter-turn faults detection in poles of synchronous machines by FRA grounding connection[J]. IEEE Transactions on Energy Conversion, 2022, 37 (4): 2601- 2609. DOI
14	RAO T M, MITRA S, PRAMANIK S. An improved method for identification of mechanical damage in an isolated transformer winding using FRA[C]//2022 IEEE 6th International Conference on Condition Assessment Techniques in Electrical Systems (CATCON). Durgapur, India. IEEE, 2022: 268–272.
15	LIU J, WANG S M, ZHANG H Y, et al. Diagnosis and location of cable defects based on digital reconstruction of impedance spectrum under pseudotrapezoidal PFM excitation[J]. IEEE Transactions on Industrial Electronics, 2023, 70 (11): 11754- 11763. DOI
16	张海月, 王守明, 刘骥, 等. 基于PT-PFM激励阻抗谱数字重构的电缆故障诊断定位[J/OL]. 中国电机工程学报: 1–12[2023-06-27].https://doi.org/10.13334/j.0258-8013.pcsee.222684
	ZHANG Haiyue, WANG Shouming, LIU Ji, et al. Cable fault diagnosis and localization based on digital reconstruction of PT-PFM excitation impedance spectrum [J/OL]. Chinese Journal of Electrical Engineering: 1–12[2023-06-27].https://doi.org/10.13334/j.0258-8013.pcsee.222684.
17	周志强. 基于宽频阻抗谱的电缆局部缺陷诊断方法研究[D]. 武汉: 华中科技大学, 2015.
	ZHOU Zhiqiang. Local defects diagnosis for cable based on broadband impedance spectroscopy[D]. Wuhan: Huazhong University of Science and Technology, 2015.
18	ZAENGL W S. Dielectric spectroscopy in time and frequency domain for HV power equipment. I. Theoretical considerations[J]. IEEE Electrical Insulation Magazine, 2003, 19 (5): 5- 19. DOI
19	HU Y X, CHEN L, LIU Y, et al. Principle and verification of an improved algorithm for cable fault location based on complex reflection coefficient spectrum[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2023, 30 (1): 308- 316. DOI
20	李浩, 晏年平, 贾志东. 干式空心电抗器包封受潮对绝缘的影响研究[J]. 高压电器, 2020, 56 (5): 55- 61.
	LI Hao, YAN Nianping, JIA Zhidong. Influence of moisture in dry-type air-core reactor package on its insulation[J]. High Voltage Apparatus, 2020, 56 (5): 55- 61.
