基于量子萤火虫算法的配电网故障恢复策略

doi:10.11930/j.issn.1004-9649.202309079

摘要/Abstract

摘要：

针对原有配电网故障恢复策略在处理高渗透率分布式光伏并网时效率低、易陷入局部收敛等问题，提出了一种基于量子萤火虫算法的配电网故障恢复策略。首先，以最小化失电负荷量为主和最小化网络损耗为从，构建主从双目标优化目标函数，并计及约束条件建立含分布式光伏并网的配电网故障恢复模型。其次，为克服标准萤火虫算法的不足，采用量子编码和量子旋转门的方式提高萤火虫算法的寻优速度和全局搜索能力，缩短故障恢复模型求解时间。然后，采用量子萤火虫算法求解故障恢复模型，通过控制配电网系统开关的通断，在保证重要负荷恢复供电的基础上尽可能多地恢复失电负荷，同时减少网络损耗。最后，在IEEE 33节点系统上进行算例分析以验证所述方法的可行性和优越性。

关键词: 配电网, 故障恢复, 分布式光伏, 量子旋转门, 量子萤火虫算法

Abstract:

Existing distribution network fault recovery strategy tends to be inefficient and locally convergent for high penetrated distributed photovoltaic grid connection. Hence in this paper, a distribution network fault recovery strategy is proposed based on quantum firefly algorithm . The objective function is constructed in terms of a master-slave dual objective optimization to minimize both the load loss and network losses, and corresponding fault recovery model with distributed photovoltaic grid connection is established by taking into account of the constraints. To overcome the drawbacks of the standard firefly algorithm, quantum encoding and quantum rotation gates were applied to enhance the optimization efficiency and global search capability of the firefly algorithm such that the total solution time can be greatly shortened. Next from the fault recovery model solved after proposed algorithm, by controlling the on-off status of the circuit breakers in the distribution network system, the lost load can be restored as much as possible to ensure the restoration of power supply to critical loads, while minimizing network losses. Finally, case studies were conducted on the IEEE 33 bus system to verify the feasibility and advantages of the proposed method.

Key words: distribution network, fault restoration, distributed photovoltaic, quantum rotation gate, quantum firefly algorithm

李娟, 汪家铭, 许苏迪, 姜云龙, 杨雄. 基于量子萤火虫算法的配电网故障恢复策略[J]. 中国电力, 2023, 56(12): 191-198.

Juan LI, Jiaming WANG, Sudi XU, Yunlong JIANG, Xiong YANG. Fault Recovery Strategy of Distribution Networks Based on Quantum Firefly Algorithm[J]. Electric Power, 2023, 56(12): 191-198.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202309079

https://www.electricpower.com.cn/CN/Y2023/V56/I12/191

图/表 9

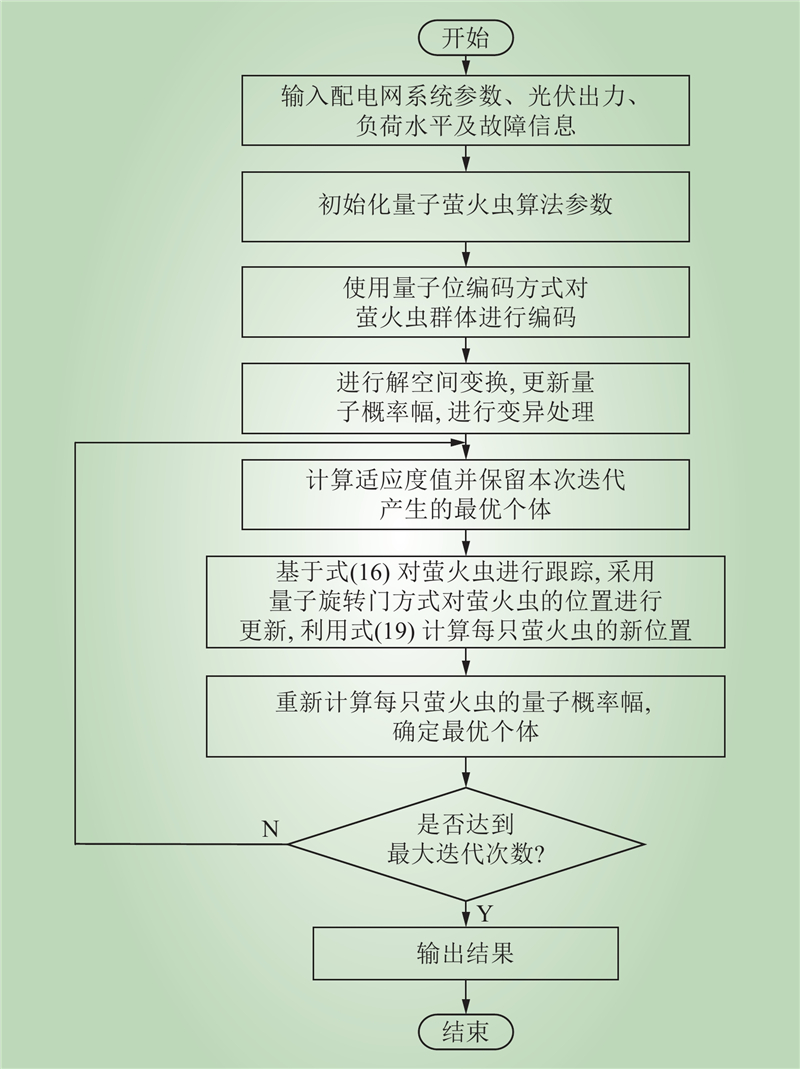

图 1 基于量子萤火虫算法的配电网故障恢复模型求解流程

Fig.1 Solution process of distribution network fault recovery model based on quantum firefly algorithm

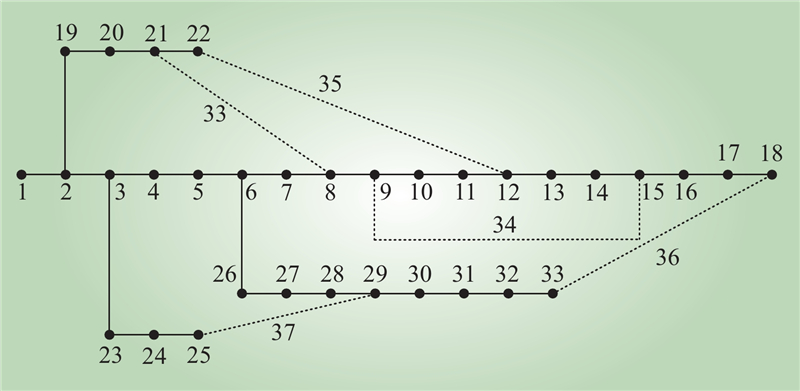

图 2 IEEE 33节点配网系统网络拓扑结构

Fig.2 Topology diagram of IEEE 33 bus distribution network system

表 1 节点处负荷重要程度划分和权重系数取值

Table 1 Importance classification of node load and weight coefficient values

负荷等级	负荷节点集合	权重系数w
一级	3、20、21、23、17、31	1.0
二级	4、5、12、13、15、19、22、24、 25、26、30、32	0.6
三级	剩余节点	0.1

表 2 方案一配电网系统故障前后结果对比

Table 2 Comparison of results before and after distribution network system failure of Scheme 1

时期	总失电负荷量/kW	重要负荷失电量/kW	恢复供电的负荷总功率/kW	失电负荷节点	恢复供电节点	闭合开关	断开开关
故障恢复前	860	480	0	27、28、29、30、 31、32、33	—	—	26—27
故障恢复后	0	0	860	—	27、28、29、30、 31、32、33	8—21、12—22、25—29、 9—15、18—33	7—8、9—10、14—15、 32—33、26—27

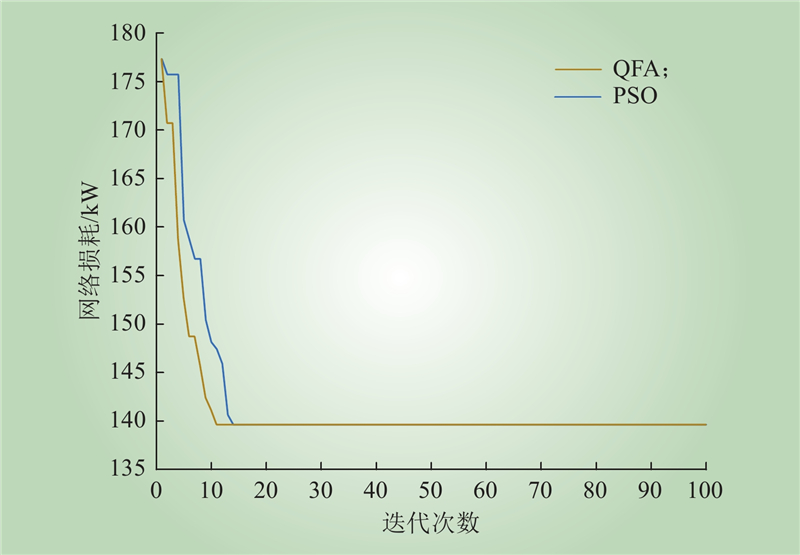

图 3 各算法的收敛特性曲线（无分布式光伏）

Fig.3 Convergence curve of QFA and PSO algorithm (without distributed PV)

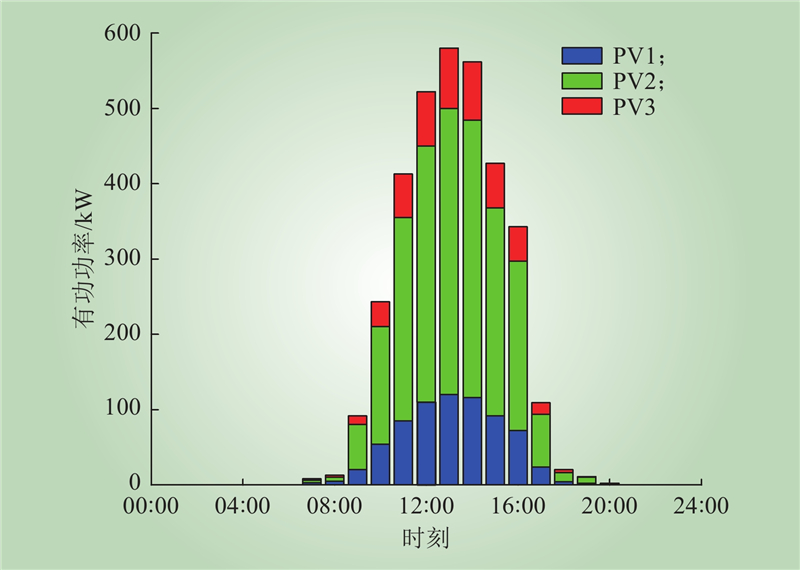

图 4 分布式光伏日有功出力曲线

Fig.4 Daily curve of distributed photovoltaic active output

表 3 方案二配电网系统故障前后结果对比

Table 3 Comparison of results before and after distribution network system failure of Scheme 2

时期	总失电负荷量/ kW	重要负荷失电量/ kW	恢复供电的负荷总功率/kW	失电负荷节点	恢复供电节点	闭合开关	断开开关	孤岛情况
故障恢复前	1015	180	0	7、8、9、10、11、12、13、14、15、16、18	—	—	6—7	孤岛（节点17）
故障恢复后	0	0	1015	—	7、8、9、10、11、12、 13、14、15、16、18	8—21、12—22、 9—15、18—33	9—10、14—15、 16—17、6—7	—

表 4 算法性能对比

Table 4 Comparison of algorithm performance

算法	失电负荷/kW	平均迭代次数	运行时间/s
QFA	0	12.3	11.74
PSO	0	17.4	20.06
文献[15]所提算法	0	14.2	12.68

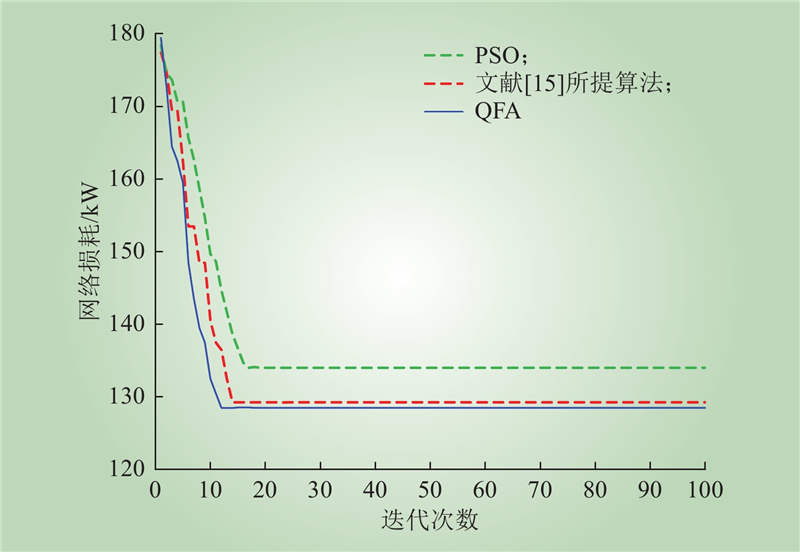

图 5 各算法的收敛特性曲线（含分布式光伏）

Fig.5 Convergence curve of each algorithm (with distributed PV)

参考文献 25

1	谭洪, 颜伟, 王浩. 基于建筑物热能流分析的沼-风-光孤立微能网优化调度模型[J]. 电网技术, 2020, 44 (7): 2483- 2491.
	TAN Hong, YAN Wei, WANG Hao. Optimal dispatch model of biogas-wind-solar isolated multi-energy micro-grid based on thermal energy flow analysis of buildings[J]. Power System Technology, 2020, 44 (7): 2483- 2491.
2	欧阳金鑫, 陈纪宇, 袁毅峰, 等. 考虑合环电压波动抑制的配电网故障恢复协同控制方法[J]. 电力系统自动化, 2023, 47 (9): 193- 201.
	OUYANG Jinxin, CHEN Jiyu, YUAN Yifeng, et al. Cooperative control method for fault restoration of distribution network considering closed-loop voltage fluctuation suppression[J]. Automation of Electric Power Systems, 2023, 47 (9): 193- 201.
3	王红君, 陈智晴, 赵辉, 等. 考虑风光荷不确定性的配电网故障恢复策略[J]. 电网技术, 2022, 46 (11): 4356- 4363.
	WANG Hongjun, CHEN Zhiqing, ZHAO Hui, et al. Reconstruction strategies for fault recovery of active distribution network with distributed generation uncertainties[J]. Power System Technology, 2022, 46 (11): 4356- 4363.
4	高兆丽, 胥明凯, 丁素英, 等. 基于改进人工蜂群算法的配电网多点故障应急抢修优化调度[J]. 电力系统保护与控制, 2019, 47 (13): 107- 114.
	GAO Zhaoli, XU Mingkai, DING Suying, et al. Optimization scheduling of multi-fault rush repair for distribution networks based on modified artificial bee colony algorithm[J]. Power System Protection and Control, 2019, 47 (13): 107- 114.
5	马天祥, 王春英, 贾静然, 等. 基于二进制粒子群算法的交直流混合配电网故障恢复方法[J]. 电力系统保护与控制, 2019, 47 (9): 112- 119.
	MA Tianxiang, WANG Chunying, JIA Jingran, et al. Fault recovery method for AC/DC hybrid distribution network based on binary particle swarm optimization algorithm[J]. Power System Protection and Control, 2019, 47 (9): 112- 119.
6	JAIN T, GHOSH D, MOHANTA D K. Augmentation of situational awareness by fault passage indicators in distribution network incorporating network reconfiguration[J]. Protection and Control of Modern Power Systems, 2019, 4 (1): 1- 14. DOI
7	卢俊杰, 杨晓东, 张有兵, 等. 含多端柔性软开关的互联配电系统故障恢复优化决策方法[J]. 中国电机工程学报, 2023, 43 (12): 4554- 4567.
	LU Junjie, YANG Xiaodong, ZHANG Youbing, et al. Optimal decision-making method for restoration of interconnected distribution networks with multi-terminal soft open point[J]. Proceedings of the Chinese Society for Electrical Engineering, 2023, 43 (12): 4554- 4567.
8	陈玮, 周贤正, 李晏君, 等. 考虑电动汽车配置的主动配电网鲁棒孤岛恢复[J]. 中国电机工程学报, 2018, 38 (S1): 58- 67.
	CHEN Wei, ZHOU Xianzheng, LI Yanjun, et al. A robust islanding restoration policy for active distribution network considering optimal allocation of emergency electric vehicles[J]. Proceedings of the CSEE, 2018, 38 (S1): 58- 67.
9	汤旻安, 张凯越, 许希元. 基于启发式规则与AHP-CRITIC算法的配电网故障恢复策略[J]. 电力系统保护与控制, 2020, 48 (14): 1- 9.
	TANG Minan, ZHANG Kaiyue, XU Xiyuan. Service restoration strategy of a distribution network based on heuristic rules and the AHP-CRITIC algorithm[J]. Power System Protection and Control, 2020, 48 (14): 1- 9.
10	李小文, 安义, 刘娟, 等. 基于启发式规则与改进和声算法的配网快速故障恢复网络重构[J]. 电力科学与技术学报, 2021, 36 (4): 91- 99.
	LI Xiaowen, AN Yi, LIU Juan, et al. Fast service restoration of distribution network based on combination of heuristic rules and improved harmony search algorithm[J]. Journal of Electric Power Science and Technology, 2021, 36 (4): 91- 99.
11	陈春, 吴宜桐, 李锰, 等. 基于网络拓扑有向遍历的配电网故障快速恢复方法[J]. 电力系统自动化, 2021, 45 (7): 44- 52.
	CHEN Chun, WU Yitong, LI Meng, et al. Method for fast recovery from distribution network fault based on directed traversal of network topology[J]. Automation of Electric Power Systems, 2021, 45 (7): 44- 52.
12	王雨婷, 张筱慧, 唐巍, 等. 考虑光伏及负荷时变性的配电网故障恢复[J]. 电网技术, 2016, 40 (9): 2706- 2713.
	WANG Yuting, ZHANG Xiaohui, TANG Wei, et al. Fault recovery of distribution network considering time variation of photovoltaic and load[J]. Power System Technology, 2016, 40 (9): 2706- 2713.
13	刘旭鹏, 王欣然, 邱爽, 等. 一种考虑分布式发电的主动配电网孤岛故障恢复重构新方法[J]. 农村电气化, 2023, (2): 54- 59.
	LIU Xupeng, WANG Xinran, QIU Shuang, et al. A new method for active distribution network island fault recovery and reconstruction considering distributed generation[J]. Rural Electrification, 2023, (2): 54- 59.
14	杨丽君, 曹玉洁, 何新, 等. 多代理系统下的主动配电网故障恢复博弈策略[J]. 控制理论与应用, 2018, 35 (5): 699- 708.
	YANG Lijun, CAO Yujie, HE Xin, et al. Active distribution network service restoration using multiagent systems and game theory[J]. Control Theory & Applications, 2018, 35 (5): 699- 708.
15	杨奕, 刘青, 吴毅, 等. 基于改进萤火虫算法的配电网故障恢复策略[J/OL]. 现代电力: 1–9[2023-08-21].https://kns.cnki.net/kcms/detail/11.3818.TM.20230414.1510.001.html.
	YANG Yi, LIU Qing, WU Yi, et al. A distribution network fault recovery strategy based on improved firefly algorithm[J/OL]. Modern Electricity: 1–9[2023-08-21].https://kns.cnki.net/kcms/detail/11.3818.TM.20230414.1510.001.html.
16	刘珅, 赵丽萍, 李建萍, 等. 考虑开关状态集调整的含光伏并网配电网动态故障恢复方法[J]. 电力系统保护与控制, 2021, 49 (1): 24- 31.
	LIU Shen, ZHAO Liping, LI Jianping, et al. A dynamic fault recovery method for grid-connected distribution networks with photovoltaics considering the adjustment of switch state sets[J]. Power System Protection and Control, 2021, 49 (1): 24- 31.
17	李浩, 张禄亮, 麦章渠, 等. 基于改进离散型麻雀搜索算法的配电网恢复重构方法[J]. 智慧电力, 2023, 51 (7): 16- 22, 30.
	LI Hao, ZHANG Luliang, MAI Zhangqu, et al. Distribution network recovery reconfiguration method based on improved discrete sparrow search algorithm[J]. Smart Power, 2023, 51 (7): 16- 22, 30.
18	CHEN L, JIANG Y Q, DENG X Y, et al. A novel fault recovery method of active distribution networks oriented to improving resilience[J]. Energy Reports, 2022, 8, 456- 466.
19	HUANG F Q, LIU Z J, WANG T H, et al. The optimization study about fault self-healing restoration of power distribution network based on multi-agent technology[J]. Computers, Materials & Continua, 2020, 65(1): 865–878.
20	宫宇, 张莲, 李涛, 等. 量子粒子群算法在配电网恢复重构中的应用[J]. 重庆理工大学学报(自然科学), 2022, (10): 200- 207.
	GONG Yu, ZHANG Lian, LI Tao, et al. Application of quantum particle swarm optimization in the restoration and reconstruction of power distribution network[J]. Journal of Chongqing University of Technology (Natural Science), 2022, (10): 200- 207.
21	刘刚, 陈莎, 仝进, 等. 含分布式电源接入的配电网故障恢复方法[J]. 电测与仪表, 2020, 57 (18): 50- 56.
	LIU Gang, CHEN Sha, TONG Jin, et al. Fault restoration method for power distribution networks considering distributed generations[J]. Electrical Measurement & Instrumentation, 2020, 57 (18): 50- 56.
22	TILAHUN S L, NGNOTCHOUYE J M T. Firefly algorithm for discrete optimization problems: a survey[J]. KSCE Journal of Civil Engineering, 2017, 21 (2): 535- 545. DOI
23	ARORA S, KAUR R. An escalated convergent firefly algorithm[J]. Journal of King Saud University-Computer and Information Sciences, 2022, 34 (2): 308- 315. DOI
24	ZITOUNI F, HAROUS S, MAAMRI R. A novel quantum firefly algorithm for global optimization[J]. Arabian Journal for Science and Engineering, 2021, 46 (9): 8741- 8759. DOI
25	KUNDRA H, KHAN W, MALIK M, et al. Quantum-inspired firefly algorithm integrated with cuckoo search for optimal path planning[J]. International Journal of Modern Physics C, 2022, 33 (2): 2250018. DOI
