基于ADMM的多场景县域多微电网交互运行策略

doi:10.11930/j.issn.1004-9649.202308065

摘要/Abstract

摘要：

在“双碳”目标的引领下，可再生能源的消纳需求迎来快速增长。为了实现县域内不同负荷特性的微电网可再生能源优势互补，提高消纳率，提出了基于交替方向乘子法（alternating direction method of multipliers，ADMM）的多场景县域多微电网交互运行策略。首先，建立微电网独立运行的调度模型，在日前预调度计划中实现最优调度策略；其次，建立多微电网电能交互运行模型，利用ADMM迭代求解各微网间全局交互电量；最后，利用Shapley值法分配微网群系统的收益，降低每个子微网的系统运行成本。算例分析表明，所提方法不仅能提高可再生能源的消纳率，提升经济性，还能降低碳排放量，实现低碳运行。

关键词: 多微电网, 多场景, 阶梯式碳交易, ADMM, Shapley

Abstract:

Under the guidance of the "double carbon" goal, renewable energy has witnessed rapid growth in accommodation demand. In order to realize the complementary advantages of microgrid and renewable energy in the county and improve the accommodation rate of renewable energy, a ADMM-based interactive operation strategy for multi-scenario county-level multi-microgrid is proposed. Firstly, a scheduling model for independent microgrid operation is established to realize the optimal scheduling strategy in the day-ahead pre-scheduling plan. Secondly, a multi-microgrid energy interactive operation model is established, which is iteratively solved with the ADMM algorithm to obtain the global interactive energy between microgrids. Finally, the Shapley value method is used to allocate the benefits of the microgrid group and reduce the system operation cost of each sub-microgrid. The case study shows that the proposed method can not only improve the accommodation rate of renewable energy and realize the economy, but also reduce carbon emissions and realize low-carbon operation.

Key words: multi-microgrid, multi-scenario, cascade carbon trading, ADMM, Shapley

张冲标, 钱辰雯, 俞红燕, 彭燕玲, 陈金威. 基于ADMM的多场景县域多微电网交互运行策略[J]. 中国电力, 2024, 57(2): 9-18.

Chongbiao ZHANG, Chenwen QIAN, Hongyan YU, Yanling PENG, Jinwei CHEN. Interactive Operation Strategy for Multi-scenario County-Level Multi-microgrid Based on ADMM[J]. Electric Power, 2024, 57(2): 9-18.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202308065

https://www.electricpower.com.cn/CN/Y2024/V57/I2/9

图/表 9

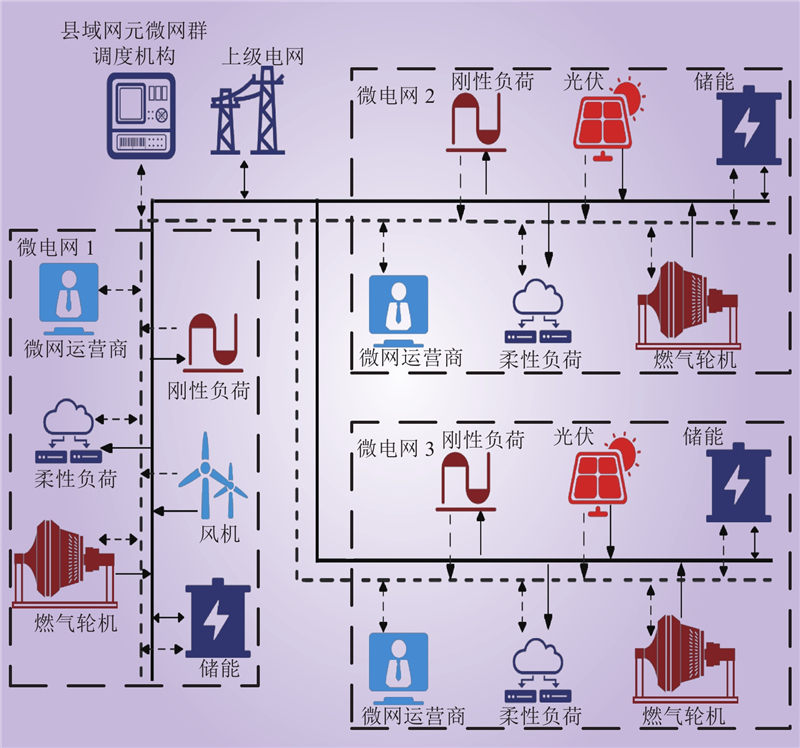

图 1 县域网元区域内的微电网群互联交互框架结构

Fig.1 Interconnected interactive framework structure of microgrid group in county network element area

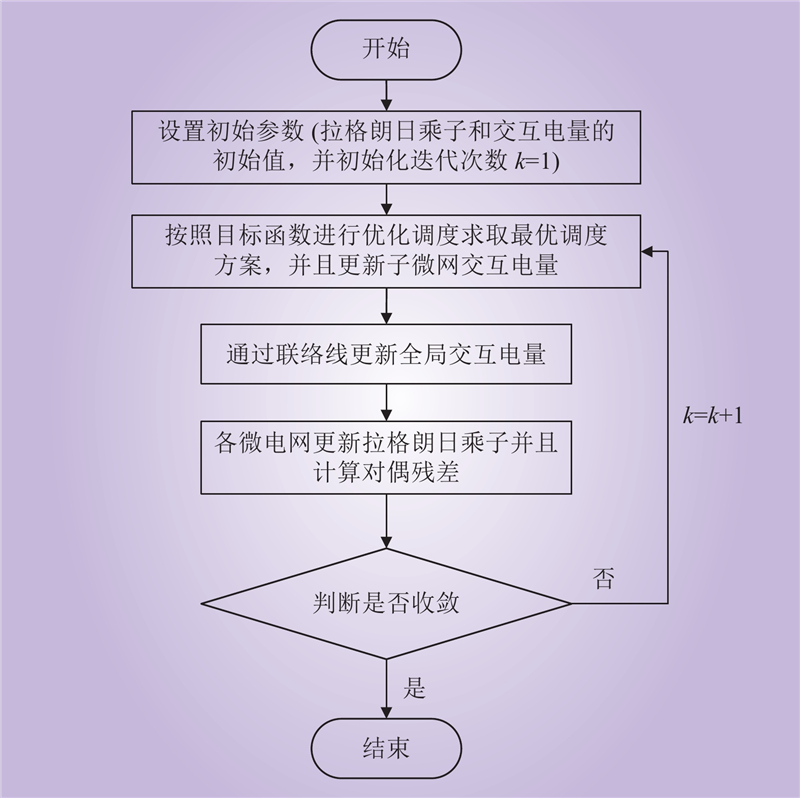

图 2 优化调度流程

Fig.2 Optimal scheduling process

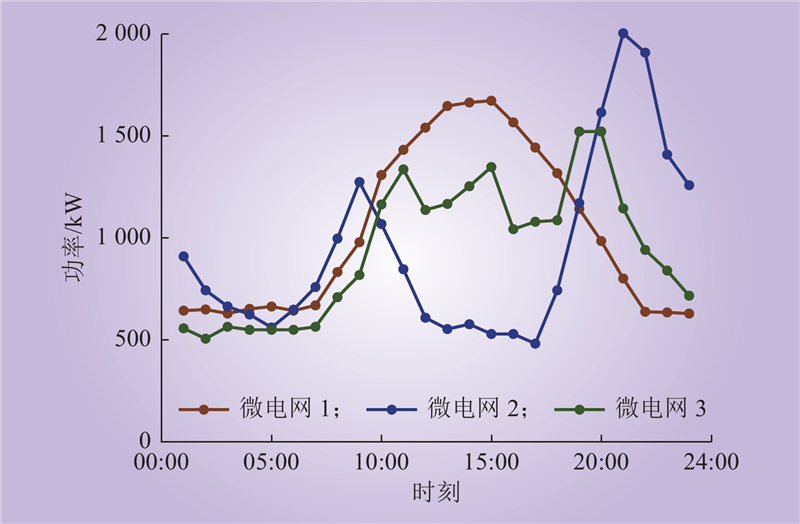

图 3 微电网群负荷曲线

Fig.3 Load curves of microgrid group

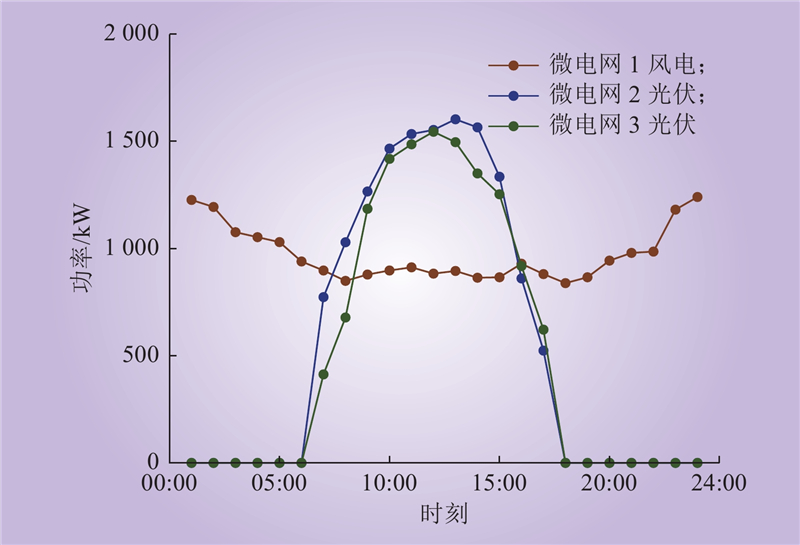

图 4 可再生能源预测出力

Fig.4 Renewable energy forecast output

表 1 3种不同运行方式下各微网成本

Table 1 The cost of each microgrid under three different operating modes

场景	运行成本/元				微电网群碳排放量/kg
场景	微网1	微网2	微网3	微网群	微电网群碳排放量/kg
1	8586.5	13016.7	10513.9	32117.1	18120.4
2	7794.3	13418.1	10480.9	31693.3	17673.2
3	10240.2	9035.4	5851.9	25127.5	11008.2

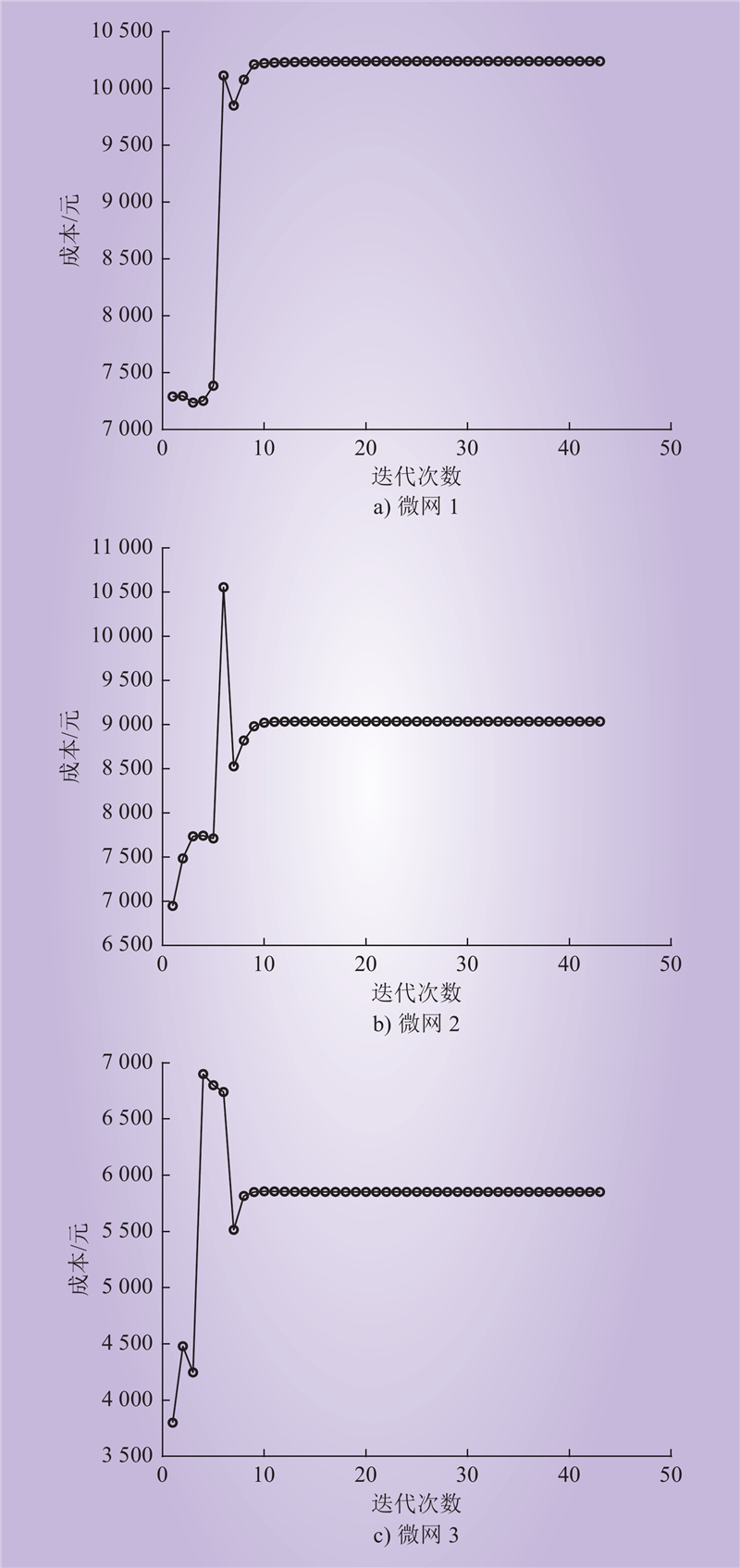

图 5 成本收敛情况

Fig.5 Cost convergence

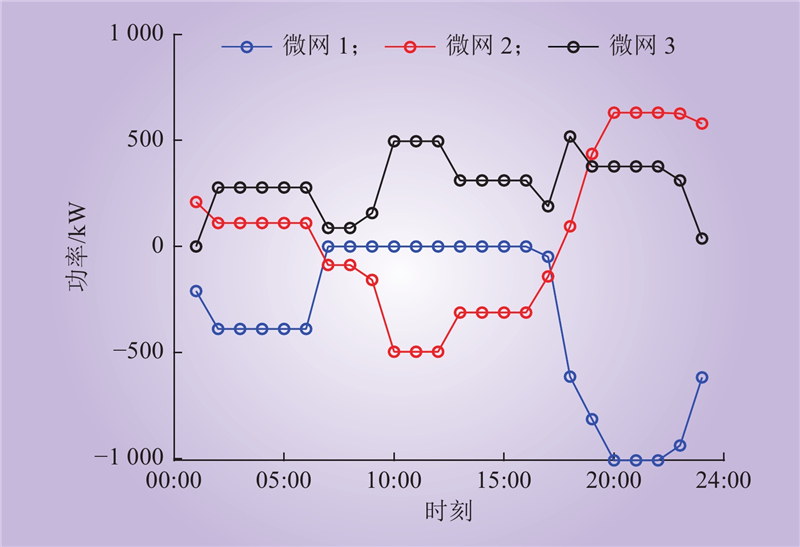

图 6 微电网间电能交互结果

Fig.6 Energy interaction results between microgrids

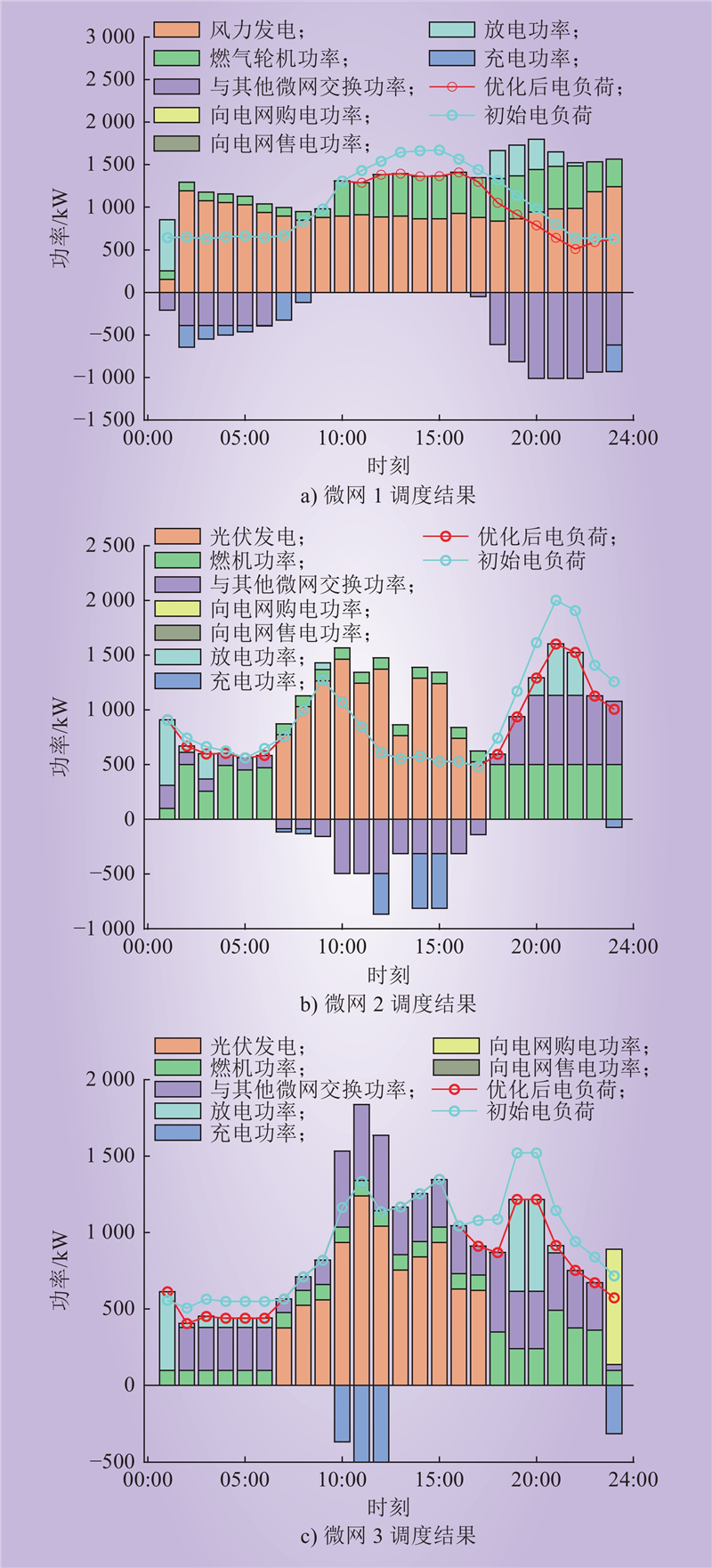

图 7 优化调度后各微网机组出力

Fig.7 The output of each microgrid unit after optimal scheduling

表 2 Shapley法分配收益后各微网实际运行成本

Table 2 The actual operating cost of each microgrid after Shapley benefit allocation

运行方式	运行成本/元
运行方式	微电网1	微电网2	微电网3	合计
微网1、2、3独立运行	8586.5	13016.7	10513.9	32117.1
微电网1、2、3联合运行	10240.2	9035.4	5851.9	25127.5
Shapley法分配后微电网 1、2、3联合运行	5488.4	10338.8	9300.3	25127.5

参考文献 25

1	孟宇翔, 马刚, 李豪, 等. 基于绿证-阶梯式碳交易交互的源荷互补调度优化[J]. 中国电力, 2023, 56 (9): 149- 156.
	MENG Yuxiang, MA Gang, LI Hao, et al. Optimal scheduling of source-load complementation based on green certificate-step carbon trading interaction[J]. Electric Power, 2023, 56 (9): 149- 156.
2	ZHONG W F, XIE S L, XIE K, et al. Cooperative P2P energy trading in active distribution networks: an MILP-based Nash bargaining solution[J]. IEEE Transactions on Smart Grid, 2021, 12 (2): 1264- 1276.
3	YU J, PAN Y, WU J W, et al. Multi-type energy demand response management strategy considering energy cascade utilization[J]. Energies, 2022, 15 (10): 3635. DOI
4	徐青山, 李淋, 蔡霁霖, 等. 考虑电能交互的冷热电多微网系统日前优化经济调度[J]. 电力系统自动化, 2018, 42 (21): 36- 44.
	XU Qingshan, LI Lin, CAI Jilin, et al. Day-ahead optimized economic dispatch of CCHP multi-microgrid system considering power interaction among microgrids[J]. Automation of Electric Power Systems, 2018, 42 (21): 36- 44.
5	吴成明, 邢博洋, 李世春. 基于麻雀搜索算法的微电网分层优化调度[J/OL]. 南方电网技术: 1–9[2023-05-19]. http://kns.cnki.net/kcms/detail/44.1643.TK.20230518.1235.002.html.
	WU Chengming, XING Boyang, LI Shichun. Hierarchical optimal dispatch of microgrid based on the sparrow search algorithm[J/OL]. Southern Power System Technology: 1–9[2023-05-19]. http://kns.cnki.net/kcms/detail/44.1643.TK.20230518.1235.002.html.
6	汪奕宏, 刘继春, 邱高, 等. 基于深度学习方法集成的配-微电网分布鲁棒优化调度[J/OL]. 电测与仪表: 1–10[2023-04-25]. http://kns.cnki.net/kcms/detail/23.1202.TH.20230425.0927.002.html.
	WANG Yihong, LIU Jichun, QIU Gao, et al. Distributed robust scheduling of distribution-microgrid based on deep learning method integration[J/OL]. Electrical Measurement and Instrumentation: 1–10[2023-04-25]. http://kns.cnki.net/kcms/detail/23.1202.TH.20230425.0927.002.html.
7	陈曦, 付文龙, 张海荣, 等. 考虑新能源发电不确定性的含微电网群共享储能优化调度[J/OL]. 电网技术: 1–17[2023-03-22]. https://doi.org/10.13335/j.1000-3673.pst.2022.2541.
	CHEN Xi, FU Wenlong, ZHANG Hairong, et al. Optimal dispatching strategy of shared energy storage and multi-microgrid considering the uncertainty of new energy generation[J/OL]. Power System Technology: 1–17[2023-03-22]. https://doi.org/10.13335/j.1000-3673.pst.2022.2541.
8	曹正斐, 张忠辉, 董治成, 等. 基于区块链的多互联微电网分布式协调优化调度[J]. 电力系统及其自动化学报, 2022, 34 (9): 138- 145.
	CAO Zhengfei, ZHANG Zhonghui, DONG Zhicheng, et al. Distributed coordination and optimization scheduling of multi-interconnected microgrids based on block chain[J]. Proceedings of the CSU-EPSA, 2022, 34 (9): 138- 145.
9	王程, 刘念. 基于交替方向乘子法的互联微电网系统分布式优化调度[J]. 电网技术, 2016, 40 (9): 2675- 2681.
	WANG Cheng, LIU Nian. Distributed optimal dispatching of interconnected microgrid system based on alternating direction method of multipliers[J]. Power System Technology, 2016, 40 (9): 2675- 2681.
10	陈刚, 杨毅, 杨晓梅, 等. 基于分布式牛顿法的微电网群分布式优化调度方法[J]. 电力系统自动化, 2017, 41 (21): 156- 162.
	CHEN Gang, YANG Yi, YANG Xiaomei, et al. Distributed optimization scheduling method for microgrid cluster based on distributed Newton method[J]. Automation of Electric Power Systems, 2017, 41 (21): 156- 162.
11	李敏, 程杉, 陈梓铭, 等. 多微电网系统优化调度的混合博弈模型及求解[J]. 电力系统及其自动化学报, 2023, 35 (12): 12- 19.
	LI Min, CHENG Shan, CHEN Ziming, et al. Hybrid game model for optimal scheduling of multi-microgrid system and its solution[J]. Proceedings of the CSU-EPSA, 2023, 35 (12): 12- 19.
12	胡蓉, 魏震波, 黄宇涵, 等. 基于交替乘子法与Shapley分配法的多微网联合经济调度[J]. 电力建设, 2021, 42 (7): 28- 38.
	HU Rong, WEI Zhenbo, HUANG Yuhan, et al. Multi-microgrid joint economic dispatch based on alternating multiplier method and shapley distribution method[J]. Electric Power Construction, 2021, 42 (7): 28- 38.
13	董帅, 王成福, 梁军, 等. 计及电转气运行成本的综合能源系统多目标日前优化调度[J]. 电力系统自动化, 2018, 42 (11): 8- 15, 121.
	DONG Shuai, WANG Chengfu, LIANG Jun, et al. Multi-objective optimal day-ahead dispatch of integrated energy system considering power-to-gas operation cost[J]. Automation of Electric Power Systems, 2018, 42 (11): 8- 15, 121.
14	崔杨, 周慧娟, 仲悟之, 等. 考虑源荷两侧不确定性的含风电电力系统低碳调度[J]. 电力自动化设备, 2020, 40 (11): 85- 93.
	CUI Yang, ZHOU Huijuan, ZHONG Wuzhi, et al. Low-carbon scheduling of power system with wind power considering uncertainty of both source and load sides[J]. Electric Power Automation Equipment, 2020, 40 (11): 85- 93.
15	马跃, 孟润泉, 李婷婷. 考虑柔性负荷和阶梯碳交易的微电网鲁棒优化调度[J/OL]. 现代电力: 1–11[2023-05-17].https://doi.org/10.19725/j.cnki.1007-2322.2022.0240.
	MA Yue, MENG Runquan, LI Tingting. Robust optimal dispatch of microgrid considering flexible loads and step carbon trading[J/OL]. Modern Electric Power: 1–11[2023-05-17].https://doi.org/10.19725/j.cnki.1007-2322.2022.0240.
16	周孟然, 王旭, 邵帅, 等. 考虑需求响应和碳排放额度的微电网分层优化调度[J]. 中国电力, 2022, 55 (10): 45- 53.
	ZHOU Mengran, WANG Xu, SHAO Shuai, et al. Hierarchical optimal scheduling of microgrid considering demand response and carbon emission quota[J]. Electric Power, 2022, 55 (10): 45- 53.
17	贾宏刚, 王主丁, 岳园园, 等. 微电网调度模型的寻优性能与求解效率改进优化[J]. 中国电力, 2023, 56 (6): 107- 113, 131.
	JIA Honggang, WANG Zhuding, YUE Yuanyuan, et al. Optimization performance and efficiency improvement of microgrid scheduling model[J]. Electric Power, 2023, 56 (6): 107- 113, 131.
18	吴锦领, 楼平, 管敏渊, 等. 基于非对称纳什谈判的多微网电能共享运行优化策略[J]. 电网技术, 2022, 46 (7): 2711- 2723.
	WU Jinling, LOU Ping, GUAN Minyuan, et al. Operation optimization strategy of multi-microgrids energy sharing based on asymmetric Nash bargaining[J]. Power System Technology, 2022, 46 (7): 2711- 2723.
19	张进, 胡存刚, 芮涛. 基于交替方向乘子法的主动配电网日前两阶段分布式优化调度策略[J]. 中国电力, 2021, 54 (5): 91- 100.
	ZHANG Jin, HU Cungang, RUI Tao. A day-ahead two-stage distributed optimal scheduling method for active distribution network based on ADMM[J]. Electric Power, 2021, 54 (5): 91- 100.
20	乔学博, 杨志祥, 李勇, 等. 计及两级碳交易和需求响应的多微网合作运行优化策略[J]. 高电压技术, 2022, 48 (7): 2573- 2583.
	QIAO Xuebo, YANG Zhixiang, LI Yong, et al. Optimization strategy for cooperative operation of multi-microgrids considering two-level carbon trading and demand response[J]. High Voltage Engineering, 2022, 48 (7): 2573- 2583.
21	范添圆, 王海云, 王维庆, 等. 计及主/被动需求响应下基于合作博弈的微网–配电网协调优化调度[J]. 电网技术, 2022, 46 (2): 453- 463.
	FAN Tianyuan, WANG Haiyun, WANG Weiqing, et al. Coordinated optimization scheduling of microgrid and distribution network based on cooperative game considering active/passive demand response[J]. Power System Technology, 2022, 46 (2): 453- 463.
22	王嘉瑶, 宋翔宇, 朱俊武. 基于精确分类和最优匹配机制微电网交易决策方法[J/OL]. 计算机应用研究: 1–9[2023-08-22]. https://doi.org/10.19734/j.issn.1001-3695.2023.06.0247.
	WANG Jiayao, SONG Xiangyu, ZHUN Junwu. Microgrid transaction decision making method based on precise classification and optimal matching mechanism[J/OL]. Application Research of Computers: 1–9[2023-08-22]. https://doi.org/10.19734/j.issn.1001-3695.2023.06.0247.
23	蒋从伟, 欧庆和, 吴仲超, 等. 基于联盟博弈的多微网共享储能联合配置与优化[J]. 中国电力, 2022, 55 (12): 11- 21.
	JIANG Congwei, OU Qinghe, WU Zhongchao, et al. Joint configuration and optimization of multi-microgrid shared energy storage based on coalition game[J]. Electric Power, 2022, 55 (12): 11- 21.
24	郑晨昕, 江岳文. 基于改进Shapley值的风电波动成本分摊策略[J]. 电网技术, 2021, 45 (11): 4387- 4394.
	ZHENG Chenxin, JIANG Yuewen. Wind power fluctuation cost allocation based on improved Shapley value[J]. Power System Technology, 2021, 45 (11): 4387- 4394.
25	田欣, 陈来军, 李笑竹, 等. 基于主从博弈和改进Shapley值的分布式光伏社区共享储能优化运行策略[J]. 电网技术, 2023, 47 (6): 2252- 2261.
	TIAN Xin, CHEN Laijun, LI Xiaozhu, et al. Optimal scheduling for energy storage sharing among communities with photovoltaic resource based on stackelberg game and improved Shapley value[J]. Power System Technology, 2023, 47 (6): 2252- 2261.
