计及气固两相储氢特性的海上风电-多元储能系统优化配置

doi:10.11930/j.issn.1004-9649.202308048

中国电力 ›› 2024, Vol. 57 ›› Issue (9): 103-112.DOI: 10.11930/j.issn.1004-9649.202308048

• 海上风电制氢技术经济、规划运行及政策机制 • 上一篇下一篇

计及气固两相储氢特性的海上风电-多元储能系统优化配置

姜文瑾¹(), 刘巧妹², 杨晓东¹, 阙定飞³, 沈豫⁴, 黄夏楠⁴, 赖振华⁵()

1. 国网福建省电力有限公司，福建福州　350003
2. 国网福建省电力有限公司超高压分公司，福建福州　350013
3. 国网福建省电力有限公司电力科学研究院，福建福州　350007
4. 国网福建省电力有限公司经济技术研究院，福建福州　350012
5. 福州大学电气工程与自动化学院，福建福州　350108

收稿日期:2023-08-14 接受日期:2023-12-13 出版日期:2024-09-28 发布日期:2024-09-23
作者简介:姜文瑾（1970—），女，高级工程师，从事电力系统优化研究，E-mail：1643730086@qq.com
赖振华（2000—），男，硕士研究生，从事电力系统优化研究，E-mail：laizhenhua814@163.com
基金资助:
国网福建省电力有限公司科技项目（“双碳目标”背景下福建海上风能+多元储能系统发展战略及对电网影响分析，521300220013）。

Optimal Allocation of Offshore Wind Power-Multiple Energy Storage System Considering Gas-Solid Two-Phase Hydrogen Storage Characteristics

Wenjin JIANG¹(), Qiaomei LIU², Xiaodong YANG¹, Dingfei QUE³, Yu SHEN⁴, Xianan HUANG⁴, Zhenhua LAI⁵()

1. State Grid Fujian Electric Power Co., Ltd., Fuzhou 350003, China
2. State Grid Fujian Electric Power Co., Ltd. Ultra High Voltage Branch, Fuzhou 350013, China
3. State Grid Fujian Electric Power Research Institute, Fuzhou 350007, China
4. Economic and Technological Research Institute, State Grid Fujian Electric Power Co., Ltd., Fuzhou 350012, China
5. School of Electrical Engineering and Automation, Fuzhou University, Fuzhou 350108, China

Received:2023-08-14 Accepted:2023-12-13 Online:2024-09-28 Published:2024-09-23
Supported by:
This work is supported by Science and Technology Project of State Grid Fujian Electric Power Co., Ltd. (Fujian Offshore Wind Energy and Multiple Energy Storage System Development Strategy and Impact Analysis on the Power Grid Under the Background of "Carbon Peaking and Carbon Neutrality", No.521300220013).

摘要/Abstract

摘要：

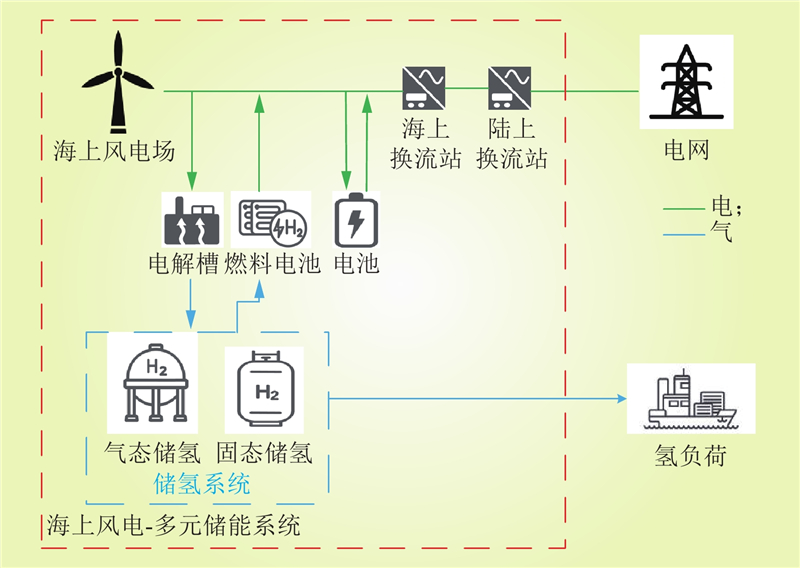

“双碳”目标背景下，海上风电等可再生能源发展的重要性逐渐提高，但风力发电的波动性会给系统运行带来安全性问题。结合多种储能技术提出计及气固两相储氢的海上风电-多元储能系统，通过配置储能容量满足海上风电系统安全运行要求。首先，构建海上风电-多元储能系统模型并对系统结构以及能流情况进行阐述。其次，介绍包含气态和固态两相储氢的储氢系统并解释固态储氢相关原理。再次，构建海上风电-多元储能系统配置优化模型。最后，结合典型周运行数据进行仿真分析。结果表明所提系统能提高海上风电系统的安全性和经济性。

关键词: 气固两相, 海上风电, 多元储能, 优化配置, 固态储氢

Abstract:

Under the background of the implementation of "dual carbon" policy, the importance of developing renewable energy such as offshore wind power has been increasing. However, the volatility of wind power brings about safety problems to the system operation. Therefore, this paper proposes an offshore wind power-multiple energy storage system that takes into account gas-solid two-phase hydrogen storage in combination with various energy storage technologies, and the requirements of safe operation of offshore wind power system are met through allocation of energy storage capacity. Firstly, the model of offshore wind power-multiple energy storage system is constructed, and the system structure and the energy flow are described. Secondly, the hydrogen storage system, which includes gas-solid two-phase hydrogen storage, is introduced, and the principle of solid-phase hydrogen storage is expounded. Then, an optimal allocation model of offshore wind power-multiple energy storage system is developed. Finally, a simulation is carried out with typical weekly operation data, and the results show that the proposed system can improve the safety and economy of the offshore wind power systems.

Key words: gas-solid two-phase, offshore wind power, multiple energy storage, optimal allocation, solid hydrogen storage

姜文瑾, 刘巧妹, 杨晓东, 阙定飞, 沈豫, 黄夏楠, 赖振华. 计及气固两相储氢特性的海上风电-多元储能系统优化配置[J]. 中国电力, 2024, 57(9): 103-112.

Wenjin JIANG, Qiaomei LIU, Xiaodong YANG, Dingfei QUE, Yu SHEN, Xianan HUANG, Zhenhua LAI. Optimal Allocation of Offshore Wind Power-Multiple Energy Storage System Considering Gas-Solid Two-Phase Hydrogen Storage Characteristics[J]. Electric Power, 2024, 57(9): 103-112.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202308048

https://www.electricpower.com.cn/CN/Y2024/V57/I9/103

图/表 8

参考文献 24

1	李志川, 胡鹏, 马佳星, 等. 中国海上风电发展现状分析及展望[J]. 中国海上油气, 2022, 34 (5): 229- 236.
	LI Zhichuan, HU Peng, MA Jiaxing, et al. Analysis and prospect of offshore wind power development in China[J]. China Offshore Oil and Gas, 2022, 34 (5): 229- 236.
2	黄伟捷, 江岳文. 远海风电输电和制氢经济可行性分析[J]. 中国电力, 2022, 55 (1): 91- 100.
	HUANG Weijie, JIANG Yuewen. Comparison of economic feasibilites between power transmission and hydrogen production from an offshore wind farm[J]. Electric Power, 2022, 55 (1): 91- 100.
3	严新荣, 张宁宁, 马奎超, 等. 我国海上风电发展现状与趋势综述[J]. 发电技术, 2024, 45 (1): 1- 12.
	YAN Xinrong, ZHANG Ningning, MA Kuichao, et al. Overview of current situation and trend of offshore wind power development in China[J]. Power Generation Technology, 2024, 45 (1): 1- 12.
4	中国政府网. 我国海上风电累计装机连续两年位居全球首位[EB/OL]. (2023-08-10)[2023-11-21]. https://www.gov.cn/yaowen/liebiao/202308/content_6897588.html.
5	黄雨涵, 丁涛, 李雨婷, 等. 碳中和背景下能源低碳化技术综述及对新型电力系统发展的启示[J]. 中国电机工程学报, 2021, 41 (S1): 28- 51.
	HUANG Yuhan, DING Tao, LI Yuting, et al. Decarbonization technologies and inspirations for the development of novel power systems in the context of carbon neutrality[J]. Proceedings of the CSEE, 2021, 41 (S1): 28- 51.
6	韩爽, 刘永前, 杨勇平, 等. 风-氢混合能源系统[J]. 电力建设, 2009, 30 (4): 15- 18.
	HAN Shuang, LIU Yongqian, YANG Yongping, et al. Wind-hydrogen hybrid energy system[J]. Electric Power Construction, 2009, 30 (4): 15- 18.
7	CALADO G, CASTRO R. Hydrogen production from offshore wind parks: current situation and future perspectives[J]. Applied Sciences, 2021, 11 (12): 5561. DOI
8	JANG D, KIM K, KIM K H, et al. Techno-economic analysis and Monte Carlo simulation for green hydrogen production using offshore wind power plant[J]. Energy Conversion and Management, 2022, 263, 115695. DOI
9	CRIVELLARI A, COZZANI V. Offshore renewable energy exploitation strategies in remote areas by power-to-gas and power-to-liquid conversion[J]. International Journal of Hydrogen Energy, 2020, 45 (4): 2936- 2953. DOI
10	田甜, 李怡雪, 黄磊, 等. 海上风电制氢技术经济性对比分析[J]. 电力建设, 2021, 42 (12): 136- 144.
	TIAN Tian, LI Yixue, HUANG Lei, et al. Comparative analysis on the economy of hydrogen production technology for offshore wind power consumption[J]. Electric Power Construction, 2021, 42 (12): 136- 144.
11	门向阳, 曹军, 王泽森, 等. 能源互联微网型多能互补系统的构建与储能模式分析[J]. 中国电机工程学报, 2018, 38 (19): 5727- 5737, 5929.
	MEN Xiangyang, CAO Jun, WANG Zesen, et al. The constructing of multi-energy complementary system of energy Internet microgrid and energy storage model analysis[J]. Proceedings of the CSEE, 2018, 38 (19): 5727- 5737, 5929.
12	MORIARTY P, HONNERY D. Intermittent renewable energy: the only future source of hydrogen?[J]. International Journal of Hydrogen Energy, 2007, 32 (12): 1616- 1624. DOI
13	贾云辉, 张峰. 考虑分布式风电接入下的区域综合能源系统多元储能双层优化配置研究[J]. 可再生能源, 2019, 37 (10): 1524- 1532.
	JIA Yunhui, ZHANG Feng. A bi-level optimal configuration of multiple storage in reginal integrated energy system with distribution wind power inclusion[J]. Renewable Energy Resources, 2019, 37 (10): 1524- 1532.
14	朱显辉, 胡旭, 师楠. 风氢互补的长期储能微电网容量优化配置模型[J]. 黑龙江科技大学学报, 2021, 31 (3): 344- 349.
	ZHU Xianhui, HU Xu, SHI Nan. Optimal allocation model of microgrid capacity of wind and hydrogen complement[J]. Journal of Heilongjiang University of Science and Technology, 2021, 31 (3): 344- 349.
15	齐晓光, 姚福星, 朱天曈, 等. 考虑大规模风电接入的电力系统混合储能容量优化配置[J]. 电力自动化设备, 2021, 41 (10): 11- 19.
	QI Xiaoguang, YAO Fuxing, ZHU Tiantong, et al. Capacity optimization configuration of hybrid energy storage in power system considering large-scale wind power integration[J]. Electric Power Automation Equipment, 2021, 41 (10): 11- 19.
16	李奇, 赵淑丹, 蒲雨辰, 等. 考虑电氢耦合的混合储能微电网容量配置优化[J]. 电工技术学报, 2021, 36 (3): 486- 495.
	LI Qi, ZHAO Shudan, PU Yuchen, et al. Capacity optimization of hybrid energy storage microgrid considering electricity-hydrogen coupling[J]. Transactions of China Electrotechnical Society, 2021, 36 (3): 486- 495.
17	ABE J O, POPOOLA A P I, AJENIFUJA E, et al. Hydrogen energy, economy and storage: review and recommendation[J]. International Journal of Hydrogen Energy, 2019, 44 (29): 15072- 15086. DOI
18	李梓丘, 乔颖, 鲁宗相. 海上风电-氢能系统运行模式分析及配置优化[J]. 电力系统自动化, 2022, 46 (8): 104- 112.
	LI Ziqiu, QIAO Ying, LU Zongxiang. Operation mode analysis and configuration optimization of offshore wind-hydrogen system[J]. Automation of Electric Power Systems, 2022, 46 (8): 104- 112.
19	蔡昊源. 电解水制氢方式的原理及研究进展[J]. 环境与发展, 2020, 32 (5): 119- 121.
	CAI Haoyuan. Principle and research progress of hydrogen production by electrolyzing water[J]. Environment and Development, 2020, 32 (5): 119- 121.
20	ROSI N L, ECKERT J, EDDAOUDI M, et al. Hydrogen storage in microporous metal-organic frameworks[J]. Science, 2003, 300 (5622): 1127- 1129. DOI
21	曹军文, 覃祥富, 耿嘎, 等. 氢气储运技术的发展现状与展望[J]. 石油学报(石油加工), 2021, 37 (6): 1461- 1478.
	CAO Junwen, QIN Xiangfu, GENG Ga, et al. Current status and prospects of hydrogen storage and transportation technology[J]. Acta Petrolei Sinica (Petroleum Processing Section), 2021, 37 (6): 1461- 1478.
22	郑文迪, 雷克波, 王向杰, 等. 考虑气-固两相储氢特性的电-氢充能站安全运行策略[J]. 中国电机工程学报, 2023, 43 (18): 6965- 6978.
	ZHENG Wendi, LEI Kebo, WANG Xiangjie, et al. Safe operation strategy of electric-hydrogen charging station with gas-solid hydrogen storage characteristics[J]. Proceedings of the CSEE, 2023, 43 (18): 6965- 6978.
23	国家市场监督管理总局, 国家标准化管理委员会. 电化学储能电站运行指标及评价: GB/T 36549—2018[S]. 北京: 中国标准出版社, 2018.
24	LOISEL R, BARANGER L, CHEMOURI N, et al. Economic evaluation of hybrid off-shore wind power and hydrogen storage system[J]. International Journal of Hydrogen Energy, 2015, 40 (21): 6727- 6739. DOI

类型	时段	电价/ (元·(kW·h)^–1)
峰时	08:00—11:00, 14:00—17:00, 19:00—21:00	0.975
平时	07:00—08:00, 11:00—14:00, 17:00—19:00, 21:00—23:00	0.750
谷时	00:00—07:00, 23:00—24:00	0.525

类型	时段	电价/ (元·(kW·h)^–1)
峰时	08:00—11:00, 14:00—17:00, 19:00—21:00	0.975
平时	07:00—08:00, 11:00—14:00, 17:00—19:00, 21:00—23:00	0.750
谷时	00:00—07:00, 23:00—24:00	0.525

输电线路波动率上限	向电网供电收益/ 万元	风电减排收益/ 万元	年均收益/ 万元
0.1	85989.20	4820.31	90809.51
0.3	87021.11	4828.29	91848.00
0.5	87373.46	4830.95	92204.40

输电线路波动率上限	向电网供电收益/ 万元	风电减排收益/ 万元	年均收益/ 万元
0.1	85989.20	4820.31	90809.51
0.3	87021.11	4828.29	91848.00
0.5	87373.46	4830.95	92204.40

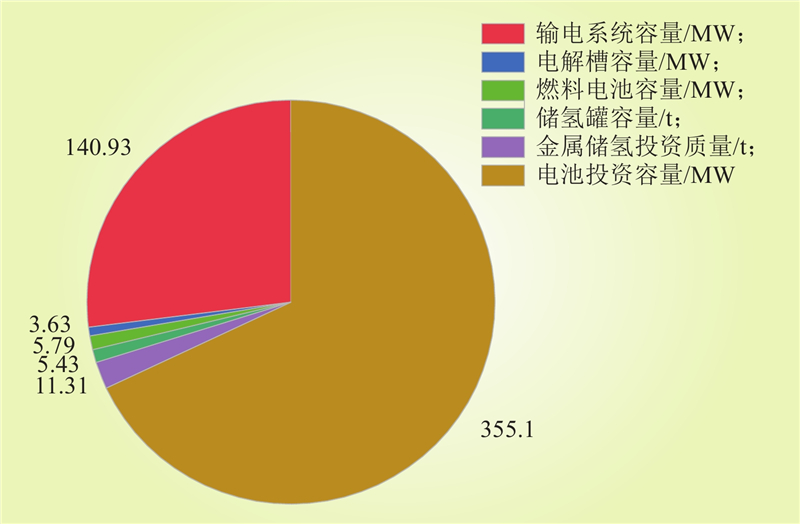

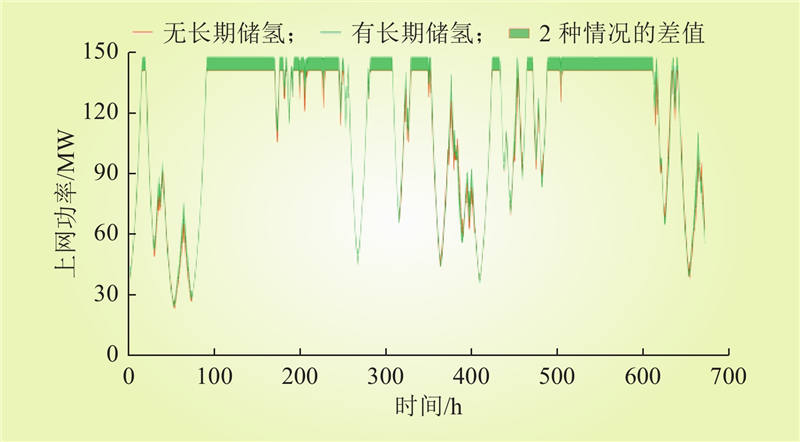

是否考虑固态储氢、危险运行时间	输电线容量/ MW	电解槽投资容量/MW	燃料电池投资容量/MW	储氢罐投资容量/t	电池投资容量/MW	固态储氢投资质量/t	年均收益/ 万元	年均投资成本/万元
不考虑	148.20	3.54	0.95	24.81	470.69	0.00	94671.56	16895.34
考虑	140.93	3.63	5.79	5.43	355.10	11.31	92204.40	15238.77

计及气固两相储氢特性的海上风电-多元储能系统优化配置

Optimal Allocation of Offshore Wind Power-Multiple Energy Storage System Considering Gas-Solid Two-Phase Hydrogen Storage Characteristics

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 8

参考文献 24

相关文章 15

编辑推荐

Metrics

是否考虑固态储氢、危险运行时间	输电线投资成本/万元	电解槽投资成本/万元	燃料电池成本/万元	储氢罐投资成本/万元	电池投资成本/万元	固态储氢成本/万元	年均维护成本/万元	年均折旧成本/万元
不考虑	148101.95	2296.95	236.67	12332.49	47068.95	0	2336.90	9474.90
考虑	143244.17	2366.64	4632.32	2701.8	35509.05	1045.19	1992.14	8545.89

危险运行时间占比/%	输电线容量/MW	电解槽投资容量/MW	燃料电池投资容量/MW	储氢罐投资容量/t	电池投资容量/MW	固态储氢投资质量/t	年均收益/ 万元	年均投资成本/万元
0.0	148.13	25.10	17.72	10.14	97.10	29.18	96296.88	18148.38
2.5	144.65	12.63	11.34	8.60	93.51	18.57	93704.40	16588.77
5.0	140.93	3.50	5.64	5.30	88.71	11.16	90787.29	15212.19
