重力储能直流环节电池多模式控制方法

doi:10.11930/j.issn.1004-9649.202309026

摘要/Abstract

摘要：

重力储能是重要的储能方式之一，具有独特的短时暂态动力学特征，需要构建合理的系统结构和控制方法。提出了一种面向重力储能直流环节的多模式控制方法，从暂态能量控制角度，通过对重力储能系统的动力学分析和约束条件的划分，实现电池储能和重力储能的功率匹配。仿真验证表明，该控制方法能够在输入功率波动的情况下显著降低直流环节的电压抬升，合理分配重力储能系统内部的功率，提升重力储能系统的整体性能。

关键词: 储能技术, 重力储能, 电力拖动, 直流母线, 电压控制

Abstract:

Gravity energy storage is one of the important energy storage modes. However, due to its unique transient dynamic characteristics, it is necessary to construct a reasonable system topology and control method. In this paper, a multi-mode control method for the DC link of gravity energy storage is proposed. From the transient energy control perspective, the power match between battery energy storage and gravity energy storage is realized through dynamic analysis of the gravity energy storage system and delineation of the constraint conditions. The experimental results show that the proposed control method can significantly reduce the voltage rise of DC link in the case of input power fluctuation, reasonably allocate the power inside the gravity energy storage system, and improve the overall storage performance of the gravity energy storage system.

Key words: energy storage technology, gravity energy storage, electric drag, DC bus, voltage control

韩嘉言, 吕艳玲, 周冲. 重力储能直流环节电池多模式控制方法[J]. 中国电力, 2024, 57(7): 66-73.

Jiayan HAN, Yanling LÜ, Chong ZHOU. Multi-mode Control Method of Gravity Energy Storage DC Link Battery[J]. Electric Power, 2024, 57(7): 66-73.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202309026

https://www.electricpower.com.cn/CN/Y2024/V57/I7/66

图/表 17

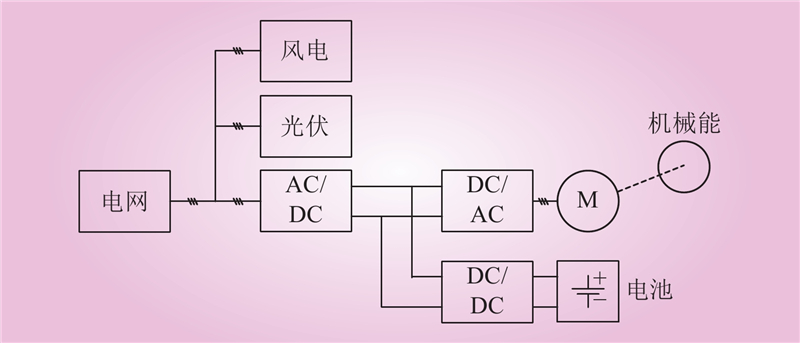

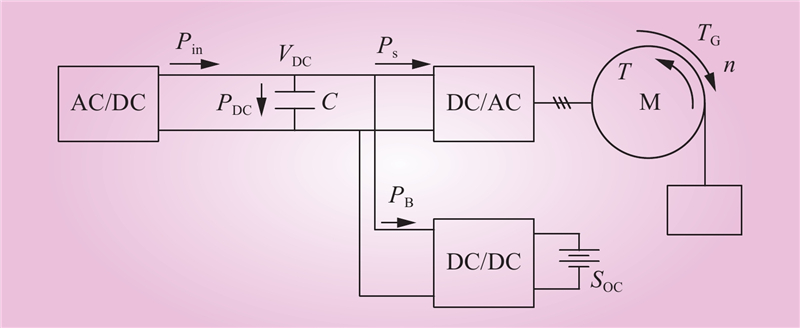

图 1 重力储能系统一般结构

Fig.1 General structure of gravity energy storage system

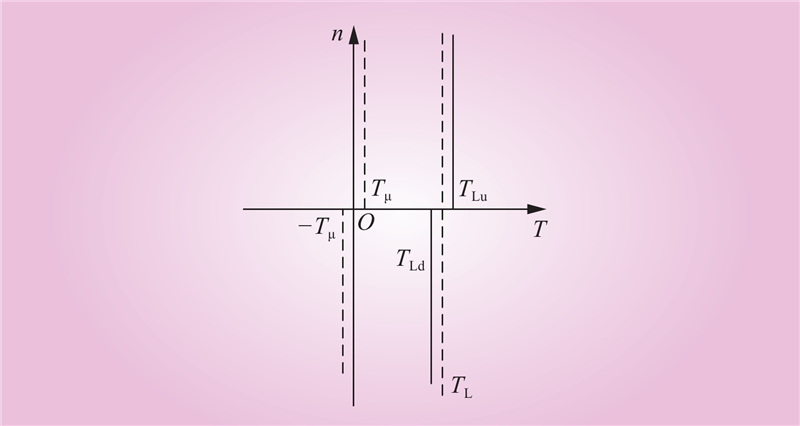

图 2 电磁转矩与负载转矩的关系

Fig.2 Relationship between electromagnetic torque and load torque

图 3 仿真模型

Fig.3 System simulation model

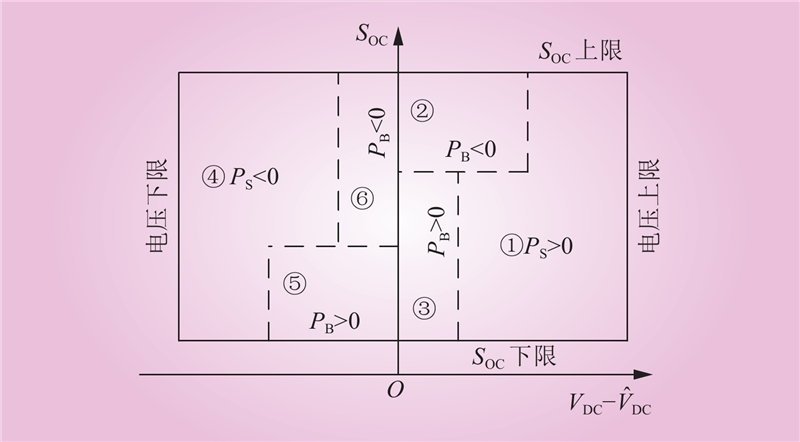

图 4 控制模式图

Fig.4 Control model diagram

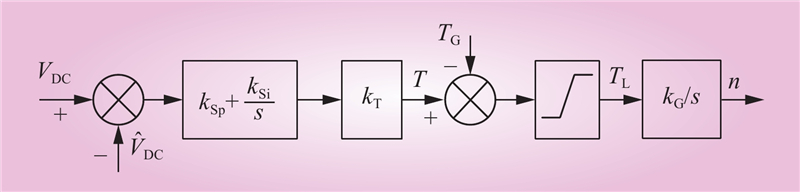

图 5 变频器控制策略模型

Fig.5 Inverter control strategy model

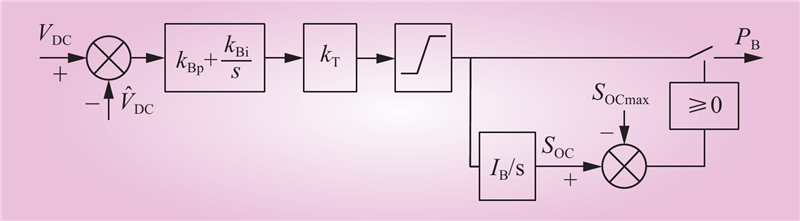

图 6 电池控制策略

Fig.6 Battery control strategy

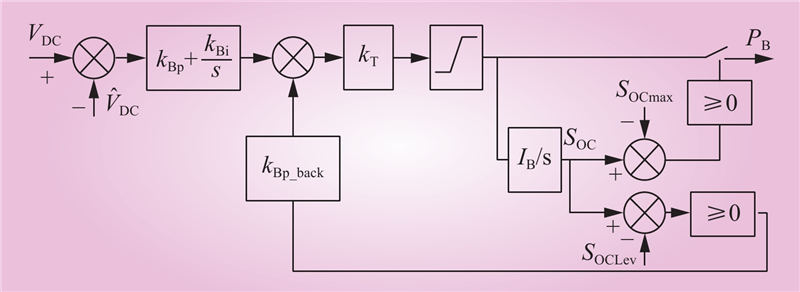

图 7 模式控制框图

Fig.7 Mode control block diagram

表 1 系统参数

Table 1 System parameters

参数	归一化标称值范围	标准值
输入功率 P_in/W	0~1	P_innom
重力储能功率 Ps/W	–1~1	P_innom
电池输入的功率 P_B/W	–1~1	P_innom
母线电压值 V_DC/V	0~1	V_DCnom
母线电压给定值 $ {\overset{\lower0.5 em\hbox{$\smash{\scriptscriptstyle\frown}$}}{V} _{{\text{DC}}}} $/V	＞0	V_DCnom
电机输出转矩 T/(kg·m)	0~1	T_max
重物转矩 T_G/(kg·m)	0.5	T_max

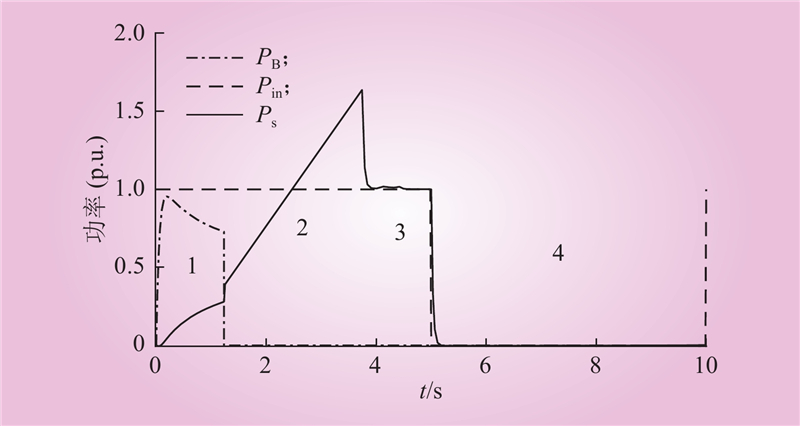

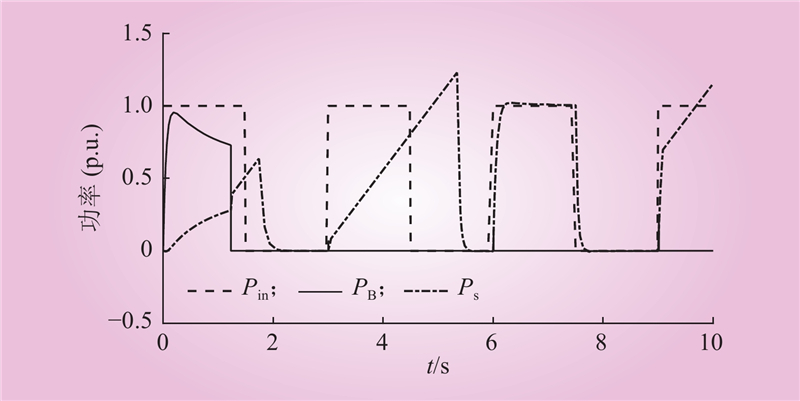

图 8 输入功率、电池功率和电机功率（案例1）

Fig.8 Input power, battery power, and motor power (case 1)

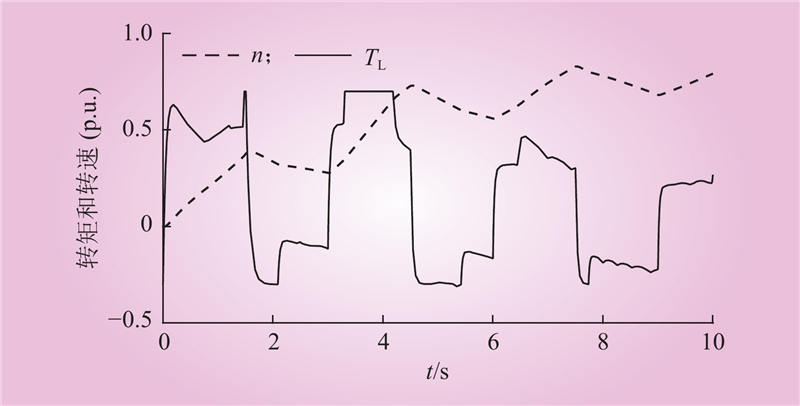

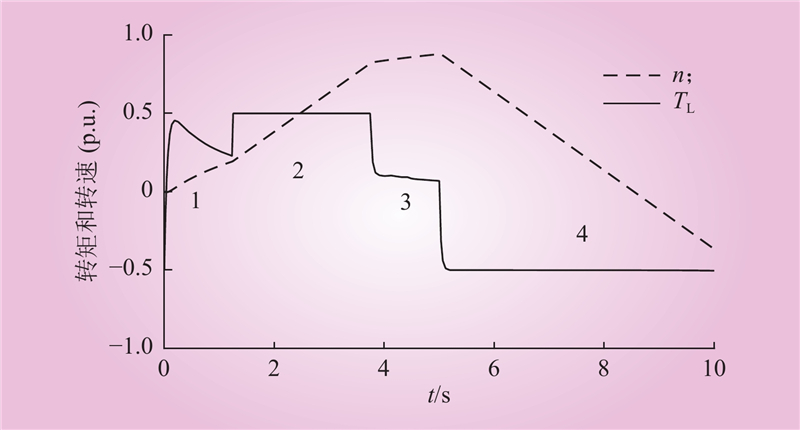

图 9 转矩和转速变化曲线（案例1）

Fig.9 Torque and speed curve (case 1)

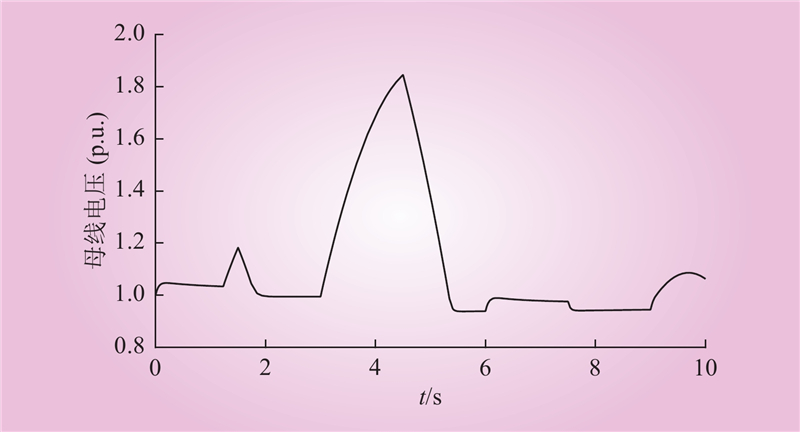

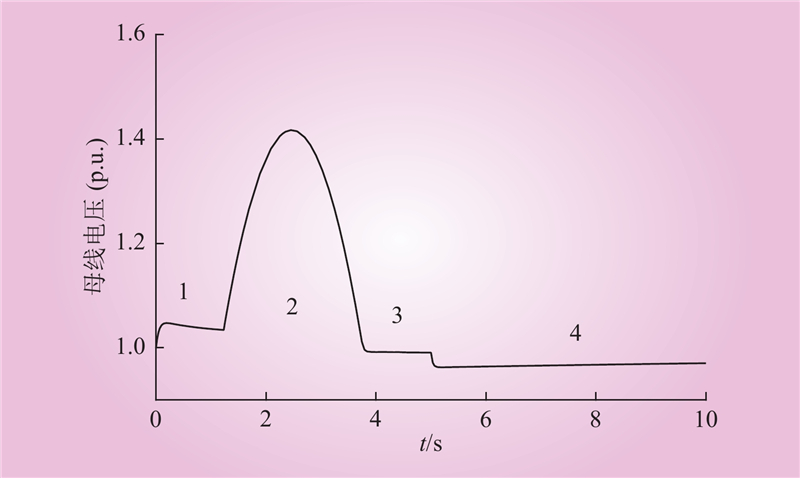

图 10 直流母线电压值（案例1）

Fig.10 DC bus voltage (case 1)

图 11 输入功率、电池功率和电机功率（案例2）

Fig.11 Input power, battery power, and motor power (case 2)

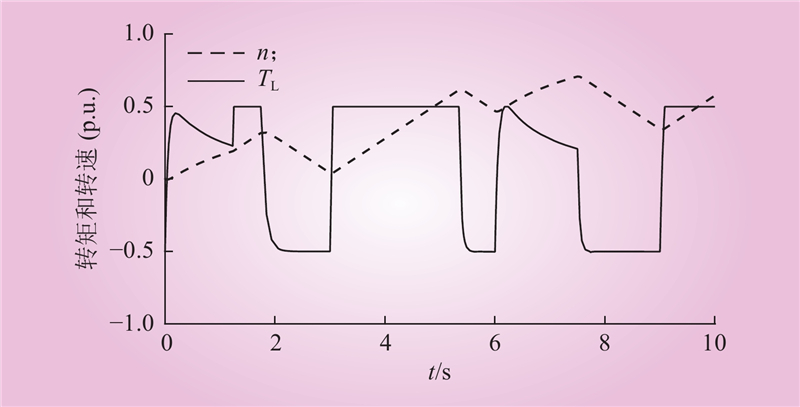

图 12 转矩和转速变化曲线（案例2）

Fig.12 Torque and speed curve (case 2)

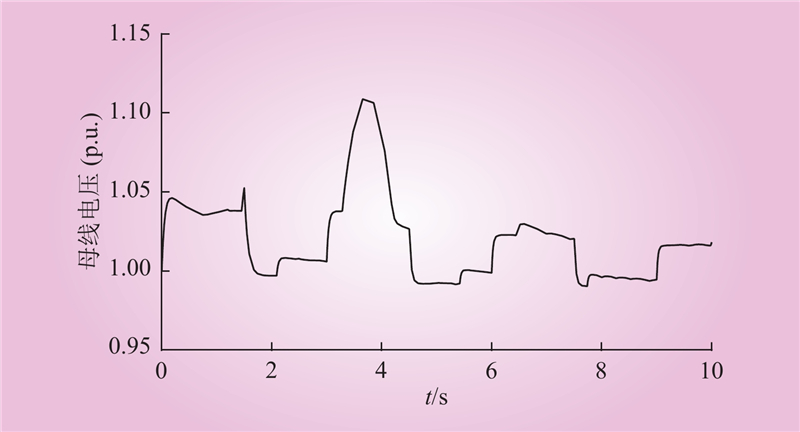

图 13 直流母线电压值（案例2）

Fig.13 DC bus voltage (case 2)

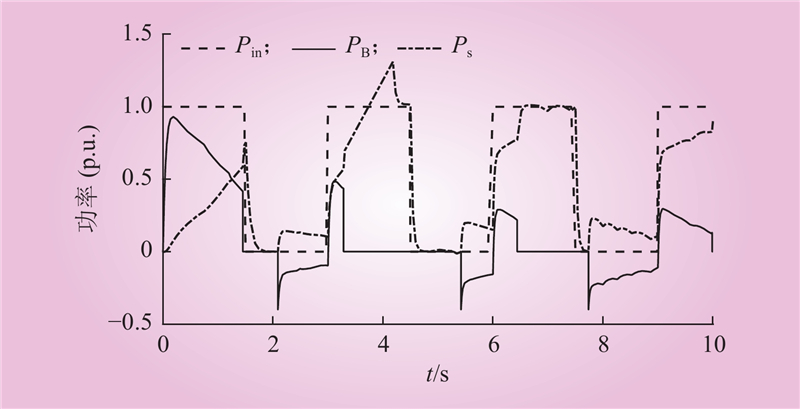

图 14 输入功率、电池功率和电机功率（案例3）

Fig.14 Input power, battery power, and motor power (case 3)

图 15 转矩和转速变化曲线（案例3）

Fig.15 Torque and speed curve (case 3)

图 16 直流母线电压值（案例3）

Fig.16 DC bus voltage (case 3)
