考虑碳交易机制与氢混天然气的园区综合能源系统调度策略

doi:10.11930/j.issn.1004-9649.202210011

摘要/Abstract

摘要：

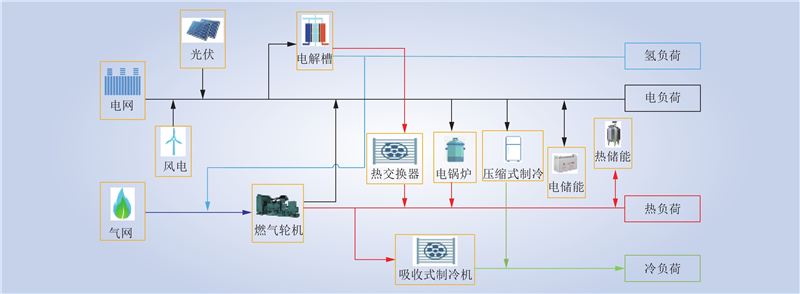

综合能源系统有利于实现多能互济、能源高效利用。以含电、热、冷、氢负荷的园区综合能源系统为研究对象，分析了可再生能源制氢系统及掺氢燃气轮机运行中多种能源的耦合及梯级利用特性，考虑了掺氢比对燃气轮机效率以及热电比的影响，以系统运行成本最小为目标函数，建立了阶梯式碳交易机制下的园区综合能源系统优化调度模型。采用分段线性化和大M法将包含多个0–1变量和连续变量的非线性模型转化为混合整数规划模型，并调用Cplex求解器实现快速求解。算例分析表明，所提调度策略可有效提高园区能源系统运行经济性，合理调控燃气轮机掺氢比有利于降低园区系统的碳排放。

关键词: 综合能源系统, 掺氢比, 优化调度, 运行经济性, 碳交易机制

Abstract:

The integrated energy system is conducive to the realization of multi-energy mutual benefit and efficient use of energy. This paper focuses on a comprehensive energy system in a park that incorporates electricity, heat, cold, and hydrogen loads. The study analyzes the coupling and cascade utilization characteristics of multiple energy sources in the operation of a renewable energy hydrogen production system and hydrogen-blended gas turbine. The impact of hydrogen blending ratio on gas turbine efficiency and the thermoelectric ratio is considered. With the objective of minimizing the operational cost of the system, an optimization and dispatching model for the park’s comprehensive energy system is established under a tiered carbon trading mechanism. Segmented linearization and the big M method are employed to transform a nonlinear model containing multiple 0-1 variables and continuous variables into a mixed-integer programming model. The model is then solved using the Cplex solver to achieve fast solutions. Case analysis shows that the dispatching strategy designed in this paper can effectively improve the economic performance of the park’s energy system. Properly controlling the hydrogen blending ratio in gas turbine helps reduce carbon emission in the park’s system.

Key words: integrated energy system, hydrogen blending ratio, optimal dispatch, operation economy, carbon trading mechanism

张栋顺, 全恒立, 谢桦, 许志鸿, 陶雅芸, 王慧圣. 考虑碳交易机制与氢混天然气的园区综合能源系统调度策略[J]. 中国电力, 2024, 57(2): 183-193.

Dongshun ZHANG, Hengli QUAN, Hua XIE, Zhihong XU, Yayun TAO, Huisheng WANG. Dispatching Strategy of Park-Level Integrated Energy System Considering Carbon Trading Mechanism and Hydrogen Blending Natural Gas[J]. Electric Power, 2024, 57(2): 183-193.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202210011

https://www.electricpower.com.cn/CN/Y2024/V57/I2/183

图/表 14

参考文献 25

1	吕佳炜, 张沈习, 程浩忠, 等. 考虑互联互动的区域综合能源系统规划研究综述[J]. 中国电机工程学报, 2021, 41 (12): 4001- 4021. DOI
	LYU Jiawei, ZHANG Shenxi, CHENG Haozhong, et al. Review on district-level integrated energy system planning considering interconnection and interaction[J]. Proceedings of the CSEE, 2021, 41 (12): 4001- 4021. DOI
2	李鹏, 杨莘博, 魏澄宙, 等. 计及能源政策的园区综合能源系统鲁棒随机优化模型[J]. 中国电力, 2022, 55 (11): 109- 120.
	LI Peng, YANG Shenbo, WEI Chengzhou, et al. Robust stochastic optimization model of park integrated energy system considering impact of energy policy[J]. Electric Power, 2022, 55 (11): 109- 120.
3	臧海祥, 耿明昊, 黄蔓云, 等. 电-热-气混联综合能源系统状态估计研究综述与展望[J]. 电力系统自动化, 2022, 46 (7): 187- 199.
	ZANG Haixiang, GENG Minghao, HUANG Manyun, et al. Review and prospect of state estimation for electricity-heat-gas integrated energy system[J]. Automation of Electric Power Systems, 2022, 46 (7): 187- 199.
4	董帅, 王成福, 徐士杰, 等. 计及网络动态特性的电—气—热综合能源系统日前优化调度[J]. 电力系统自动化, 2018, 42 (13): 12- 19. DOI
	DONG Shuai, WANG Chengfu, XU Shijie, et al. Day-ahead optimal scheduling of electricity-gas-heat integrated energy system considering dynamic characteristics of networks[J]. Automation of Electric Power Systems, 2018, 42 (13): 12- 19. DOI
5	田丰, 贾燕冰, 任海泉, 等. 计及用户行为及满意度的电-气综合能源系统优化调度[J]. 电测与仪表, 2021, 58 (05): 31- 38. DOI
	TIAN Feng, JIA Yanbing, REN Haiquan, et al. Optimal dispatch of electricity-gas integrated energy system considering user behavior and satisfaction[J]. Electrical Measurement & Instrumentation, 2021, 58 (05): 31- 38. DOI
6	梅建春, 卫志农, 张勇, 等. 电—气互联综合能源系统多时间尺度动态优化调度[J]. 电力系统自动化, 2018, 42 (13): 36- 42. DOI
	MEI Jianchun, WEI Zhinong, ZHANG Yong, et al. Dynamic optimal dispatch with multiple time scale in integrated power and gas energy systems[J]. Automation of Electric Power Systems, 2018, 42 (13): 36- 42. DOI
7	宋鹏飞, 单彤文, 李又武, 等. 天然气管道掺入氢气的影响及技术可行性分析[J]. 现代化工, 2020, 40 (7): 5- 10. DOI
	SONG Pengfei, SHAN Tongwen, LI Youwu, et al. Impact of hydrogen into natural gas grid and technical feasibility analysis[J]. Modern Chemical Industry, 2020, 40 (7): 5- 10. DOI
8	严思韵, 周登极. 综合能源天然气网混氢输运的仿真与调度综述[J]. 中国电机工程学报, 2022, 42 (24): 8816- 8832. DOI
	YAN Siyun, ZHOU Dengji. Review of simulation and scheduling of hydrogen-blended transportation in natural gas network of integrated energy system[J]. Proceedings of the CSEE, 2022, 42 (24): 8816- 8832. DOI
9	周慧, 朱建鲁, 李玉星, 等. 纯氢与掺氢天然气节流特性及节流系数预测新方法[J]. 天然气工业, 2022, 42 (4): 139- 148. DOI
	ZHOU Hui, ZHU Jianlu, LI Yuxing, et al. Throttling characteristics and throttling coefficient prediction of pure hydrogen and hydrogen-blended natural gas[J]. Natural Gas Industry, 2022, 42 (4): 139- 148. DOI
10	耿卅捷, 潘禾吉田, 杨欢, 等. 燃气轮机天然气掺氢燃烧及排放特性数值模拟研究[J]. 西安交通大学学报, 2022, 56 (12): 1- 11. DOI
	GENG Sajie, PAN Hejitian, YANG Huan, et al. Numerical study on influence of H₂ blending on combustion and emission characteristics of gas turbine[J]. Journal of Xi’an Jiaotong University, 2022, 56 (12): 1- 11. DOI
11	SORGULU F, DINCER I. Analysis and techno-economic assessment of renewable hydrogen production and blending into natural gas for better sustainability[J]. International Journal of Hydrogen Energy, 2022, 47–46.
12	王文烨, 姜飞, 张新鹤, 等. 含规模氢能综合利用的高比例风光多能源系统低碳灵活调度[J]. 电网技术, 2023, 38 (1): 1- 15. DOI
	WANG Wenye, JIANG Fei, ZHANG Xinhe, et al. Low-carbon and flexible dispatch of high-proportion wind-photovoltaic multi-energy system with comprehensive utilization of large-scale hydrogen energy[J]. Power System Technology, 2023, 38 (1): 1- 15. DOI
13	林俐, 郑馨姚, 周龙文. 基于燃氢燃气轮机的风光火储多能互补优化调度[J]. 电网技术, 2022, 46 (8): 3007- 3022.
	LIN Li, ZHENG Xinyao, ZHOU Longwen. Wind-PV-thermal-storage multi-energy complementary optimal dispatching based on hydrogen gas turbine[J]. Power System Technology, 2022, 46 (8): 3007- 3022.
14	谢敏, 叶佳南, 何知纯, 等. 考虑碳排放和混合燃烧特性的氢混燃机精细化建模及应用[J]. 中国电机工程学报, 2023, 43 (11): 4319- 4340. DOI
	XIE Min, YE Jianan, HE Zhichun, et al. Refined modeling and application of hydrogen mixed gas turbine considering characteristics of carbon emission and co-combustion[J]. Proceedings of the CSEE, 2023, 43 (11): 4319- 4340. DOI
15	邱玥, 周苏洋, 顾伟, 等. “碳达峰、碳中和”目标下混氢天然气技术应用前景分析[J]. 中国电机工程学报, 2022, 42 (4): 1301- 1321. DOI
	QIU Yue, ZHOU Suyang, GU Wei, et al. Application prospect analysis of hydrogen enriched compressed natural gas technologies under the target of carbon emission peak and carbon neutrality[J]. Proceedings of the CSEE, 2022, 42 (4): 1301- 1321. DOI
16	陈登勇, 刘方, 刘帅. 基于阶梯碳交易的含P2G-CCS耦合和燃气掺氢的虚拟电厂优化调度[J]. 电网技术, 2022, 46 (6): 2042- 2054.
	CHEN Dengyong, LIU Fang, LIU Shuai. Optimization of virtual power plant scheduling coupling with P2G-CCS and doped with gas hydrogen based on stepped carbon trading[J]. Power System Technology, 2022, 46 (6): 2042- 2054.
17	樊伟杰, 崔双喜, 李浩博. 考虑两阶段P2G和燃气掺氢的综合能源系统双层优化调度[J/OL]. 电测与仪表, 2023: 1–11. (2023-03-23). https://kns.cnki.net/kcms/detail/23.1202.TH.20230322.0956.004.html.
	FAN Weijie, CUI Shuangxi, LI Haobo. Considering two-stage P2G and gas hydrogen doping integrated energy system multi-objective two-layer optimal scheduling[J/OL]. Electrical Measurement & Instrumentation, 2023: 1–11. (2023-03-23). https://kns.cnki.net/kcms/detail/23.1202.TH.20230322.0956.004.html.
18	江悦, 沈小军, 吕洪, 等. 碱性电解槽运行特性数字孪生模型构建及仿真[J]. 电工技术学报, 2022, 37 (11): 2897- 2908. DOI
	JIANG Yue, SHEN Xiaojun, LÜ Hong, et al. Construction and simulation of operation digital twin model for alkaline water electrolyzer[J]. Transactions of China Electrotechnical Society, 2022, 37 (11): 2897- 2908. DOI
19	刘雨佳, 樊艳芳, 郝俊伟, 等. 基于碱性电解槽宽功率适应模型的风光氢热虚拟电厂容量配置与调度优化[J]. 电力系统保护与控制, 2022, 50 (10): 48- 60. DOI
	LIU Yujia, FAN Yanfang, HAO Junwei, et al. Capacity configuration and optimal scheduling of a wind-photovoltaic-hydrogen-thermal virtual power plant based on a wide range power adaptation strategy for an alkaline electrolyzer[J]. Power System Protection and Control, 2022, 50 (10): 48- 60. DOI
20	袁铁江, 万志, 王进君, 等. 考虑电解槽启停特性的制氢系统日前出力计划[J]. 中国电力, 2022, 55 (1): 101- 109.
	YUAN Tiejiang, WAN Zhi, WANG Jinjun, et al. The day-ahead output plan of hydrogen production system considering the start-stop characteristics of electrolytic cell[J]. Electric Power, 2022, 55 (1): 101- 109.
21	程玉峰, 孙颖昊, 张引弟. 氢气管道发展与管线钢氢脆挑战[J]. 长江大学学报(自然科学版), 2022, 19 (1): 54- 69.
	CHENG Yufeng, SUN Yinghao, ZHANG Yindi. Development of hydrogen pipelines and hydrogen embrittlement challenges of pipeline steel[J]. Journal of Yangtze University (Natural Science Edition), 2022, 19 (1): 54- 69.
22	谢萍, 伍奕, 李长俊, 等. 混氢天然气管道输送技术研究进展[J]. 油气储运, 2021, 40 (4): 361- 370.
	XIE Ping, WU Yi, LI Changjun, et al. Research progress on pipeline transportation technology of hydrogen-mixed natural gas[J]. Oil & Gas Storage and Transportation, 2021, 40 (4): 361- 370.
23	杨紫娟, 田雪沁, 吴伟丽, 等. 考虑电解槽组合运行的风电-氢能-HCNG耦合网络容量优化配置[J]. 电力系统自动化, 2023, 47 (12): 76- 85.
	YANG Zijuan, TIAN Xueqin, WU Weili, et al. Optimal capacity configuration of wind-hydrogen-HCNG coupled network considering combined electrolyzer operation[J]. Automation of Electric Power Systems, 2023, 47 (12): 76- 85.
24	吕运强, 杨鹏, 董增波, 等. 考虑氢-氧双循环系统运行灵活性的协调优化调度[J/OL]. 电力系统自动化, 2023: 1–11. (2023-03-24). https://kns.cnki.net/kcms/detail/32.1180.TP.20230322.1504.002.html.
	LYU Yunqiang, YANG Peng, DONG Zengbo, et al. Coordinated optimal dispatch considering operation flexibility of hydrogen-oxygen double cycle system[J/OL]. Automation of Electric Power Systems, 2023: 1–11. (2023-03-24). https://kns.cnki.net/kcms/detail/32.1180.TP.20230322.1504.002.html.
25	DE SANTOLI L, LO BASSO G, BRUSCHI D. Energy characterization of CHP (combined heat and power) fuelled with hydrogen enriched natural gas blends[J]. Energy, 2013, 60, 13- 22. DOI

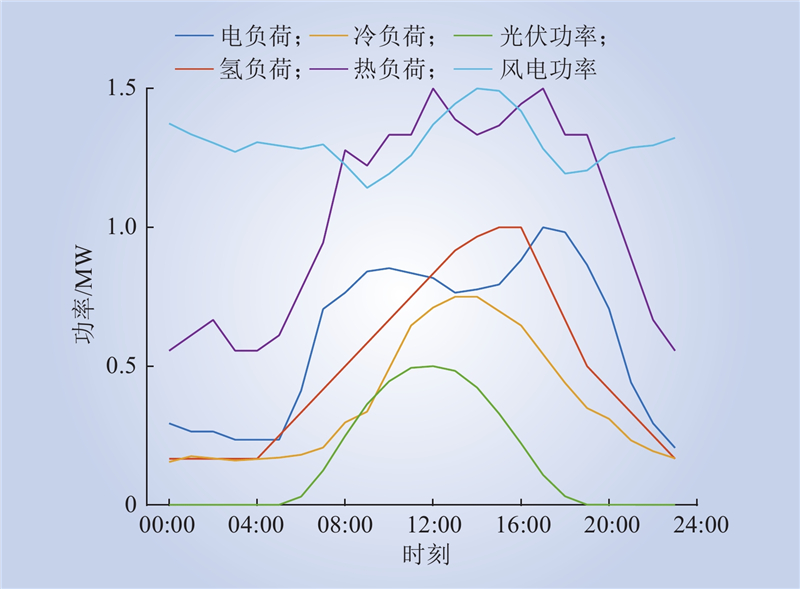

参数	数值	参数	数值
$ {\lambda _{\text{h}}} $/(kg·(kW·h)^–1)	0.798	$ {\lambda _{\text{g}}} $ /(kg·(kW·h)^–1)	0.385
ρ/(元·kg^–1)	0.25	$ d $/kg	5000
$ \sigma $	0.25	$ \alpha $	0.9
c_om,GT/(元·(kW·h)^–1)	0.025	c_om,ED /(元·(kW·h)^–1)	0.014
c_om,EB / (元·(kW·h)^–1)	0.016	$ {\eta _{\text{T}}} $	0.9
$ {\eta _{{\text{AC}}}} $	1.8	$ {\eta _{{\text{CERG}}}} $	4
$ P_{{\text{NGN}}}^{{\text{max}}} $/MW	2	${c_{{\text{cut,pv/wt}}}}$ /(元·(kW·h)^–1)	0.4
$ {\eta _{{\text{EB}}}} $	0.9	$ {\eta _{\text{H}}} $	0.62
$ P_{{\text{GT}}}^{{\text{min}}} $/MW	0.1	$ P_{{\text{ED}}}^{{\text{min}}} $/MW	0.15
$ E_{{\text{EES}}}^{\text{S}} $/(MW·h)	3	$ P_{{\text{EES}}}^{\text{S}} $/MW	0.8
$ {a_1} $	0.0034	$ {b_1} $	–0.38
$ {c_1} $	36	$ {a_2} $	0.001
$ {b_2} $	–0.04	$ {c_2} $	1
c_on,GT/元	1.94	c_on,ED/元	0.95
$ E_{{\text{TES}}}^{\text{S}} $/(MW·h)	3.53	$ P_{{\text{TES}}}^{\text{S}} $/MW	0.68
${c_{{\text{om,AC}}}}$ / (元·(kW·h)^–1)	0.016	${c_{\text{g}}}$ /(元·(kW·h)^–1)	0.38

参数	数值	参数	数值
$ {\lambda _{\text{h}}} $/(kg·(kW·h)^–1)	0.798	$ {\lambda _{\text{g}}} $ /(kg·(kW·h)^–1)	0.385
ρ/(元·kg^–1)	0.25	$ d $/kg	5000
$ \sigma $	0.25	$ \alpha $	0.9
c_om,GT/(元·(kW·h)^–1)	0.025	c_om,ED /(元·(kW·h)^–1)	0.014
c_om,EB / (元·(kW·h)^–1)	0.016	$ {\eta _{\text{T}}} $	0.9
$ {\eta _{{\text{AC}}}} $	1.8	$ {\eta _{{\text{CERG}}}} $	4
$ P_{{\text{NGN}}}^{{\text{max}}} $/MW	2	${c_{{\text{cut,pv/wt}}}}$ /(元·(kW·h)^–1)	0.4
$ {\eta _{{\text{EB}}}} $	0.9	$ {\eta _{\text{H}}} $	0.62
$ P_{{\text{GT}}}^{{\text{min}}} $/MW	0.1	$ P_{{\text{ED}}}^{{\text{min}}} $/MW	0.15
$ E_{{\text{EES}}}^{\text{S}} $/(MW·h)	3	$ P_{{\text{EES}}}^{\text{S}} $/MW	0.8
$ {a_1} $	0.0034	$ {b_1} $	–0.38
$ {c_1} $	36	$ {a_2} $	0.001
$ {b_2} $	–0.04	$ {c_2} $	1
c_on,GT/元	1.94	c_on,ED/元	0.95
$ E_{{\text{TES}}}^{\text{S}} $/(MW·h)	3.53	$ P_{{\text{TES}}}^{\text{S}} $/MW	0.68
${c_{{\text{om,AC}}}}$ / (元·(kW·h)^–1)	0.016	${c_{\text{g}}}$ /(元·(kW·h)^–1)	0.38

时段		电价/(元·(kW·h)^–1)
00:00—06:00，22:00—23:00		0.4111
10:00—13:00，17:00—22:00		1.2104
06:00—10:00，13:00—17:00		0.6759

时段		电价/(元·(kW·h)^–1)
00:00—06:00，22:00—23:00		0.4111
10:00—13:00，17:00—22:00		1.2104
06:00—10:00，13:00—17:00		0.6759

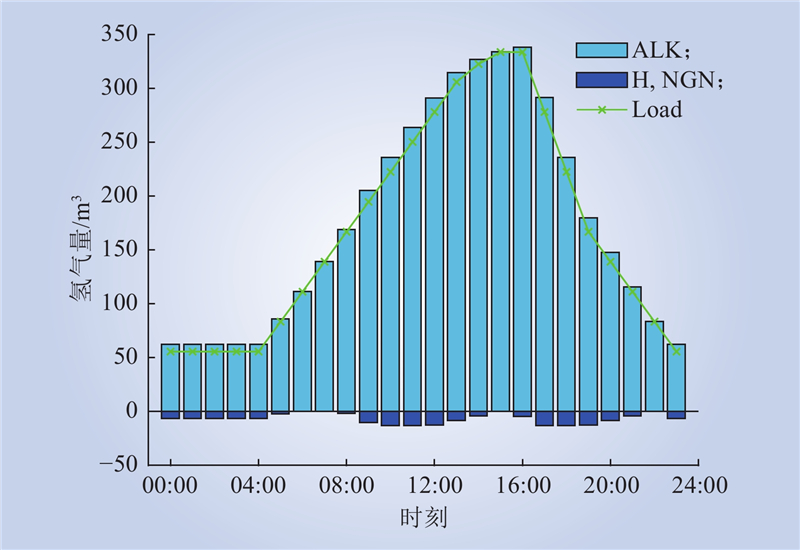

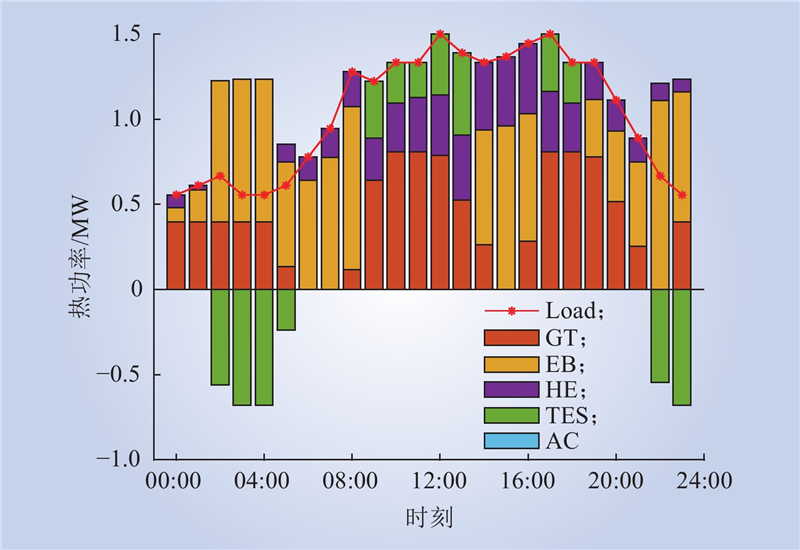

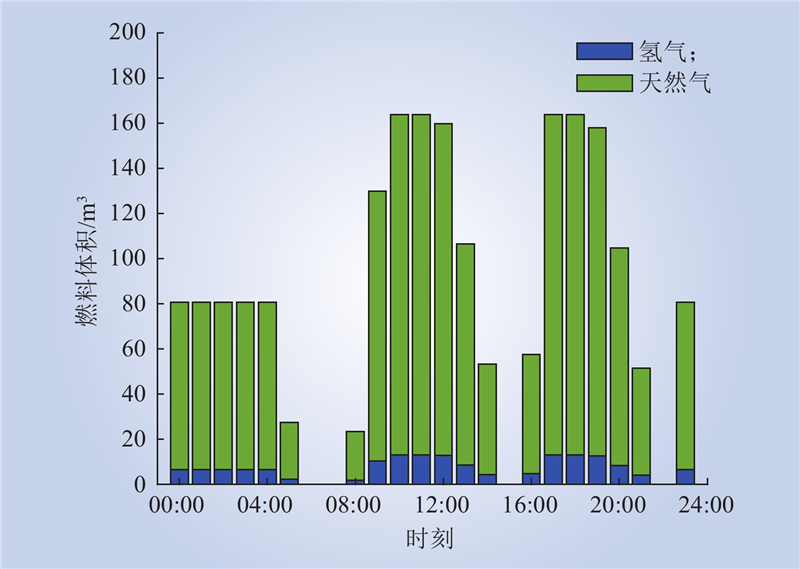

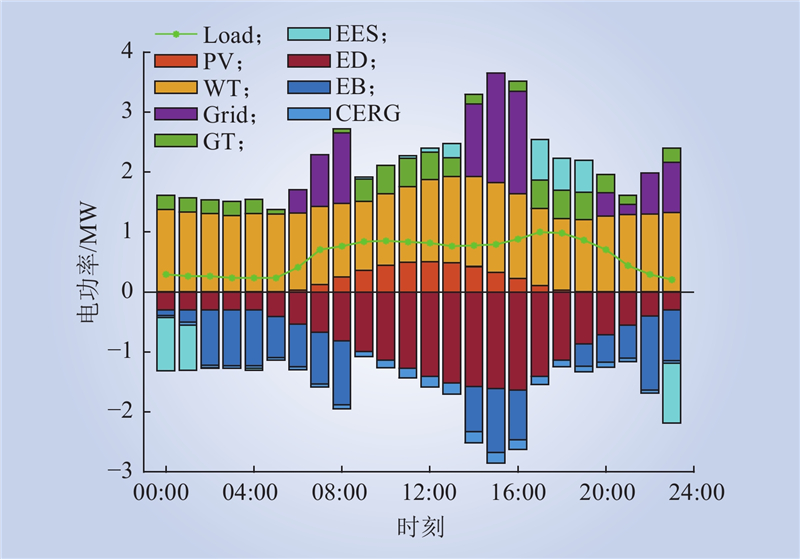

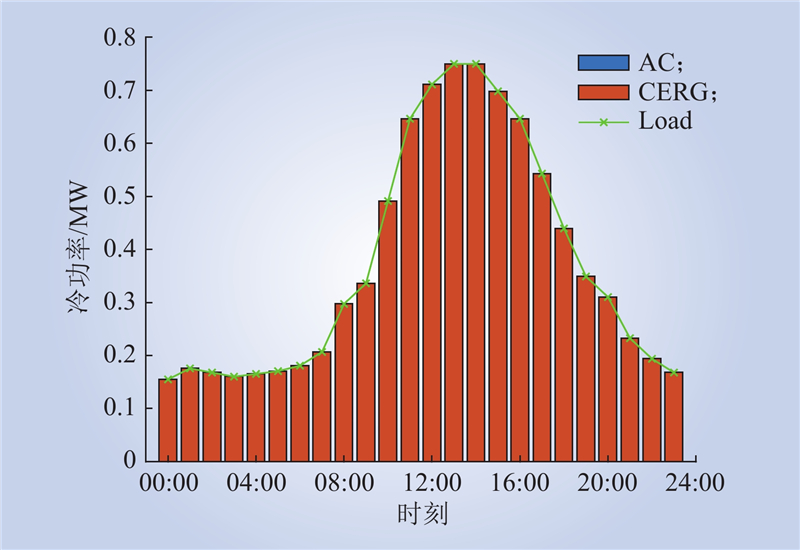

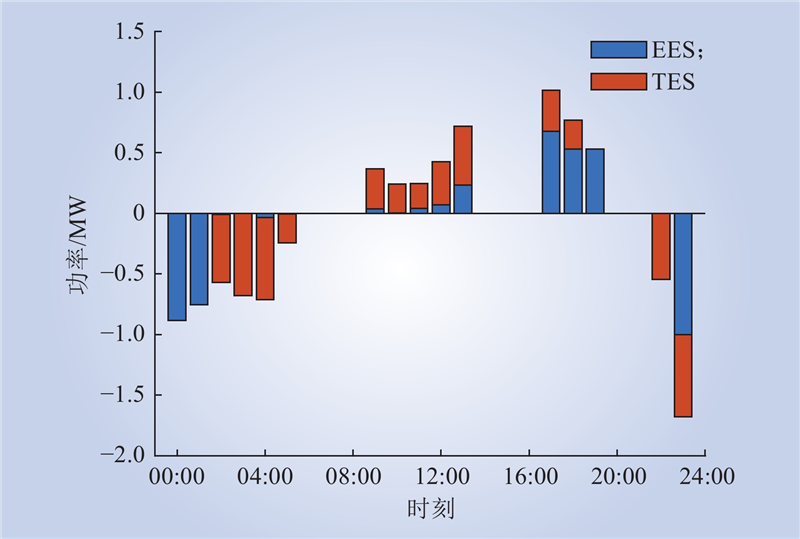

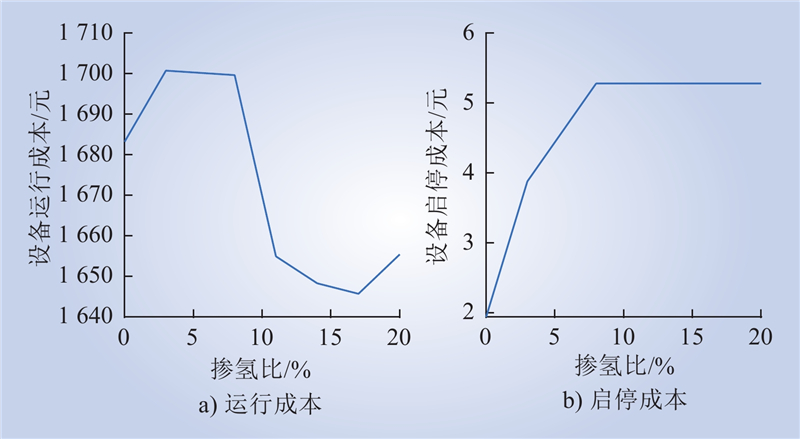

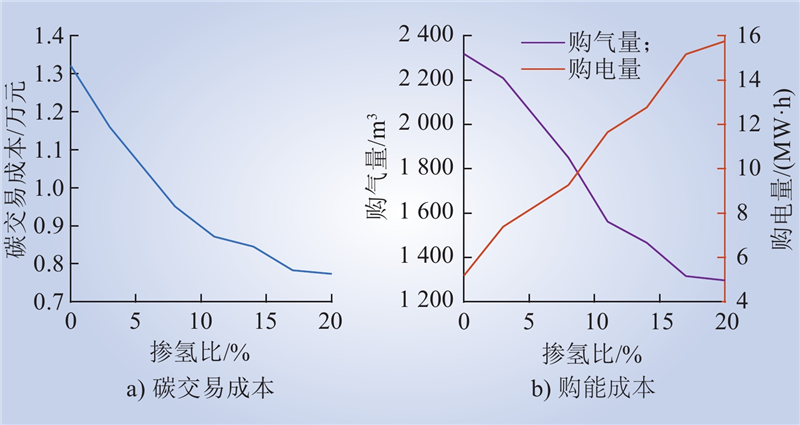

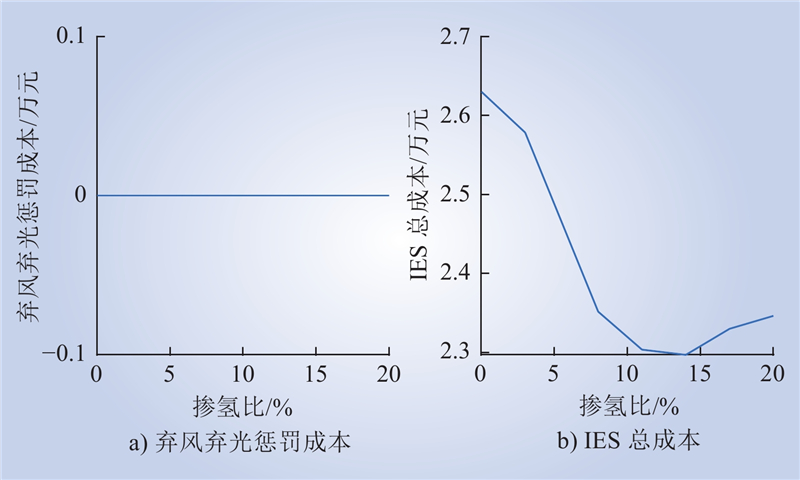

交易模式	运行成本/元	碳交易成本/元	碳排放/kg
阶梯式	23516.4914	9508.5	30427.2
传统	27020.2193	11843.4	33838.3
