考虑解析化动态频率约束的输-储协同鲁棒规划方法

doi:10.11930/j.issn.1004-9649.202511031

中国电力 ›› 2026, Vol. 59 ›› Issue (5): 150-163.DOI: 10.11930/j.issn.1004-9649.202511031

考虑解析化动态频率约束的输-储协同鲁棒规划方法

陈鸿琳¹(), 罗澍忻¹(), 徐蔚¹(), 吴广大²(), 王诗超²()

1. 广东电网有限责任公司电网规划研究中心，广东省广州市　510080
2. 中国能源建设集团广东省电力设计研究院有限公司，广东省广州市　510663

收稿日期:2025-11-12 修回日期:2026-02-10 发布日期:2026-05-15 出版日期:2026-05-28
作者简介:陈鸿琳（1992），女，通信作者，博士，从事电力系统优化与控制、新能源消纳等研究，E-mail：eehonglinchen@163.com

罗澍忻（1987），男，博士，高级工程师，从事电网规划等研究，E-mail：luoshuxin@gd.csg.cn
徐蔚（1984），男，高级工程师，硕士，从事电力系统规划与分析研究，E-mail：153805379@qq.com
吴广大（1986），男，高级工程师，硕士，从事柔性直流换流站技术研究，E-mail：ccp222584369@126.com
王诗超（1988），女，高级工程师，硕士，从事电力系统规划、海上风电并网技术研究，E-mail：wangshichao@gedi.com.cn
基金资助:
汕头、潮州国管海域海上风电统一输电规划项目（031000QQ00240024）；智能电网国家科技重大专项项目（2025ZD0805304）。

A robust coordinated planning method for transmission system and storage considering analytical frequency dynamics constraints

CHEN Honglin¹(), LUO Shuxin¹(), XU Wei¹(), WU Guangda²(), WANG Shichao²()

1. Power Grid Planning Research Center, Guangdong Power Grid Co., Ltd., Guangzhou, Guangdong 510080, China
2. China Energy Engineering Group Guangdong Electric Power Design Institute Co., Ltd., Guangzhou, Guangdong 510663, China

Received:2025-11-12 Revised:2026-02-10 Online:2026-05-15 Published:2026-05-28
Supported by:
This work is supported by Unified Power Transmission Planning Project for Offshore Wind Power in the State-Managed Sea Areas of Shantou and Chaozhou (No.031000QQ00240024); Smart Grid-National Science and Technology Major Project (No.2025ZD0805304).

摘要/Abstract

摘要：

为应对海上风电出力不确定性对电力系统频率安全与输电网规划带来的挑战，提出了一种考虑解析化动态频率约束的输-储协同鲁棒规划方法。首先，构建了包含输电网上层规划与下层运行调度的双层优化框架，上层以系统投资与运行总成本最小为目标，规划满足负载率约束的输电线路；下层考虑输电网与储能系统（energy storage system，ESS）的协同运行，并引入频率响应特性建模，确保系统在扰动下具备动态频率安全性。随后，利用强对偶理论将双层模型转化为易于求解的单层模型。进一步，采用对抗场景生成（adversarial scenario generation，ASG）方法构建极端风险场景，基于1-∞范数混合不确定集描述海上风电与负荷的概率分布不确定性，并利用条件风险价值（conditional value-at-risk，CVaR）度量其带来的风险损失，从而建立输-储协同分布鲁棒优化模型，同时使用列与约束生成（column and constraint generation，C&CG）算法进行求解。基于IEEE 24节点系统的仿真结果表明，该方法在提升系统频率安全性的同时，能够有效缓解线路重载问题，得到经济性与鲁棒性兼顾的规划方案。

关键词: 输电网, 海上风电, 动态频率约束, 双层规划, 条件风险价值, 分布鲁棒优化

Abstract:

To address the challenges posed by the uncertainty of offshore wind power output to power system frequency security and transmission network planning, this paper proposes a transmission-storage coordinated robust planning method considering analytical dynamic frequency constraints. First, a bi-level optimization framework is formulated, consisting of upper-level transmission network planning and lower-level operation scheduling; the upper level aims to minimize the total system investment and operation cost while planning transmission lines that satisfy load rate constraints, and the lower level considers the coordinated operation of the transmission network and energy storage system (ESS) with frequency response modeling to guarantee dynamic frequency security under disturbances. Then, the bi-level model is transformed into a tractable single-level model via strong duality theory. Furthermore, an adversarial scenario generation (ASG) method is employed to construct extreme risk scenarios, the probabilistic uncertainty of offshore wind power and load is characterized by a 1-∞ norm hybrid uncertainty set, and conditional value-at-risk (CVaR) is adopted to quantify the corresponding risk loss, based on which a transmission-storage coordinated distributionally robust optimization model is established and solved by the column-and-constraint generation (C&CG) algorithm. Simulation results on the IEEE 24-bus system demonstrate that the proposed method can enhance system frequency security, effectively alleviate line overloading, and yield planning schemes with favorable economic efficiency and robustness.

Key words: transmission network, offshore wind power, frequency dynamics constraints, bi-level programming, CVaR, distributionally robust optimization

陈鸿琳, 罗澍忻, 徐蔚, 吴广大, 王诗超. 考虑解析化动态频率约束的输-储协同鲁棒规划方法[J]. 中国电力, 2026, 59(5): 150-163.

CHEN Honglin, LUO Shuxin, XU Wei, WU Guangda, WANG Shichao. A robust coordinated planning method for transmission system and storage considering analytical frequency dynamics constraints[J]. Electric Power, 2026, 59(5): 150-163.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202511031

https://www.electricpower.com.cn/CN/Y2026/V59/I5/150

图/表 15

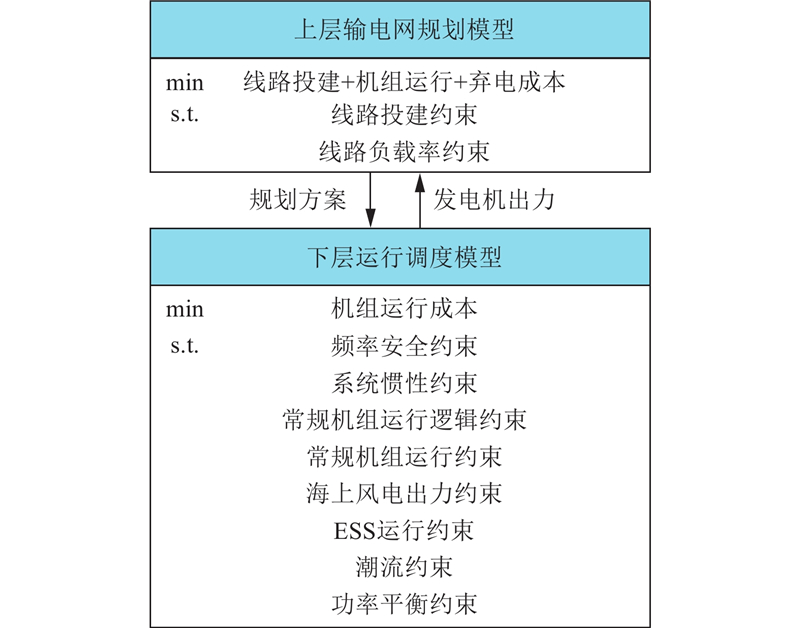

图 1 双层优化框架

Fig.1 The double-layer optimization framework

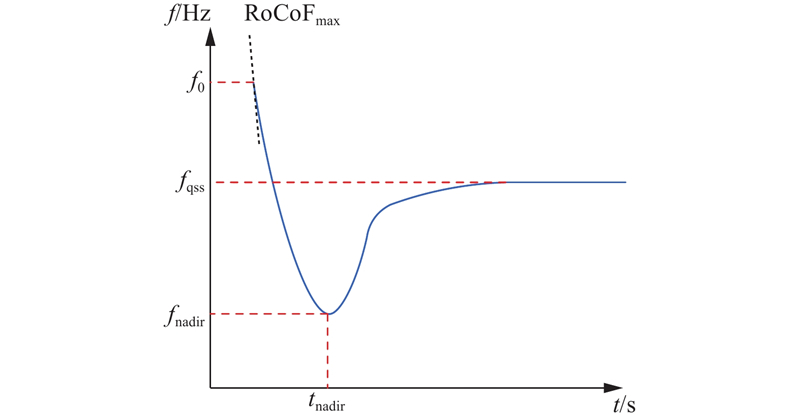

图 2 频率响应特性曲线

Fig.2 Frequency response characteristic curve

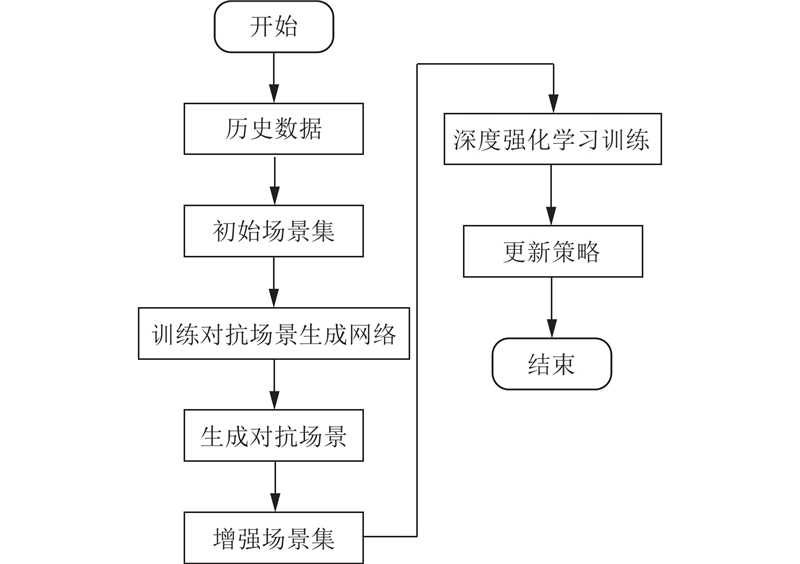

图 3 对抗场景生成方法流程

Fig.3 Flow of the adversarial scenario generation method

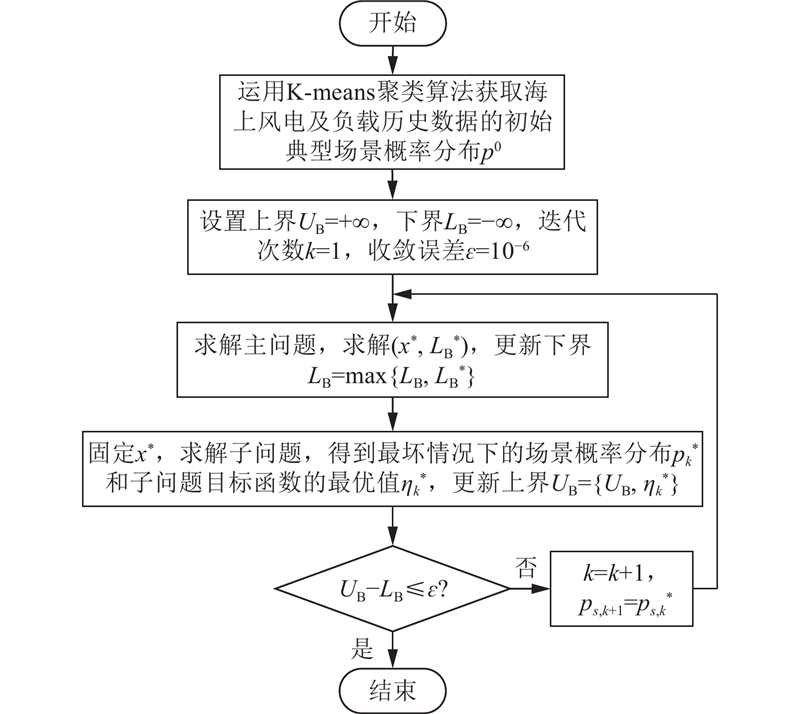

图 4 采用C&CG算法求解考虑CVaR的输储协同分布鲁棒规划模型的流程

Fig.4 Flow of solving CVaR-considered transmission and storage collaborative distributionally robust planning model using C&CG algorithm

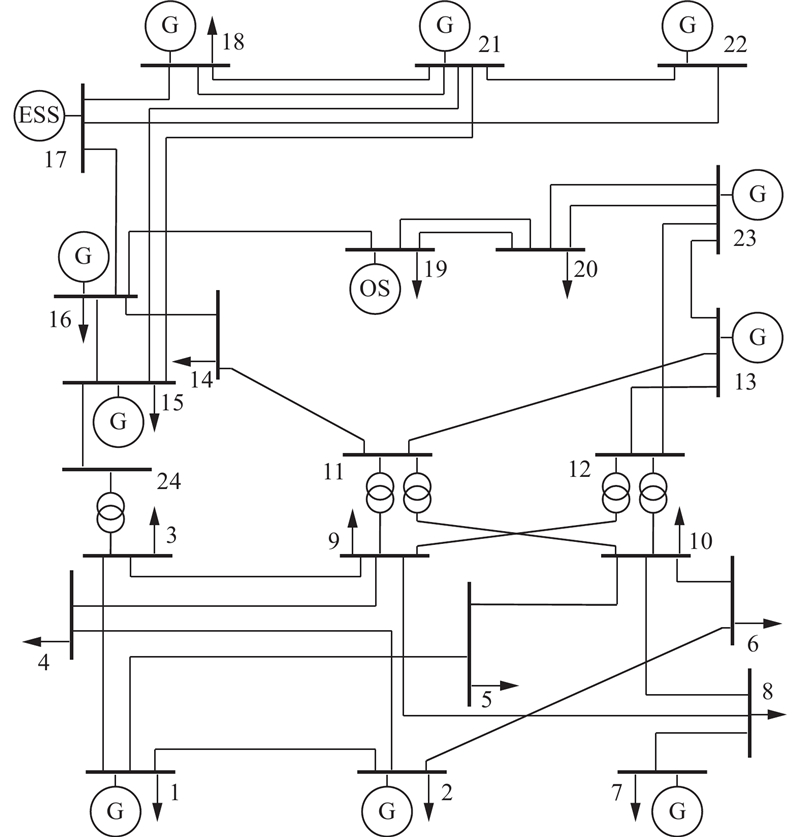

图 5 算例仿真拓扑

Fig.5 Example simulation topology

表 1 设备参数设置

Table 1 Device parameter settings

设备	接入位置	参数
常规机组容量/(kV·A)	节点1、2	192
	节点7、22	300
	节点13	591
	节点15	215
	节点16	155
	节点18、21	400
	节点23	660
海上风电容量/(kV·A)	节点19	900
ESS容量/(kV·A)	节点17	500
ESS初始荷电量/%		50
ESS功率上限/kW		50

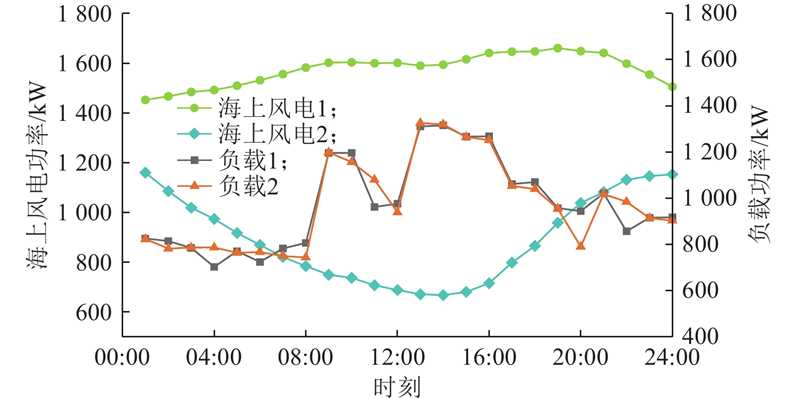

图 6 海上风电和负载典型场景

Fig.6 Typical scenarios of offshore wind power and loads

表 2 各策略下的规划成本结果对比

Table 2 Comparison of planning cost results under various strategies

策略	F^UL/10⁶元	F^L/10⁶元	F^G/10⁶元	F^OS/10⁶元
1	21.6511	3.5148	17.6170	0.5223
2	21.5325	3.5642	17.4458	0.5223
3	21.5807	3.6137	17.3990	0.5680

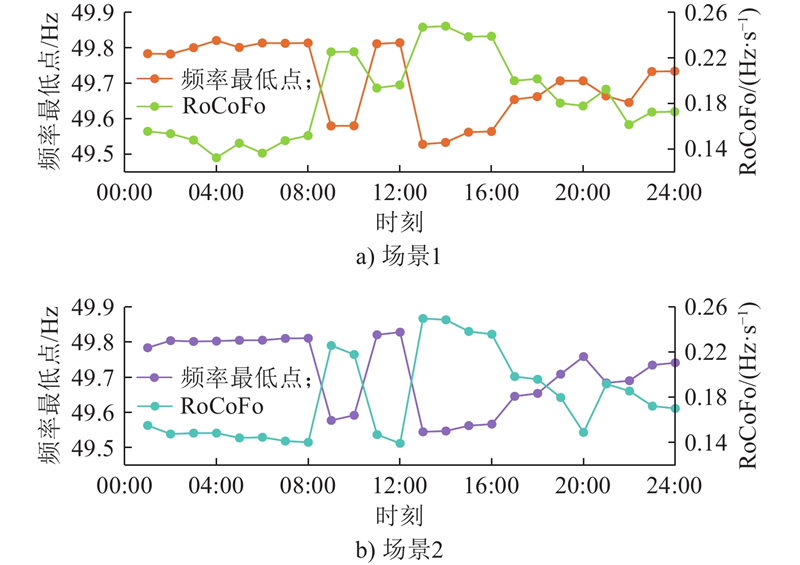

图 7 不同场景下的频率变化率与频率最低点

Fig.7 Rate of change of frequency and frequency nadir under different scenarios

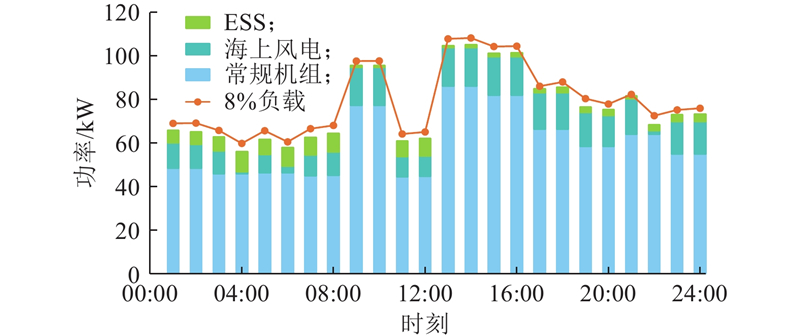

图 8 负载增量扰动下多电源频率响应及时序出力特性

Fig.8 Diagram of frequency response and time-series output characteristics of multi-power sources under load increment disturbance

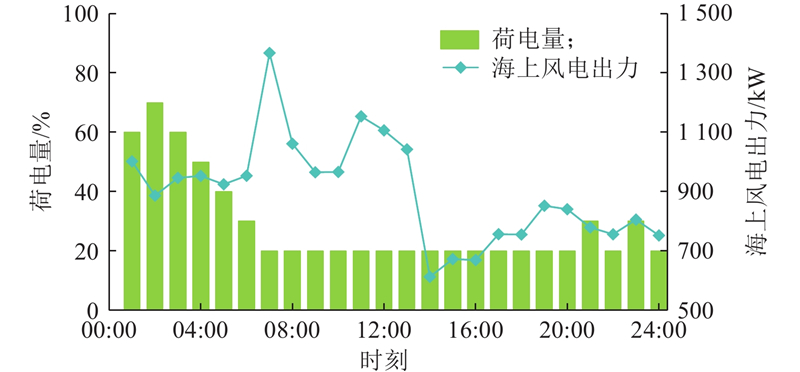

图 9 输储协同规划状态变化曲线

Fig.9 Coordinated transmission and storage planning state change curve

图 10 线路重载情况

Fig.10 Schematic diagram of line overload condition

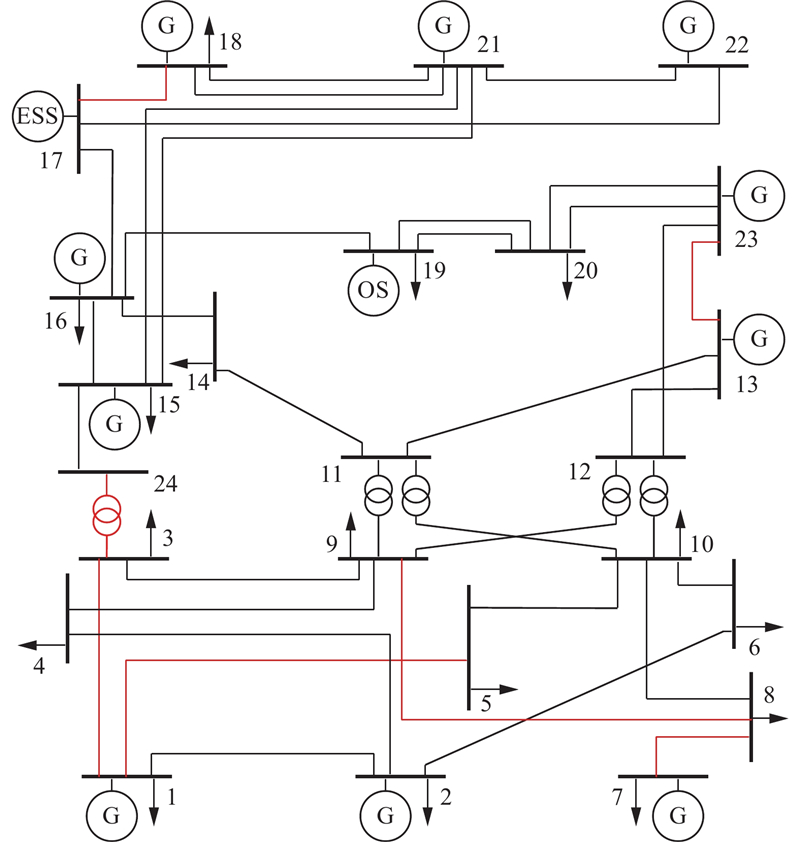

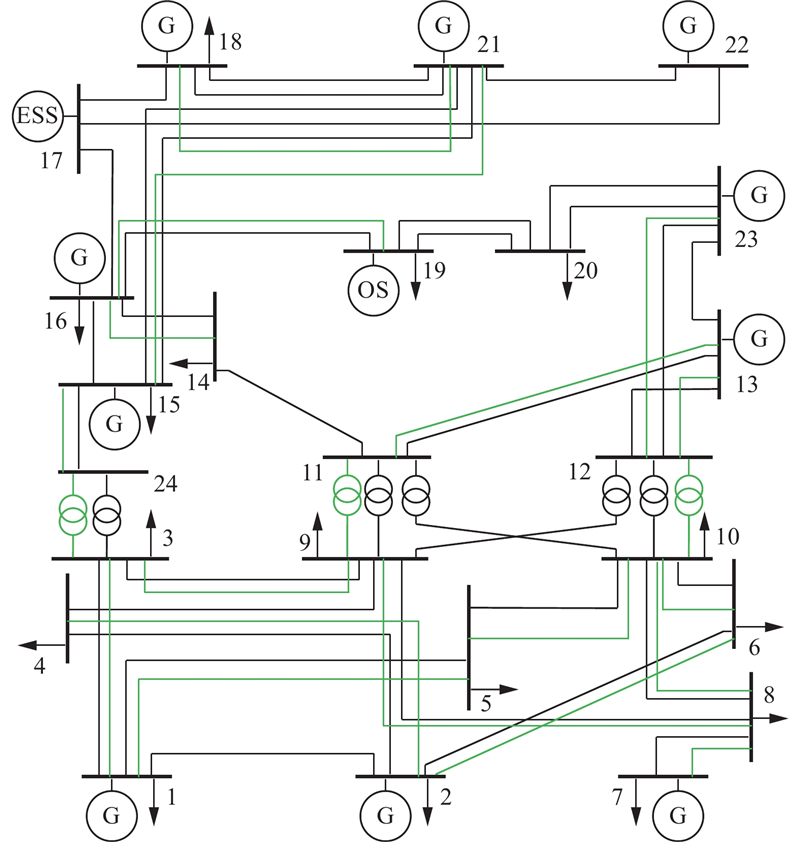

图 11 考虑线路负载率约束后的线路规划结果

Fig.11 Line planning results after considering line load rate constraints

表 3 考虑线路负载率约束前后重要线路的结果对比

Table 3 Comparison of results of key lines before and after considering line load rate constraints

线路	考虑负载率约束前		考虑负载率约束后
线路	平均负载率/%	重载率/%	平均负载率/%	重载率/%
1-3	14.99	11.71	12.41	0
1-5	9.74	10.46	8.144	0
3-24	16.188	5.29	9.22	0
7-8	49.17	50.25	34.67	7.01
8-9	44.15	52.71	41.16	14.66
13-23	27.12	19.86	3.75	0
17-18	46.8	73.44	24.35	25.01

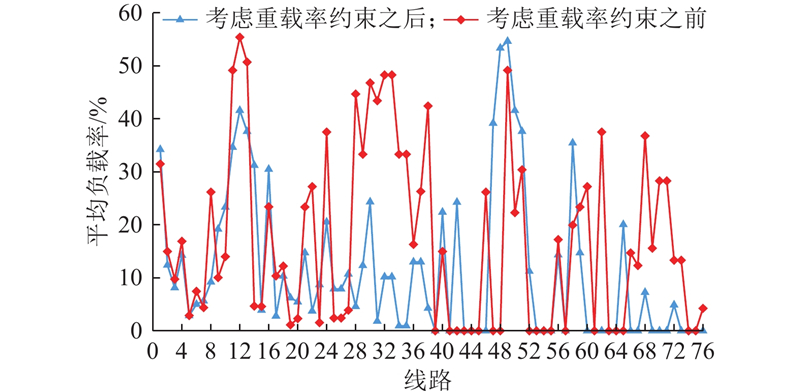

图 12 考虑线路负载率约束前后的线路平均负载率变化

Fig.12 Graph of changes in average line load rate before and after considering line load rate constraints

参考文献 34

1	康渭滨, 寇明鑫, 张文文, 等. 光伏储能电站不同储能形式经济性对比分析[J]. 电力科技与环保, 2024, 40 (3): 276- 285.
	KANG Weibin, KOU Mingxin, ZHANG Wenwen, et al. Economic comparison analysis of different energy storage forms for photovoltaic energy storage power stations[J]. Electric Power Technology and Environmental Protection, 2024, 40 (3): 276- 285.
2	杨嘉伟, 易杨, 姜浩, 等. 基于随机载波脉冲宽度调制的变换器群超高次谐波抑制机理[J]. 中国电力, 2023, 56 (11): 160- 167.
	YANG Jiawei, YI Yang, JIANG Hao, et al. Principle of supraharmonic elimination based on random carrier sinusoidal pulse width modulation for converter clusters[J]. Electric Power, 2023, 56 (11): 160- 167.
3	张礼浩, 刘翔宇, 顾雪平, 等. 新型电力系统频率安全稳定研究综述及展望[J]. 浙江电力, 2024, 43 (10): 12- 26.
	ZHANG Lihao, LIU Xiangyu, GU Xueping, et al. Review and prospects of frequency security and stability research in new-type power systems[J]. Zhejiang Electric Power, 2024, 43 (10): 12- 26.
4	王薇, 王松, 曾鑫海, 等. 变压器绕组梯形等效电路频率响应的稀疏列表算法研究[J]. 智慧电力, 2023, 51 (7): 102- 107.
	WANG Wei, WANG Song, ZENG Xinhai, et al. Sparse tableau algorithm for frequency response of transformer winding ladder equivalent circuit[J]. Smart Power, 2023, 51 (7): 102- 107.
5	林恒先, 侯凯元, 陈磊, 等. 高比例风电电力系统考虑频率安全约束的机组组合全文替换[J]. 电网技术, 2021, 45 (1): 1- 13.
	LIN Hengxian, HOU Kaiyuan, CHEN Lei, et al. Unit commitment of power system with high proportion of wind power considering frequency safety constraints[J]. Power System Technology, 2021, 45 (1): 1- 13.
6	苏开元, 董文凯, 邱银锋, 等. 分散式风储一体化系统提升海上油田群电网频率稳定性研究[J]. 中国电力, 2023, 56 (5): 163- 171.
	SU Kaiyuan, DONG Wenkai, QIU Yinfeng, et al. Study on using distributed wind-storage integrated system to improve frequency stability of offshore oilfield power systems[J]. Electric Power, 2023, 56 (5): 163- 171.
7	LING J W, BIAN X Y, YANG Y, et al. A collaborative planning of PCCs siting and transmission network expansion for super large-scale offshore wind clusters[J]. IET Generation, Transmission & Distribution, 2024, 18 (22): 3745- 3759.
8	鲍海波, 郭小璇. 求解含风电相关性区间潮流的仿射变换最优场景法[J]. 电力系统保护与控制, 2020, 48 (18): 114- 122.
	BAO Haibo, GUO Xiaoxuan. Optimal scenario algorithm based on affine transformation applied to interval power flow considering correlated wind power[J]. Power System Protection and Control, 2020, 48 (18): 114- 122.
9	田书欣, 韩雪, 符杨, 等. 计及海上风电不确定性的输电网两阶段鲁棒扩展规划[J]. 上海交通大学学报, 2024, 58 (9): 1400- 1409.
	TIAN Shuxin, HAN Xue, FU Yang, et al. Two-stage robust expansion planning of transmission network considering uncertainty of offshore wind power[J]. Journal of Shanghai Jiao Tong University, 2024, 58 (9): 1400- 1409.
10	俞智鹏, 叶荣, 唐雨晨, 等. 含高渗透率海上风电电网的DSSC优化配置与运行控制策略[J]. 可再生能源, 2020, 38 (6): 837- 845.
	YU Zhipeng, YE Rong, TANG Yuchen, et al. Optimal allocation and operation control strategy of DSSC with aigh penetration of offshore wind power[J]. Renewable Energy Resources, 2020, 38 (6): 837- 845.
11	杨钤, 王建学, 李旭霞, 等. 考虑线路负载率指标规划-运行协调一致性的电网规划双层模型[J]. 电网技术, 2024, 48(5): 1846–1854, I0007, I0008-I0010.
	YANG Qian, WANG Jianxue, LI Xuxia, et al. Bi-level transmission expansion planning model considering planning-operation coordination of line load rate indices[J]. Power System Technology, 2024, 48(5): 1846–1854, I0007, I0008-I0010.
12	杨欢红, 施颖, 黄文焘, 等. 考虑实时需求侧响应的光储充电站容量优化配置方法[J]. 智慧电力, 2023, 51 (7): 51- 58.
	YANG Huanhong, SHI Ying, HUANG Wentao, et al. Optimal capacity configuration method of photovoltaic-battery charging station considering real-time demand side response[J]. Smart Power, 2023, 51 (7): 51- 58.
13	张智, 周明, 武昭原, 等. 考虑动态频率支撑的储能选址定容规划方法[J]. 中国电机工程学报, 2023, 43 (7): 2708- 2720, 19.
	ZHANG Zhi, ZHOU Ming, WU Zhaoyuan, et al. Energy storage location and capacity planning method considering dynamic frequency support[J]. Proceedings of the CSEE, 2023, 43 (7): 2708- 2720, 19.
14	李军徽, 宋清龙, 郭琦, 等. 计及可用容量和调频成本的网侧多储能电站双层优化策略[J]. 电力系统自动化, 2025, 49 (10): 101- 111.
	LI Junhui, SONG Qinglong, GUO Qi, et al. Bi-level optimization strategy of grid-side multiple energy storage stations considering available capacity and frequency regulation cost[J]. Automation of Electric Power Systems, 2025, 49 (10): 101- 111.
15	赵冬梅, 徐辰宇, 杜泽航, 等. 就地无常规电源支撑下考虑新能源基地频率稳定的储能优化配置方法[J]. 中国电机工程学报, 2024, 44 (24): 9691- 9706.
	ZHAO Dongmei, XU Chenyu, DU Zehang, et al. Optimization configuration method for energy storage considering frequency stability of new energy bases without conventional power supply support on site[J]. Proceedings of the CSEE, 2024, 44 (24): 9691- 9706.
16	王国英, 王成福, 牛远方, 等. 含产消者租赁共享储能的主动配电网协同优化决策[J]. 电力系统自动化, 2025, 49 (1): 105- 116.
	WANG Guoying, WANG Chengfu, NIU Yuanfang, et al. Cooperative optimal decision-making for active distribution network with shared energy storage leased by prosumers[J]. Automation of Electric Power Systems, 2025, 49 (1): 105- 116.
17	张嘉琪, 胥国毅, 王程, 等. 考虑同步机调差系数灵敏度与频率约束的机组组合[J]. 电力系统保护与控制, 2023, 51 (13): 102- 110.
	ZHANG Jiaqi, XU Guoyi, WANG Cheng, et al. Unit commitment considering the sensitivity of the synchronous generator adjustment coefficient and frequency constraint[J]. Power System Protection and Control, 2023, 51 (13): 102- 110.
18	甄文喜, 马喜平, 戴跃洪, 等. 基于中间层控制的风-储自同步调频策略研究[J]. 综合智慧能源, 2025, 47 (8): 21- 29.
	ZHEN Wenxi, MA Xiping, DAI Yuehong, et al. Research on wind-storage self-synchronizing frequency regulation strategy based on intermediate layer control[J]. Integrated Intelligent Energy, 2025, 47 (8): 21- 29.
19	LI Z H, YANG L, XU Y L. A dynamics-constrained method for distributed frequency regulation in low-inertia power systems[J]. Applied Energy, 2023, 344(C).
20	曹永吉, 吴秋伟, 张恒旭, 等. 考虑分时电价和最大暂态频率偏移的储能机会约束优化配置[J]. 电力系统自动化, 2023, 47 (2): 61- 68.
	CAO Yongji, WU Qiuwei, ZHANG Hengxu, et al. Chance-constrained optimal configuration for energy storage system considering time-of-use price and maximum transient frequency deviation[J]. Automation of Electric Power Systems, 2023, 47 (2): 61- 68.
21	DING T, ZENG Z Y, QU M, et al. Two-stage chance-constrained stochastic thermal unit commitment for optimal provision of virtual inertia in wind-storage systems[J]. IEEE Transactions on Power Systems, 2021, 36 (4): 3520- 3530.
22	王育飞, 张新宇, 张文韬, 等. 考虑调频死区的电池储能系统自适应频率控制策略[J]. 智慧电力, 2024, 52 (8): 33- 41.
	WANG Yufei, ZHANG Xinyu, ZHANG Wentao, et al. Adaptive frequency control strategy of battery energy storage system considering frequency regulation dead band[J]. Smart Power, 2024, 52 (8): 33- 41.
23	胡英杰, 李强, 李群. 考虑容量限制的构网型光储系统惯量与一次调频参数优化配置方法[J]. 中国电力, 2024, 57 (10): 115- 122.
	HU Yingjie, LI Qiang, LI Qun. Co-optimization of inertia and droop control coefficient for grid-forming photovoltaic-storage system considering capacity limits[J]. Electric Power, 2024, 57 (10): 115- 122.
24	徐辰宇, 赵冬梅, 王浩翔, 等. 计及直流跨区互联系统频率稳定的多调频资源协调优化研究[J]. 中国电机工程学报, 2026, 46 (1): 127- 141.
	XU Chenyu, ZHAO Dongmei, WANG Haoxiang, et al. Research on coordinated optimization of multiple frequency regulation resources considering frequency stability of inter-regional HVDC interconnected systems[J]. Proceedings of the CSEE, 2026, 46 (1): 127- 141.
25	YANG L, LI Z H, XU Y L, et al. Frequency constrained scheduling under multiple uncertainties via data-driven distributionally robust chance-constrained approach[J]. IEEE Transactions on Sustainable Energy, 2023, 14 (2): 763- 776.
26	YANG L, XU Y L, ZHOU J G, et al. Distributionally robust frequency constrained scheduling for an integrated electricity-gas system[J]. IEEE Transactions on Smart Grid, 2022, 13 (4): 2730- 2743.
27	邱星宇, 吴毓峰, 王梓耀, 等. 计及并离网频率约束的微电网容量优化配置方法[J]. 电力系统保护与控制, 2023, 51 (21): 166- 177.
	QIU Xingyu, WU Yufeng, WANG Ziyao, et al. Optimal configuration method of microgrid capacity considering grid connection and islanding frequency constraints[J]. Power System Protection and Control, 2023, 51 (21): 166- 177.
28	BADESA L, TENG F, STRBAC G. Pricing inertia and Frequency Response with diverse dynamics in a Mixed-Integer Second-Order Cone Programming formulation[J]. Applied Energy, 2020, 260, 114334.
29	ZARE M H, BORRERO J S, ZENG B, et al. A note on linearized reformulations for a class of bilevel linear integer problems[J]. Annals of Operations Research, 2019, 272 (1): 99- 117.
30	LIU Y C, DOU Z H, WANG Z, et al. Optimal configuration of electricity-heat integrated energy storage supplier and multi-microgrid system scheduling strategy considering demand response[J]. Energies, 2024, 17 (21): 5436.
31	孙汝羿, 袁至, 王维庆, 等. 含固态变压器新型配电网动态无功多目标优化[J]. 电力系统保护与控制, 2023, 51 (16): 104- 114.
	SUN Ruyi, YUAN Zhi, WANG Weiqing, et al. Multi-objective optimization of dynamic reactive power in a new distribution network with a solid state transformer[J]. Power System Protection and Control, 2023, 51 (16): 104- 114.
32	GAO H J, LIU Z Y, LIU Y B, et al. A data-driven distributionally robust operational model for urban integrated energy systems[J]. CSEE Journal of Power and Energy Systems, 2022, 8 (3): 789- 800.
33	ROCKAFELLAR R T, URYASEV S. Optimization of conditional value-at-risk[J]. The Journal of Risk, 2000, 2 (3): 21- 41.
34	ZENG B, ZHAO L. Solving two-stage robust optimization problems using a column-and-constraint generation method[J]. Operations Research Letters, 2013, 41 (5): 457- 461.
