考虑富氧燃烧技术与需求响应的工业园区综合能源系统优化调度

doi:10.11930/j.issn.1004-9649.202507026

摘要/Abstract

摘要：

在碳达峰和碳中和背景下，工业园区综合能源系统（integrated energy system，IES）因其较高的灵活性和较低的碳排放受到了广泛关注。为降低工业园区IES的碳排放，并提高工业园区IES的经济效益，构建了考虑富氧燃烧捕集技术与电转氢（power-to-hydrogen，P2H）技术合作以及需求响应机制的工业园区IES系统优化调度模型。首先，该模型通过对火电机组进行富氧燃烧改造来提高系统灵活性，降低火电机组碳排放；其次，通过引入P2H与富氧燃烧电厂合作，不仅提高了风光消纳量，也降低了富氧燃烧电厂供氧压力；然后，通过掺氢设备降低了能量转化过程中的损耗，实现了氢气高位利用；最后，通过引入需求响应，进一步提高IES的灵活性，降低碳排放，并基于此建立了该工业园区IES的最小成本优化调度模型。通过案例研究发现实际碳排放较碳配额低29.60%，验证了该模型的有效性，并分析了部分关键变量对工业园区IES的影响。

关键词: 综合能源系统, 富氧燃烧电厂, 激励型需求响应, 热效率变化, P2H合作机制

Abstract:

Under the background of carbon peaking and carbon neutrality, the integrated energy system (IES) in industrial parks has attracted widespread attention due to its high flexibility and low carbon emissions. To further reduce carbon emissions of the industrial park IES and improve its economic benefits, we develops an optimal scheduling model for the industrial park IES, considering the cooperation between oxy-fuel combustion capture technology and power-to-hydrogen (P2H) technology, and the demand response mechanism. Firstly, the model improves system flexibility and reduces carbon emissions of thermal power units by retrofitting them with oxy-fuel combustion. Secondly, the introduction of cooperation between P2H and oxy-fuel combustion power plants not only increases the absorption capacity of wind and solar energy but also reduces the oxygen supply pressure of oxy-fuel combustion power plants. Then, the hydrogen blending equipment reduces energy loss during the energy conversion process, realizing the high-value utilization of hydrogen. Finally, the introduction of demand response further improves the flexibility of the IES and reduces carbon emissions, based on which a minimum-cost optimal scheduling model for the industrial park IES is established. Through a case study, it is found that the actual carbon emissions are 29.60% lower than the carbon quota, verifying the effectiveness of the proposed model. Sensitivity analysis is conducted to examine the impact of key variables on the industrial park IES.

Key words: integrated energy system, oxy-fuel combustion power plant, incentive-based demand response, thermal efficiency variation, power-to-hydrogen cooperation mechanism

覃育茗, 祝云. 考虑富氧燃烧技术与需求响应的工业园区综合能源系统优化调度[J]. 中国电力, 2026, 59(3): 48-63.

QIN Yuming, ZHU Yun. Optimal scheduling of integrated energy system in industrial parks considering oxy-fuel combustion technology and demand response[J]. Electric Power, 2026, 59(3): 48-63.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202507026

https://www.electricpower.com.cn/CN/Y2026/V59/I3/48

图/表 28

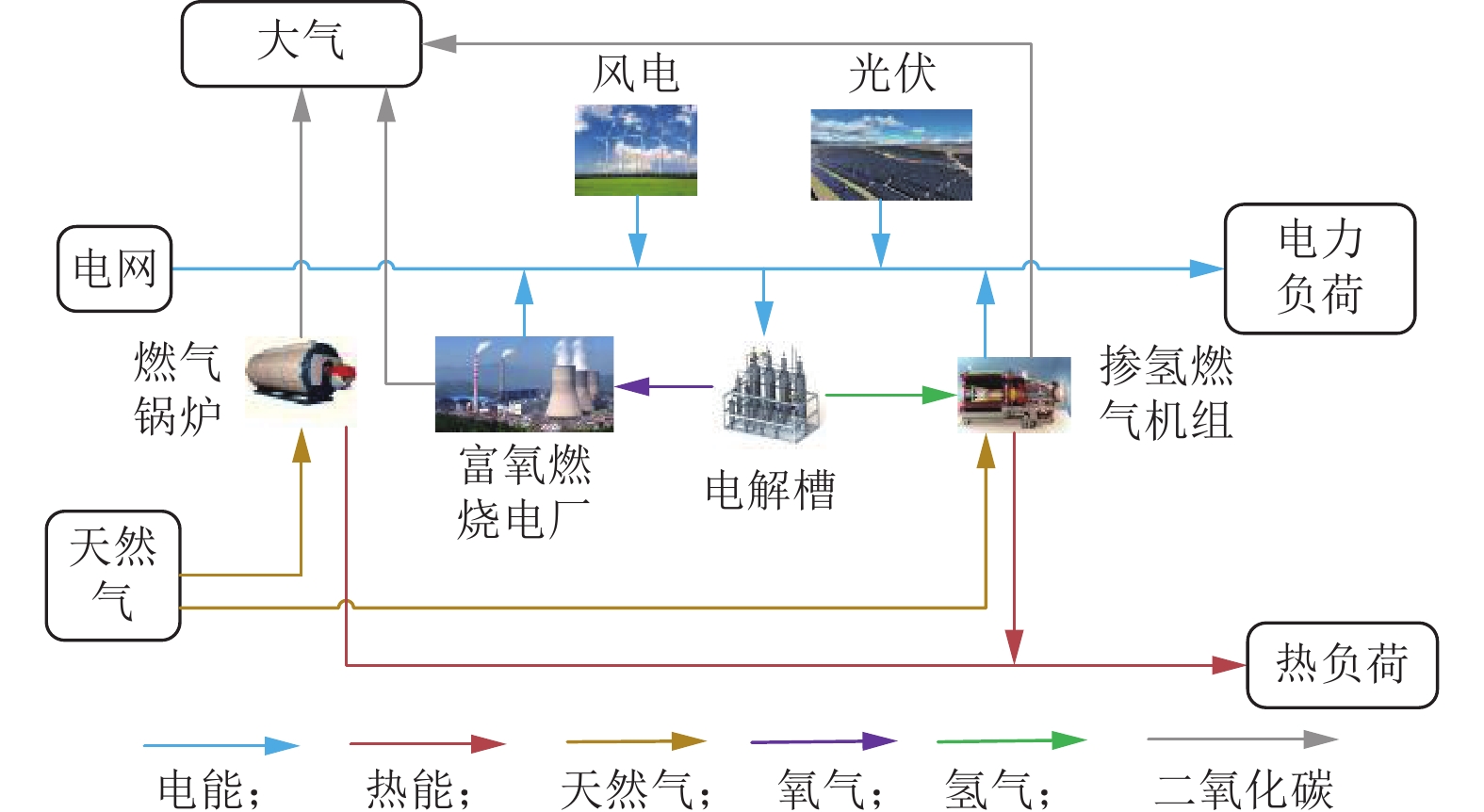

图 1 含富氧燃烧电厂的工业园区综合能源系统结构

Fig.1 Industrial park IES structure with oxy-fuel combustion power plant

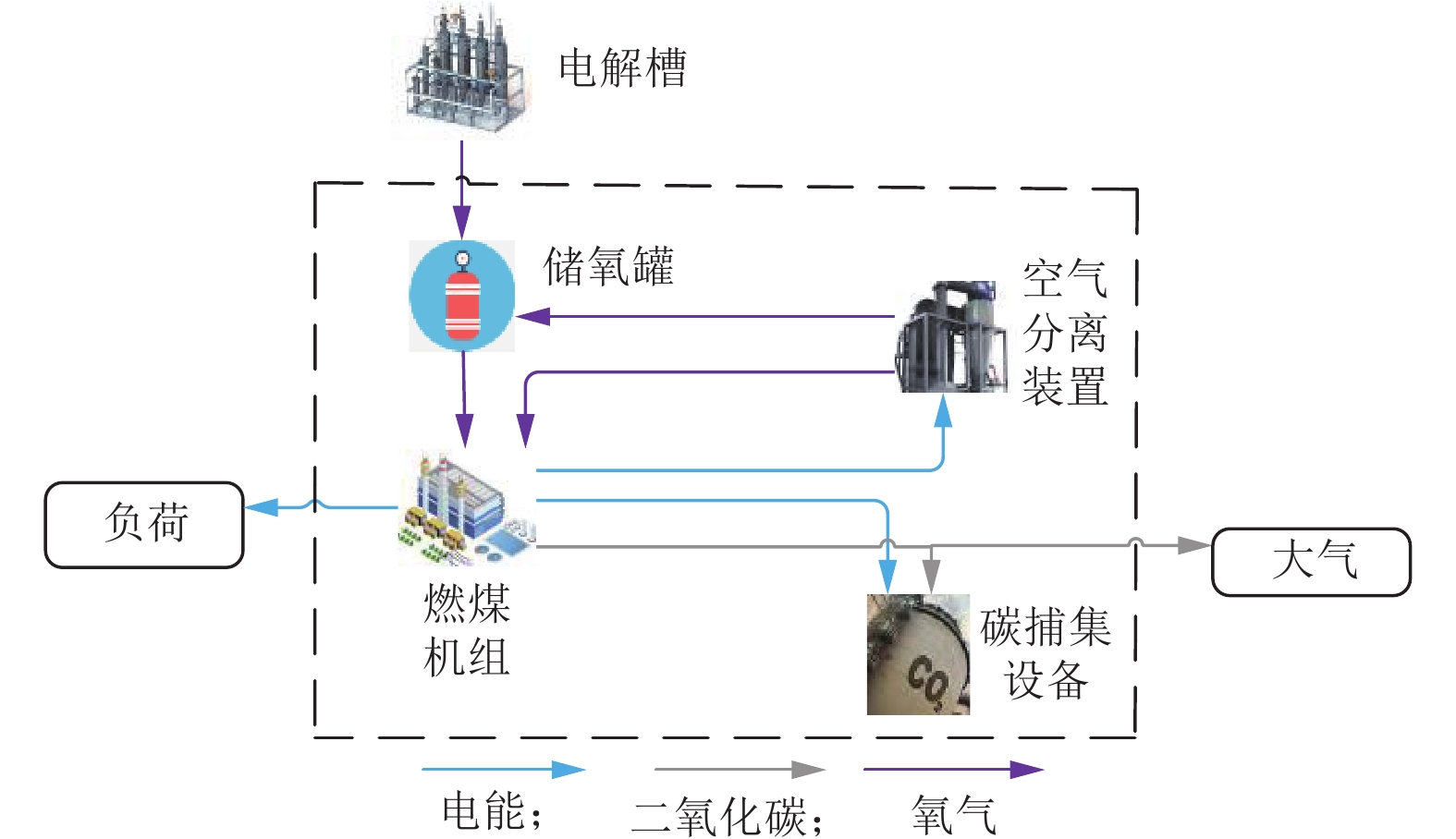

图 2 富氧燃烧电厂结构

Fig.2 Oxy-fuel combustion power plant structure

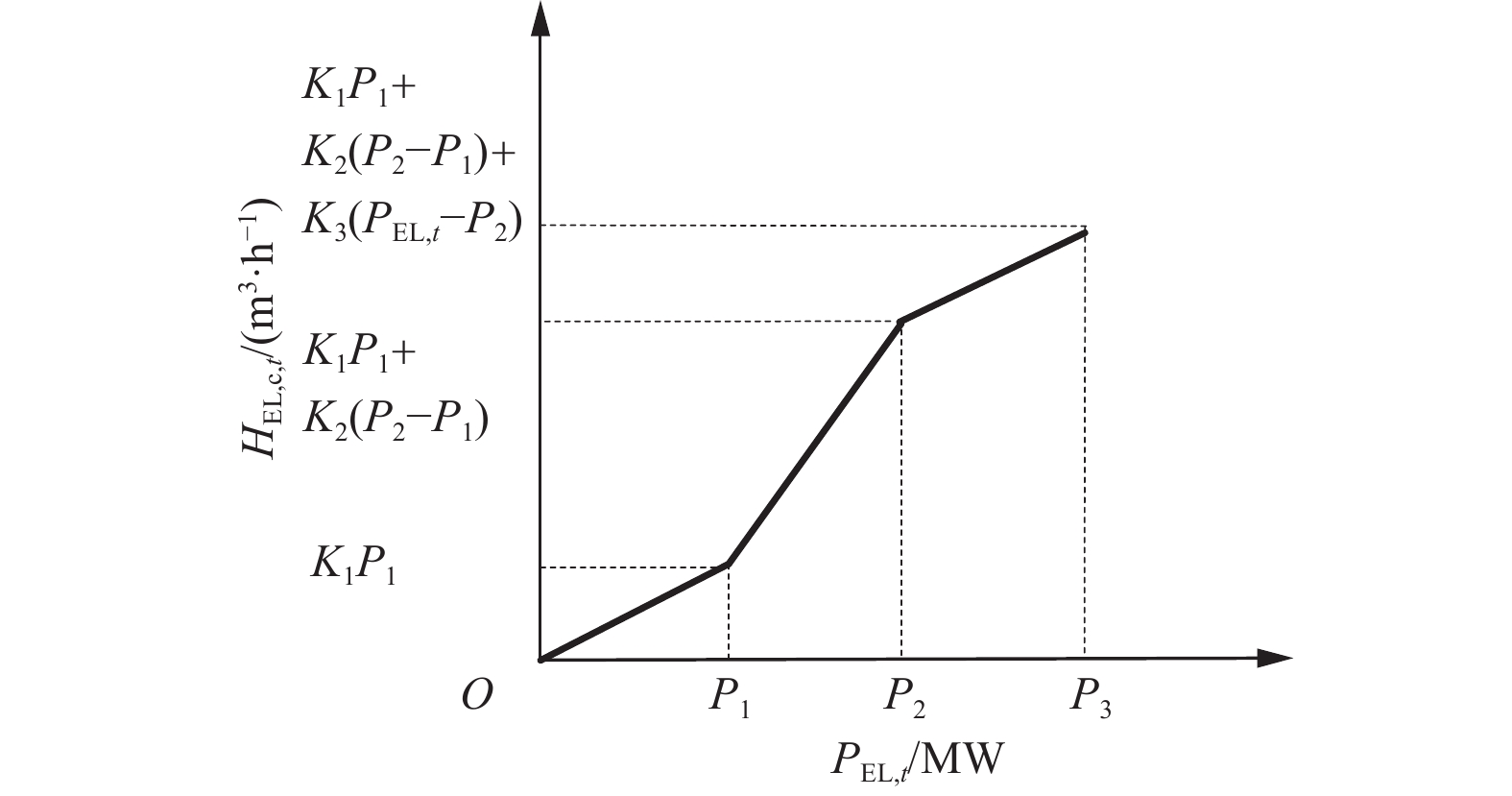

图 3 电解槽功率与产氢量的关系

Fig.3 Relationship between electrolyzer power and hydrogen production

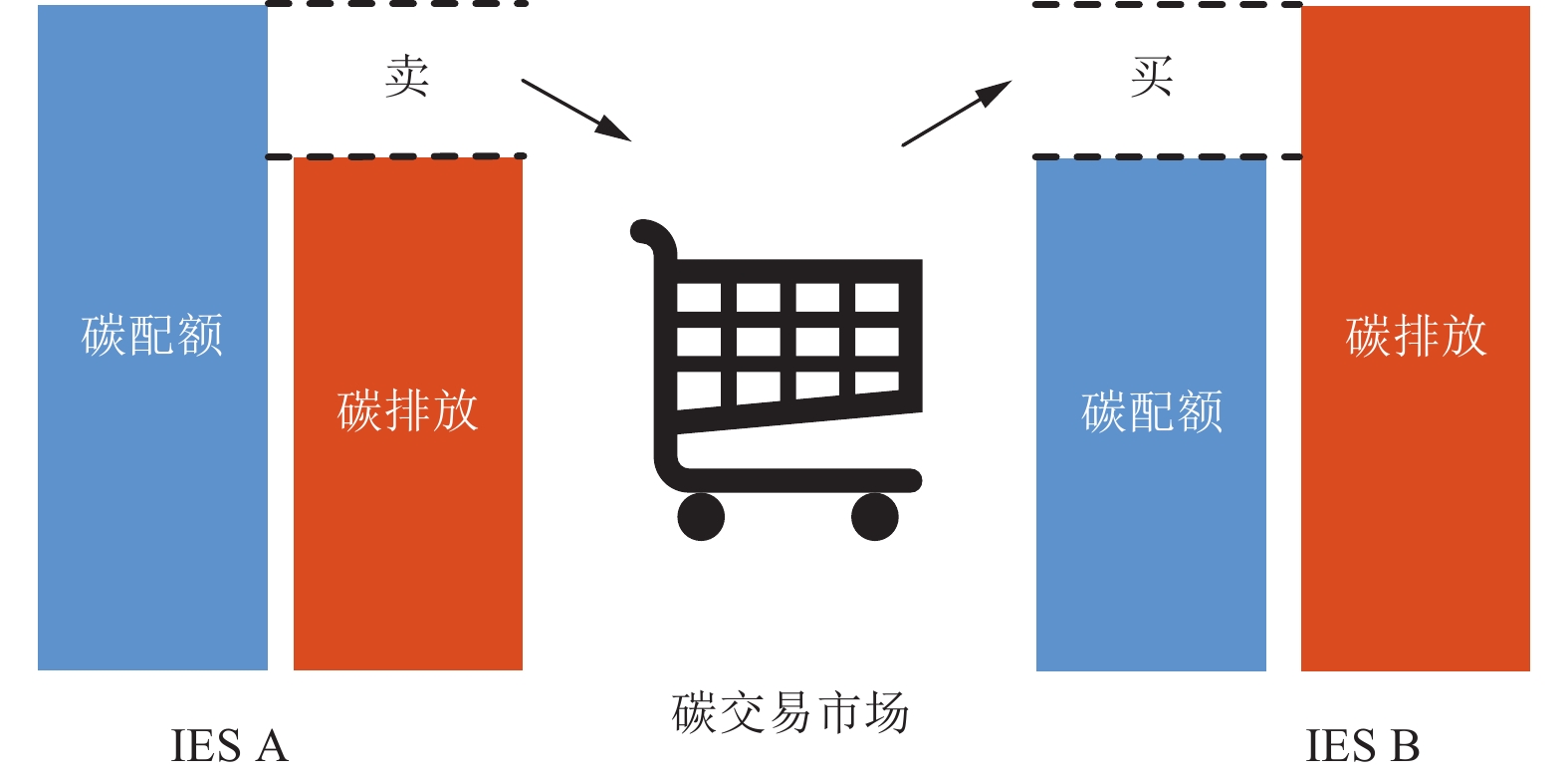

图 4 碳交易目标

Fig.4 Targets of carbon trading

图 5 奖惩制碳交易成本与碳交易量的关系

Fig.5 The relationship between the carbon trading cost and the carbon trading quantity under the reward and punishment carbon trading system

表 1 富氧燃烧电厂参数

Table 1 Parameters of the oxy-fuel combustion power plant

参数名	值	参数名	值
$ {a_{\rm TP}}$/(t·(MW·h)^–2)	0.000 75	$ \alpha $/((MW·h)·m^–3)	0.000 303
$ {b_{\rm TP}} $/(t·(MW·h)^–1)	0.3	$ {P_{{\text{ASU}}\max }} $/MW	6
$ {c_{\rm TP}}/\rm t $	0.72	$ {P_{{\text{ASU}}\min }} $/MW	3
$ \theta $	0.978	$ {O_{\rm S\max }}$/m³	150 000
$ \chi $/(m³·t^–1)	1 650	$ {O_{\rm S\min }}$/m³	30 000
$ \partial $	0.98	$ {\beta }_{\rm C} $/(元·t^–1)	800
$ {P_{\rm TP\min }} $/MW	10	$ {P_{\rm TP\min }} $/MW	50
$ \delta $/((MW·h)·t^–1)	0.089 3	$ \Delta {P_{\rm TP\max }} $/MW	10
$ {A_{\rm TPe}} $/(t·(MW·h)^–1)	0.804 9	$ {\beta }_{\rm TP} $/(元·(MW·h)^–1)	50
$ {\beta }_{\rm ASU} $/(元·(MW·h)^–1)	52	$ {\beta }_{\rm CPU} $/(元·(MW·h)^–1)	30
$ {k_{\rm C}} $	2.4

表 2 P2H参数

Table 2 Parameters of the P2H system

参数名	值	参数名	值
$ {P_1}$/MW	7	$ {K_1} $/(m³·(MW·h)^–1)	234.375
$ {P_2} $/MW	23	$ {K_2} $/(m³·(MW·h)^–1)	265.625
$ {P_3} $/MW	30	$ {K_3} $/(m³·(MW·h)^–1)	234.375
$ {H_{\max }} $/m³	50 000	$ {\beta }_{\rm EL} $/(元·(MW·h)^–1)	20
$ {H_{\min }} $/m³	10 000

表 3 掺氢燃气轮机及掺氢燃气锅炉参数

Table 3 Parameters of the HBGT and the HBGB

参数名	值	参数名	值
$ {\eta _{\rm GT,e}} $	0.4	$ Q{}_{\rm GT\min } $/MW	25
$ {\eta _{\rm GT,h}} $	0.4	$ Q{}_{\rm GT\max } $/MW	125
$ {\sigma _{\rm h2}} $/((MW·h)·m^–3)	0.003 2	$ \Delta Q{}_{\rm GT\max } $/MW	25
$ {\sigma _{\rm gas}} $/((MW·h)·m^–3)	0.01	$ {\beta }_{\rm GT} $/(元·(MW·h)^–1)	120
$ {P_{{\rm GB}\min }} $/MW	20	$ {P_{{\rm GB}\max }} $/MW	100
$ \Delta {P_{{\rm GB}\max }} $/MW	20	$ {\eta _{{\rm GB}}} $	0.9
$ {\beta }_{{\rm GB}} $/(元·(MW·h)^–1)	30	$ {\beta }_{\rm Gas} $/(元·m^–3)	2.275 4
$ {A_{\rm GTe}} $/(t·(MW·h)^–1)	0.328 8	$ {A_{\rm h}} $/(t·(MW·h)^–1)	0.053 3

表 4 碳交易及需求响应参数

Table 4 Parameters of the carbon trade and DR

参数名	值	参数名	值
f	0.2	$\omega $	0.3
$ d $/t	50	$n$	0.2
$ c $/(元·t^–1)	120	$ m $	0.2
$ {\beta _{\rm DRh1}} $/(元·MW^–1)	10

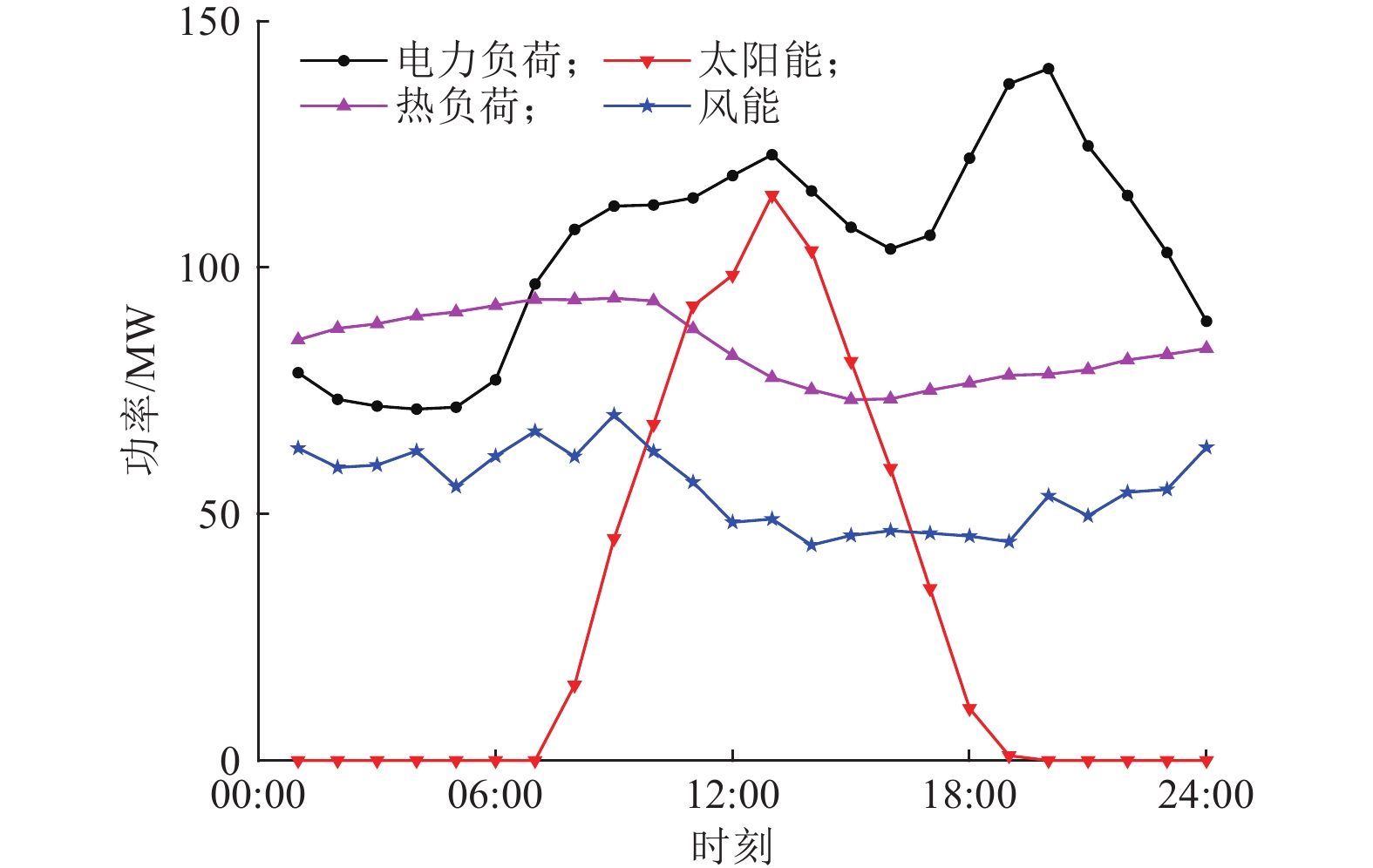

图 6 风光出力及热电负荷预测数据

Fig.6 Wind and solar power output and load forecast data

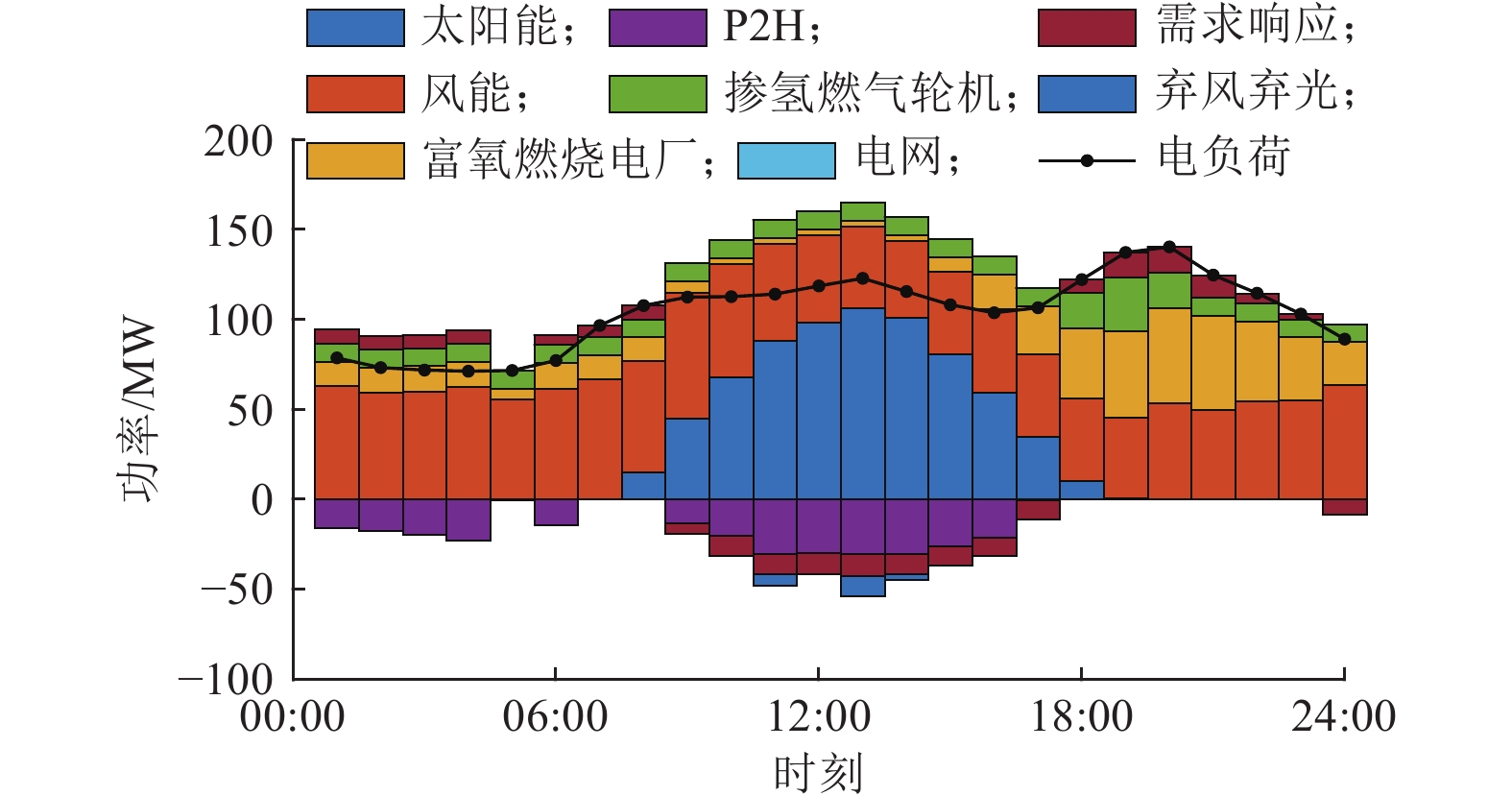

图 7 工业园区IES中的电力平衡

Fig.7 Power balance in the industrial park IES

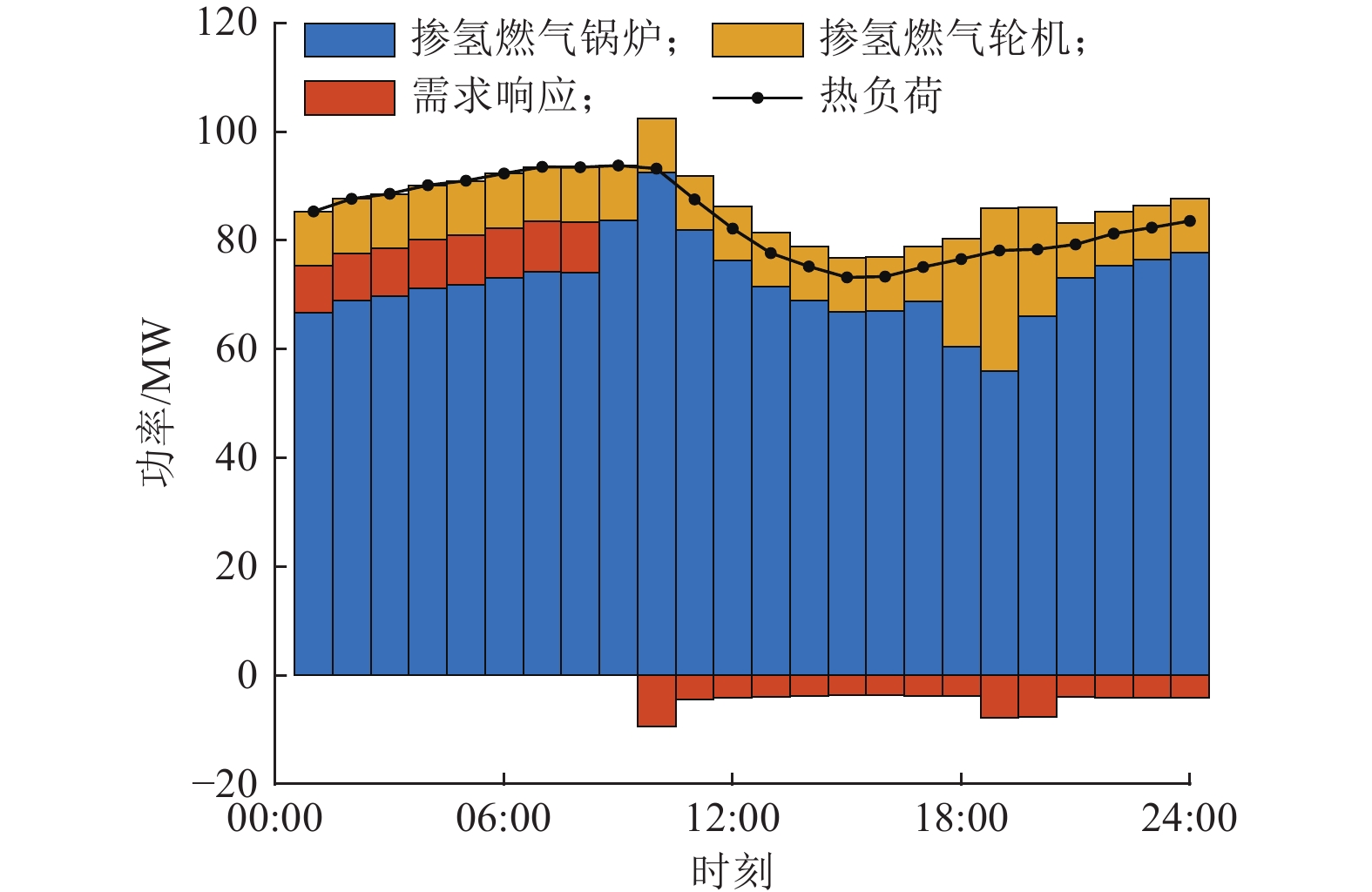

图 8 工业园区IES中的热力平衡

Fig.8 Thermal power balance in the industrial park IES

表 5 工业园区IES调度结果

Table 5 Scheduling results for the industrial park IES

参数	值	参数	值
弃风弃光率/%	1.04	总成本/10³ 元	824.73
碳交易成本/10³ 元	–38.73	煤炭购买成本/10³ 元	171.50
弃风弃光成本/10³ 元	16.83	需求响应成本/10³ 元	18.58
系统维护成本/10³ 元	83.03	天然气购买成本/10³ 元	545.33
碳排放配额/t	695.48	实际碳排放/t	489.62
购电成本/10³ 元	0.00

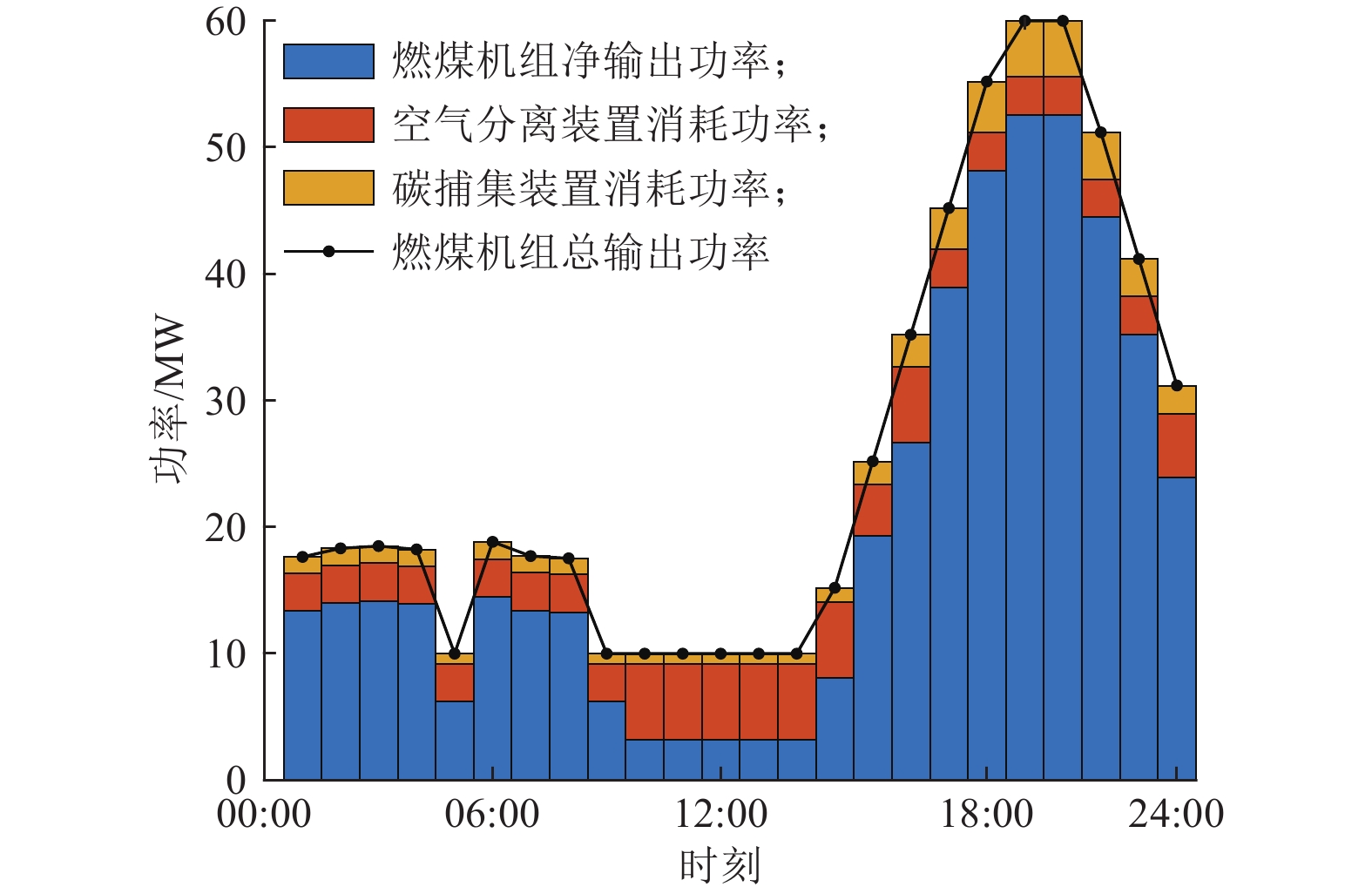

图 9 富氧燃烧电厂用能状况

Fig.9 Energy consumption status of oxy-fuel combustion power plants

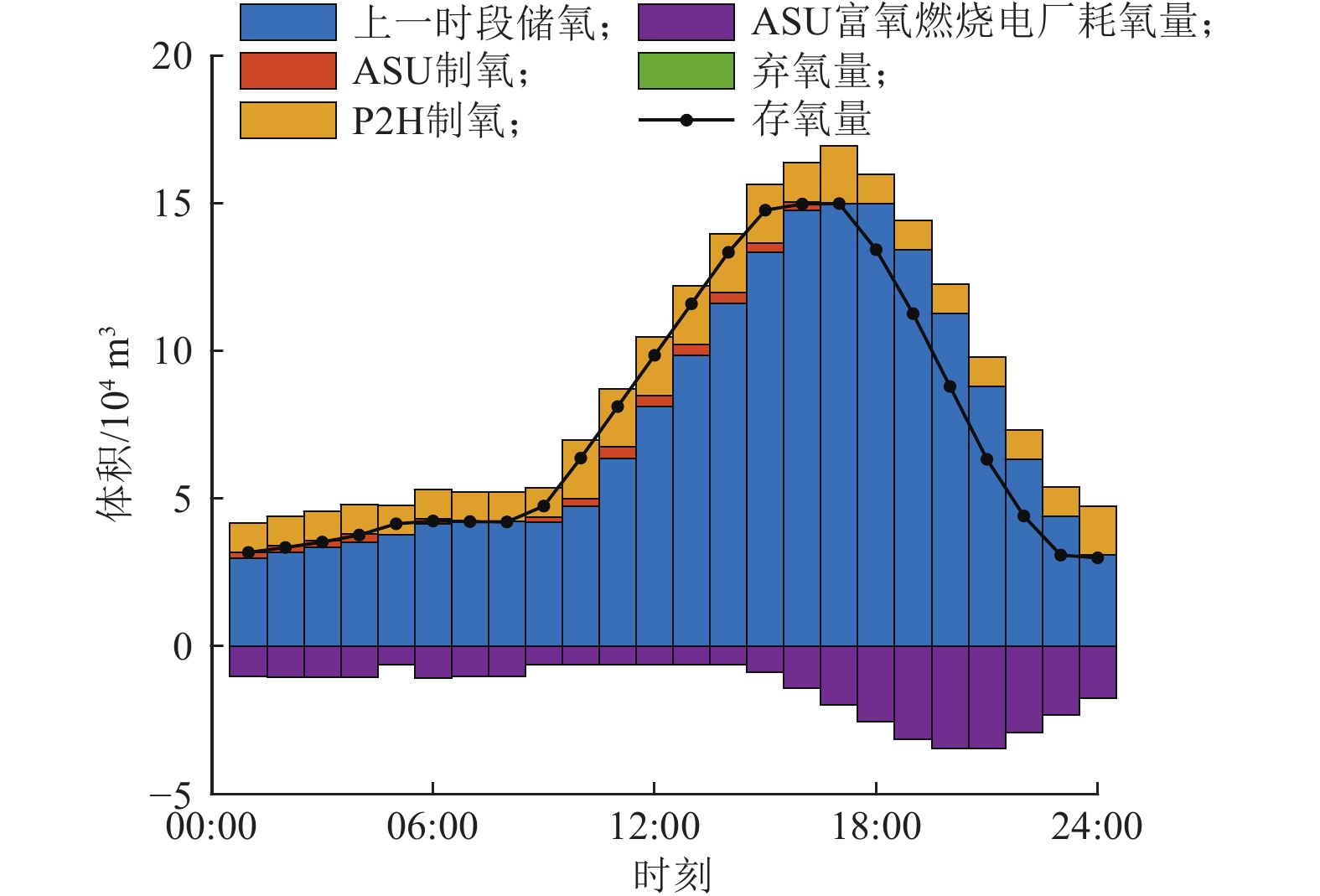

图 10 富氧燃烧电厂氧气储存状况

Fig.10 Oxygen storage status of oxy-fuel combustion power plants

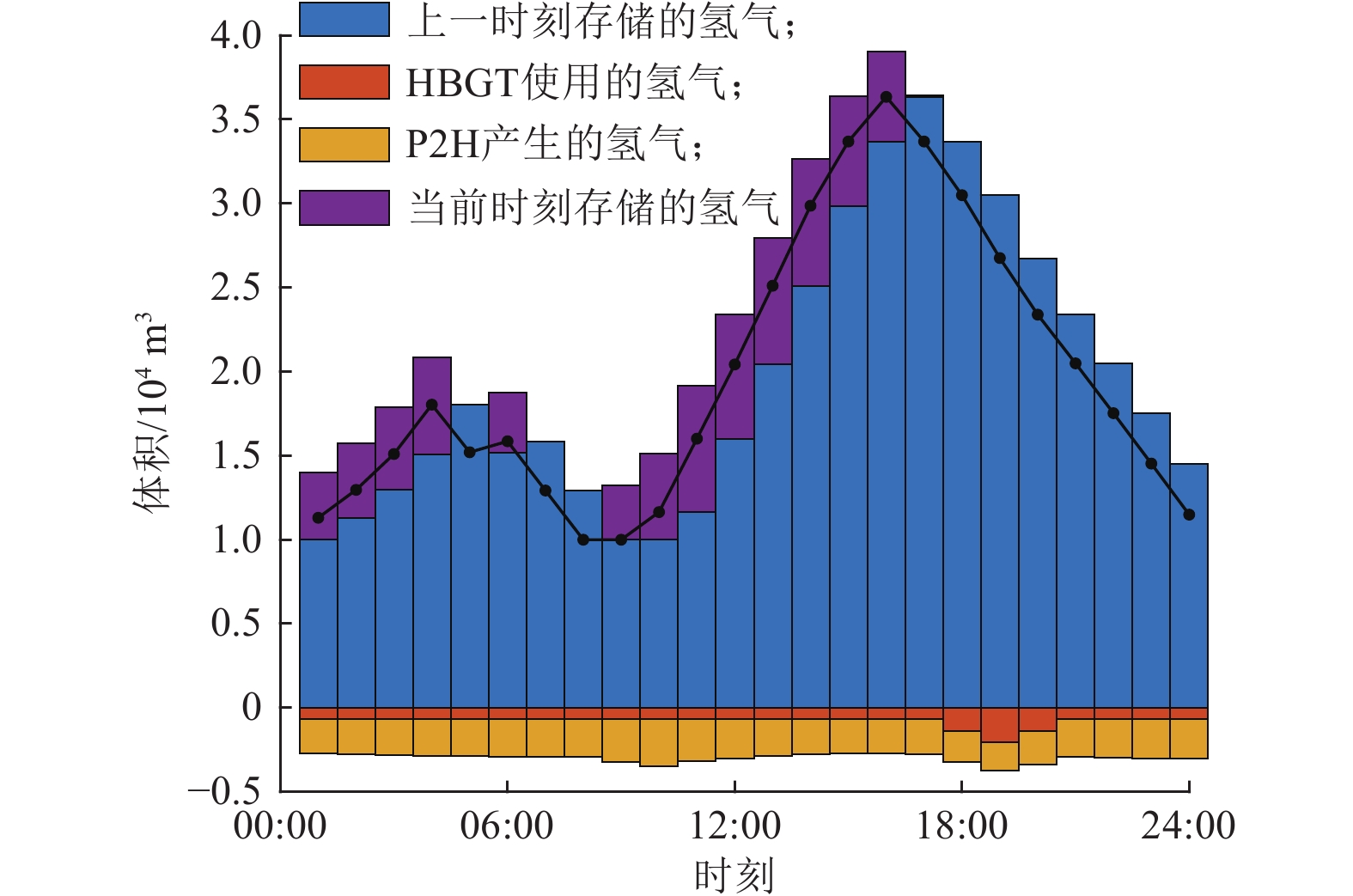

图 11 工业园区IES中的氢气平衡

Fig.11 Hydrogen balance of the industrial park IES

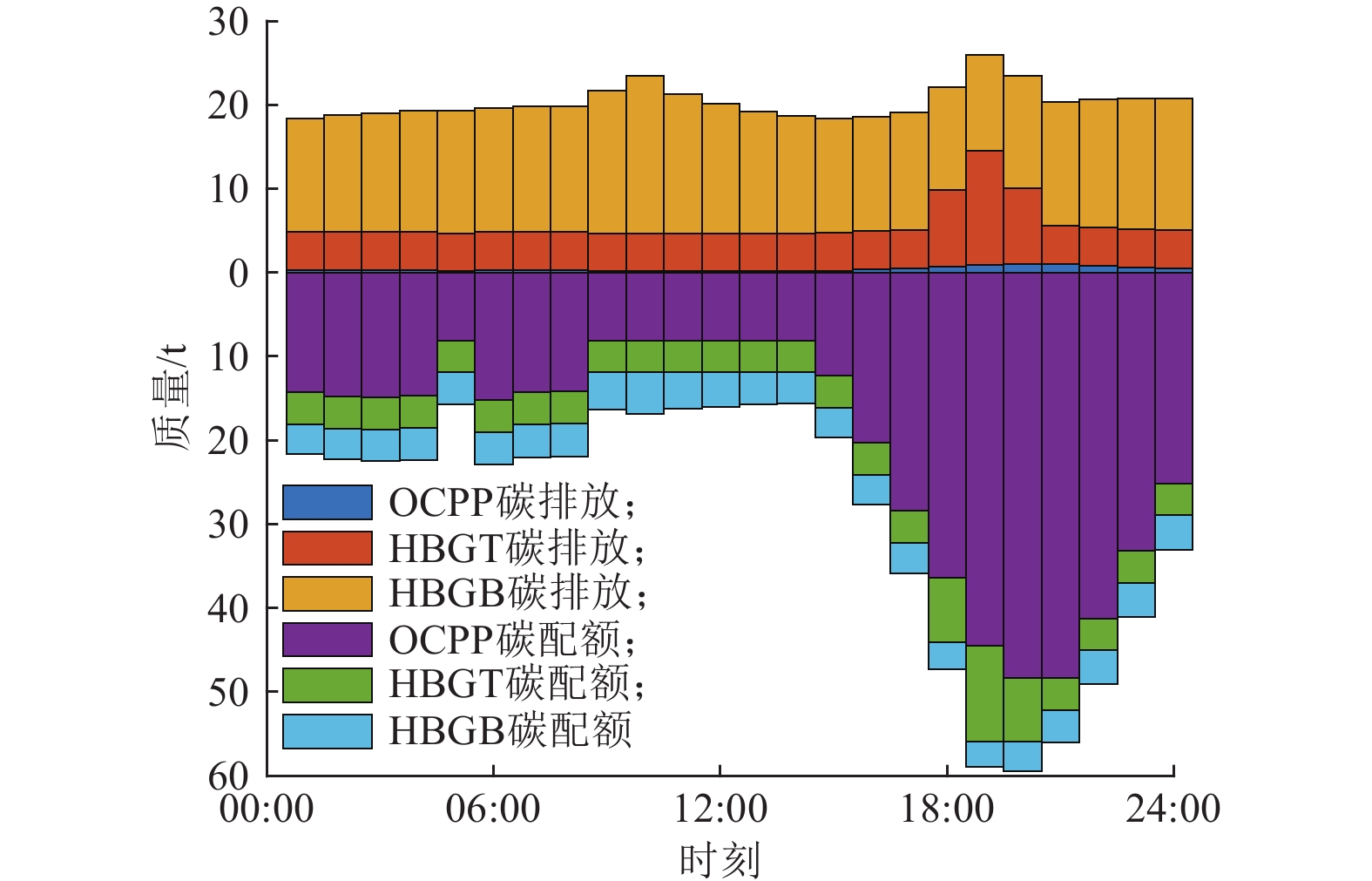

图 12 IES碳排放及碳配额组成

Fig.12 IES carbon emissions and carbon allowance composition

表 6 场景1、2、3调度结果对比

Table 6 Comparison of scheduling results for scenarios 1, 2, and 3

场景	总成本/ 10³ 元	实际碳排放/t	碳排放配额/t	碳交易成本/10³ 元	弃风弃光率/%	系统维护成本/10³ 元	煤炭购买成本/10³ 元	天然气购买成本/10³ 元	火电净发电百分比/%	火电厂捕集百分比/%
1	824.73	489.62	695.48	38.73	1.04	83.03	171.50	545.33	77.10	98.00
2	903.77	859.79	550.99	60.35	2.34	66.21	120.78	565.95	100.00	0.00
3	851.43	533.20	682.48	26.85	2.00	79.29	169.75	548.69	83.84	87.50

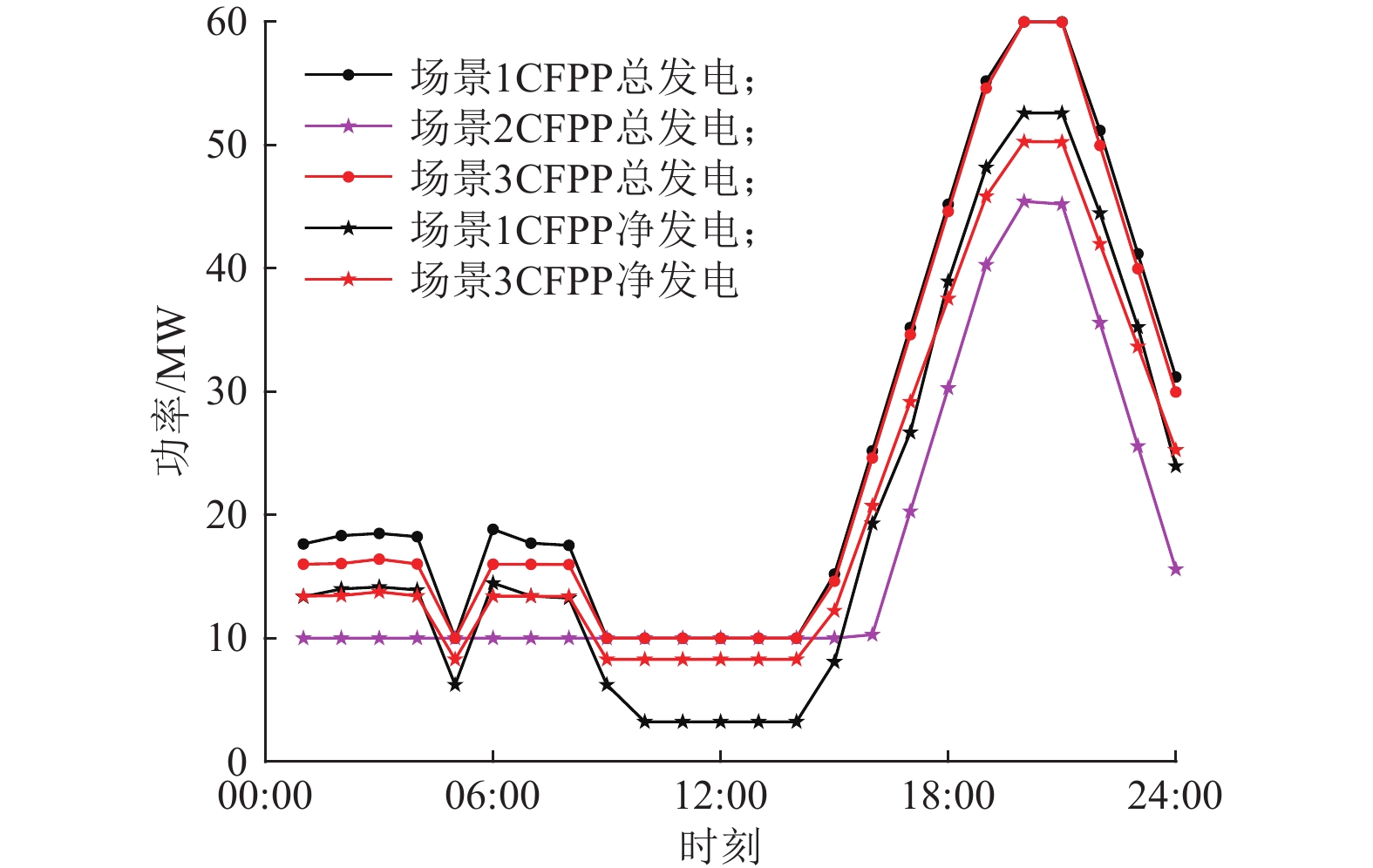

图 13 3个场景下的燃煤机组总发电与净发电对比

Fig.13 Comparison of total and net power generation of coal-fired units under three scenarios

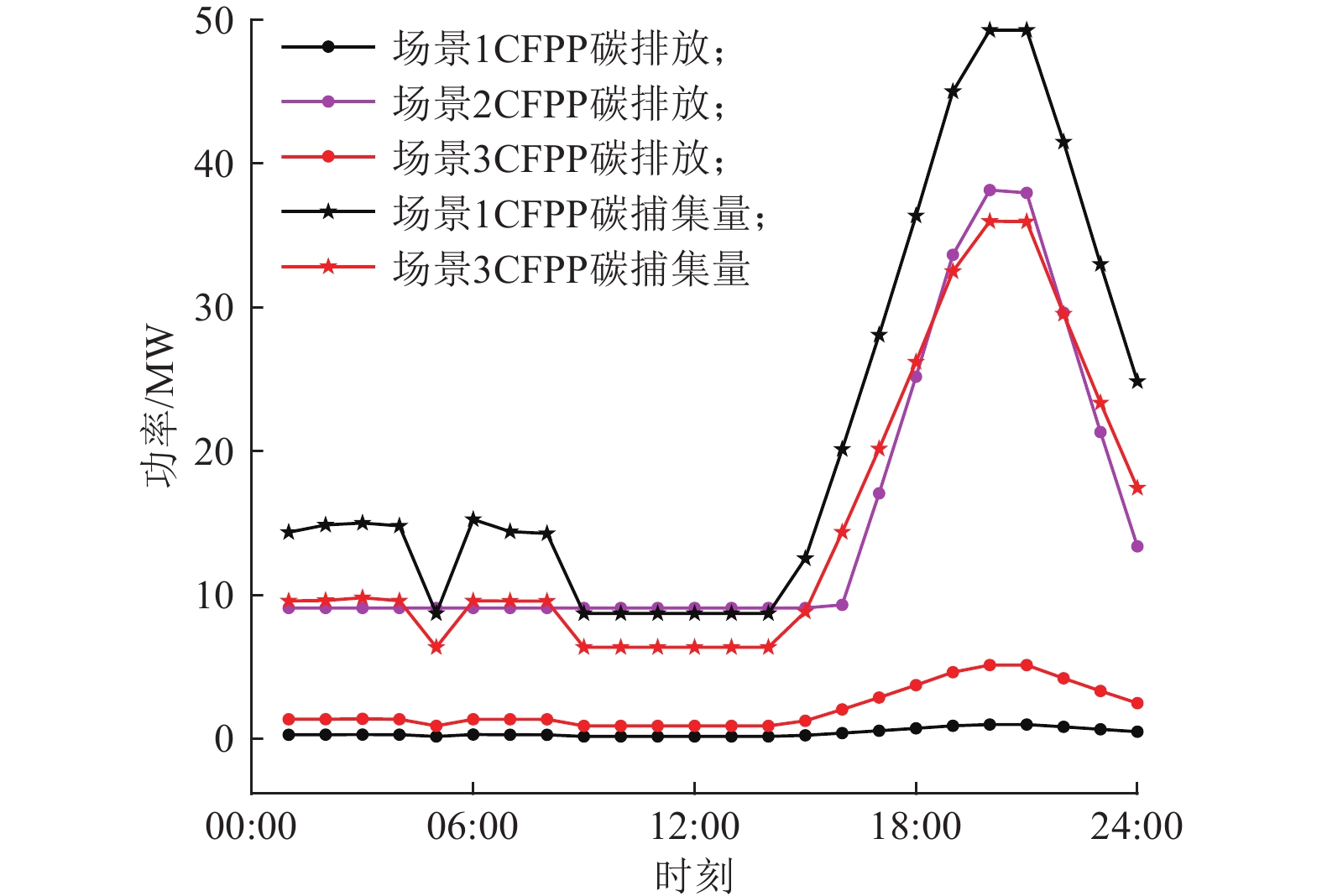

图 14 3个场景下的燃煤机组碳排放与碳捕集量对比

Fig.14 Comparison of carbon emissions and capture amount of coal-fired units under three scenarios

表 7 场景1、4、5调度结果对比

Table 7 Scheduling results for scenarios 1, 4, and 5

场景	总成本/ 10³ 元	实际碳排放/t	弃风弃光率/%	火电净发电百分比/%	ASU制氧量/10³ m³	P2H制氧量/10³ m³
1	824.73	489.62	1.04	77.10	317.18	36.54
4	1 016.29	545.16	9.37	66.62	396.04	0.00
5	826.69	489.79	1.04	75.32	359.20	0.00

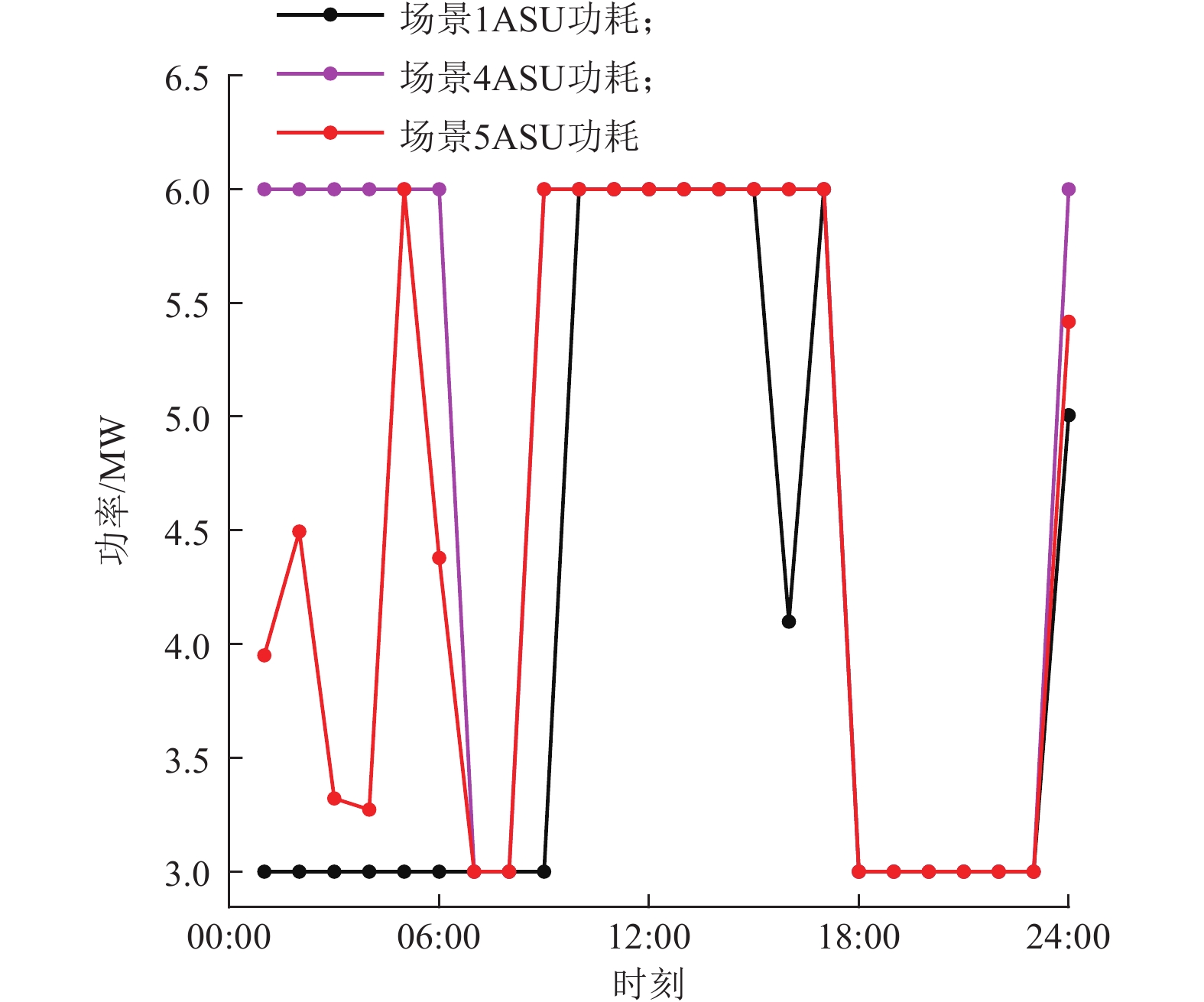

图 15 3个场景下的ASU功耗对比

Fig.15 ASU power consumption under three scenarios

表 8 场景1、6调度结果对比

Table 8 Scheduling results for scenario 1 and 6

场景	总成本/ 10³ 元	实际碳排放/t	弃风弃光率/%	电解槽功耗/ (MW·h)
1	824.73	489.62	1.04	289.45
6	887.97	509.35	3.46	370.16

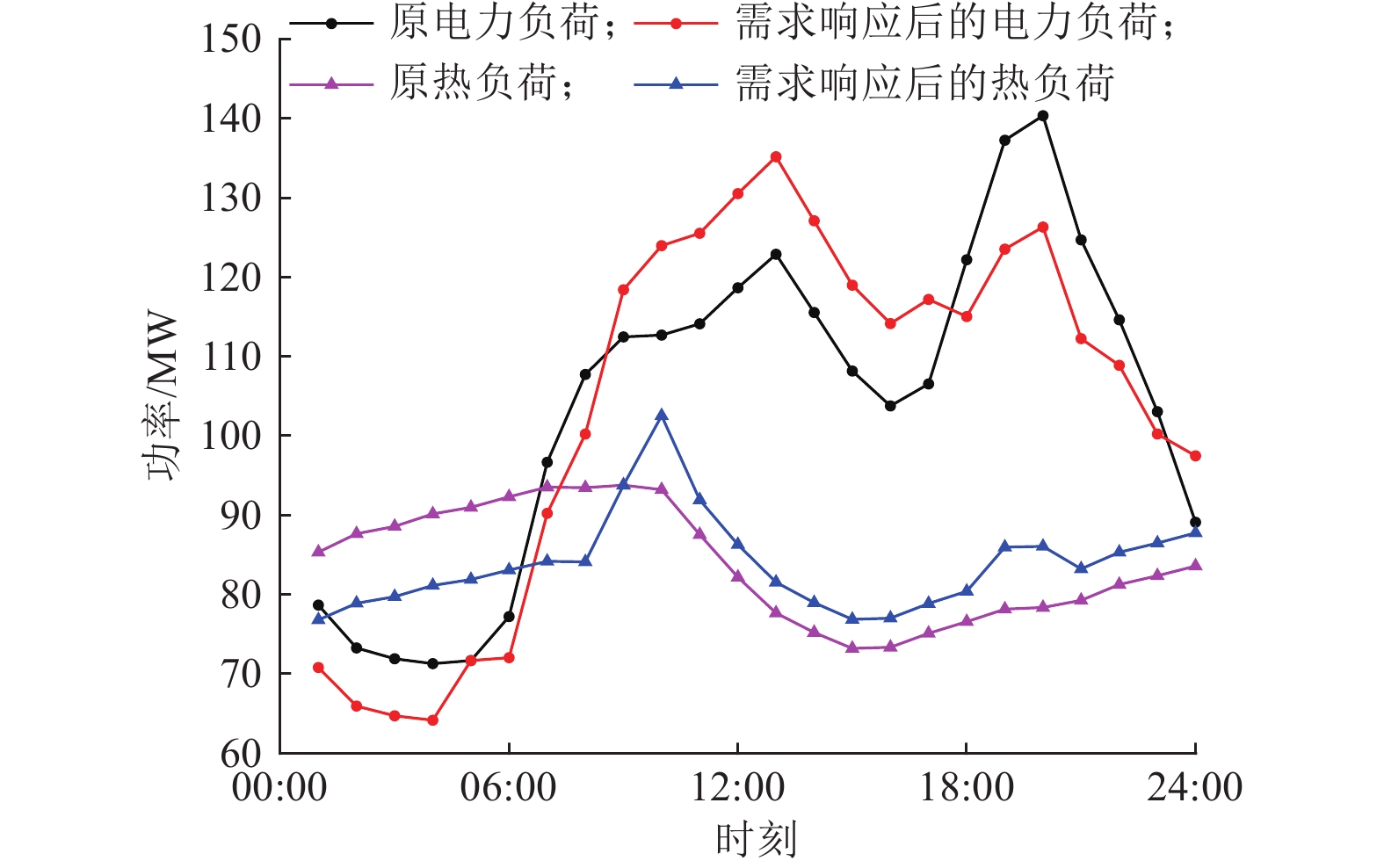

图 16 需求响应前后负荷对比

Fig.16 Comparison of loads before and after demand response

表 9 场景1、7调度结果对比

Table 9 Scheduling results for scenario 1 and 7

场景	OCPP购碳成本/10³ 元	火电净发电百分比/%
1	171.50	77.10
7	175.54	76.55

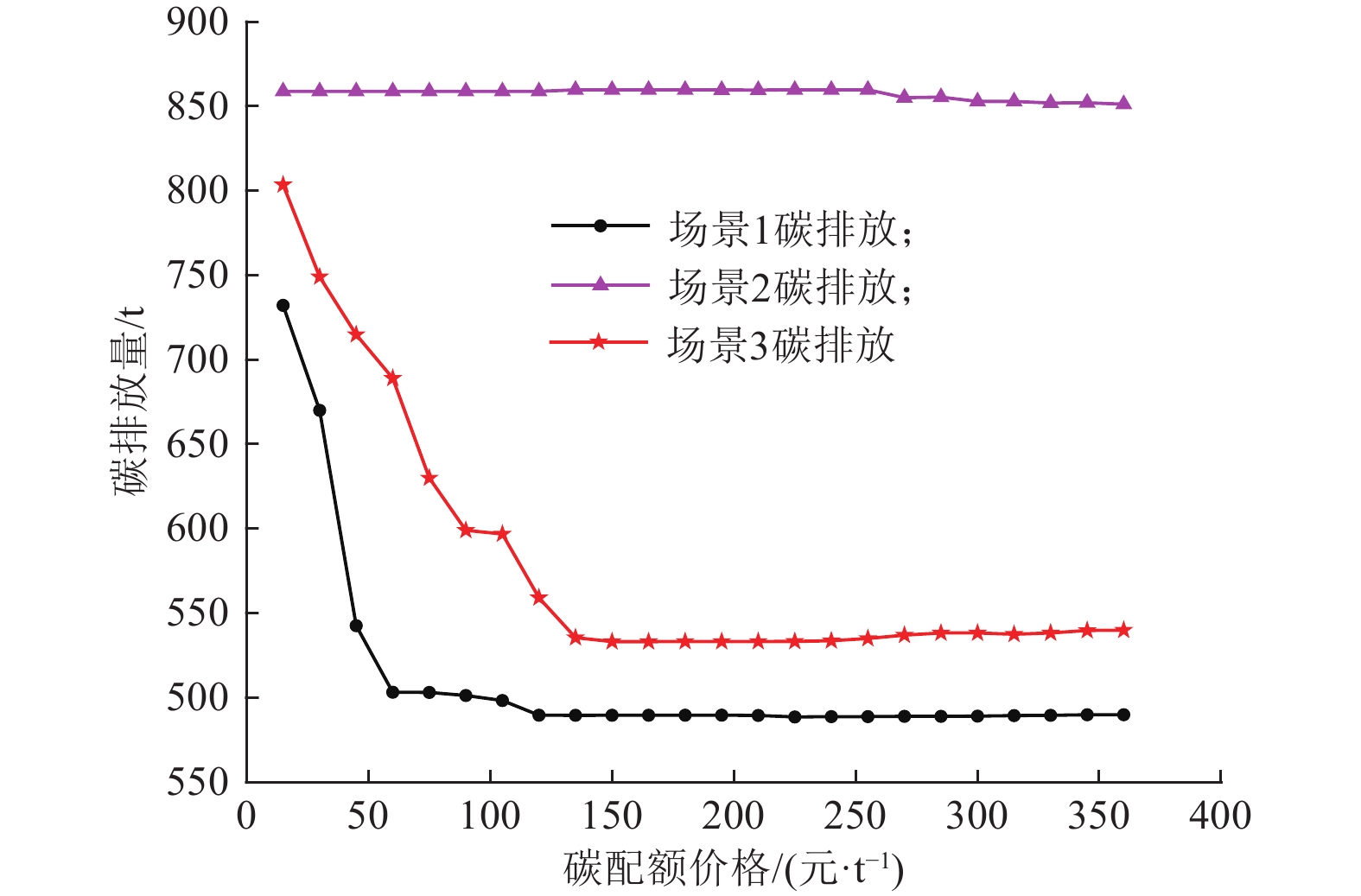

图 17 3个场景下的碳排放随碳交易价格变化趋势

Fig.17 Variation trend of carbon emissions with carbon trading prices under three scenarios

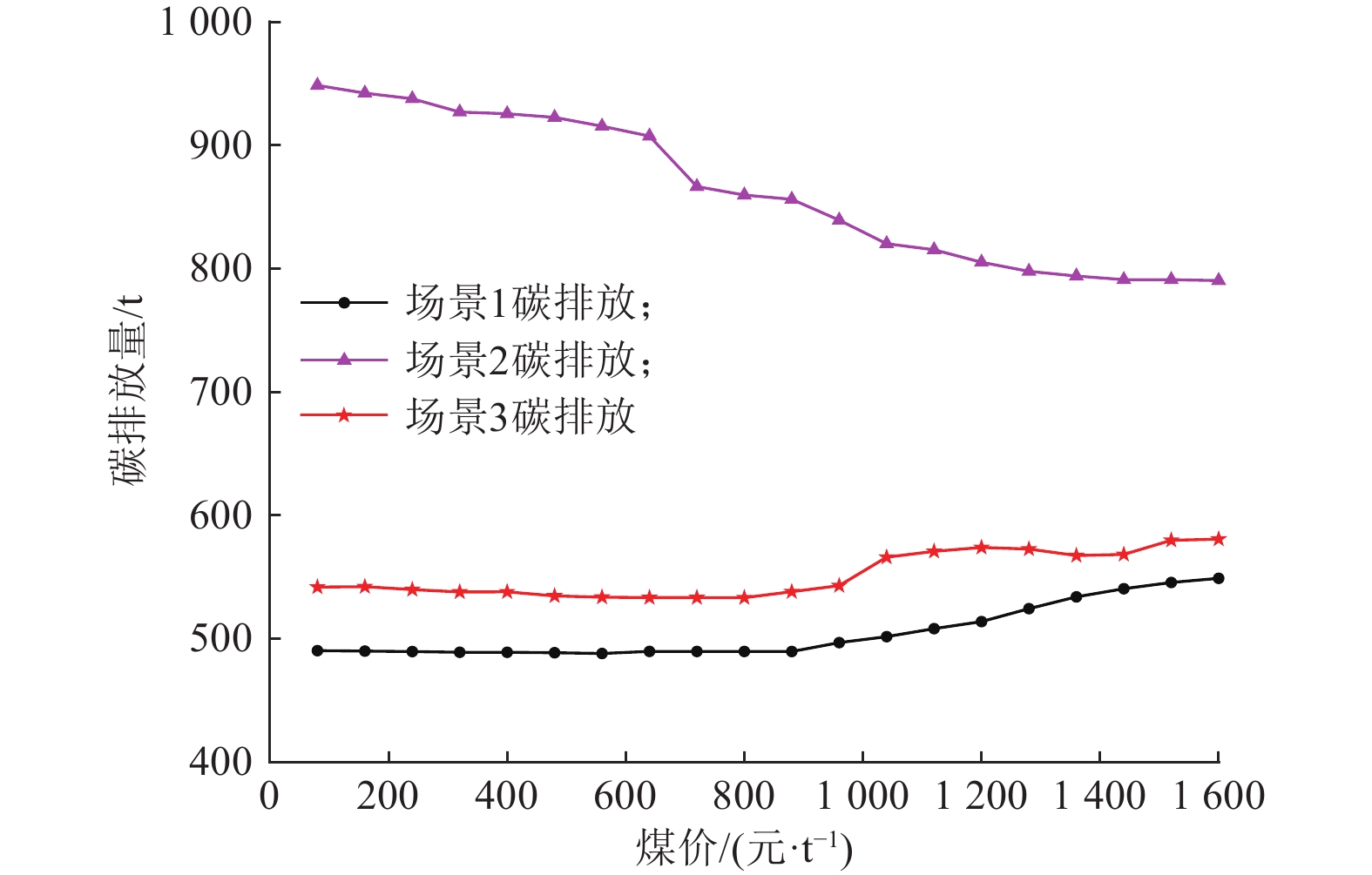

图 18 3个场景下的碳排放随煤价变化趋势

Fig.18 Variation trend of carbon emissions with coal prices under three scenarios

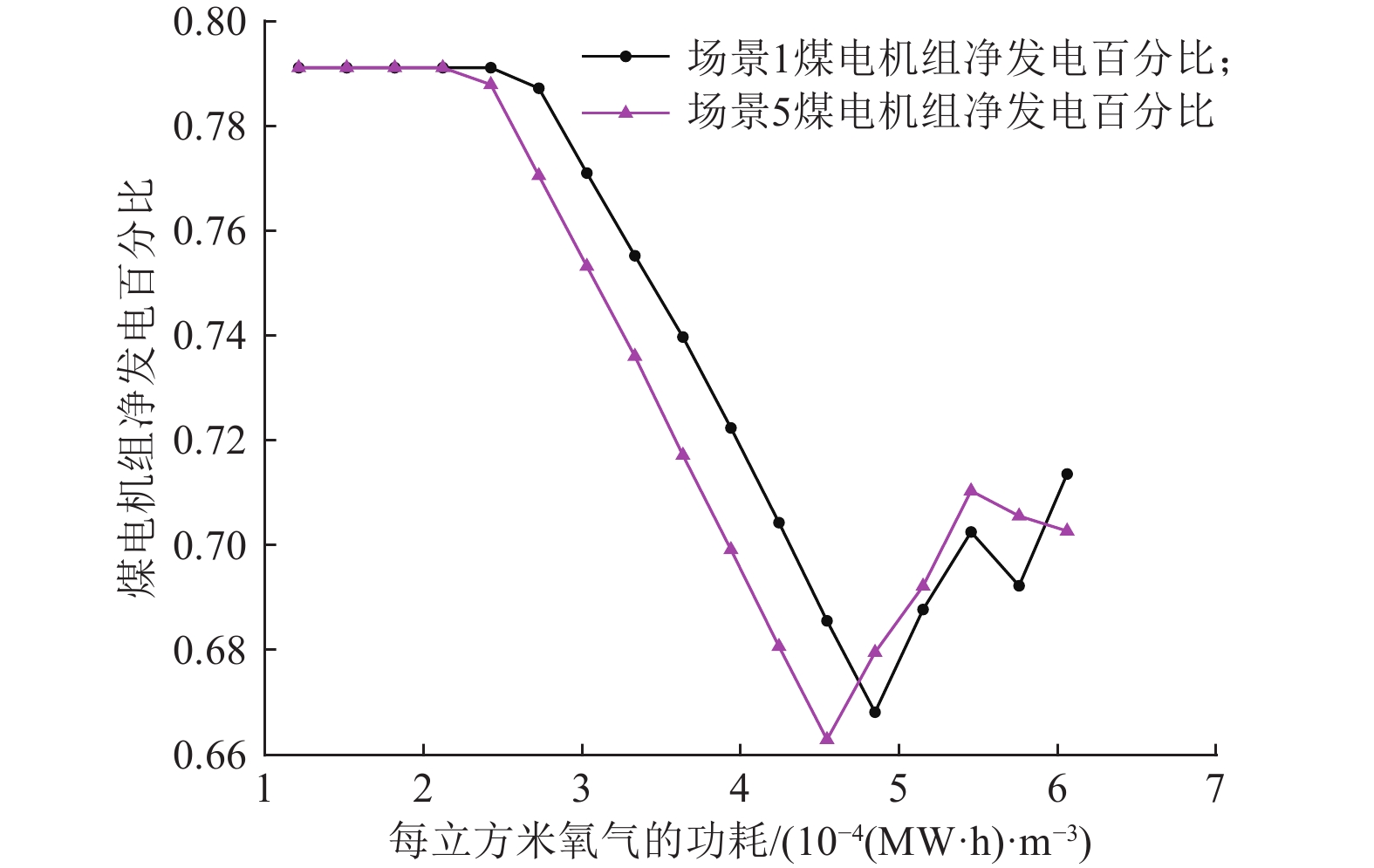

图 19 2个场景下的火电机组净发电百分比变化趋势

Fig.19 Variation trend of net power generation percentage of thermal power units under two scenarios
