考虑发电与碳排放不确定性的园区综合能源系统分布鲁棒优化

doi:10.11930/j.issn.1004-9649.202511033

摘要/Abstract

摘要：

“双碳”发展目标下，园区综合能源系统作为实现多能互补与低碳转型的重要载体，受到了广泛关注。然而，其运行过程受风电出力波动及电网间接碳排放强度等多源不确定性因素影响，给系统的经济性与低碳性带来挑战。为此，提出一种考虑发电与碳排放不确定性的园区综合能源系统分布鲁棒优化方法。基于Wasserstein距离与矩信息构建混合模糊集，利用机会约束以处理风电不确定性，并采用多面体不确定集描述碳排放强度波动，同时考虑用户侧需求响应。通过列和约束生成（column-and-constraint generation，C&CG）算法及Karush-Kuhn-Tucker（KKT）条件将模型转化为可求解的混合整数线性规划问题。算例结果表明，所提方法在保证系统鲁棒性的同时提升了经济性，有效协调了可再生能源消纳、碳排放约束与经济运行之间的关系。

关键词: 园区综合能源系统, 分布鲁棒机会约束, 碳排放强度不确定性, 列和约束生成算法, KKT

Abstract:

Under the "dual carbon" goals, the park-level integrated energy system (PIES), as an important carrier for achieving multi-energy complementarity and low-carbon transition, has attracted extensive attention. However, its operation is affected by multiple sources of uncertainty, such as wind power output fluctuations and indirect carbon emission intensity of the power grid, which poses challenges to both economic efficiency and carbon performance of the system. To this end, this paper proposes a distributionally robust optimization method for PIES considering the uncertainty of power generation and carbon emissions. A hybrid fuzzy set is constructed based on the Wasserstein distance and moment information, while chance constraints are employed to handle wind power uncertainty. Meanwhile, a polyhedral uncertainty set is used to characterize the fluctuations in carbon emission intensity, and user-side demand response is incorporated to enhance system flexibility. The proposed model is transformed into a solvable mixed-integer linear programming (MILP) problem through the column-and-constraint generation (C&CG) algorithm and Karush–Kuhn–Tucker (KKT) conditions. Case study results demonstrate that the proposed method enhances economic efficiency while ensuring system robustness, and effectively coordinates the relationship between renewable energy accommodation, carbon emission constraints, and economic operation.

Key words: park-level integrated energy system, distributionally robust chance constraint, uncertainty of carbon emission intensity, column-and-constraint generation algorithm, KKT

张啸林, 杜尔顺, 张光斗, 王佳旭, 宋亮, 刘昱良. 考虑发电与碳排放不确定性的园区综合能源系统分布鲁棒优化[J]. 中国电力, 2026, 59(2): 1-12.

ZHANG Xiaolin, DU Ershun, ZHANG Guangdou, WANG Jiaxu, SONG Liang, LIU Yuliang. Distributionally robust optimization of park-level integrated energy systems considering uncertainties in power generation and carbon emissions[J]. Electric Power, 2026, 59(2): 1-12.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202511033

https://www.electricpower.com.cn/CN/Y2026/V59/I2/1

图/表 11

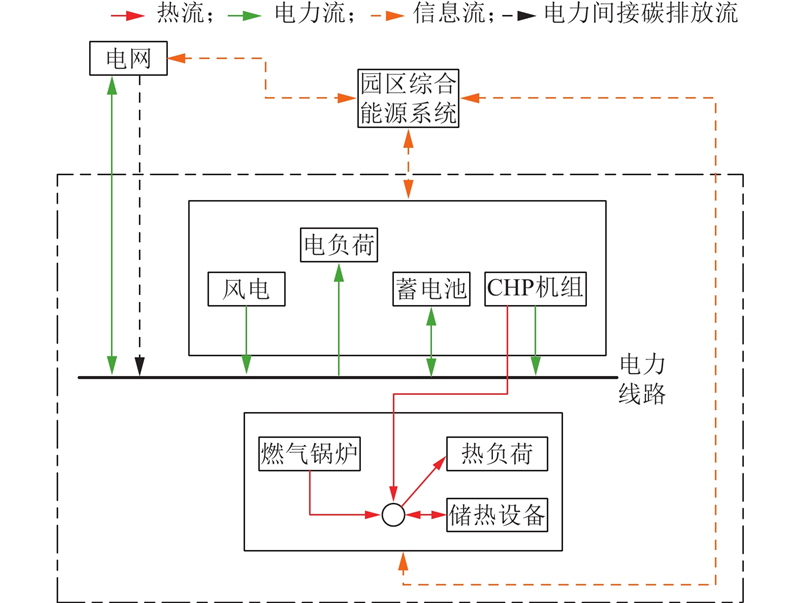

图 1 PIES系统架构

Fig.1 PIES structure

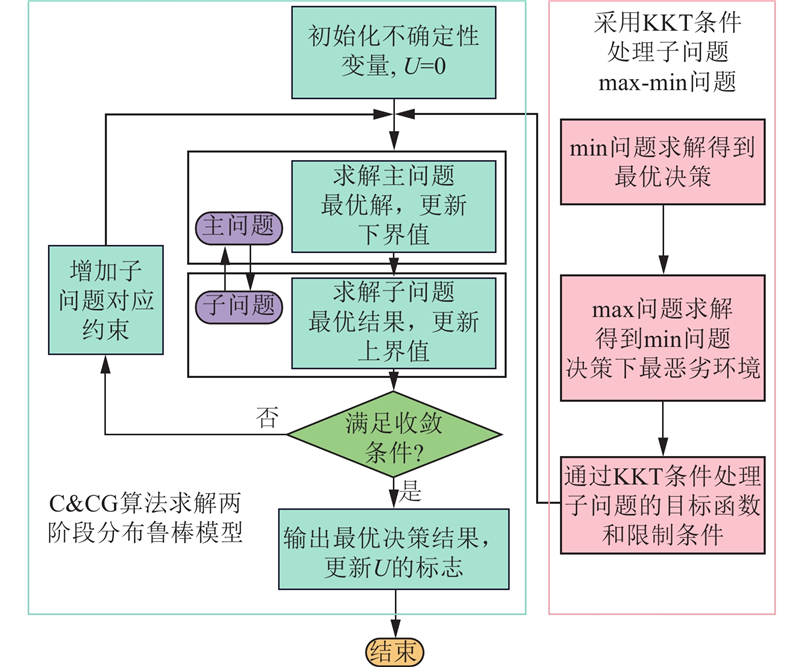

图 2 模型求解流程

Fig.2 Model solving flowchart

表 1 不同场景下成本对比

Table 1 Comparison of costs under different scenarios

场景	碳排放量/t	碳交易成本/万元	需求响应成本/万元	总成本/ 万元
1	195.29	2.421	2.829	29.604
2	192.05	2.357	2.741	29.259
3	161.92	1.714	2.705	26.814
4	163.62	1.749	2.665	26.505
5	161.77	1.659	2.658	25.885

图 3 PIES电出力

Fig.3 Electrical power output of the PIES

图 4 PIES热出力

Fig.4 Thermal power output of the PIES

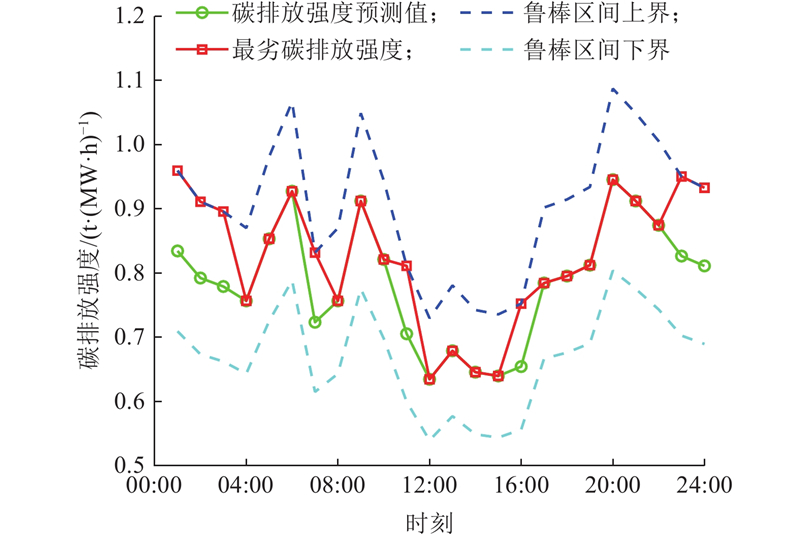

图 5 间接碳排放强度不确定集

Fig.5 Uncertainty set for indirect carbon emission intensity

图 6 PIES用户电负荷响应

Fig.6 Demand response of the electrical load on the user side of the PIES

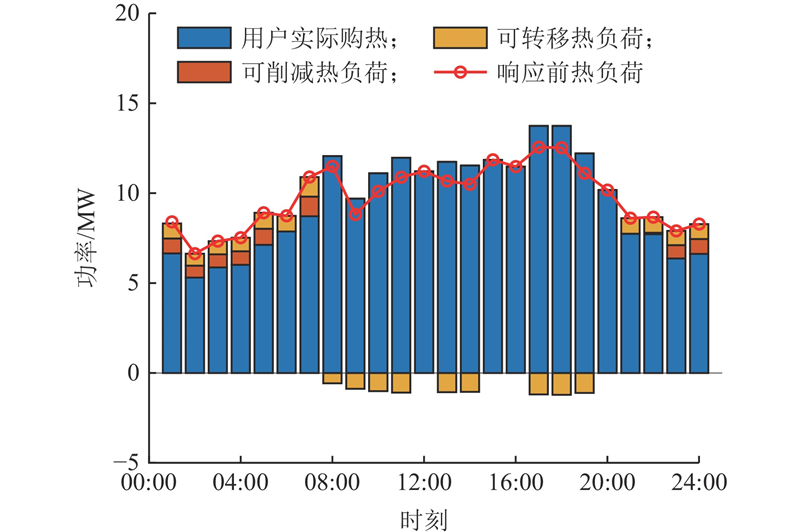

图 7 PIES用户热负荷响应

Fig.7 Demand response of the thermal load on the user side of the PIES

表 2 不同半径下算例成本

Table 2 Costs of the case study under different Wasserstein radii

$ {\rho } $	模糊集设置	PIES成本/元
0.01	$ {D}_{\mathrm{W}} $	265054
0.01	$ {D}_{\mathrm{H}} $	258466
0.02	$ {D}_{\mathrm{W}} $	275134
0.02	$ {D}_{\mathrm{H}} $	262393
0.05	$ {D}_{\mathrm{W}} $	296325
0.05	$ {D}_{\mathrm{H}} $	273842
0.10	$ {D}_{\mathrm{W}} $	326037
0.10	$ {D}_{\mathrm{H}} $	293792

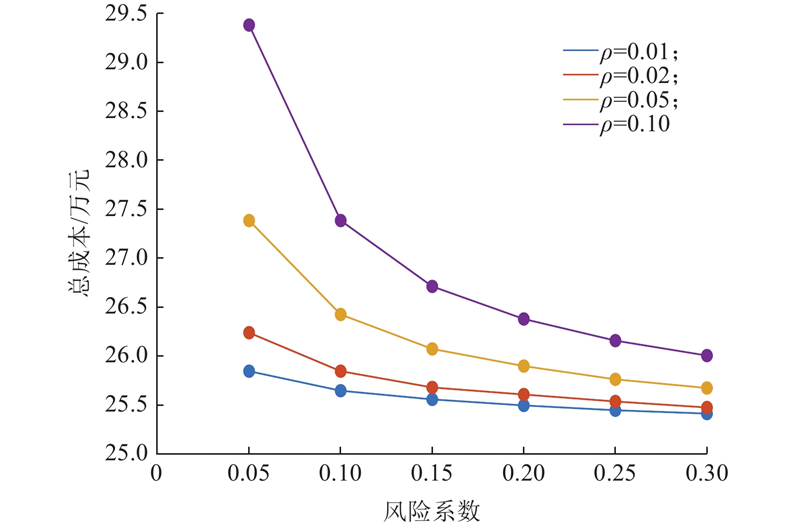

图 8 不同风险系数下PIES总成本

Fig.8 Total cost of the PIES under different risk aversion parameters

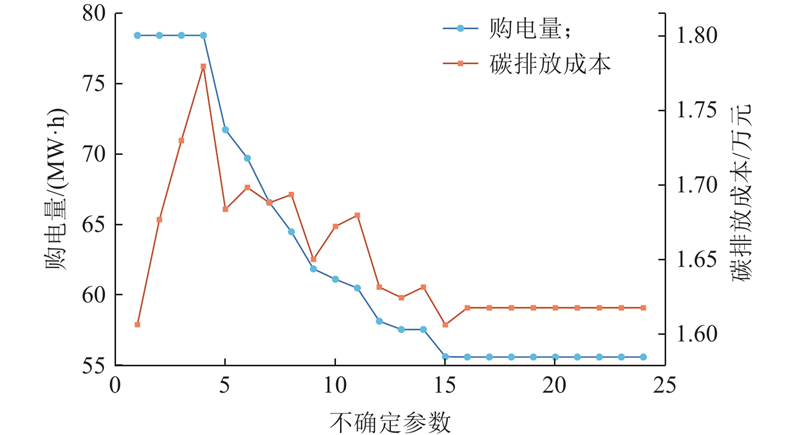

图 9 不确定参数对购电量和碳排放成本影响

Fig.9 Impact of uncertain parameters on electricity procurement and carbon emission cost

参考文献 32

1	潘荔, 梁志宏, 刘志强, 等. 我国西北地区风电、光伏发电发展形势分析[J]. 中国能源, 2022, 44 (10): 56- 62.
	PAN Li, LIANG Zhihong, LIU Zhiqiang, et al. Analysis of wind and solar PV power development situation in northwest of China[J]. Energy of China, 2022, 44 (10): 56- 62.
2	FAN H, WANG C Y, LIU L, et al. Review of uncertainty modeling for optimal operation of integrated energy system[J]. Frontiers in Energy Research, 2022, 9, 641337.
3	宋钰, 郭玥, 王旭阳, 等. 分布式光伏接入配电网安全经济承载力评估[J]. 浙江电力, 2025, 44 (11): 93- 102.
	SONG Yu, GUO Yue, WANG Xuyang, et al. Assessment of hosting capacity for DPV integration in distribution networks considering security and economy[J]. Zhejiang Electric Power, 2025, 44 (11): 93- 102.
4	林顺富, 邱蕾, 周波, 等. 面向配电系统灵活性提升的多微电网分布鲁棒协同优化调度[J/OL]. 电网技术, 1–13[2025-04-08]. https://doi.org/10.13335/j.1000-3673.pst.2025.0046.
	LIN Shunfu, QIU Lei, ZHOU Bo, et al. Distributed robust coordinated optimal dispatching of multi-microgrids for distribution system flexibility enhancement[J/OL]. Power System Technology, 1–13[2025-04-08]. https://doi.org/10.13335/j.1000-3673.pst.2025.0046.
5	LIN F M, FANG X L, GAO Z M. Distributionally robust optimization: a review on theory and applications[J]. Numerical Algebra, Control & Optimization, 2022, 12 (1): 159- 212.
6	ZHENG X D, CHEN H Y. Data-driven distributionally robust unit commitment with Wasserstein metric: tractable formulation and efficient solution method[J]. IEEE Transactions on Power Systems, 2020, 35 (6): 4940- 4943.
7	WU X Y, ZHANG Q, CHEN C M, et al. Optimal dispatching of integrated electricity and heating system with multiple functional areas considering heat network flow regulation[J]. Energies, 2021, 14 (17): 5525.
8	XIONG P, JIRUTITIJAROEN P, SINGH C. A distributionally robust optimization model for unit commitment considering uncertain wind power generation[J]. IEEE Transactions on Power Systems, 2017, 32 (1): 39- 49.
9	YANG L, XU Y L, SUN H B, et al. Tractable convex approximations for distributionally robust joint chance-constrained optimal power flow under uncertainty[J]. IEEE Transactions on Power Systems, 2022, 37 (3): 1927- 1941.
10	杨立滨, 曹阳, 魏韡, 等. 计及风电不确定性和弃风率约束的风电场储能容量配置方法[J]. 电力系统自动化, 2020, 44 (16): 45- 52.
	YANG Libin, CAO Yang, WEI Wei, et al. Configuration method of energy storage for wind farms considering wind power uncertainty and wind curtailment constraint[J]. Automation of Electric Power Systems, 2020, 44 (16): 45- 52.
11	LIU L K, HU Z C, DUAN X Y, et al. Data-driven distributionally robust optimization for real-time economic dispatch considering secondary frequency regulation cost[J]. IEEE Transactions on Power Systems, 2021, 36 (5): 4172- 4184.
12	杨洪明, 尹邦哲, 孟科, 等. 考虑源荷功率矩不确定性的新型互联电力系统省内-省间分布鲁棒协调优化调度[J]. 电力建设, 2023, 44 (7): 98- 110.
	YANG Hongming, YIN Bangzhe, MENG Ke, et al. Distributed robust optimal scheduling of the new interconnected power system with the inter-province and intra-province considering moment uncertainty of source load power[J]. Electric Power Construction, 2023, 44 (7): 98- 110.
13	HE S J, GAO H J, WANG L F, et al. Distributionally robust planning for integrated energy systems incorporating electric-thermal demand response[J]. Energy, 2020, 213, 118783.
14	周天睿, 康重庆, 徐乾耀, 等. 电力系统碳排放流的计算方法初探[J]. 电力系统自动化, 2012, 36 (11): 44- 49.
	ZHOU Tianrui, KANG Chongqing, XU Qianyao, et al. Preliminary investigation on a method for carbon emission flow calculation of power system[J]. Automation of Electric Power Systems, 2012, 36 (11): 44- 49.
15	马楠, 刘国伟, 吴杰康, 等. 面向碳排放的“源-储”容量配置协同优化模型[J]. 南方电网技术, 2025, 19 (10): 76- 85.
	MA Nan, LIU Guowei, WU Jiekang, et al. Collaborative optimization model for carbon emission oriented "source-storage" capacity allocation[J]. Southern Power System Technology, 2025, 19 (10): 76- 85.
16	陈厚合, 茅文玲, 张儒峰, 等. 基于碳排放流理论的电力系统源-荷协调低碳优化调度[J]. 电力系统保护与控制, 2021, 49 (10): 1- 11.
	CHEN Houhe, MAO Wenling, ZHANG Rufeng, et al. Low-carbon optimal scheduling of a power system source-load considering coordination based on carbon emission flow theory[J]. Power System Protection and Control, 2021, 49 (10): 1- 11.
17	梁宁, 方茜, 徐慧慧, 等. 基于节点碳势需求响应的电力系统双层优化调度[J]. 电力系统自动化, 2024, 48 (9): 44- 53.
	LIANG Ning, FANG Qian, XU Huihui, et al. Bi-level optimal dispatching of power system based on demand response considering nodal carbon intensity[J]. Automation of Electric Power Systems, 2024, 48 (9): 44- 53.
18	刘昱良, 李姚旺, 周春雷, 等. 电力系统碳排放计量与分析方法综述[J]. 中国电机工程学报, 2024, 44 (6): 2220- 2236.
	LIU Yuliang, LI Yaowang, ZHOU Chunlei, et al. Overview of carbon measurement and analysis methods in power systems[J]. Proceedings of the CSEE, 2024, 44 (6): 2220- 2236.
19	周天睿, 康重庆. 基于碳排放流的配电系统低碳优化运行方法研究[J]. 全球能源互联网, 2019, 2 (3): 241- 247.
	ZHOU Tianrui, KANG Chongqing. Research on low-carbon oriented optimal operation of distribution networks based on carbon emission flow theory[J]. Journal of Global Energy Interconnection, 2019, 2 (3): 241- 247.
20	周特, 薛云飞, 季节, 等. 考虑电力间接碳排放不确定性的电-冷-热综合能源系统两阶段鲁棒优化方法[J]. 电网技术, 2024, 48 (1): 50- 63.
	ZHOU Te, XUE Yunfei, JI Jie, et al. Two-stage robust optimization for electricity-cooling-heat integrated energy system considering uncertainty of indirect carbon emissions of electricity[J]. Power System Technology, 2024, 48 (1): 50- 63.
21	张志强, 袁至, 李骥. 考虑碳-源不确定性时基于三层主从博弈的综合能源系统低碳优化策略[J/OL]. 电网技术, 1–14[2025-11-06]. https://doi.org/10.13335/j.1000-3673.pst.2025.0438.
	ZHANG Zhiqiang, YUAN Zhi, LI Ji. Low-carbon optimization strategy for integrated energy systems based on three-level Stackelberg game considering carbon-source uncertainties[J/OL]. Power System Technology, 1–14[2025-11-06]. https://doi.org/10.13335/j.1000-3673.pst.2025.0438.
22	赵霞, 冯欣欣, 戴蓉, 等. 考虑负荷柔性及网架调整的电–气联合调度模型[J]. 中国电机工程学报, 2021, 41 (20): 6856- 6869.
	ZHAO Xia, FENG Xinxin, DAI Rong, et al. Coordinated dispatch model for integrated electricity and natural gas systems considering load flexibilities and network topology optimization[J]. Proceedings of the CSEE, 2021, 41 (20): 6856- 6869.
23	李彬, 王枫桥, 唐天悦. 基于需求侧资源响应量配额转让的园区能源优化技术[J]. 南方电网技术, 2025, 19 (9): 15- 24.
	LI Bin, WANG Fengqiao, TANG Tianyue. Energy optimization technology for parks based on demand-side resource response quantity quota transfer[J]. Southern Power System Technology, 2025, 19 (9): 15- 24.
24	陆景磊, 张高航, 李凤婷, 等. 考虑绿电-绿氢证书联合交易机制的区域综合能源系统源荷储优化调度[J/OL]. 电网技术, 1–15 (2025-10-21). https://link.cnki.net/doi/10.13335/j.1000-3673.pst.2025.0722.
	LU Jinglei, ZHANG Gaohang, LI Fengting, et al. Optimal source-load-storage scheduling for regional integrated energy systems considering a joint green power-green hydrogen certificate trading mechanism[J/OL]. Power System Technology, 1–15 (2025-10-21). https://link.cnki.net/doi/10.13335/j.1000-3673.pst.2025.0722.
25	李若琼, 司宇杰, 杨承辰, 等. 考虑柔性负荷的新型电力系统源荷日前-日内低碳优化调度[J]. 南方电网技术, 2025, 19 (3): 116- 129.
	LI Ruoqiong, SI Yujie, YANG Chengchen, et al. Day-ahead and intra-day low-carbon optimal scheduling of new power system source-load considering flexible load[J]. Southern Power System Technology, 2025, 19 (3): 116- 129.
26	王振浩, 许京剑, 田春光, 等. 计及碳交易成本的含风电电力系统热电联合调度[J]. 太阳能学报, 2020, 41 (12): 245- 253.
	WANG Zhenhao, XU Jingjian, TIAN Chunguang, et al. Combined heat and power scheduling strategy considering carbon trading cost in wind power system[J]. Acta Energiae Solaris Sinica, 2020, 41 (12): 245- 253.
27	LU C B, GU N, JIANG W Q, et al. Sample-adaptive robust economic dispatch with statistically feasible guarantees[J]. IEEE Transactions on Power Systems, 2024, 39 (1): 779- 793.
28	CARNEIRO T C, ROCHA P A C, CARVALHO P C M, et al. Ridge regression ensemble of machine learning models applied to solar and wind forecasting in Brazil and Spain[J]. Applied Energy, 2022, 314, 118936.
29	ZHOU A P, ZHAI H F, YANG M, et al. Three-phase unbalanced distribution network dynamic reconfiguration: a distributionally robust approach[J]. IEEE Transactions on Smart Grid, 2022, 13 (3): 2063- 2074.
30	KORANI E, EYDI A. Bi-level programming model and KKT penalty function solution approach for reliable hub location problem[J]. Expert Systems with Applications, 2021, 184, 115505.
31	PIES系统风电、负荷及相关设备参数数据[EB/OL]. (2025-11-16) [2025-12-18]. https://cloud.tsinghua.edu.cn/f/4b51ee6a735f47e0adb5/.
32	SHI Z C, LIANG H, HUANG S J, et al. Distributionally robust chance-constrained energy management for islanded microgrids[J]. IEEE Transactions on Smart Grid, 2019, 10 (2): 2234- 2244.
