智能变电站光纤虚实回路映射及故障诊断技术

doi:10.11930/j.issn.1004-9649.202303071

中国电力 ›› 2023, Vol. 56 ›› Issue (10): 171-178.DOI: 10.11930/j.issn.1004-9649.202303071

智能变电站光纤虚实回路映射及故障诊断技术

钟鸣¹^,²(), 陶军¹^,², 刘洵宇³, 杨逸¹^,², 杨炳元⁴()

1. 内蒙古电力科学研究院，内蒙古呼和浩特　010020
2. 内蒙古自治区电力系统智能化电网仿真企业重点实验室，内蒙古呼和浩特　010020
3. 内蒙古超高压供电公司，内蒙古呼和浩特　010000
4. 内蒙古工业大学，内蒙古呼和浩特　010051

收稿日期:2023-03-15 出版日期:2023-10-28 发布日期:2023-10-31
作者简介:钟鸣（1987—），男，硕士，高级工程师，从事电力系统继电保护与控制研究，E-mail： zhongming0005@163.com
杨炳元（1967—），男，通信作者，教授，从事电力系统继电保护与控制研究，E-mail： yangbingyuan@imut.edu.cn
基金资助:
国家重点研发计划“储能与智能电网技术”重点专项资助项目（规模化储能系统集群智能协同控制关键技术研究及应用，2021YFB2400703）；内蒙古自治区科技攻关项目（灾害条件下多应急电源组网技术研究及示范应用，2019GG373）

Smart Substation Optical Fiber Virtual and Real Loop Mapping and Fault Diagnosis Technology

Ming ZHONG¹^,²(), Jun TAO¹^,², Xunyu LIU³, Yi YANG¹^,², Bingyuan YANG⁴()

1. Inner Mongolia Power Research Institute, Hohhot 010020, China
2. Inner Mongolia Enterprise Key Laboratory of Smart Grid Simulation of Electrical Power System, Hohhot 010020, China
3. Inner Mongolia Ultra High Voltage Power Supply Company, Hohhot 010000, China
4. Inner Mongolia University of Technology, Hohhot 010051, China

Received:2023-03-15 Online:2023-10-28 Published:2023-10-31
Supported by:
This work is supported by National Key Research and Development Program "Energy Storage and Smart Grid Technology" key special project (Research and Application of Key Technologies for Intelligent Collaborative Control of Large-scale Energy Storage System Clusters, 2021YFB2400703), Inner Mongolia Autonomous Region Science and Technology Project (Research and Demonstration Application of Multi-emergency Power Supply Networking Technology Under Disaster Conditions, No.2019GG373).

摘要/Abstract

摘要：

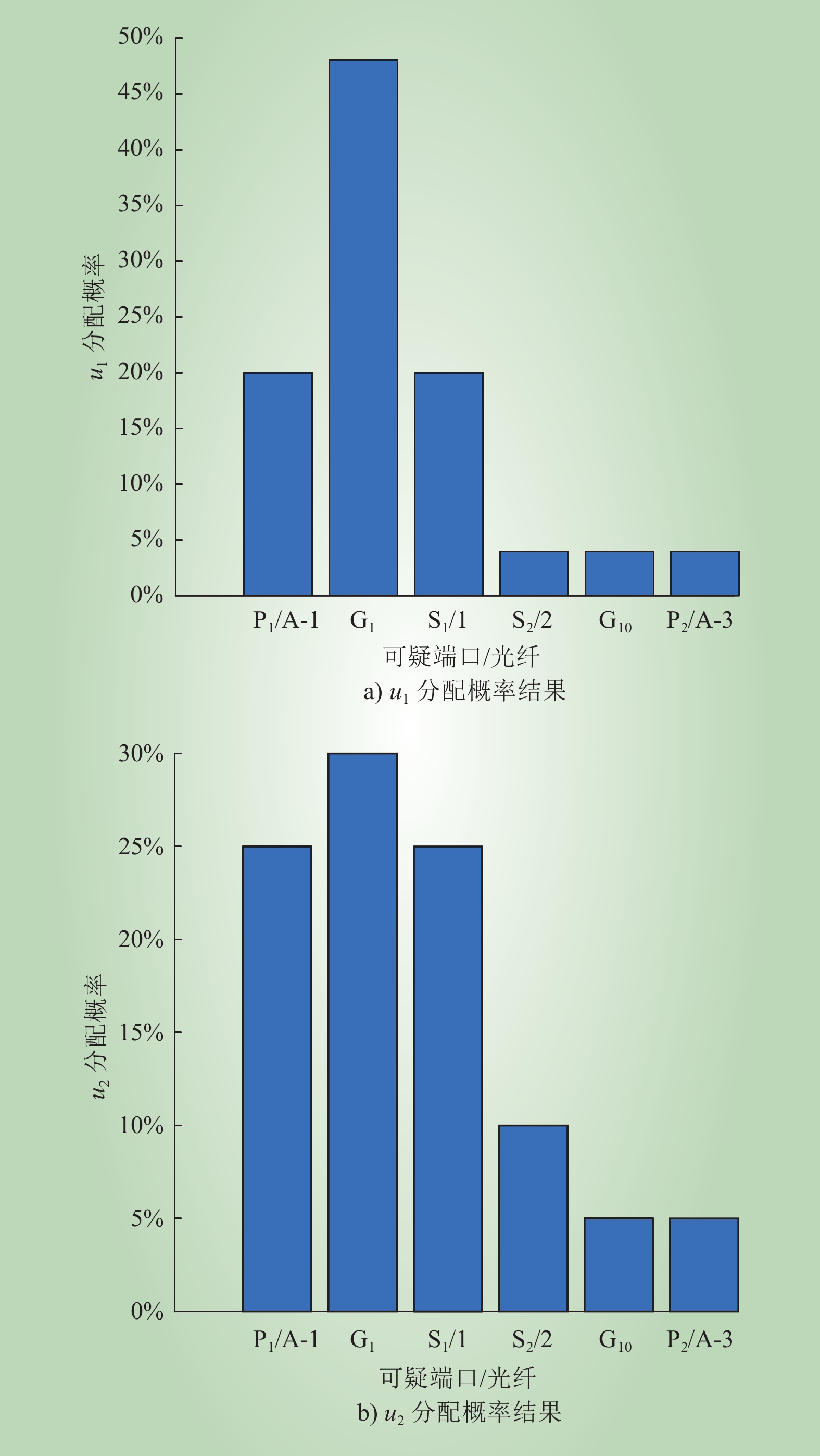

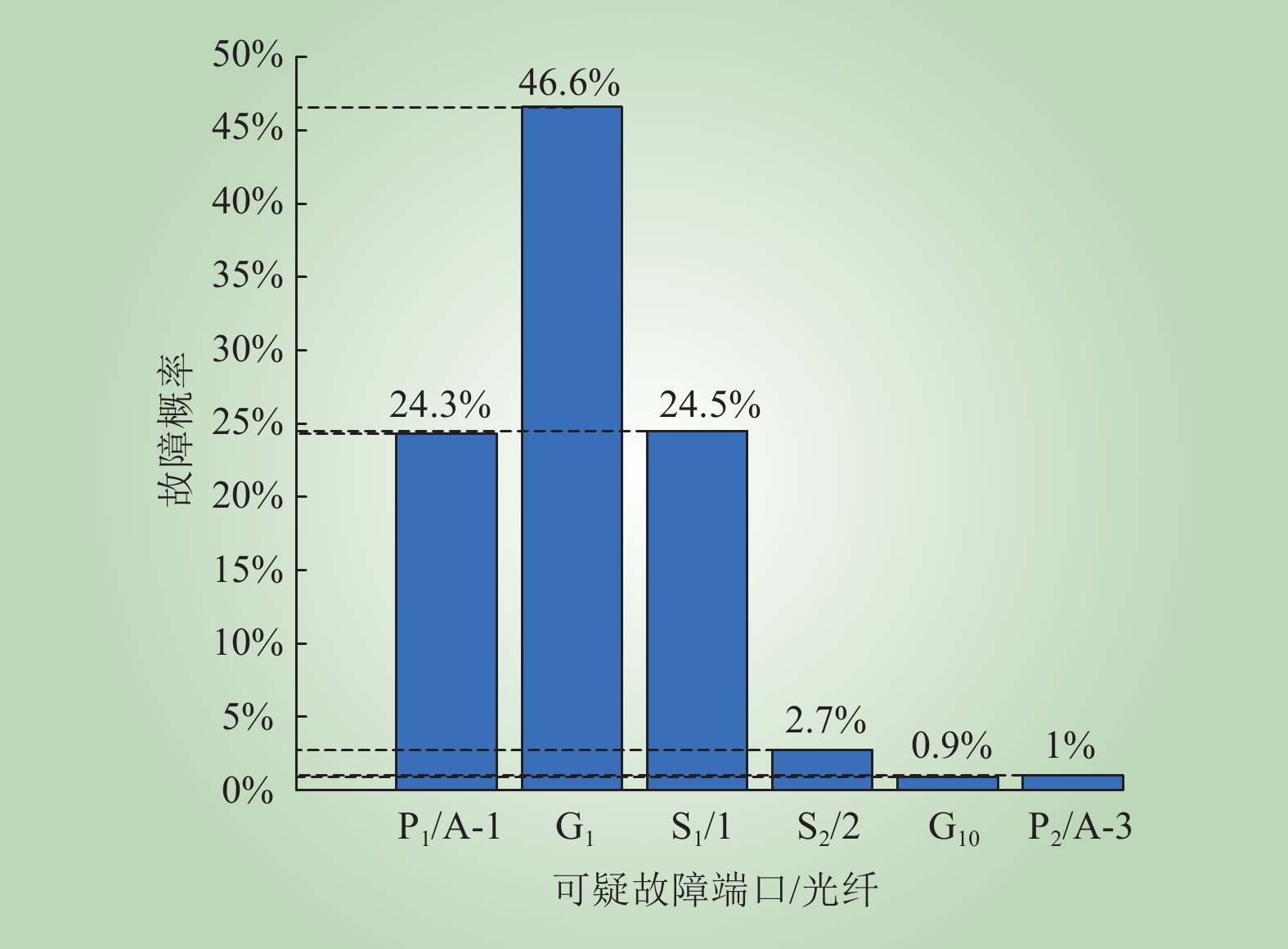

现阶段智能变电站通信大多采用光纤链接各二次设备，由于装置之间的链接关系不直观，造成监测、诊断困难。为了解决智能变电站运维和检修中存在的二次虚回路可视化、回路状态监测、故障定位及故障类型识别困难等问题，提出基于广度优先搜索算法进行二次设备之间物理链接关系的梳理，实现二次虚回路可视化展示。同时基于广度优先搜索算法进行故障推理，划定故障区域，利用智能变电站海量数据源，进行多信息融合，应用D-S证据理论进行故障精确定位，最后采用举证表法确定故障类型，实现智能变电站二次设备运维的实际应用需求。

关键词: 智能变电站, 虚回路, 广度优先搜索, 故障定位, 故障类型识别, 多信息融合, D-S证据理论

Abstract:

At present, most of the smart substation communication uses optical fiber to link the secondary equipment, and the link relationship between the devices is not intuitive, resulting in difficulty in monitoring and diagnosis. In order to solve the problems of secondary virtual loop visualization, loop status monitoring, fault location and fault type identification in the operation and maintenance of smart substations, a smart substation optical fiber virtual and real loop mapping solution is proposed based on the breadth-first search algorithm to realize the visual display of secondary virtual loop. At the same time, the breadth priority search algorithm is used to carry out fault inference and delimit the fault area. The D-S evidence theory is used to accurately locate the faults based on the mass data of smart substation and multi-information fusion, and the evidence table method is used to finally determine the fault types, thereby meeting the practical application needs of the operation and maintenance of secondary equipment in smart substations.

Key words: smart substation, virtual loop, breadth-first search, fault location, fault type identification, multi-information fusion, D-S evidence theory

钟鸣, 陶军, 刘洵宇, 杨逸, 杨炳元. 智能变电站光纤虚实回路映射及故障诊断技术[J]. 中国电力, 2023, 56(10): 171-178.

Ming ZHONG, Jun TAO, Xunyu LIU, Yi YANG, Bingyuan YANG. Smart Substation Optical Fiber Virtual and Real Loop Mapping and Fault Diagnosis Technology[J]. Electric Power, 2023, 56(10): 171-178.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202303071

https://www.electricpower.com.cn/CN/Y2023/V56/I10/171

图/表 8

参考文献 25

1	李娟, 单强, 车勇, 等. 智能变电站过程层二次光纤回路自动设计方法研究[J]. 电网与清洁能源, 2019, 35 (2): 15- 22, 30.
	LI Juan, SHAN Qiang, CHE Yong, et al. Research on automatic design method of secondary optical cable for smart substation process layer[J]. Advances of Power System & Hydroelectric Engineering, 2019, 35 (2): 15- 22, 30.
2	王同文, 刘宏君, 邵庆祝, 等. 智能变电站二次回路智能预警及故障诊断技术研究术[J]. 电测与仪表, 2020, 57 (8): 59- 63, 98.
	WANG Tongwen, LIU Hongjun, SHAO Qingzhu, et al. Research on intelligent early warning and fault diagnosis technology for the secondary loop of smart substation[J]. Electrical Measurement & Instrumentation, 2020, 57 (8): 59- 63, 98.
3	肖燕. 新一代智能变电站信息流架构设计[J]. 中国电机工程学报, 2016, 36 (5): 1245- 1251.
	XIAO Yan. Design of information flow scheme for new smart substation[J]. Proceedings of the CSEE, 2016, 36 (5): 1245- 1251.
4	李耕, 邱智勇, 饶丹, 等. 基于SPCD的智能变电站虚实链路映射方案研究[J]. 电力工程技术, 2020, 39 (1): 124- 129.
	LI Geng, QIU Zhiyong, RAO Dan, et al. Scheme for mapping between virtual and real link in smart substation based on SPCD[J]. Jiangsu Electrical Engineering, 2020, 39 (1): 124- 129.
5	高旭, 于庆广, 马迎新, 等. 基于图论深度遍历算法的智能变电站光纤虚实回路对应方法研究[J]. 电测与仪表, 2020, 57 (2): 1- 6.
	GAO Xu, YU Qingguang, MA Yingxin, et al. Research on mapping method between logical circuit and physical circuit of optical fiber loop in smart substation based on deep traversal algorithm of graph theory[J]. Electrical Measurement & Instrumentation, 2020, 57 (2): 1- 6.
6	陈志宏. 智能变电站网络通信自动路由实现方案[J]. 电力信息与通信技术, 2019, 17 (5): 62- 67.
	CHEN Zhihong. Implementation scheme of communication automatic routing for smart substation network[J]. Electric Power Information and Communication Technology, 2019, 17 (5): 62- 67.
7	许伟国, 张亮. 数字化变电站网络通信在线故障诊断系统的设计与应用[J]. 电力自动化设备, 2010, 30 (6): 121- 124. DOI
	XU Weiguo, ZHANG Liang. Design and application of on-line fault diagnosis system for network communication of digital substation[J]. Electric Power Automation Equipment, 2010, 30 (6): 121- 124. DOI
8	杨辉, 温东旭, 高磊, 等. 智能变电站二次虚回路连线自动生成实践[J]. 电力系统保护与控制, 2017, 45 (23): 116- 121.
	YANG Hui, WEN Dongxu, GAO Lei, et al. Automatic generation of secondary circuit virtual connection in smart substation[J]. Power System Protection and Control, 2017, 45 (23): 116- 121.
9	王彦, 李进, 李敏, 等. 智能变电站虚实回路映射及故障定位方法[J]. 电力大数据, 2017, 20 (12): 74- 79.
	WANG Yan, LI Jin, LI Min, et al. Method of mapping between virtual and real link and fault location in smart substation[J]. Power Systems and Big Data, 2017, 20 (12): 74- 79.
10	高磊, 杨毅, 苏麟, 等. 智能变电站二次系统物理回路建模方法及设计实现[J]. 电力系统保护与控制, 2016, 44 (24): 130- 139.
	GAO Lei, YANG Yi, SU Lin, et al. A modeling approach and design implementation of secondary system physical circuit for smart substation[J]. Power System Protection and Control, 2016, 44 (24): 130- 139.
11	徐鹏, 戴必翔, 张弛, 等. 智能变电站二次虚实链路映射和智能诊断方法的研究[J]. 供用电, 2015, 32 (12): 39- 45. DOI
	XU Peng, DAI Bixiang, ZHANG Chi, et al. Research of mapping between secondary virtual and physical link and intelligent diagnosis method[J]. Distribution & Utilization, 2015, 32 (12): 39- 45. DOI
12	李鹏, 范伟, 王罡, 等. 智能变电站VLAN配置表自动生成技术的研究和应用[J]. 电力工程技术, 2018, 37 (1): 122- 129, 135. DOI
	LI Peng, FAN Wei, WANG Gang, et al. Research and application of VLAN configuration tables automatic generation technology in smart substation[J]. Jiangsu Electrical Engineering, 2018, 37 (1): 122- 129, 135. DOI
13	陈剑, 张洁华, 李鹏, 等. 基于全景模型文件的智能标签的优化研究[J]. 电力系统保护与控制, 2018, 46 (2): 110- 116. DOI
	CHEN Jian, ZHANG Jiehua, LI Peng, et al. Research on optimization of smart labels based on panoramic model files[J]. Power System Protection and Control, 2018, 46 (2): 110- 116. DOI
14	周成, 吴海, 胡国, 等. 基于IEC61850第二版非侵入式自动测试系统的研制[J]. 电力系统保护与控制, 2017, 45 (14): 143- 147.
	ZHOU Cheng, WU Hai, HU Guo, et al. Non-intruding development of automatic test system based on IEC 61850 edition2.0[J]. Power System Protection and Control, 2017, 45 (14): 143- 147.
15	徐启泽, 韩文廷, 陈俊仕, 等. 众核平台上广度优先搜索算法的优化[J]. 计算机科学, 2019, 46 (1): 314- 319. DOI
	XU Qize, HAN Wenting, CHEN Junshi, et al. Optimization of breadth-first search algorithm based on many-core platform[J]. Computer Science, 2019, 46 (1): 314- 319. DOI
16	袁浩, 屈刚, 庄卫金, 等. 电网二次设备状态监测内容探讨[J]. 电力系统自动化, 2014, 38 (12): 100- 106.
	YUAN Hao, QU Gang, ZHUANG Weijin, et al. Discussion on condition monitoring contents of secondary equipment in power grid[J]. Automation of Electric Power Systems, 2014, 38 (12): 100- 106.
17	董怀普, 王位杰, 刘文彪, 等. 基于深度搜索的二次虚实回路融合故障诊断技术[J]. 电力自动化设备, 2019, 39 (5): 219- 223.
	DONG Huaipu, WANG Weijie, LIU Wenbiao, et al. Fault diagnosis technology of secondary virtual loop and physical fiber loop fusion based on depth first search[J]. Electric Power Automation Equipment, 2019, 39 (5): 219- 223.
18	倪时龙. 面向智能变电站二次设备仿真测试技术研究[J]. 机械设计与制造工程, 2018, 47 (8): 54- 58.
	NI Shilong. Research on simulation test of the secondary equipment of intelligent substation[J]. Machine Design and Manufacturing Engineering, 2018, 47 (8): 54- 58.
19	张历, 辛明勇, 高吉普, 等. 智能变电站二次设备多维度故障诊断与定位系统方案设计[J]. 自动化与仪器仪表, 2019, (5): 59- 62, 67. DOI
	ZHANG Li, XIN Mingyong, GAO Jipu, et al. Multi-dimensional fault diagnosis and location system design for secondary equipment of intelligent substation[J]. Automation & Instrumentation, 2019, (5): 59- 62, 67. DOI
20	李妍, 车勇, 单强, 等. 智能变电站二次系统在线监测评估的研究[J]. 电力系统保护与控制, 2016, 44 (10): 66- 70.
	LI Yan, CHE Yong, SHAN Qiang, et al. Research on secondary system on-line monitoring and evaluation in smart substation[J]. Power System Protection and Control, 2016, 44 (10): 66- 70.
21	叶远波, 孙月琴, 黄太贵, 等. 智能变电站继电保护二次回路在线监测与故障诊断技术[J]. 电力系统保护与控制, 2016, 44 (20): 148- 153. DOI
	YE Yuanbo, SUN Yueqin, HUANG Taigui, et al. Online state detection and fault diagnosis technology of relay protection secondary circuits in smart substation[J]. Power System Protection and Control, 2016, 44 (20): 148- 153. DOI
22	龚方亮, 牟龙华, 郭文明, 等. 基于D-S证据理论的配电终端状态诊断[J]. 电力系统保护与控制, 2018, 46 (1): 30- 36. DOI
	GONG Fangliang, MU Longhua, GUO Wenming, et al. D-S evidence theory based condition diagnosis for distribution terminal units[J]. Power System Protection and Control, 2018, 46 (1): 30- 36. DOI
23	游昊, 石恒初, 杨远航, 等. 基于改进D-S证据理论的电网故障多源信息智能融合诊断方法[J]. 广东电力, 2020, 33 (11): 16- 25. DOI
	YOU Hao, SHI Hengchu, YANG Yuanhang, et al. Intelligent fusion diagnosis method for multi-source information of power grid fault based on improved D-S evidence theory[J]. Guangdong Electric Power, 2020, 33 (11): 16- 25. DOI
24	戴志辉, 鲁浩, 刘媛, 等. 基于改进D-S证据理论的智能站保护二次回路故障诊断方法[J]. 电力系统保护与控制, 2020, 48 (9): 59- 67. DOI
	DAI Zhihui, LU Hao, LIU Yuan, et al. A fault diagnosis method for the secondary circuits of protection systems in smart substations based on improved D-S evidence theory[J]. Power System Protection and Control, 2020, 48 (9): 59- 67. DOI
25	高磊, 杨毅, 刘玙, 等. 基于举证表的智能变电站过程层通道故障定位方法[J]. 电力系统自动化, 2015, 39 (4): 147- 151. DOI
	GAO Lei, YANG Yi, LIU Yu, et al. Proof table based fault location method for process level channel in smart substations[J]. Automation of Electric Power Systems, 2015, 39 (4): 147- 151. DOI

状态指标		参数范围
接收端口光强/dB		–10~30
发送端口光强/dB		–15~25
流量		低于平均流量50%
误码率		10^–10

状态指标		参数范围
接收端口光强/dB		–10~30
发送端口光强/dB		–15~25
流量		低于平均流量50%
误码率		10^–10

状态名称	故障类型
状态名称	断路	乱码	网络阻塞
断链告警	1		1
异常告警		0
光功率	1
误码率		0
流量	1		1
举证值	3	0	2

状态名称	故障类型
状态名称	断路	乱码	网络阻塞
断链告警	1		1
异常告警		0
光功率	1
误码率		0
流量	1		1
举证值	3	0	2

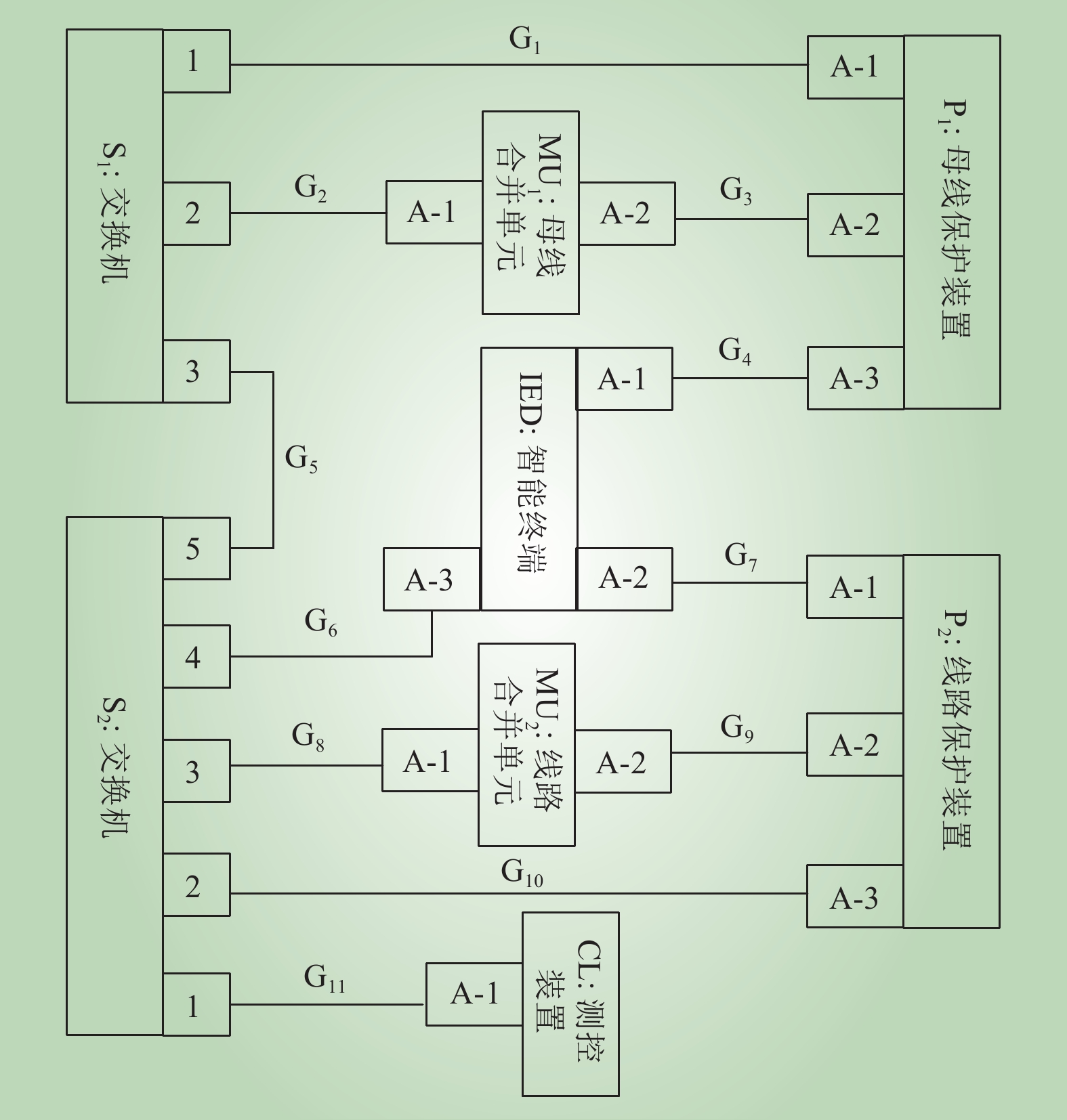

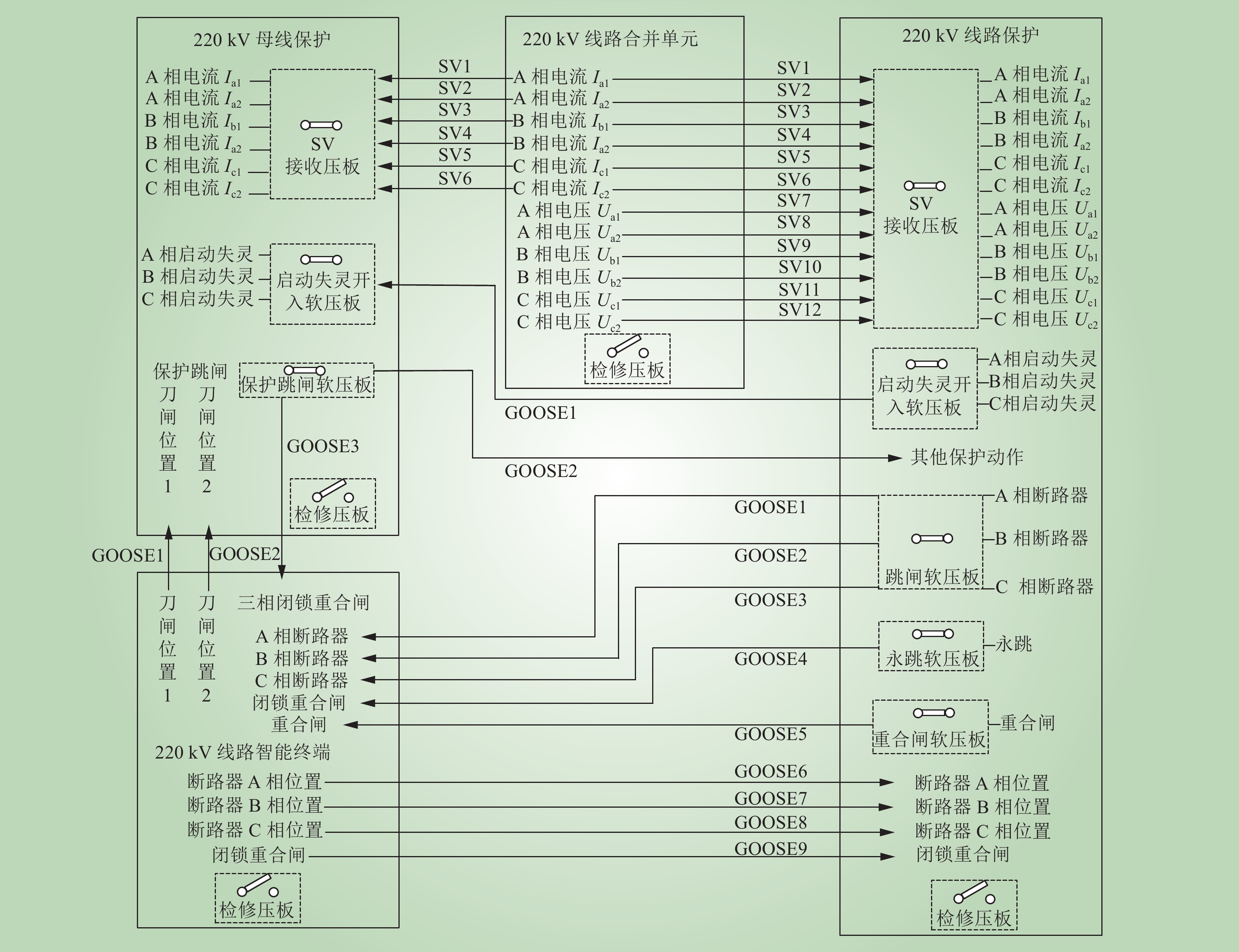

编号	虚回路名称	端口集合
L₁	母差远跳线路	{P₁/A-1, S₁/1, S₁/3, S₂/5, S₂/2, P₂/A-3}
L₂	遥测1	{MU₂/A-1, S₂/3, S₂/1, CL/A-1}
L₃	遥测2	{MU₁/A-1, S₁/2, S₁/3, S₂/5, S₂/1, CL/A-1}
L₄	遥信	{IED/A-3, S₂/4, S₂/1, CL/A-1}
L₅	母线直采直跳	{MU₁/A-1, P₁/A-3, IED/A-1}
L₆	线路直采直跳	{MU₂/A-2, P₂/A-2, P₂/A-1, IED/A-2}
L₇	母线直采	{MU₁/A-2, P₁/A-2}
L₈	母线刀闸位置	{IED/A-1, P₁/A-3}
L₉	线路启动失灵	{P₁/A-1, S₁/1, S₁/3, S₂/5, S₂/2, P₂/A-3}
L₁₀	线路开关位置	{IED/A-2, P₂/A-1}
