面向低压配电台区拓扑结构采集的馈线终端优化配置方法

doi:10.11930/j.issn.1004-9649.202409048

摘要/Abstract

摘要：

为解决现有低压配电台区采集终端过度、低效配置造成的台区智能化改造成本过高问题，提出一种面向低压配电台区拓扑结构采集的馈线终端（line terminal unit，LTU）优化配置方法。首先，为有效区分分支点、箱变、分支箱和各个进、出线开关，基于配电网零注入节点概念，构建低压配电台区零注入节点补充规则；其次，结合拓扑可观判据，以孤立点为搜索起始点位置，提出低压配电台区可观测树搜索法；然后，针对低压配电台区补充零注入节点导致低压配电台区采集终端配置不合理的问题，提出面向低压配电台区拓扑结构采集的LTU优化配置方法；最后，以山东某地低压配电台区验证了该方法的有效性。

关键词: 低压配电台区, 零注入节点, 拓扑结构采集, 可观测树搜索法, 优化配置

Abstract:

In order to solve the problem of excessive and inefficient allocation of acquisition terminals in the existing low-voltage distribution areas, which leads to high cost of intelligent transformation of the station areas, an optimization method for configuration of line terminal units (LTU) based on the topology of low-voltage distribution station areas is proposed. Firstly, in order to effectively distinguish the branch points, box transformers, branch boxes and the incoming and outcoming switches, based on the concept of zero injection node of distribution network, the supplementary rules of zero injection node in low-voltage distribution station areas are proposed. Secondly, combined with the topological observability criterion, taking the isolated point as the search starting point, the observable tree search method in the low-voltage distribution station area is proposed. Thirdly, to address the problem of unreasonable configuration of acquisition terminals in low-voltage distribution station areas caused by the addition of zero injection nodes, an optimization method for configuration of LTUs based on topology of low-voltage distribution station areas is proposed. Finally, a low-voltage distribution area in Shandong province is used to verify the effectiveness of the proposed method.

Key words: low-voltage distribution areas, zero injection node, topology-based data collection, the observable tree search method, optimal placement

许光, 匡军, 宋红艳, 张泽虎, 臧祥宇, 张念上, 张玉敏. 面向低压配电台区拓扑结构采集的馈线终端优化配置方法[J]. 中国电力, 2025, 58(3): 151-161.

Guang XU, Jun KUANG, Hongyan SONG, Zehu ZHANG, Xiangyu ZANG, Nianshang ZHANG, Yumin ZHANG. An Optimization Method for Configuration of Line Terminal Units Based on Topology-Based Data Collection in Low-Voltage Distribution Areas[J]. Electric Power, 2025, 58(3): 151-161.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202409048

https://www.electricpower.com.cn/CN/Y2025/V58/I3/151

图/表 12

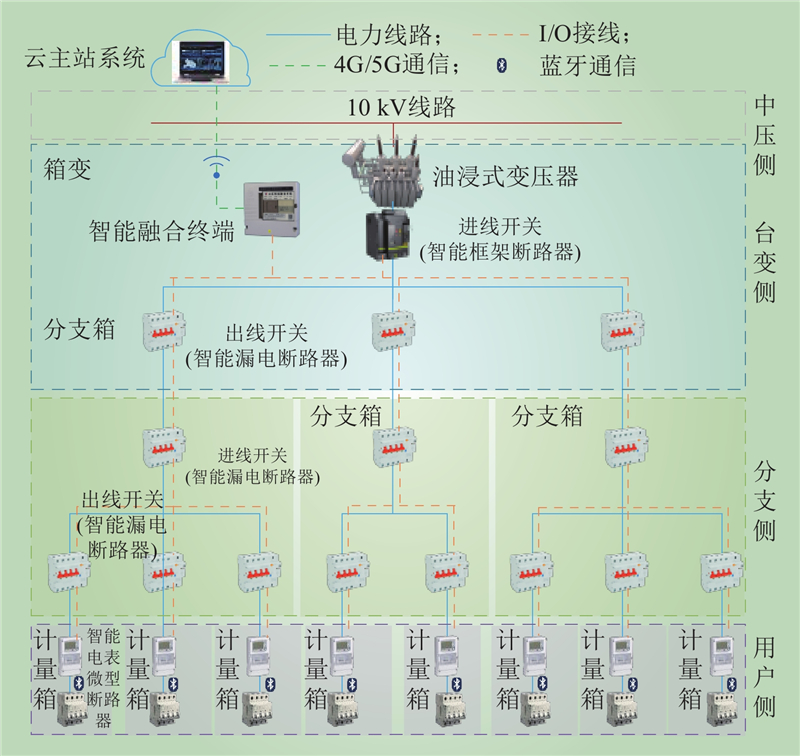

图 1 低压配电台区采集终端配置规则

Fig.1 Configuration rules for data collection terminals in low-voltage distribution areas

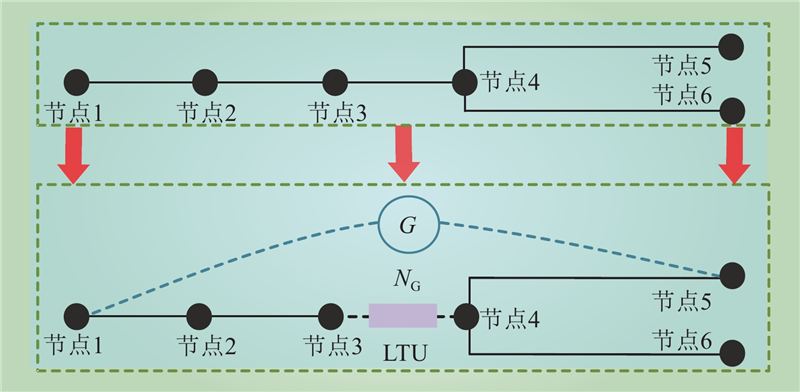

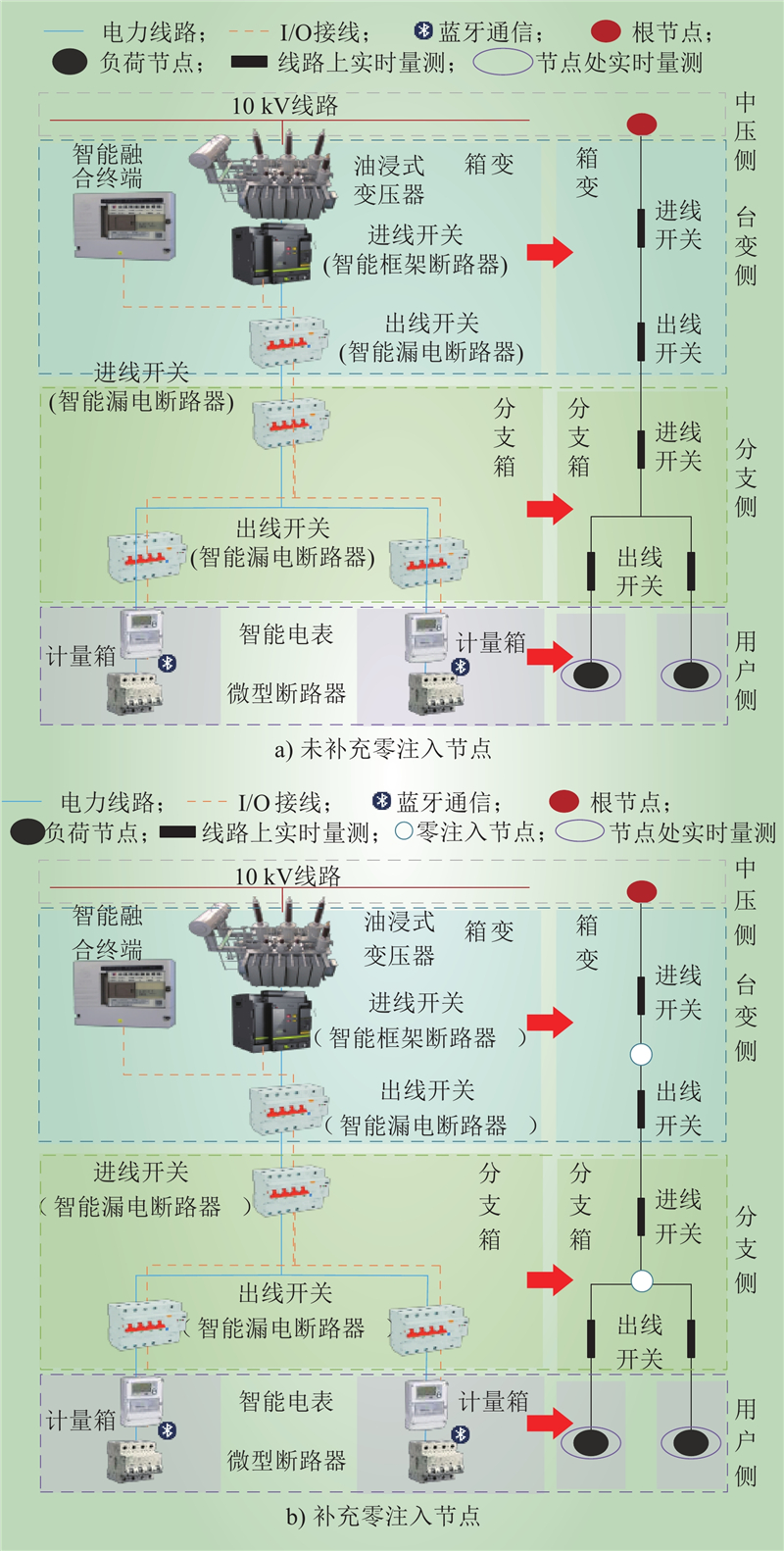

图 2 低压配电台区零注入节点补充规则

Fig.2 Supplementary rules for zero injection nodes in low-voltage distribution areas

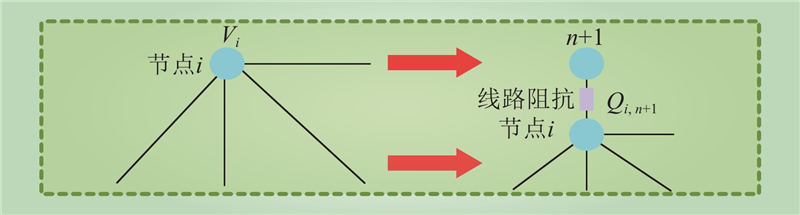

图 3 节点电压幅值量测等效

Fig.3 Node voltage amplitude measurement equivalent

图 4 低压配电台区的网络拓扑

Fig.4 Network topology of low-voltage distribution areas

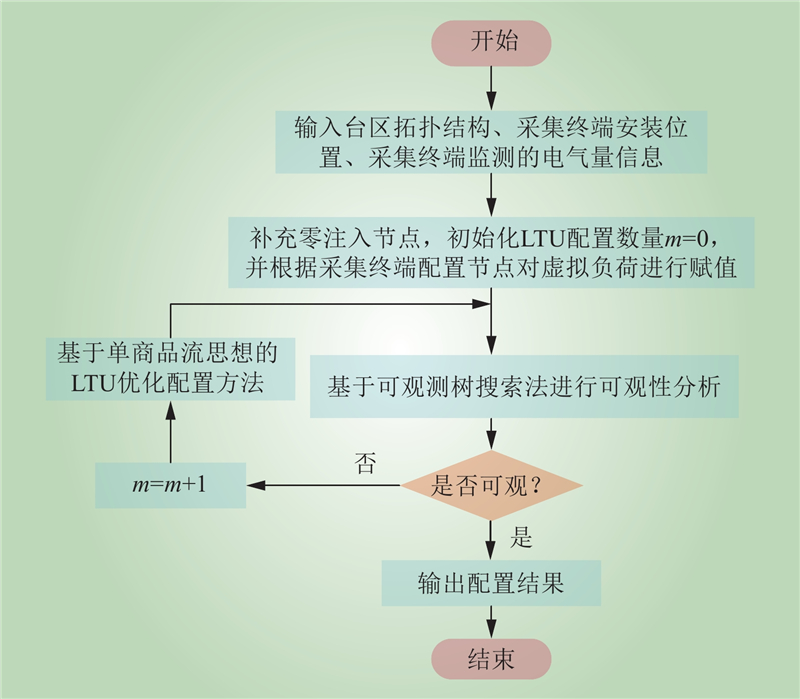

图 5 LTU优化配置流程

Fig.5 Flow of the LTU optimization configuration

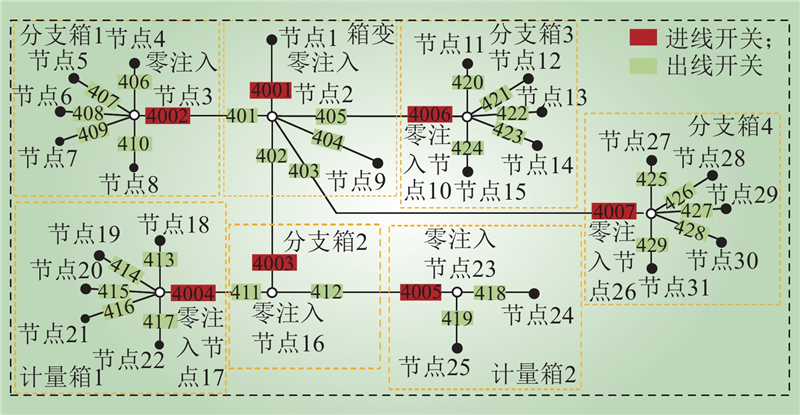

图 6 山东某地低压配电台区

Fig.6 A low-voltage distribution area in Shandong province

表 1 场景1 LTU配置结果对比

Table 1 Comparison of scenario 1 LTU configuration results

方案	配置位置	LTU配置数量	配置成本/元
1	出线开关401-429、进线开关4001-4007、零注入节点2、零注入节点3、零注入节点10、零注入节点16、零注入节点17、零注入节点23、零注入节点26	43	20640
2	401-403、405、411、412	6	2880

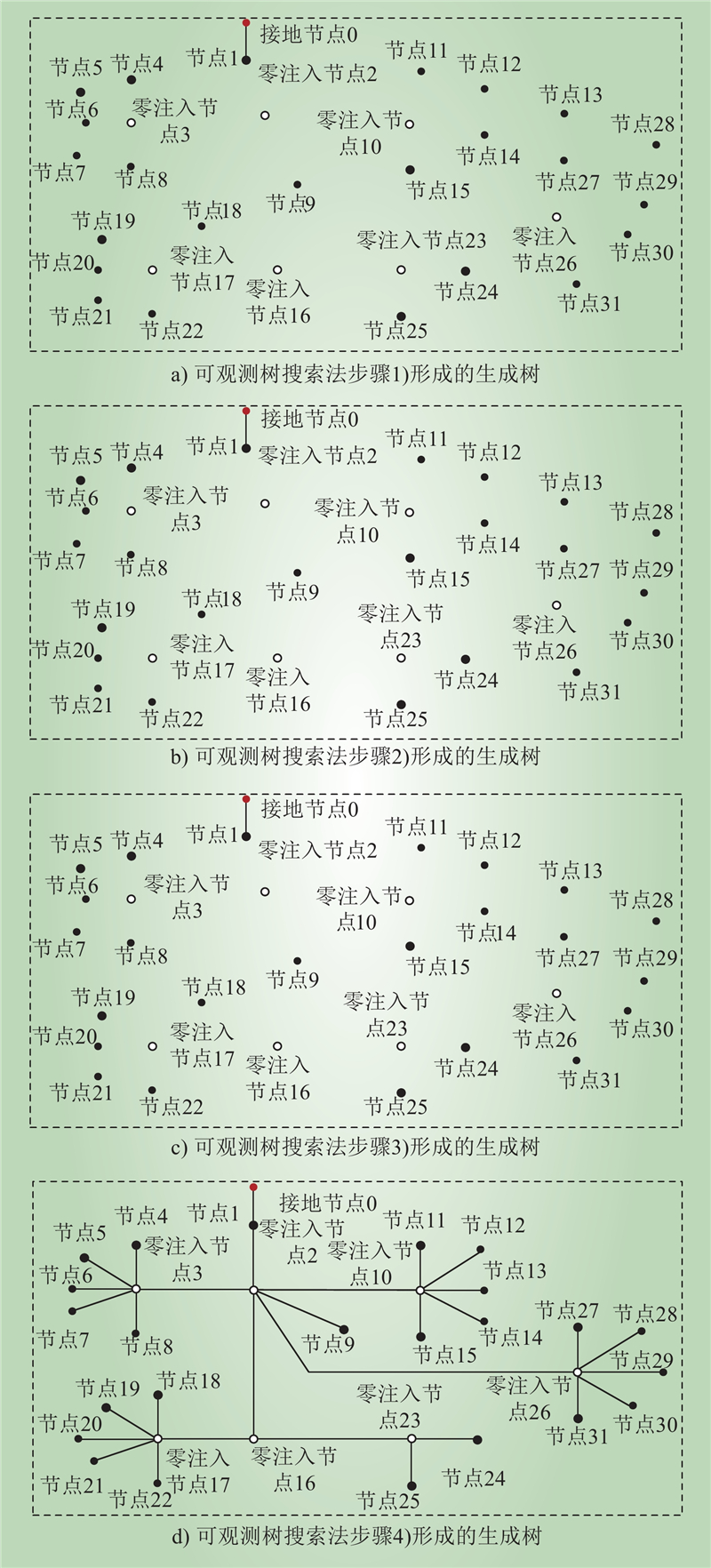

图 7 方案1可观性分析（场景1）

Fig.7 Scheme 1 observability analysis (scenario 1)

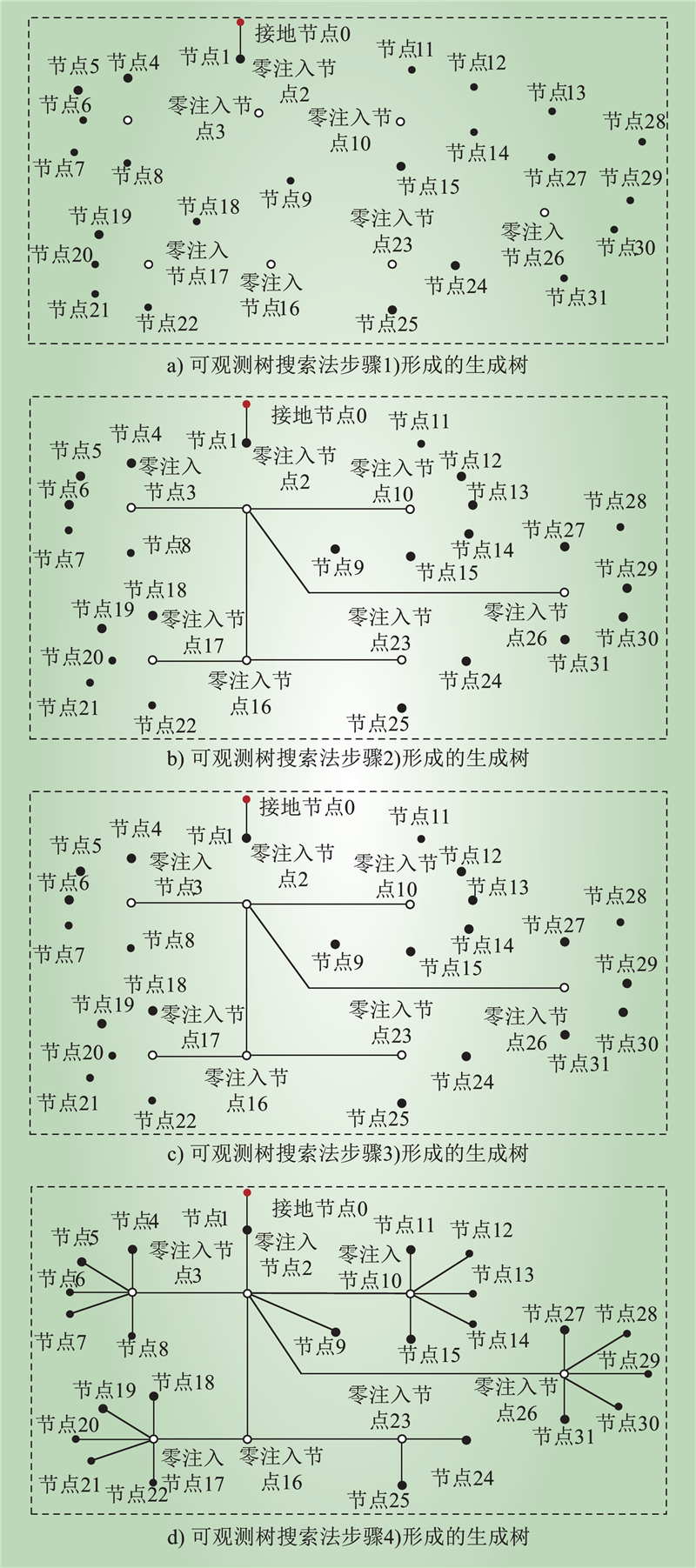

图 8 方案2可观性分析（场景1）

Fig.8 Scheme 2 observability analysis (scenario 1)

表 2 场景2 LTU配置结果对比

Table 2 Comparison of scenario 2 LTU configuration results

方案	配置位置	LTU配置数量	配置成本/元
1	出线开关401-429、进线开关4001-4007、零注入节点2、零注入节点3、零注入节点10、零注入节点16、零注入节点17、零注入节点23、零注入节点26	43	20640
2	401-403、405、411、412、零注入节点2、零注入节点3、零注入节点10、零注入节点17、零注入节点23、零注入节点26	12	5760

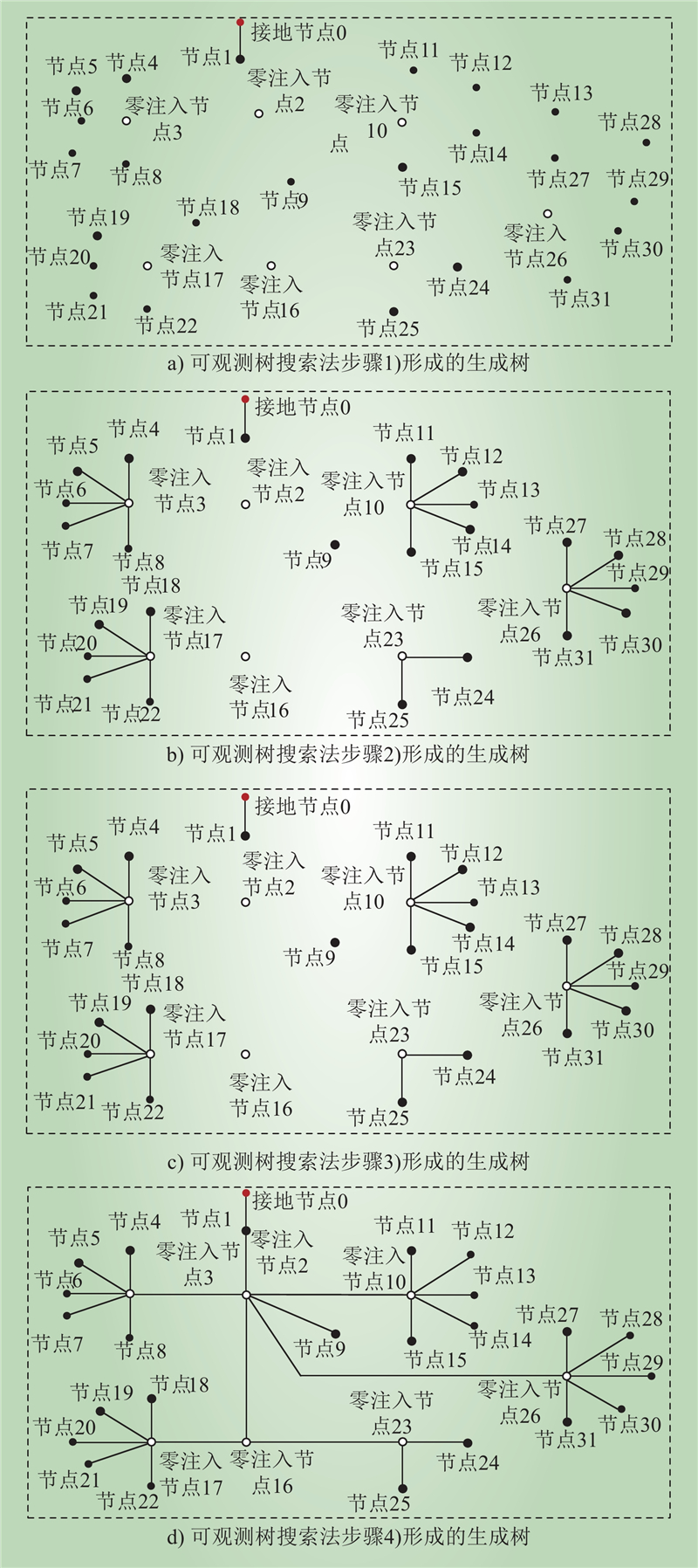

图 9 方案1可观性分析（场景2）

Fig.9 Scheme 1 observability analysis (scenario 2)

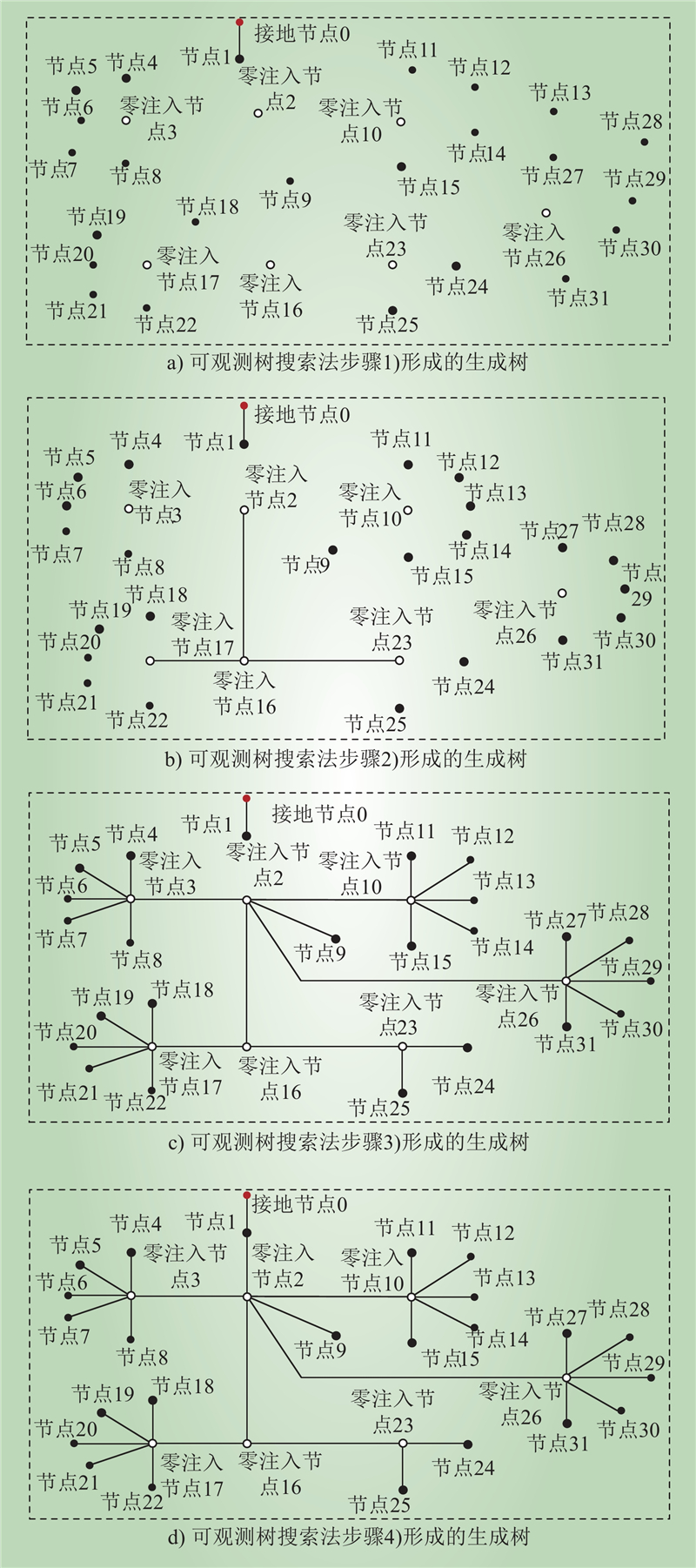

图 10 方案2可观性分析（场景2）

Fig.10 Scheme 2 observability analysis (scenario 2)

参考文献 24

1	王瑞, 王东, 李健, 等. 考虑需求响应的多能流系统两级协调优化[J]. 电力科技与环保, 2022, 38 (6): 500- 508.
	WANG Rui, WANG Dong, LI Jian, et al. Two-level optimal operation model of multi-energy flow system with demand response[J]. Electric Power Technology and Environmental Protection, 2022, 38 (6): 500- 508.
2	吉兴全, 臧祥宇, 张玉敏, 等. 极端冰雪天气下计及孤岛划分与融合的配电网故障恢复[J/OL]. 电力系统自动化, 2024: 1–15. (2024-08-21). https://kns.cnki.net/kcms/detail/32.1180.TP.20240819.1120.008.html.
	JI Xingquan, ZANG Xiangyu, ZHANG Yumin, et al. Service restoration of distribution network under extreme ice and snow weather considering island partition and merging[J/OL]. Automation of Electric Power Systems, 2024: 1–15. (2024-08-21). https://kns.cnki.net/kcms/detail/32.1180.TP.20240819.1120.008.html.
3	徐全, 雷金勇, 袁智勇. 基于同步量测的配网态势感知技术在新型电力系统中应用与展望[J]. 南方电网技术, 2023, 17 (1): 136- 143.
	XU Quan, LEI Jinyong, YUAN Zhiyong. Application and prospect of distribution network situation awareness technology based on synchronous measurement in new power system[J]. Southern Power System Technology, 2023, 17 (1): 136- 143.
4	张玉敏, 李竞锐, 吉兴全, 等. 考虑电-碳市场决策协同的园区综合能源系统双层博弈调度[J/OL]. 电力系统自动化, 2024: 1–22. (2024-08-09). https://kns.cnki.net/kcms/detail/32.1180.TP.20240808.1340.004.html.
	ZHANG Yumin, LI Jingrui, JI Xingquan, et al. Bi-level game dispatch of park integrated energy system considering decision-making synergy of electricity-carbon markets[J/OL]. Automation of Electric Power Systems, 2024: 1–22. (2024-08-09). https://kns.cnki.net/kcms/detail/32.1180.TP.20240808.1340.004.html.
5	李鹏华, 宋卓然, 吴文传. 部分可观测条件下的配电网数据驱动最优潮流模型[J]. 中国电力, 2023, 56 (12): 51- 57.
	LI Penghua, SONG Zhuoran, WU Wenchuan. A data-driven optimal power flow model under partial observability[J]. Electric Power, 2023, 56 (12): 51- 57.
6	陈得治, 郭志忠. 基于表计配置的配电网可观测性分析[J]. 中国电机工程学报, 2005, 25 (12): 35- 41. DOI
	CHEN Dezhi, GUO Zhizhong. Distribution system network observability analysis based on meter placement[J]. Proceedings of the CSEE, 2005, 25 (12): 35- 41. DOI
7	CHAUHAN K, SODHI R. Placement of distribution-level phasor measurements for topological observability and monitoring of active distribution networks[J]. IEEE Transactions on Instrumentation and Measurement, 2020, 69 (6): 3451- 3460. DOI
8	陈培育, 金尧, 郑骁麟, 等. 基于可观性和可计算性的配电网关键量测识别方法[J]. 智慧电力, 2024, 52 (3): 110- 116. DOI
	CHEN Peiyu, JIN Yao, ZHENG Xiaolin, et al. Identification of critical measurement for distribution network based on observability and computability[J]. Smart Power, 2024, 52 (3): 110- 116. DOI
9	张连勇. 新能源富集电网状态估计方法及智能应急调度策略研究[J]. 内蒙古电力技术, 2022, 40 (2): 28- 35.
	ZHANG Lianyong. Research on state estimation method and intelligent emergency dispatching strategy for new energy enriched power grid[J]. Inner Mongolia Electric Power, 2022, 40 (2): 28- 35.
10	王中行, 周元贵, 张学广. 基于人工智能算法的风电机组状态监测和故障诊断技术研究综述[J]. 东北电力大学学报, 2024, 44 (1): 42- 51.
	WANG Zhongxing, ZHOU Yuangui, ZHANG Xueguang. Review of artificial intelligence algorithms-based wind turbine condition monitoring and fault diagnosis techniques[J]. Journal of Northeast Electric Power University, 2024, 44 (1): 42- 51.
11	CAO B, YAN Y L, WANG Y, et al. A multiobjective intelligent decision-making method for multistage placement of PMU in power grid enterprises[J]. IEEE Transactions on Industrial Informatics, 2023, 19 (6): 7636- 7644. DOI
12	袁澎, 艾芊, 赵媛媛. 基于改进的遗传-模拟退火算法和误差度分析原理的PMU多目标优化配置[J]. 中国电机工程学报, 2014, 34 (13): 2178- 2187.
	YUAN Peng, AI Qian, ZHAO Yuanyuan. Research on multi-objective optimal PMU placement based on error analysis theory and improved GASA[J]. Proceedings of the CSEE, 2014, 34 (13): 2178- 2187.
13	方陈, 姚维强, 魏新迟, 等. 考虑节点时空相关性的有限配电网PMU装置优化部署[J]. 电网与清洁能源, 2023, 39 (8): 105- 115. DOI
	FANG Chen, YAO Weiqiang, WEI Xinchi, et al. Optimal placement of limited distribution PMU considering spatiotemporal correlation of nodes[J]. Power System and Clean Energy, 2023, 39 (8): 105- 115. DOI
14	吉兴全, 姜海洋, 张玉敏, 等. 考虑网络重构的三相不平衡配电网μPMU组合优化配置[J]. 电力系统自动化, 2025, 49 (3): 145- 155.
	JI Xingquan, JIANG Haiyang, ZHANG Yumin, et al. Combined optimal configuration of μPMU for three-phase unbalanced distribution network considering network reconstruction[J]. Automation of Electric Power Systems, 2025, 49 (3): 145- 155.
15	ELSAYED A A E, MOHAMED M A, ABDELRAHEEM M, et al. Optimal µPMU placement based on hybrid current channels selection for distribution grids[J]. IEEE Transactions on Industry Applications, 2020, 56 (6): 6871- 6881. DOI
16	鲍威, 蒋雪冬, 陈利跃, 等. 考虑观测冗余度最大的0-1线性规划电力系统PMU最优配置[J]. 电网技术, 2014, 38 (8): 2051- 2056.
	BAO Wei, JIANG Xuedong, CHEN Liyue, et al. A 0-1 linear programming approach to optimal phasor measurement units placement considering maximized system observability redundancy[J]. Power System Technology, 2014, 38 (8): 2051- 2056.
17	王书征, 韩彬彬, 吴志, 等. 计及薄弱节点可观测的有源配电网PMU优化配置[J/OL]. 电气工程学报, 2024: 1–12. (2024-08-08). https://kns.cnki.net/kcms/detail/10.1289.tm.20240807.1006.002.html.
	WANG Shuzheng, HAN Binbin, WU Zhi, et al. Optimization configuration of active distribution network PMU considering observable weak nodes[J/OL]. Journal of Electrical Engineering, 2024: 1–12. (2024-08-08). https://kns.cnki.net/kcms/detail/10.1289.tm.20240807.1006.002.html.
18	张子桐, 周群, 佃钰林, 等. 基于μPMU测量数据的配电网线路阻抗参数估计[J]. 中国电力, 2023, 56 (8): 157- 165.
	ZHANG Zitong, ZHOU Qun, DIAN Yulin, et al. Parameter estimation for line impedance in distribution network based on μPMU data[J]. Electric Power, 2023, 56 (8): 157- 165.
19	ANDREONI R, MACII D, BRUNELLI M, et al. Tri-objective optimal PMU placement including accurate state estimation: the case of distribution systems[J]. IEEE Access, 2021, 9, 62102- 62117. DOI
20	YUAN X X, KONG X Y, WANG Y T, et al. Research on multistage optimal PMU configuration in distribution networks[C]//2019 IEEE Sustainable Power and Energy Conference (iSPEC). Beijing, China. IEEE, 2019: 554–558.
21	葛维春, 张硕, 张艳军, 等. 基于μPMU同步量测数据的配电网故障定位方法[J]. 电力系统保护与控制, 2020, 48 (4): 39- 46.
	GE Weichun, ZHANG Shuo, ZHANG Yanjun, et al. A novel method for fault location of distribution network based on μPMU synchronized measurement data[J]. Power System Protection and Control, 2020, 48 (4): 39- 46.
22	王澍, 徐潇源, 孔祥瑞, 等. 考虑节点脆弱性的配电网多阶段PMU最优配置[J]. 电力系统及其自动化学报, 2019, 31 (7): 8- 14.
	WANG Shu, XU Xiaoyuan, KONG Xiangrui, et al. Multi-stage optimal PMU configuration in distribution network considering bus vulnerability[J]. Proceedings of the CSU-EPSA, 2019, 31 (7): 8- 14.
23	袁兆祥, 肖智宏, 王晶, 等. 考虑多时刻和压缩候选集合的配电网最小化采集优化方法[J]. 中国电力, 2023, 56 (12): 20- 30.
	YUAN Zhaoxiang, XIAO Zhihong, WANG Jing, et al. A minimized data collection optimization method for distribution networks considering multiple-time and compressed candidate sets[J]. Electric Power, 2023, 56 (12): 20- 30.
24	董丽澜. 电力系统状态估计、参数辨识及量测优化配置方法研究[D]. 杭州: 浙江大学, 2022.
	DONG Lilan. Research on power system state estimation, parameter identification and optimal configuration of measurement units. Hangzhou: Zhejiang University, 2022.
