基于5G通信的有源配电网新能源送出线路纵联保护

doi:10.11930/j.issn.1004-9649.202307031

中国电力 ›› 2024, Vol. 57 ›› Issue (11): 139-150.DOI: 10.11930/j.issn.1004-9649.202307031

基于5G通信的有源配电网新能源送出线路纵联保护

李铁成¹(), 范辉¹, 张卫明¹, 王献志¹, 张艺宏², 戴志辉²

1. 国网河北省电力有限公司电力科学研究院，河北石家庄　050021
2. 华北电力大学（保定）河北省分布式储能与微网重点实验室，河北保定　071003

收稿日期:2023-07-10 录用日期:2023-10-08 发布日期:2024-11-23 出版日期:2024-11-28
作者简介:李铁成（1980—），男，硕士，高级工程师（教授级），从事电力系统自动化及相关技术研究，E-mail：1877014263@qq.com
基金资助:
国家电网有限公司科技项目（TSS2022-14）；国网河北省电力有限公司科技项目（SGHEJS00JYJS2100218）。

Pilot Protection of New Energy Transmission Line in Active Distribution Network Based on 5G Communication

Tiecheng LI¹(), Hui FAN¹, Weiming ZHANG¹, Xianzhi WANG¹, Yihong ZHANG², Zhihui DAI²

1. Electric Power Research Institute, State Grid Hebei Electric Power Company, Shijiazhuang 050021, China
2. Hebei Key Laboratory of Distributed Energy Storage and Micro-Grid, North China Electric Power University, Baoding 071003, China

Received:2023-07-10 Accepted:2023-10-08 Online:2024-11-23 Published:2024-11-28
Supported by:
This work is supported by Science and Technology Project of SGCC (No.TSS2022-14), Science and Technology Project of State Grid Hebei Electric Power Company (No.SGHEJS00JYJS2100218).

摘要/Abstract

摘要：

传统纵联差动保护在新能源场站接入后会出现可靠性降低甚至拒动的问题。为此，首先提出了秩差累加积波形相似度算法并分析了其抗干扰特性，该算法通过计算两组数据的最大不匹配程度来度量两波形的相似度，显著减弱了异常数据对波形相似度判断的影响。在此基础上，利用送出线路两侧暂态电流时域波形特征的差异，提出了基于5G通信技术纵联保护新原理并构建了完整的保护方案。最后，通过PSCAD/EMTDC验证了所提保护方案的性能。仿真结果表明，所提方案不受新能源类型的限制，适用于各类新能源场站，具有良好的抗延时防误动、抗噪声及异常数据的能力；在新能源弱出力及断路器重合于永久性故障情况下也具备良好的动作性能。

关键词: 新能源, 有源配电网, 纵联保护, 5G通信, 波形相似度, 暂态电流

Abstract:

Traditional pilot differential protection will have the problem of reliability reduction or even failure to operate after the access of new energy stations. To this end, this paper first proposes a rank difference accumulation waveform similarity algorithm and analyzes its anti-interference characteristics. The algorithm measures the similarity of two waveforms by calculating the maximum mismatch degree of two sets of data, which significantly reduces the influence of abnormal data on waveform similarity judgment. On this basis, using the difference of transient current waveform characteristics on both sides of the transmission line, the paper proposes a new pilot protection principle based on 5G communication technology and constructs a complete protection scheme. Finally, the performance of the proposed protection scheme is verified with PSCAD/EMTDC. The simulation results show that the scheme is not limited by the types of new energy and is suitable for all kinds of new energy stations. It has a good ability to resist delay, misoperation, noise, and abnormal data. It also has good operation performance in the cases of weak output of new energy and circuit breaker reclosing on permanent fault.

Key words: new energy, active distribution network, pilot protection, 5G communication, waveform similarity, transient current

李铁成, 范辉, 张卫明, 王献志, 张艺宏, 戴志辉. 基于5G通信的有源配电网新能源送出线路纵联保护[J]. 中国电力, 2024, 57(11): 139-150.

Tiecheng LI, Hui FAN, Weiming ZHANG, Xianzhi WANG, Yihong ZHANG, Zhihui DAI. Pilot Protection of New Energy Transmission Line in Active Distribution Network Based on 5G Communication[J]. Electric Power, 2024, 57(11): 139-150.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307031

https://www.electricpower.com.cn/CN/Y2024/V57/I11/139

图/表 21

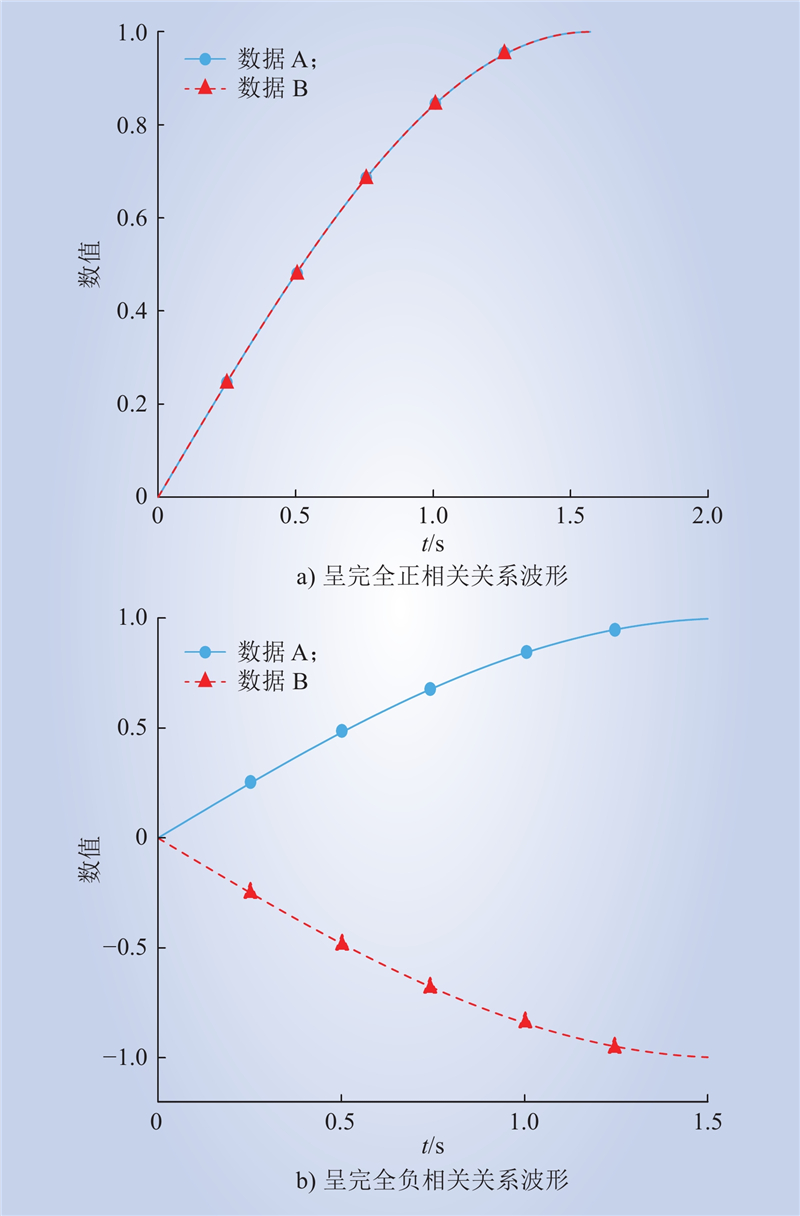

图 1 标准波形示例

Fig.1 Standard waveform example

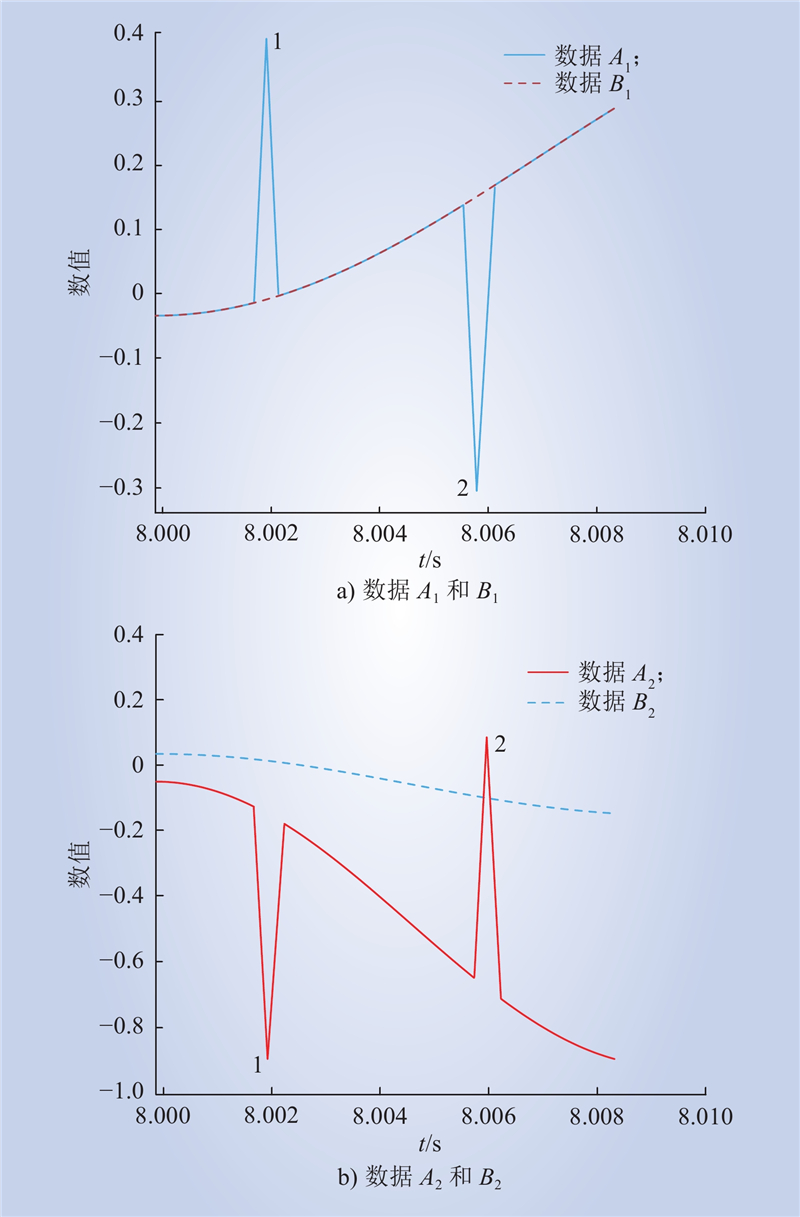

图 2 算法抗干扰特性分析

Fig.2 Anti-interference characteristics of algorithm

表 1 异常数据不同值时AR的变化

Table 1 Changes in AR with different values of abnormal data

场景	异常数据1	异常数据2	A_R	场景	异常数据1	异常数据2	A_R
1	–1.0	–0.3	54	9	0.30	–0.30	56
2	–0.4	–0.3	54	10	0.40	–0.30	58
3	–0.3	–0.3	54	11	0.50	–0.30	58
4	–0.2	–0.3	54	12	1.00	–0.30	58
5	–0.1	–0.3	54	13	0.01	0.20	8
6	0	–0.3	42	14	0.20	0.01	30
7	0.1	–0.3	42	15	0.20	–0.20	44
8	0.2	–0.3	44	16	0.20	–1.00	44

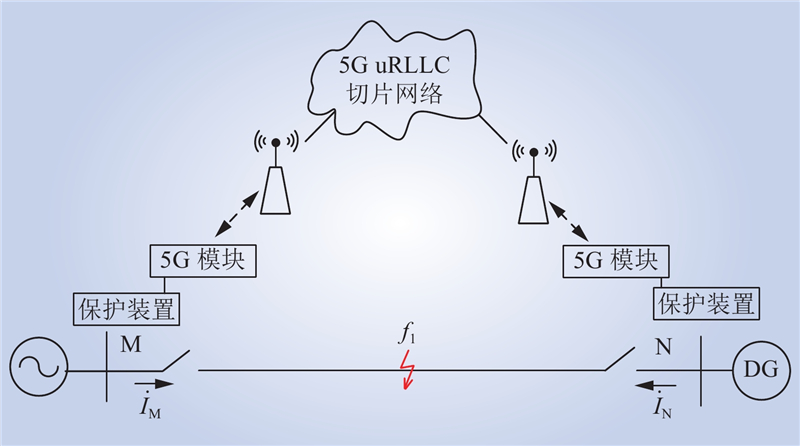

图 3 基于5G通信的配网纵联保护构成方式

Fig.3 Composition of distribution network pilot protection based on 5G communication

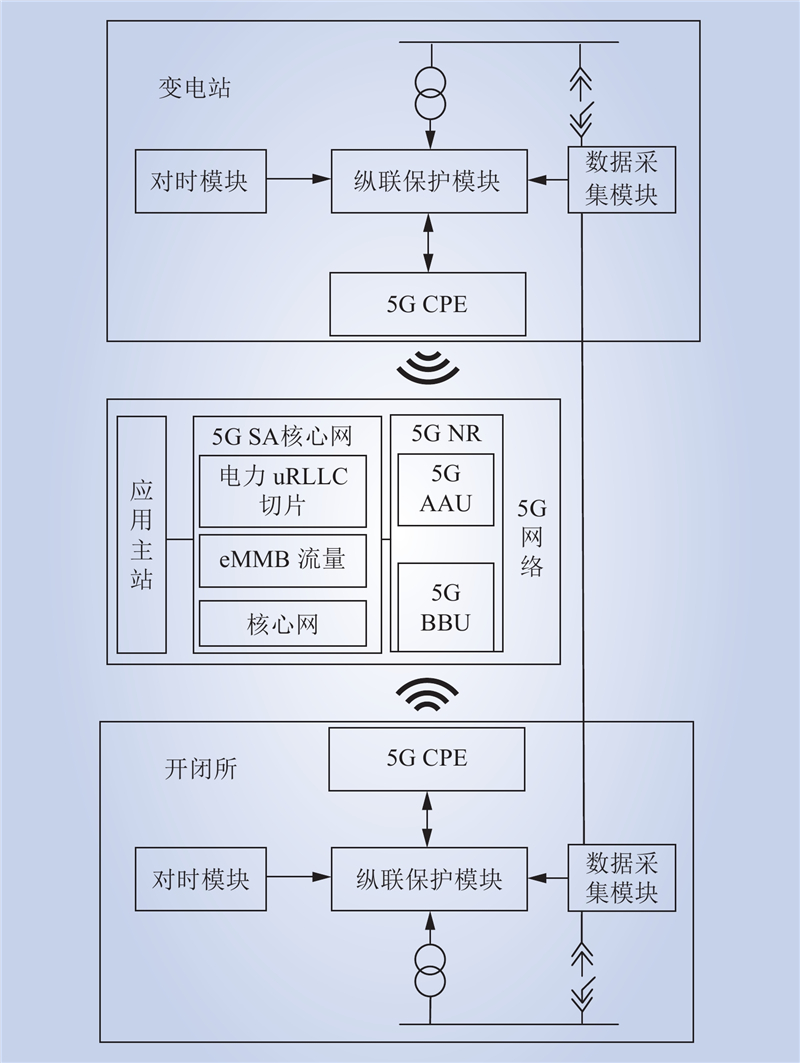

图 4 送出线路纵联保护系统整体结构

Fig.4 Overall structure of pilot protection system for transmission lines

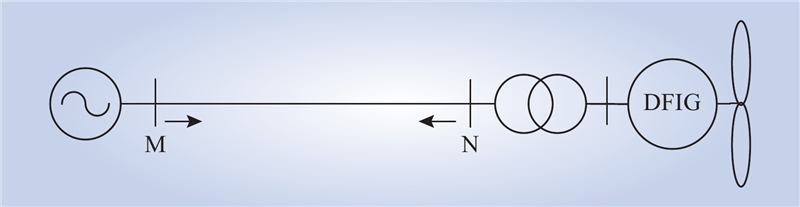

图 5 风机接入配网送出线路

Fig.5 Fan access to distribution network transmission line

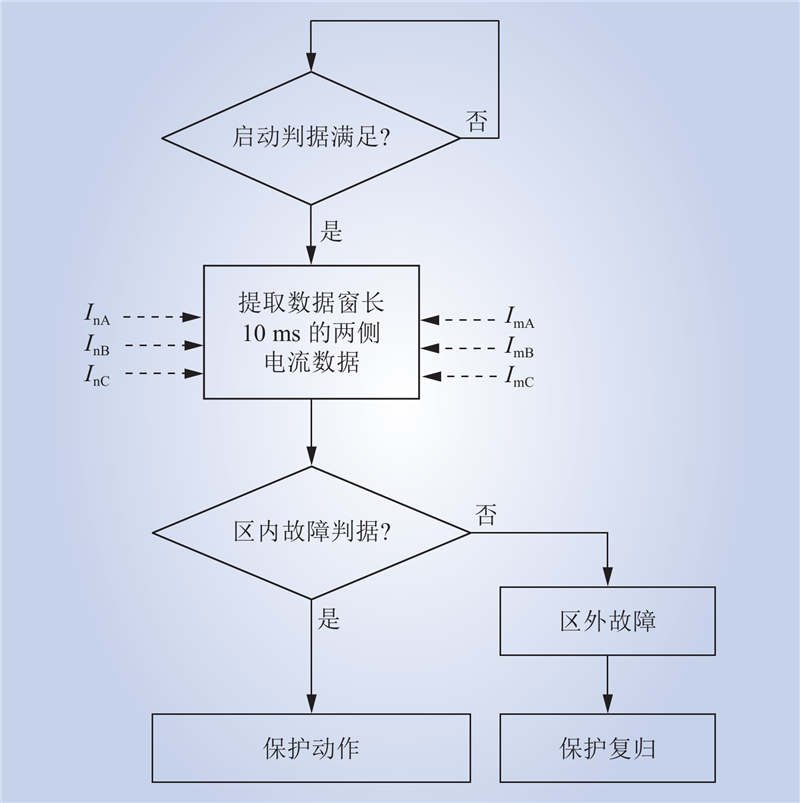

图 6 保护方案流程

Fig.6 Flowchart of protection scheme

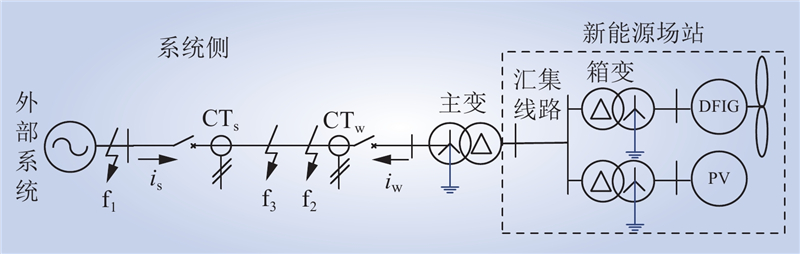

图 7 典型新能源场站送出线路拓扑

Fig.7 Transmission line topology of typical new energy station

表 2 新能源电站仿真参数

Table 2 Simulation parameters of new energy station

类型	参数	数值
光伏电站	额定容量/MW	8
	逆变器直流母线电压/kV	1
	逆变器直流侧电容/μF	3900
	光伏额定输出电压/kV	0.6
	网侧线电压/kV	10.5
	电网频率/Hz	50
	额定容量MW	20
风电场	切入风速/(m·s^–1)	3
	切出风速/(m·s^–1)	25
	额定风速/(m·s^–1)	11
	风机叶片半径/m	46
	空气密度/(kg·m^–3)	1.225

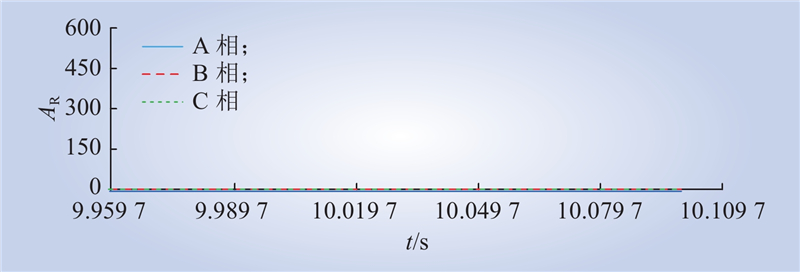

图 8 f1处发生三相短路时AR 随时间的动态变化

Fig.8 Dynamic change of AR with time when three-phase short circuit occurs at f1

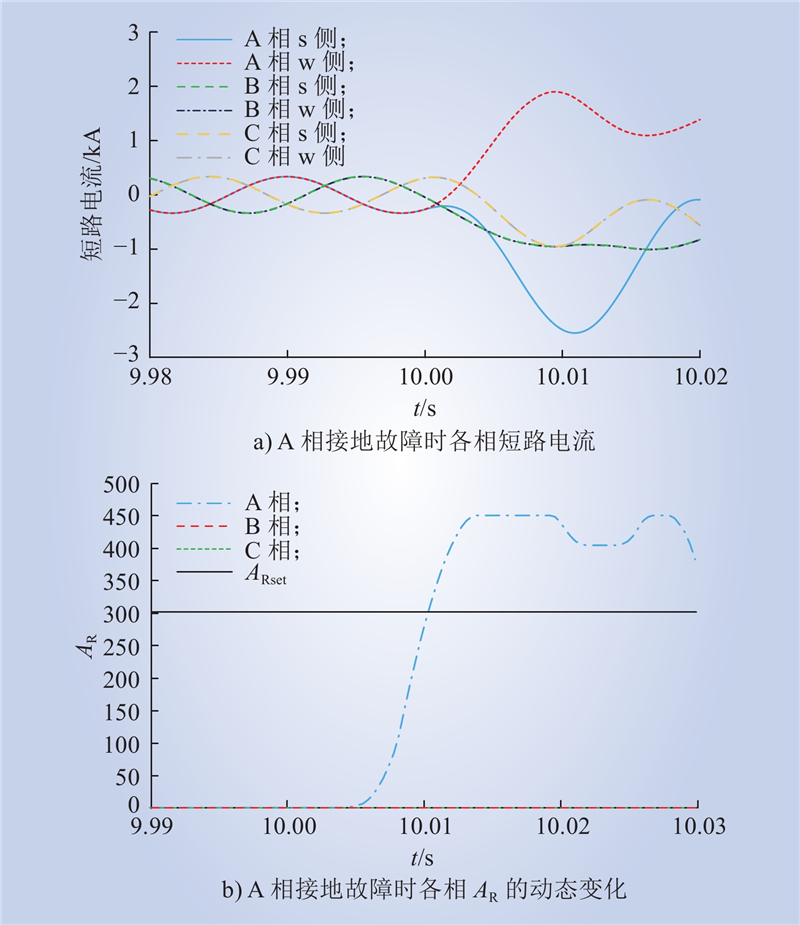

图 9 A相接地故障所提保护的动作情况

Fig.9 Action of protection proposed by A-phase grounding fault

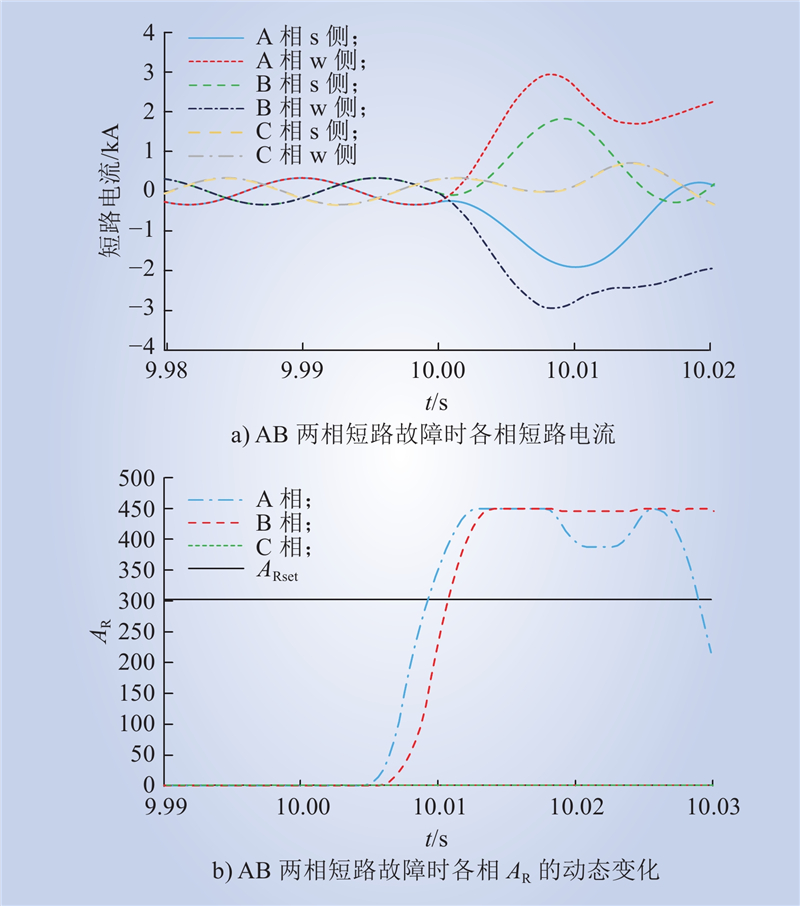

图 10 AB两相短路故障所提保护的动作情况

Fig.10 Action of protection proposed by AB two-phase short circuit fault

表 3 区内各故障类型AR值

Table 3 AR value of each fault type in fault zone

故障位置	故障类型	A_R
故障位置	故障类型	A相	B相	C相
区内f₂	AG	450	0	0
	AB	450	450	0
	ABG	450	450	0
	ABC	450	450	450
区内f₃	AG	450	0	0
	AB	450	450	0
	ABG	450	450	0
	ABC	450	450	450

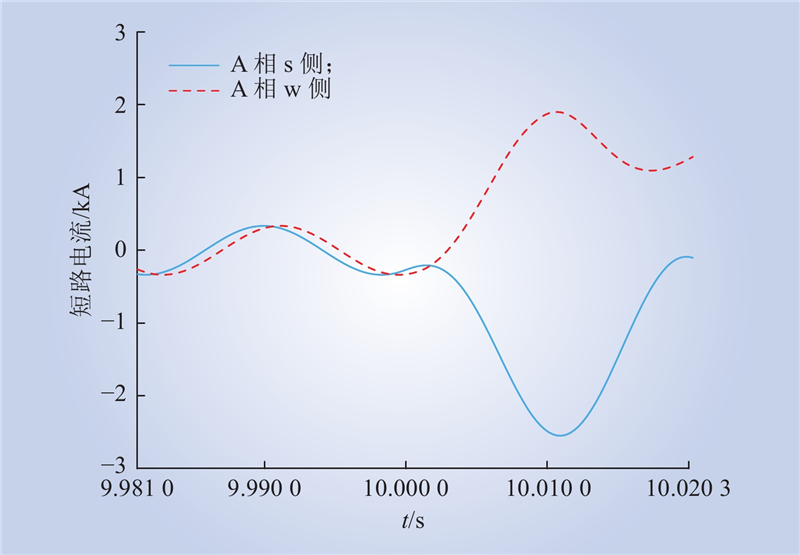

图 11 延时1.2 ms两侧短路电流波形

Fig.11 Short-circuit current waveform on both sides delayed by 1.2 ms

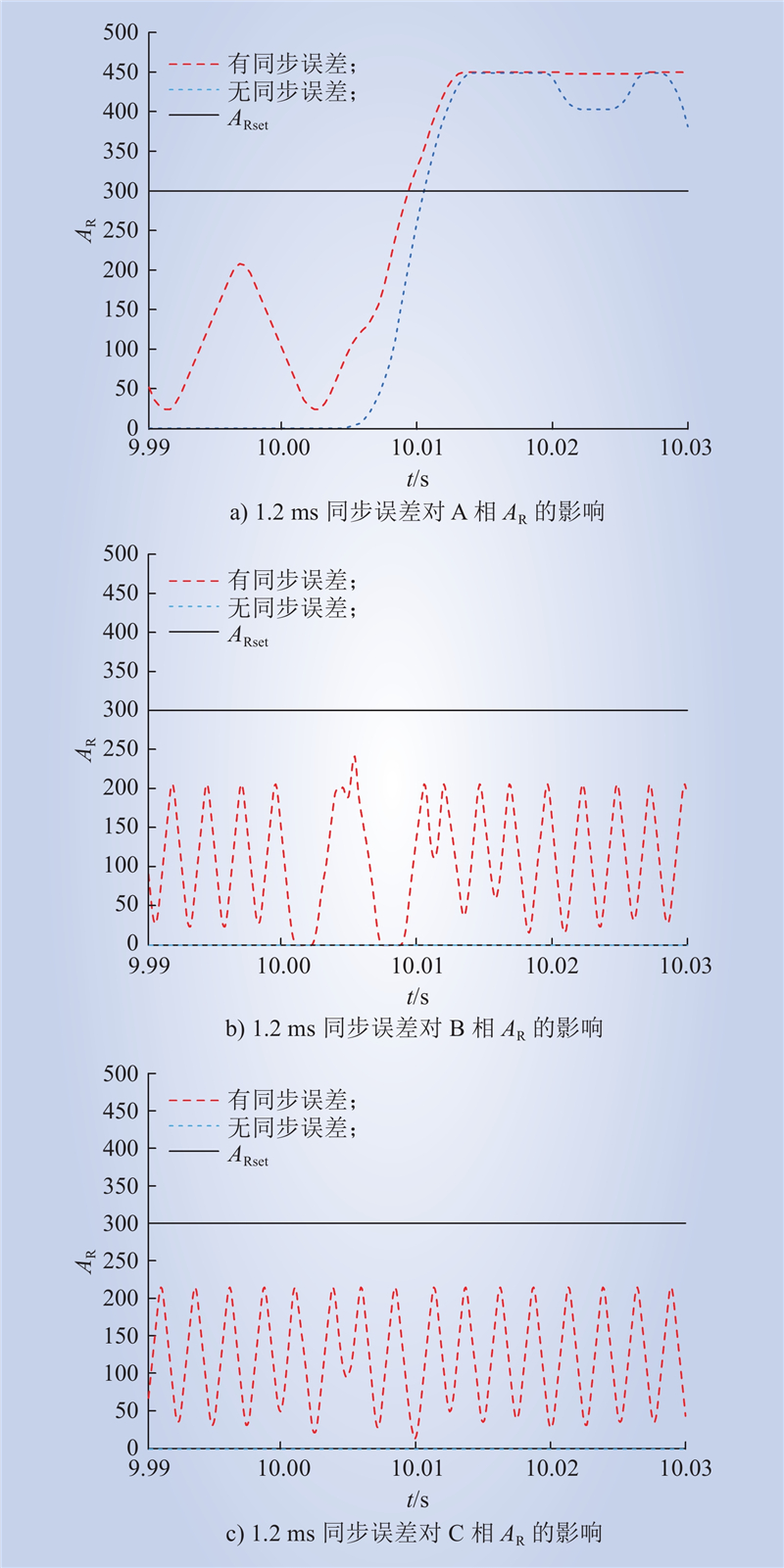

图 12 1.2 ms同步误差对各相AR的影响

Fig.12 Influence of 1.2 ms synchronization error on each phase AR

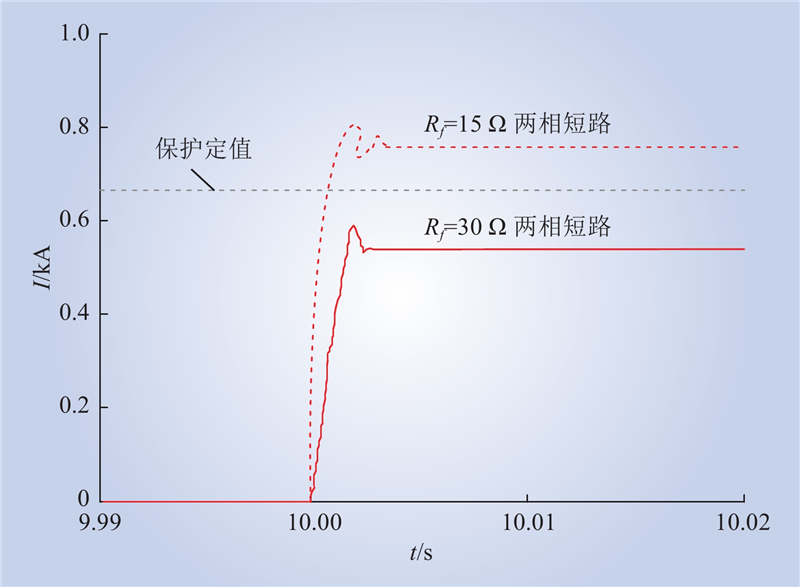

图 13 传统电流差动保护在不同接地电阻情况下的动态变化

Fig.13 Dynamic changes of traditional current differential protection under different grounding resistances

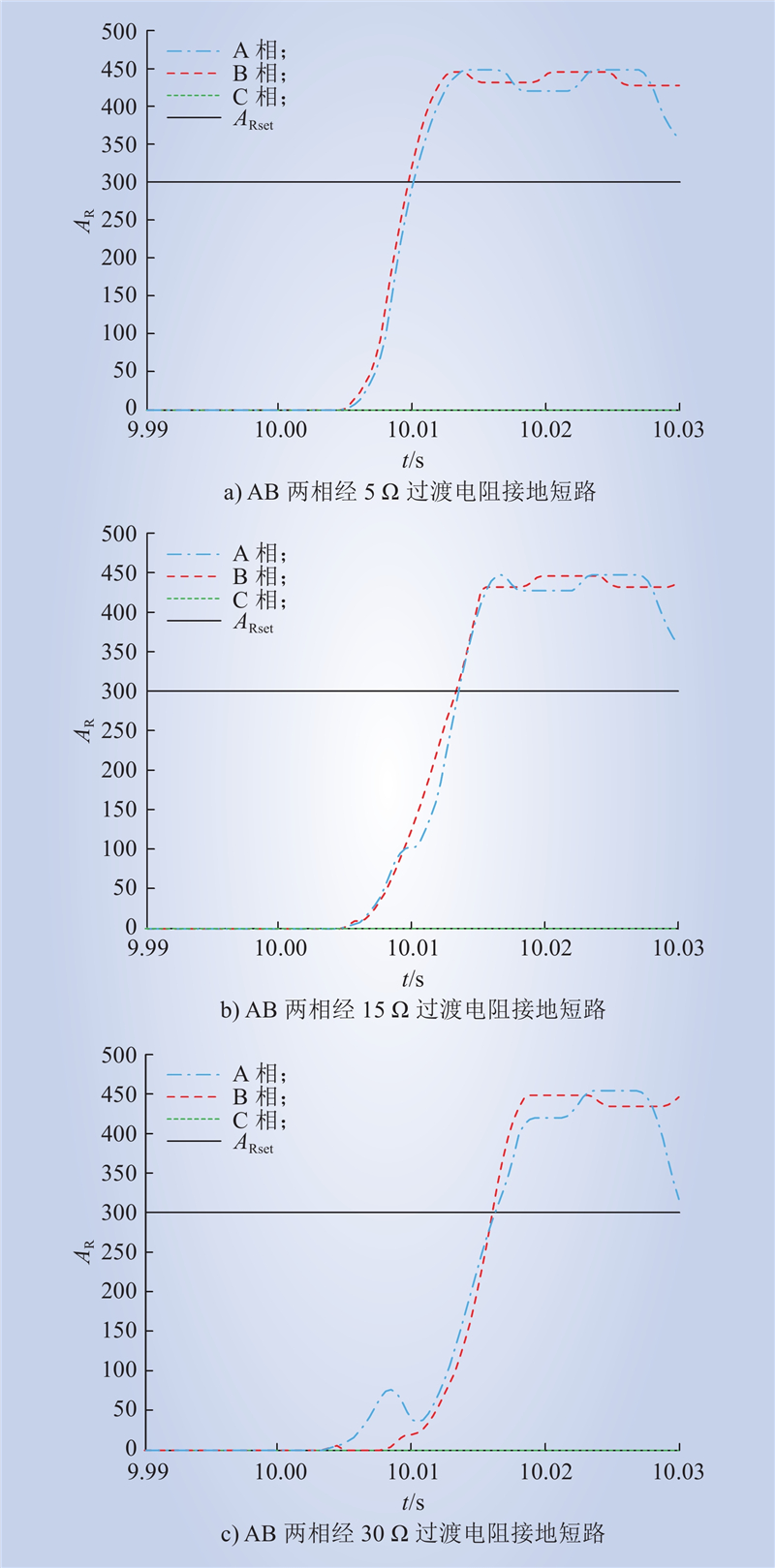

图 14 AR在不同接地电阻情况下的动态变化

Fig.14 Dynamic changes of AR under different grounding resistances

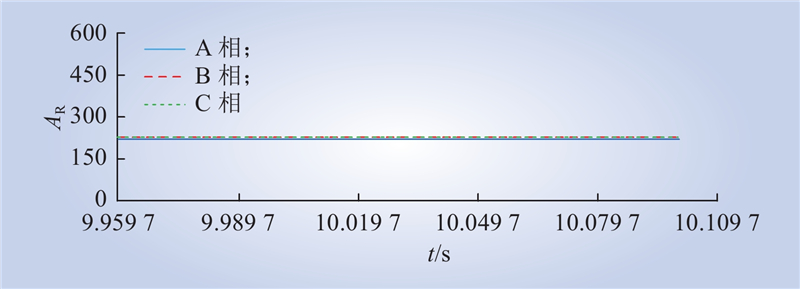

图 15 新能源场站出力为0时AR随时间变化情况

Fig.15 Change of AR with time when new energy station output is 0

表 4 新能源场站不同功率输出下的保护性能

Table 4 Protection performance of new energy station under different power outputs

功率输出/MW	故障类型	A_R
功率输出/MW	故障类型	A相	B相	C相
0	AG	225	0	0
	AB	225	225	0
	ABG	225	225	0
	ABC	225	225	225
10	AG	450	0	0
	AB	450	450	0
	ABG	450	450	0
	ABC	450	450	450
20	AG	450	0	0
	AB	450	450	0
	ABG	450	450	0
	ABC	450	450	450

表 5 噪声环境下发生不同故障AR值

Table 5 Different fault AR values occur in noise environment

故障类型	A_R
故障类型	A相	B相	C相
AG	450	68	32
AB	448	450	62
ABG	450	450	104
ABC	450	446	446

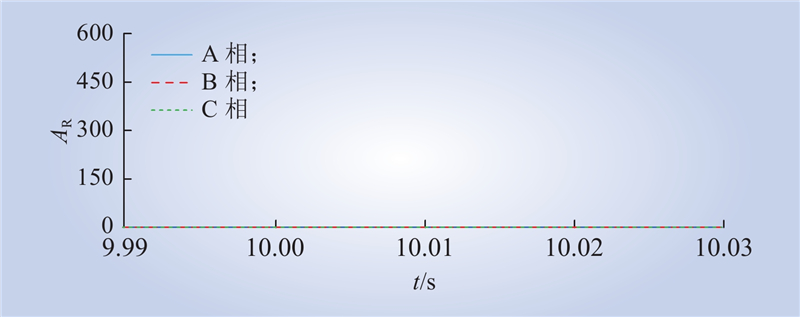

图 16 保护区外f1三相短路故障且电流互感器饱和工况

Fig.16 Operating condition of f1 three-phase short-circuit fault outside the protection zone and current transformer saturation
