面向工程应用的MMC-BESS的SOC均衡控制参数设计

doi:10.11930/j.issn.1004-9649.202304076

中国电力 ›› 2023, Vol. 56 ›› Issue (11): 168-176.DOI: 10.11930/j.issn.1004-9649.202304076

面向工程应用的MMC-BESS的SOC均衡控制参数设计

金雪芬¹(), 季建辉²(), 李兰芳², 李奇南², 张帆², 詹雄²(), 黄均纬³

1. 国网电力科学研究院中电普瑞科技有限公司，北京　102200
2. 国网电力科学研究院中电普瑞电力工程有限公司，北京　102200
3. 国网福建省电力有限公司科学研究院，福建福州　350007

收稿日期:2023-04-20 出版日期:2023-11-28 发布日期:2023-11-28
作者简介:金雪芬（1984—），女，硕士，高级工程师，从事新型电力系统装备研究，E-mail： xiaopangcumt@163.com
詹雄（1979—），男，通信作者，硕士，高级工程师（教授级），从事高压大容量储能技术研究及设备开发，E-mail： zxhn2029@sina.com
基金资助:
国家电网有限公司科技项目（集成模块化多电平换流器的新型储能系统拓扑与自适应控制关键技术研究，5419-202221068A-1-1-ZN）。

Parameter Design of SOC Balance Control for MMC-BESS Engineering Applications

Xuefen JIN¹(), Jianhui JI²(), Lanfang LI², Qinan LI², Fan ZHANG², Xiong ZHAN²(), Junwei HUANG³

1. State Grid Electric Power Research Institute, China EPRI Science & Technology Co., Ltd., Beijing 102200, China
2. State Grid Electric Power Research Institute, C-EPRI Electric Power Engineering Co., Ltd., Beijing 102200, China
3. State Grid Fujian Electric Power Research Institute, Fuzhou 350007, China

Received:2023-04-20 Online:2023-11-28 Published:2023-11-28
Supported by:
This work is supported by Science and Technology Projects of SGCC (Research on Key Technologies of Topology and Adaptive Control for a New Energy Storage System with Integrated Modular Multilevel Converter, No.5419-202221068A-1-1-ZN).

摘要/Abstract

摘要：

针对模块化多电平电池储能系统（MMC-BESS）技术实际工程应用问题，从调制、效率、子模块电容电压均衡及器件选型4个维度，为荷电状态（SOC）均衡控制参数设计提供理论依据及操作性强的实用设计步骤和方法，并提出了控制参数分段的桥臂内子模块间SOC均衡控制方法，用于提高SOC均衡控制速度，以拟建的示范工程为示例，进行控制参数设计，并通过仿真验证控制参数设计的合理性及分段控制参数加速SOC均衡控制的有效性。

关键词: MMC-BESS, SOC均衡控制, 参数设计, 稳定

Abstract:

In view of the engineering application of MMC-BESS technology, this paper provides theoretical basis and practical steps and methods for SOC balance control parameter design from four dimensions of modulation, efficiency, submodule capacitor voltage balancing, and device selection. To improve the speed of SOC balance control, the SOC balance control method of setting different control parameters in sections between submodules in the bridge arm is proposed. Based on the proposed demonstration project, the control parameters are designed. In addition, the rationality of control parameter design and the effectiveness of segmented control parameters to accelerate SOC balance control are verified by simulation.

Key words: MMC-BESS, SOC balance control, parameter design, stability

金雪芬, 季建辉, 李兰芳, 李奇南, 张帆, 詹雄, 黄均纬. 面向工程应用的MMC-BESS的SOC均衡控制参数设计[J]. 中国电力, 2023, 56(11): 168-176.

Xuefen JIN, Jianhui JI, Lanfang LI, Qinan LI, Fan ZHANG, Xiong ZHAN, Junwei HUANG. Parameter Design of SOC Balance Control for MMC-BESS Engineering Applications[J]. Electric Power, 2023, 56(11): 168-176.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202304076

https://www.electricpower.com.cn/CN/Y2023/V56/I11/168

图/表 9

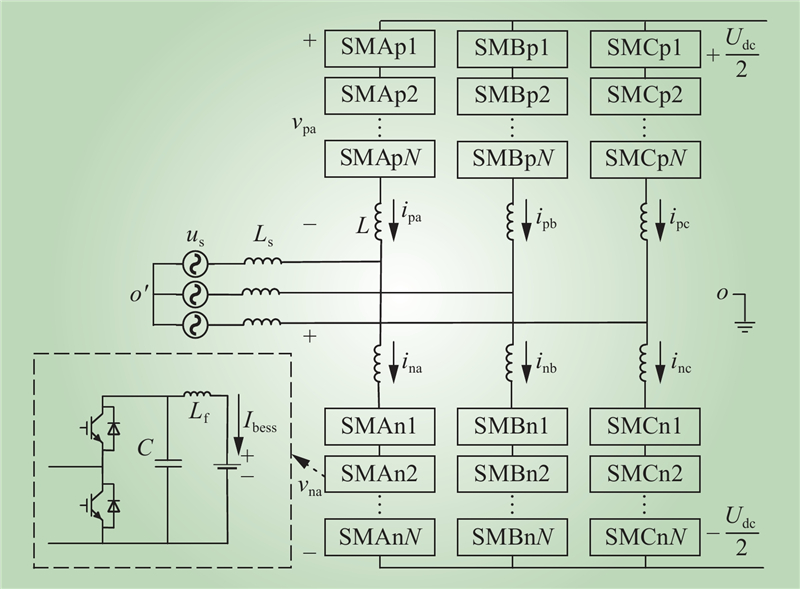

图 1 MMC-BESS拓扑

Fig.1 Topology of MMC-BESS

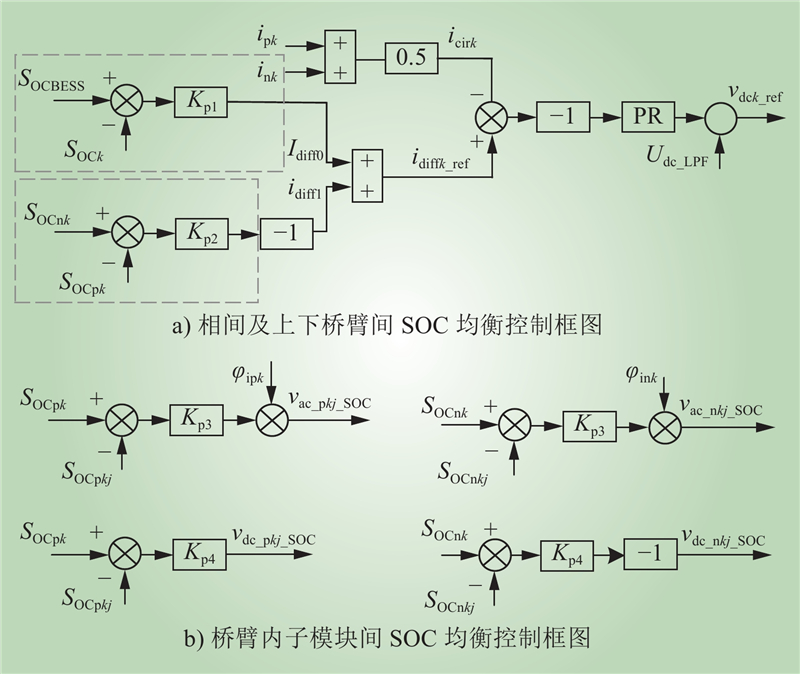

图 2 MMC-BESS 三级SOC均衡控制框图

Fig.2 Three-level SOC balance control of MMC-BESS

表 1 MMC-BESS系统参数

Table 1 System parameters of MMC-BESS

名称		参数
交流并网线电压/kV		6
直流并网电压/kV		12
MMC-BESS单机功率/kW		8000
变压器容量/MW		9
电压变比（网/阀）/(kV·kV^–1)		10/6
短路阻抗/%		7.5
联结组别（网/阀）		DY0
IGBT型号		3300 V/1500 A
子模块额定电容电压/kV		1
单桥臂子模块数		12
额定总电流有效值/A		458
额定交流电流峰值/A		566
电容/mF		18
电池单体最高电压/V		3.5
电池单体最低电压/V		3
电池单体标称电压/V		3.2
电池容量规格/(A·h)		92
子模块电池能量/(kW·h)		122.47
储能系统总容量/(kW·h)		8817.87
电池簇额定工作电流/A		83.47
子模块单体数量P，S		1，416
子模块电池组总内阻/Ω		0.48
单桥臂连接电抗/mH		3
滤波电感值/mH		7

表 2 SOC初始值

Table 2 Initial values of SOC

S_OCpa	S_OCpb	S_OCpc	S_OCna	S_OCnb
0.883 3	0.9	0.9	0.9	0.9000

S_OCnc	S_OCa	S_OCb	S_OCc	S_OCBESS
0.9000	0.891 7	0.9	0.9	0.897 2

表 3 分段控制参数值

Table 3 Segmented control parameters

ΔS_OCmax/%	K_p3	ΔS_OCmax/%	K_p3
10	1.0	3	3.7
5	2.0	2	5.7
4	2.6	1	11.5

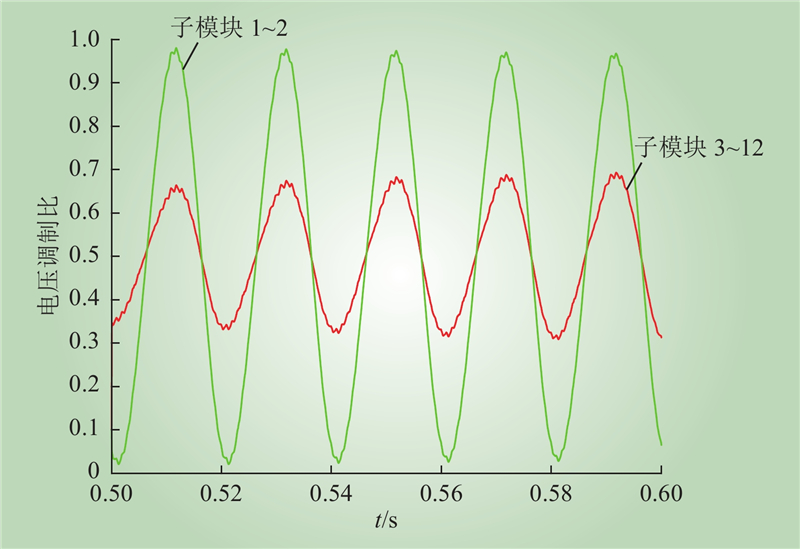

图 3 A相上桥臂SOC均衡控制后标幺化调制波

Fig.3 Per-united modulation waves of phase A up-bridge arm with SOC balance control

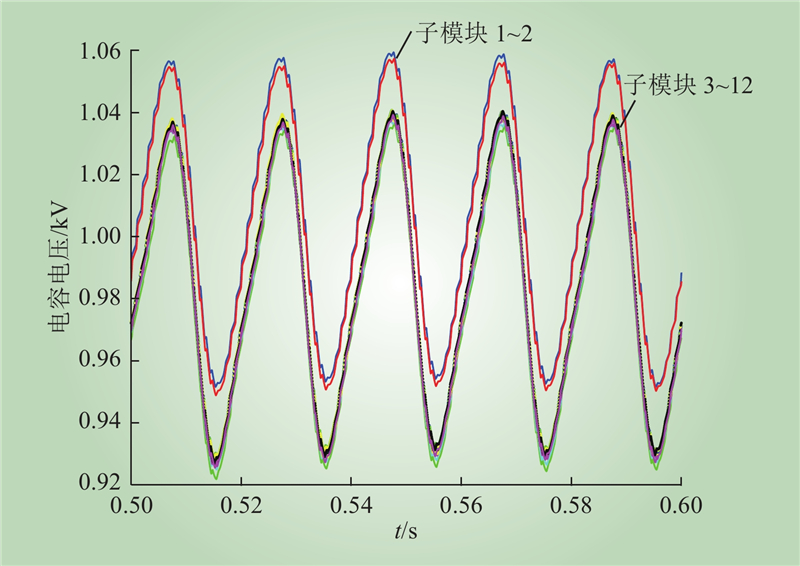

图 4 SOC均衡控制后A相上桥臂子模块电容电压

Fig.4 Submodule capacitor voltage of phase A up-bridge arm with SOC balance control

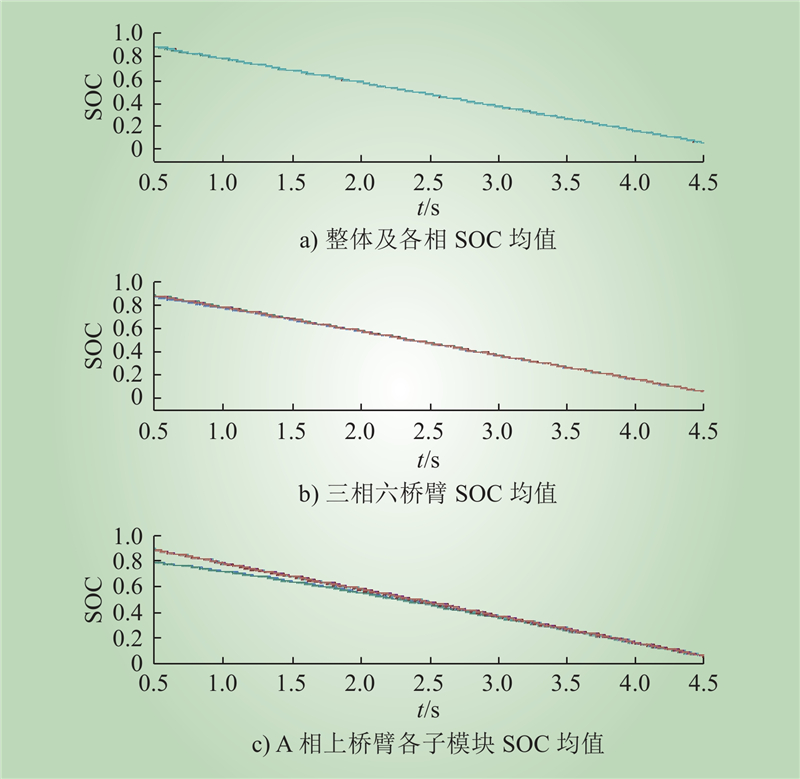

图 5 各相、桥臂和A相上桥臂各子模块SOC值

Fig.5 SOC values of each phase, bridge arm, and each submodule of phase A up-bridge arm

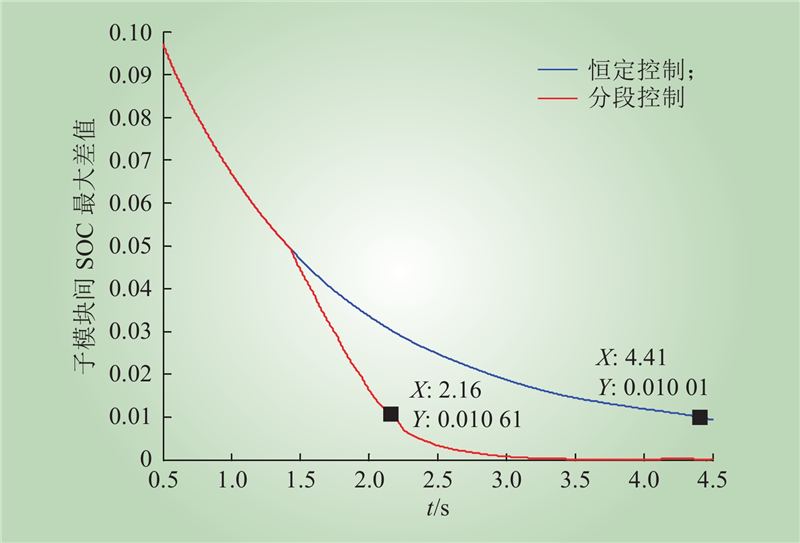

图 6 分段控制与恒定控制参数SOC均衡控制效果对比

Fig.6 Effect comparison of SOC balance control between segmented control parameters and constant control parameters

参考文献 25

1	杨舒婷, 陈新, 黄通, 等. 考虑MMC环流控制的海上风电经柔直送出系统阻抗塑造方法[J]. 中国电力, 2023, 56 (4): 38- 45.
	YANG Shuting, CHEN Xin, HUANG Tong, et al. Impedance modeling method of offshore wind farm integration through MMC-HVDC with MMC circulation control[J]. Electric Power, 2023, 56 (4): 38- 45.
2	李建林, 丁子洋, 刘海涛, 等. 构网型储能变流器及控制策略研究[J]. 发电技术, 2022, 43 (5): 679- 686.
	LI Jianlin, DING Ziyang, LIU Haitao, et al. Research on grid-forming energy storage converters and control strategy[J]. Power Generation Technology, 2022, 43 (5): 679- 686.
3	花雅文, 李庚, 韩国栋, 等. 混合背靠背模块化多电平变换器设计[J]. 智慧电力, 2021, 49 (8): 70- 76.
	HUA Yawen, LI Geng, HAN Guodong, et al. Design of hybrid back-to-back modular multilevel converter[J]. Smart Power, 2021, 49 (8): 70- 76.
4	. [J]. 2022, 55 (6): 118- 127.
	LIAO Xiupu, ZHOU Quan, LI Lei, et al. A feasible topology of DC collection valve for long-distance offshore wind farms and cost-effective analysis[J]. Electric Power, 2022, 55 (6): 118- 127.
5	孔凡森,周建萍,茅大钧,等. 基于虚拟阻抗与无源反步控制的MMC-BESS环流抑制策略[J]. 南方电网技术, 2022, 16 (10): 104- 112.
	KONG Fansen, ZHOU Jianping, MAO Dajun, et al. Control circulating current suppressing strategy of MMC-BESS based on virtual impedance passive backstepping control[J]. Southern Power System Technology, 2022, 16 (10): 104- 112.
6	余斌, 李辉, 赖锦木, 等. 基于桥臂电流控制的模块化多电平储能系统谐波抑制策略[J]. 电力科学与技术学报, 2023, 38 (4): 82- 92.
	YU Bin, LI Hui, LAI Jinmu, et al. Harmonic suppression strategy of MMC-BESS based on arm current control[J]. Journal of Electric Power Science and Technology, 2023, 38 (4): 82- 92.
7	PEREZ M A, ARANCIBIA D, KOURO S, et al. Modular multilevel converter with integrated storage for solar photovoltaic applications[C]//IECON 2013-39th Annual Conference of the IEEE Industrial Electronics Society. Vienna, Austria. IEEE, 2014: 6993–6998.
8	VASILADIOTIS M, RUFER A, BÉGUIN A. Modular converter architecture for medium voltage ultra fast EV charging stations: global system considerations[C]//2012 IEEE International Electric Vehicle Conference. Greenville, SC, USA. IEEE, 2012: 1–7.
9	COPPOLA M, DEL PIZZO A, IANNUZZI D. A power traction converter based on Modular Multilevel architecture integrated with energy storage devices[C]//2012 Electrical Systems for Aircraft, Railway and Ship Propulsion. Bologna, Italy. IEEE, 2012: 1–7.
10	BARUSCHKA L, MERTENS A. Comparison of cascaded H-bridge and modular multilevel converters for BESS application[C]//2011 IEEE Energy Conversion Congress and Exposition. Phoenix, AZ, USA. IEEE, 2011: 909–916.
11	SOONG T, LEHN P W. Evaluation of emerging modular multilevel converters for BESS applications[J]. IEEE Transactions on Power Delivery, 2014, 29 (5): 2086- 2094. DOI
12	李善颖, 吴涛, 任彬, 等. 基于模块化多电平变换器的储能系统综述[J]. 电力系统保护与控制, 2015, 43 (16): 139- 146. DOI
	LI Shanying, WU Tao, REN Bin, et al. Review of energy storage system based on modular multilevel converter[J]. Power System Protection and Control, 2015, 43 (16): 139- 146. DOI
13	TRINTIS I, MUNK-NIELSEN S, TEODORESCU R. A new modular multilevel converter with integrated energy storage[C]//IECON 2011-37th Annual Conference of the IEEE Industrial Electronics Society. Melbourne, VIC, Australia. IEEE, 2012: 1075–1080.
14	马泽宇, 姜久春, 文锋, 等. 用于储能系统的梯次利用锂电池组均衡策略设计[J]. 电力系统自动化, 2014, 38 (3): 106- 111, 117. DOI
	MA Zeyu, JIANG Jiuchun, WEN Feng, et al. Design of equilibrium strategy of echelon use Li-ion battery pack for energy storage system[J]. Automation of Electric Power Systems, 2014, 38 (3): 106- 111, 117. DOI
15	蔡旭, 李睿, 李征. 储能功率变换与并网技术[M]. 北京: 科学出版社, 2019.
16	原亚雷, 钊翔坤, 徐高祥, 等. 兼顾电压波动抑制的级联H桥STATCOM相间电压平衡控制策略[J]. 电网技术, 2022, 46 (4): 1494- 1502.
	YUAN Yalei, ZHAO Xiangkun, XU Gaoxiang, et al. Clustered voltage banlance control strategy of cascaded H-bridge STATCOM with suppressing DC voltage fluctuation[J]. Power System Technology, 2022, 46 (4): 1494- 1502.
17	王帅, 荆龙, 吴学智, 等. 基于直流环流注入的MMC储能系统相间功率均衡控制策略[J]. 电网技术, 2017, 41 (9): 2862- 2869. DOI
	WANG Shuai, JING Long, WU Xuezhi, et al. Interphase power equalization control strategy for MMC energy storage system based on DC circulating current injection[J]. Power System Technology, 2017, 41 (9): 2862- 2869. DOI
18	韩啸, 陈强, 李睿. 储能型MMC电池荷电状态均衡策略[J]. 电力电子技术, 2020, 54 (4): 17- 20.
	HAN Xiao, CHEN Qiang, LI Rui. State of charge balancing strategy of MMC with battery energy storage system[J]. Power Electronics, 2020, 54 (4): 17- 20.
19	陈强, 张鲁华, 吴延俊, 等. 储能型MMC换流器的SOC均衡策略研究[J]. 电测与仪表, 2020, 57 (5): 37- 43. DOI
	CHEN Qiang, ZHANG Luhua, WU Yanjun, et al. Study on SOC balanced control strategy of MMC based BESS[J]. Electrical Measurement & Instrumentation, 2020, 57 (5): 37- 43. DOI
20	李楠, 张磊, 马士聪, 等. 基于模块化多电平换流器的电池储能系统控制策略[J]. 电力系统自动化, 2017, 41 (9): 144- 150.
	LI Nan, ZHANG Lei, MA Shicong, et al. Control strategy for battery energy storage system based on modular multilevel converters[J]. Automation of Electric Power Systems, 2017, 41 (9): 144- 150.
21	郭龙, 梁晖, 张维戈. 基于模块化多电平变流器的电池储能系统荷电状态均衡控制策略[J]. 电网技术, 2017, 41 (8): 2688- 2697.
	GUO Long, LIANG Hui, ZHANG Weige. State-of-charge balancing control strategy for battery energy storage system based on modular multi-level converter[J]. Power System Technology, 2017, 41 (8): 2688- 2697.
22	程从智, 徐晨, 戴珂, 等. MMC-BESS电池荷电状态三级均衡控制策略[J]. 电力系统保护与控制, 2021, 49 (15): 100- 108. DOI
	CHENG Congzhi, XU Chen, DAI Ke, et al. Three-level balancing control for battery state-of-charge based on MMC-BESS[J]. Power System Protection and Control, 2021, 49 (15): 100- 108. DOI
23	VASILADIOTIS M, RUFER A. Analysis and control of modular multilevel converters with integrated battery energy storage[J]. IEEE Transactions on Power Electronics, 2015, 30 (1): 163- 175. DOI
24	贺坤, 王灿, 张坎, 等. 不平衡网压下MMC-BESS的新型SOC均衡控制研究[J]. 电气传动, 2022, 52 (23): 45- 52. DOI
	HE Kun, WANG Can, ZHANG Kan, et al. Research on new SOC equalization control of MMC-BESS under unbalanced network voltage[J]. Electric Drive, 2022, 52 (23): 45- 52. DOI
25	徐政, 肖晃庆, 张哲任. 柔性直流输电系统[M]. 2版. 北京: 机械工业出版社, 2017.
