基于短路容量量化评估的断面极限功率解析计算方法

doi:10.11930/j.issn.1004-9649.202402004

中国电力 ›› 2025, Vol. 58 ›› Issue (3): 98-107.DOI: 10.11930/j.issn.1004-9649.202402004

基于短路容量量化评估的断面极限功率解析计算方法

刘瑶¹(), 李子恒²(), 郑子萱³(), 宋东徽³(), 李小腾¹(), 张丁²(), 任杰³(), 谢琦³()

1. 国网陕西省电力有限公司电力科学研究院，陕西西安　710100
2. 国网陕西省电力有限公司，陕西西安　710048
3. 四川大学电气工程学院，四川成都　610065

收稿日期:2024-02-01 出版日期:2025-03-28 发布日期:2025-03-26
作者简介:
刘瑶（1993），女，硕士，工程师，从事交直流混联电力系统安全稳定分析技术研究，E-mail：liuyaoseu@163.com
李子恒（1993），男，硕士，工程师，从事电力系统稳定运行技术研究，E-mail：1240919439@qq.com
郑子萱（1990），男，通信作者，博士，教授，从事新能源并网控制与储能运行控制技术研究，E-mail：scuzzx@163.com
宋东徽（1999），男，博士研究生，从事新能源并网控制研究，E-mail：1027684632@qq.com
李小腾（1978），女，硕士，高级工程师，从事电力系统稳定分析与控制研究，E-mail：greenteng@qq.com
张丁（1988），男，硕士，高级工程师，从事电力系统调度运行管理，E-mail：zhangding@sn.sgcc.com.cn
任杰（1995），女，博士，讲师，从事可再生能源发电与风力发电机的故障穿越研究，E-mail：renjieholmesjay@163.com
谢琦（1997），男，博士研究生，从事高比例新能源交直流混联电网运行与控制，E-mail： xieqi365@outlook.com
基金资助:
国家自然科学基金资助项目（直流故障下大规模风电送端系统暂态电压响应机理与引导式防御机制，52277115）；国网陕西省电力有限公司科技项目（陕北高比例新能源多直流外送型电网耦合特性及优化控制技术研究，5226KY23001Y）。

An Analytical Calculation Method for Total Transfer Capability of Transmission Section Based on Evaluation of System Short Circuit Capability

Yao LIU¹(), Ziheng LI²(), Zixuan ZHENG³(), Donghui SONG³(), Xiaoteng LI¹(), Ding ZHANG²(), Jie REN³(), Qi XIE³()

1. Electric Power Research Institute of State Grid Shaanxi Electric Power Co., Ltd., Xi'an 710100, China
2. State Grid Shaanxi Electric Power Co., Ltd., Xi'an 710048, China
3. College of Electrical Engineering, Sichuan University, Chengdu 610065, China

Received:2024-02-01 Online:2025-03-28 Published:2025-03-26
Supported by:
This work is supported by National Natural Science Foundation of China (Transient Voltage Response Mechanism and Guided Defense Mechanism of Large-Scale Wind Power Transmission System under DC Fault, No.52277115), Science and Technology Project of State Grid Shaanxi Electric Power Co., Ltd. (Research on Coupling Characteristics and Optimization Control Technology of Multi-DC Transmission Power Grid with High Ratio Renewable Energy in Northern Shaanxi, No.5226KY23001Y).

摘要/Abstract

摘要：

直流送端电网中，系统短路容量主要由常规机组提供，当常规机组开机方式变化导致短路容量变化时，将对系统安全稳定特性造成重要影响。现有断面极限功率计算方法在校验系统安全稳定性时，往往忽略短路容量这一关键变量，因而无法准确表征常规机组开机方式对断面极限功率的影响，计算结果准确性难以保证。鉴于此，提出一种基于短路容量量化评估的断面极限功率解析计算方法。首先，构造计及短路容量的系统安全稳定约束条件；然后，提出常规机组对系统短路容量的贡献指标，并基于该指标和安全稳定分析结果，提出一种断面极限功率解析计算方法；最后，以中国西北某电网为例进行分析，验证了所提方法的有效性以及准确性。

关键词: 输电断面, 短路容量, 开机方式, 极限功率, 功角稳定, 暂态过电压

Abstract:

In the HVDC sending-end system, the system's short-circuit capacity is mainly provided by conventional generating units. When the operating mode of conventional generating units changes and the short-circuit capacity changes, it will have a significant impact on the system's safety and stability characteristics. The existing section total transfer capability calculation methods often ignore the key variable of short-circuit capacity when verifying the system's safety and stability, which may lead to calculation errors. Therefore, this paper proposes a section total transfer capability analytical calculation method based on short-circuit capacity evaluation. Firstly, the system security and stability constraints considering the short-circuit capacity are constructed. Then, the contribution index of conventional generating units to the system's short-circuit capacity is proposed, and a section total transfer capability analytical calculation method is proposed based on this index. Finally, taking a certain power grid in Northwest China as an example, the effectiveness of this method is verified through case analysis in the power system analysis and simulation program.

Key words: transmission section, short-circuit capacity, start-up mode, total transfer capability, power-angle stability, transient overvoltage

刘瑶, 李子恒, 郑子萱, 宋东徽, 李小腾, 张丁, 任杰, 谢琦. 基于短路容量量化评估的断面极限功率解析计算方法[J]. 中国电力, 2025, 58(3): 98-107.

Yao LIU, Ziheng LI, Zixuan ZHENG, Donghui SONG, Xiaoteng LI, Ding ZHANG, Jie REN, Qi XIE. An Analytical Calculation Method for Total Transfer Capability of Transmission Section Based on Evaluation of System Short Circuit Capability[J]. Electric Power, 2025, 58(3): 98-107.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202402004

https://www.electricpower.com.cn/CN/Y2025/V58/I3/98

图/表 11

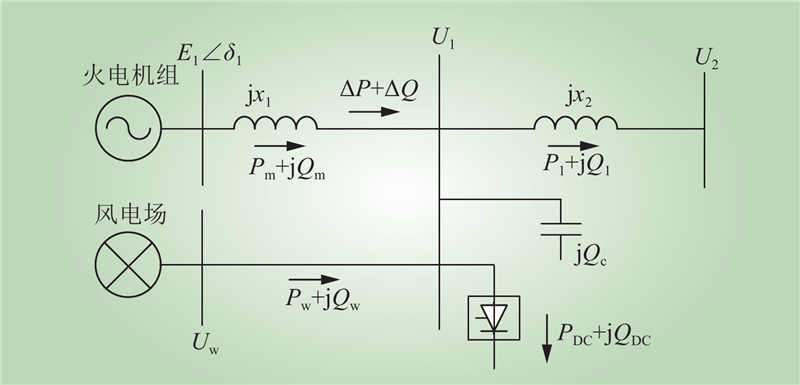

图 1 风火打捆交直流外送系统简图

Fig.1 Diagram of wind and fire bundling AC/DC external transmission system

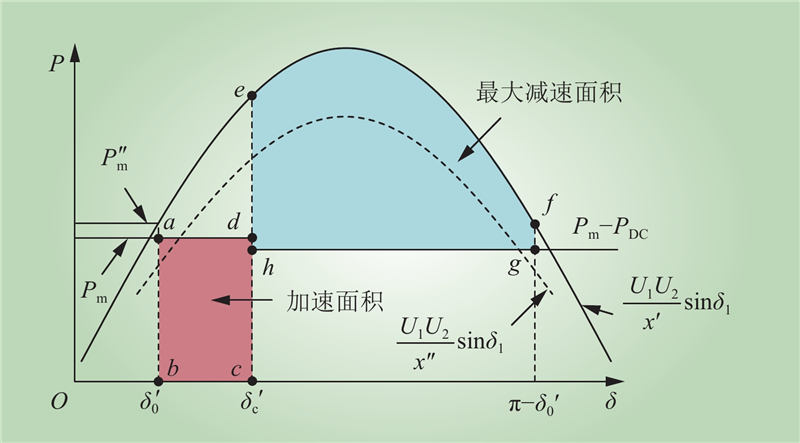

图 2 系统等值电抗变化前后交流N–1短路故障下发电机功角特性曲线

Fig.2 Generator power-angle characteristic curve under AC N–1 short circuit fault before and after system equivalent reactance change

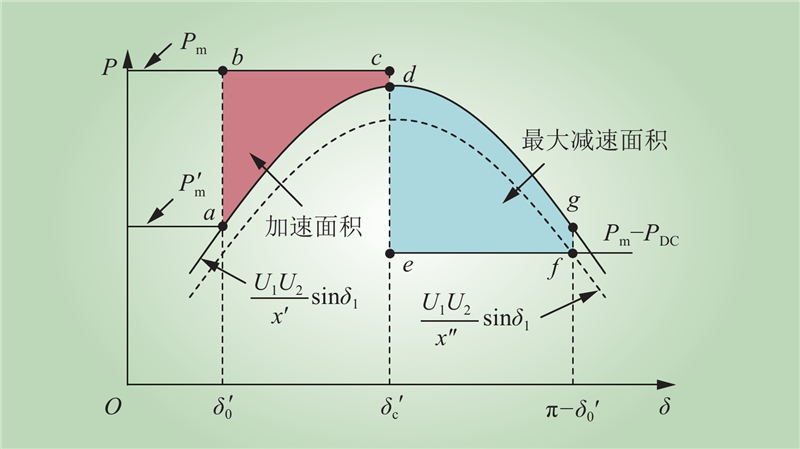

图 3 系统等值电抗变化前后直流双极换相失败闭锁下发电机功角特性曲线

Fig.3 Power-angle characteristic curve of generator under DC bipolar commutation failure interlocking before and after system equivalent reactance change

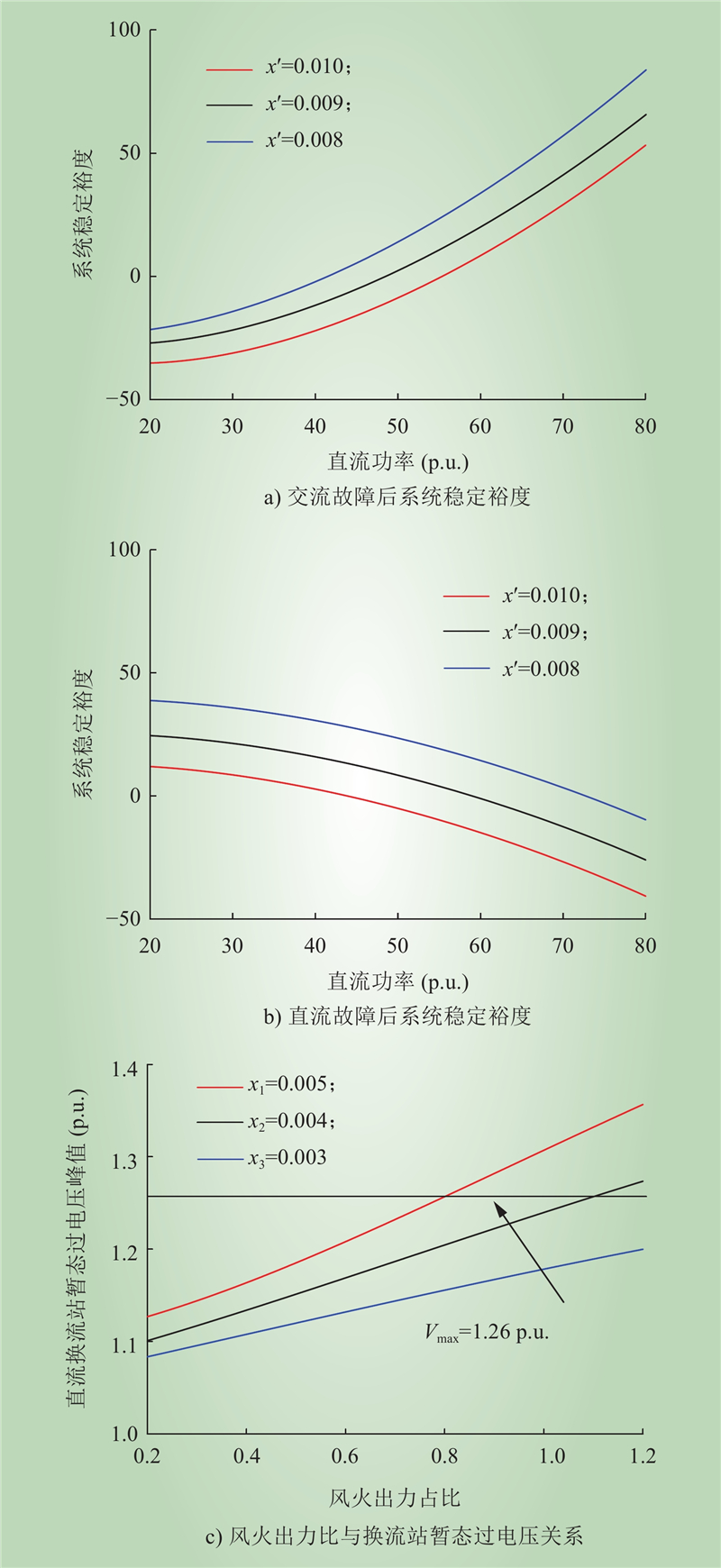

图 4 多种运行参数对系统安全稳定影响规律

Fig.4 The impact of multiple operating parameters on system security and stability

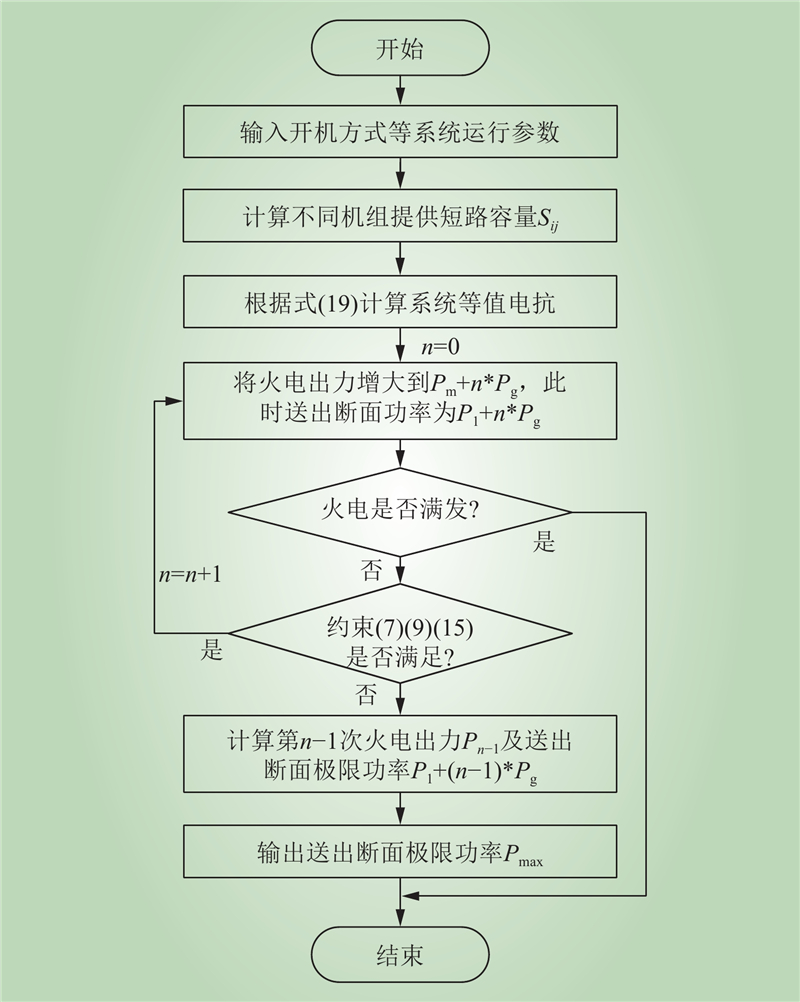

图 5 断面极限功率计算流程

Fig.5 Flow chart for calculating the total transfer capability of the output section

表 1 直流近区火电机组参数

Table 1 Parameters of thermal power units near HVDC

电厂	容量 (p.u.)	暂态电抗 $ {X'_{\text{d}}} $(p.u.)	短路暂态时间常数T_j(p.u.)	直轴电抗 X_d(p.u.)
QSC电厂	4×10	0.246	7.760	1.934
DT电厂	2×6.6	0.334	6.712	2.496
SH电厂	2×6.6	0.300	7.140	2.080
XF电厂	1×6.6	0.297	6.940	2.059
QY电厂	2×3.5	0.265	6.240	2.171
HL电厂	1×6.6	0.200	9.620	1.800
XYJN电厂	2×3	0.223	5.560	1.800
GJW电厂	2×3	0.202	6.990	1.800
SQC电厂	2×3	0.229	5.260	1.800
XWZ电厂	2×6	0.297	6.940	2.059
YHP电厂	2×6	0.334	6.900	2.496
FXDC电厂	2×10	0.246	7.760	1.934
DTDC电厂	2×6	0.286	6.090	1.985

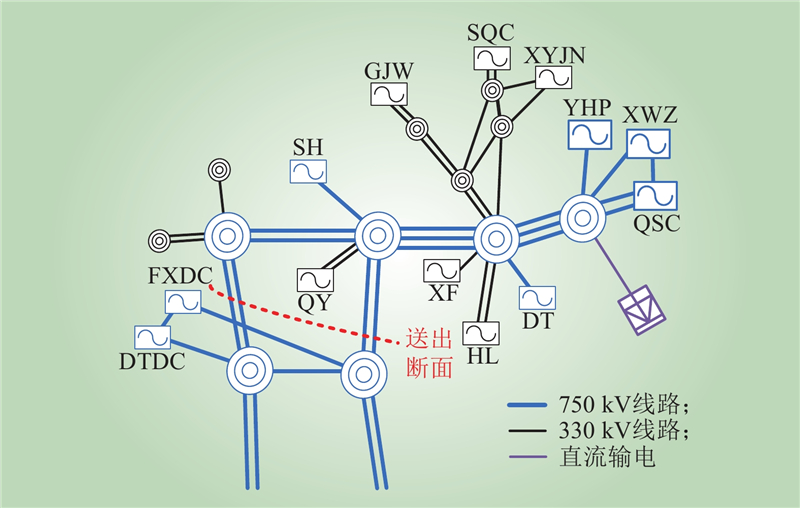

图 6 西北某地区直流近区电网结构

Fig.6 The structure of the DC nearby power grid in a certain area of Northwest China

表 2 不同机组Sij计算结果

Table 2 Sij calculation results of different units

电厂	提供短路容量 (p.u.)	电厂	提供短路容量 (p.u.)
QSC电厂	23.43	FXDC电厂	3.94
XWZ电厂	17.44	GJW电厂	3.35
YHP电厂	15.69	QY电厂	3.24
XF电厂	13.99	DTDC电厂	3.08
DT电厂	12.45	XYJN电厂	2.85
HL电厂	7.83	SQC电厂	2.84
SH电厂	7.47

表 3 电网具体开机方式

Table 3 Specific power grid startup mode 单位：台

电厂	开机方式1	开机方式2	开机方式3	开机方式4
QSC电厂	4	3	3	4
DT电厂	1	2	2	2
XWZ电厂	2	2	2	2
XF电厂	1	1	1	1
GJW电厂	1	1	2	2
SQC电厂	1	1	2	2
YHP电厂	2	2	2	2
SH电厂	1	1	1	1
XYJN电厂	1	1	1	1
HL电厂	1	1	1	1
QY电厂	2	2	2	2
FXDC电厂	2	2	2	2
DTDC电厂	2	2	2	2

表 4 断面极限功率计算结果

Table 4 Calculation results of section total transfer capability

算例	制约故障	本文计算结果(p.u.)	PSASP计算结果(p.u.)
1	交流故障	76.7	78.0
2	交流故障	75.4	77.0
3	直流故障	64.2	65.9
4	直流故障	68.3	69.6

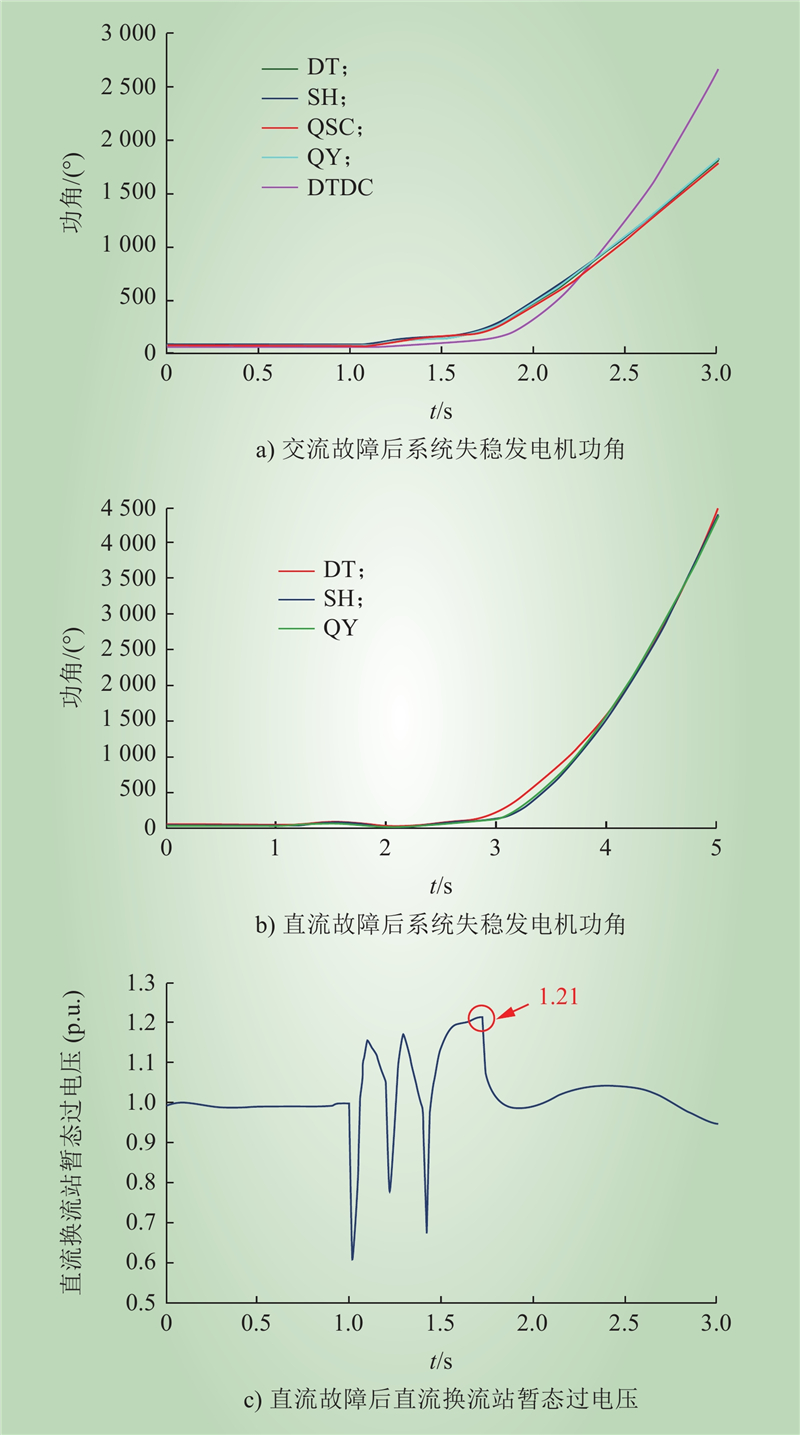

图 7 PSASP安全稳定分析结果

Fig.7 PSASP security and stability analysis results

参考文献 26

1	李惠玲. 新型电力系统背景下西部送端直流电网及系统运行特性[J]. 中国电力, 2023, 56 (8): 166- 174.
	LI Huiling. Sending-terminal DC power grid in western China and its operation characteristics in the context of new power system[J]. Electric Power, 2023, 56 (8): 166- 174.
2	李帛洋, 晁璞璞, 徐式蕴等. 风电经特高压直流送出系统的暂态过电压问题研究综述[J]. 电力自动化设备, 2022, 42 (03): 26- 35.
	LI Boyang, CHAO Pupu, XU Shiyun, et al. Review on transient overvoltage issues of wind power transmission system via UHVDC[J]. Electric Power Automation Equipment, 2022, 42 (03): 26- 35.
3	周文俊, 曹毅, 李杰, 等. 考虑风电场调控裕度的风火打捆直流外送系统无功电压紧急控制策略[J]. 中国电力, 2023, 56 (4): 77- 87.
	ZHOU Wenjun, CAO Yi, LI Jie, et al. Reactive voltage emergency control strategy of wind-thermal-bundled DC transmission system considering wind farm regulation margin[J]. Electric Power, 2023, 56 (4): 77- 87.
4	曾雪洋, 刘天琪, 王顺亮, 等. 换相失败下柔性直流与传统直流互联输电系统的暂态无功协调控制策略[J]. 电力自动化设备, 2019, 39 (12): 28- 35.
	ZENG Xueyang, LIU Tianqi, WANG Shunliang, et al. Coordinated transient reactive power control strategy for transmission system connected by VSC-HVDC and LCC-HVDC under commutation failure[J]. Electric Power Automation Equipment, 2019, 39 (12): 28- 35.
5	周登钰, 张新燕, 赵理飞, 等. 含大规模风光功率汇集的多端柔性直流系统分析[J]. 太阳能学报, 2020, 41 (2): 93- 100.
	ZHOU Dengyu, ZHANG Xinyan, ZHAO Lifei, et al. Analysis of multi-terminal flexible DC system with large scale power collection[J]. Acta Energiae Solaris Sinica, 2020, 41 (2): 93- 100.
6	郭尚文. 含大规模风电光伏的弱送端系统电压特性分析及优化控制[D]. 北京: 华北电力大学, 2022.
	GUO Shangwen. Voltage characteristics analysis and optimal control of weak transmission system with large-scale wind power photovoltaic[D]. Beijing: North China Electric Power University, 2022.
7	朱子民, 张锦芳, 常清, 等. 大规模新能源接入弱同步支撑柔直系统的送端自适应VSG控制策略[J]. 中国电力, 2024, 57 (5): 211- 221.
	ZHU Zimin, ZHANG Jinfang, CHANG Qing, et al. Adaptive VSG control strategy of sending end for large-scale renewable energy connected to weakly-synchronized support VSC-HVDC system[J]. Electric Power, 2024, 57 (5): 211- 221.
8	摆世彬, 田志浩, 刘刚, 等. 考虑功角稳定与暂态过电压的新能源送端电网储能系统优化配置模型[J]. 可再生能源, 2023, 41 (7): 971- 977.
	BAI Shibin, TIAN Zhihao, LIU Gang, et al. Optimal configuration model of energy storage system for new energy sending-end power grid considering power angle stability and transient overvoltage[J]. Renewable Energy Resources, 2023, 41 (7): 971- 977.
9	徐泰山, 鲍颜红, 苏寅生, 等. 暂态稳定断面功率极限区间和关联度指标计算[J]. 电力系统自动化, 2016, 40 (20): 154- 160.
	XU Taishan, BAO Yanhong, SU Yinsheng, et al. Calculation of power limit interval and correlation degree for transient stability section[J]. Automation of Electric Power Systems, 2016, 40 (20): 154- 160.
10	杨松浩, 苏福, 张保会. 计及暂态稳定约束的断面功率调整方法研究[J]. 中国电机工程学报, 2018, 38 (9): 2531- 2539, 2821.
	YANG Songhao, SU Fu, ZHANG Baohui. Study on transient stability constrained transmission section active power flow adjustment method[J]. Proceedings of the CSEE, 2018, 38 (9): 2531- 2539, 2821.
11	彭慧敏, 马明, 郑伟, 等. 在线组合输电断面极限集群计算[J]. 电力系统保护与控制, 2012, 40 (4): 48- 53.
	PENG Huimin, MA Ming, ZHENG Wei, et al. Cluster computing mode for online transfer capability calculation[J]. Power System Protection and Control, 2012, 40 (4): 48- 53.
12	张红丽, 刘福锁, 李威, 等. 基于机组电压支撑效果的直流近区火电最小开机方法[J]. 电力系统保护与控制, 2020, 48 (23): 141- 147.
	ZHANG Hongli, LIU Fusuo, LI Wei, et al. Minimum startup method of a DC near-field thermal power unit based on a unit voltage supporting effect[J]. Power System Protection and Control, 2020, 48 (23): 141- 147.
13	牛拴保, 柯贤波, 任冲, 等. 基于短路容量量化评估的大规模新能源直流送端电网运行方式优化方法[J]. 电力自动化设备, 2021, 41 (12): 123- 129.
	NIU Shuanbao, KE Xianbo, REN Chong, et al. Optimal method of operation modes for large-scale new energy DC sending-end power grid based on short circuit capacity quantitative assessment[J]. Electric Power Automation Equipment, 2021, 41 (12): 123- 129.
14	陈祎, 郭瑞鹏, 叶琳, 等. 电网断面热稳定限额计算模型及方法[J]. 电力系统自动化, 2012, 36 (17): 20- 24.
	CHEN Yi, GUO Ruipeng, YE Lin, et al. Calculation model and method for thermal stability control limit to transmission interfaces in a power grid[J]. Automation of Electric Power Systems, 2012, 36 (17): 20- 24.
15	屠竞哲, 潘艳, 訾鹏, 等. 功角失稳与暂态过电压并存型锡盟交直流弱送端系统特性分析[J]. 电网技术, 2021, 45 (4): 1496- 1506.
	TU Jingzhe, PAN Yan, ZI Peng, et al. Ximeng AC/DC weak sending-side system characteristics with angle instability and transient overvoltage[J]. Power System Technology, 2021, 45 (4): 1496- 1506.
16	邵宝珠, 张文朝, 李家珏, 等. 基于短路容量的大规模风电弱送端直流工程电压稳定快速评估方法[J]. 可再生能源, 2018, 36 (7): 1062- 1066.
	SHAO Baozhu, ZHANG Wenchao, LI Jiajue, et al. Voltage stability and fast evaluation method for large scale wind farm weakly ended dc project based on short circuit capacity[J]. Renewable Energy Resources, 2018, 36 (7): 1062- 1066.
17	章勇高, 李小蓓, 方华亮, 等. PSASP与PSDE-SCCP短路计算的对比分析研究[J]. 电力系统保护与控制, 2019, 47 (11): 61- 70.
	ZHANG Yonggao, LI Xiaobei, FANG Hualiang, et al. Comparative analysis and study of the short-circuit calculation based on PSASP and PSDE-SCCP[J]. Power System Protection and Control, 2019, 47 (11): 61- 70.
18	张曼, 施超, 许文超, 等. 基于PSD-SCCP与PSASP的短路电流计算研究[J]. 电力工程技术, 2017, 36 (2): 88- 93.
	ZHANG Man, SHI Chao, XU Wenchao, et al. Research on calculation of short-circuit current based on PSD-SCCP and PSASP[J]. Electric Power Engineering Technology, 2017, 36 (2): 88- 93.
19	黄鹏. 基于PSASP的宁夏电网短路电流研究[D]. 北京: 华北电力大学, 2015.2015.
	HUANG Peng. Research on short-circuit current of Ningxia power grid based on PSASP[D]. Beijing: North China Electric Power University, 2015.
20	屠竞哲, 张健, 王建明, 等. 大规模直流异步互联系统受端故障引发送端稳定破坏的机理分析[J]. 中国电机工程学报, 2015, 35 (21): 5492- 5499.
	TU Jingzhe, ZHANG Jian, WANG Jianming, et al. Mechanism analysis on the sending-side instability caused by the receiving-side contingencies of large-scale HVDC asynchronous interconnected power systems[J]. Proceedings of the CSEE, 2015, 35 (21): 5492- 5499.
21	张健, 屠竞哲, 印永华, 等. 直流送受端故障对送端系统稳定性影响的对比分析及控制措施[J]. 电网技术, 2016, 40 (4): 999- 1004.
	ZHANG Jian, TU Jingzhe, YIN Yonghua, et al. Comparison analysis and countermeasures on impact of HVDC sending- and receiving-side contingencies on sending-side system stability[J]. Power System Technology, 2016, 40 (4): 999- 1004.
22	屠竞哲, 张健, 刘明松, 等. 考虑风机动态特性的大扰动暂态过电压机理分析[J]. 电力系统自动化, 2020, 44 (11): 197- 205.
	TU Jingzhe, ZHANG Jian, LIU Mingsong, et al. Mechanism analysis of transient overvoltage with large disturbance considering dynamic characteristics of wind generator[J]. Automation of Electric Power Systems, 2020, 44 (11): 197- 205.
23	张家铭. 交直流互联送端系统暂态稳定分析与控制策略研究[D]. 北京: 华北电力大学, 2022.
	ZHANG Jiaming. Research on stability analysis and control strategy of AC/DC interconnected sending end system[D]. Beijing: North China Electric Power University, 2022.
24	国家市场监督管理总局, 中国国家标准化管理委员会. 风电场接入电力系统技术规定第1部分: 陆上风电. GB/T 19963.1—2021[P]. 2021-08-20.
25	牟澎涛, 赵冬梅, 王嘉成. 大规模风电接入对系统功角稳定影响的机理分析[J]. 中国电机工程学报, 2017, 37 (5): 1325- 1334.
	MU Pengtao, ZHAO Dongmei, WANG Jiacheng. Influence mechanism analysis of large-scale wind power integration on power system angle stability[J]. Proceedings of the CSEE, 2017, 37 (5): 1325- 1334.
26	盛四清, 俞可, 张文朝, 等. 大规模风电并网对送端系统功角稳定的影响研究[J]. 电力系统保护与控制, 2022, 50 (6): 82- 90.
	SHENG Siqing, YU Ke, ZHANG Wenchao, et al. Influence of large-scale wind power grid connection on the power angle stability of the sending end system[J]. Power System Protection and Control, 2022, 50 (6): 82- 90.

[1]	娄奇鹤, 李荣盛, 谭捷, 袁铁江. 基于卷积神经网络的暂稳极限功率计算[J]. 中国电力, 2024, 57(4): 211-219.
[2]	孙艳霞, 方是文, 李震. 海上风电经交流电缆汇集送出系统暂态无功电压建模及特性分析[J]. 中国电力, 2022, 55(4): 166-174.
[3]	刘辉, 王阔. 新能源低电压穿越无功电流对暂态电压安全约束的影响[J]. 中国电力, 2022, 55(2): 152-158.
[4]	郄朝辉, 李兆伟, 王维洲, 李威, 柯贤波. 直流闭锁故障下风电并网功率和直流输送功率的耦合关系分析[J]. 中国电力, 2021, 54(6): 175-182.
[5]	乔丽, 王航, 谢剑, 郭春义. 同步调相机对分层接入特高压直流输电系统的暂态过电压抑制作用研究[J]. 中国电力, 2020, 53(3): 43-51.
[6]	汪旸, 徐彪, 周超凡, 尹项根, 鄢发齐, 沈宇亮. 基于层次分析法的输电断面综合监控方法[J]. 中国电力, 2019, 52(4): 89-95.
[7]	潘捷, 郑惠萍, 张红丽, 王超, 薛志伟, 刘福锁, 吴晨曦. ±800 kV雁淮特高压直流送端电网安全稳定特性及控制策略[J]. 中国电力, 2018, 51(4): 7-14.
[8]	王磊. 750 kV变电站GIS设备VFTO特性研究[J]. 中国电力, 2015, 48(5): 125-132.
[9]	钱海，王奇，陈翔宇，胡军. 考虑电网多元风险的输电断面动态增容调度分配方案[J]. 中国电力, 2015, 48(10): 60-64.
[10]	窦玉雷, 蒋中杰, 王亚军, 薛志英,. VFTO下分段层式变压器线圈电位分布研究[J]. 中国电力, 2012, 45(4): 42-46.
