大规模新能源接入弱同步支撑柔直系统的送端自适应VSG控制策略

doi:10.11930/j.issn.1004-9649.202304066

中国电力 ›› 2024, Vol. 57 ›› Issue (5): 211-221.DOI: 10.11930/j.issn.1004-9649.202304066

大规模新能源接入弱同步支撑柔直系统的送端自适应VSG控制策略

朱子民¹(), 张锦芳²(), 常清³, 周专⁴, 张晓林²

1. 国网新疆电力有限公司电力科学研究院，新疆乌鲁木齐　830001
2. 中电普瑞电力工程有限公司，北京　102200
3. 国网新疆乌鲁木齐供电公司，新疆乌鲁木齐　830011
4. 国网新疆电力有限公司，新疆乌鲁木齐　830000

收稿日期:2023-04-19 出版日期:2024-05-28 发布日期:2024-05-16
作者简介:朱子民（1991—），男，硕士，工程师，从事电力系统分析研究，E-mail：878876042@qq.com
张锦芳（1986—），女，通信作者，硕士，工程师，从事柔性直流输电研究，E-mail：1933688821@qq.com
基金资助:
国网新疆电力有限公司技术服务项目（孤岛柔直发展路径研究，302253-9001005-0101）。

Adaptive VSG Control Strategy of Sending End for Large-Scale Renewable Energy Connected to Weakly-Synchronized Support VSC-HVDC System

Zimin ZHU¹(), Jinfang ZHANG²(), Qing CHANG³, Zhuan ZHOU⁴, Xiaolin ZHANG²

1. Electric Power Research Institute of State Grid Xinjiang Electric Power Co., Ltd., Urumchi 830001, China
2. C-EPRI Electric Power Engineering Co., Ltd., Beijing 102200, China
3. State Grid Xinjiang Urumqi Power Supply Company, Urumchi 830011, China
4. State Grid Xinjiang Electric Power Company, Urumchi 830000, China

Received:2023-04-19 Online:2024-05-28 Published:2024-05-16
Supported by:
This work is supported by Technical Service Project of State Grid Xinjiang Electric Power Co., Ltd. ( Research on the Development Path of Island VSC-HVDC, No.302253-9001005-0101)

摘要/Abstract

摘要：

新能源汇集经柔性直流输电（voltage source converter based high voltage direct current，VSC-HVDC）技术送出是促进新能源消纳的有效方式。但新能源渗透率的持续增加导致电网强度不断下降，采用传统跟网型（grid-following，GFL）换流技术已无法满足系统稳定运行需求。为提高系统弱电网适应性，满足大规模新能源接入弱同步支撑柔直系统应用场景需求，提出在柔直系统送端换流站采用VSG控制策略。首先，建立整流侧控制小信号数学模型，利用根轨迹法深入研究虚拟阻抗对系统稳定性的影响。其次，提出利用交流电压变化率及电压差值等电气量构建虚拟电抗自适应调整项的改进VSG控制算法，在保证系统等效阻抗呈感性的同时，可提高送端交流系统的等效短路比，达到改善系统整体性能的效果。最后，通过PSCAD/EMTDC电磁暂态仿真验证所提控制策略的有效性。

关键词: 新能源发电, 弱交流电网, 柔性直流系统, 虚拟同步发电机, 自适应算法

Abstract:

Renewable energy collection and output through voltage source converter based high voltage direct current (VSC-HVDC) technology is an effective way to promote renewable energy consumption. However, the continuous increase in the penetration rate of renewable energy has led to a continuous decline in the strength of the power grid, and the traditional grid-following (GFL) converter technology can no longer meet the needs of stable system operation. In order to improve the adaptability of the weak grid of the system and meet the application scenarios of large-scale renewable energy connected to weakly-synchronized support VSC-HVDC system, this paper proposes to adopt VSG control strategy in the converter station of the sending end of the VSC-HVDC system. Firstly, a small signal mathematical model of rectifier-side control is established, and the influence of virtual impedance on system stability is studied by the root locus method. Secondly, an improved virtual synchronous generator (VSG) control algorithm for constructing virtual reactance adaptive adjustment items using electrical quantities such as alternating voltage (AC) change rate and voltage difference is proposed, which can improve the equivalent short-circuit ratio of the AC system at the sending end while ensuring that the equivalent impedance of the system is inductive, so as to improve the overall performance of the system. Finally, the effectiveness of the proposed control strategy is verified by PSCAD/EMTDC electromagnetic transient simulation.

Key words: renewable energy power generation, weak AC power grid, VSC-HVDC system, virtual synchronous generator, adaptive algorithm

朱子民, 张锦芳, 常清, 周专, 张晓林. 大规模新能源接入弱同步支撑柔直系统的送端自适应VSG控制策略[J]. 中国电力, 2024, 57(5): 211-221.

Zimin ZHU, Jinfang ZHANG, Qing CHANG, Zhuan ZHOU, Xiaolin ZHANG. Adaptive VSG Control Strategy of Sending End for Large-Scale Renewable Energy Connected to Weakly-Synchronized Support VSC-HVDC System[J]. Electric Power, 2024, 57(5): 211-221.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202304066

https://www.electricpower.com.cn/CN/Y2024/V57/I5/211

图/表 12

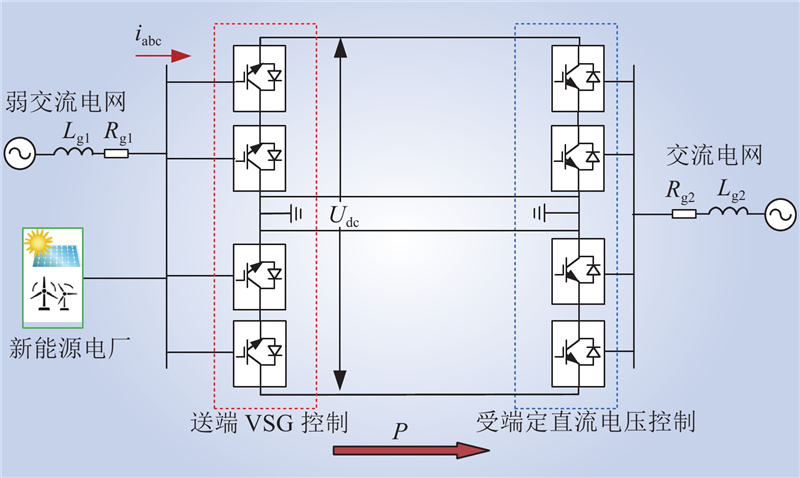

图 1 大规模新能源接入弱支撑电网柔直送出拓扑

Fig.1 Topology of large-scale renewable energy connected to weakly-synchronized support VSC-HVDC system

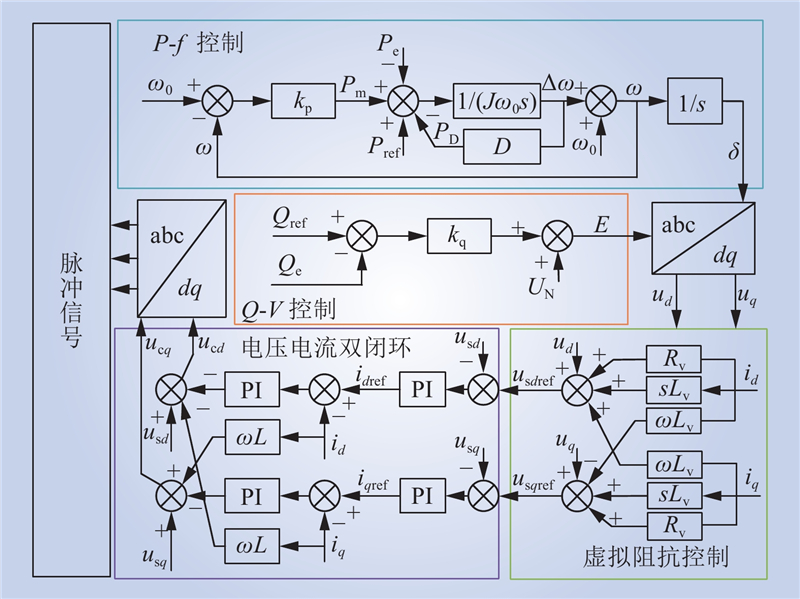

图 2 整流站VSG控制

Fig.2 VSG control of rectifier station

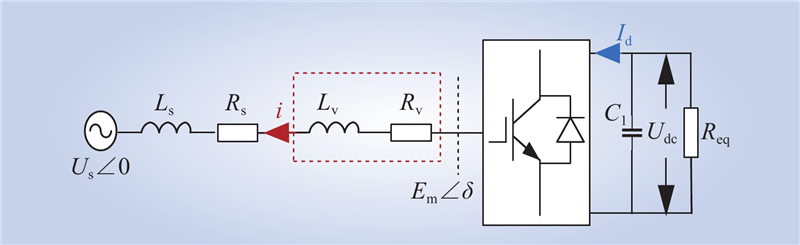

图 3 整流侧电路模型

Fig.3 Circuit model of rectifier side

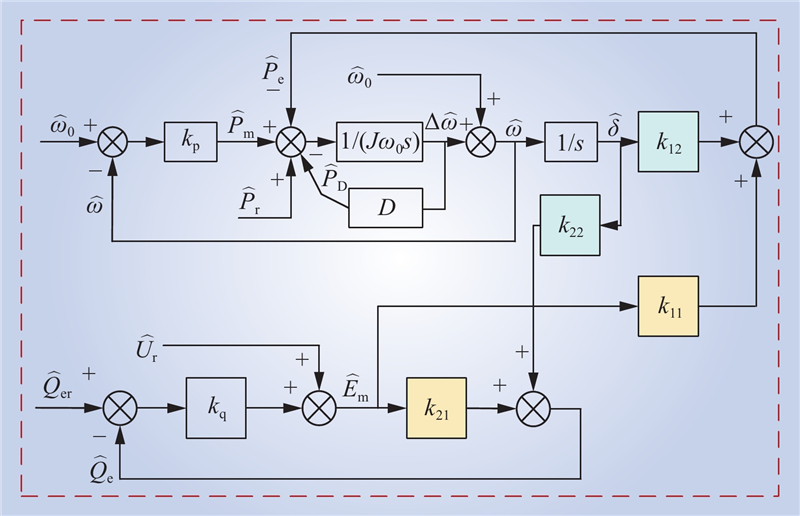

图 4 系统小信号模型

Fig.4 Small signal model of system

图 5 根轨迹

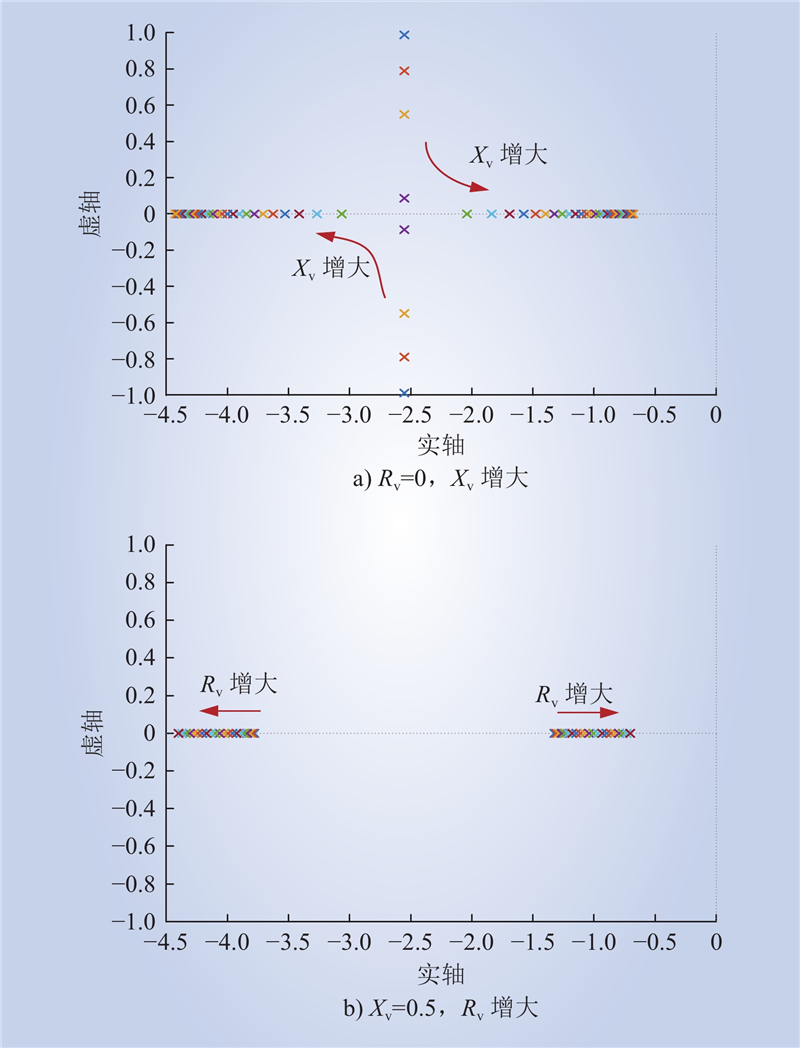

Fig.5 Root locus

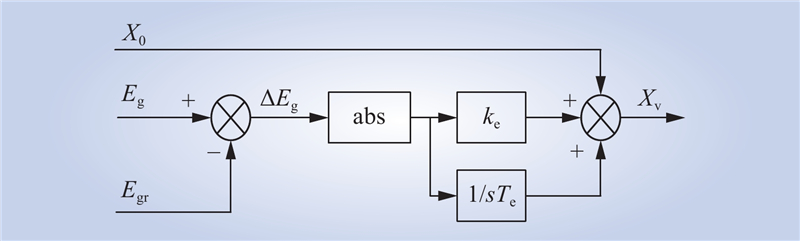

图 6 自适应虚拟阻抗算法原理

Fig.6 Principle of adaptive virtual impedance algorithm

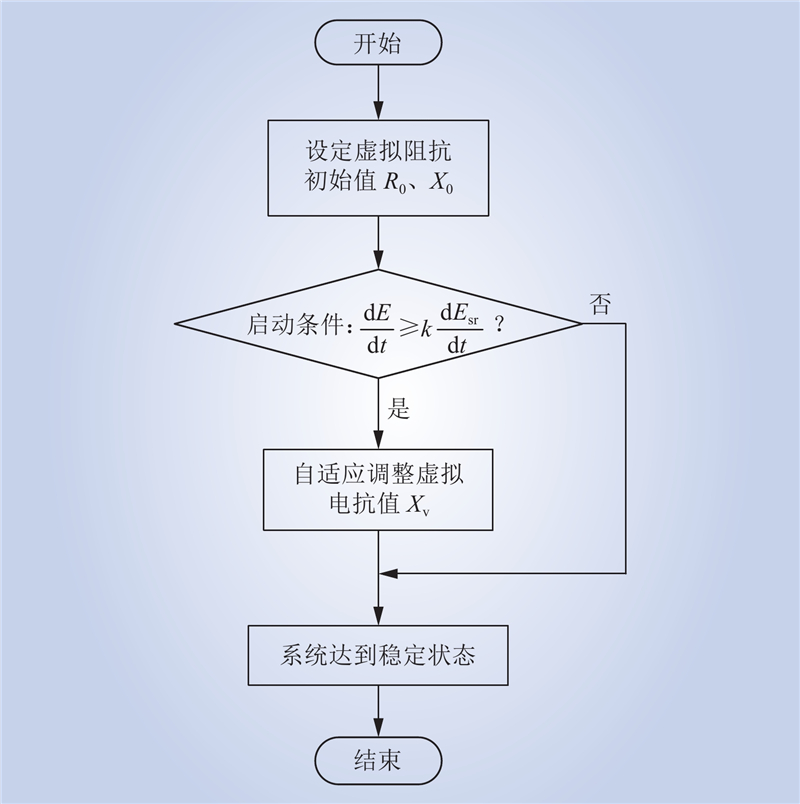

图 7 自适应VSG控制流程

Fig.7 Adaptive VSG control process

表 1 系统主要参数

Table 1 Main parameters of system

主要参数		数值
交流侧额定电压/kV		500
直流侧额定电压/kV		±800
额定容量/MW		8 000
短路比		＜1.4

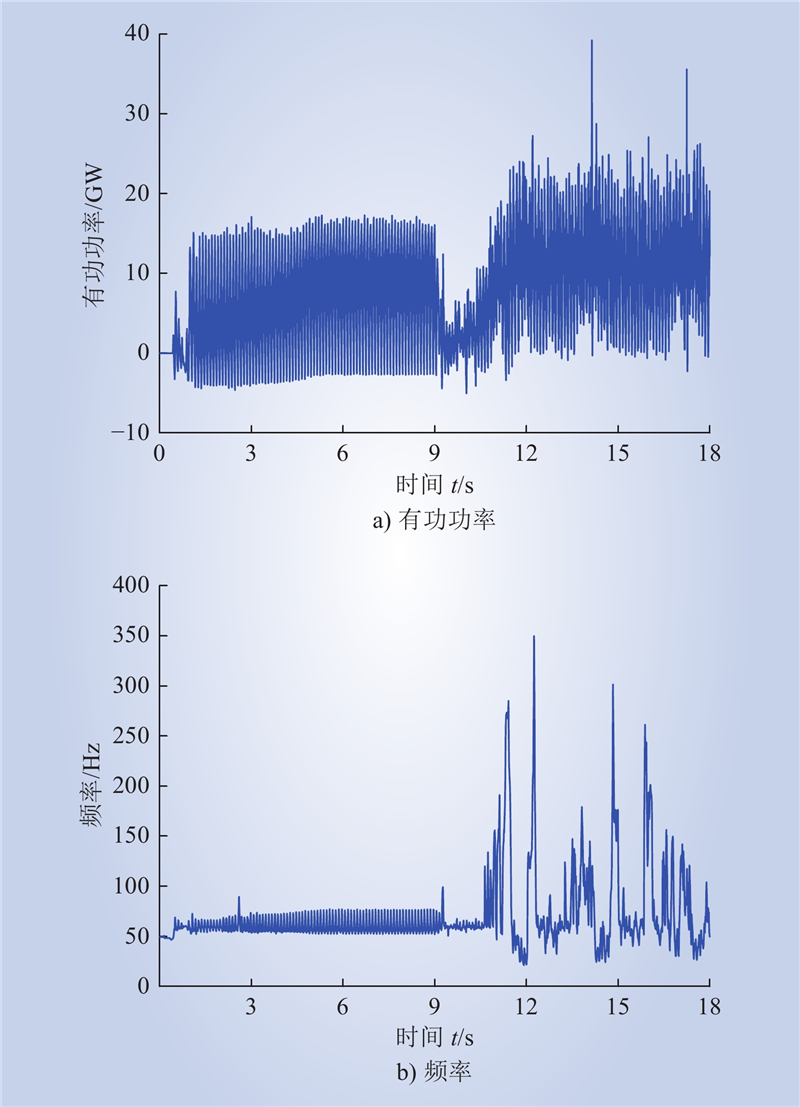

图 8 跟网型控制不稳定波形

Fig.8 Unstable waveform under GFL control

图 9 整流站VSG控制

Fig.9 VSG control of rectifier station

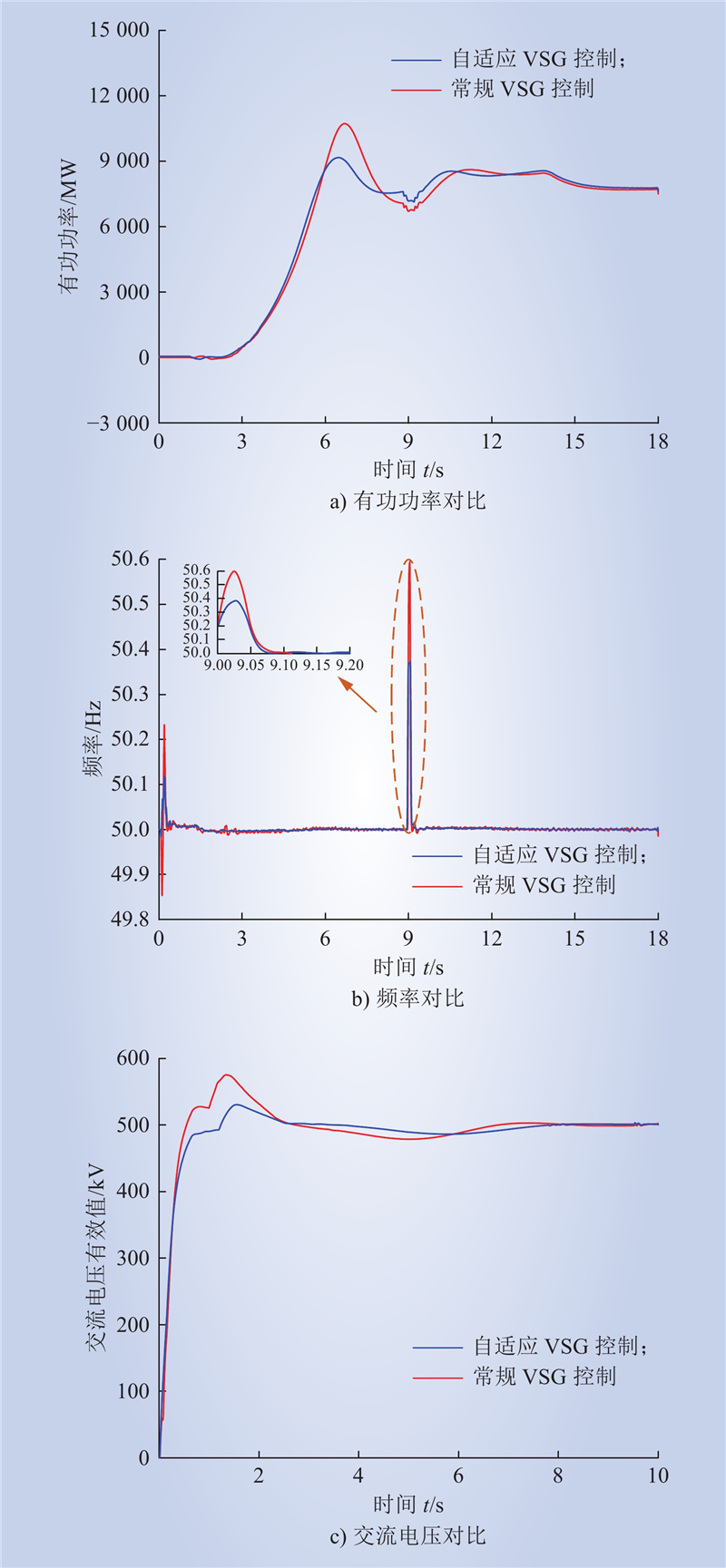

图 10 改进VSG控制与常规VSG控制

Fig.10 Improved VSG control and general VSG control

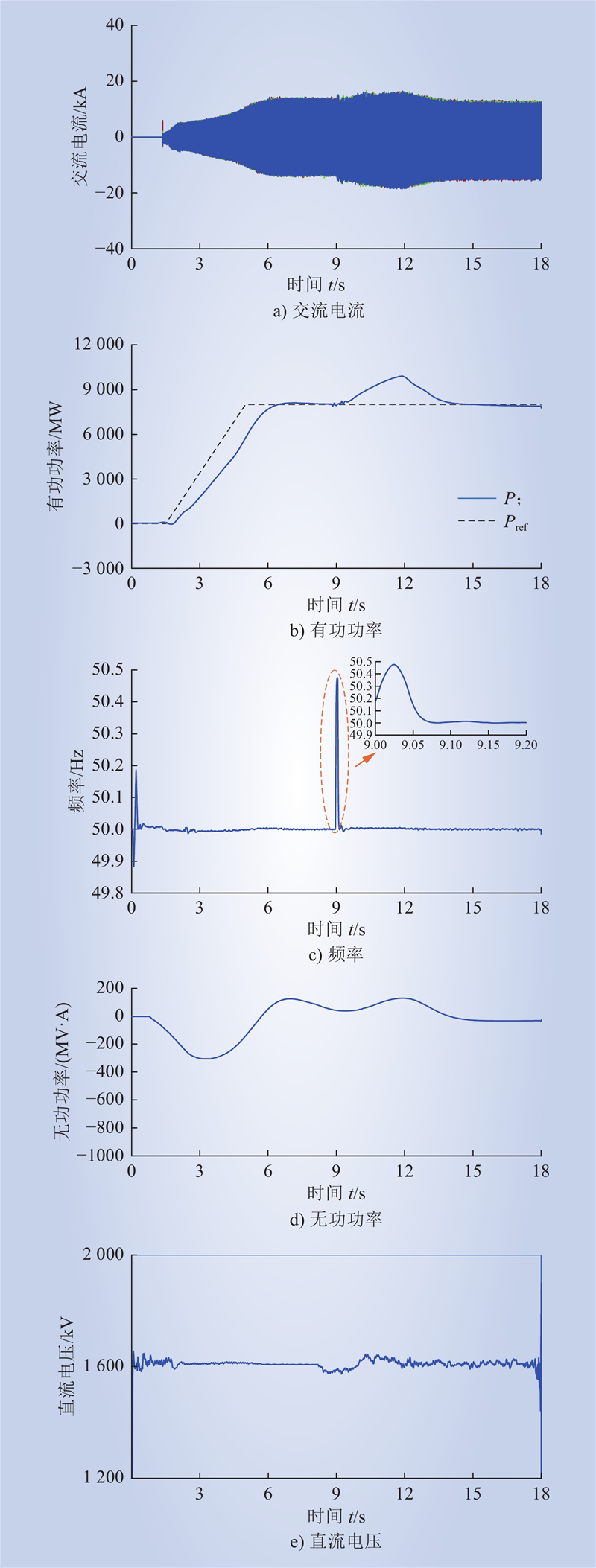

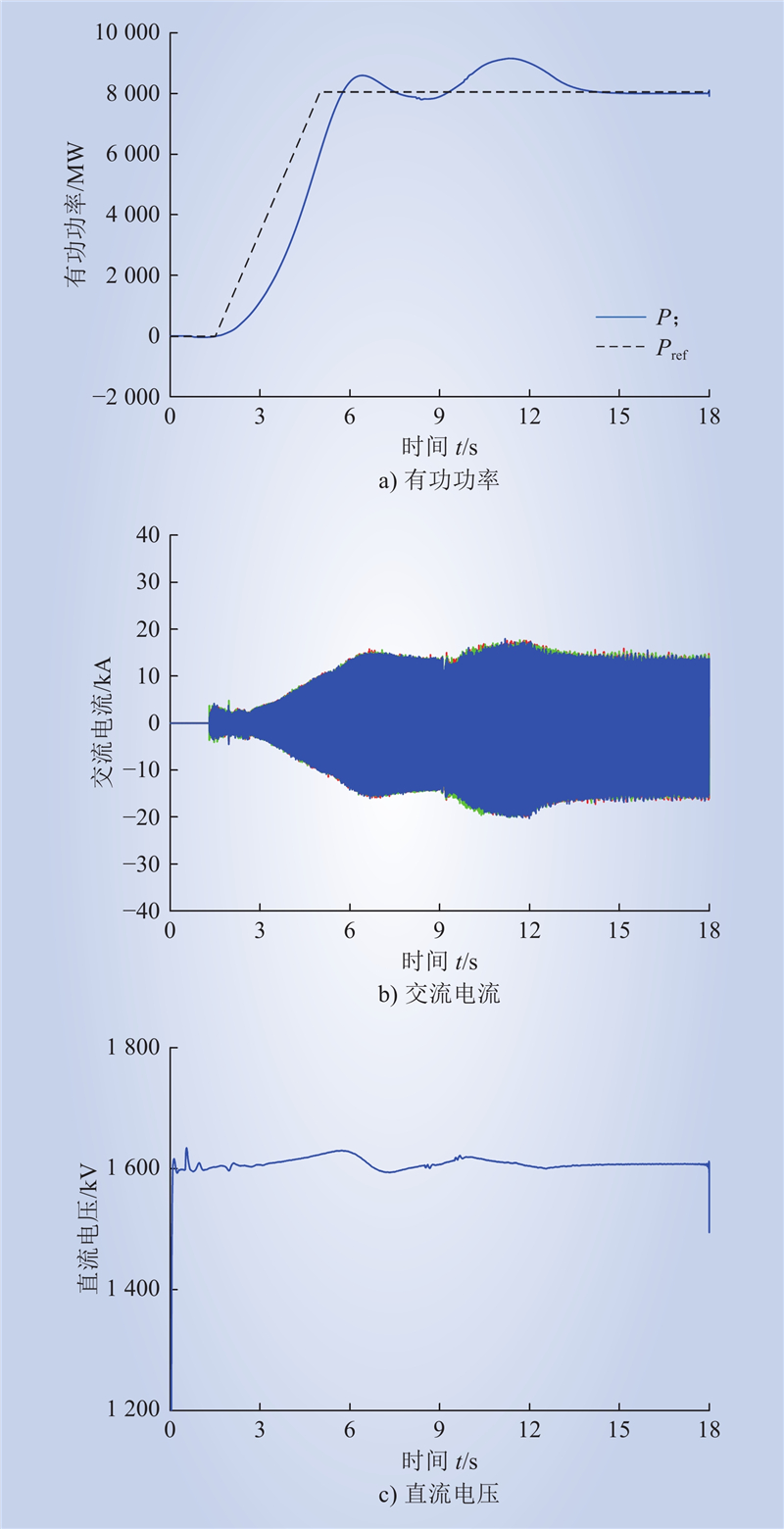

图 11 100%新能源接入整流侧波形

Fig.11 Rectifier-side waveform when 100% renewable energy is connected

参考文献 28
