应对继电保护多场景的数字仿真测试方法

doi:10.11930/j.issn.1004-9649.202405131

摘要/Abstract

摘要：

新能源大量接入使得继电保护面临适应性问题，提出一种应对继电保护多场景的数字仿真测试方法，可为继电保护性能评估提供有效技术支撑。从继电保护装置时序配合逻辑、不同保护装置配合关系、多场景测试的维度出发，提出了继电保护仿真模块设计和模拟方法。所提方法能够满足各类继电保护仿真测试要求，并通过了仿真测试。

关键词: 继电保护, 数字仿真, 继电保护测试

Abstract:

The massive access of new energy has brought adaptability problems to relay protection. This paper proposes a digital simulation testing method for relay protection in multiple scenarios which can provide effective technical support for the performance evaluation of relay protection. From the perspective of the time sequence cooperation logic of relay protection devices, the cooperation relationship between protection devices, and the dimension of multi-scenario testing, this paper proposes the design and simulation method of relay protection simulation modules. The proposed method can meet the simulation requirements of various relay protection, and has passed the simulation test.

Key words: relay protection, digital simulation, relay protection test

刘清泉, 杨鹏, 李铁成, 王献志, 文明浩. 应对继电保护多场景的数字仿真测试方法[J]. 中国电力, 2025, 58(2): 118-125.

Qingquan LIU, Peng YANG, Tiecheng LI, Xianzhi WANG, Minghao WEN. Digital Simulation Test Method for Multiple Scenarios Relay Protection[J]. Electric Power, 2025, 58(2): 118-125.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405131

https://www.electricpower.com.cn/CN/Y2025/V58/I2/118

图/表 11

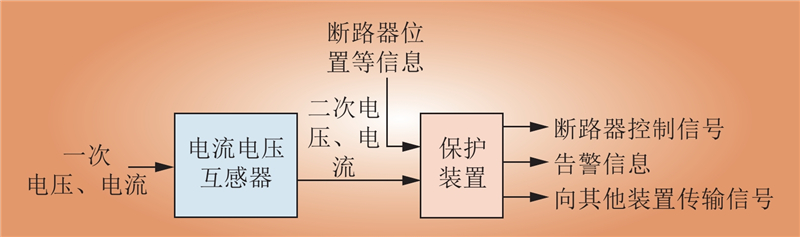

图 1 继电保护装置工作逻辑

Fig.1 Working logic diagram of relay protection device

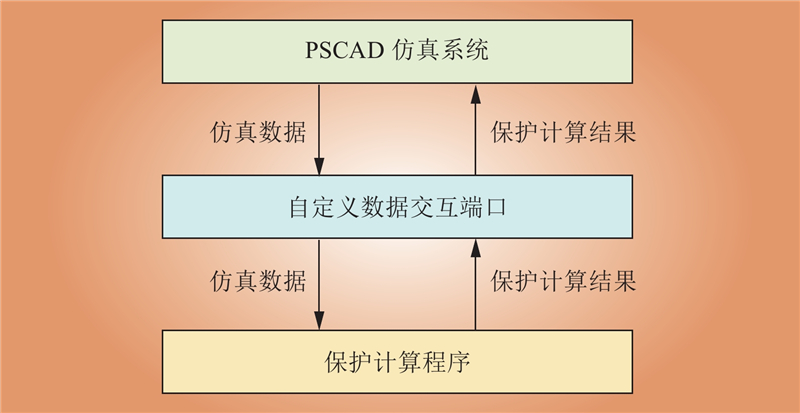

图 2 一、二次模型联合仿真逻辑

Fig.2 First and second model co-simulation logic diagram

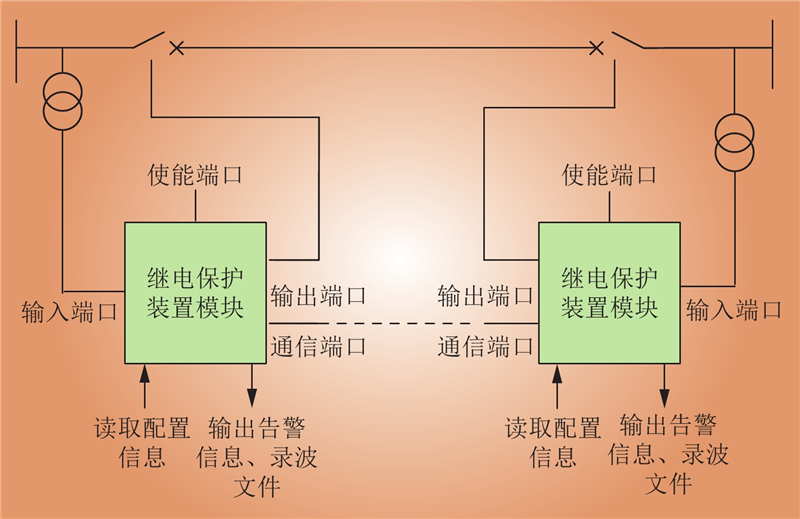

图 3 继电保护模块框架

Fig.3 Relay protection module frame diagram

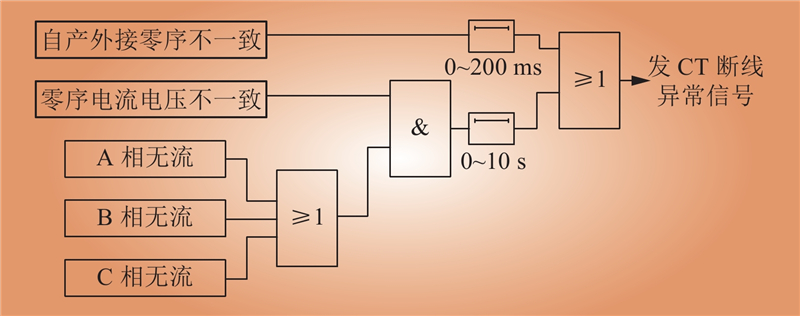

图 4 CT断线逻辑

Fig.4 The diagram of CT wire break logic.

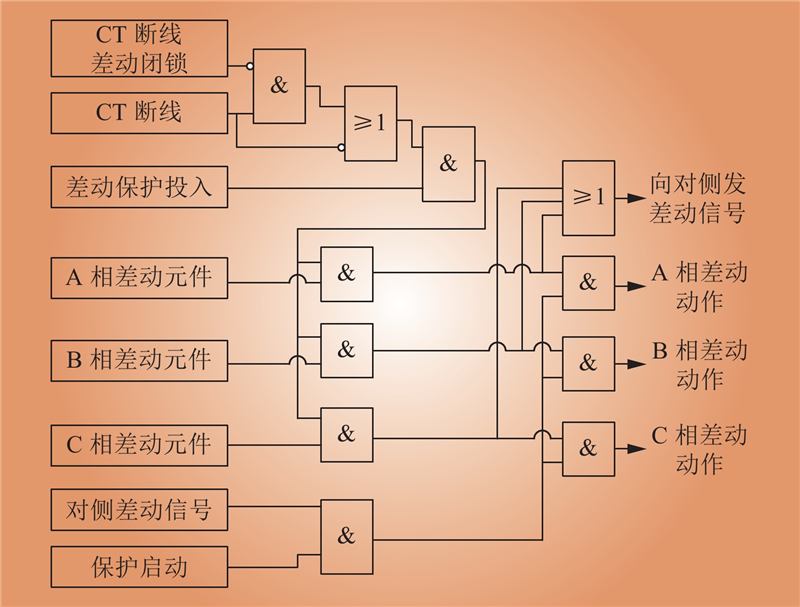

图 5 差动保护动作逻辑

Fig.5 The diagram of differential current operation logic.

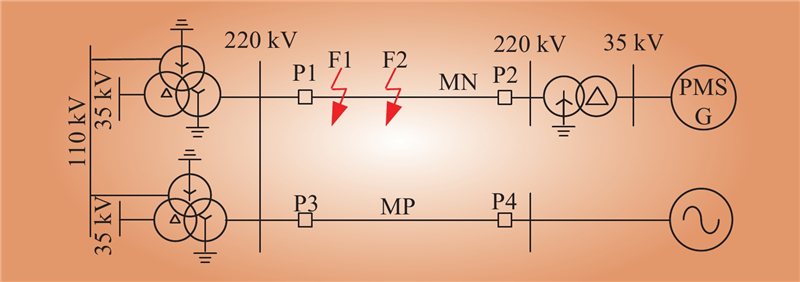

图 6 一次系统仿真模型

Fig.6 First system simulation model

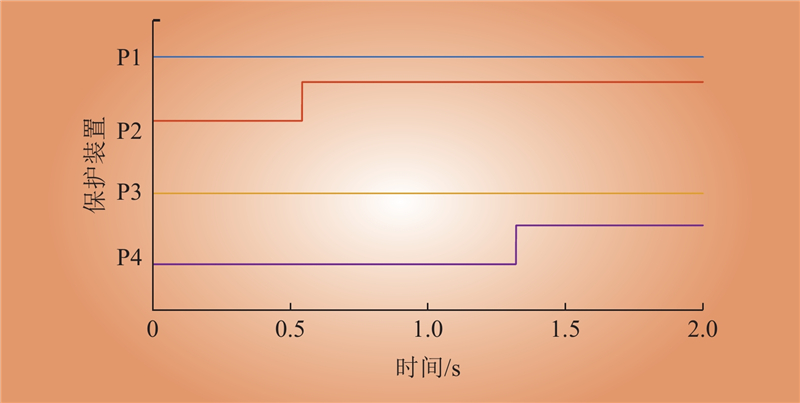

图 7 保护装置P1断路器失灵时各装置断路器状态

Fig.7 Circuit breaker condition of each device when the circuit breaker of device P1 fails

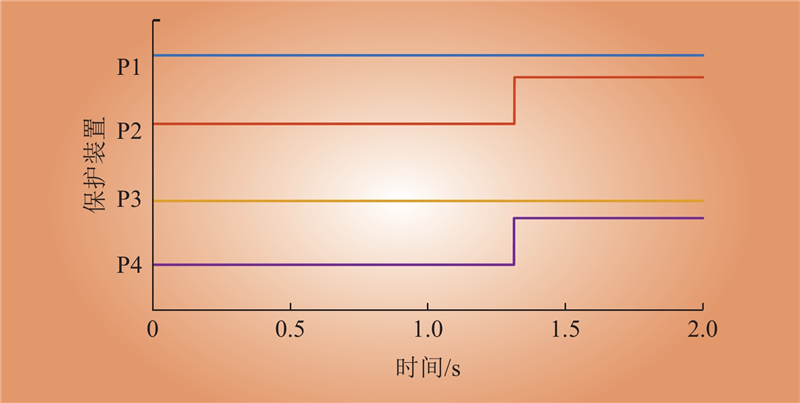

图 8 保护装置P1 TV断线时各装置断路器状态

Fig.8 Circuit breaker condition of each device when protection device P1 TV break

图 9 站用直流失压时各装置断路器状态

Fig.9 Circuit breaker condition of each device when station direct voltage loss

表 1 测试结果

Table 1 The results of test

方法特点	动模测试	数模混合实时仿真	所提仿真测试方法
测试模型构建形式	物理	物理+数字	数字
测试耗时	长	长	短
测试成本	高	高	低
一次模型修改	较复杂	简单	简单
二次模型修改	较复杂	较复杂	简单

表 2 3种数字仿真测试方法特点

Table 2 Characteristics of three digital simulation test methods

测试结果	文献[20]	文献[22]	所提仿真测试方法
保护动作结果能否返回至一次系统	否	能	能
能否测试不同保护原理之间的配合	否	能	能
能否测试不同保护装置之间的配合	否	能	能
能否进行系统级继电保护测试	否	否	能
能否进行各种二次系统异常时继电保护的测试	否	否	能

参考文献 22

1	莫石, 徐秋实, 卢子敬, 等. 模糊分割多目标风险框架下电网连锁故障运行风险评估[J]. 中国电力, 2024, 57 (2): 41- 48.
	MO Shi, XU Qiushi, LU Zijing, et al. Fuzzy partitioned multi-objective risk framework based operational risk assessment of cascading failure for power grid[J]. Electric Power, 2024, 57 (2): 41- 48.
2	田波, 张越, 蒙飞, 等. 电网故障处置信息自适应理解框架及关键技术[J]. 中国电力, 2024, 57 (7): 188- 195.
	TIAN Bo, ZHANG Yue, MENG Fei, et al. Adaptive understanding framework and key technology of power grid fault disposal information[J]. Electric Power, 2024, 57 (7): 188- 195.
3	梅勇, 高永强, 李成翔, 等. 计及新能源接入的孤网运行全过程动态仿真研究[J]. 广东电力, 2024, 37 (1): 68- 75.
	MEI Yong, GAO Yongqiang, LI Chengxiang, et al. Dynamic simulation study of the whole process of isolated network operation considering new energy connection[J]. Guangdong Electric Power, 2024, 37 (1): 68- 75.
4	黎宏飞, 高宗宝, 蔡有为, 等. 大型水轮发电机定子绕组放电故障分析及基于真实线棒模型的仿真研究[J]. 电力科技与环保, 2023, 39 (3): 207- 214.
	LI Hongfei, GAO Zongbao, CAI Youwei, et al. Analysis of discharge faults in stator windings of simulated large hydroelectric generators and its application simulation research on real wire rod model[J]. Electric Power Technology and Environmental Protection, 2023, 39 (3): 207- 214.
5	王兴国, 于溯. 新能源电源送出线路不同类型距离保护动作性能比较[J]. 浙江电力, 2024, 43 (7): 20- 28.
	WANG Xingguo, YU Su. A comparison of the operational performance of different types of distance protection in new energy power transmission lines[J]. Zhejiang Electric Power, 2024, 43 (7): 20- 28.
6	杨军, 何金波, 陈晨辉, 等. 基于数据驱动的低压配电网故障检测方法[J]. 内蒙古电力技术, 2023, 41 (5): 28- 34.
	YANG Jun, HE Jinbo, CHEN Chenhui, et al. Data-driven fault detection method for low voltage distribution network[J]. Inner Mongolia Electric Power, 2023, 41 (5): 28- 34.
7	李会新, 陈祥文, 金明亮, 等. 常规直流逆变站交流送出线路距离保护适应性分析与对策[J]. 中国电力, 2024, 57 (2): 115- 126.
	LI Huixin, CHEN Xiangwen, JIN Mingliang, et al. Adaptability analysis and countermeasures for distance protection of AC transmission lines connected LCC-HVDC inverter station[J]. Electric Power, 2024, 57 (2): 115- 126.
8	李彦宾, 贾科, 毕天姝, 等. 逆变型电源对距离保护的影响机理分析[J]. 电力系统保护与控制, 2018, 46 (16): 54- 59. DOI
	LI Yanbin, JIA Ke, BI Tianshu, et al. Impact of inverter-interfaced renewable energy generators on distance protection[J]. Power System Protection and Control, 2018, 46 (16): 54- 59. DOI
9	陈从靖, 霍银龙, 岳峰, 等. 5G通信下配电网差动保护数据同步方法研究与应用[J]. 浙江电力, 2021, 40 (2): 68- 72.
	CHEN Congjing, HUO Yinlong, YUE Feng, et al. Research and application of data synchronization method for differential protection of distribution network based on 5G communication[J]. Zhejiang Electric Power, 2021, 40 (2): 68- 72.
10	金恩淑, 陈和平, 夏国武. 基于开关函数的晶闸管整流器差动保护新方法[J]. 东北电力大学学报, 2023, 43 (2): 31- 38.
	JIN Enshu, CHEN Heping, XIA Guowu. A new differential protection method of thyristor converter in rectifier station based on wwitching function[J]. Journal of Northeast Electric Power University, 2023, 43 (2): 31- 38.
11	高亮亮. 基于Excel的变压器差动保护计算设计与验证[J]. 内蒙古电力技术, 2023, 41 (1): 81- 86.
	GAO Liangliang. Design and verification of differential protection calculation of transformer based on excel[J]. Inner Mongolia Electric Power, 2023, 41 (1): 81- 86.
12	廖文彪, 周泽昕, 詹荣荣, 等. 多类型电流互感器混联运行动模测试平台建设及对差动保护的影响[J]. 电力系统保护与控制, 2017, 45 (22): 83- 89. DOI
	LIAO Wenbiao, ZHOU Zexin, ZHAN Rongrong, et al. Construction of the dynamic model test platform for hybrid operation of multi type current transformer and its influence on differential protection[J]. Power System Protection and Control, 2017, 45 (22): 83- 89. DOI
13	翁汉琍, 饶丹青, 李振兴, 等. 应用两端电流采样值二维空间映射分布特征的线路纵联保护[J]. 电力自动化设备, 2020, 40 (8): 133- 141.
	WENG Hanli, RAO Danqing, LI Zhenxing, et al. Transmission line pilot protection applying two-dimensional space mapped distribution characteristics of current sampling values at both ends[J]. Electric Power Automation Equipment, 2020, 40 (8): 133- 141.
14	杨帜, 高吉普, 卢继平, 等. 基于ZYNQ平台的线路差动保护方案设计[J]. 南方电网技术, 2023, 17 (5): 91- 99.
	YANG Zhi, GAO Jipu, LU Jiping, et al. Line differential protection scheme design based on ZYNQ platform[J]. Southern Power System Technology, 2023, 17 (5): 91- 99.
15	章耀耀, 侯勇, 叶海, 等. 继电保护数字孪生技术应用展望[J]. 电力系统保护与控制, 2023, 51 (12): 178- 187.
	ZHANG Yaoyao, HOU Yong, YE Hai, et al. Application prospect for relay protection digital twin technology[J]. Power System Protection and Control, 2023, 51 (12): 178- 187.
16	崔晓丹, 吴家龙, 许剑冰, 等. 电力系统硬件在环仿真应用的现状及展望[J]. 电力工程技术, 2021, 40 (2): 68- 74. DOI
	CUI Xiaodan, WU Jialong, XU Jianbing, et al. Current status and prospect of hardware-in-the-loop simulation in power system[J]. Electric Power Engineering Technology, 2021, 40 (2): 68- 74. DOI
17	曾杰, 冷凤, 陈晓科, 等. 现代电力系统大功率数模混合实时仿真实现[J]. 电力系统自动化, 2017, 41 (8): 166- 171, 178. DOI
	ZENG Jie, LENG Feng, CHEN Xiaoke, et al. Implementation of high power digital-analog hybrid real-time simulation for modern power systems[J]. Automation of Electric Power Systems, 2017, 41 (8): 166- 171, 178. DOI
18	李亚萍, 李志勇, 周鹏鹏, 等. 新型实时数字仿真继电保护测试系统的研究[J]. 电力系统保护与控制, 2014, 42 (17): 90- 95. DOI
	LI Yaping, LI Zhiyong, ZHOU Pengpeng, et al. Research of relay protection testing system based on new type real-time digital simulation[J]. Power System Protection and Control, 2014, 42 (17): 90- 95. DOI
19	蒲天骄, 陈盛, 赵琦, 等. 能源互联网数字孪生系统框架设计及应用展望[J]. 中国电机工程学报, 2021, 41 (6): 2012- 2029.
	PU Tianjiao, CHEN Sheng, ZHAO Qi, et al. Framework design and application prospect for digital twins system of energy Internet[J]. Proceedings of the CSEE, 2021, 41 (6): 2012- 2029.
20	刘亚丽, 周昀, 王少荣. 配电网继电保护一二次联合数字仿真系统研究[J]. 电力系统保护与控制, 2017, 45 (13): 124- 129. DOI
	LIU Yali, ZHOU Yun, WANG Shaorong. Research on the primary and secondary combined digital simulation system of distribution network relay protection[J]. Power System Protection and Control, 2017, 45 (13): 124- 129. DOI
21	肖燕纯, 张紫凡, 王淦泉, 等. 过渡电阻对距离保护的影响及其对策分析[J]. 电力学报, 2020, 35 (2): 174- 179, 186.
	XIAO Yanchun, ZHANG Zifan, WANG Ganquan, et al. Analysis of the influence of transition resistance on distance protection and its countermeasures[J]. Journal of Electric Power, 2020, 35 (2): 174- 179, 186.
22	肖异, 尹项根, 张哲, 等. PSCAD/EMTDC程序与继电保护仿真模型接口技术及应用[J]. 电力自动化设备, 2006, 26 (11): 67- 70. DOI
	XIAO Yi, YIN Xianggen, ZHANG Zhe, et al. Interface technique between PSCAD/EMTDC and relay protection simulation model and its application[J]. Electric Power Automation Equipment, 2006, 26 (11): 67- 70. DOI
