电网故障处置信息自适应理解框架及关键技术

doi:10.11930/j.issn.1004-9649.202401026

摘要/Abstract

摘要：

为了提升电网故障处置响应能力，提出一种故障处置信息自适应理解框架，该框架基于所构建的多任务协同理解模型和故障处置知识图谱识别电网故障告警、运行状态、操作指令等信息，自适应推理生成故障处置操作策略。通过建立故障处置信息理解模型评价指标和试验数据集，验证了故障处置信息理解框架和多任务协同理解模型的有效性。

关键词: 故障处置, 多任务协同, 知识图谱, 自适应推理

Abstract:

In order to improve the response capacity of power grid fault disposal, an adaptive understanding framework of fault disposal information is proposed. The framework is based on the constructed multi-task collaborative understanding model and the fault disposal knowledge graph to identify the power grid fault alarm, operation status, operation instruction and other information, and the fault disposal operation strategy is generated by reasoning adaptively. By establishing the evaluation index system and test data set of fault disposal information, the experimental effect of the adaptive understanding framework of fault disposal information and multi-task collaborative understanding model are verified.

Key words: fault disposal, multi-task collaborative, knowledge graph, adaptive reasoning

田波, 张越, 蒙飞, 单连飞, 高海洋, 田坤, 乔咏田. 电网故障处置信息自适应理解框架及关键技术[J]. 中国电力, 2024, 57(7): 188-195.

Bo TIAN, Yue ZHANG, Fei MENG, Lianfei SHAN, Haiyang GAO, Kun TIAN, Yongtian QIAO. Adaptive Understanding Framework and Key Technology of Power Grid Fault Disposal Information[J]. Electric Power, 2024, 57(7): 188-195.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401026

https://www.electricpower.com.cn/CN/Y2024/V57/I7/188

图/表 9

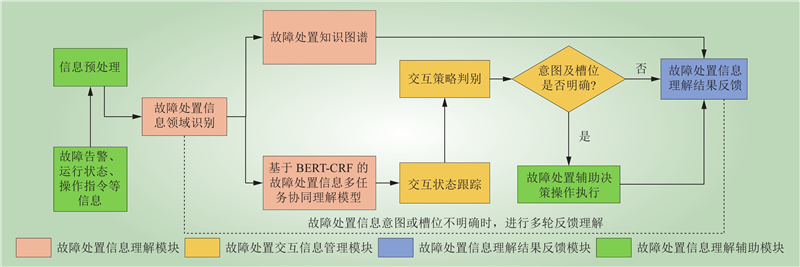

图 1 电网故障处置信息自适应理解框架

Fig.1 The adaptive understanding framework of fault disposal information

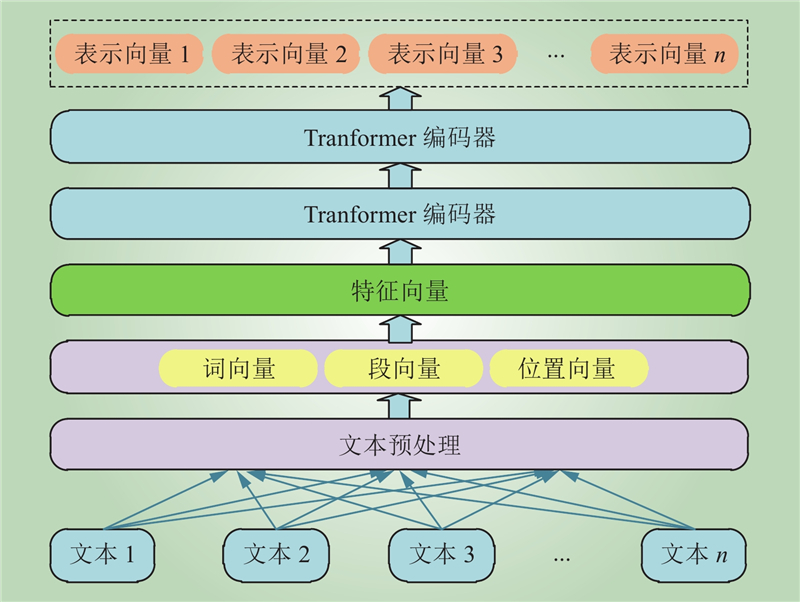

图 2 BERT模型结构

Fig.2 Structure of BERT model

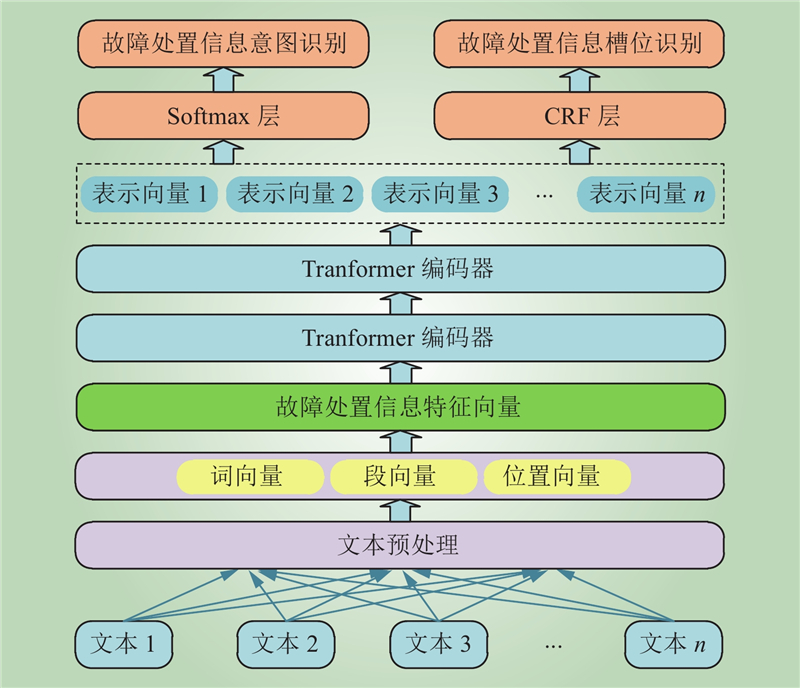

图 3 故障处置信息多任务协同理解模型结构

Fig.3 Structure of fault disposal information multi-task collaborative understanding model

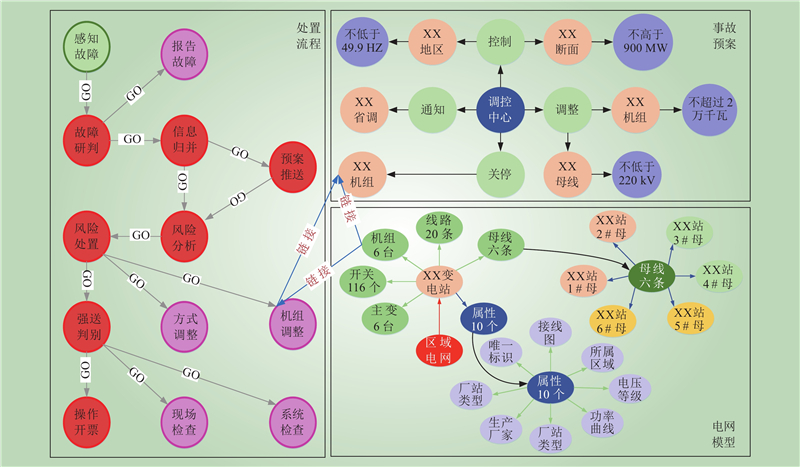

图 4 故障处置知识图谱形态

Fig.4 The form of fault disposal knowledge graph

表 1 部分故障处置试验数据

Table 1 Partial fault disposal test data

序号	操作意图	操作意图表述
1	调阅电网负荷曲线	查询宁夏电网负荷曲线
2	查询有功出力	查询常胜变有功
3	查询机组备用出力	查询大坝电厂#1机备用出力
4	打开有功曲线	打开中宁二厂有功曲线
···	···	···
22	打开厂站图	打开常胜变厂站图
23	查询事故预案	查询大侯双回线跳闸预案
24	打开潮流图	打开宁夏电网潮流图

表 2 部分故障处置信息标记数据

Table 2 Partial fault disposal information label data

序号	操作意图表述	标记意图	标记槽位
1	查询大侯I线有功曲线	open_active_power_ output_curve	大侯I线
2	查询宁夏电网功率曲线	open_grid_load_curve	宁夏电网
···	···	···	···
17560	查询昭沂直流潮流	query_trend_size	昭沂直流

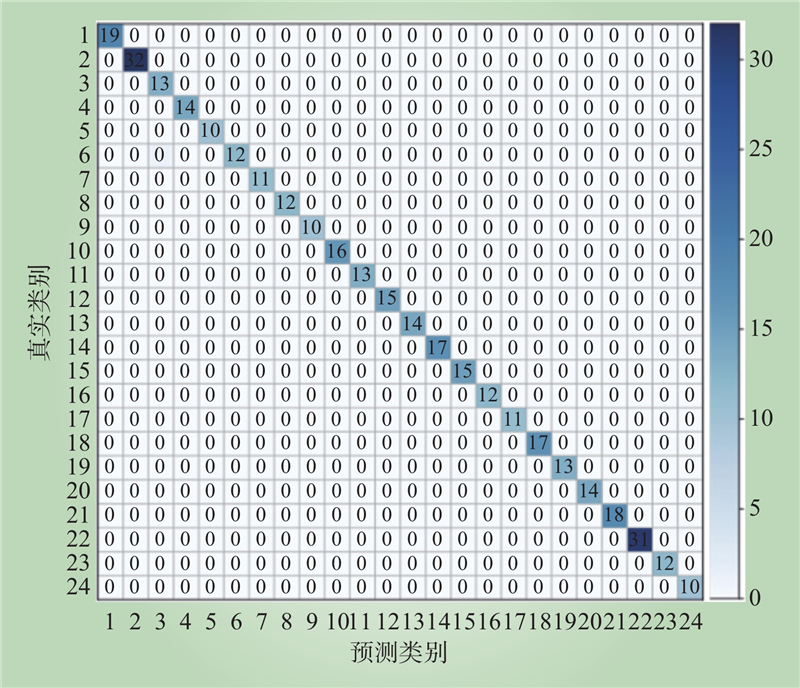

图 5 故障处置信息意图识别效果

Fig.5 Identification effect of fault disposal information intention

表 3 故障处置信息多任务协同理解模型识别效果

Table 3 Recognition effect of fault disposal information multi-task collaborative understanding model 单位：%

样本集	精准率	召回率	F₁值
训练样本	99.96	99.96	99.96
验证样本	99.95	99.95	99.95
测试样本	99.02	99.31	99.16

表 4 各模型评价指标计算结果

Table 4 Calculation results of evaluation indicators for each model 单位：%

模型	精准率	召回率	F₁值
BERT-CRF	99.02	99.31	99.16
BiLSTM-CRF	97.99	98.40	98.19
DPCNN+IDCNN	91.47	92.21	91.84
TextCNN+BiLSTM-CRF	97.80	98.14	97.97
