A Decision-making Optimization Method for Network Reconfiguration of Power System With New Energy Considering the Synergistic Support of Source-grid

Jian ZHOU¹(), Nan FENG¹(), Yiping JI¹, Yuyao FENG¹, Shuai WANG², Shaoyan LI²()

1. Electric Power Research Institute of State Grid Shanghai Municipal Electric Power Company, Shanghai 200437, China
2. School of Electrical & Electronic Engineering, North China Electric Power University, Baoding 071003, China

Received:2023-12-07 Online:2024-10-28 Published:2024-10-25
Supported by:
This work is supported by Science and Technology Project of SGCC (No.52094022004S).

摘要/Abstract

摘要：

面对复杂多变的国际形势和日益增多的极端事件，研究新能源高比例接入下的系统恢复方案，对完善新型电力系统安全防御体系具有重要意义。在此背景下，提出一种含新能源电力系统网架重构决策优化方法。首先，基于核密度法对新能源出力不确定性进行分析建模；其次，考虑新能源并网和运行对网架强度的要求，实现了新能源多场站短路比约束的线性化建模；在此基础上，建立了能协同新能源、储能、常规机组和输电网络恢复的网架重构优化模型，并提出双层优化策略以提升模型求解效率。基于新英格兰10机39节点系统的算例结果验证了所提方法的有效性。

关键词: 电力系统恢复, 核密度法, 新能源多场站短路比, 双层优化

Abstract:

Facing the complex and changeable international situation and the increasing number of extreme events, it is of great significance to study the system recovery scheme under the high proportion of new energy access to improve the new power system security defense system. In this context, a decision-making optimization method for grid reconfiguration of power system with new energy is proposed. Firstly, the uncertainty of new energy output is analyzed and modeled based on the kernel density method. Secondly, considering the requirements of new energy grid connection and operation on the strength of the grid, the linearized model of multiple renewable energy stations short-circuit ratio constraint is realized. On this basis, a grid reconfiguration optimization model that can coordinate new energy, energy storage, conventional units and transmission network restoration is established and a bi-level optimization strategy is proposed to improve the efficiency of model solution. The example results based on the New England 10-machine 39-bus system verify the effectiveness of the proposed method.

Key words: power system restoration, nuclear density method, multiple renewable energy stations short-circuit ratio (MRSCR), bi-level optimization

中图分类号:

TM744

周健, 冯楠, 季怡萍, 冯煜尧, 王帅, 李少岩. 考虑源网协同支撑作用的含新能源电力系统网架重构决策优化方法[J]. 中国电力, 2024, 57(10): 150-157.

Jian ZHOU, Nan FENG, Yiping JI, Yuyao FENG, Shuai WANG, Shaoyan LI. A Decision-making Optimization Method for Network Reconfiguration of Power System With New Energy Considering the Synergistic Support of Source-grid[J]. Electric Power, 2024, 57(10): 150-157.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202312022

https://www.electricpower.com.cn/CN/Y2024/V57/I10/150

图/表 8

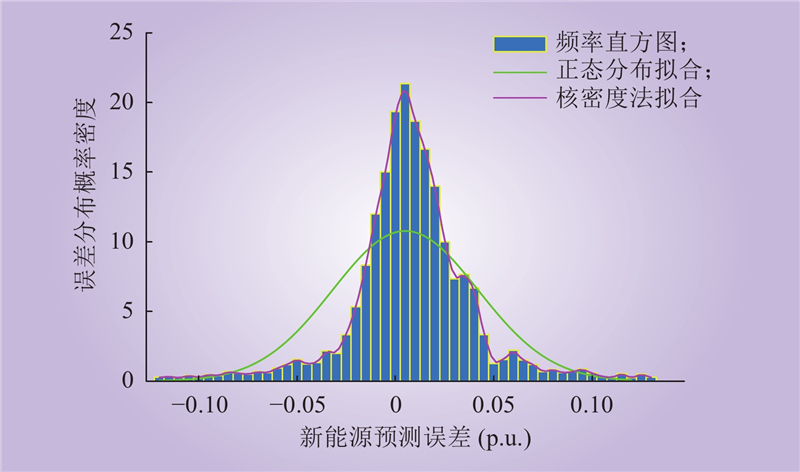

图 1 新能源预测误差概率分布

Fig.1 The probability distribution of new energy prediction error

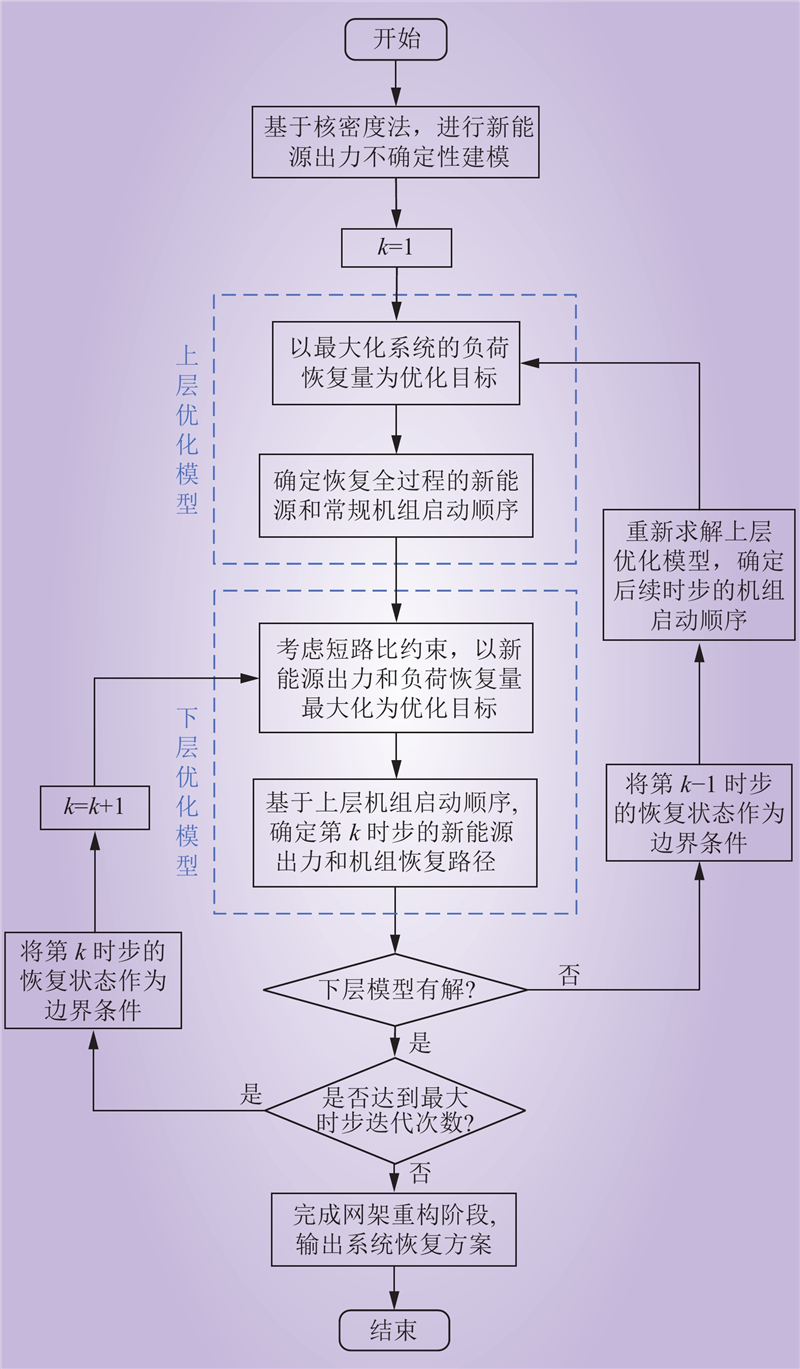

图 2 双层优化模型求解流程

Fig.2 Bi-level optimization model solving process

表 1 新英格兰10机39节点系统机组参数

Table 1 Unit parameters of New England 10-unit 39-bus system

编号	$P_g^{\max } $/ MW	P_st,g/ MW	T_a,g/ h	P_r,g/ MW	$K_{p,g}^{\rm{max}} $/ (MW·h^–1)	$X'_d $(p.u.)
30	350	/	/	/	320	0.043
31	460	16.0	0.50	130	300	0.060
32	520	18.0	0.46	155	314	0.054
33	432	13.5	0.25	130	275	0.051
34	508	17.5	0.83	160	300	0.075
35	650	20.0	1.00	185	308	0.050
36	360	12.0	0.58	108	260	0.062
37	540	16.5	0.46	160	320	0.048
38	830	23.0	0.67	235	405	0.055

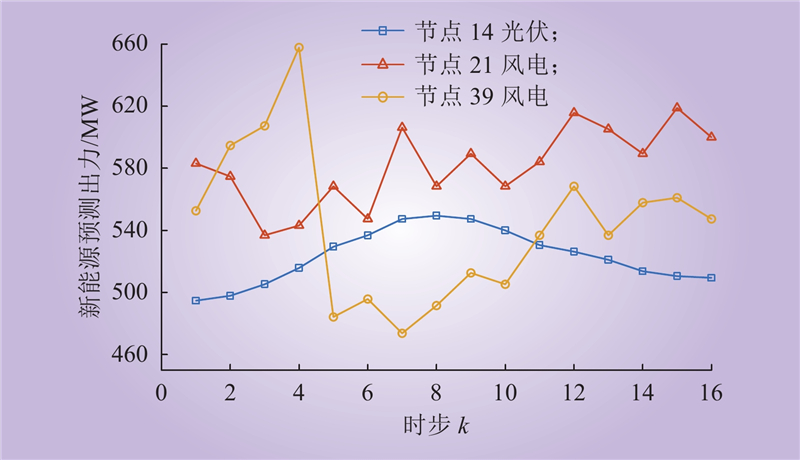

图 3 新能源预测出力曲线

Fig.3 New energy forecast output curve

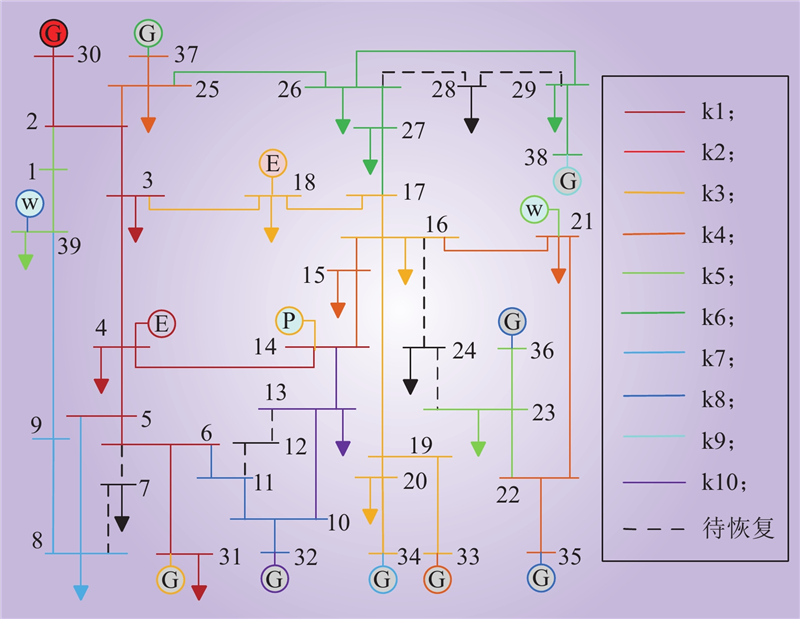

图 4 新英格兰10机39节点系统的网架重构方案

Fig.4 The grid reconstruction scheme of New England 10-machine 39-node system

表 2 各时步恢复数据

Table 2 The restoration data of each time step

时步	新能源出力/MW	常规机组出力/MW	储能电站充电功率/MW		负荷恢复率/%
时步	新能源出力/MW	常规机组出力/MW	C1	C2	负荷恢复率/%
1	0	80	0	0	1.10
2	0	160	0	0	2.49
3	281	240	40	100	5.79
4	362	395	0	60	10.64
5	620	580	50	80	16.89
6	759	803	20	0	24.67
7	835	1096	–40	–60	33.14
8	1208	1467	0	50	43.12
9	1360	1950	0	50	54.12
10	1533	2476	20	70	65.54

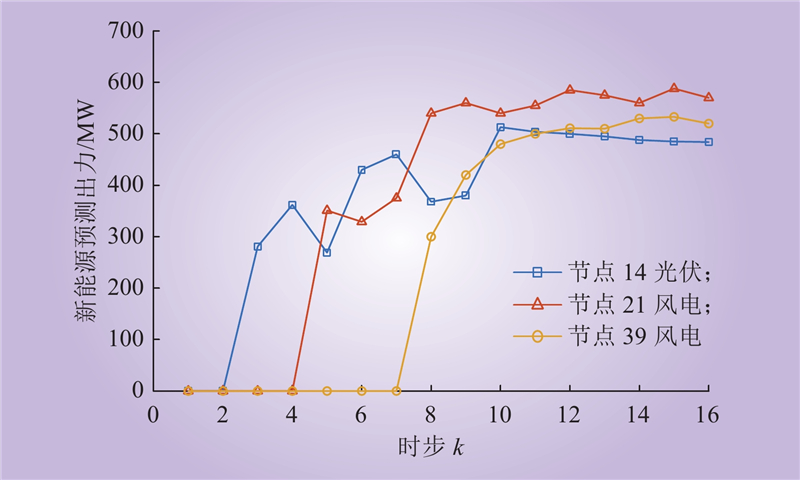

图 5 新能源调度出力曲线

Fig.5 New energy dispatching output curve

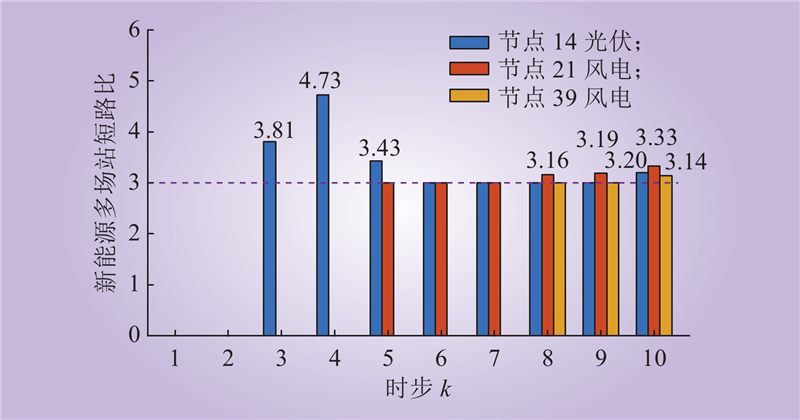

图 6 各时步新能源多场站短路比指标

Fig.6 The multiple renewable energy stations short-circuit ratio index at each time step
