全功率小型变速抽水蓄能机组双层MPC虚拟惯量控制策略

doi:10.11930/j.issn.1004-9649.202311005

中国电力 ›› 2025, Vol. 58 ›› Issue (2): 216-226.DOI: 10.11930/j.issn.1004-9649.202311005

• 电网 • 上一篇

全功率小型变速抽水蓄能机组双层MPC虚拟惯量控制策略

许常昊¹(), 关伟东¹(), 王越¹(), 张金帅², 王鹏², 周宁², 尚博文²

1. 中国农业大学信息与电气工程学院，北京　100083
2. 国网河南省电力公司电力科学研究院，河南郑州　450052

收稿日期:2023-11-03 接受日期:2024-04-11 出版日期:2025-02-28 发布日期:2025-02-25
作者简介:许常昊（2001—），男，硕士研究生，从事全功率抽水蓄能机组控制等研究，E-mail：xchao@cau.edu.cn
关伟东（2000—），男，硕士研究生，从事双馈型变速抽水蓄能机组控制等研究，E-mail：s20223081628@cau.edu.cn
王越（1982—），男，通信作者，副教授，博士生导师，从事电力系统运行可靠性评估与风险决策等研究，E-mail：wyue@cau.edu.cn
基金资助:
国家电网有限公司科技项目（面向配电网分布式新能源消纳的微型抽水蓄能关键技术研究及装备研制，5400-202324196A-1-1-ZN）。

Two-Layer MPC Virtual Inertia Control Strategy for Small-Scale Variable-Speed Pumped Storage Unit with Full-Size Converter

Changhao XU¹(), Weidong GUAN¹(), Yue WANG¹(), Jinshuai ZHANG², Peng WANG², Ning ZHOU², Bowen SHANG²

1. College of Information and Electrical Engineering, China Agriculture University, Beijing 100083, China
2. State Grid Henan Electric Power Co., Ltd. Electric Power Research Institute, Zhengzhou 450052, China

Received:2023-11-03 Accepted:2024-04-11 Online:2025-02-28 Published:2025-02-25
Supported by:
This work is supported by Science and Technology Project of SGCC (Research and Equipment Development of Key Technologies for Micro Pumped Storage for distributed New Energy Consumption in Distribution Networks, No.5400-202324196A-1-1-ZN).

摘要/Abstract

摘要：

在配电侧发展微型可变速抽水蓄能，有利于以更为环保的方式提升配网消纳新能源的能力。提出一种全功率变速抽水蓄能机组双层模型预测控制（two layer model predictive control，TLMPC）虚拟惯量控制策略。该策略包含一个标准层模型预测控制（model predictive control，MPC）和辅助层MPC，标准层MPC基于确定的系统预测模型，产生最小化的频率偏差信号，传递给辅助层MPC，而辅助层MPC考虑光伏的随机性，以跟踪标准层MPC预测的频率偏差为目标，同时产生功率和导叶控制信号。通过对含有全功率抽水蓄能机组的系统进行仿真分析，表明了所提的控制策略具有良好的频率调节性能，有助于提升配电网的光伏消纳能力。

关键词: 变速抽水蓄能机组, 全功率变流器, 虚拟惯量控制, 调频控制, 模型预测控制

Abstract:

The development of miniature variable-speed pumped storage on the distribution side is conducive to enhancing the ability of the distribution network to accomodate renewable energies in a more environmentally friendly way. In this paper, a two-layer model predictive control (MPC) virtual inertia control strategy for variable-speed pumped storage unit with full-size converter is proposed. The strategy contains a standard-layer MPC and an auxiliary-layer MPC. The standard-layer MPC generates minimized frequency deviation signals based on a determined system prediction model and passes them to the auxiliary-layer MPC, which considers the stochastic nature of the PV generation with the goal of tracking the frequency deviation predicted by the standard-layer MPC and generates both the power and the guide vane control signals. The simulation of a test system containing a pumped storage unit with full-size converter shows that the proposed control strategy has good frequency-regulating performance, which is helpful to enhancing the PV accomodation capability of the distribution networks.

Key words: variable-speed pumped storage unit, full-size converter, virtual inertia control, frequency control, model predictive control

许常昊, 关伟东, 王越, 张金帅, 王鹏, 周宁, 尚博文. 全功率小型变速抽水蓄能机组双层MPC虚拟惯量控制策略[J]. 中国电力, 2025, 58(2): 216-226.

Changhao XU, Weidong GUAN, Yue WANG, Jinshuai ZHANG, Peng WANG, Ning ZHOU, Bowen SHANG. Two-Layer MPC Virtual Inertia Control Strategy for Small-Scale Variable-Speed Pumped Storage Unit with Full-Size Converter[J]. Electric Power, 2025, 58(2): 216-226.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311005

https://www.electricpower.com.cn/CN/Y2025/V58/I2/216

图/表 19

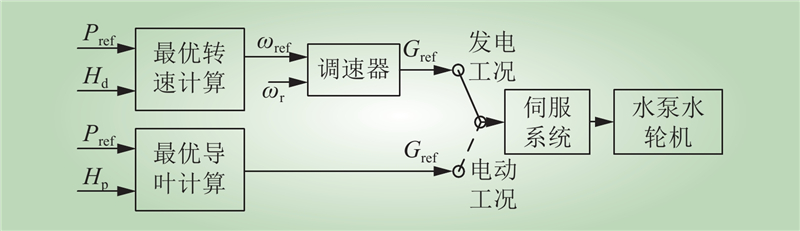

图 1 水泵水轮机控制策略框图

Fig.1 The block diagram of pump turbine control strategy

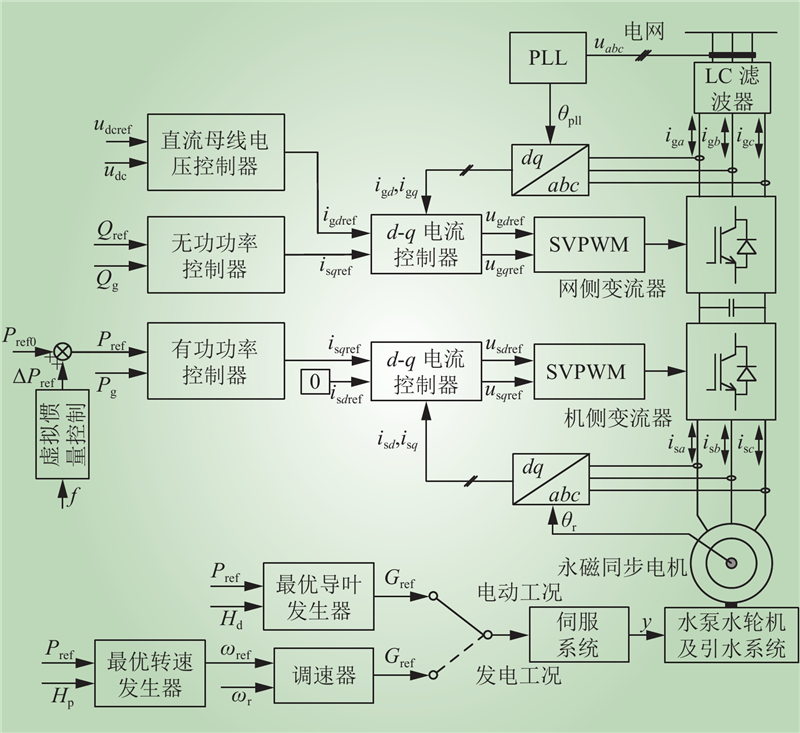

图 2 全功率变速抽水蓄能机组虚拟惯量控制策略框图

Fig.2 The block diagram of virtual inertia control strategy for variable-speed pumped-storage unit with full-size converter

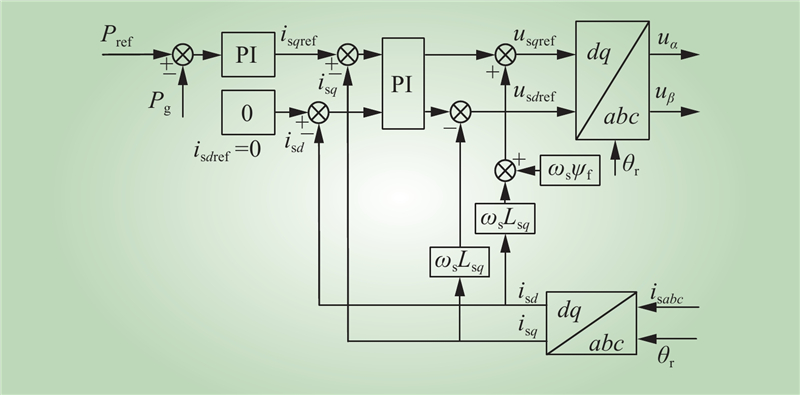

图 3 机侧变流器控制策略框图

Fig.3 The block diagram of the machine-side converter control strategy

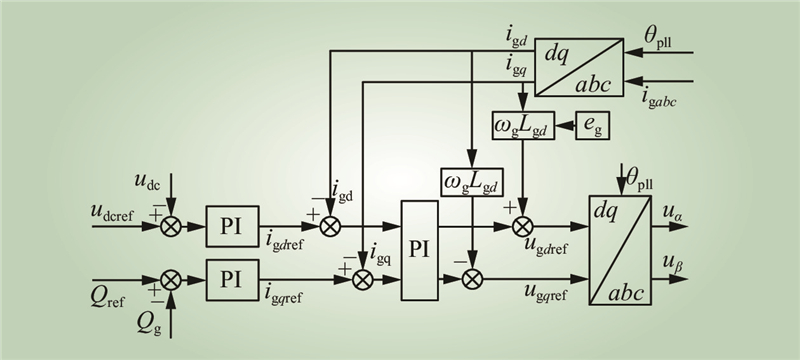

图 4 网侧变流器控制策略框图

Fig.4 The block diagram of the grid-side converter control strategy

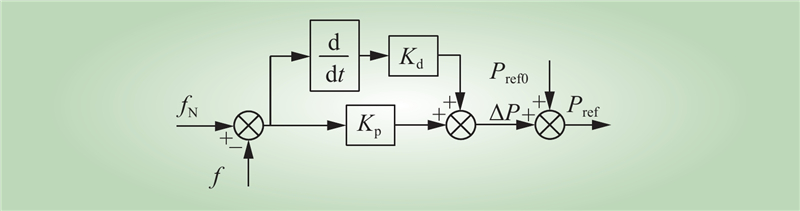

图 5 传统虚拟惯量控制策略框图

Fig.5 The block diagram of the traditional virtual inertial control strategy

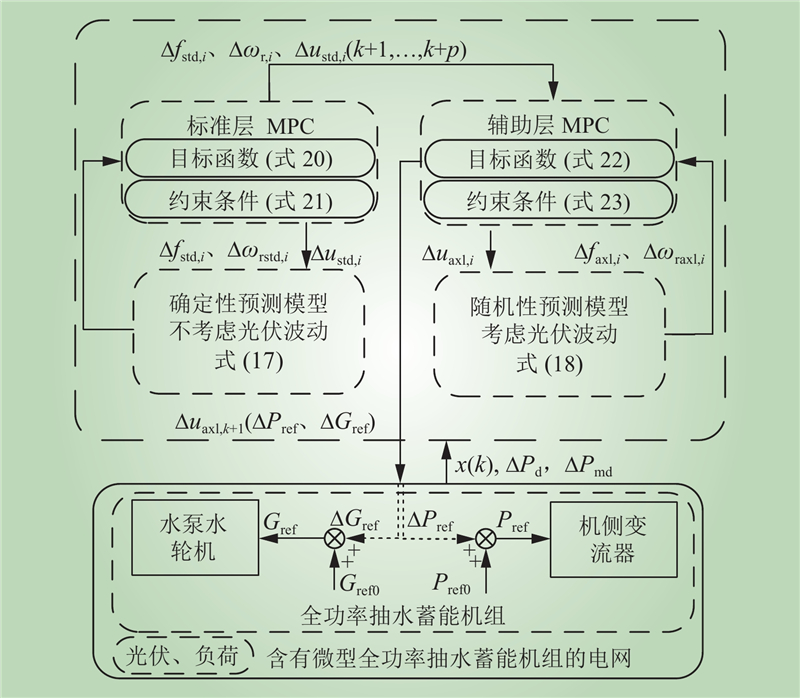

图 6 双层MPC虚拟惯量控制流程

Fig.6 Flowchart of the two-layer MPC virtual inertia control strategy

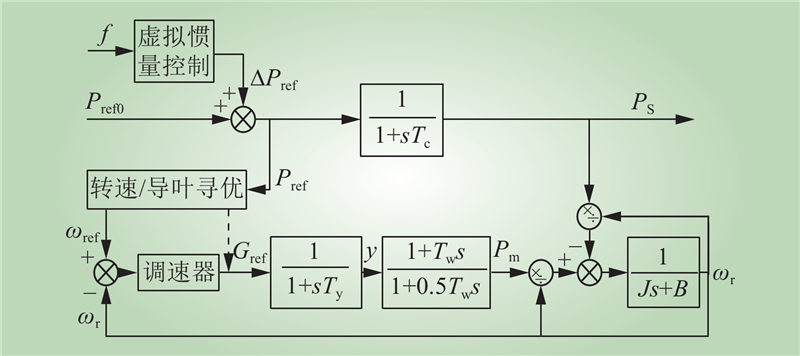

图 7 全功率抽水蓄能机组简化模型

Fig.7 Simplified model of the pumped-storage unit with full-size converter

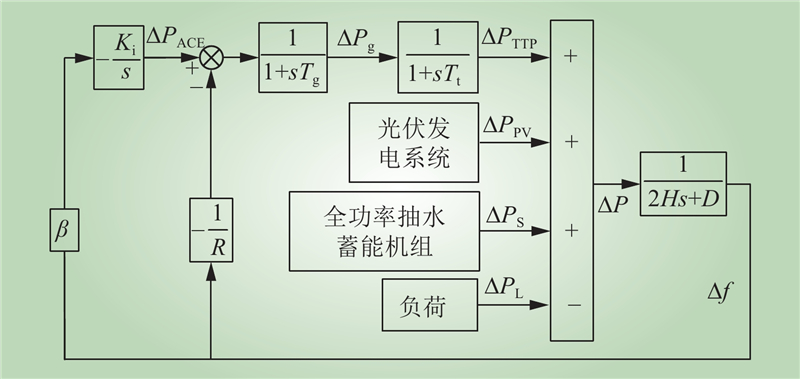

图 8 含有全功率抽水蓄能机组的电网频率响应模型

Fig.8 Frequency response model of the grid with a pumped-storage unit with full-size converter

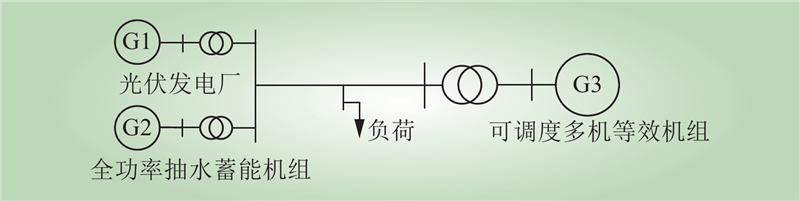

图 9 仿真系统结构框图

Fig.9 Block diagram of the simulation system structure

表 1 水泵水轮机及其调速系统参数

Table 1 Pump turbine and its speed regulation system parameters

参数	数值	参数	数值
额定功率 P_m/(kV·A)	50	调速器积分系数 K_i	0.5
水流惯性系数 T_w/s	0.5	拟合系数 a₀, a₁, a₁	1.4，–0.2，–0.3
调速器比例系数 K_p	2

表 2 永磁同步电动机及并网系统参数

Table 2 PMSM and grid-connected system parameters

参数	数值	参数	数值
额定功率 P_n/kW	50	永磁体磁链 ψ_f/(V·s)	0.5
额定电压 V_n/V	800	电网电压 V_n/V	380
额定频率 f_n/Hz	50	直流侧电压 u_dc/V	800
极对数	4	滤波电感 L_f/mF	3
d轴电感 L_d/H	0.0036	滤波电阻 R_f/Ω	0.01
q轴电感 L_q/H	0.0036

表 3 调频控制器参数

Table 3 Frequency controller parameters

参数	数值	参数	数值
采样周期 T/s	0.1	永磁同步电机机组系数 J, B	6,0.04
预测时域 p	10	电网惯性时间常数 M/s	2
火电机组调差系数 R	0.03	负荷调节系数 D/s	1
火电机组调速器施加常数 T_g/s	0.3	传统PD控制比例系数 K_p	5
抽蓄有功响应时间常数 T_c/s	0.6	传统PD控制微分系数 K_d	1

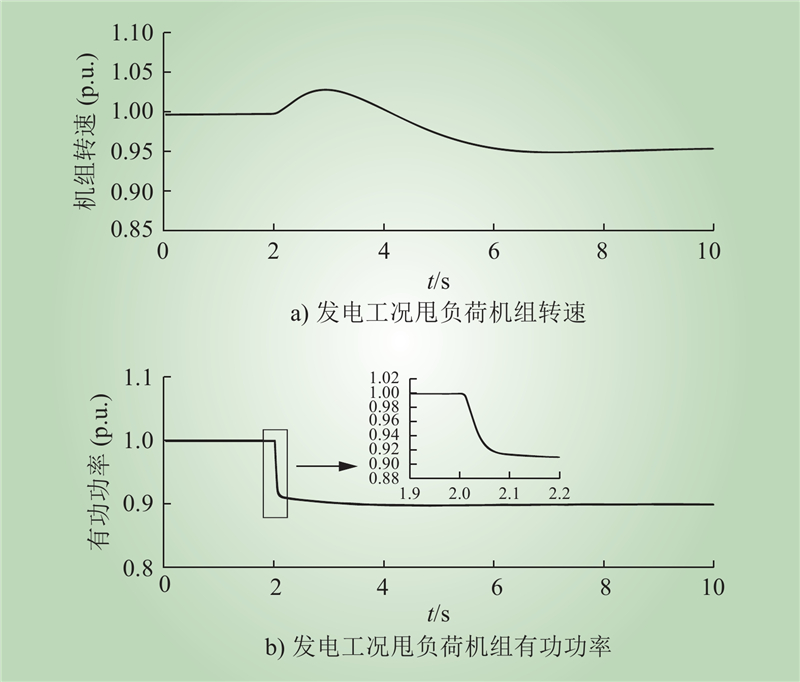

图 10 发电工况甩负荷仿真结果

Fig.10 Load shedding simulation results for power generation condition

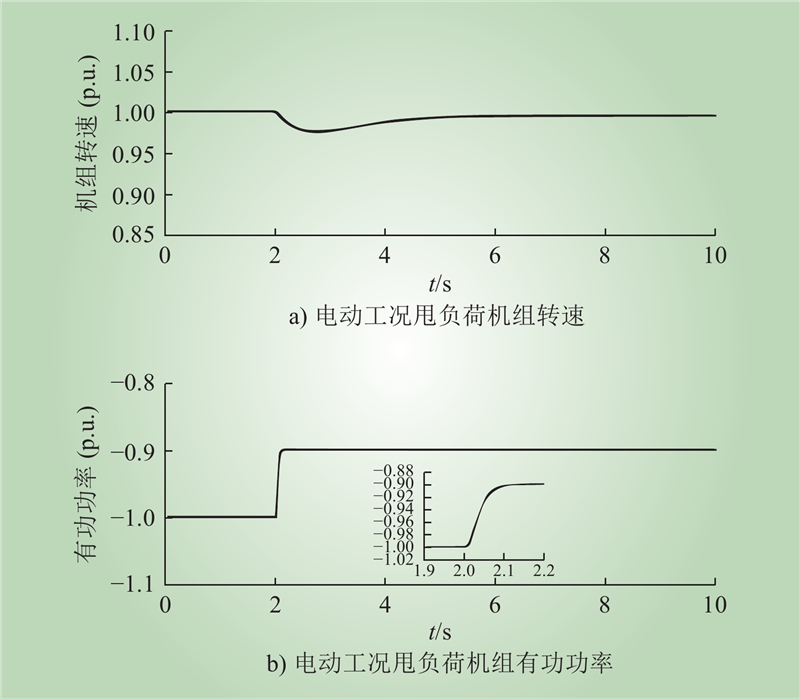

图 11 电动工况甩负荷仿真结果

Fig.11 Load shedding simulation results for pump condition

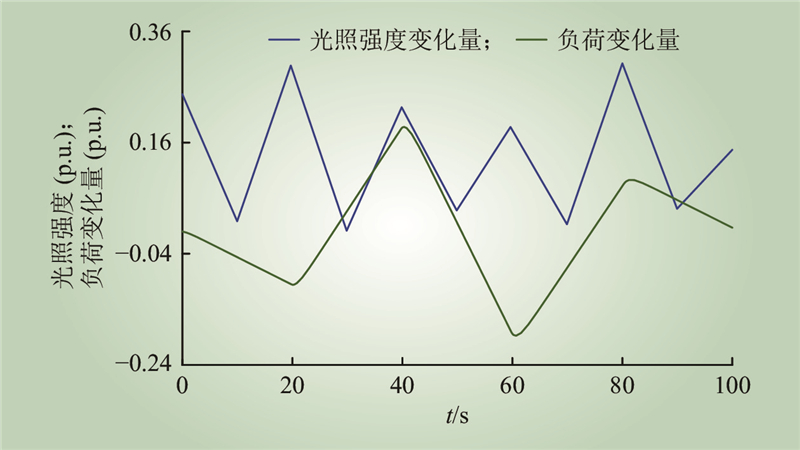

图 12 光照强度、负荷的波动

Fig.12 Fluctuations of solar irradiation and load

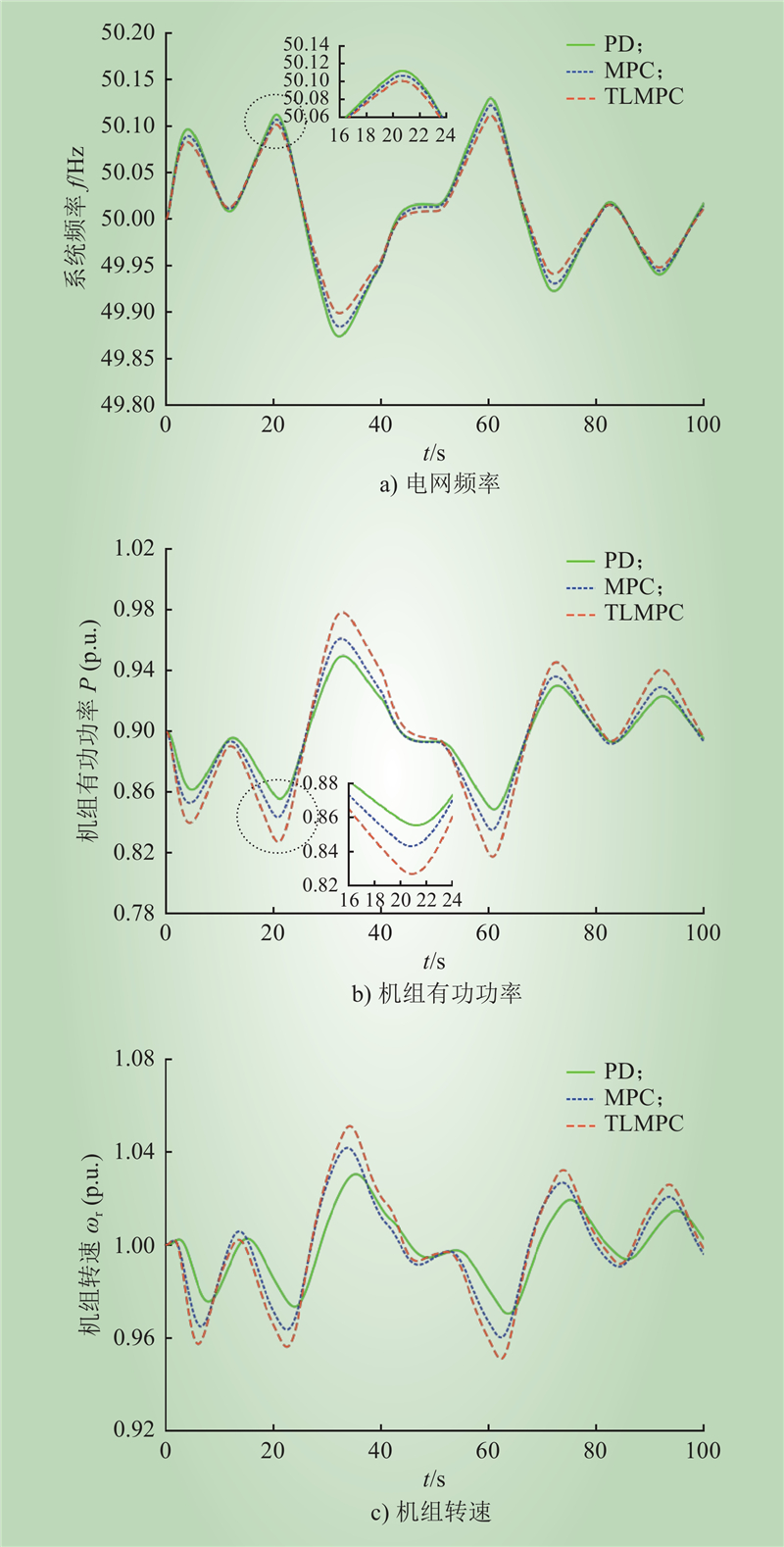

图 13 发电工况仿真结果

Fig.13 Simulation results of power generation condition

表 4 发电工况系统频率差和转速差的RMS值

Table 4 RMS values of system frequency difference and speed difference under power generation condition

控制策略	$ {{R}}_{{\rm MS\Delta }{f}} $	$ {{R}}_{{\rm MS\Delta }{ \omega \rm r}} $
PD	0.063	0.0082
MPC	0.059	0.0078
TLMPC	0.053	0.0078

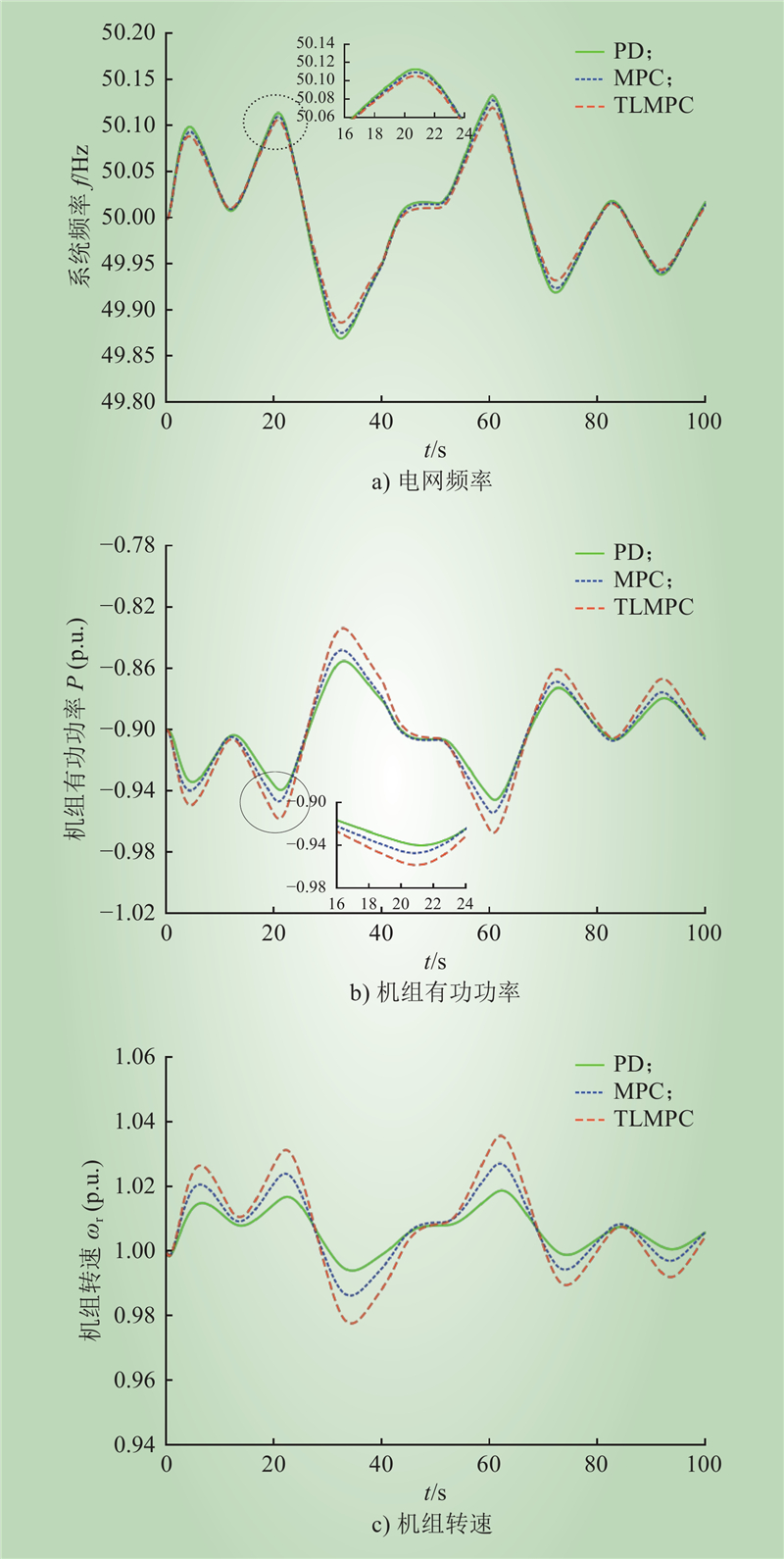

图 14 电动工况仿真结果

Fig.14 Simulation results of pump condition

表 5 电动工况系统频率差与转速差的RMS值

Table 5 RMS values of system frequency difference and speed difference under pump condition

控制策略	$ {{R}}_{{\rm MS\Delta }{f}}$	$ {{R}}_{{\rm MS\Delta }{ \omega \rm r}} $
PD	0.0650	0.0082
MPC	0.0062	0.0078
TLMPC	0.0057	0.0080

参考文献 25

1	刘吉臻. 大规模新能源电力安全高效利用基础问题[J]. 中国电机工程学报, 2013, 33 (16): 1- 8, 25.
	LIU Jizhen. Basic issues of the utilization of large-scale renewable power with high security and efficiency[J]. Proceedings of the CSEE, 2013, 33 (16): 1- 8, 25.
2	付红军, 陈惠粉, 赵华, 等. 高渗透率下风电的调频技术研究综述[J]. 中国电力, 2021, 54 (1): 104- 115.
	FU Hongjun, CHEN Huifen, ZHAO Hua, et al. Review on frequency regulation technology with high wind power penetration[J]. Electric Power, 2021, 54 (1): 104- 115.
3	徐秋实, 施通勤, 井浩然, 等. 面向新型电力系统的输电网与分布式变速抽水蓄能联合规划[J]. 电力系统保护与控制, 2024, 52 (10): 128- 137.
	XU Qiushi, SHI Tongqin, JING Haoran, et al. Joint planning of a transmission network and distributed variable speed pumped storage for a new power system[J]. Power System Protection and Control, 2024, 52 (10): 128- 137.
4	HOFFSTAEDT J P, TRUIJEN D P K, FAHLBECK J, et al. Low-head pumped hydro storage: a review of applicable technologies for design, grid integration, control and modelling[J]. Renewable and Sustainable Energy Reviews, 2022, 158, 112119. DOI
5	KALDELLIS J K, ZAFIRAKIS D, KAVADIAS K. Techno-economic comparison of energy storage systems for island autonomous electrical networks[J]. Renewable and Sustainable Energy Reviews, 2009, 13 (2): 378- 392. DOI
6	裴哲义, 元博, 宗瑾, 等. 定、变速抽水蓄能机组调度决策关键技术研究[J]. 水力发电, 2018, 44 (4): 86- 91.
	PEI Zheyi, YUAN Bo, ZONG Jin, et al. Research on key dispatching technique of fixed-speed and variable-speed pumped-storage units[J]. Water Power, 2018, 44 (4): 86- 91.
7	FREDERIK M J, LUKAS M, JAKOB S, et al. Nonlinear model predictive control of a variable-speed pumped-storage power plant[J]. IEEE Transactions on Control Systems Technology, 2019: 1–16.
8	刘彬彬, 杨健维, 廖凯, 等. 基于转子动能控制的双馈风电机组频率控制改进方案[J]. 电力系统自动化, 2016, 40 (16): 17- 22.
	LIU Binbin, YANG Jianwei, LIAO Kai, et al. Improved frequency control strategy for DFIG-based wind turbines based on rotor kinetic energy control[J]. Automation of Electric Power Systems, 2016, 40 (16): 17- 22.
9	王玥瑶, 延肖何, 刘念. 多交易模式下混合式抽水蓄能电站优化调控策略[J]. 南方电网技术, 2024, 18 (5): 51- 61.
	WANG Yueyao, YAN Xiaohe, LIU Nian. Optimization scheduling strategy for hybrid pumped-storage power station under multi-transaction modes[J]. Southern Power System Technology, 2024, 18 (5): 51- 61.
10	李辉, 王坤, 刘海涛, 等. 交流励磁抽水蓄能机组变下垂系数调频控制策略[J]. 电力自动化设备, 2018, 38 (7): 68- 73, 88.
	LI Hui, WANG Kun, LIU Haitao, et al. Variable droop coefficient frequency control strategy of AC excited pumped storage unit[J]. Electric Power Automation Equipment, 2018, 38 (7): 68- 73, 88.
11	李颖颖, 王德林, 范林源, 等. 双馈风电机组限功率运行下频率稳定的变系数控制策略[J]. 电网技术, 2019, 43 (8): 2910- 2917.
	LI Yingying, WANG Delin, FAN Linyuan, et al. Variable coefficient control strategy for frequency stability of DFIG under power-limited operation[J]. Power System Technology, 2019, 43 (8): 2910- 2917.
12	游文霞, 刘斌, 李世春, 等. 风电并网下的抽水蓄能鲁棒最优调频控制策略[J]. 中国电力, 2023, 56 (5): 32- 40.
	YOU Wenxia, LIU Bin, LI Shichun, et al. Robust optimal frequency regulation control strategy for pumped storage in grid-connected wind power systems[J]. Electric Power, 2023, 56 (5): 32- 40.
13	赵书强, 王子巍, 李志伟, 等. 分布式光伏-抽蓄系统联合优化运行策略[J]. 南方电网技术, 2023, 17 (11): 76- 86.
	ZHAO Shuqiang, WANG Ziwei, LI Zhiwei, et al. Joint Optimal operation strategy of distributed photovoltaic-pumped storage systems[J]. Southern Power System Technology, 2023, 17 (11): 76- 86.
14	胡万丰, 樊红刚, 王正伟. 双馈式抽水蓄能机组功率调节仿真与控制[J]. 清华大学学报(自然科学版), 2021, 61 (6): 591- 600.
	HU Wanfeng, FAN Honggang, WANG Zhengwei. Simulated power control for doubly-fed pumped storage units[J]. Journal of Tsinghua University (Science and Technology), 2021, 61 (6): 591- 600.
15	畅欣, 韩民晓, 郑超. 全功率变流器可变速抽水蓄能机组的功率调节特性分析[J]. 电力建设, 2016, 37 (4): 91- 97. DOI
	CHANG Xin, HAN Minxiao, ZHENG Chao. Power regulation characteristics analysis of variable speed pumped storage with full-size converter[J]. Electric Power Construction, 2016, 37 (4): 91- 97. DOI
16	衣传宝, 梁廷婷, 汪卫平, 等. 全功率变速抽水蓄能机组无功优先控制策略研究[J]. 电力电容器与无功补偿, 2021, 42 (1): 25- 31.
	YI Chuanbao, LIANG Tingting, WANG Weiping, et al. Study on reactive power priority control strategy of variable speed pumped storage unit with full-sized converter[J]. Power Capacitor & Reactive Power Compensation, 2021, 42 (1): 25- 31.
17	史华勃, 王渝红, 滕予非, 等. 全功率变速抽水蓄能机组快速功率模式小信号建模[J]. 电力系统自动化, 2022, 46 (4): 162- 169.
	SHI Huabo, WANG Yuhong, TENG Yufei, et al. Small signal modeling of variable-speed pumped storage unit with full-size converter in fast-power mode[J]. Automation of Electric Power Systems, 2022, 46 (4): 162- 169.
18	TIWARI R, NILSEN R, MO O. Control strategies for variable speed operation of pumped storage plants with full-size converter fed synchronous machines[C]//2021 IEEE Energy Conversion Congress and Exposition (ECCE). Vancouver, BC, Canada. IEEE, 2021.
19	丁理杰, 史华勃, 陈刚, 等. 全功率变速抽水蓄能机组控制策略与调节特性[J]. 电力自动化设备, 2024, 44 (3): 166- 171, 179.
	DING Lijie, SHI Huabo, CHEN Gang, et al. Control strategy and regulation characteristics of variable speed pumped storage unit with full-size converter[J]. Electric Power Automation Equipment, 2024, 44 (3): 166- 171, 179.
20	李辉, 刘海涛, 宋二兵, 等. 双馈抽水蓄能机组参与电网调频的改进虚拟惯性控制策略[J]. 电力系统自动化, 2017, 41 (10): 58- 65.
	LI Hui, LIU Haitao, SONG Erbing, et al. Improved virtual inertia control strategy of doubly fed pumped storage unit for power network frequency modulation[J]. Automation of Electric Power Systems, 2017, 41 (10): 58- 65.
21	LIANG J Q, HARLEY R G. Pumped storage hydro-plant models for system transient and long-term dynamic studies[C]//IEEE PES General Meeting. Minneapolis, MN. IEEE, 2010: 1–8.
22	刘开培, 朱蜀, 冯欣, 等. 双馈式变速抽水蓄能电厂的机电暂态建模及模型预测控制[J]. 高电压技术, 2020, 46 (7): 2407- 2418.
	LIU Kaipei, ZHU Shu, FENG Xin, et al. Electromechanical transient modeling and model predictive control of doubly-fed variable-speed pumped storage power plant[J]. High Voltage Engineering, 2020, 46 (7): 2407- 2418.
23	井浩然, 李佳, 赵红生, 等. 双馈变速抽水蓄能全工况转换过程建模与仿真[J]. 电力建设, 2023, 44 (10): 41- 50.
	JING Haoran, LI Jia, ZHAO Hongsheng, et al. Modeling and simulation of operating condition conversion of doubly-fed variable speed pumped storage[J]. Electric Power Constrution, 2023, 44 (10): 41- 50.
24	井浩然, 施通勤, 徐秋实, 等. 风电场与多分布式变速抽水蓄能协同调频控制[J]. 电力系统保护与控制, 2024, 52 (13): 125- 135.
	JING Haoran , SHI Tongqin, XU Qiushi , et al. Coordinated frequency modulation control of a wind farm and multi-distributed variable speed pumped storage[J]. Power System Protection and Control, 2024, 52 (13): 125- 135.
25	汪哲铖, 杨威嘉, 杨小龙, 等. 变速抽水蓄能机组功率优先控制模式的运行稳定域分析[J]. 水电与抽水蓄能, 2024, 10 (1): 24- 29, 92.
	WANG Zhecheng, YANG Weijia, YANG Xiaolong, et al. Analysis of frequency stability regions under power fast mode in variable speed pumped storage plants[J]. Hydropower and Pumped Storage, 2024, 10 (1): 24- 29, 92.
