基于功率直控的源储荷协同微电网的弱连接调控技术

doi:10.11930/j.issn.1004-9649.202412093

中国电力 ›› 2025, Vol. 58 ›› Issue (4): 13-20.DOI: 10.11930/j.issn.1004-9649.202412093

• 电-碳协同下分布式能源系统运营关键技术 • 上一篇下一篇

基于功率直控的源储荷协同微电网的弱连接调控技术

任鹏¹(), 赵志刚¹^,²(), 高洪超²(), 文武¹(), 姜颖异¹()

1. 珠海格力电器股份有限公司，广东珠海　519070
2. 清华大学电机工程与应用电子技术系，北京　100084

收稿日期:2024-12-25 录用日期:2025-03-25 发布日期:2025-04-23 出版日期:2025-04-28
作者简介:
任鹏（1978），男，通信作者，高级工程师，从事能源信息及能源控制相关技术研究与产品开发，E-mail：3064822798@qq.com
赵志刚（1981），男，从事直流化及能源互联网相关技术研究，E-mail：travois.zhao@163.com
高洪超（1990），男，博士，从事虚拟电厂相关技术研究，E-mail：hcgaoth@tsinghua.edu.cn
文武（1976），男，硕士，从事能源信息相关技术研究，E-mail：SCZY_WW@163.com
姜颖异（1987），男，硕士，从事光伏空调相关技术研究，E-mail：jiangyingyi1987@qq.com
基金资助:
国家重点研发计划资助项目（建筑机电设备直流化产品研制与示范，2022YFC3802503）。

Weak Connection Regulation Technology for Source-Storage-Load Collaborative Microgrids Based on Direct Power Control

REN Peng¹(), ZHAO Zhigang¹^,²(), GAO Hongchao²(), WEN Wu¹(), JIANG Yingyi¹()

1. GREE Electric Appliances Inc, Zhuhai 519070, China
2. Department of Electrical Engineering, Tsinghua University, Beijing 100084, China

Received:2024-12-25 Accepted:2025-03-25 Online:2025-04-23 Published:2025-04-28
Supported by:
This work is supported by the National Key Research and Development Program of China (R&D and Demonstration of DC Electromechanical Equipments in PEDF Building, No.2022YFC3802503).

摘要/Abstract

摘要：

分布式能源发展使建筑转型为集发储用于一身的新型能源综合体，其光伏发电和设备用电的波动性、随机性导致电网和区域供需不平衡，务须将区域源储网荷进行优化配置，以提升区域用电效率，挖掘可调节潜力，使其能够快速调节响应。为此，搭建用户侧源储网荷直流供用电系统，通过分析系统各设备特性，提出功率直控型柔性调控算法，并在珠海格力电器光伏未来屋进行了实际验证。研究区域直流供用电和柔性调控技术，分析了空调、储能、光伏等柔性特征，验证了功率直控型柔性调控算法和评价指标。从测试效果来看，该系统可以实时响应快速调节，从而提升能源利用效率，降低网侧配额，实现了光伏的本地消纳。

关键词: 源储网荷直流系统, 柔性负荷, 功率直控型, 柔性调控, 能源配置

Abstract:

The development of distributed energy has transformed buildings into new energy complexes integrating generation, storage, and consumption. However, the fluctuation and randomness of photovoltaic power generation and equipment power consumption leads to the grid and regional supply and demand imbalance. So it is necessary to optimize the configuration of the regional source-storage-grid-load to enhance the efficiency of the regional power consumption and tap into the adjustable potential, achieving fast response and regulation. This paper built a user-side source-storage-grid-load DC power supply system, analyzed the characteristics of each device of the system, proposed a power direct-control flexible regulation algorithm, and conducted verification in the PV future houses of Zhuhai Gree Electric Appliances. The paper also studied the regional DC power supply and flexible regulation technology, analyzed the flexible characteristics of air conditioners, energy storage, photovoltaic, etc., and verified the power direct-control flexible regulation algorithm and evaluation indexes. From the effect of testing and verification, the whole system enables real-time response and rapid adjustment, thus improving the energy utilization efficiency, reducing the grid-side quota and realizing the local consumption of PV.

Key words: source-storage-grid-load DC system, flexible load, power direct control type, flexible regulation, energy configuration

任鹏, 赵志刚, 高洪超, 文武, 姜颖异. 基于功率直控的源储荷协同微电网的弱连接调控技术[J]. 中国电力, 2025, 58(4): 13-20.

REN Peng, ZHAO Zhigang, GAO Hongchao, WEN Wu, JIANG Yingyi. Weak Connection Regulation Technology for Source-Storage-Load Collaborative Microgrids Based on Direct Power Control[J]. Electric Power, 2025, 58(4): 13-20.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202412093

https://www.electricpower.com.cn/CN/Y2025/V58/I4/13

图/表 9

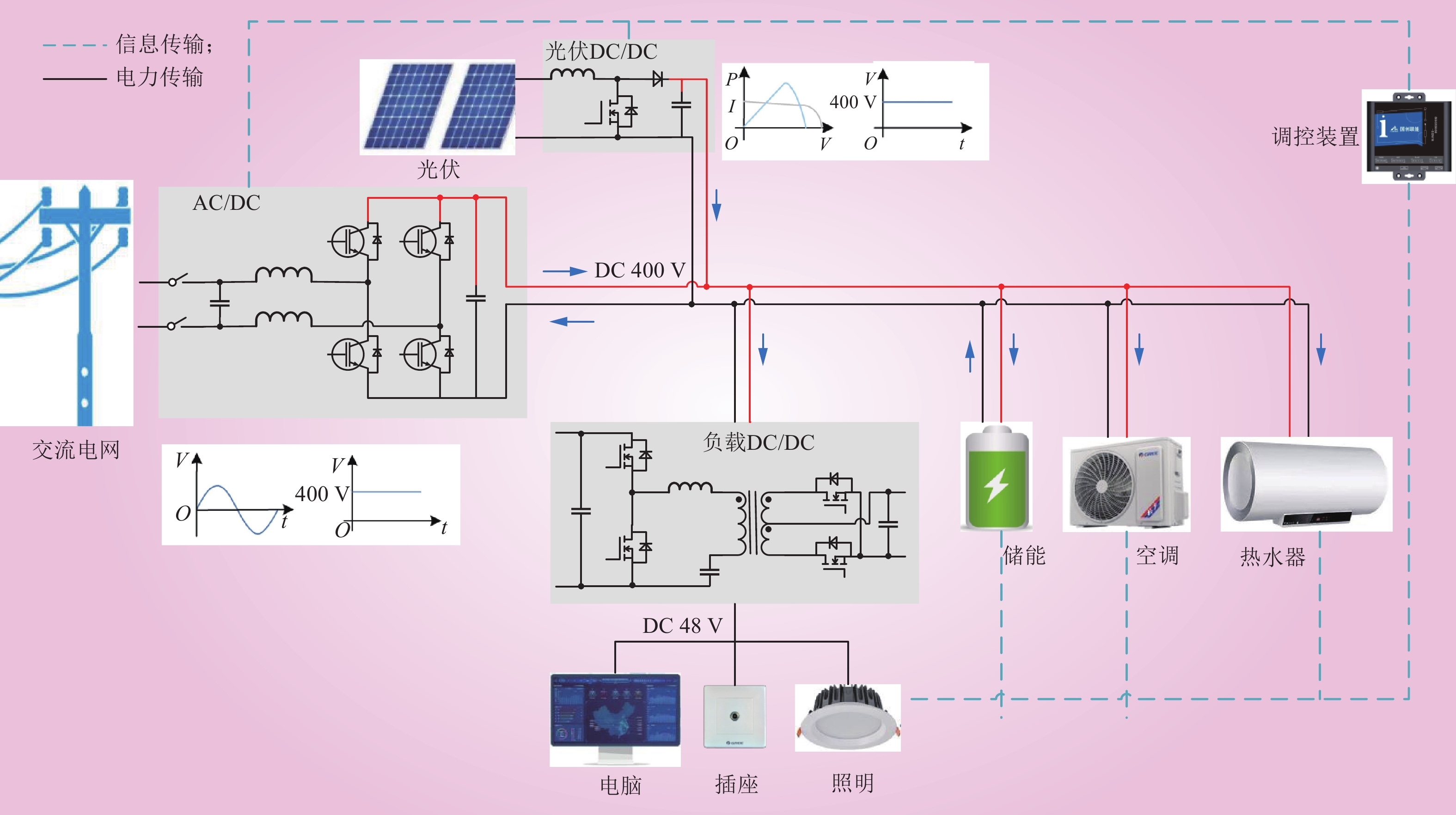

图 1 区域源储网荷直流调控系统配置示意

Fig.1 Schematic diagram of regional source-storage grid-load DC control system configuration

表 1 负荷分类

Table 1 Classification of flexible loads

类型		含义
基础型负荷		基础保障类负荷
环境型负荷		满足生活、工作、生产等环境保障类负荷
功能型负荷		满足生活、工作、生产等必须功能负荷
舒适型负荷		改善类负荷

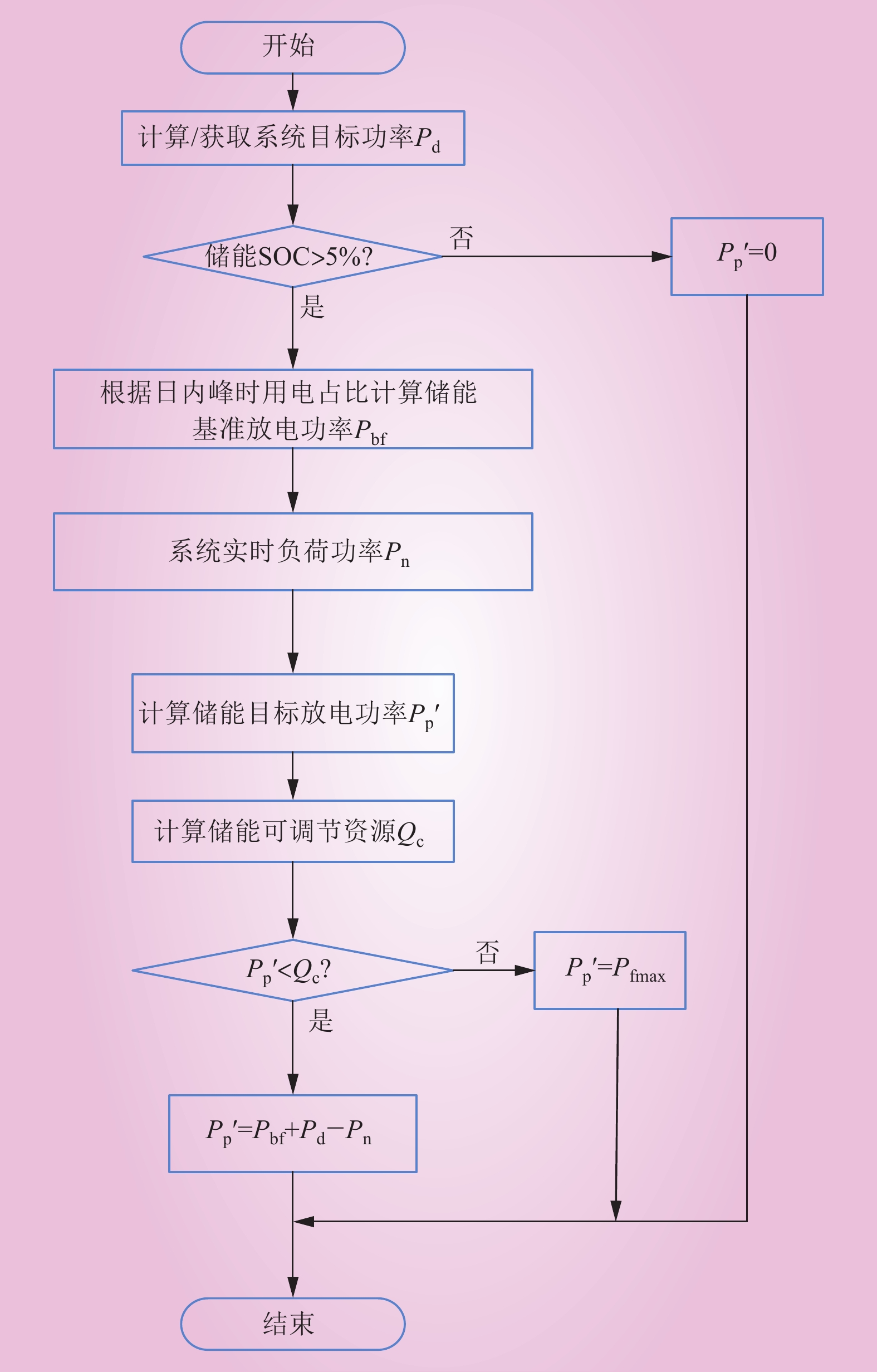

图 2 储能调控算法逻辑

Fig.2 Energy storage regulation algorithm logic

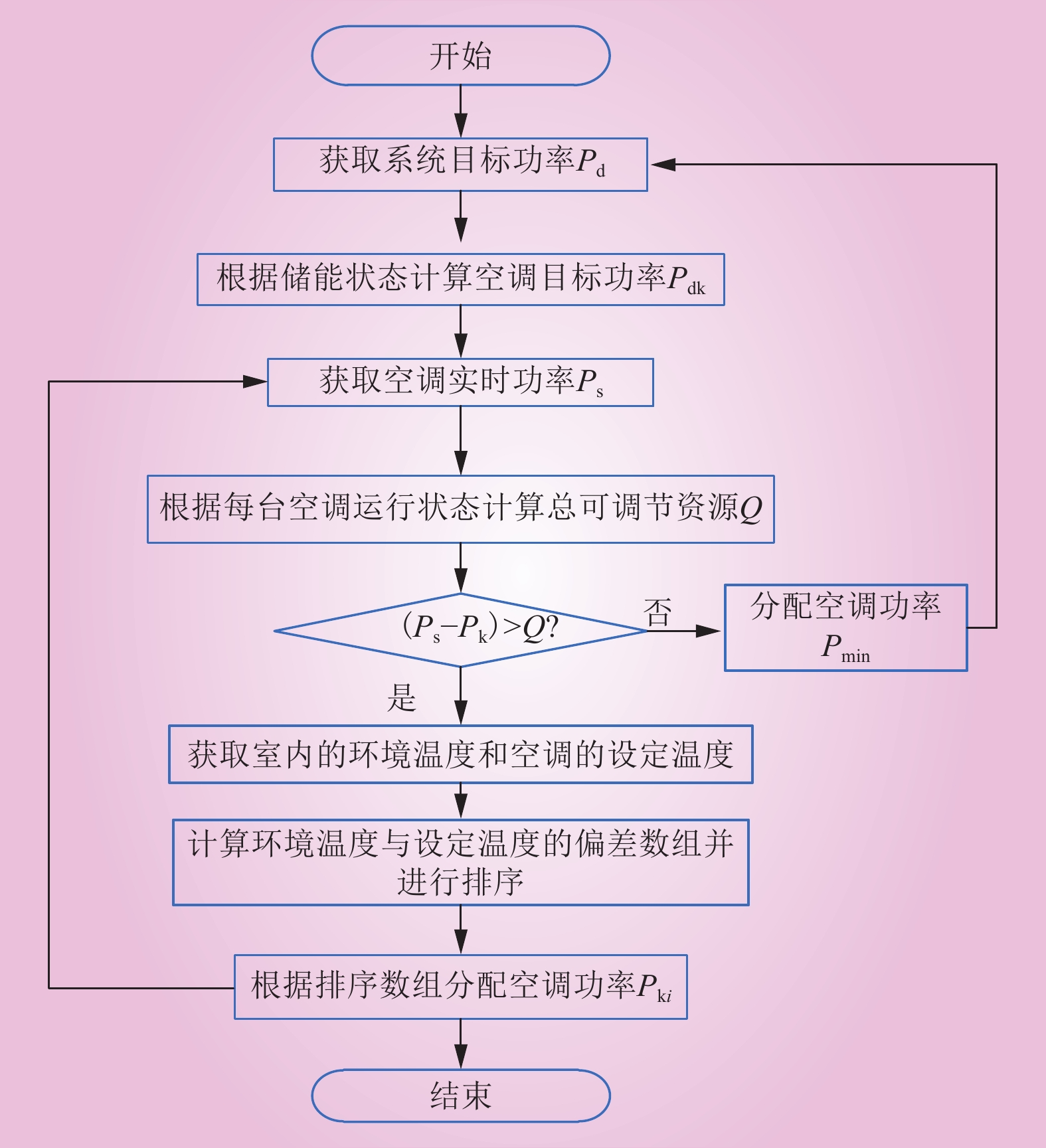

图 3 空调调控算法逻辑

Fig.3 The air conditioner regulation algorithm logic

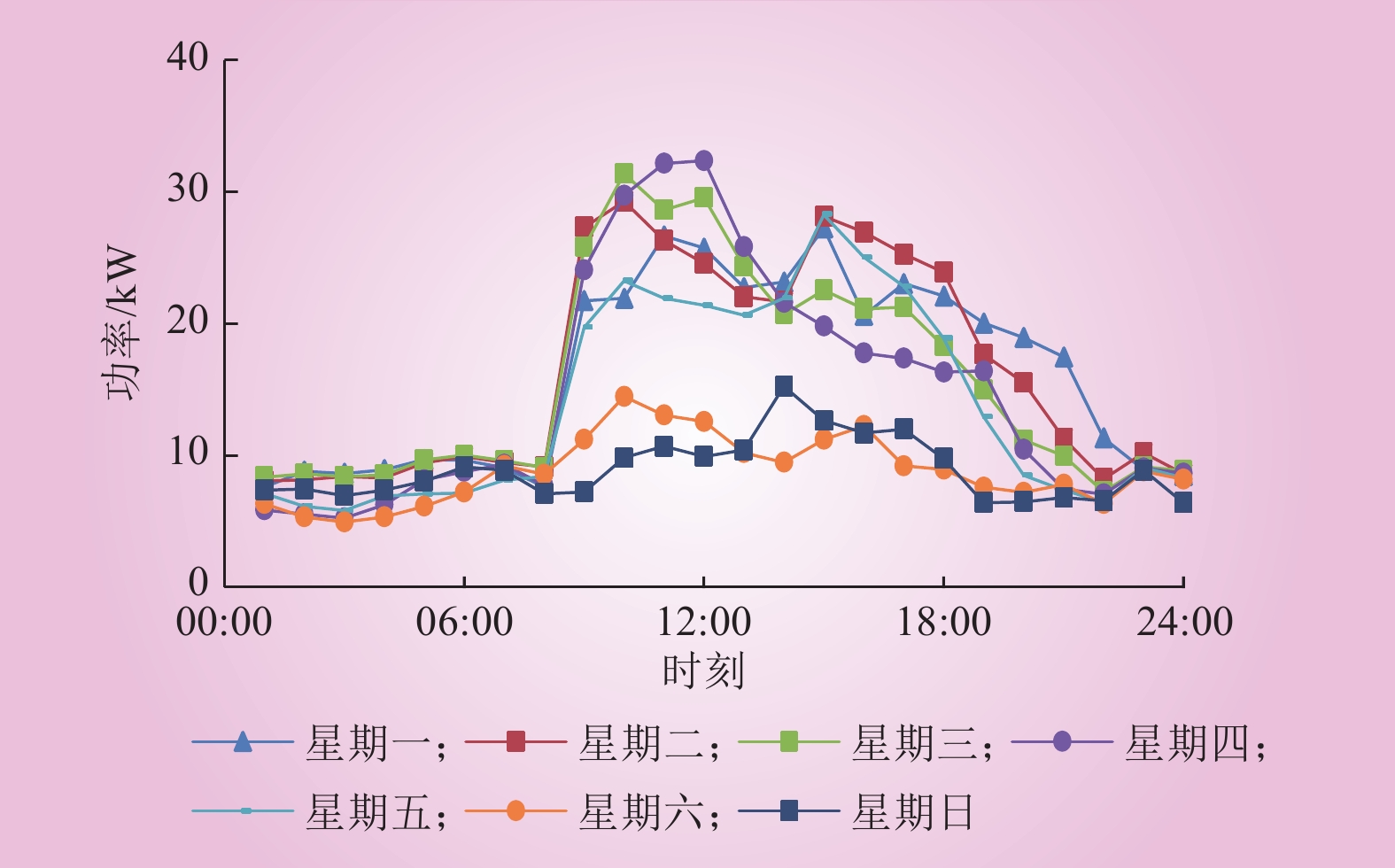

图 4 区域办公场景周数据曲线

Fig.4 Weekly data profile of regional office scenarios

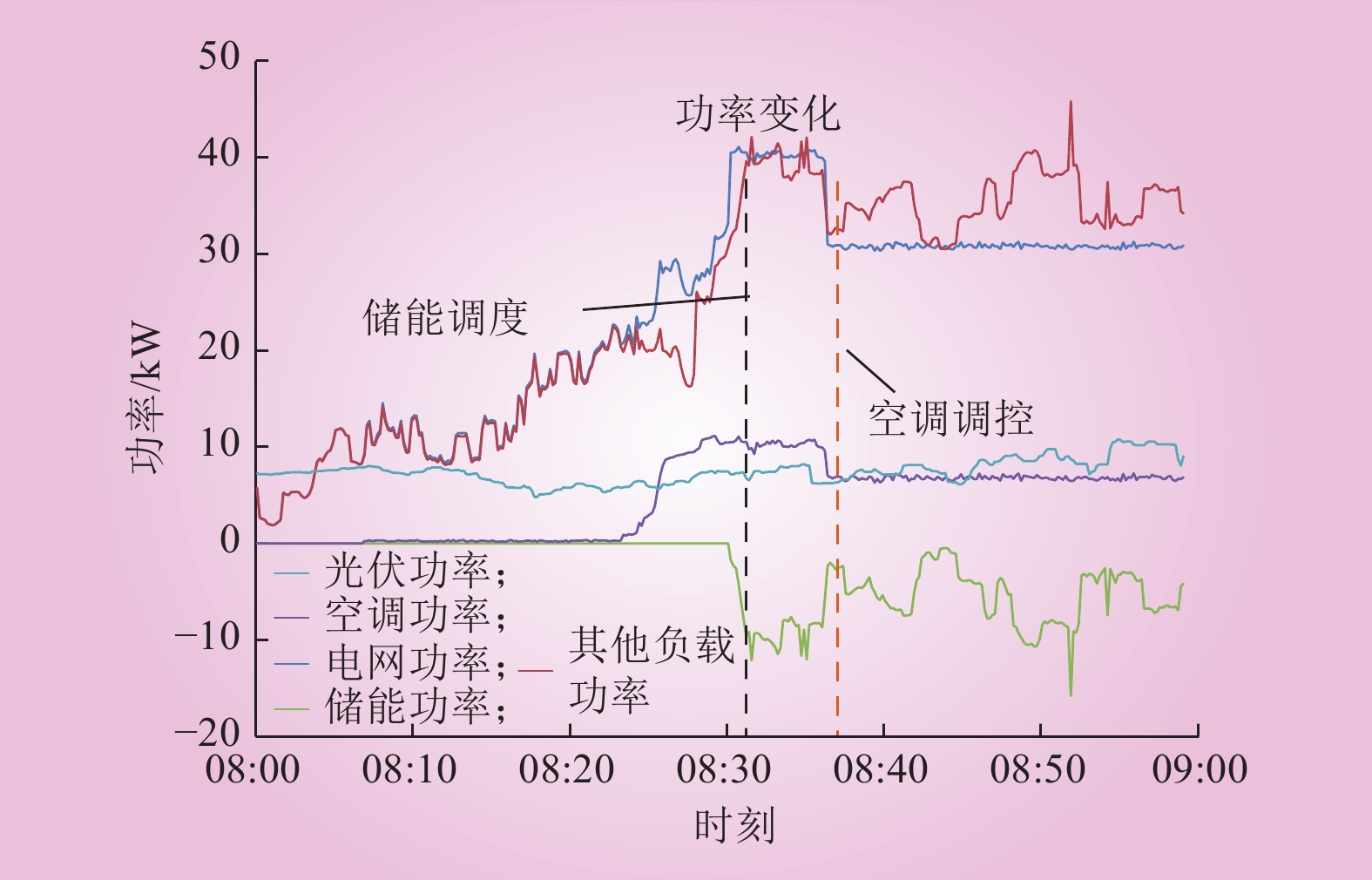

图 5 区域办公场景功率变化曲线

Fig.5 Power variation curve of regional office scenarios

表 2 调控效果分析

Table 2 Analysis of regulatory effects

评价指标	调控前	调控后
自给自足率	0.0900	0.2200
峰平比	5.55	1.72
峰时用电占比	0.3700	0.3000

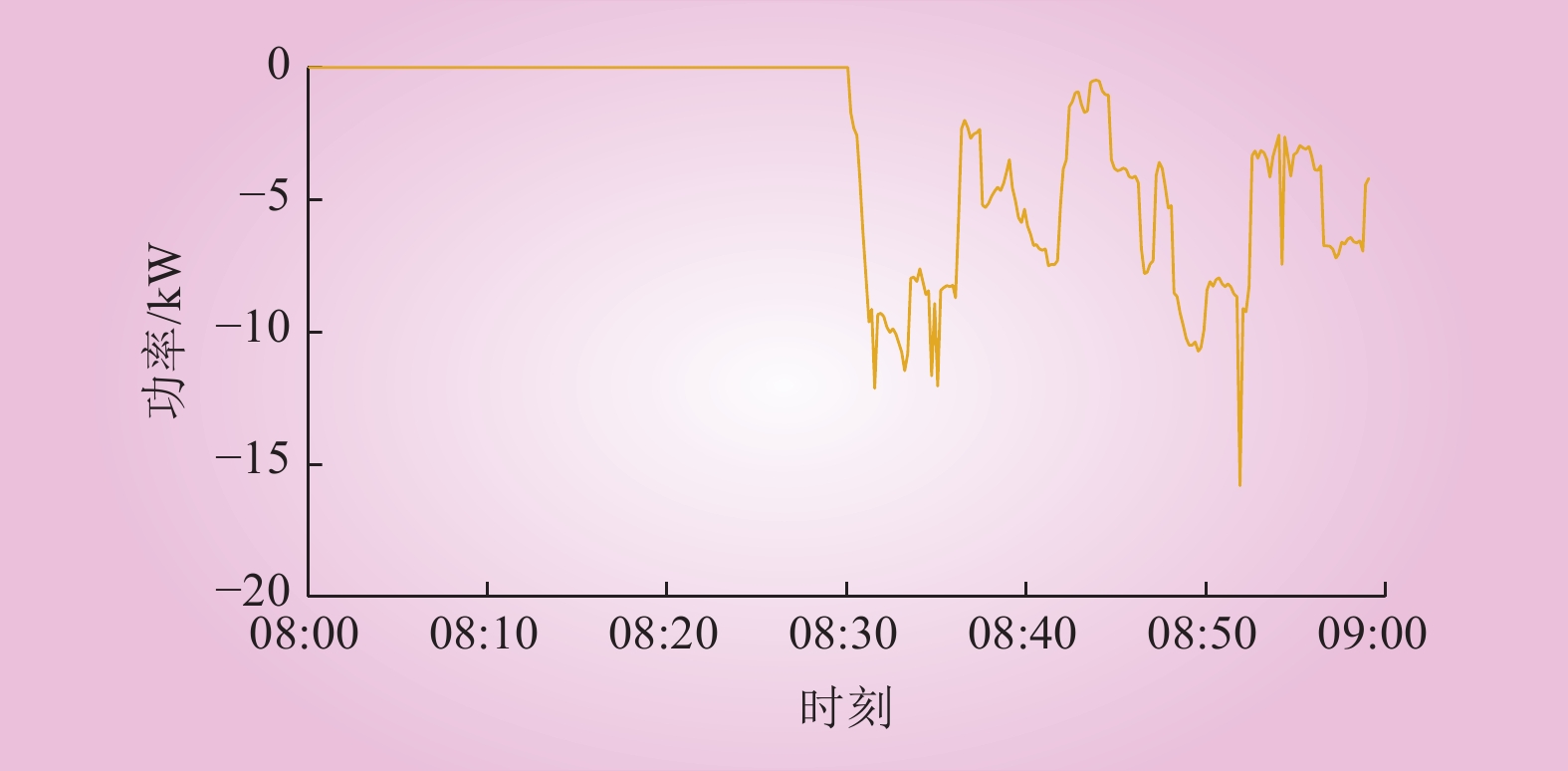

图 6 储能调控

Fig.6 Energy storage regulation

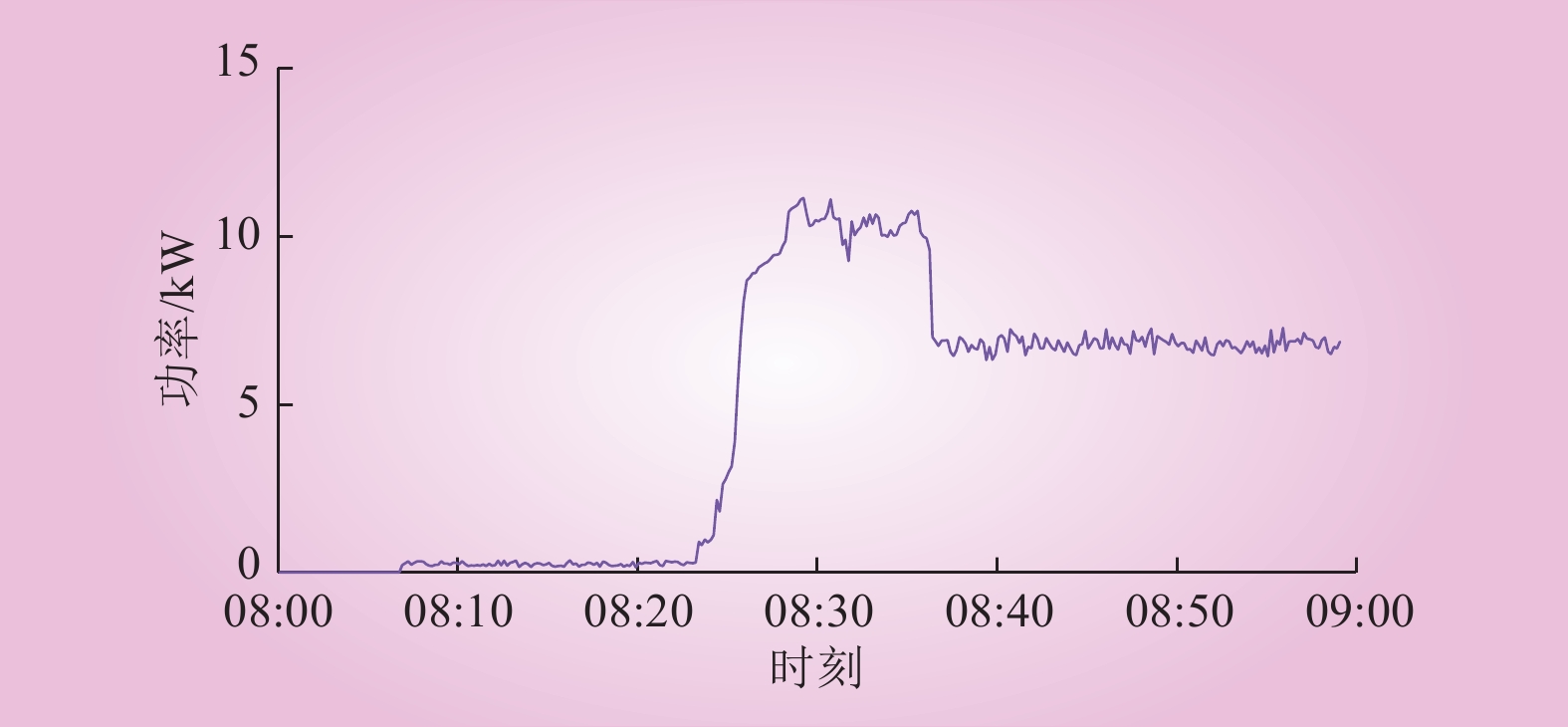

图 7 空调调控

Fig.7 Air conditioner regulation power

参考文献 25
