新能源高渗透配电网柔性多状态开关的多目标优化控制策略

刘文军¹^,²(), 董伟杰³(), 陈远扬⁴, 何书耘¹^,², 陈剑¹^,², 贾东强⁵

1. 国网湖南省电力有限公司经济技术研究院，湖南长沙　410007
2. 能源互联网供需运营湖南省重点实验室，湖南长沙　410007
3. 北京信息科技大学机电工程学院，北京　100092
4. 国网湖南省电力有限公司，湖南长沙　410004
5. 国网北京市电力公司，北京　100031

收稿日期:2024-05-09 出版日期:2025-01-28 发布日期:2025-01-23
作者简介:刘文军（1986—），男，高级工程师，从事配电台区柔性互联、微电网等研究，E-mail：wenjunliu1346@163.com
董伟杰（1982—），男，通信作者，博士，副教授，从事分布式电源并网技术、微电网等研究，E-mail：dongweijie@bistu.edu.cn
基金资助:
国家自然科学基金资助项目（52237008）；国网湖南省电力有限公司科技项目（5216A222000S）。

Multi-objective Optimization Control Strategy for Soft Open Point in Distribution Network with High Penetration of DG

Wenjun LIU¹^,²(), Weijie DONG³(), Yuanyang CHEN⁴, Shuyun HE¹^,², Jian CHEN¹^,², Dongqiang JIA⁵

1. State Grid Hunan Electric Power Company Limited Economic & Technical Research Institute, Changsha 410007, China
2. Hunan Key Laboratory of Energy Internet Supply-demand and Operation, Changsha 410007, China
3. Beijing University of Information Technology, College of Mechanical and Electrical Engineering, Beijing 100192, China
4. State Grid Hunan Electric Power Company Limited, Changsha 410004, China
5. State Grid Beijing Electric Power Company, Beijing 100031, China

Received:2024-05-09 Online:2025-01-28 Published:2025-01-23
Supported by:
This work is supported by National Natural Science Foundation of China (No.52237008), Science and Technology Project of State Grid Hunan Electric Power Co., Ltd. (No.5216A222000S).

摘要/Abstract

摘要：

利用柔性多状态开关（soft open point，SOP）提升配电网的分布式能源（distributed generation，DG）消纳能力，提出了配电台区SOP的多目标优化控制策略。通过分析配电网SOP的接入模式，考虑其在分布式电源消纳与削峰填谷的作用，构建了分布式能源日消纳量最大、控制成本最低和馈线日净负荷偏差最小的多目标模型。以改进的配电网算例进行仿真对比验证。结果表明：SOP接入有利于提升新能源消纳，并实现负载均衡。

关键词: 柔性多状态开关, 配电台区, 分布估计, 多目标优化

Abstract:

A multi-objective optimization control strategy for distribution station SOP is proposed to enhance the distributed generation (DG) consumption capability of the distribution network by utilizing multi soft open point (SOP). By analyzing the access mode of SOP in the distribution network and considering its role in distributed power consumption and peak shaving, a multi-objective model was constructed to maximize the daily consumption of distributed energy, minimize control costs, and minimize the deviation of daily net load of feeder lines. Conduct simulation comparison and verification using an improved distribution network example. The results indicate that SOP integration is beneficial for improving the consumption of new energy and achieving load balancing.

Key words: soft open point, distribution network, distributed estimation, multi-objective optimization

刘文军, 董伟杰, 陈远扬, 何书耘, 陈剑, 贾东强. 新能源高渗透配电网柔性多状态开关的多目标优化控制策略[J]. 中国电力, 2025, 58(1): 85-92.

Wenjun LIU, Weijie DONG, Yuanyang CHEN, Shuyun HE, Jian CHEN, Dongqiang JIA. Multi-objective Optimization Control Strategy for Soft Open Point in Distribution Network with High Penetration of DG[J]. Electric Power, 2025, 58(1): 85-92.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405027

https://www.electricpower.com.cn/CN/Y2025/V58/I1/85

图/表 13

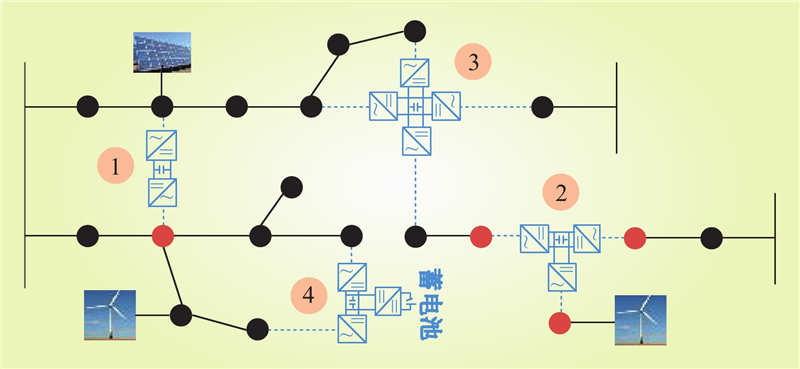

图 1 柔性多状态开关类型和接入位置

Fig.1 The type and location for SOP

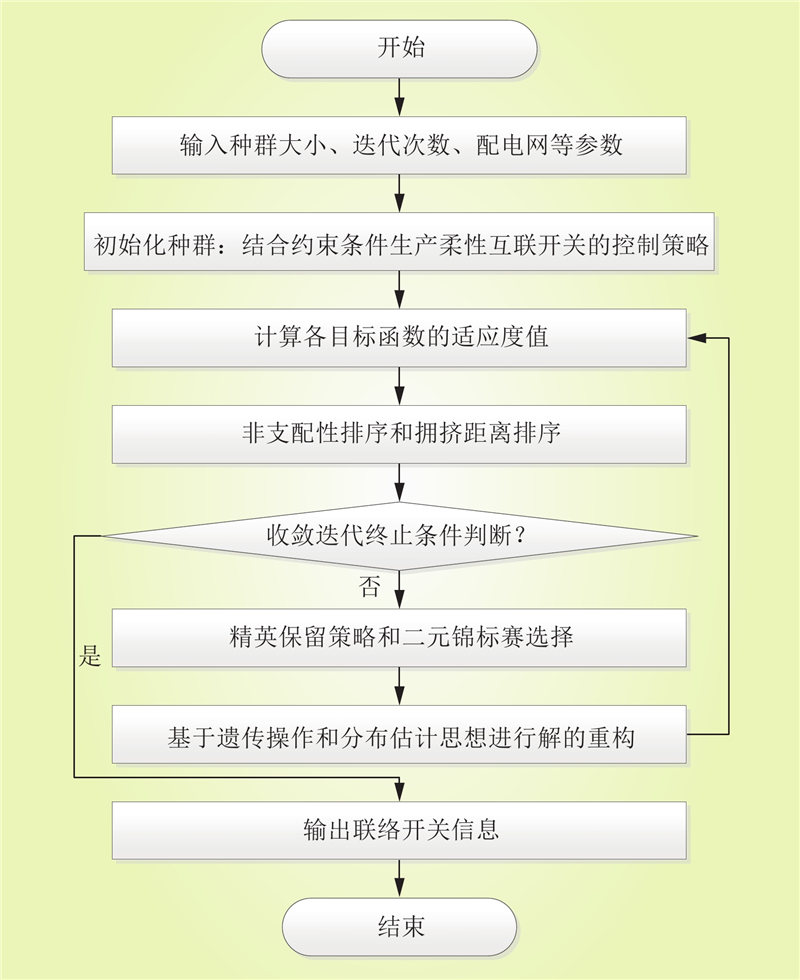

图 2 引入分布估计的NSGⅡ优化流程

Fig.2 Flowchart for the NSGⅡ with distributed emulation

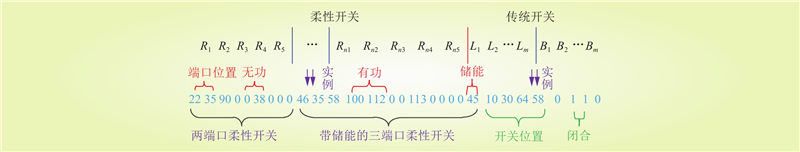

图 3 分段式种群编码

Fig.3 The segmented coding

图 4 柔性配电网拓扑结构

Fig.4 Topological structure for flexible distribution network

表 1 分布式电源信息

Table 1 Information for distributed resource

分布式电源	位置	容量/(kV·A)	有功功率/kW
光伏	26	500	450
光伏	71	430	350
风电	32	400	360
风电	38	380	360
风电	6	420	380
电池	16	600	480
电池	33	500	450
电池	34	500	450
电池	50	400	350
电池	72	500	450
燃气轮机	22	500	450

图 5 光伏出力

Fig.5 The output of photovoltaic power

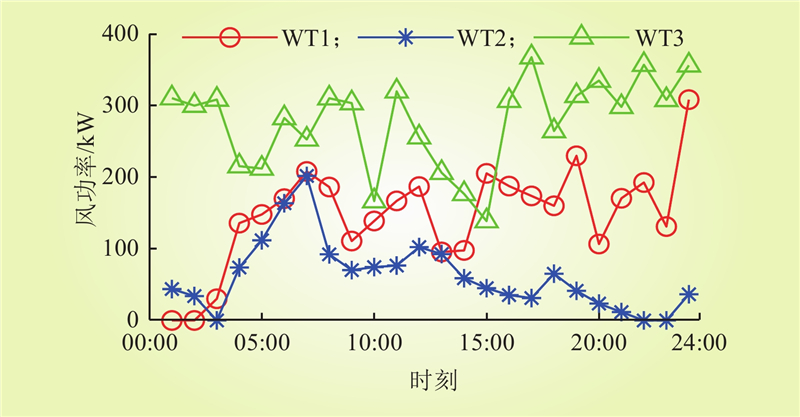

图 6 风电出力

Fig.6 The output of wind power

图 7 24小时负荷分布曲线

Fig.7 24-hour distribution curve for load

表 2 部分传统开关状态

Table 2 Some pareto frontier solution

方案	重构时段	断开开关
1	00:00	14-15、23-24、42-43、51-52、65-66
	09:00	12-13、29-30、42-43、46-54、59-60
	18:00	23-24、30-31、41-42、40-51、46-54
2	00:00	12-13、25-26、29-30、40-41、66-67
	09:00	13-14、30-31、41-42、46-54、57-65
	18:00	23-24、30-31、40-51、42-43、65-66
3	00:00	12-13、26-27、30-31、42-43、46-54
	09:00	23-24、31-32、40-51、41-42、45-46
	18:00	26-27、30-31、42-43、46-54、58-59
4	00:00	12-13、23-24、30-31、40-51、65-66
	09:00	13-14、23-24、39-40、40-41、45-46
	18:00	25-26、32-33、42-43、51-52、46-54

表 3 目标函数值

Table 3 objective function

方案	分布式电源消纳量/(MW·h)	日净负荷偏差/MW²	网损/ (kW·h)
SOP加入前	18.529	1.476	3310.25
A1	21.826	1.072	2414.61
A2	20.763	0.814	2386.38
A3	19.850	1.181	2363.05
A4	20.947	0.938	2391.13

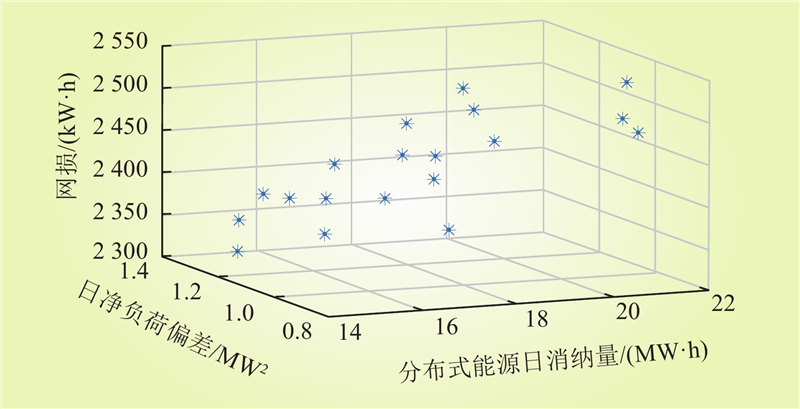

图 8 多目标Pareto解集
