一种增强稳定性的储能变流器线性自抗扰控制参数整定方法

doi:10.11930/j.issn.1004-9649.202402009

中国电力 ›› 2024, Vol. 57 ›› Issue (10): 25-35.DOI: 10.11930/j.issn.1004-9649.202402009

• 面向现代智慧配电网的二次系统规划 • 上一篇下一篇

一种增强稳定性的储能变流器线性自抗扰控制参数整定方法

李世龙¹(), 李龙江², 刘欣博³(), 张华¹()

1. 国网四川省电力公司电力科学研究院，四川成都　610000
2. 国网甘孜电力有限责任公司，四川甘孜藏族自治州　626000
3. 清华四川能源互联网研究院，四川成都　610213

收稿日期:2024-02-03 出版日期:2024-10-28 发布日期:2024-10-25
作者简介:李世龙（1989—），男，高级工程师，博士，从事配电网运行与控制技术研究，E-mail：981163632@qq.com
刘欣博（1982—），女，通信作者，博士，副教授，从事微电网动态性能及稳定性分析研究，E-mail：66136040@qq.com
张华（1995—），男，高级工程师，硕士研究生，从事电力系统安全稳定分析与控制研究，E-mail：398611352@qq.com
基金资助:
国网四川省电力公司科技项目（分布式资源灵活构网与多模式运行关键技术，521997220031）。

Linear Active Disturbance Rejection Control Parameter Tuning Method for Energy Storage Converter with Enhanced Stability

Shilong LI¹(), Longjiang LI², Xinbo LIU³(), Hua ZHANG¹()

1. State Grid Sichuan Electric Power Research Institute, Chengdu 610000, China.
2. State Grid Garze Electric Power Co., Ltd., Garze Tibetan Autonomous Prefecture 626000, China
3. Sichuan Energy Internet Research Institute, Tsinghua University, Chengdu 610213, China

Received:2024-02-03 Online:2024-10-28 Published:2024-10-25
Supported by:
This work is supported by Science and Technology Project of State Grid Sichuan Electric Power Company (Key Technologies of Flexible Network Construction and Multi-mode Operation of Distributed Resources, No.521997220031).

摘要/Abstract

摘要：

直流微电网中，为了补偿恒功率负载的负阻抗特性，须加快混合储能系统响应速度，充分发挥其性能。针对微电网的储能变流器，提出了一种基于混合势函数理论的线性自抗扰控制参数整定方法。首先，推导储能变流器的自抗扰传递函数。接着，对含混合储能系统、恒功率负载的直流微电网进行稳定性分析，得到考虑扩张状态观测器带宽ω₀的混合势函数判据，为储能变流器自抗扰控制的线性扩张状态观测器带宽和状态误差反馈控制参数的整定提供了重要依据。实验结果表明，所提方法响应速度快，抗扰性强，能够补偿恒功率负载的负阻抗特性，保障了直流微电网系统的稳定性。

关键词: 直流微电网, 储能变流器, 线性自抗扰, 参数整定, 混合势函数

Abstract:

In order to compensate for the negative impedance characteristics of constant power load in the direct current (DC) microgrid, it is necessary to speed up the response speed of the hybrid energy storage system and give full play to its performance. This paper proposed a linear active disturbance rejection control parameter tuning method based on the mixed potential function theory for the energy storage converter of the microgrid. Firstly, the active disturbance rejection transfer function of the energy storage converter was derived. Then, the stability of the DC microgrid with a hybrid energy storage system and constant power load was analyzed, and the mixed potential function criterion considering the bandwidth ω₀ of the extended state observer was derived, which provided an important basis for tuning the linear extended state observer bandwidth and the state error feedback control parameter of the energy storage converter with active disturbance rejection control. Experimental results show that the proposed method has a fast response speed and strong disturbance rejection ability, which ensures the stable operation of the DC microgrid system.

Key words: DC microgrid, energy storage converter, linear active disturbance rejection, parameter tuning, mixed potential function

李世龙, 李龙江, 刘欣博, 张华. 一种增强稳定性的储能变流器线性自抗扰控制参数整定方法[J]. 中国电力, 2024, 57(10): 25-35.

Shilong LI, Longjiang LI, Xinbo LIU, Hua ZHANG. Linear Active Disturbance Rejection Control Parameter Tuning Method for Energy Storage Converter with Enhanced Stability[J]. Electric Power, 2024, 57(10): 25-35.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202402009

https://www.electricpower.com.cn/CN/Y2024/V57/I10/25

图/表 17

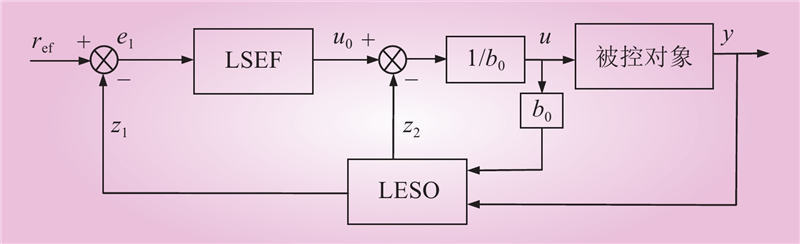

图 1 线性自抗扰结构

Fig.1 Structure of linear active disturbance rejection

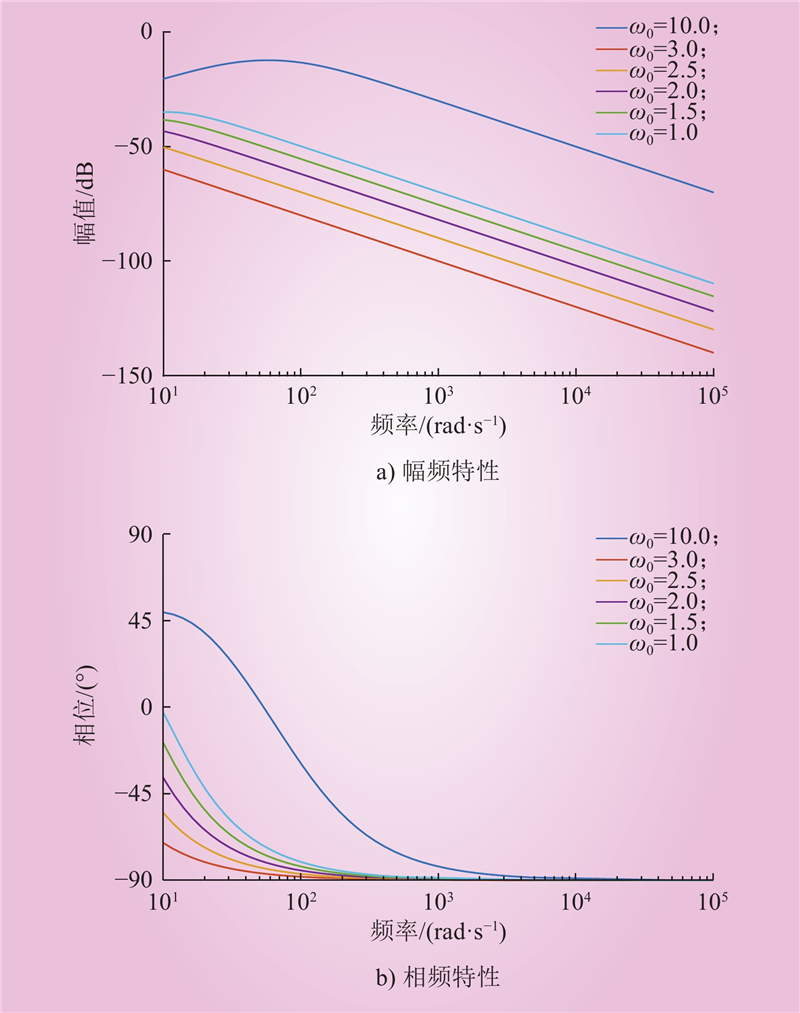

图 2 传递函数伯德图

Fig.2 Bode plot of transfer function

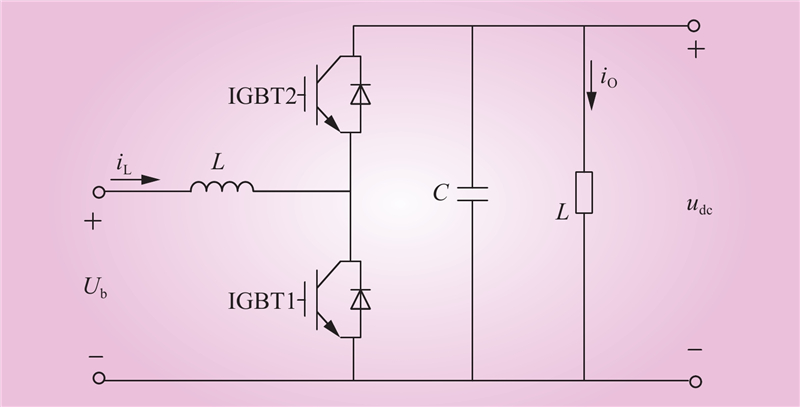

图 3 双向DC-DC变换器的结构

Fig.3 Structure of bidirectional DC-DC converter

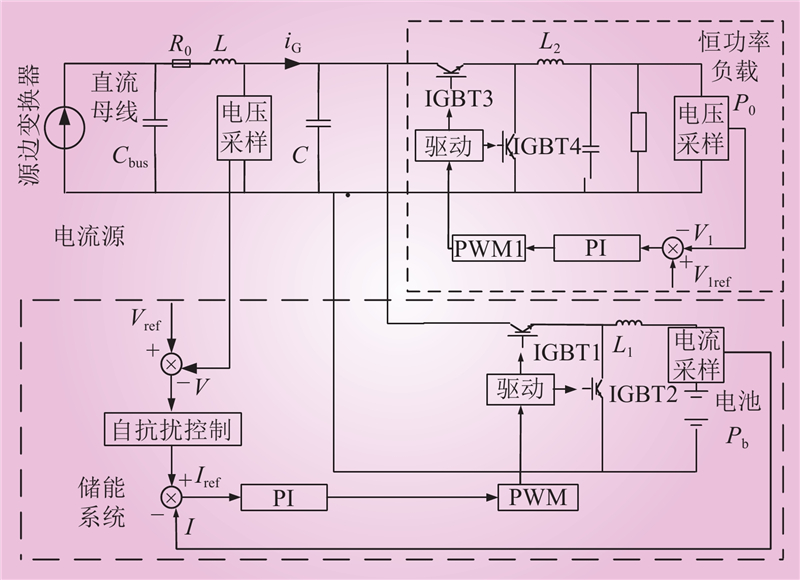

图 4 直流微电网系统结构和控制图

Fig.4 DC microgrid system structure and control diagrams

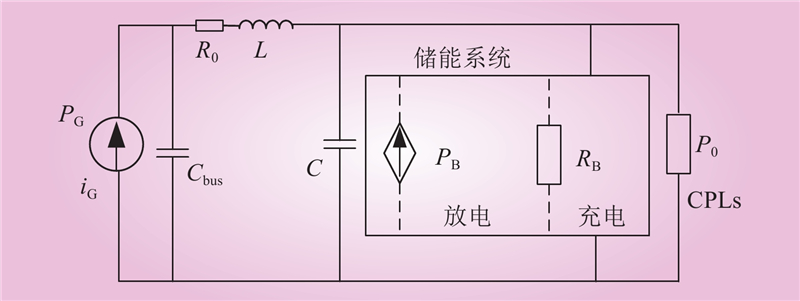

图 5 直流微电网系统的等效模型

Fig.5 Equivalent model of DC microgrid system

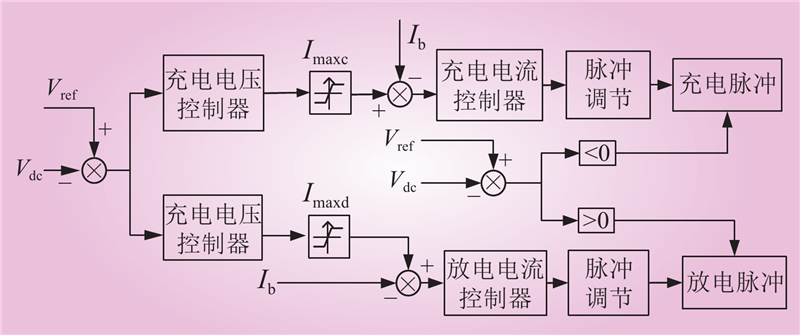

图 6 储能变流器的控制结构

Fig.6 Control structure of energy storage converter

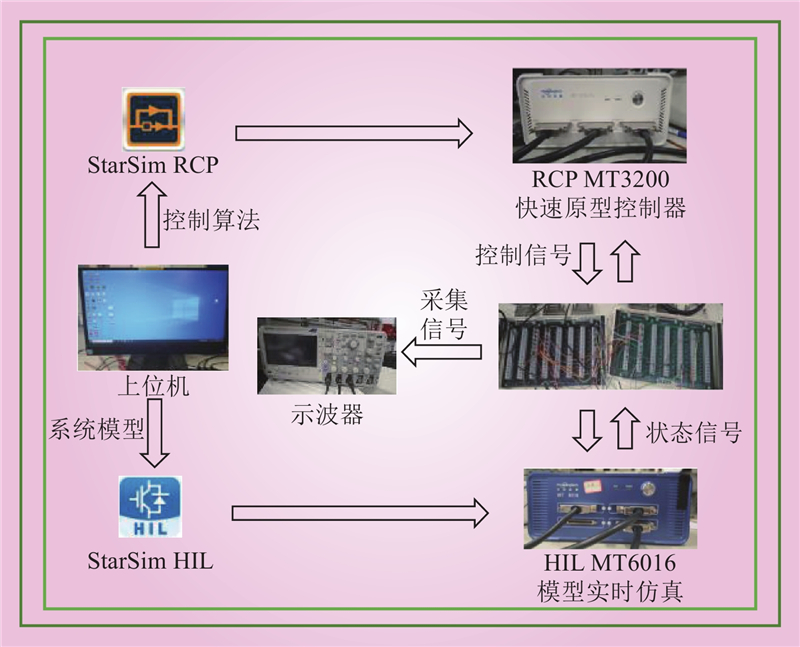

图 7 实验平台

Fig.7 Experimental platforms

表 1 直流微电网实验系统参数

Table 1 Parameters of DC microgrid experiment system

参数	充电	放电
直流母线电压/V	400	400
蓄电池端电压/V	200	200
微源电流/A	6	6
等效内阻/Ω	0.01	0.01
滤波电感/mH	1	1
滤波电容/μF	1000	1000
母线电容/μF	1000	1000
恒功率负载P₁, P₂/W	2000	4000

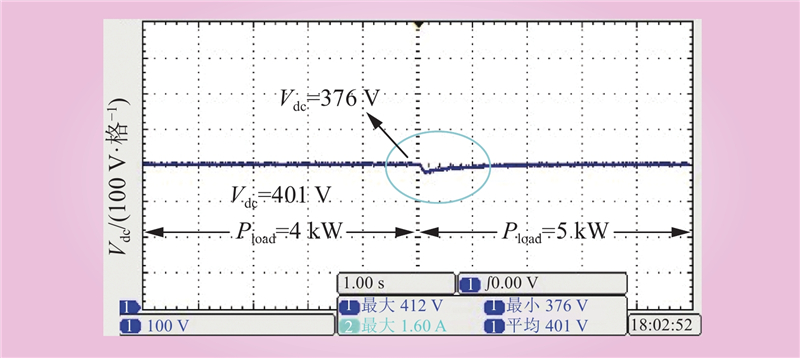

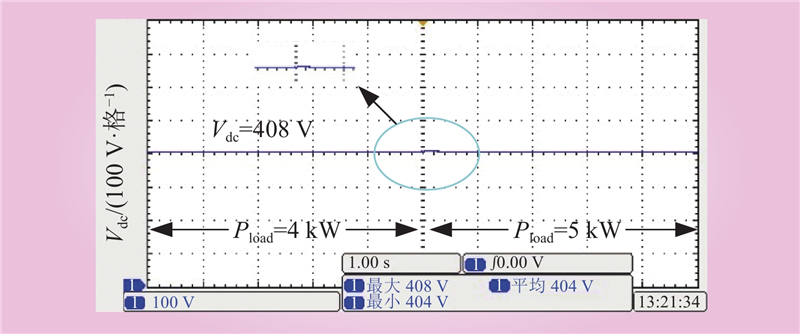

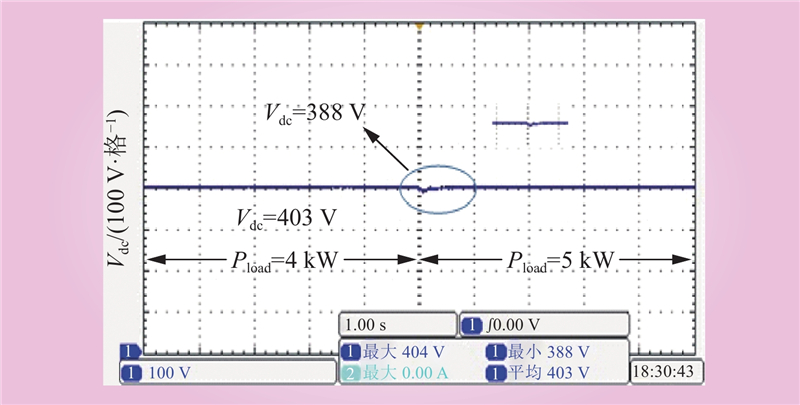

图 8 满足放电条件下自抗扰控制下直流母线电压波形

Fig.8 DC bus voltage waveforms with active disturbance rejection control satisfying discharge conditions

图 9 满足放电条件下PI控制下直流母线电压波形

Fig.9 DC bus voltage waveforms with PI control satisfying discharge conditions

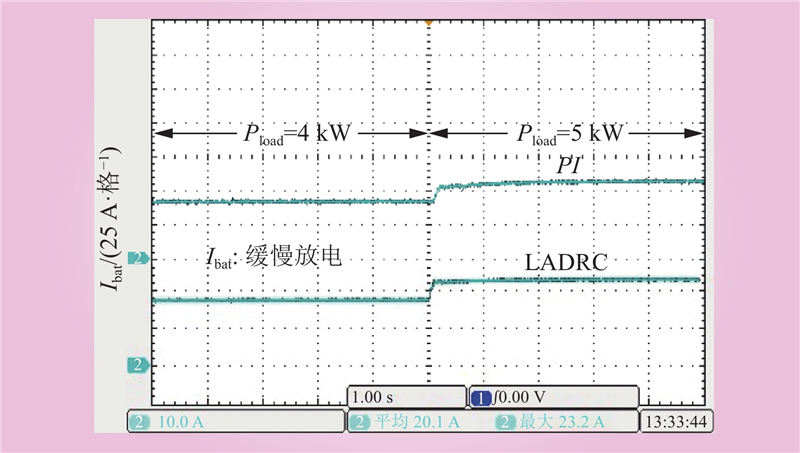

图 10 满足放电条件下自抗扰和PI控制下蓄电池电流波形

Fig.10 Battery current waveforms with active disturbance rejection and PI control satisfying discharge conditions

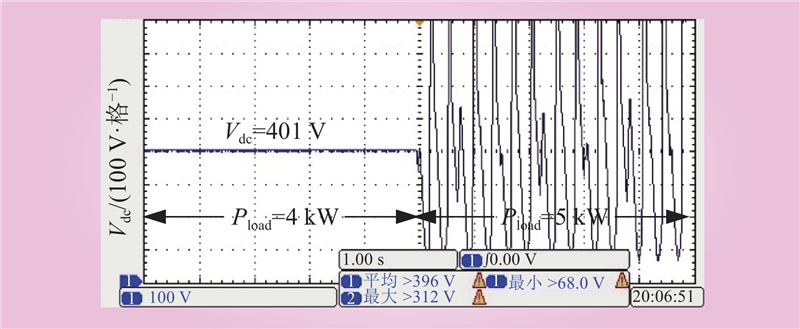

图 11 不满足放电条件的自抗扰控制下直流母线电压波形

Fig.11 DC bus voltage waveforms with active disturbance rejection without satisfying discharge conditions

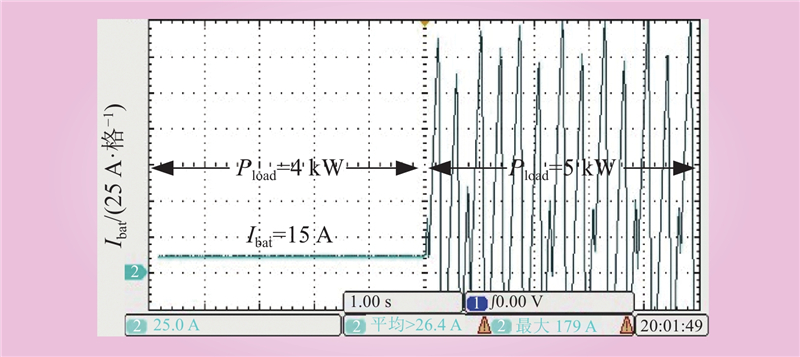

图 12 不满足放电条件的自抗扰控制下蓄电池电流波形

Fig.12 Battery current waveforms with active disturbance rejection control without satisfying discharge conditions

图 13 满足充电条件的自抗扰控制下直流母线电压波形

Fig.13 DC bus voltage waveforms with active disturbance rejection control satisfying charging conditions

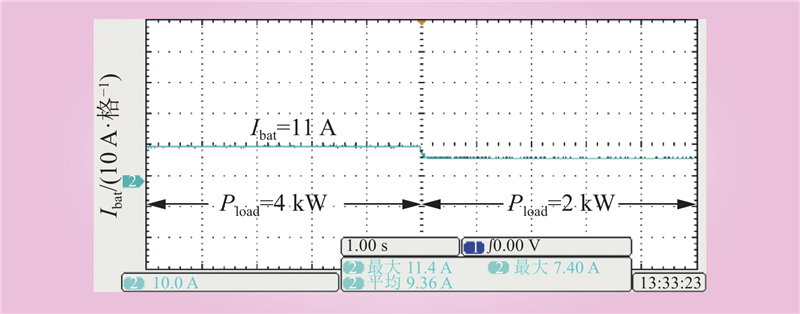

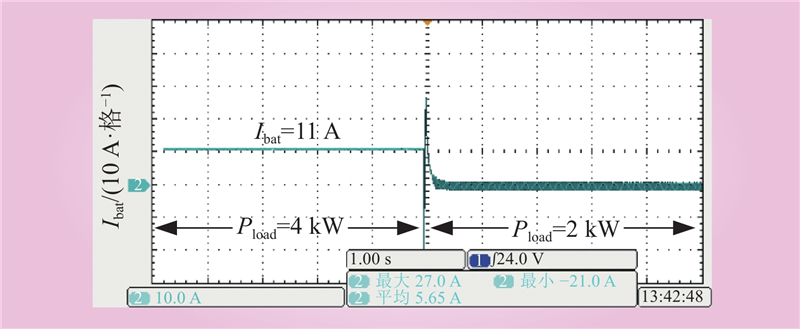

图 14 满足充电条件的自抗扰控制下蓄电池电流波形

Fig.14 Battery current waveforms with active disturbance rejection control satisfying charging conditions

图 15 不满足充电条件的自抗扰控制下直流母线电压波形

Fig.15 DC bus voltage waveforms with active disturbance rejection control without satisfying charging conditions

图 16 不满足充电条件的自抗扰控制下蓄电池电流波形

Fig.16 Battery current waveforms with active disturbance rejection control without satisfying charging conditions

参考文献 21

1	王激华, 叶夏明, 秦如意, 等. 基于指数型下垂控制的氢电混合储能微网协调控制策略研究[J]. 中国电力, 2023, 56 (7): 43- 53.
	WANG Jihua, YE Xiaming, QIN Ruyi, et al. Research on coordinated control strategy of hydrogen-electric hybrid energy storage microgrid based on exponential-function-based droop control[J]. Electric Power, 2023, 56 (7): 43- 53.
2	卢子敬, 李子寿, 郭相国, 等. 基于多目标人工蜂鸟算法的电-氢混合储能系统最优配置[J]. 中国电力, 2023, 56 (7): 33- 42.
	LU Zijing, LI Zishou, GUO Xiangguo, et al. Optimal configuration of electricity-hydrogen hybrid energy storage system based on multi-objective artificial hummingbird algorithm[J]. Electric Power, 2023, 56 (7): 33- 42.
3	徐衍会, 徐宜佳. 平抑风电波动的混合储能容量配置及控制策略[J]. 中国电力, 2022, 55 (6): 186- 193.
	XU Yanhui, XU Yijia. Capacity configuration and control strategy of hybrid energy storage to smooth wind power fluctuations[J]. Electric Power, 2022, 55 (6): 186- 193.
4	彭伟款, 郭紫娟, 张先勇, 等. 基于NSGA-Ⅱ和模糊决策的交直流混合微电网多目标优化调度[J]. 广东电力, 2023, 36 (2): 42- 51.
	PENG Weikuan, GUO Zijuan, ZHANG Xianyong, et al. Multi-objective optimal dispatching of AC/DC hybrid microgrid based on NSGA-Ⅱ and fuzzy decision-making[J]. Guangdong Electric Power, 2023, 36 (2): 42- 51.
5	刘建伟, 李学斌, 刘晓鸥. 有源配电网中分布式电源接入与储能配置[J]. 发电技术, 2022, 43 (3): 476- 484.
	LIU Jianwei, LI Xuebin, LIU Xiaoou. Distributed power access and energy storage configuration in active distribution network[J]. Power Generation Technology, 2022, 43 (3): 476- 484.
6	陈景文, 刘嘉欣, 张文倩. 基于一致性算法的直流微网多储能SoC均衡策略[J]. 智慧电力, 2022, 50 (9): 30- 38.
	CHEN Jingwen, LIU Jiaxin, ZHANG Wenqian. State of charge equalization strategy of multi-energy storage in DC microgrid based on consensus algorithm[J]. Smart Power, 2022, 50 (9): 30- 38.
7	陈景文, 周媛, 李晓飞, 等. 光储直流微网混合储能控制策略研究[J]. 智慧电力, 2022, 50 (1): 14- 20,87. DOI
	CHEN Jingwen, ZHOU Yuan, LI Xiaofei, et al. Hybrid energy storage control strategy of optical storage DC microgrid[J]. Smart Power, 2022, 50 (1): 14- 20,87. DOI
8	李武华, 徐驰, 禹红斌, 等. 直流微网系统中混合储能分频协调控制策略[J]. 电工技术学报, 2016, 31 (14): 84- 92. DOI
	LI Wuhua, XU Chi, YU Hongbin, et al. Frequency dividing coordinated control strategy for hybrid energy storage system of DC micro-grid[J]. Transactions of China Electrotechnical Society, 2016, 31 (14): 84- 92. DOI
9	李冰, 李岚, 柴伦, 等. 一种基于限值管理的混合储能系统控制策略[J]. 电气传动, 2019, 49 (11): 92- 96.
	LI Bing, LI Lan, CHAI Lun, et al. A control strategy of hybrid energy storage system based on threshold management[J]. Electric Drive, 2019, 49 (11): 92- 96.
10	谭文娟, 陈燕东, 杨苓, 等. 光储直流微网能量协调控制方法[J]. 电源学报, 2018, 16 (2): 76- 85.
	TAN Wenjuan, CHEN Yandong, YANG Ling, et al. Energy coordinated control method for DC microgrid with photovoltaic[J]. Journal of Power Supply, 2018, 16 (2): 76- 85.
11	张勤进, 孙小童, 刘彦呈, 等. 蓄电池/超级电容混合储能系统协调控制策略[J]. 电源技术, 2020, 44 (9): 1345- 1347, 1365. DOI
	ZHANG Qinjin, SUN Xiaotong, LIU Yancheng, et al. A coordinated control strategy for battery/supercapacitor hybrid energy storage system[J]. Chinese Journal of Power Sources, 2020, 44 (9): 1345- 1347, 1365. DOI
12	孙志伟. 独立光伏储能双向DC/DC变换器滑模控制器研究[D]. 天津: 天津工业大学, 2022.
13	史新涛, 董锋斌, 王凯, 等. 三相电压型逆变器的滑模控制律参数优化设计[J]. 电工技术, 2024, (2): 1- 5.
	SHI Xintao, DONG Fengbin, WANG Kai, et al. Optimization design of law parameters for sliding mode control of three-phase voltage inverters[J]. Electric Engineering, 2024, (2): 1- 5.
14	樊启高, 吕华阳, 毕恺韬, 等. 面向直流储能系统的飞跨电容三电平双向升降压变换器及其模型预测控制策略[J]. 电工技术学报, 2022, 37 (16): 4169- 4179.
	FAN Qigao, LÜ Huayang, BI Kaitao, et al. Flying capacitor three-level bi-directional buck-boost converter and its model predictive control strategy for DC energy storage system[J]. Transactions of China Electrotechnical Society, 2022, 37 (16): 4169- 4179.
15	张泽川. 直流微电网储能变换器模型预测控制策略研究[D]. 西安: 西安理工大学, 2023.
	ZHANG Zechuan. Research on model predictive control strategy of DC microgrid energy storage converter[D]. Xi’an: Xi’an University of Technology, 2023.
16	刘志坚, 李晓磊, 梁宁, 等. 基于前馈自抗扰的光伏微电网混合储能控制策略[J]. 电力建设, 2021, 42 (9): 96- 104. DOI
	LIU Zhijian, LI Xiaolei, LIANG Ning, et al. Control strategy of hybrid energy storage for photovoltaic microgrid applying feedforward active disturbance rejection[J]. Electric Power Construction, 2021, 42 (9): 96- 104. DOI
17	农宝翔, 杨超, 杜刃刃, 等. 基于模糊自抗扰的光伏储能控制策略研究[J]. 电力科学与工程, 2023, 39 (3): 17- 24. DOI
	NONG Baoxiang, YANG Chao, DU Renren, et al. Research on photovoltaic energy storage control strategy based on fuzzy auto disturbance rejection[J]. Electric Power Science and Engineering, 2023, 39 (3): 17- 24. DOI
18	马幼捷, 张超, 周雪松. 基于自抗扰的混合储能系统控制策略[J]. 电源技术, 2023, 47 (1): 122- 126. DOI
	MA Youjie, ZHANG Chao, ZHOU Xuesong. Control strategy of hybrid energy storage system based on active disturbance rejection[J]. Chinese Journal of Power Sources, 2023, 47 (1): 122- 126. DOI
19	马臻, 张恒阳. 基于自抗扰控制器的蓄电池储能参数优化研究[J]. 自动化与仪表, 2022, 37 (7): 7- 10, 15.
	MA Zhen, ZHANG Hengyang. Research on optimization of battery energy storage parameters based on active disturbance rejection controller[J]. Automation & Instrumentation, 2022, 37 (7): 7- 10, 15.
20	周蓉, 韩文杰, 谭文. 线性自抗扰控制的适用性及整定[J]. 控制理论与应用, 2018, 35 (11): 1654- 1662. DOI
	ZHOU Rong, HAN Wenjie, TAN Wen. On applicability and tuning of linear active disturbance rejection control[J]. Control Theory & Applications, 2018, 35 (11): 1654- 1662. DOI
21	边亚伟. 基于储能单元的直流微网系统电压稳定性分析[D]. 北京: 北方工业大学, 2018.
	BIAN Yawei. The voltage stability analysis for CM microgrid system based on energy storage unit[D]. Beijing: North China University of Technology, 2018.
