基于TDE-SO-AWM-GRU的光伏发电功率预测模型

doi:10.11930/j.issn.1004-9649.202401015

摘要/Abstract

摘要：

精确预测光伏发电功率对电网的安全与经济运行具有重要的意义，但因光伏发电具有时序性、间歇性、波动性以及高非线性等特征，难以深度挖掘数据隐含信息。针对此类问题，提出了一种基于结合时变数据增强（time-varying data enhancement，TDE）、蛇优化算法（snake optimizer，SO）、自适应权重模块（adaptive weight module，AWM）和门控循环单元（gated-recurrent unit，GRU）的光伏发电功率预测模型，通过强相关TDE提升数据特征的表现力，并构造全新的输入矩阵，然后利用AWM对增强后的输入矩阵进行自动赋权处理进入GRU进行预测，同时考虑到组合模型超参数选择困难的问题，引入SO对模型的最佳阈值进行寻找以发挥模型最大性能。最后，使用某光伏发电站实际数据对模型进行验证，结果表明：所提模型可有效提升光伏发电功率的预测精度。

关键词: 光伏功率预测, 数据增强, 自适应权重模块, 蛇优化算法

Abstract:

Accurate prediction of photovoltaic (PV) power is of great significance for the safe and economic operation of power grids, but PV power generation is characterized by time-varying, intermittent, fluctuating, and high nonlinearity characteristics due to the combined effects of multiple meteorological factors, which makes it difficult to deeply explore the implicit information of the data. To solve such problems, a PV power prediction model based on time-varying data enhancement (TDE), snake optimizer (SO), adaptive weight module (AWM), and gated recurrent unit (GRU) was proposed. The expression of data features was improved by TDE with strong correlation, and a new input matrix was constructed. Then, the enhanced input matrix was automatically weighted by AWM and entered into GRU for prediction. At the same time, by considering the difficulty of hyperparameter selection of the combined model, SO was introduced to find the optimal threshold of the model to maximize the performance of the model. Finally, the model was validated using actual data from a PV power station, and the results show that the proposed model can effectively improve the prediction accuracy of PV power.

Key words: photovoltaic power prediction, data enhancement, adaptive weight module, snake optimizer

李翰章, 冯江涛, 王鹏程, 荣澔洁, 柴宇唤. 基于TDE-SO-AWM-GRU的光伏发电功率预测模型[J]. 中国电力, 2024, 57(12): 41-49.

Hanzhang LI, Jiangtao FENG, Pengcheng WANG, Haojie RONG, Yuhuan CHAI. Photovoltaic Power Prediction Model Based on TDE-SO-AWM-GRU[J]. Electric Power, 2024, 57(12): 41-49.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202401015

https://www.electricpower.com.cn/CN/Y2024/V57/I12/41

图/表 15

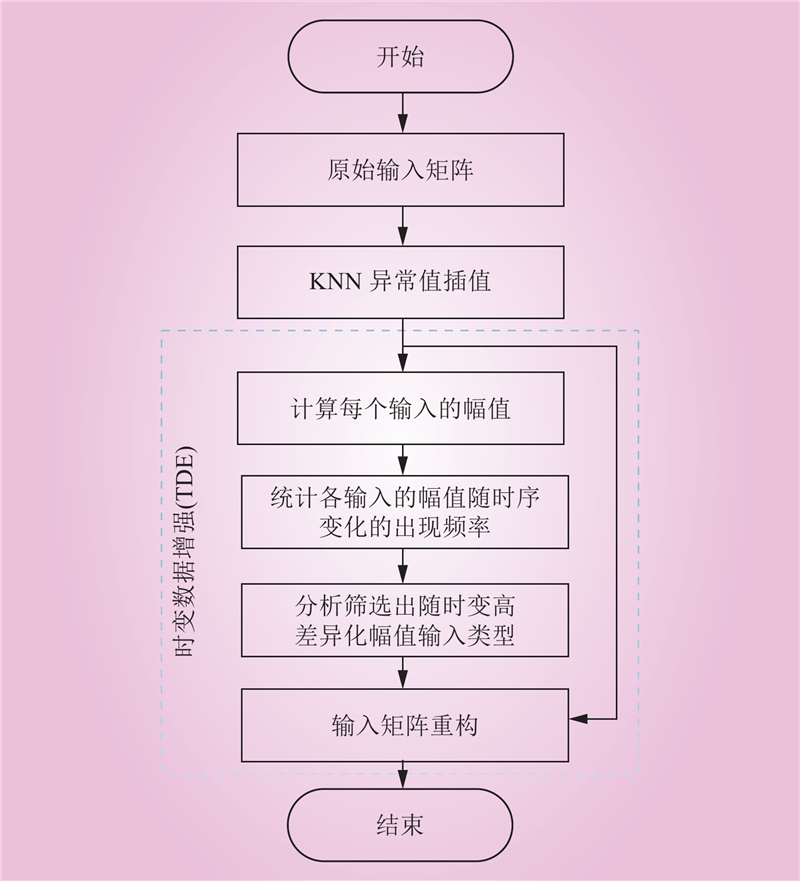

图 1 原始输入矩阵处理流程

Fig.1 Processing flowchart of initial input matrix

表 1 各气象因素幅值变化划分标准

Table 1 Classification criteria for change of amplitude of each meteorological factor

幅度	辐照度幅值变化/ (W·m^–2·(15 min)^–1)	湿度幅值变化/ (%·(15 min)^–1)	温度幅值变化/ (℃·(15 min)^–1)
低幅	[0, 80)	[0, 0.8)	[0, 0.3)
中幅	[80, 250)	[0.8, 2.5)	[0.3, 0.8)
高幅	[250, 500)	[2.5, 4)	[0.8, 1.4)
剧幅	≥500	≥4	≥1.4

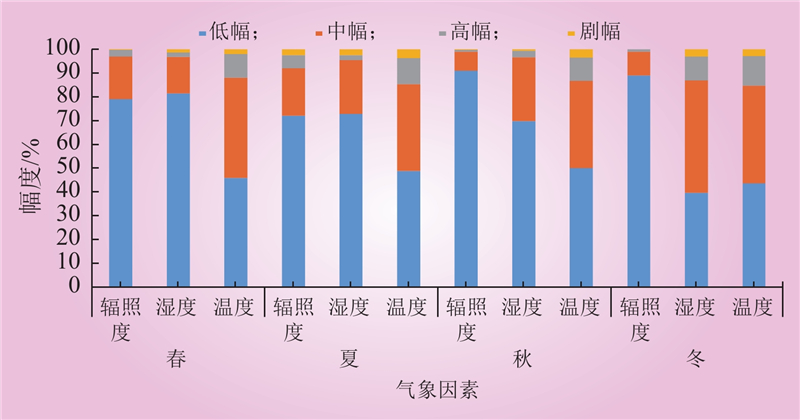

图 2 各气象因素随季节变化幅值构成

Fig.2 Amplitude of each meteorological factor varying with season

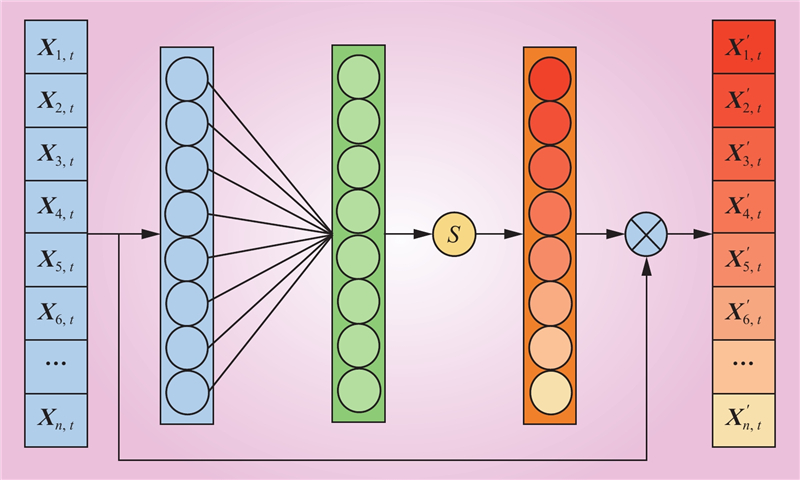

图 3 自适应权重模块

Fig.3 AWM

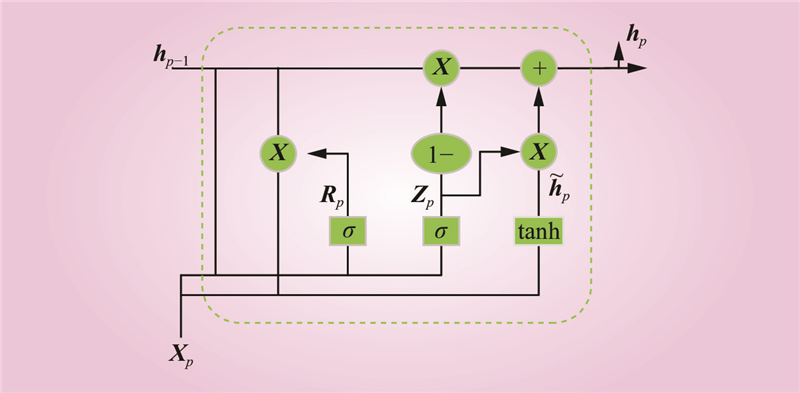

图 4 门控循环单元

Fig.4 GRU

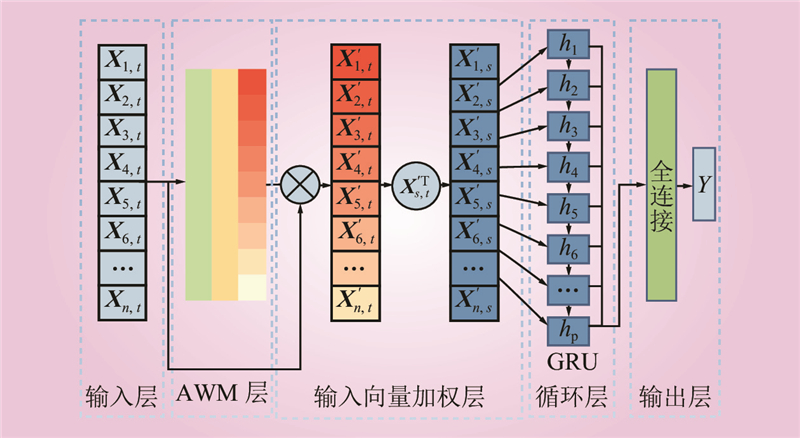

图 5 AWM-GRU网络整体结构

Fig.5 Overall structure of AWM-GRU network

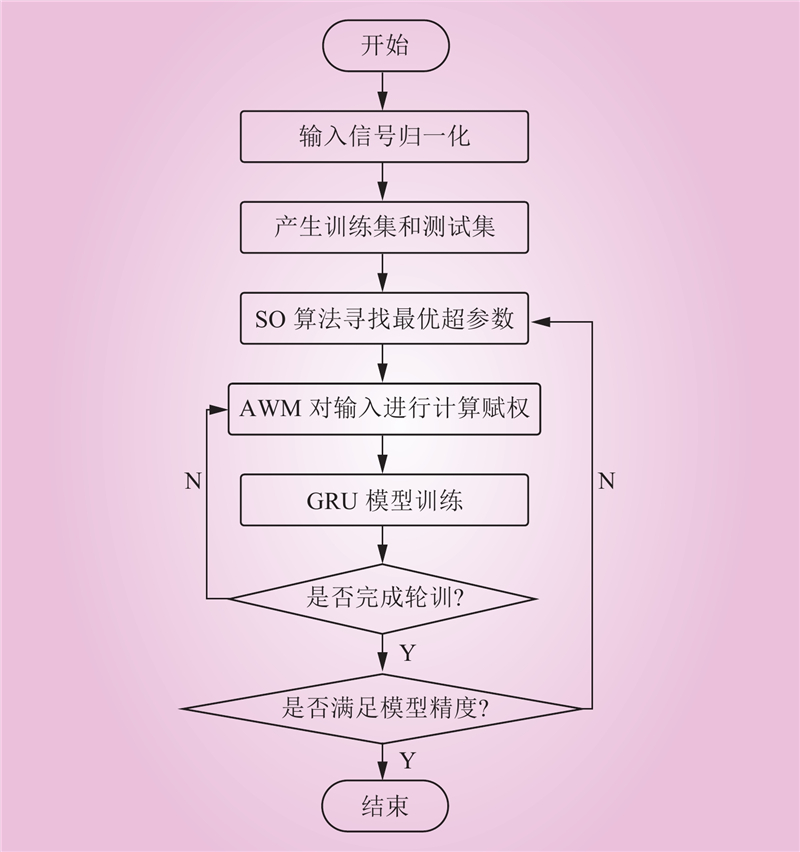

图 6 SO-AWM-GRU预测模型建立流程

Fig.6 Establishment of SO-AWM-GRU prediction model

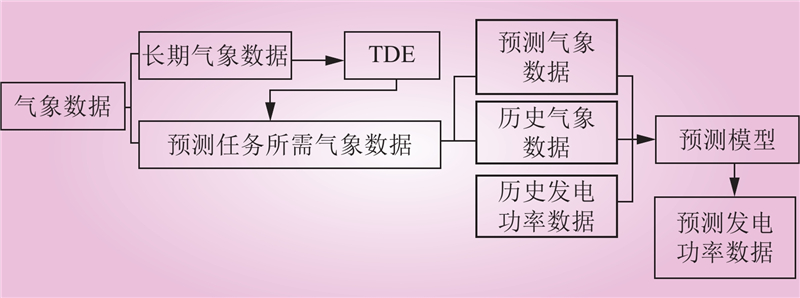

图 7 实际数据处理过程

Fig.7 Processing process of actual data

表 2 稳定型天气实验结果对比

Table 2 Comparison of results from stable weather experiments

模型类型	E_MA/MW	E_RMS/MW
LSTM	2.1256	2.4432
GRU	2.0154	2.3839
TDE-LSTM	1.9362	2.3153
TDE-GRU	1.7780	2.0830
CNN-GRU	1.5859	1.7874
Attention-GRU	1.3632	1.5981
TDE-SO-AWM-LSTM	1.4763	1.6992
TDE-SO-AWM-GRU	1.0490	1.1828

表 3 突变型天气实验结果对比

Table 3 Comparison of results from mutant weather experiments

模型类型	E_MA/MW	E_RMS/MW
LSTM	2.8256	3.4832
GRU	2.6994	3.3379
TDE-LSTM	2.3950	3.1100
TDE-GRU	2.2350	2.8890
CNN-GRU	2.1426	2.7364
Attention-GRU	1.9785	2.4658
TDE-SO-AWM-LSTM	2.0060	2.5964
TDE-SO-AWM-GRU	1.7563	2.3147

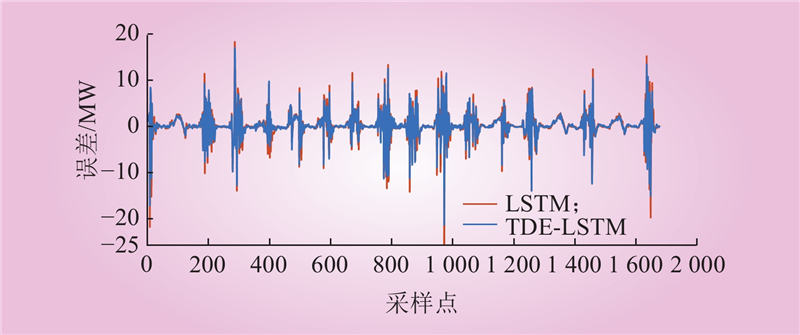

图 8 LSTM与TDE-LSTM预测误差带对比

Fig.8 Comparison of LSTM and TDE-LSTM prediction error bands

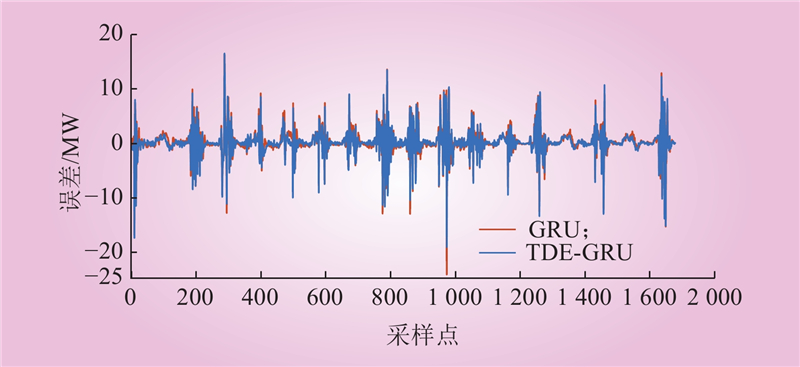

图 9 GRU与TDE-GRU预测误差带对比

Fig.9 Comparison of GRU and TDE-GRU prediction error bands

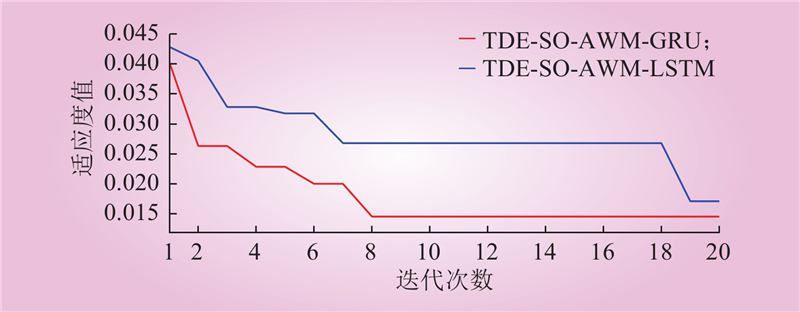

图 10 蛇优化算法适应度曲线

Fig.10 Fitness curve of SO

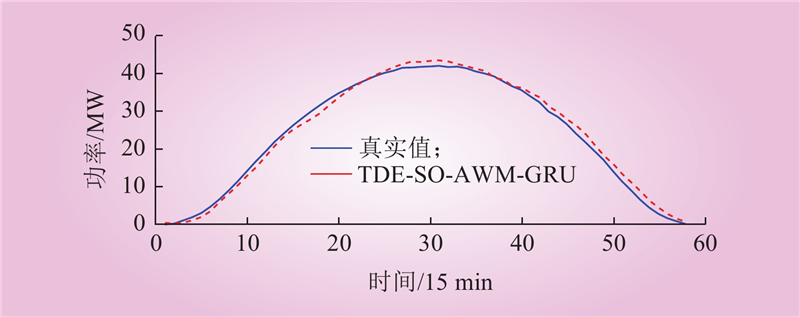

图 11 稳定型天气预测结果对比

Fig.11 Comparison of results from stable weather prediction

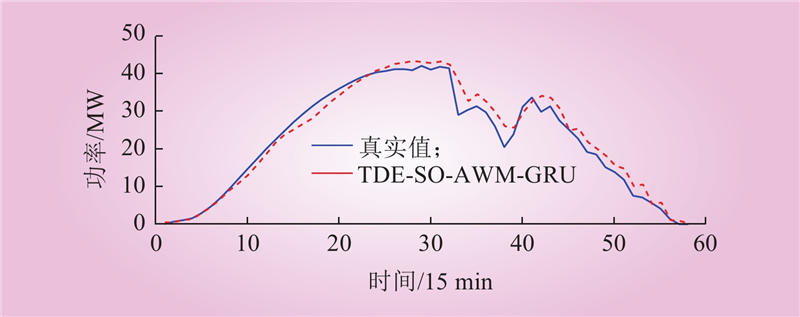

图 12 突变型天气预测结果对比

Fig.12 Comparison of results from mutant weather prediction
