基于车辆行为模拟的加氢站氢负荷概率建模方法

doi:10.11930/j.issn.1004-9649.202308106

摘要/Abstract

摘要：

加氢站的氢负荷受氢燃料电池汽车出行行为影响，其时空分布具有高度的不确定性。为了研究加氢站氢负荷的分布特性，并准确描述车辆用户出行规律，提出一种基于车辆行为模拟的加氢站氢负荷概率建模方法。首先，基于美国家庭出行调查数据集对车辆出行过程中的行为特征量（如出行时刻、行驶时间、目的地、行驶距离等）概率分布进行拟合；其次，基于蒙特卡洛模拟的方法多次抽取样本，形成由车辆出行行为所组成的出行链；最后，以出行目的地类型为划分标准，分别模拟出一天内不同区域加氢站的氢负荷特性。通过合理利用实际出行数据和蒙特卡洛模拟方法，能够准确描述车辆行为规律，并根据出行目的地类型推断出不同区域加氢站的氢负荷特性。

关键词: 加氢站, 不确定性, 车辆行为模拟, 氢负荷概率建模方法, 蒙特卡洛模拟

Abstract:

The hydrogen load of hydrogen refueling station is affected by the travel behavior of hydrogen fuel cell vehicles, and its spatio-temporal distribution is highly uncertain. In order to study the distribution characteristics of hydrogen load of hydrogen refueling station and accurately describe the travel law of vehicle users, a probabilistic modeling method of hydrogen load of hydrogen refueling station based on vehicle behavior simulation is proposed in this paper. Firstly, the probability distribution of behavioral features (such as travel time, travel time, destination, travel distance, etc.) during vehicle travel is fitted based on the American household travel survey data set. Secondly, based on Monte Carlo simulation method, samples are extracted several times to form a travel chain composed of vehicle travel behavior. Finally, based on the type of travel destination, the hydrogen load characteristics of different regional hydrogen stations in one day were simulated. Through rational use of actual travel data and Monte Carlo simulation method, this paper can accurately describe the vehicle behavior law, and infer the hydrogen load characteristics of different regional hydrogen refueling stations according to the type of travel destination.

Key words: hydrogen refueling station, uncertainty, vehicle behavior simulation, hydrogen load probability modeling method, Monte Carlo simulation

卢纯颢, 周春丽, 林溪桥, 陈志君. 基于车辆行为模拟的加氢站氢负荷概率建模方法[J]. 中国电力, 2024, 57(8): 46-54, 66.

Chunhao LU, Chunli ZHOU, Xiqiao LIN, Zhijun CHEN. Probabilistic Modeling Method of Hydrogen Load of Hydrogen Refueling Station Based on Vehicle Behavior Simulation[J]. Electric Power, 2024, 57(8): 46-54, 66.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202308106

https://www.electricpower.com.cn/CN/Y2024/V57/I8/46

图/表 12

参考文献 24

1	吕智林, 易佳奇, 刘泉, 等. 含氢能利用和需求响应的综合能源系统低碳优化[J]. 电力系统及其自动化学报, 2023, 35 (7): 10- 19.
	LYU Zhilin, YI Jiaqi, LIU Quan, et al. Low-carbon optimization of integrated energy system with hydrogen energy utilization and demand response[J]. Proceedings of the CSU-EPSA, 2023, 35 (7): 10- 19.
2	窦真兰, 张春雁, 赵慧荣, 等. 含氢能汽车负荷的住宅光-氢耦合能源系统容量优化配置[J]. 中国电力, 2023, 56 (7): 54- 65.
	DOU Zhenlan, ZHANG Chunyan, ZHAO Huirong, et al. Optimal capacity configuration of residential solar-hydrogen coupling energy system with hydrogen vehicle load[J]. Electric Power, 2023, 56 (7): 54- 65.
3	李蕊睿, 李奇, 蒲雨辰, 等. 计及功率交互约束的含电-氢混合储能的多微电网系统容量优化配置[J]. 电力系统保护与控制, 2022, 50 (14): 53- 64.
	LI Ruirui, LI Qi, PU Yuchen, et al. Optimal configuration of an electric-hydrogen hybrid energy storage multi-microgrid system considering power interaction constraints[J]. Power System Protection and Control, 2022, 50 (14): 53- 64.
4	任洲洋, 罗潇, 覃惠玲, 等. 考虑储氢物理特性的含氢区域综合能源系统中长期优化运行[J]. 电网技术, 2022, 46 (9): 3324- 3332.
	REN Zhouyang, LUO Xiao, QIN Huiling, et al. Mid/long-term optimal operation of regional integrated energy systems considering hydrogen physical characteristics[J]. Power System Technology, 2022, 46 (9): 3324- 3332.
5	侯慧, 刘鹏, 黄亮, 等. 考虑不确定性的电-热-氢综合能源系统规划[J]. 电工技术学报, 2021, 36 (S1): 133- 144.
	HOU Hui, LIU Peng, HUANG Liang, et al. Planning of electricity-heat-hydrogen integrated energy system considering uncertainties[J]. Transactions of China Electrotechnical Society, 2021, 36 (S1): 133- 144.
6	袁铁江, 李国军, 张增强, 等. 风电—氢储能与煤化工多能耦合系统设备投资规划优化建模[J]. 电工技术学报, 2016, 31 (14): 21- 30. DOI
	YUAN Tiejiang, LI Guojun, ZHANG Zengqiang, et al. Optimal modeling on equipment investment planning of wind power-hydrogen energy storage and coal chemical pluripotent coupling system[J]. Transactions of China Electrotechnical Society, 2016, 31 (14): 21- 30. DOI
7	谭笑, 华栋. 源荷协同下计及电转氢和电动汽车的含风电配网日前优化调度[J]. 南方电网技术, 2023, 17 (4): 144- 155, 166.
	TAN Xiao, HUA Dong. Day-ahead optimal dispatch of wind power distribution network with P2H and EVs in consideration of source-load coordination[J]. Southern Power System Technology, 2023, 17 (4): 144- 155, 166.
8	张学强, 董龙, 王栋. 考虑氢能需求的甘肃省电力行业低碳转型路径研究[J]. 中国电力, 2023, 56 (12): 262- 272.
	ZHANG Xueqiang, DONG Long, WANG Dong. Study on low-carbon transition path of power industry in Gansu province considering hydrogen energy demand[J]. Electric Power, 2023, 56 (12): 262- 272.
9	RAHMOUNI S, SETTOU N, NEGROU B, et al. GIS-based method for future prospect of hydrogen demand in the Algerian road transport sector[J]. International Journal of Hydrogen Energy, 2016, 41 (4): 2128- 2143. DOI
10	张红, 袁铁江, 谭捷. 统一能源系统氢负荷中长期预测[J]. 中国电机工程学报, 2021, 41 (10): 3364- 3372.
	ZHANG Hong, YUAN Tiejiang, TAN Jie. Medium and long-term forecast of hydrogen load in unified energy system[J]. Proceedings of the CSEE, 2021, 41 (10): 3364- 3372.
11	彭生江, 孙传帅, 妥建军, 等. 面向统一能源系统的中长期氢负荷预测[J]. 中国电力, 2022, 55 (1): 84- 90.
	PENG Shengjiang, SUN Chuanshuai, TUO Jianjun, et al. Medium and long-term hydrogen load forecast for unified energy system[J]. Electric Power, 2022, 55 (1): 84- 90.
12	YANG G M, JIANG Y W, YOU S. Planning and operation of a hydrogen supply chain network based on the off-grid wind-hydrogen coupling system[J]. International Journal of Hydrogen Energy, 2020, 45 (41): 20721- 20739. DOI
13	KURTZ J, BRADLEY T, WINKLER E, et al. Predicting demand for hydrogen station fueling[J]. International Journal of Hydrogen Energy, 2020, 45 (56): 32298- 32310. DOI
14	黄文涛, 邓明辉, 葛磊蛟, 等. 考虑配电网与氢燃料汽车耦合影响的制氢加氢站布点优化策略[J]. 高电压技术, 2023, 49 (1): 105- 117.
	HUANG Wentao, DENG Minghui, GE Leijiao, et al. Layout optimization strategy of hydrogen production and refueling stations considering the coupling effect of distribution network and hydrogen fuel vehicles[J]. High Voltage Engineering, 2023, 49 (1): 105- 117.
15	ISAAC N, SAHA A K. Analysis of refueling behavior of hydrogen fuel vehicles through a stochastic model using Markov chain process[J]. Renewable and Sustainable Energy Reviews, 2021, 141, 110761. DOI
16	褚浩然, 郑猛, 杨晓光, 等. 出行链特征指标的提出及应用研究[J]. 城市交通, 2006, 4 (2): 64- 67. DOI
	CHU Haoran, ZHENG Meng, YANG Xiaoguang, et al. A study on trip-chain indices and their application[J]. Urban Transport of China, 2006, 4 (2): 64- 67. DOI
17	罗平, 程晟, 王严, 等. 考虑用户出行特性的电动汽车充电负荷预测[J]. 华中科技大学学报(自然科学版), 2020, 48 (11): 126- 132.
	LUO Ping, CHENG Sheng, WANG Yan, et al. Electric vehicle charging load forecast considering user’s travel characteristics[J]. Journal of Huazhong University of Science and Technology (Natural Science Edition), 2020, 48 (11): 126- 132.
18	温剑锋, 陶顺, 肖湘宁, 等. 基于出行链随机模拟的电动汽车充电需求分析[J]. 电网技术, 2015, 39 (6): 1477- 1484.
	WEN Jianfeng, TAO Shun, XIAO Xiangning, et al. Analysis on charging demand of EV based on stochastic simulation of trip chain[J]. Power System Technology, 2015, 39 (6): 1477- 1484.
19	GRÜGER F, DYLEWSKI L, ROBINIUS M, et al. Carsharing with fuel cell vehicles: sizing hydrogen refueling stations based on refueling behavior[J]. Applied energy, 2018, 228, 1540- 1549. DOI
20	姚志洪, 蒋阳升, 赵斌, 等. 行程时间服从混合高斯分布的车队离散模型[J]. 交通运输系统工程与信息, 2017, 17 (2): 97- 104, 125.
	YAO Zhihong, JIANG Yangsheng, ZHAO Bin, et al. Platoon dispersion model based on mixed Gaussian distribution of travel time[J]. Journal of Transportation Systems Engineering and Information Technology, 2017, 17 (2): 97- 104, 125.
21	刘金森, 罗宁, 王杰, 等. 基于海量场景降维的配电网源网荷储协同规划[J]. 中国电力, 2022, 55 (12): 78- 85.
	LIU Jinsen, LUO Ning, WANG Jie, et al. Massive scenario reduction based distribution-level power system planning considering the coordination of source, network, load and storage[J]. Electric Power, 2022, 55 (12): 78- 85.
22	DEMPSTER A P, LAIRD N M, RUBIN D B. Maximum likelihood from incomplete data via the EM algorithm[J]. Journal of the Royal Statistical Society Series B: Statistical Methodology, 1977, 39 (1): 1- 22. DOI
23	周涛, 韩筱璞, 闫小勇, 等. 人类行为时空特性的统计力学[J]. 电子科技大学学报, 2013, 42 (4): 481- 540. DOI
	ZHOU Tao, HAN Xiaopu, YAN Xiaoyong, et al. Statistical mechanics on temporal and spatial activities of human[J]. Journal of University of Electronic Science and Technology of China, 2013, 42 (4): 481- 540. DOI
24	朱陆陆. 蒙特卡洛方法及应用[D]. 武汉: 华中师范大学, 2014.
	ZHU Lulu. The Monte Carlo method and its application [D]. Wuhan: Central China Normal University, 2014.

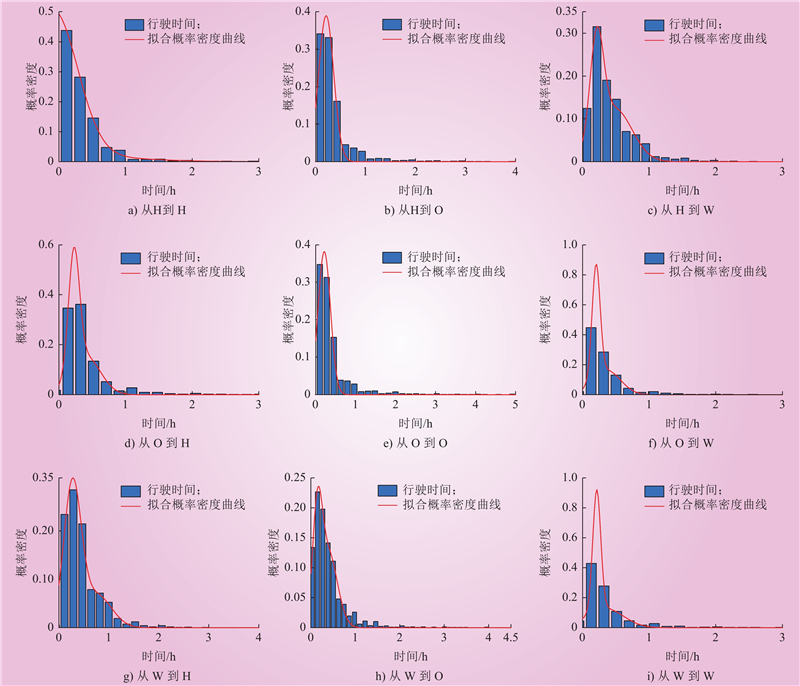

出行类型		t_r(i–1,i)拟合结果
H—H		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =& 0.48\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} + 0.08}}{{0.51}}} \right)}^2}} \right]{\text{ + }}\\&0.02\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} + 0.11}}{{1.48}}} \right)}^2}} \right]\end{aligned} $
H—W		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =&0.24\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.14}}} \right)}^2}} \right]{\text{ + }}\\&0.12\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.48}}{{0.37}}} \right)}^2}} \right]\end{aligned} $
H—O		$ f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = 0.39\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.21}}} \right)}^2}} \right] $
W—H		$\begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.29\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.27}}{{0.24}}} \right)}^2}} \right]{\text{ + }}\\& 0.07\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.75}}{{0.42}}} \right)}^2}} \right]\end{aligned} $
W—W		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.81\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.08}}} \right)}^2}} \right]{\text{ + }}\\& 0.13\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.34}}{{0.39}}} \right)}^2}} \right]\end{aligned} $
W—O		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =&0.17\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.14}}{{0.15}}} \right)}^2}} \right]{\text{ + }}\\ &0.13\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.39}}{{0.29}}} \right)}^2}} \right]\end{aligned} $
O—H		$ \begin{aligned}f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.48\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.23}}{{0.12}}} \right)}^2}} \right]-\\&0.15\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.40}}{{0.31}}} \right)}^2}} \right]\end{aligned} $
O—W		$ \begin{aligned} f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =& 0.75\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.20}}{{0.09}}} \right)}^2}} \right]{\text{ + }}\\&0.16\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.36}}{{0.29}}} \right)}^2}} \right]\end{aligned} $
O—O		$ f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = 0.38\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.22}}{{0.22}}} \right)}^2}} \right] $

出行类型		t_r(i–1,i)拟合结果
H—H		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =& 0.48\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} + 0.08}}{{0.51}}} \right)}^2}} \right]{\text{ + }}\\&0.02\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} + 0.11}}{{1.48}}} \right)}^2}} \right]\end{aligned} $
H—W		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =&0.24\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.14}}} \right)}^2}} \right]{\text{ + }}\\&0.12\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.48}}{{0.37}}} \right)}^2}} \right]\end{aligned} $
H—O		$ f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = 0.39\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.21}}} \right)}^2}} \right] $
W—H		$\begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.29\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.27}}{{0.24}}} \right)}^2}} \right]{\text{ + }}\\& 0.07\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.75}}{{0.42}}} \right)}^2}} \right]\end{aligned} $
W—W		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.81\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.21}}{{0.08}}} \right)}^2}} \right]{\text{ + }}\\& 0.13\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.34}}{{0.39}}} \right)}^2}} \right]\end{aligned} $
W—O		$ \begin{aligned}[b] f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =&0.17\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.14}}{{0.15}}} \right)}^2}} \right]{\text{ + }}\\ &0.13\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.39}}{{0.29}}} \right)}^2}} \right]\end{aligned} $
O—H		$ \begin{aligned}f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = &0.48\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.23}}{{0.12}}} \right)}^2}} \right]-\\&0.15\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.40}}{{0.31}}} \right)}^2}} \right]\end{aligned} $
O—W		$ \begin{aligned} f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) =& 0.75\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.20}}{{0.09}}} \right)}^2}} \right]{\text{ + }}\\&0.16\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.36}}{{0.29}}} \right)}^2}} \right]\end{aligned} $
O—O		$ f\left( {{t_{{\text{r}}\left( {i - 1,i} \right)}}} \right) = 0.38\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{r}}\left( {i - 1,i} \right)}} - 0.22}}{{0.22}}} \right)}^2}} \right] $

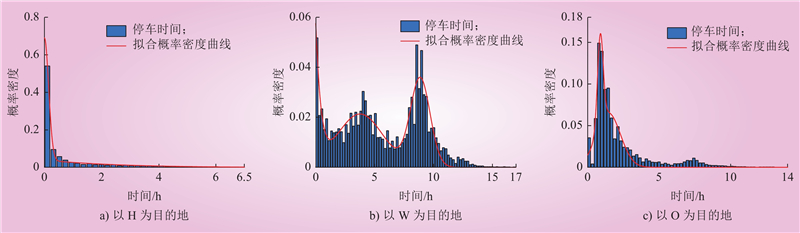

目的地		t_{p_i}拟合结果
H		$ f\left( {{t_{{\text{p}}\_i}}} \right) = 0.65\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}}}}{{0.21}}} \right)}^2}} \right]{\text{ + }}0.78\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} + 16.33}}{{9.42}}} \right)}^2}} \right] $
W		$\begin{aligned}[b] f\left( {{t_{{\text{p}}\_i}}} \right) =& 0.77\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 2.46}}{{1.51}}} \right)}^2}} \right]{\text{ + }}0.04\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 8.87}}{{1.18}}} \right)}^2}} \right]{\text{ + }}\\ & 0.02\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 3.76}}{{2.75}}} \right)}^2}} \right] \end{aligned}$
O		$ f\left( {{t_{{\text{p}}\_i}}} \right) = 0.11\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 0.88}}{{0.28}}} \right)}^2}} \right] + 0.07\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 1.45}}{{1.19}}} \right)}^2}} \right] $

目的地		t_{p_i}拟合结果
H		$ f\left( {{t_{{\text{p}}\_i}}} \right) = 0.65\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}}}}{{0.21}}} \right)}^2}} \right]{\text{ + }}0.78\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} + 16.33}}{{9.42}}} \right)}^2}} \right] $
W		$\begin{aligned}[b] f\left( {{t_{{\text{p}}\_i}}} \right) =& 0.77\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 2.46}}{{1.51}}} \right)}^2}} \right]{\text{ + }}0.04\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 8.87}}{{1.18}}} \right)}^2}} \right]{\text{ + }}\\ & 0.02\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 3.76}}{{2.75}}} \right)}^2}} \right] \end{aligned}$
O		$ f\left( {{t_{{\text{p}}\_i}}} \right) = 0.11\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 0.88}}{{0.28}}} \right)}^2}} \right] + 0.07\exp \left[ { - {{\left( {\dfrac{{{t_{{\text{p}}\_i}} - 1.45}}{{1.19}}} \right)}^2}} \right] $
