应对岸上故障的海上风电多端柔直系统协调控制策略

doi:10.11930/j.issn.1004-9649.202308031

摘要/Abstract

摘要：

针对海上风电多端柔直系统岸上交流电网故障时的盈余功率问题，提出一种采用能量控制的多个海上换流站与风电机组的协调控制策略。在故障期间，部分海上换流站先启动能量控制，根据直流电压的变化抬升能量参考值，吸收直流系统中的盈余功率。剩余海上换流站对直流电压进行预测，当直流电压预测值超过限值后，剩余海上换流站启动能量控制吸收盈余功率。海上换流站在吸收盈余功率的同时对风电机组采用降压控制，根据换流站储能的增加情况降低风机侧交流电压参考值。风电机组网侧换流器根据交流电压的变化调节d轴电流参考值，减少输送到多端柔直系统的有功功率，避免多端柔直系统的直流电压越限。最后，在PSCAD/EMTDC中对不同类型的故障进行仿真，验证了所提协调控制策略的有效性。

关键词: 多端柔直系统, 交流故障, 盈余功率, 能量控制, 降压控制, 协调控制

Abstract:

This paper proposed a coordinated control strategy of multiple wind farm modular multilevel converters (WFMMCs) and wind turbines using energy control to address the issue of surplus power during faults in the onshore alternating current (AC) power grid of a modular multilevel converter based multi-terminal direct current (MMC-MTDC) system for offshore wind power. During the fault period, some WFMMCs first initiate energy control, raising the energy reference value based on changes in direct current (DC) voltage to absorb surplus power in the DC system. The remaining WFMMCs predict the DC voltage, and when the predicted DC voltage exceeds the limit, the remaining WFMMCs activate energy control to absorb surplus power. The WFMMCs adopt voltage reduction control on the wind turbine while absorbing surplus power and reduce the reference value of the AC voltage on the wind turbine side based on the increase in energy storage at the WFMMC. The grid side converter of the wind turbine adjusts the reference value of the d-axis current based on changes in AC voltage, reducing the active power transmitted to the MMC-MTDC system and avoiding the DC voltage exceeding the limit of the MMC-MTDC system. Finally, different types of faults were simulated in PSCAD/EMTDC to verify the effectiveness of the proposed coordinated control strategy.

Key words: multi-terminal flexible and direct current system, AC fault, surplus power, energy control, voltage reduction control, coordinated control

赵平, 贾浩森, 高亨孝, 李振兴. 应对岸上故障的海上风电多端柔直系统协调控制策略[J]. 中国电力, 2024, 57(8): 85-95.

Ping ZHAO, Haosen JIA, Hengxiao GAO, Zhenxing LI. Coordinated Control Strategy of Modular Multi-level Converter-Based Multi-terminal Direct Current System for Onshore Wind Power Faults[J]. Electric Power, 2024, 57(8): 85-95.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202308031

https://www.electricpower.com.cn/CN/Y2024/V57/I8/85

图/表 14

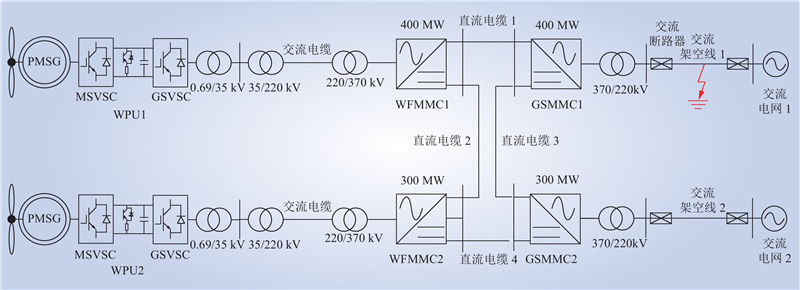

图 1 海上风电多端柔直系统拓扑结构

Fig.1 Topology of MMC-MTDC for offshore wind power

表 1 海上风电多端柔直系统参数配置

Table 1 Parameters of MMC-MTDC system for offshore wind power

参数	数值	参数	数值
WFMMC1额定容量/(MV·A)	400	直流电缆电感/(mH·km^–1)	0.16
WFMMC2额定容量/(MV·A)	300	直流电缆1长度/km	200
GSMMC1额定容量/(MV·A)	400	直流电缆2长度/km	200
GSMMC2额定容量/(MV·A)	300	直流电缆3长度/km	200
额定直流电压/kV	400	直流电缆4长度/km	200
桥臂的子模块个数	200	交流架空线长度/km	50
子模块额定电压/kV	2	交流电网1容量/(MV·A)	4000
子模块电容/μF	4000	交流电网2容量/(MV·A)	3000
桥臂电抗器/mH	133	交流电网1电源装机容量/MW	5000
直流电缆电阻/(Ω·km^–1)	0.01	交流电网2电源装机容量/MW	3750
直流电缆电容/(μF·km^–1)	0.23

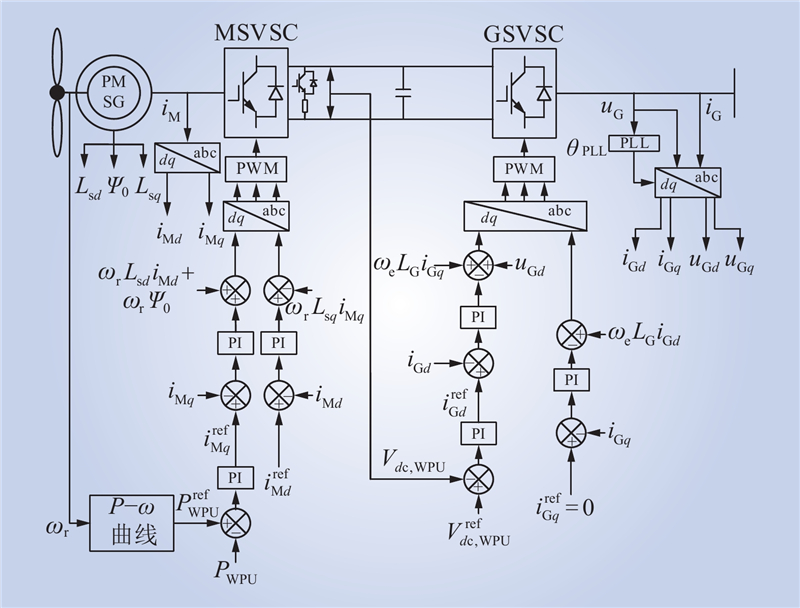

图 2 风电机组控制策略

Fig.2 Control strategy of wind turbines

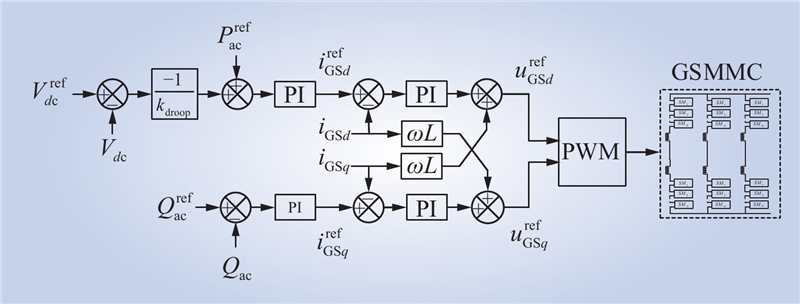

图 3 岸上换流站的控制策略

Fig.3 Control strategy of GSMMC

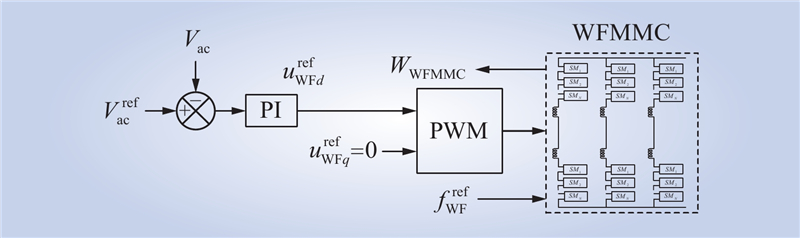

图 4 海上换流站的控制策略

Fig.4 Control strategy of WFMMC

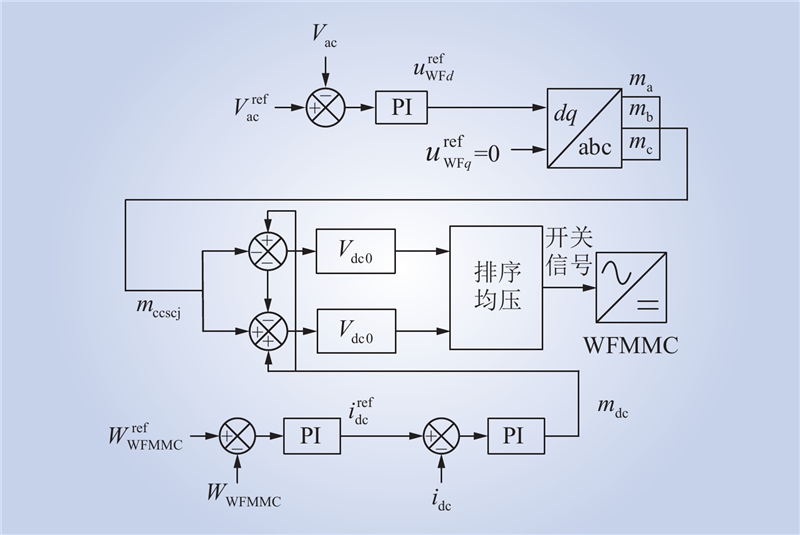

图 5 海上换流站的能量控制策略

Fig.5 Energy control strategy of WFMMC

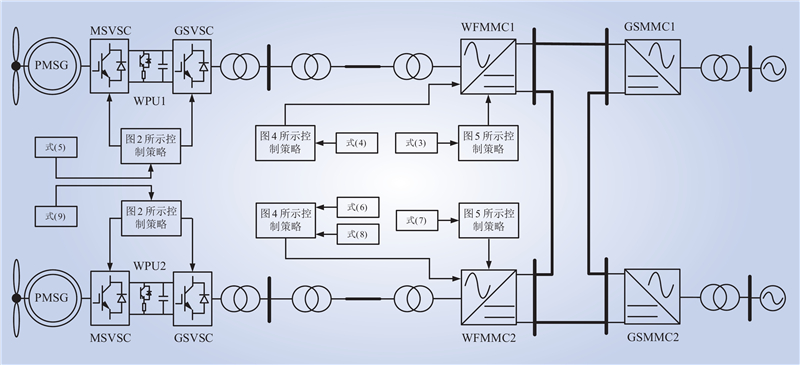

图 6 海上风电多端柔直系统协调控制策略

Fig.6 Coordinated control strategy of MMC-MTDC for offshore wind power

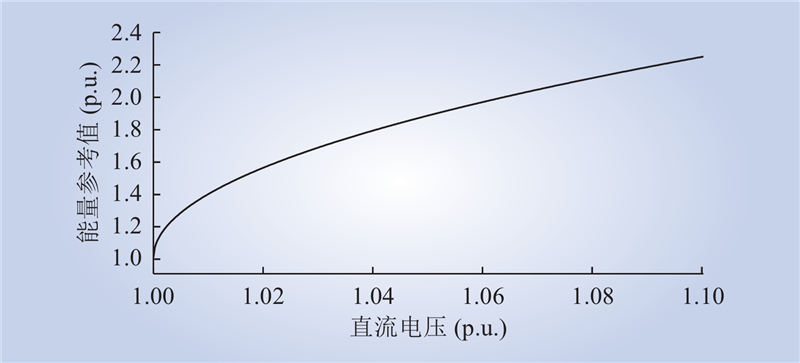

图 7 海上换流站能量参考值特性曲线

Fig.7 Characteristic curve of energy reference value for WFMMC

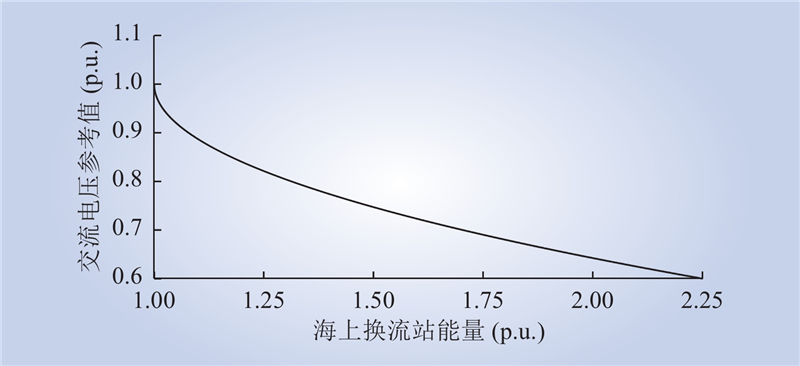

图 8 交流电压参考值特性曲线

Fig.8 Characteristic curve of reference value for AC voltage

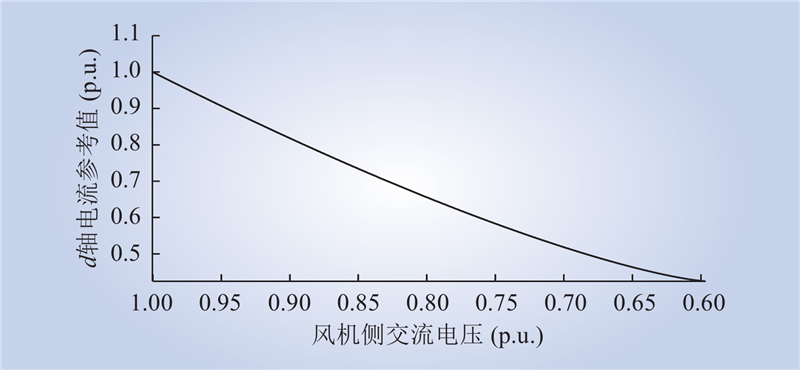

图 9 d轴电流参考值特性曲线

Fig.9 Characteristic curve of reference value for d-axis current

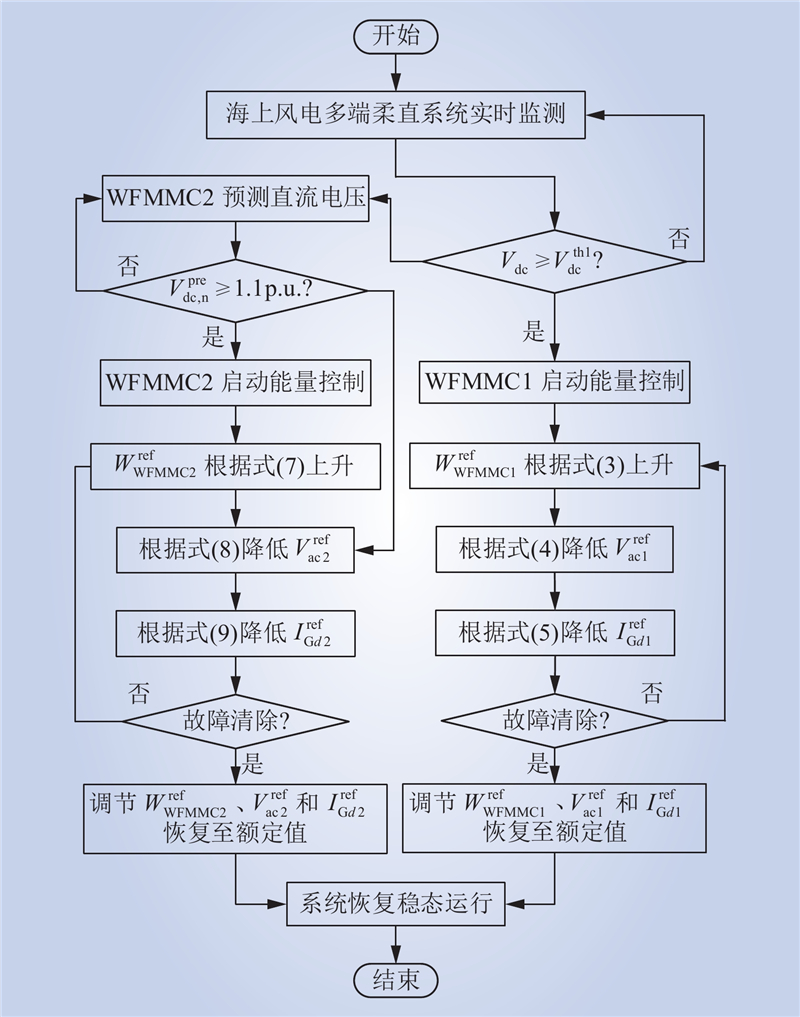

图 10 海上风电多端柔直系统协调控制流程

Fig.10 Coordinated control flow of MMC-MTDC for offshore wind power

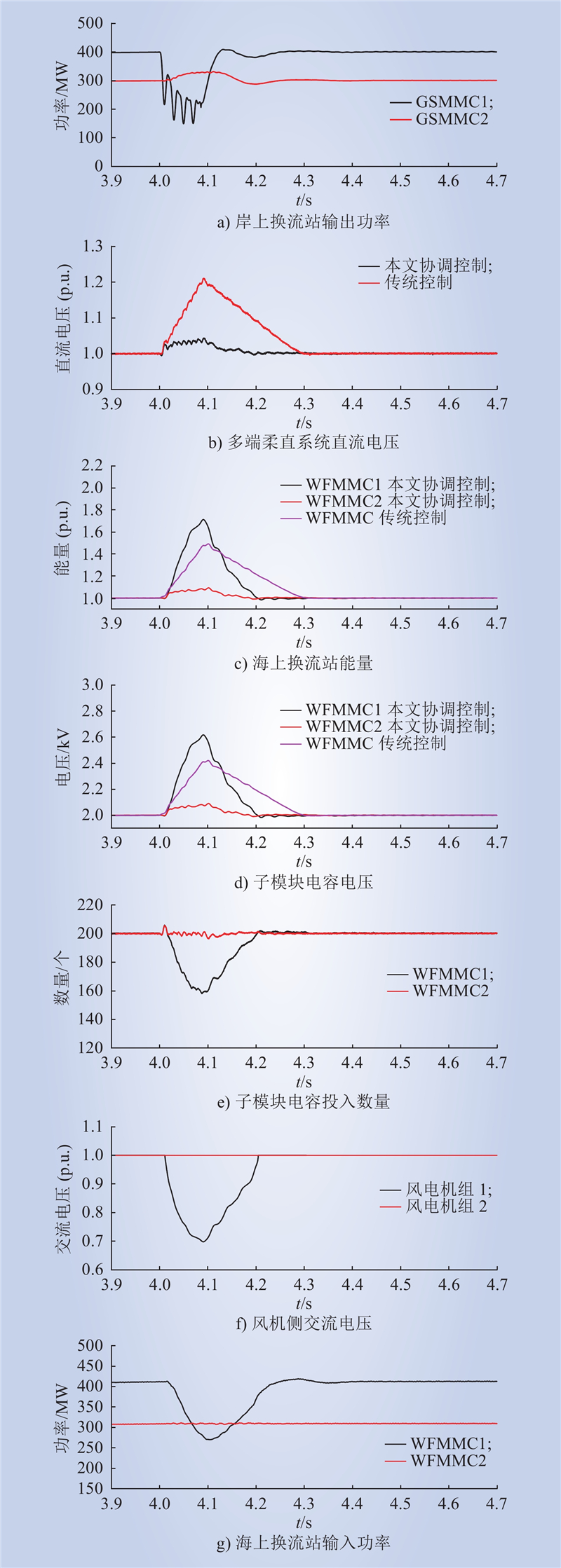

图 11 单相接地故障波形

Fig.11 Waveform of single-phase grounding fault

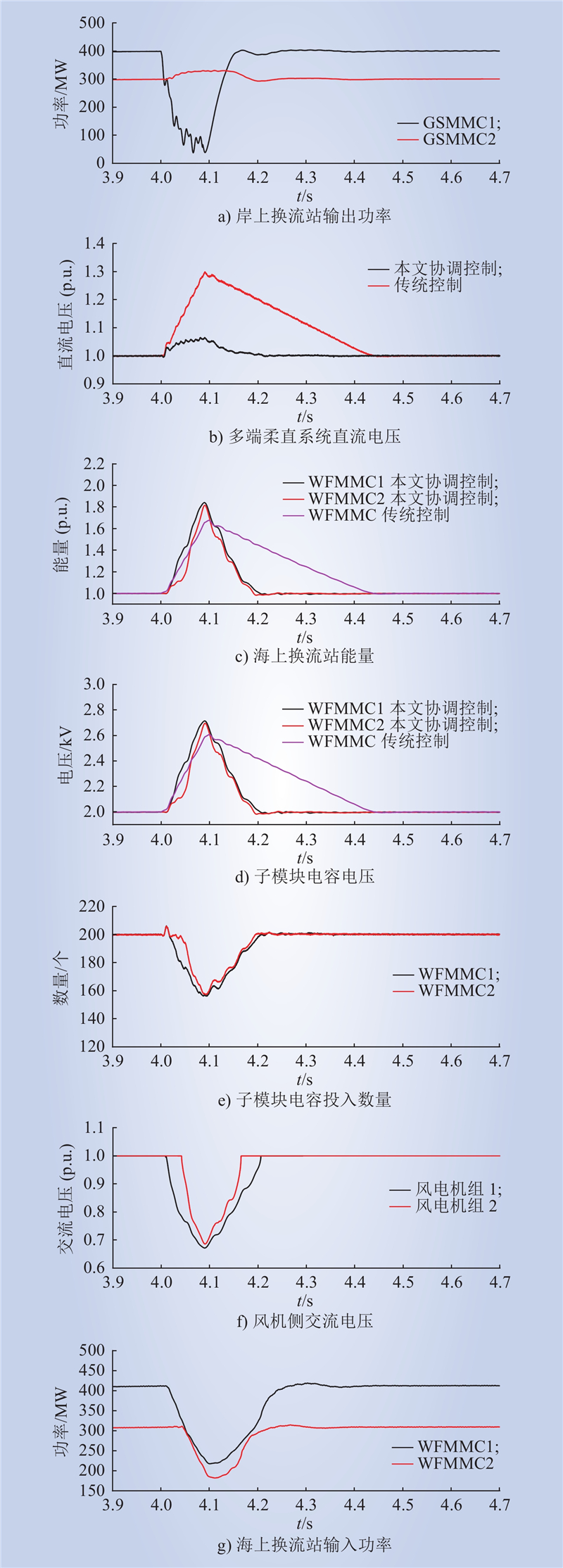

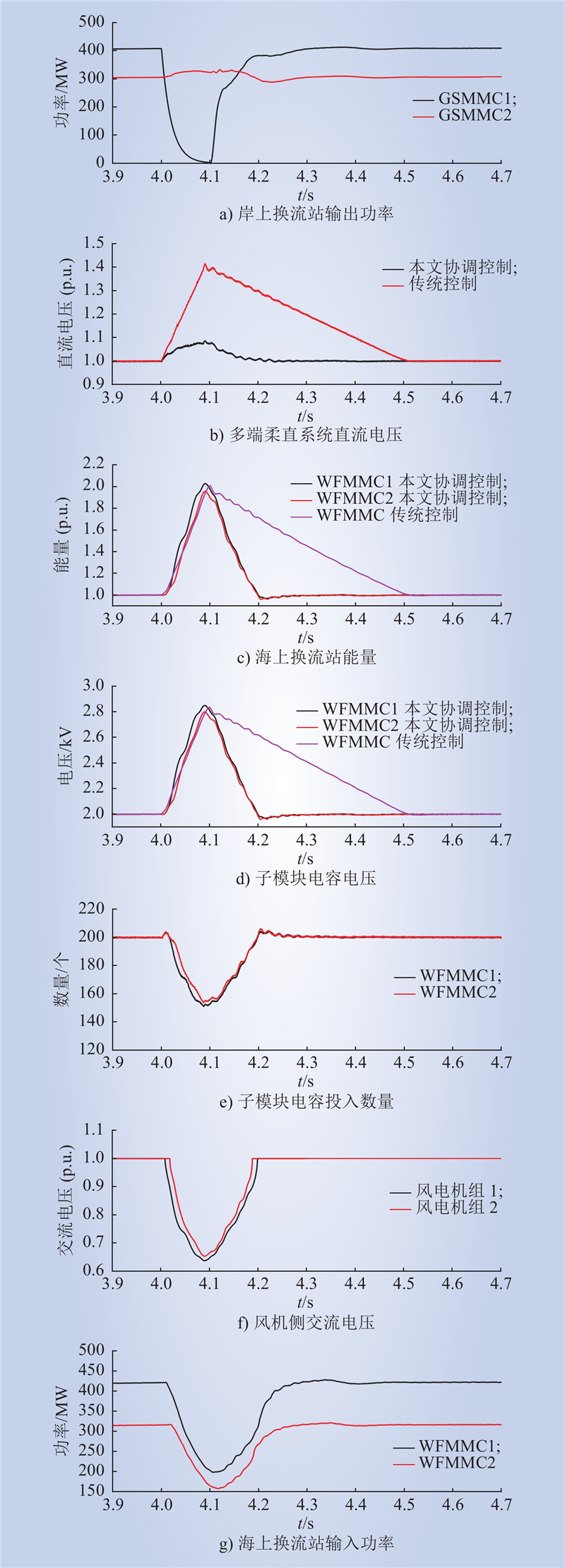

图 12 两相接地故障波形

Fig.12 Waveform of two-phase grounding fault

图 13 三相接地故障波形

Fig.13 Waveform of three-phase grounding fault

参考文献 20

1	刘卫东, 李奇南, 王轩, 等. 大规模海上风电柔性直流输电技术应用现状和展望[J]. 中国电力, 2020, 53 (7): 55- 71.
	LIU Weidong, LI Qinan, WANG Xuan, et al. Application status and prospect of VSC-HVDC technology for large-scale offshore wind farms[J]. Electric Power, 2020, 53 (7): 55- 71.
2	杨仁炘, 王霄鹤, 陈晴, 等. 机组协同-分布卸荷的风电场-柔直并网系统故障穿越方法[J]. 电力系统自动化, 2021, 45 (21): 103- 111. DOI
	YANG Renxin, WANG Xiaohe, CHEN Qing, et al. Fault ride-through method of flexible HVDC transmission system for wind farm integration based on coordination of wind turbines and distributed braking resistors[J]. Automation of Electric Power Systems, 2021, 45 (21): 103- 111. DOI
3	蔡旭, 杨仁炘, 周剑桥, 等. 海上风电直流送出与并网技术综述[J]. 电力系统自动化, 2021, 45 (21): 2- 22.
	CAI Xu, YANG Renxin, ZHOU Jianqiao, et al. Review on offshore wind power integration via DC transmission[J]. Automation of Electric Power Systems, 2021, 45 (21): 2- 22.
4	厉璇, 宋强, 刘文华, 等. 风电场柔性直流输电的故障穿越方法对风电机组的影响[J]. 电力系统自动化, 2015, 39 (11): 31- 36, 125. DOI
	LI Xuan, SONG Qiang, LIU Wenhua, et al. Impact of fault ride-through methods on wind power generators in a VSC-HVDC system[J]. Automation of Electric Power Systems, 2015, 39 (11): 31- 36, 125. DOI
5	LIU Y, WANG X F, ZHE C. Cooperative control of VSC-HVDC connected offshore wind farm with low-voltage ride-through capability[C]//2012 IEEE International Conference on Power System Technology (Powercon). Auckland, New Zealand. IEEE, 2012: 1–6.
6	王毅, 付媛, 苏小晴, 等. 基于VSC-HVDC联网的风电场故障穿越控制策略研究[J]. 电工技术学报, 2013, 28 (12): 150- 159.
	WANG Yi, FU Yuan, SU Xiaoqing, et al. Fault ride-through control strategy of wind farm integrated with VSC-HVDC[J]. Transactions of China Electrotechnical Society, 2013, 28 (12): 150- 159.
7	FELTES C, WREDE H, KOCH F, et al. Fault ride through of DFIG-based wind farms connected to the grid through VSC-based HVDC link[C]//16th Power Systems Computation Conference. Glas-gow , UK : IEEE, 2008.
8	章心因, 胡敏强, 吴在军, 等. 基于VSC-HVDC的风力发电系统低电压穿越协调控制[J]. 电力自动化设备, 2014, 34 (3): 138- 143. DOI
	ZHANG Xinyin, HU Minqiang, WU Zaijun, et al. Coordinated LVRT control of wind power generation system based on VSC-HVDC[J]. Electric Power Automation Equipment, 2014, 34 (3): 138- 143. DOI
9	薄鑫, 杨志超, 宋杉, 等. 海上风电经柔直送出系统受端交流故障联合穿越控制策略[J]. 可再生能源, 2022, 40 (10): 1396- 1406.
	BO Xin, YANG Zhichao, SONG Shan, et al. Coordinated fault ride through strategy for offshore wind farm via VSC-HVDC under receiving-end AC fault[J]. Renewable Energy Resources, 2022, 40 (10): 1396- 1406.
10	曹帅, 刘东, 赵成功. 适用于风电经柔性直流并网系统的柔性耗能装置及控制策略[J]. 电力系统保护与控制, 2022, 50 (23): 51- 62.
	CAO Shuai, LIU Dong, ZHAO Chenggong. A flexible energy dissipation device with control strategy for an HVDC wind power integration system[J]. Power System Protection and Control, 2022, 50 (23): 51- 62.
11	付艳, 周晓风, 戴国安, 等. 海上风电直流耗能装置和保护配合策略研究[J]. 电力系统保护与控制, 2021, 49 (15): 178- 186.
	FU Yan, ZHOU Xiaofeng, DAI Guoan, et al. Research on coordination strategy for an offshore wind power DC chopper device and protection[J]. Power System Protection and Control, 2021, 49 (15): 178- 186.
12	张静, 高冲, 许彬, 等. 海上风电直流并网工程用新型柔性直流耗能装置电气设计研究[J]. 中国电机工程学报, 2021, 41 (12): 4081- 4091.
	ZHANG Jing, GAO Chong, XU Bin, et al. Research on electrical design of novel flexible DC energy consuming device for offshore wind power DC grid connection project[J]. Proceedings of the CSEE, 2021, 41 (12): 4081- 4091.
13	谢晔源, 姚宏洋, 李海英, 等. 用于VSC-HVDC系统的模块化直串式直流耗能装置[J]. 电力自动化设备, 2021, 41 (7): 117- 123.
	XIE Yeyuan, YAO Hongyang, LI Haiying, et al. Modular series-connection DC energy braking device for VSC-HVDC system[J]. Electric Power Automation Equipment, 2021, 41 (7): 117- 123.
14	张浩博, 向往, 周猛, 等. 海上风电柔直并网系统主动能量控制与交流耗能装置协同策略[J]. 中国电机工程学报, 2022, 42 (12): 4319- 4330.
	ZHANG Haobo, XIANG Wang, ZHOU Meng, et al. Cooperative strategy of active energy control and AC energy dissipation device in offshore wind power MMC-HVDC system[J]. Proceedings of the CSEE, 2022, 42 (12): 4319- 4330.
15	刘天琪, 陶艳, 李保宏. 风电场经MMC-MTDC系统并网的几个关键问题[J]. 电网技术, 2017, 41 (10): 3251- 3260.
	LIU Tianqi, TAO Yan, LI Baohong. Critical problems of wind farm integration via MMC-MTDC system[J]. Power System Technology, 2017, 41 (10): 3251- 3260.
16	郭贤珊, 周杨, 梅念, 等. 张北柔直电网的构建与特性分析[J]. 电网技术, 2018, 42 (11): 3698- 3707.
	GUO Xianshan, ZHOU Yang, MEI Nian, et al. Construction and characteristic analysis of Zhangbei flexible DC grid[J]. Power System Technology, 2018, 42 (11): 3698- 3707.
17	邱子鉴, 刘晋, 周鑫, 等. 多端柔性直流输电系统交流故障穿越控制策略[J]. 华北电力大学学报(自然科学版), 2021, 48 (6): 32- 40.
	QIU Zijian, LIU Jin, ZHOU Xin, et al. AC fault ride-through control strategy of VSC-MTDC system based on improved droop control[J]. Journal of North China Electric Power University (Natural Science Edition), 2021, 48 (6): 32- 40.
18	王少林, 王刚, 陈琦, 等. 考虑线路电阻影响的MMC-MTDC自适应下垂控制[J]. 电力系统保护与控制, 2022, 50 (10): 40- 47.
	WANG Shaolin, WANG Gang, CHEN Qi, et al. An adaptive droop control method considering the influence of line resistance for MMC-MTDC[J]. Power System Protection and Control, 2022, 50 (10): 40- 47.
19	徐殿国, 刘瑜超, 武健. 多端直流输电系统控制研究综述[J]. 电工技术学报, 2015, 30 (17): 1- 12.
	XU Dianguo, LIU Yuchao, WU Jian. Review on control strategies of multi-terminal direct current transmission system[J]. Transactions of China Electrotechnical Society, 2015, 30 (17): 1- 12.
20	张浩博, 向往, 文劲宇. 应对受端交流故障的海上风电柔直并网系统主动能量控制方法[J]. 中国电机工程学报, 2023, 43 (12): 4600- 4614.
	ZHANG Haobo, XIANG Wang, WEN Jinyu. Active energy control of offshore wind power MMC-HVDC system to handle AC faults of receiving-end power grid[J]. Proceedings of the CSEE, 2023, 43 (12): 4600- 4614.
