特高压阀侧套管数字孪生系统集成设计方法

doi:10.11930/j.issn.1004-9649.202402076

摘要/Abstract

摘要：

提出了一种数字孪生系统的集成设计方法，以满足真实工况下的实际应用。首先，分析了阀侧套管数字孪生系统的功能需求并构建了数字孪生系统框架结构；其次，基于系统框架结构的功能模块设计研发了对应的实现方法；最后，用一起阀侧套管数字孪生系统的应用对该方法进行了展示和验证。所提方法为数字孪生系统的实际应用提供了一种设计思路，可以为电网的数字化转型提供实用而有效的解决方案。

关键词: 特高压阀侧套管, 电力设备, 数字孪生, 系统集成

Abstract:

An integrated design method of digital twin system is proposed to meet the practical application under real working conditions in this paper. Firstly, the functional requirements of the valve-side bushing digital twin system are analyzed. Based on these requirements, the framework of digital twin system is constructed. Secondly, the implementation methods corresponding to the digital twin system framework are designed and developed. Finally, the application of a valve-side bushing digital twin system is used to demonstrate and validate the proposed method. This method provides a design concept for the practical application of digital twin systems and can offer practical and effective solutions for the digital transformation of power grids.

Key words: ultra-high voltage converter transformer valve-side bushing, power equipment, digital twin system, system integration

何永胜, 罗丹, 鲁宗相. 特高压阀侧套管数字孪生系统集成设计方法[J]. 中国电力, 2024, 57(6): 165-173.

Yongsheng HE, Dan LUO, Zongxiang LU. Integration of Digital Twin Model System for Ultra-high Voltage Converter Transformer Valve-Side Bushing[J]. Electric Power, 2024, 57(6): 165-173.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202402076

https://www.electricpower.com.cn/CN/Y2024/V57/I6/165

图/表 17

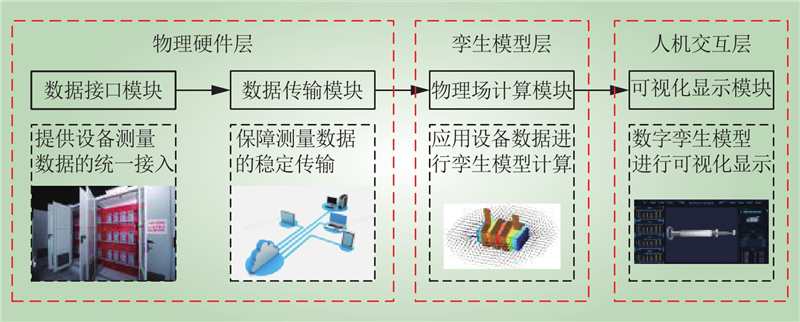

图 1 数字孪生系统结构框架

Fig.1 Digital twin system architecture framework

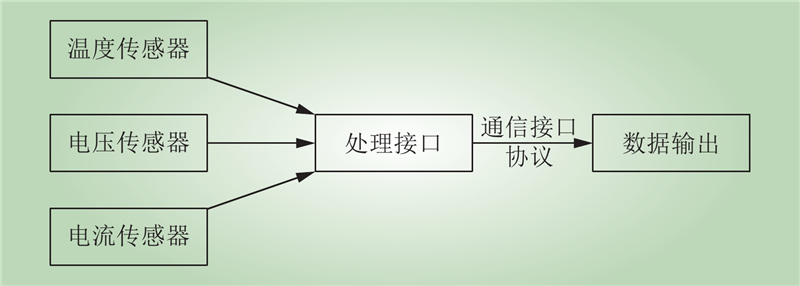

图 2 数据接口模块原理

Fig.2 Principle of data interface module

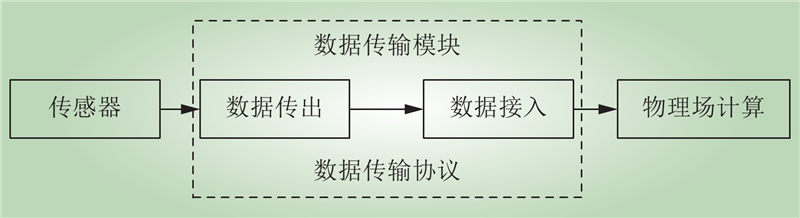

图 3 数据传输模块原理

Fig.3 Principle of data transmission module

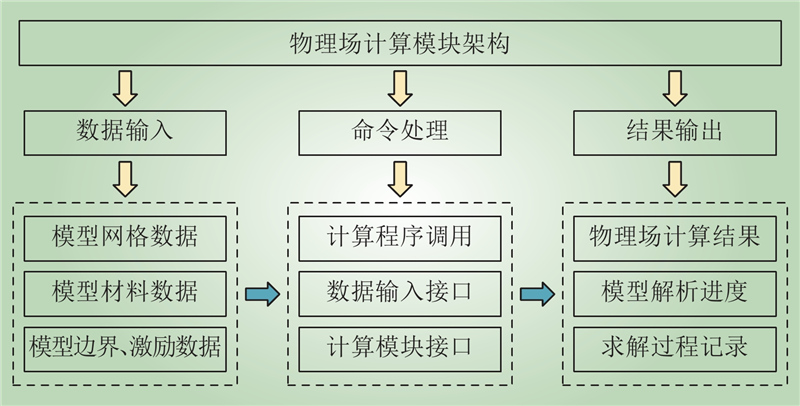

图 4 物理场计算模块原理

Fig.4 Physics field calculation module principle

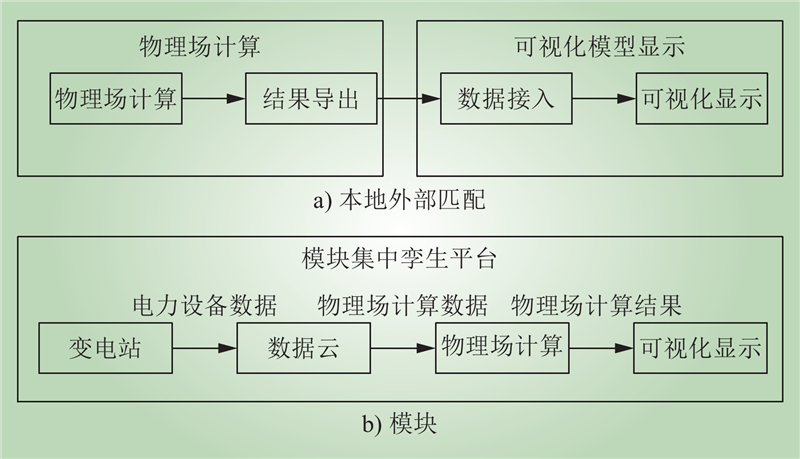

图 5 两种孪生模型可视化显示方式

Fig.5 Two kinds of visual display of twin models

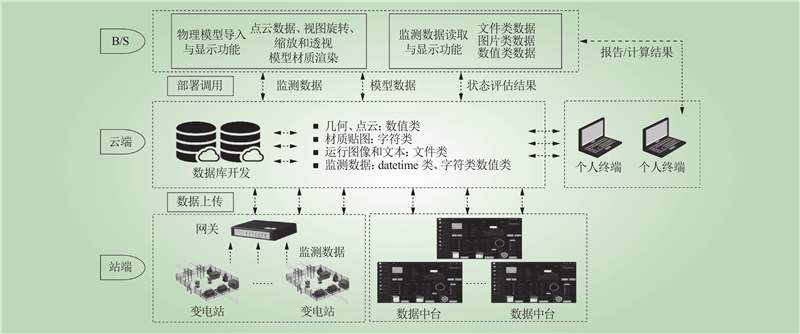

图 6 数字孪生系统总体技术架构

Fig.6 Overall technical architecture of digital twin system

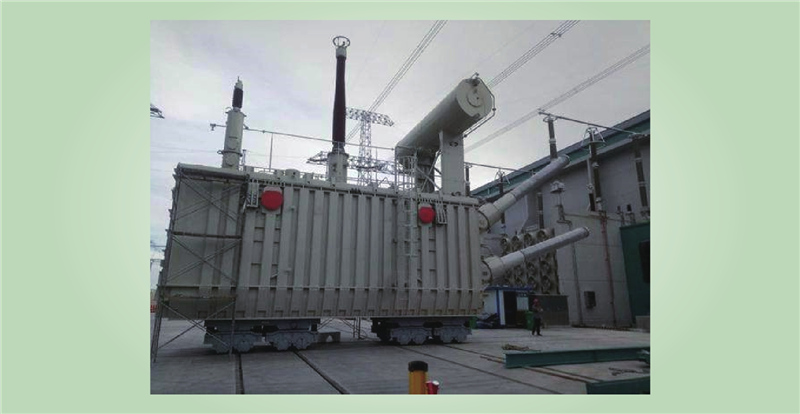

图 7 换流变实景

Fig.7 Converter transformer physical diagram

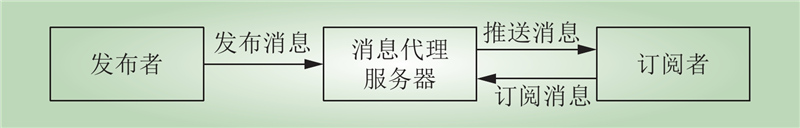

图 8 MQTT传输模型

Fig.8 Transport model of MQTT

表 1 IoT-Gateway的核心报文字段

Table 1 Core packet field of IoT-Gateway

字段	字段名称	类型	备注
timestamp	时间戳	long	GMT UTC格林威治时间
messageId	消息ID	string
version	版本号	string	当前版本号
devices	数据主体	array/string
deviceId	子设备ID	string	一个网关下多个子设备ID不能相同
deviceState	子设备通信状态	0 or 1	0为通信失败，1为通信成功
deviceData	子设备数据	object	子设备数据包

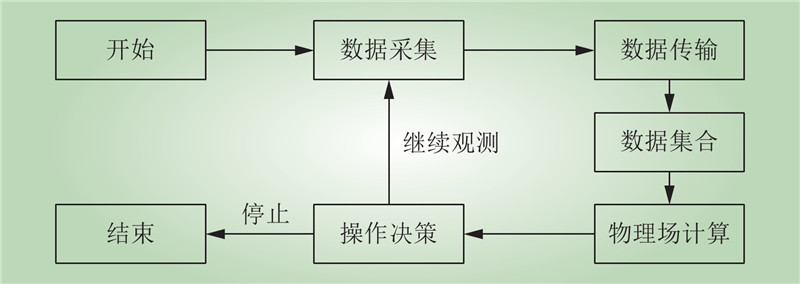

图 9 物理场计算模型流程

Fig.9 Physical field calculation model flow

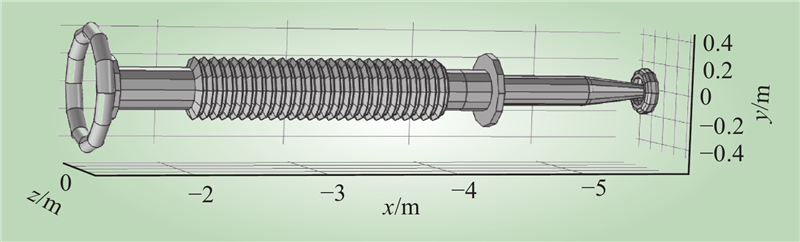

图 10 阀侧套管总体模型

Fig.10 General model of valve side bushing

表 2 阀侧套管模型各部位材料参数

Table 2 Material parameters of valve side bushing model

套管部位	材料名称	电导率/(s·m^–1)	相对介电常数
中心导体	铜	5.8×10⁷	1.0
各层极板	油纸	1×10^–12	4.0
绝缘介质	SF₆	0	4.0
外护套	环氧树脂	1×10^–12	4.0
冷却介质	变压器油	1×10^–12	2.2

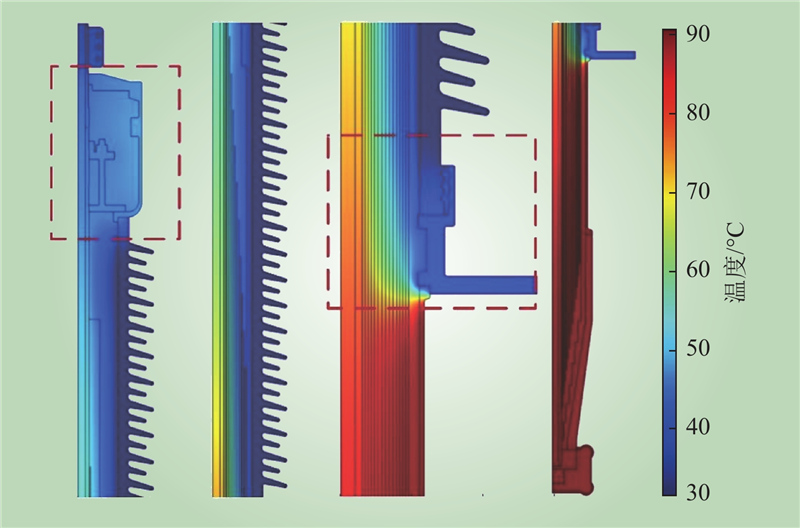

图 11 阀侧套管油纸材料非线性温度场分布

Fig.11 Nonlinear temperature field distribution of valve side bushing oil paper material

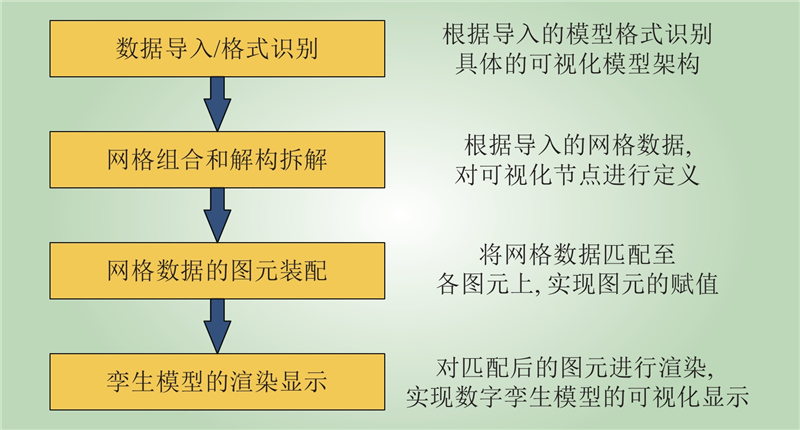

图 12 基于WebGL协议的数字孪生可视化设计方法

Fig.12 Digital twin visual design method based on WebGL protocol

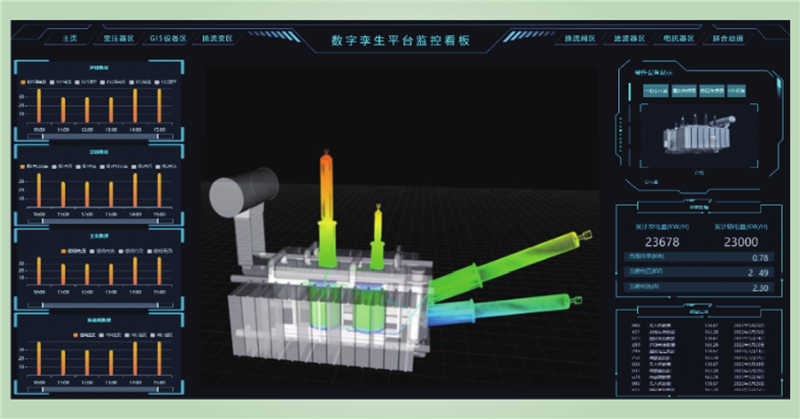

图 13 换流变压器整体可视化显示

Fig.13 Visual display of rheological valve side bushing and transformer

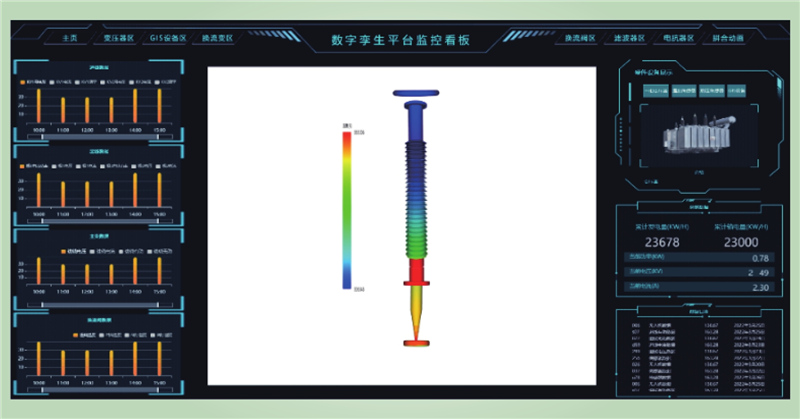

图 14 阀侧套管数字孪生模型显示

Fig.14 Valve side bushing multi-component display

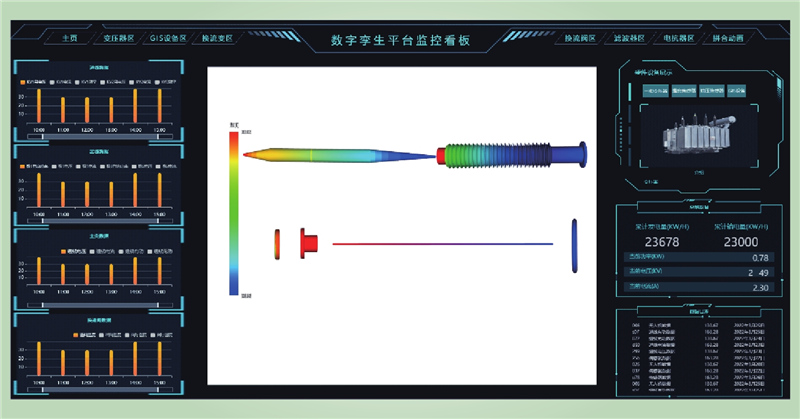

图 15 阀侧套管数字孪生模型拆解显示

Fig.15 Valve side bushing multi-component disassembly display
