基于混合博弈强化学习的虚拟电厂市场交易策略

doi:10.11930/j.issn.1004-9649.202506047

摘要/Abstract

摘要：

随着地区分布式能源快速发展，其单机装机容量小和出力随机性强的问题愈发凸显，导致分布式能源在单独参与市场交易时竞争力不足。为提升其市场参与能力，整合分布式能源形成虚拟电厂（virtual power plant，VPP）已成为一种有效途径。因此，针对含分布式能源的VPP市场交易策略进行研究，提出一种基于混合博弈强化学习的交易策略。首先，根据虚拟电厂内部单元的运行特性构建能源供应商和负荷聚合商的收益模型；然后，为了保证虚拟电厂内部运营商的整体收益建立社会福利最大化模型；最后，基于Stackelberg博弈和演化博弈的混合博弈强化学习算法求解该交易模型。算例分析表明，基于混合博弈强化学习算法的双层模型求解效果优于其他传统智能算法，求解时间减小近50%；此外，VPP同时参与能量市场和辅助服务市场时，可获得更高的收益。

关键词: 虚拟电厂运营商, 市场交易, 混合博弈

Abstract:

With the rapid development of regional distributed energy, the issues of small installed capacity and strong output variability have become increasingly prominent, resulting in insufficient competitiveness when distributed energy participates in market transactions independently. To enhance its market participation capabilities, integrating distributed energy resources into virtual power plant has emerged as an effective approach. Therefore, this study investigates market trading strategies for virtual power plant incorporating distributed energy resources and proposes a trading strategy based on hybrid game-based reinforcement learning. First, establish revenue models for energy suppliers and load aggregators based on the operational characteristics of internal units within the virtual power plant. Then, to ensure the overall profitability of operators within the virtual power plant, a social welfare maximization model is established. Finally, the transaction model is solved using a hybrid game-based reinforcement learning algorithm combining Stackelberg and evolutionary game theory. Case studies demonstrate that the two-layer model based on hybrid game-theoretic reinforcement learning algorithms outperforms traditional intelligent algorithms, reducing computation time by nearly 50%. Furthermore, when virtual power plants participate in both energy markets and ancillary service markets, they can achieve higher returns.

Key words: virtual power plant operators, market trading, hybrid game

郑峰, 孙电, 黄丽丽, 杨峰, 倪芸. 基于混合博弈强化学习的虚拟电厂市场交易策略[J]. 中国电力, 2026, 59(3): 94-102.

ZHENG Feng, SUN Dian, HUANG Lili, YANG Feng, NI Yun. Virtual power plant market trading strategy based on hybrid game reinforcement learning[J]. Electric Power, 2026, 59(3): 94-102.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202506047

https://www.electricpower.com.cn/CN/Y2026/V59/I3/94

图/表 11

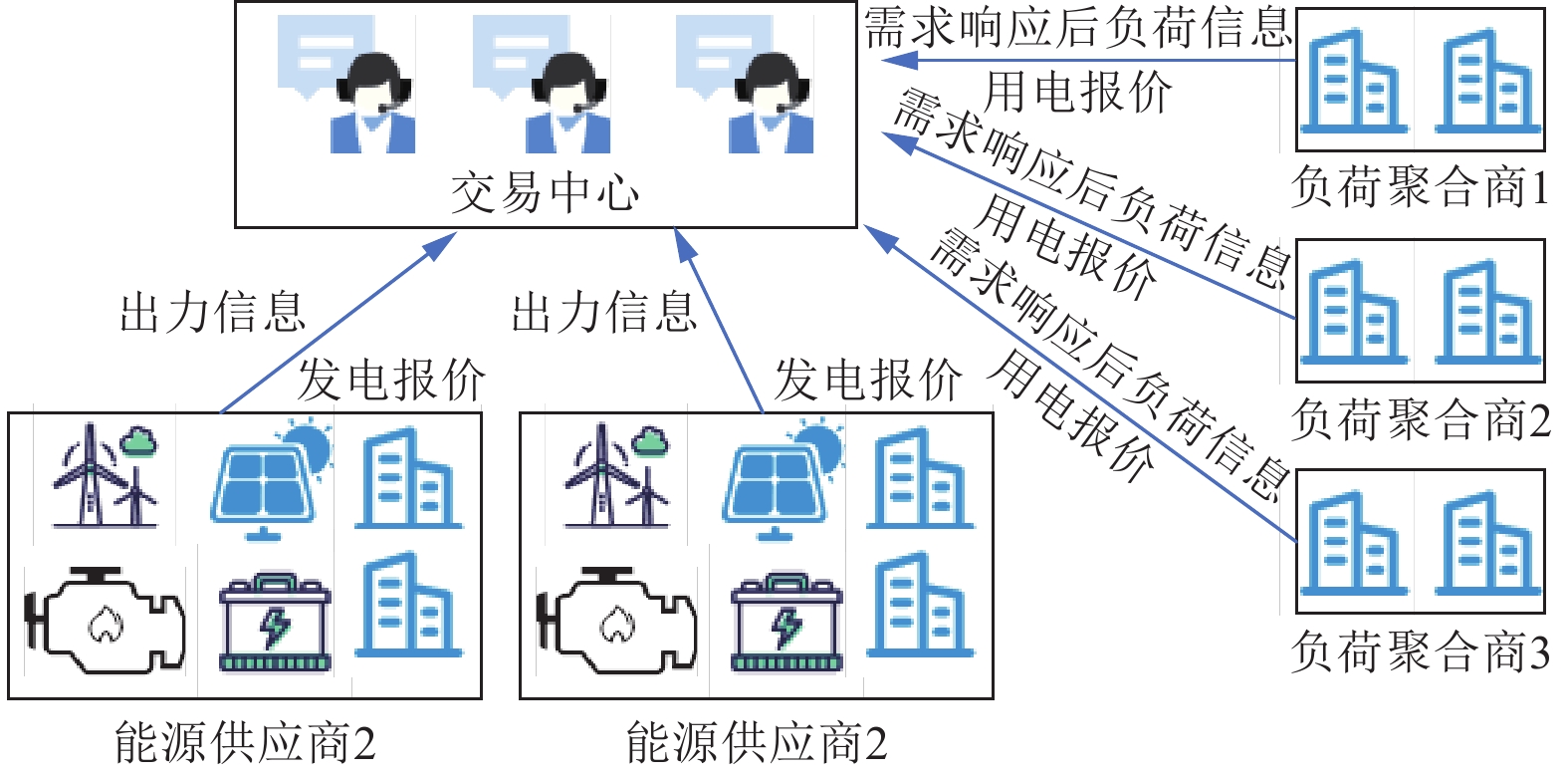

图 1 市场交易模型

Fig.1 Market trading model

图 2 求解流程

Fig.2 Solution process

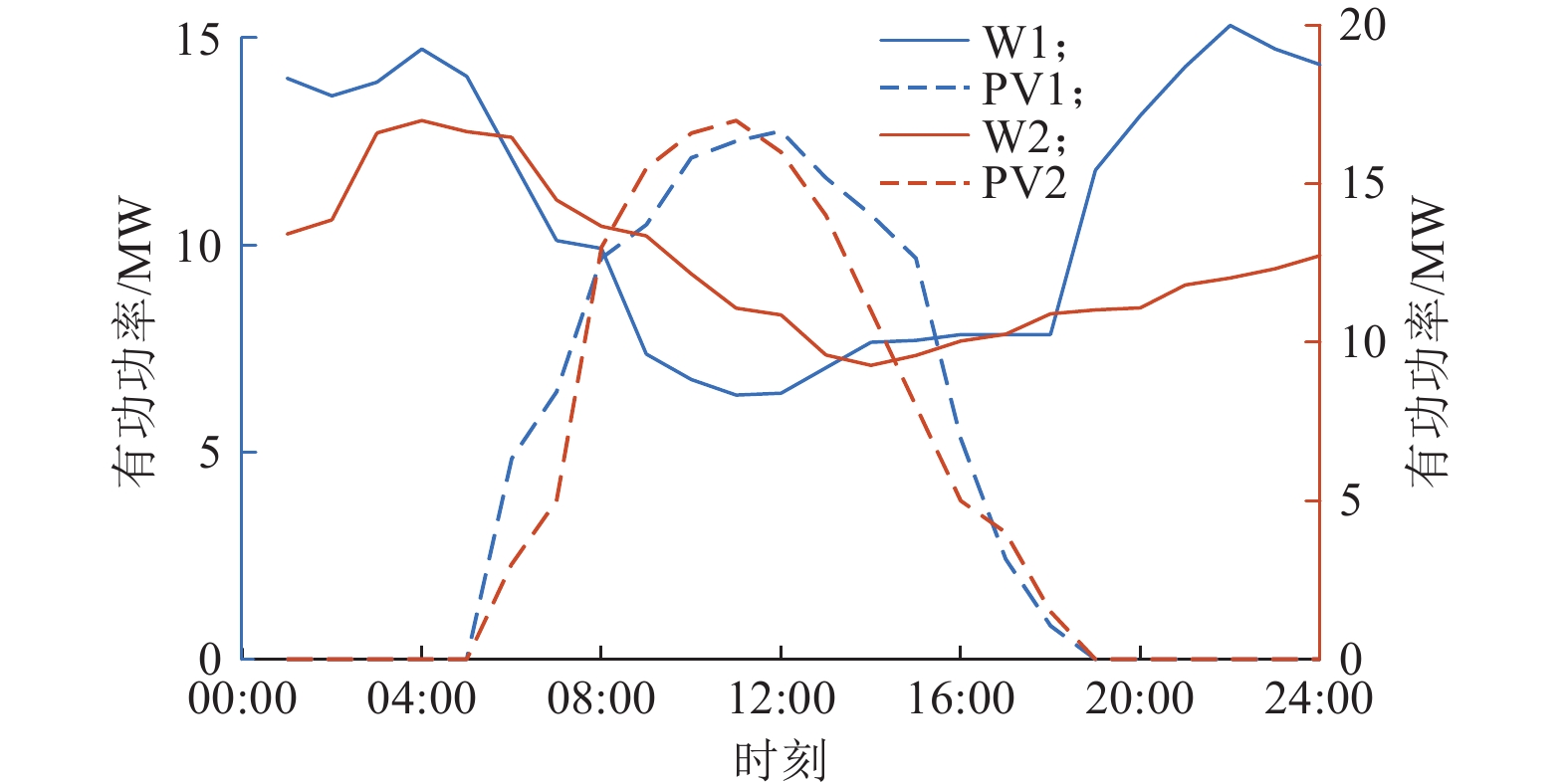

图 3 风光预测出力

Fig.3 Wind and solar forecast output

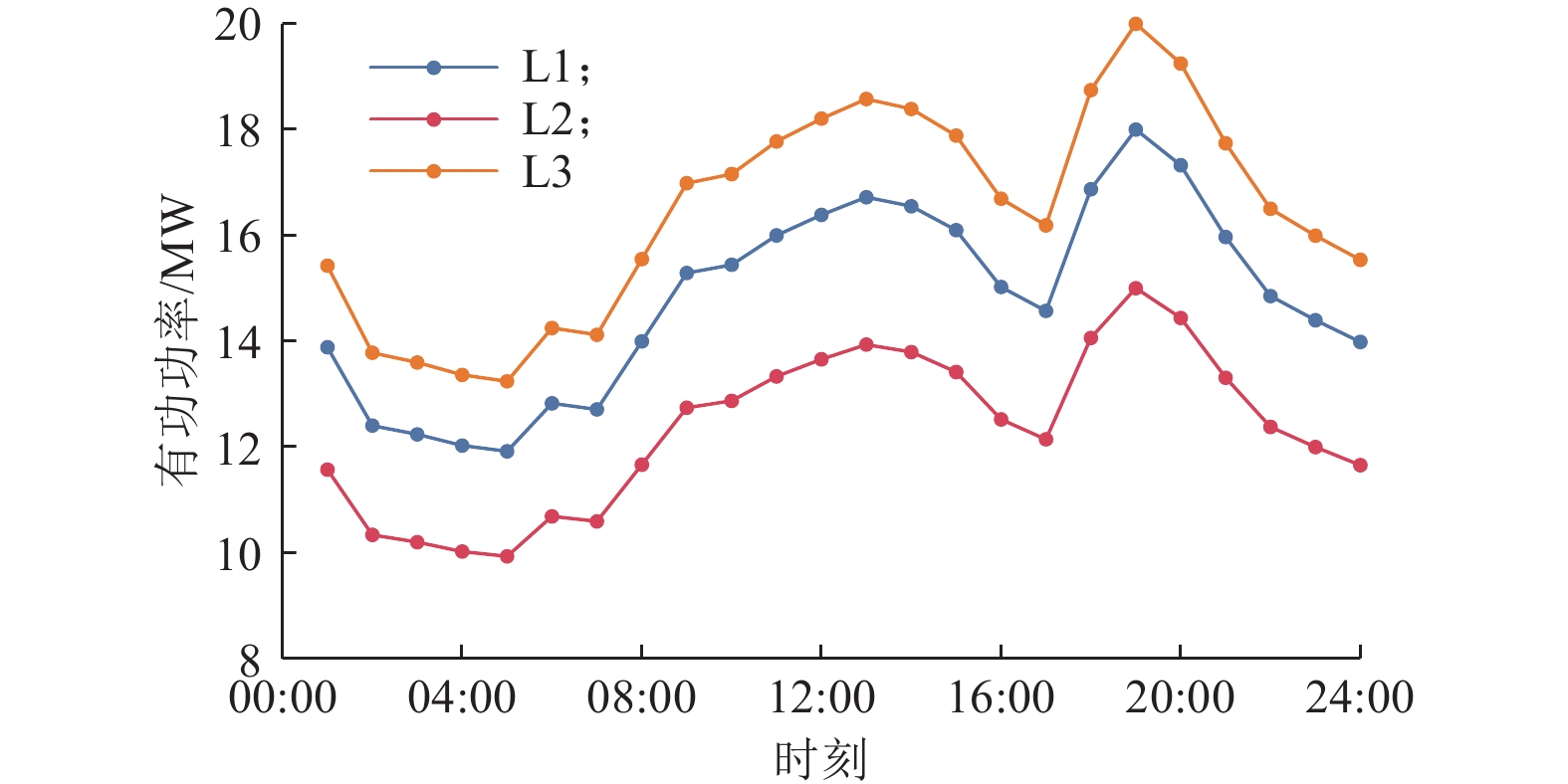

图 4 负荷聚合商的负荷预测情况

Fig.4 Load forecasting situation of load aggregator

表 1 储能装置参数

Table 1 Parameters of energy storage devices

最大充放电功率/MW	容量/ (MW·h)	充放电效率	初始荷电状态	最小荷电状态	最大荷电状态
20	80	0.95	0.5	0.4	0.9

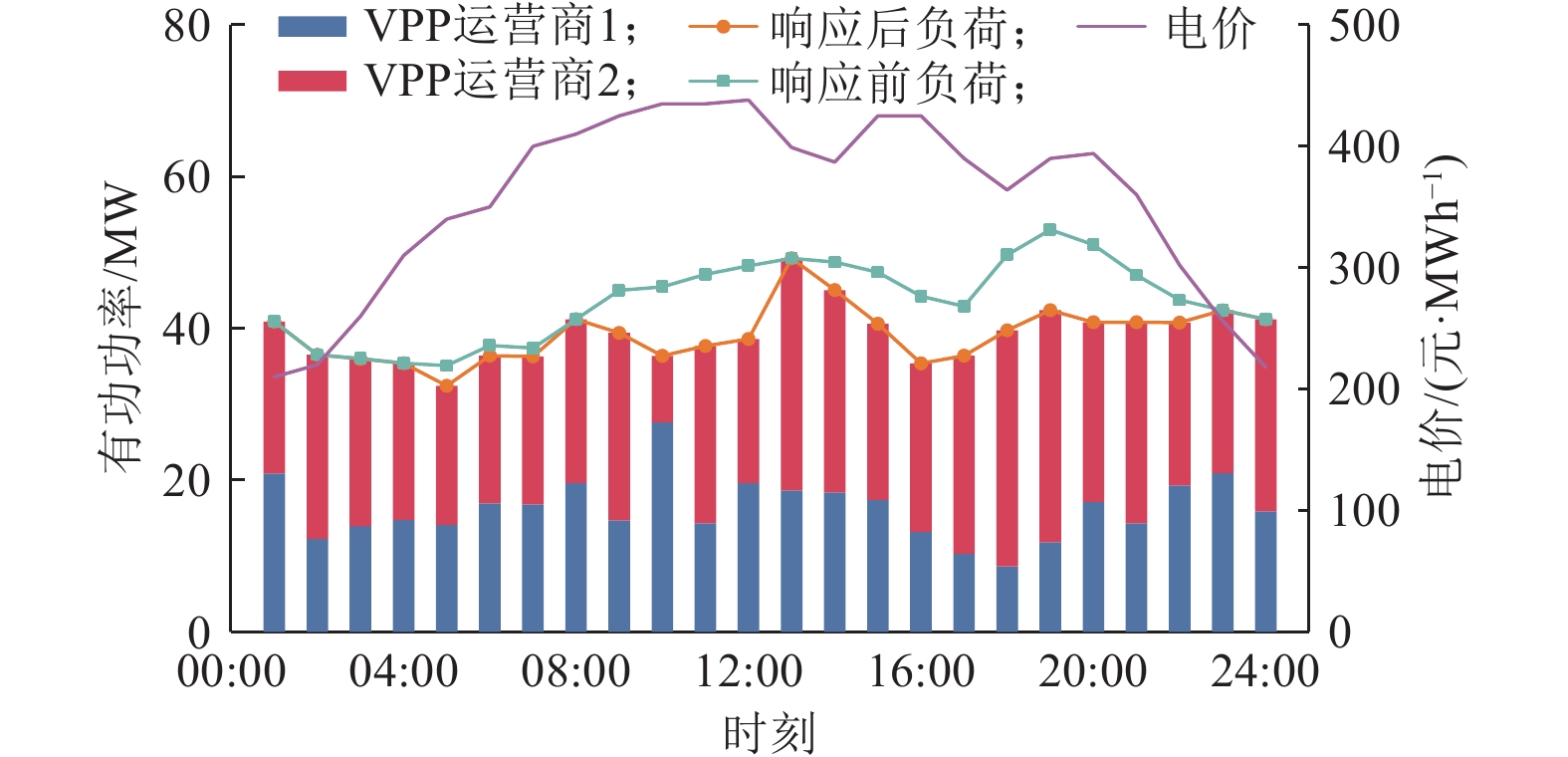

图 5 调度结果

Fig.5 Scheduling results

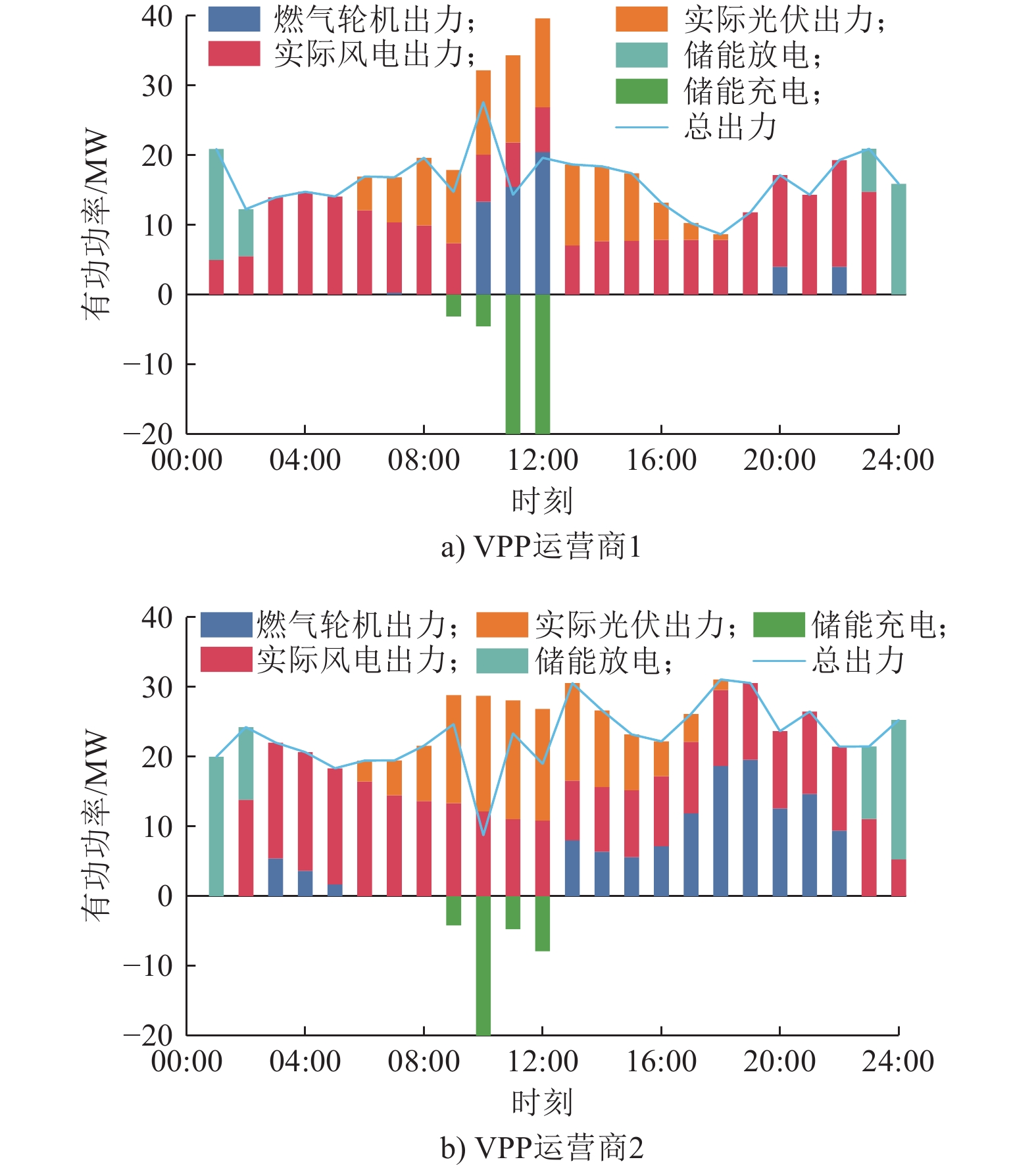

图 6 能源供应商出力情况

Fig.6 Output Status of VPP operator

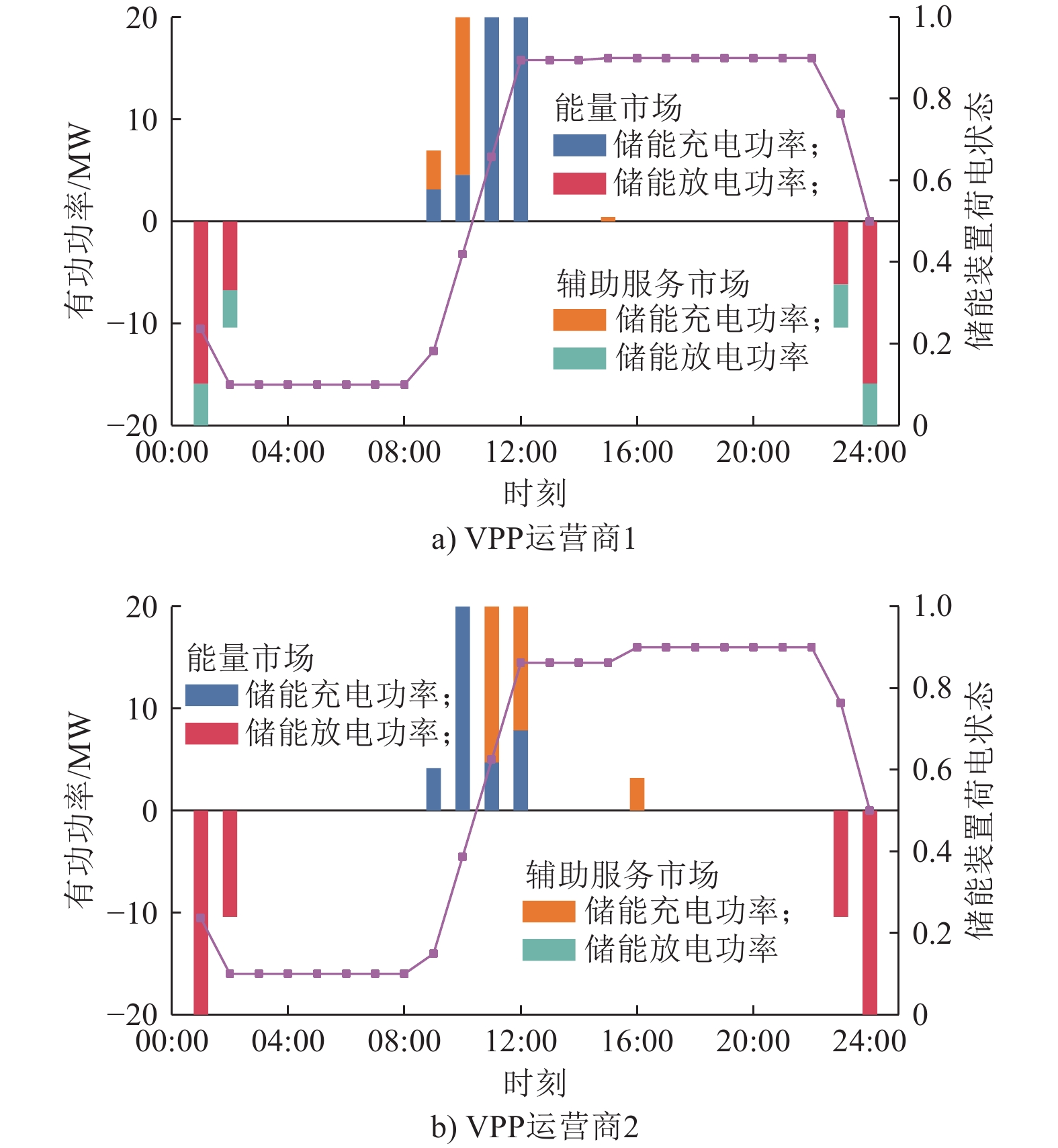

图 7 能源供应商的储能出力情况

Fig.7 Energy storage output of VPP operator

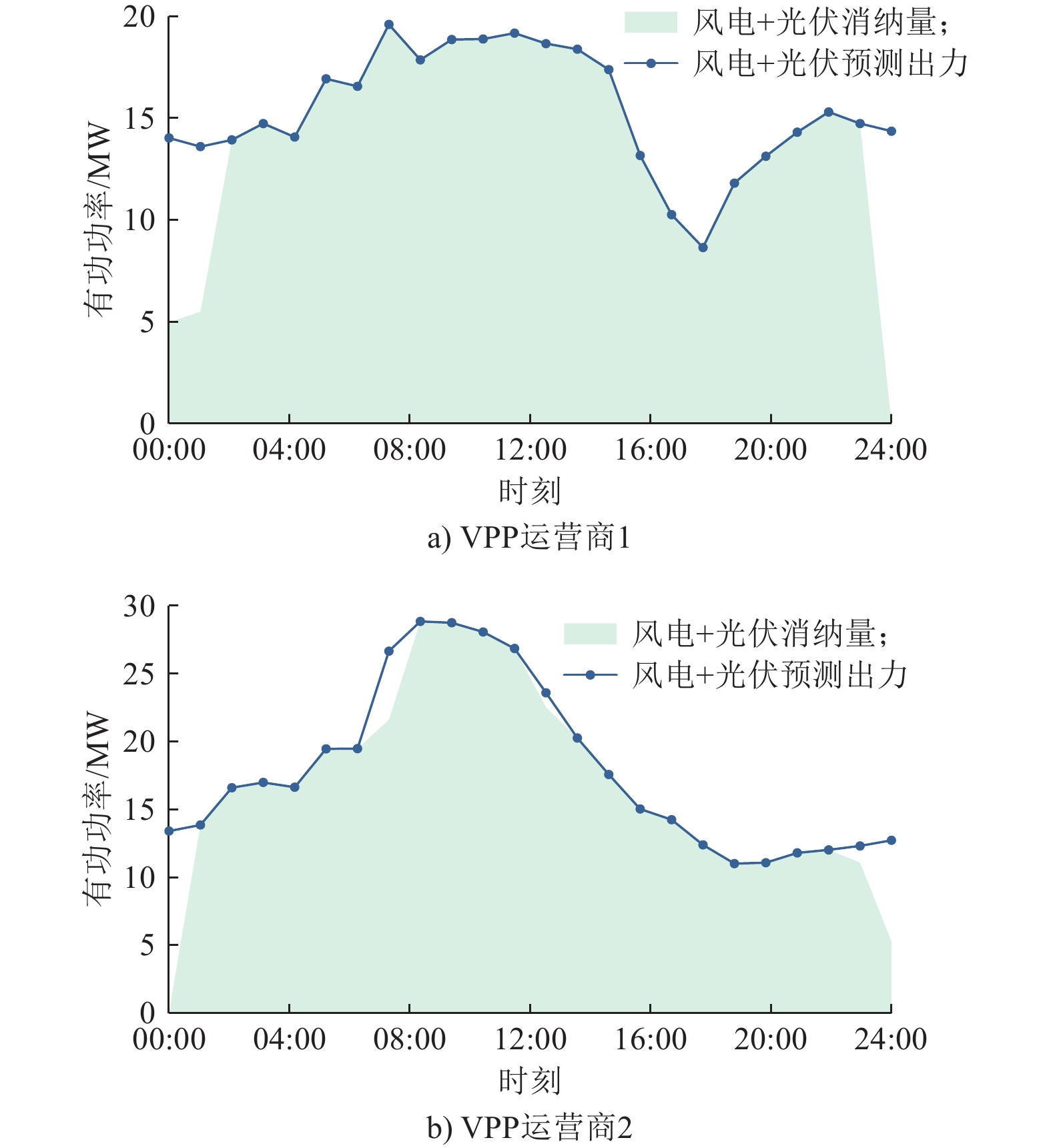

图 8 能源供应商的风光消纳情况

Fig.8 Wind and solar power consumption situation of VPP operator

表 2 不同算法下优化结果对比

Table 2 Comparison of optimization results under different algorithms

算法	社会效益/10⁴元	求解时间/s
粒子群算法	4.81	25.42
KKT条件	4.83	12.15
遗传算法	4.83	23.57
混合强化学习算法	4.86	20.11

表 3 能源供应商参与不同市场的交易结果对比

Table 3 Comparison of transaction results of VPP operators participating in different markets

场景	能源供应商收益		负荷聚合商收益/10⁴元	社会效益/ 10⁴元
场景	能量收益/10⁴元	辅助服务收益/10⁴元	负荷聚合商收益/10⁴元	社会效益/ 10⁴元
场景1	32.65	0	–32.88	–2.30
场景2	32.92	4.88	–32.95	4.86

参考文献 32
