标准数字化应用框架设计及其设备侧领域实践

doi:10.11930/j.issn.1004-9649.202406047

摘要/Abstract

摘要：

为了满足对电力标准文献的深度挖掘和知识规则构建的需求，提出了一种电力标准数字化方案，该方案以条件事理图谱为基础，为电力行业的高效、智能化发展提供了新的解决方案。首先为实现电力标准文献的精细化知识抽取，结合了规则和语义角色标注技术，提取出关键知识三元组，在知识融合阶段，采用词语相似度方法整合知识，提高图谱准确性；其次，建立了针对电力领域的改进标准知识图谱，更全面地表达了电力标准中的知识和规则；最后，结合Cypher查询语言和产生式规则，实现电力设备的辅助知识问答和状态评估任务，大大增强了图谱的实用性。

关键词: 条件事理图谱, 电力标准数字化, 知识三元组抽取

Abstract:

In order to meet the demand for deep mining and knowledge rule construction of electric power standard literature, this paper proposed a novel electric power standard digitization technology, which is based on conditional event graph and provided a new solution for the efficient and intelligent development of the electric power industry. Firstly, in order to realize the refined knowledge extraction of electric power standard documents, this paper combined the rule and semantic role annotation techniques to extract the key knowledge triad, and in the knowledge fusion stage, the word similarity method was used to integrate the knowledge and improve the accuracy of the atlas. Secondly, this paper established an improved standard knowledge graph for the electric power domain, which expresses the knowledge and rules in electric power standards more comprehensively. Finally, this paper combined Cypher query language and generative rules to realize the auxiliary knowledge quiz and condition assessment tasks of electric power equipment, which greatly enhances the utility of the graph.

Key words: condition event graph, digital power standards, knowledge triplet extraction

贺馨仪, 董明, 孙歆, 颜拥, 姚影. 标准数字化应用框架设计及其设备侧领域实践[J]. 中国电力, 2024, 57(11): 78-87.

Xinyi HE, Ming DONG, Xin SUN, Yong YAN, Ying YAO. The Design of Standard Digital Application Framework and its Field Practice on Device Side[J]. Electric Power, 2024, 57(11): 78-87.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202406047

https://www.electricpower.com.cn/CN/Y2024/V57/I11/78

图/表 14

参考文献 29

1	陈志永, 韩璟琳, 刘洋, 等. 基于关键帧提取与图像识别的电网设施数字化重建[J]. 中国电力, 2024, 57 (9): 217- 223.
	CHEN Zhiyong, HAN Jinglin, LIU Yang, et al. 3D reconstruction of power grid facilities based on keyframe extraction and image recognition[J]. Electric Power, 2024, 57 (9): 217- 223.
2	严亚兵, 褚旭, 肖豪龙, 等. 基于改进支持向量机的数字化变电站安全措施生成技术[J]. 中国电力, 2023, 56 (10): 194- 201.
	YAN Yabing, CHU Xu, XIAO Haolong, et al. Automatic generation technology of safety measures for digital substation based on improved support vector machine[J]. Electric Power, 2023, 56 (10): 194- 201.
3	汪际峰, 吴小辰, 林火华, 等. 数字电网的概念、特征与架构[J]. 南方电网技术, 2023, 17 (12): 36- 41, 89.
	WANG Jifeng, WU Xiaochen, LIN Huohua, et al. Concepts, features and architectures of digital grids[J]. Southern Power System Technology, 2023, 17 (12): 36- 41, 89.
4	戎毅成, 谭鑫, 高瑾, 等. 基于物联网的电网施工智慧工地数字化管理平台建设[J]. 山东电力技术, 2023, 50 (4): 22- 27. DOI
	RONG Yicheng, TAN Xin, GAO Jin, et al. Construction of digital management platform for power grid intelligent construction site based on Internet of Things[J]. Shandong Electric Power, 2023, 50 (4): 22- 27. DOI
5	高骞, 杨俊义, 洪宇, 等. 新型电力系统背景下电网发展业务数字化转型架构及路径研究[J]. 发电技术, 2022, 43 (6): 851- 859. DOI
	GAO Qian, YANG Junyi, HONG Yu, et al. Research on digital transformation architecture and path of power grid development planning business under new power system blueprint[J]. Power Generation Technology, 2022, 43 (6): 851- 859. DOI
6	王晓波, 范永学, 韩东兴, 等. 数字孪生技术在输变电工程中的应用分析与研究[J]. 浙江电力, 2023, 42 (6): 105- 111.
	WANG Xiaobo, FAN Yongxue, HAN Dongxing, et al. Analysis and research of digital twin technology applied in power transmission and transformation projects[J]. Zhejiang Electric Power, 2023, 42 (6): 105- 111.
7	康璐, 段玖祥, 张文杰, 等. 基于视觉激光融合的新能源发电智能巡检技术[J]. 电力科技与环保, 2023, 39 (2): 173- 181.
	KANG Lu, DUAN Jiuxiang, ZHANG Wenjie, et al. Research on intelligent inspection technology of new energy power generation based on vision and laser[J]. Electric Power Technology and Environmental Protection, 2023, 39 (2): 173- 181.
8	马超. 面向机器可读标准的电力标准数字化述评与展望[J]. 中国电力, 2023, 56 (8): 216- 229.
	MA Chao. Review and prospect of power standard digitization for machine readable standards[J]. Electric Power, 2023, 56 (8): 216- 229.
9	杜善周, 黄涌波, 卢国平, 等. 面向新型电力系统的数字实时硬件在环仿真综述[J]. 湖南电力, 2023, 43 (5): 3- 10.
	DU Shanzhou, HUANG Yongbo, LU Guoping, et al. Review of digital real time hardware-in-loop simulation for new type power systems[J]. Hunan Electric Power, 2023, 43 (5): 3- 10.
10	李震, 李庆生, 张裕, 等. 一种基于数字孪生的虚拟同步机与静止同步补偿器优化协调控制策略研究[J]. 智慧电力, 2024, 52 (2): 115- 122.
	LI Zhen, LI Qingsheng, ZHANG Yu, et al. A digital twin-based optimal coordinated control strategy for virtual synchronous generator and STATCOM[J]. Smart Power, 2024, 52 (2): 115- 122.
11	刘一江, 陈厚合. 面向数字孪生的电-气综合能源系统静态安全性风险评估[J]. 东北电力大学学报, 2024, 44 (4): 56- 64.
	LIU Yijiang, CHEN Houhe. Static security risk assessment static security risk assessment of electric-gas integrated energy systems for digital twins[J]. Journal of Northeast Electric Power University, 2024, 44 (4): 56- 64.
12	陈远, 黄林超, 刘丽斌, 等. 改进卡尔曼滤波及其在电力时钟同步系统中的应用[J]. 电力科学与技术学报, 2023, 38 (2): 232- 239.
	CHEN Yuan, HUANG Linchao, LIU Libin, et al. Improved Kalman filter and its application in power clock synchronization system[J]. Journal of Electric Power Science and Technology, 2023, 38 (2): 232- 239.
13	潘雨情, 祁兵, 李彬. 新能源园区零碳评价指标体系研究[J]. 内蒙古电力技术, 2023, 41 (5): 12- 18.
	PAN Yuqing, QI Bing, LI Bin. Research on zero carbon evaluation index system for new energy parks[J]. Inner Mongolia Electric Power, 2023, 41 (5): 12- 18.
14	陶文伟, 王景, 曹扬, 等. 面向新型电力系统的人机交互统一安全认证技术[J]. 浙江电力, 2023, 42 (8): 12- 18.
	TAO Wenwei, WANG Jing, CAO Yang, et al. A unified security authentication technology based on human-machine interaction for new-type power systems[J]. Zhejiang Electric Power, 2023, 42 (8): 12- 18.
15	刘曦泽, 王益谊, 杜晓燕, 等. 标准数字化发展现状及趋势研究[J]. 中国工程科学, 2021, 23 (6): 147- 154. DOI
	LIU Xize, WANG Yiyi, DU Xiaoyan, et al. Development status and trend of standards digitization[J]. Strategic Study of CAE, 2021, 23 (6): 147- 154. DOI
16	马超, 宋琛. 电力标准数字化: 概念、核心挑战、治理路线图及发展趋势[J]. 电网技术, 2024, 48 (2): 480- 497.
	MA Chao, SONG Chen. Digital transformation of standards in electric power field: concept, core challenges, governance roadmap and development trend[J]. Power System Technology, 2024, 48 (2): 480- 497.
17	洪海波, 钟珂珂, 刘骁佳, 等. 机器可读标准在航天智能制造中的应用方法研究[J]. 中国标准化, 2023, (16): 45- 52. DOI
	HONG Haibo, ZHONG Keke, LIU Xiaojia, et al. Research on the application method of machine-readable standards in aerospace intelligent manufacturing[J]. China Standardization, 2023, (16): 45- 52. DOI
18	林凌云, 陈青, 金磊, 等. 基于知识图谱的变电站告警信息故障知识表示研究与应用[J]. 电力系统保护与控制, 2022, 50 (12): 90- 99.
	LIN Lingyun, CHEN Qing, JIN Lei, et al. Research and application of substation alarm signal fault knowledge representation based on knowledge graph[J]. Power System Protection and Control, 2022, 50 (12): 90- 99.
19	张蓉. 面向电力PDF文档中表格的知识图谱构建技术研究[D]. 兰州: 西北师范大学, 2023.
	ZHANG Rong. Research on knowledge graph construction technology for tables in electric power PDF documents . Lanzhou: Northwest Normal University, 2023.
20	郝文建, 魏梅, 张浩, 等. 标准知识图谱的构建与应用[J]. 信息技术与标准化, 2021, (8): 44- 47. DOI
	HAO Wenjian, WEI Mei, ZHANG Hao, et al. Architecture and implement of standard-oriented knowledge graphs[J]. Information Technology & Standardization, 2021, (8): 44- 47. DOI
21	赵伟, 张览, 望俊成. 标准文献知识图谱构建的模型设计与集成方法[J]. 情报工程, 2021, 7 (6): 58- 66. DOI
	ZHAO Wei, ZHANG Lan, WANG Juncheng. Model design and integrated method for the construction of standard literature knowledge graph[J]. Technology Intelligence Engineering, 2021, 7 (6): 58- 66. DOI
22	刘育权, 宋禹飞, 梁锦照, 等. 电力设备数字化标准一体化支撑智能制造[J]. 南方电网技术, 2022, 16 (12): 46- 53.
	LIU Yuquan, SONG Yufei, LIANG Jinzhao, et al. Digital standardization integration on power equipment for intelligent manufacturing[J]. Southern Power System Technology, 2022, 16 (12): 46- 53.
23	陈志忠, 熊泽森, 姚东, 等. 基于知识图谱的电力杆塔主要构件识别方法研究[J]. 浙江电力, 2024, 43 (5): 100- 108.
	CHEN Zhizhong, XIONG Zesen, YAO Dong, et al. Research on a recognition method of main components of electric power towers using knowledge graph[J]. Zhejiang Electric Power, 2024, 43 (5): 100- 108.
24	黄简, 杨程, 冯天波, 等. 面向风电机组运维的知识图谱构建研究与应用[J]. 电力系统保护与控制, 2024, 52 (8): 167- 177.
	HUANG Jian, YANG Cheng, FENG Tianbo, et al. Research and application of knowledge graph construction for wind turbine operation and maintenance[J]. Power System Protection and Control, 2024, 52 (8): 167- 177.
25	SAP M, LE BRAS R, ALLAWAY E, et al. ATOMIC: an atlas of machine commonsense for if-then reasoning[J]. Proceedings of the AAAI Conference on Artificial Intelligence, 2019, 33 (1): 3027- 3035. DOI
26	邹国惠, 魏嘉隆, 王超, 等. 基于知识图谱的变电设备画像技术[J]. 广东电力, 2024, 37 (1): 86- 93.
	ZOU Guohui, WEI Jialong, WANG Chao, et al. Knowledge graph-based portrait depiction technology for substation equipment[J]. Guangdong Electric Power, 2024, 37 (1): 86- 93.
27	石宏岩, 李艳来. 基于知识图谱对吸收式热泵的研究概况与趋势预测[J]. 内蒙古电力技术, 2023, 41 (4): 32- 40.
	SHI Hongyan, LI Yanlai. Research overview and trend prediction of absorption heat pumps based on knowledge graph[J]. Inner Mongolia Electric Power, 2023, 41 (4): 32- 40.
28	李彦儒, 王慧芳, 陈昊, 等. 电力设备缺陷文本质量保证与评级软件的开发及应用[J]. 浙江电力, 2022, 41 (7): 78- 85.
	LI Yanru, WANG Huifang, CHEN Hao, et al. Development and application of quality assurance and rating software program for power equipment defect texts[J]. Zhejiang Electric Power, 2022, 41 (7): 78- 85.
29	黄欣, 郇嘉嘉, 赵敏彤, 等. 基于DKG和IGCN的电力变压器故障诊断方法[J]. 广东电力, 2023, 36 (11): 146- 156.
	HUANG Xin, HUAN Jiajia, ZHAO Mintong, et al. Fault diagnosis method of power transformer based on DKG and IGCN[J]. Guangdong Electric Power, 2023, 36 (11): 146- 156.

实体类别	属性	示例
标准	部位	{状态量评价标准：标准，部位：本体}
级别	属性、属性值	{1级：级别，影响因子：1}
结果	输出、部位、分类、输出方式、输出值、备注	{评价结果：结果，输出：扣分值，部位：本体，分类：运行，输出方式：固定，输出值：4，备注：按本表要求安排绕组损坏相关测试时，本项不扣分}
判断	判断方式、部位、阈值1、阈值2	{单项扣分：判断，判断方式：小于，部位：本体，阈值1：12、阈值2：null}
物理参量	判断方式、部位、分类、阈值1、阈值2、依据、电压等级	{变压器过负荷：物理参量，判断方式：定性，部位：本体，分类：运行，阈值1：null，阈值2：null，依据：达到短期急救负载运行规定或长期急救负载运行规定，电压等级：null}

实体类别	属性	示例
标准	部位	{状态量评价标准：标准，部位：本体}
级别	属性、属性值	{1级：级别，影响因子：1}
结果	输出、部位、分类、输出方式、输出值、备注	{评价结果：结果，输出：扣分值，部位：本体，分类：运行，输出方式：固定，输出值：4，备注：按本表要求安排绕组损坏相关测试时，本项不扣分}
判断	判断方式、部位、阈值1、阈值2	{单项扣分：判断，判断方式：小于，部位：本体，阈值1：12、阈值2：null}
物理参量	判断方式、部位、分类、阈值1、阈值2、依据、电压等级	{变压器过负荷：物理参量，判断方式：定性，部位：本体，分类：运行，阈值1：null，阈值2：null，依据：达到短期急救负载运行规定或长期急救负载运行规定，电压等级：null}

谓词论元结构		内容

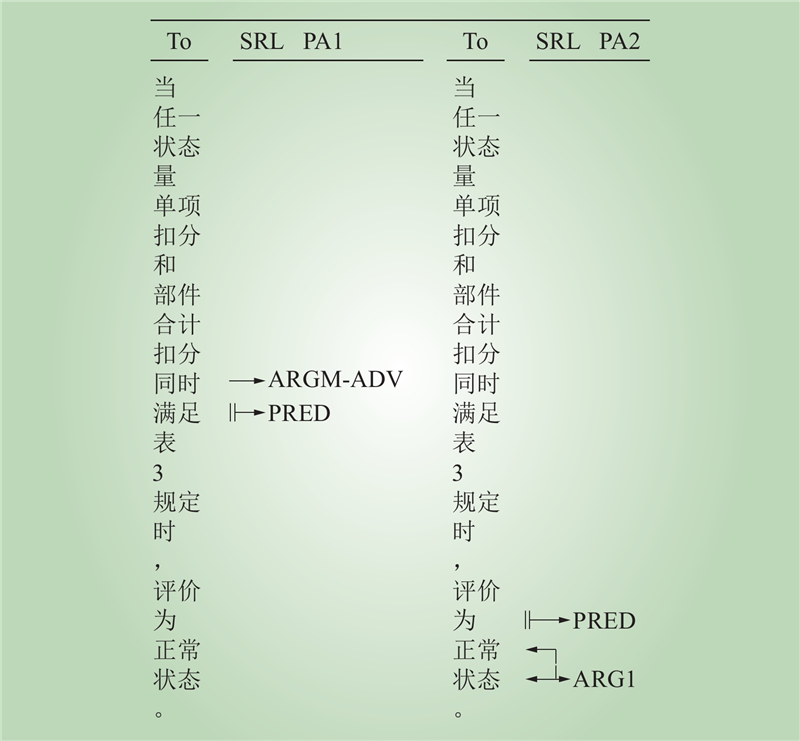

第1个谓词论元结构		同时 = ARGM-ADV at [10, 11)
第1个谓词论元结构		满足 = PRED at [11, 12)
第2个谓词论元结构		为 = PRED at [18, 19)
第2个谓词论元结构		正常状态 = ARG1 at [19, 21)

谓词论元结构		内容
第1个谓词论元结构		同时 = ARGM-ADV at [10, 11)
第1个谓词论元结构		满足 = PRED at [11, 12)
第2个谓词论元结构		为 = PRED at [18, 19)
第2个谓词论元结构		正常状态 = ARG1 at [19, 21)

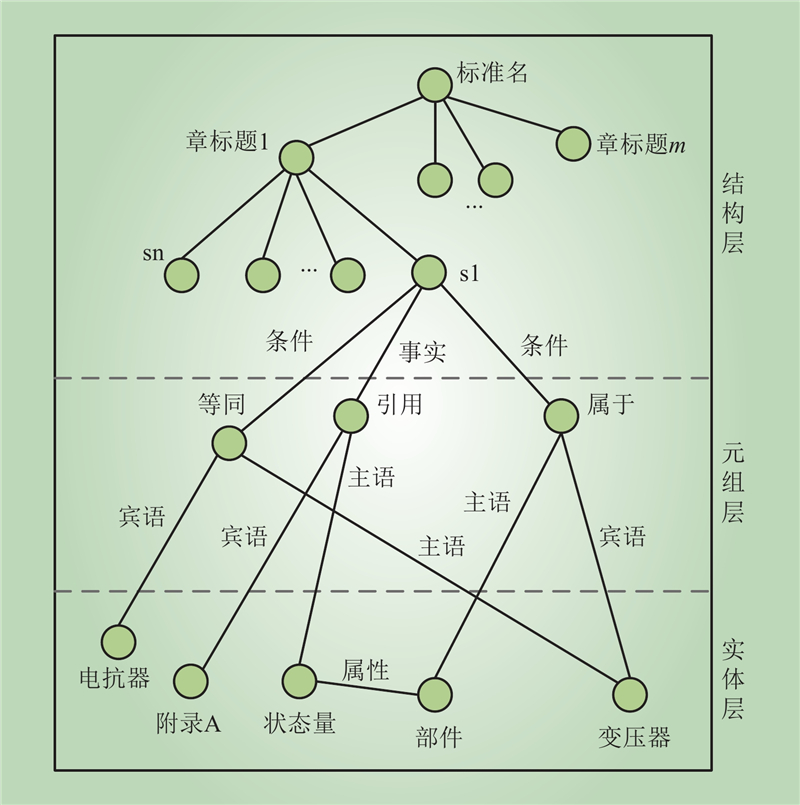

实体类型	关系	实体类型
