基于VAE-WSVM的二次采样回路测试校核评估

doi:10.11930/j.issn.1004-9649.202405011

摘要/Abstract

摘要：

分析二次系统采样回路中存在的隐患，针对现有方法难以获取大数据量的缺陷，基于历史测量数据，采用变分自编码器实现数据增殖，接着基于增殖后的数据集训练支持向量机模型，利用灰狼优化算法改进模型重要参数，并对二次系统采样回路误差范围进行分类校核。实验结果表明：所提方法训练的分类模型评估效果良好。

关键词: 二次系统采样回路, 误差评估, 小样本

Abstract:

Analyze the hidden dangers existing in the sampling circuit of the secondary system, and in view of the defects that the existing methods are difficult to obtain large amount of data, based on the historical measurement data, the variational autoencoder is used to achieve data proliferation, and then the support vector machine model is trained on the proliferated data set, and the important parameters of the model are improved by using the grey wolf optimization algorithm, and the error range of the secondary system sampling is classified and checked. The experimental results show that the classification model trained by the proposed method has a good evaluation effect.

Key words: secondary system sampling loop, error evaluation, small sample size

尹相国, 刘慧娟, 张冠育, 毛玉荣, 龚世玉. 基于VAE-WSVM的二次采样回路测试校核评估[J]. 中国电力, 2025, 58(3): 162-167.

Xiangguo YIN, Huijuan LIU, Guanyu ZHANG, Yurong MAO, Shiyu GONG. Sampling Loop Test Check Evaluation of Secondary System based on VAE-WSVM Data Mining[J]. Electric Power, 2025, 58(3): 162-167.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202405011

https://www.electricpower.com.cn/CN/Y2025/V58/I3/162

图/表 8

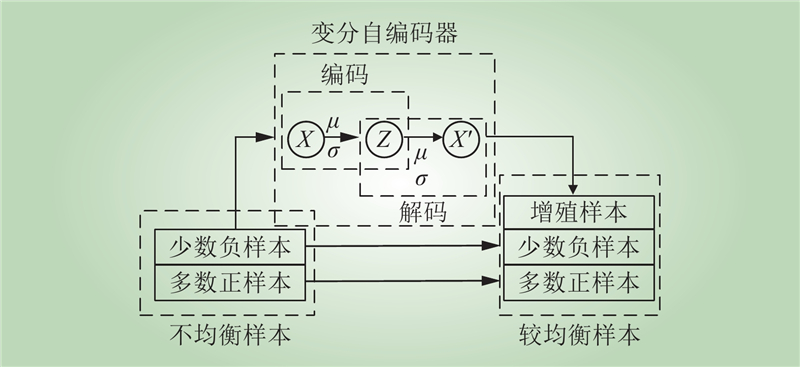

图 1 变分自编码器的基本流程

Fig.1 The basic flow of VAE

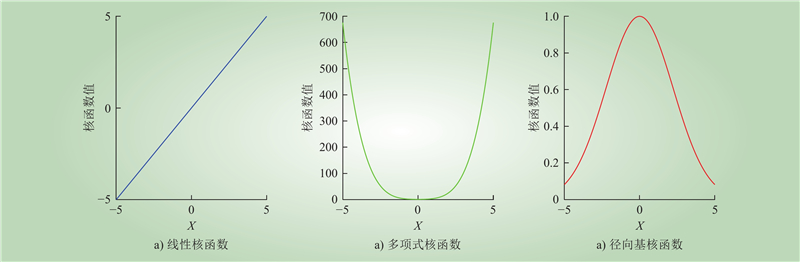

图 2 多类核函数对比分析

Fig.2 Comparative analysis of multiple types of kernel functions

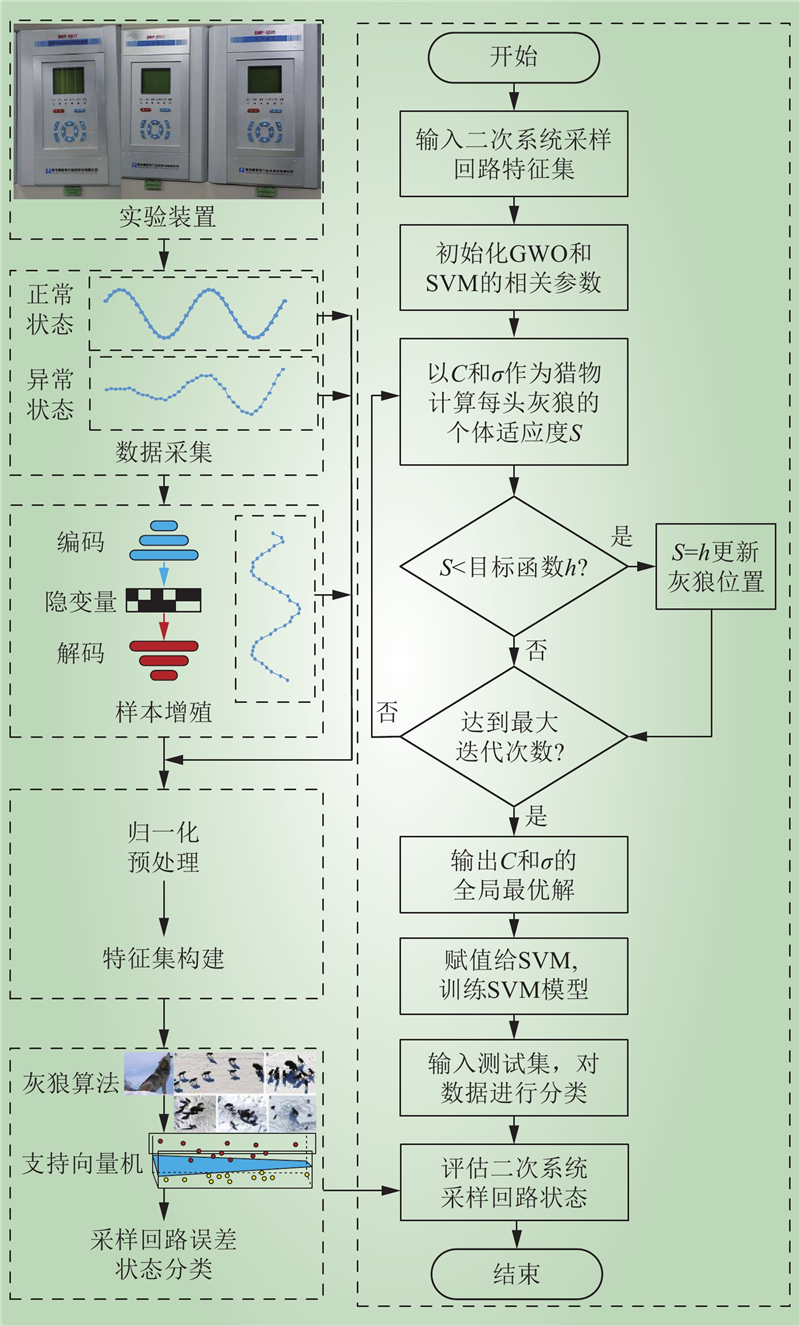

图 3 二次系统采样回路测试校核评估流程

Fig.3 Evaluation process for secondary system sampling loop

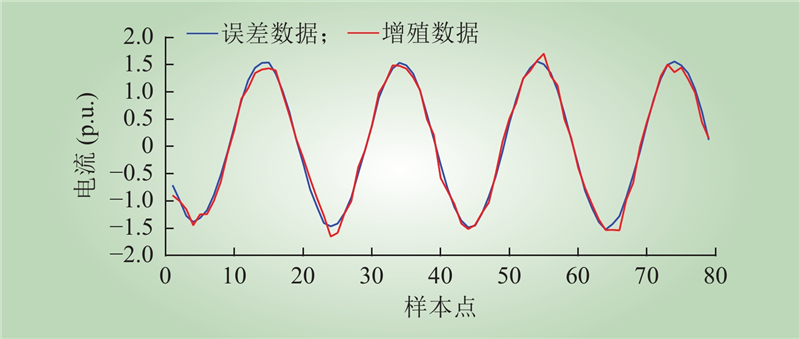

图 4 基于变分自编码器算法的数据增殖

Fig.4 Data multiplication based on VAE

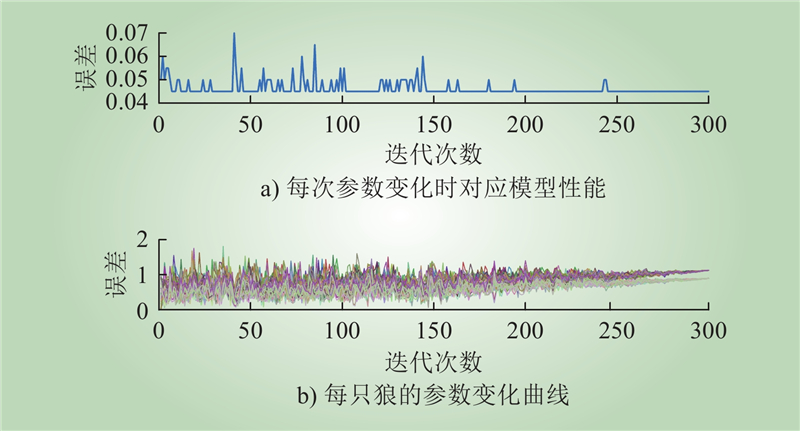

图 5 模型关键参数寻优

Fig.5 Optimization of model key parameters

表 1 各样本构成情况

Table 1 The composition of each sample

采样回路误差状态	代号	样本数量	测试集	训练集
正常	N	1100	330	770
计量误差	M1	300	90	210
测量误差	M2	300	90	210
保护误差	L1	300	90	210

表 2 递增不平衡度的训练样本构成情况

Table 2 The composition of training samples with increasing unbalance degree

代号	训练样本构成情况
代号	训练集1	训练集2	训练集3	训练集4
N	100	200	400	770
M1	100	200	210	210
M2	100	200	210	210
L1	100	200	210	210

表 3 各评估方法结果

Table 3 Results of each evaluation method

评估方法	准确率/%
评估方法	训练集1	训练集2	训练集3	训练集4
统计量	75.17	75.08	75.40	75.71
简单神经网络	96.90	88.33	79.67	79.39
支持向量机	83.33	86.92	82.21	79.29
VAE-SVM	92.92	94.33	96.96	98.57
VAE-WSVM	95.83	97.08	98.71	99.52
