Defense Method for Smart Grid GPS Spoofing Attack Based on BiLSTM and Self-attention Mechanism Generative Adversarial Network

Hui WU¹(), Ziwei ZOU²(), Fengming XIAO¹, Jie LIU¹, Chenpeng MIN¹, Zhuoqun XIA³()

1. Wuling Electric Power Co., Ltd., Changsha 410004, China
2. School of Computer Science and Engineering, Central South University, Changsha 410083, China
3. School of Computer and Communication Engineering, Changsha University of Science and Technology, Changsha 410076, China

Received:2023-11-07 Accepted:2024-02-05 Online:2024-09-23 Published:2024-09-28
Supported by:
This work is supported by National Natural Science Foundation of China (Research on Data Security Protection of Smart Grid Edge Computing, No.52177067); Key Project of National Natural Science Foundation of China (Intelligent Identification and Security Prevention and Control Theory and Method of Network Attacks for Large Power Grids, No.U1966207).

摘要/Abstract

摘要：

相量测量单元（phasor measurement unit，PMU）是智能电网的重要组成部分，能精准同步采集电力数据。由于PMU使用全球定位系统（global positioning system，GPS）提供时间同步参考，容易遭受GPS欺骗攻击（GPS spoofing attack，GSA），影响正常的数据采集。现有GSA防御方法的修复精度较低且需要额外的硬件成本。为了解决上述问题，提出一种基于双向长短期记忆网络与自注意力机制生成对抗网络的GSA防护方法。首先，提出一种改进的带梯度惩罚的Wasserstein生成对抗网络（Wasserstein generative adversarial network with gradient penalty，WGAN-GP）模型，重新设计原有生成器和判别器的网络架构，并在生成器和判别器中分别引入双向长短期记忆网络以及自注意力机制，提升模型的生成性能和鉴别能力。其次，基于所提出的WGAN-GP模型，构建了一种GSA防御模型，其包含攻击检测网络和数据修复网络2个模块，分别用于检测智能电网GSA和修复受损的PMU测量数据。最后，在IEEE-39总线系统中模拟GSA攻击，并在相应的数据集验证方法的有效性。结果表明，与现有方法对比，所提方法在大部分性能指标上取得了领先的性能。

关键词: PMU, 攻击检测, 数据修复, GSA, WGAN-GP模型

Abstract:

Phasor measurement unit (PMU) plays a crucial role in smart grids, enabling precise synchronized acquisition of electric power data. Due to the use of the global positioning system (GPS) for time synchronization, the PMU is vulnerable to GPS spoofing attack (GSA), which impacts the normal data acquisition. The existing GSA defense methods have low restoration accuracy and require additional hardware costs. To address the aforementioned issues, this paper proposes a GSA defense method based on bidirectional long short-term memory (BiLSTM) network and self-attention mechanism generative adversarial network. Firstly, an improved WGAN-GP model is proposed to redesign the network architecture of the generator and discriminator, and the BiLSTM network and self-attention mechanism are incorporated into the generator and discriminator to enhance the model's generative performance and discriminative ability. Secondly, based on the proposed WGAN-GP model, a GSA defense model is constructed, which includes two crucial modules: an attack detection network and a data restoration network that are employed to detect the smart grid GSA and repair the compromised PMU measurement data, respectively. Finally, We simulated GSA attacks in the IEEE-39 bus system and validated the effectiveness of the proposed method on the corresponding dataset. The results show that compared to existing methods, the proposed approach outperforms in most performance indicators.

Key words: PMU, attack detection, data repair, GSA, WGAN-GP model

吴辉, 邹子威, 肖丰明, 刘杰, 闵陈鹏, 夏卓群. 基于BiLSTM与自注意力机制生成对抗网络的GSA防护方法[J]. 中国电力, 2024, 57(9): 61-70.

Hui WU, Ziwei ZOU, Fengming XIAO, Jie LIU, Chenpeng MIN, Zhuoqun XIA. Defense Method for Smart Grid GPS Spoofing Attack Based on BiLSTM and Self-attention Mechanism Generative Adversarial Network[J]. Electric Power, 2024, 57(9): 61-70.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202311025

https://www.electricpower.com.cn/CN/Y2024/V57/I9/61

图/表 13

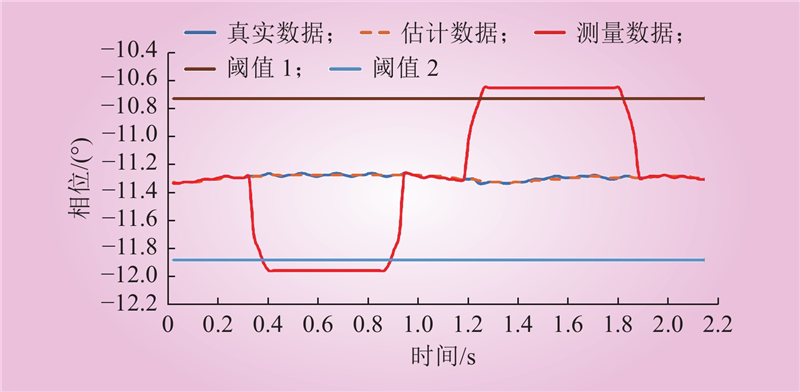

图 1 突变型GSA示意

Fig.1 Schematic of mutant GSA

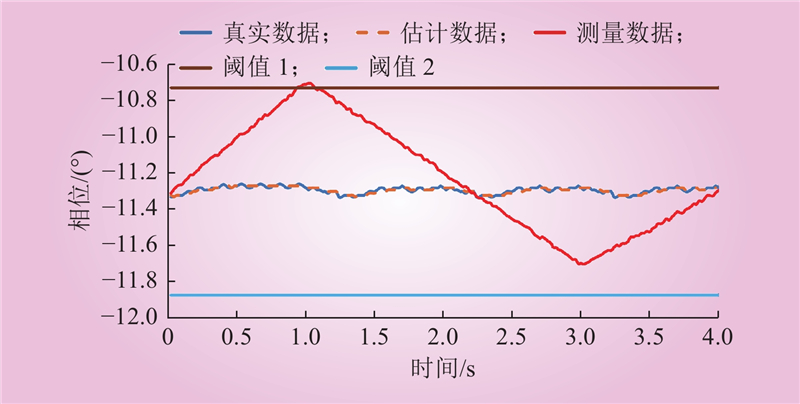

图 2 慢速持续型GSA示意

Fig.2 Schematic of slow sustained GSA

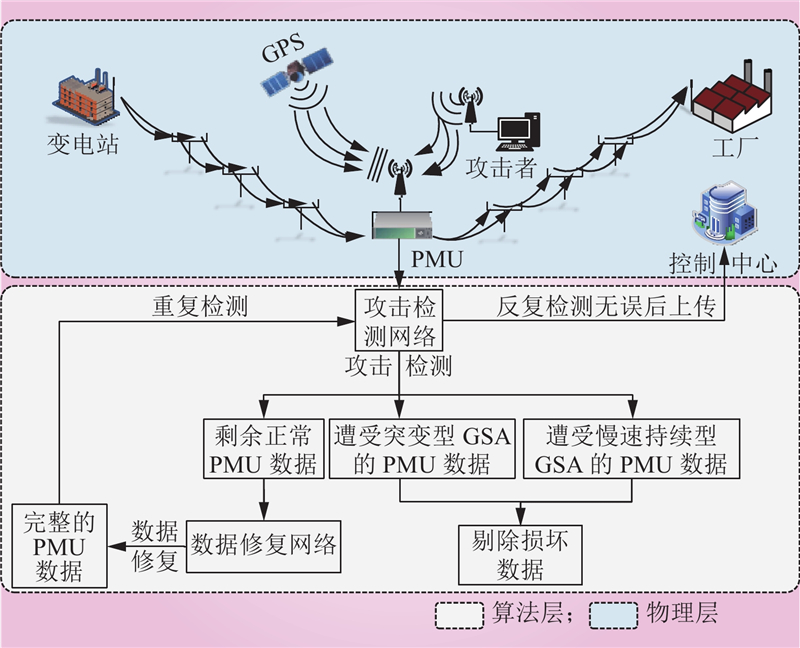

图 3 GSA防御模型

Fig.3 GSA defense model

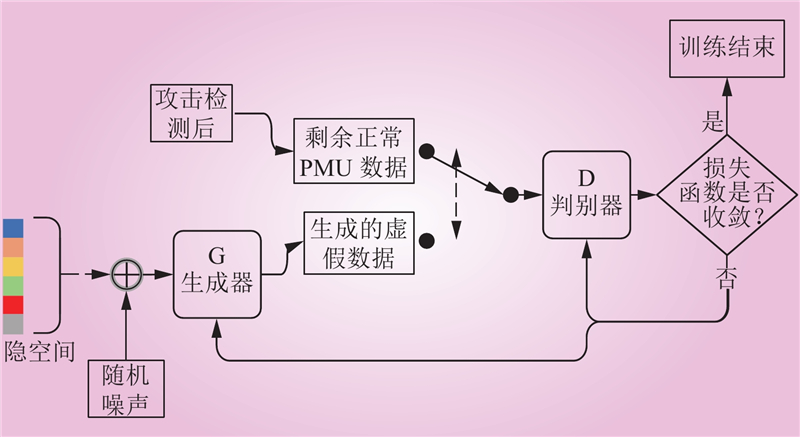

图 4 数据修复网络训练流程

Fig.4 Training workflow of data repair network

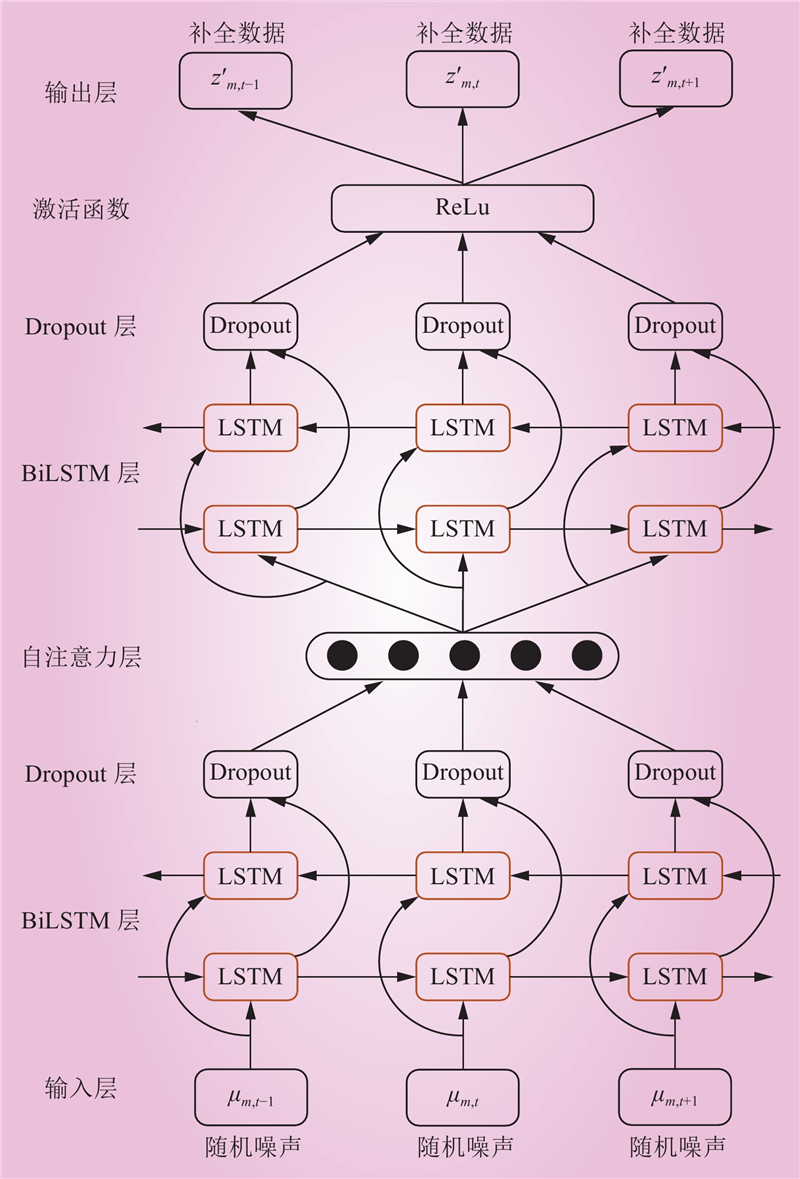

图 5 生成器结构

Fig.5 Structure of the generator

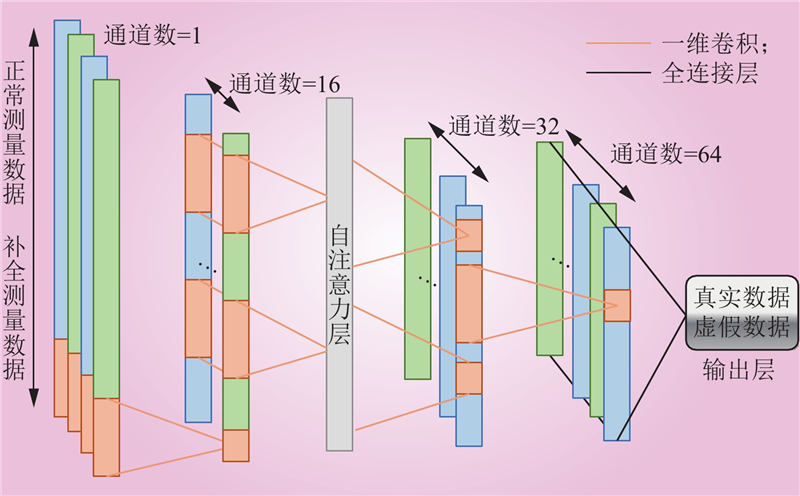

图 6 判别器架构

Fig.6 Architecture of the discriminator

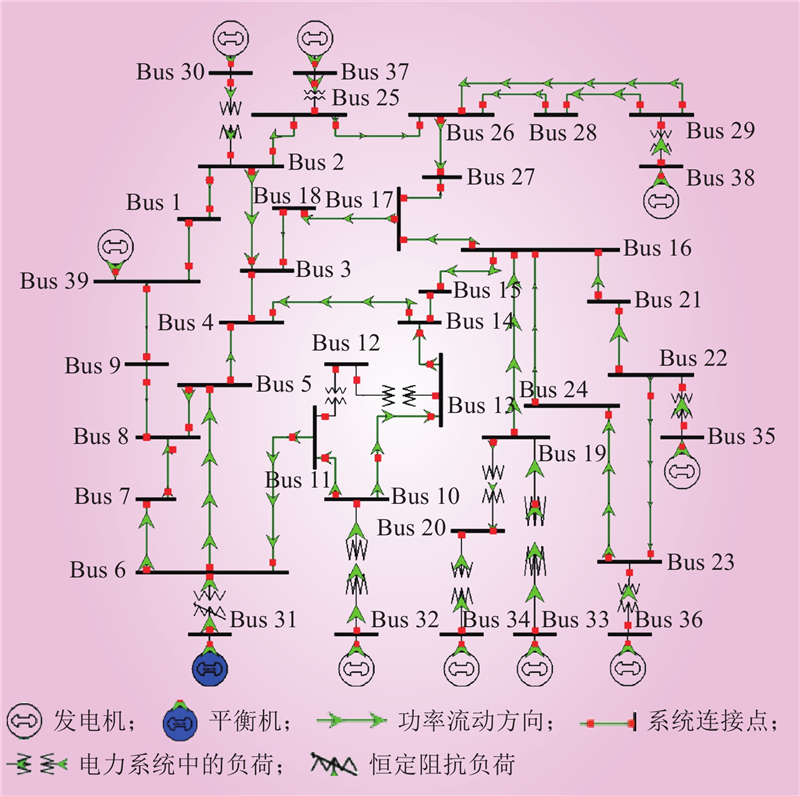

图 7 IEEE-39总线系统

Fig.7 IEEE-39 bus system

表 1 本文所用数据集

Table 1 Datasets used in this paper

类别	PMU个数	数据量
正常PMU数据	29	8759
遭受突变型GSA的PMU数据	4	1276
遭受慢速持续型GSA的PMU数据	6	1867

表 2 消融实验

Table 2 Ablation experiments

方法	准确率/%	精确率/%	召回率/%	F1 分数/%
WGAN-GP	87.23	82.06	80.36	81.56
WGAN-GP+自注意力层	91.64	84.07	81.97	83.64
WGAN-GP+BiLSTM	92.66	84.96	82.39	83.97
本文方法	95.24	86.15	81.63	85.07

表 3 不同算法中检测模型的指标对比情况

Table 3 Comparison of detection model metrics among different algorithms

算法	准确率/%	AUC/%	训练时间/s	检测时间/s
文献[16]	94.32	94.57	43.24	0.42
文献[18]	92.38	90.81	39.29	0.32
文献[17]	91.32	91.30	46.08	0.30
本文方法	95.24	95.58	47.98	0.50

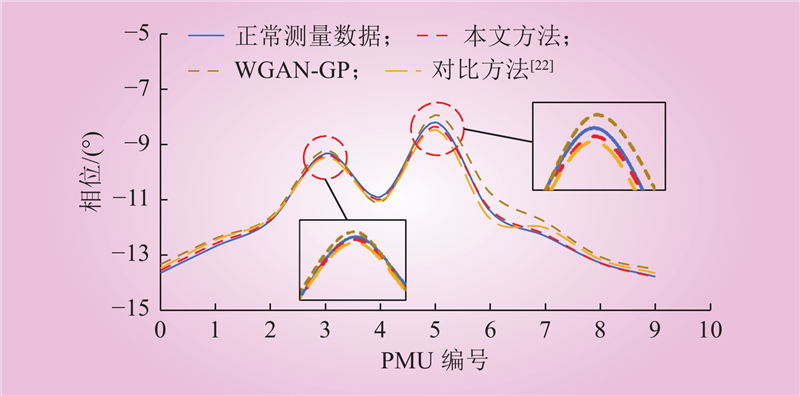

图 8 单类型GSA场景中不同算法修复相似度对比

Fig.8 Comparison of repair similarity of different algorithms in single-type GSA scenarios

表 4 不同类型GSA场景中修复数据准确率

Table 4 The accuracy of repaired data in different types of GSA scenarios 单位： %

场景类型	本文方法	WGAN-GP模型	文献[19]	文献[22]
单类型GSA	94.44	92.38	85.68	93.74
多类型GSA	92.63	89.72	—	91.77

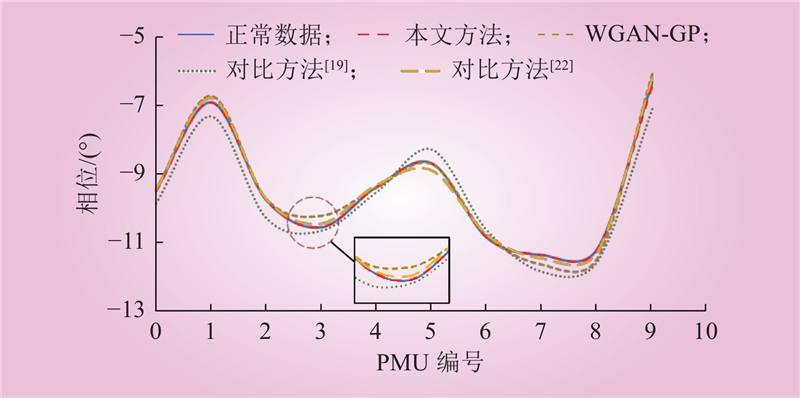

图 9 多类型GSA场景中不同算法修复相似度对比

Fig.9 Comparison of repair similarities of different algorithms in multi-type GSA scenarios
