500 kV双联耐张瓷绝缘子串的串间放电现象

doi:10.11930/j.issn.1004-9649.202309036

中国电力 ›› 2024, Vol. 57 ›› Issue (9): 231-237.DOI: 10.11930/j.issn.1004-9649.202309036

500 kV双联耐张瓷绝缘子串的串间放电现象

程洋¹(), 夏令志¹, 牛雷¹, 阮巍², 孙昊³(), 曹轩赫³, 张世珉³

1. 国网安徽省电力有限公司电力科学研究院，安徽合肥　230022
2. 国网安徽省电力有限公司超高压分公司，安徽合肥　230000
3. 中国科学院电工研究所等离子体科学和能源转化北京市国际科技合作基地，北京　100190

收稿日期:2023-09-08 接受日期:2024-08-10 出版日期:2024-09-28 发布日期:2024-09-23
作者简介:程洋（1991—），男，硕士，工程师，从事输电线路和绝缘技术研究，E-mail：310258226@qq.com
孙昊（1989—），男，通信作者，博士研究生，从事等离子体应用技术研究，E-mail：sunhao@mail.iee.ac.cn
基金资助:
国网安徽省电力有限公司科技项目（B31205220007）。

Discharge Phenomenon of a 500 kV Double Tension Porcelain Insulator String

Yang CHENG¹(), Lingzhi XIA¹, Lei NIU¹, Wei RUAN², Hao SUN³(), Xuanhe CAO³, Shimin ZHANG³

1. State Grid of Anhui Electric Power Research Institute, Hefei 230022, China
2. State Grid Anhui Electric Power Co., Ltd., Ultra High Voltage Company, Hefei 230000, China
3. Beijing International S & T Cooperation Base for Plasma Science and Energy Conversion, Institute of Electrical Engineering, Chinese Academy of Sciences, Beijing 100190, China

Received:2023-09-08 Accepted:2024-08-10 Online:2024-09-28 Published:2024-09-23
Supported by:
This work is supported by Science and Technology Project of State Grid Anhui Electric Power Co., Ltd. (No.B31205220007).

摘要/Abstract

摘要：

以某换流站500 kV出线双联耐张瓷绝缘子串为研究对象，研究了双联瓷绝缘子串串间放电现象的成因。开展了电阻测试、剖面染色等实验，建立了双联瓷绝缘子串电场与放电仿真模型，获得了双联绝缘子串空间电场分布规律。研究结果表明：水汽侵入水泥黏合剂缝隙导致多个绝缘子阻值下降形成大量零值绝缘子（西侧20片、东侧4片）。由于两侧零值绝缘子数量差距较大，产生122 kV串间电位差是串间放电的主要成因。

关键词: 双联耐张瓷绝缘子串, 零值绝缘子, 电场分布, 串间放电

Abstract:

The mechanism of this phenomenon was studied with a double tension porcelain insulator strings in a 500 kV converter station. Experiments including resistance testing and cross-sectional staining were conducted, and a simulation model of double insulator strings was established to obtain the distribution pattern of the space electric field. The result shows that water vapor intrusion into the cement adhesive gap resulted in the resistance decrease of several insulators and the formation of 24 zero-value insulators (20 on the west side and 4 on the east side). The 122kV voltage difference between the strings was the main cause of the inter string discharge.

Key words: double tension porcelain insulator string, zero-value insulator, electric field distribution, discharge between strings

程洋, 夏令志, 牛雷, 阮巍, 孙昊, 曹轩赫, 张世珉. 500 kV双联耐张瓷绝缘子串的串间放电现象[J]. 中国电力, 2024, 57(9): 231-237.

Yang CHENG, Lingzhi XIA, Lei NIU, Wei RUAN, Hao SUN, Xuanhe CAO, Shimin ZHANG. Discharge Phenomenon of a 500 kV Double Tension Porcelain Insulator String[J]. Electric Power, 2024, 57(9): 231-237.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202309036

https://www.electricpower.com.cn/CN/Y2024/V57/I9/231

图/表 8

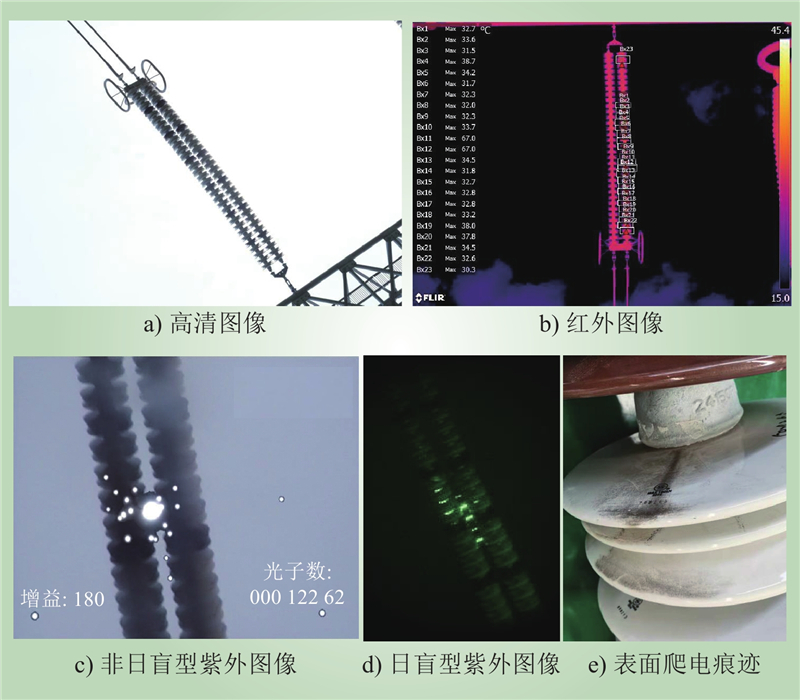

图 1 双联绝缘子串串间放电现象

Fig.1 Discharge phenomenon between insulator strings

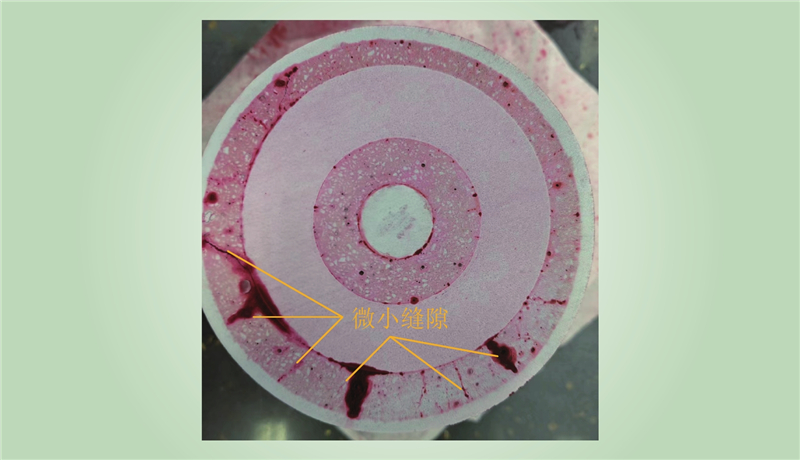

图 2 零值绝缘子的染料渗透试验结果

Fig.2 Dye penetration test results of zero-value insulators

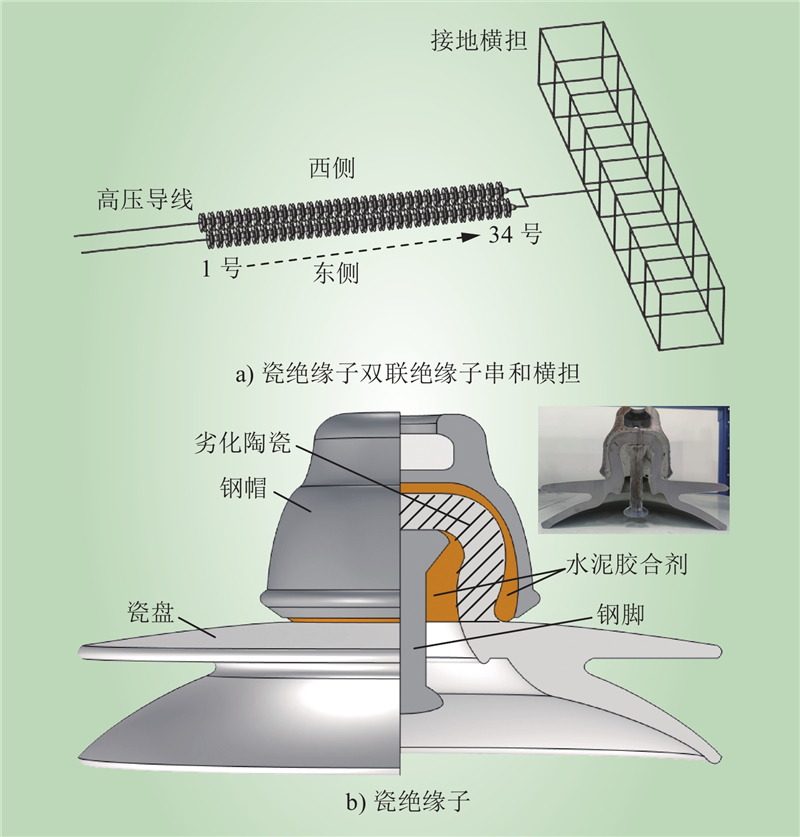

图 3 双联绝缘子仿真模型

Fig.3 Simulation model of double insulator strings

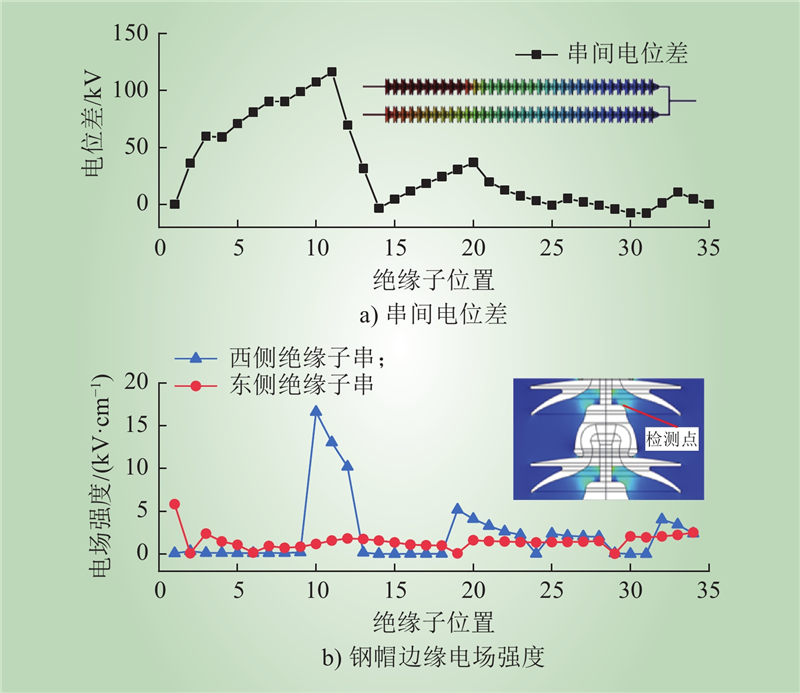

图 4 某换流站500 kV出线双联耐张瓷绝缘子串间电场分布

Fig.4 The electric field between the double tension porcelain insulator strings of a 500 kV converter station

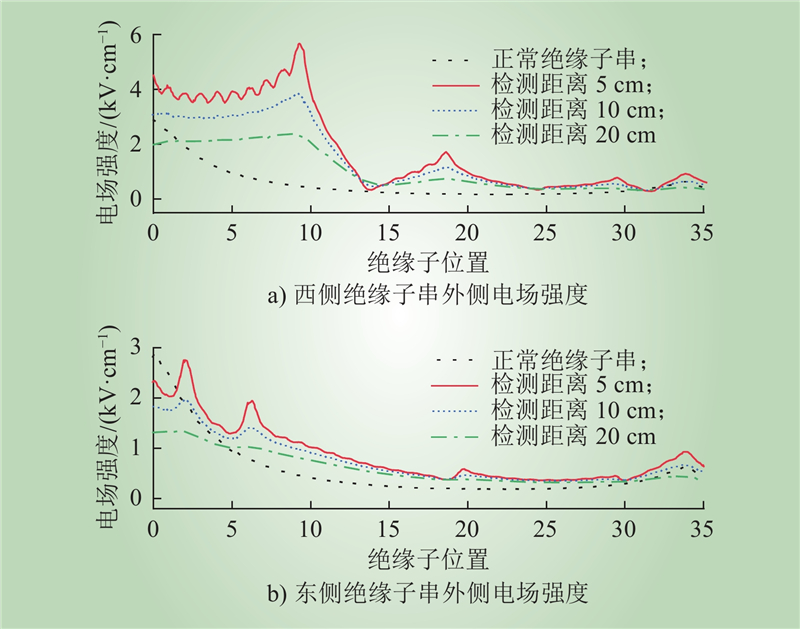

图 5 不同检测距离的外侧电场强度分布

Fig.5 Electric field strength at different detection distances

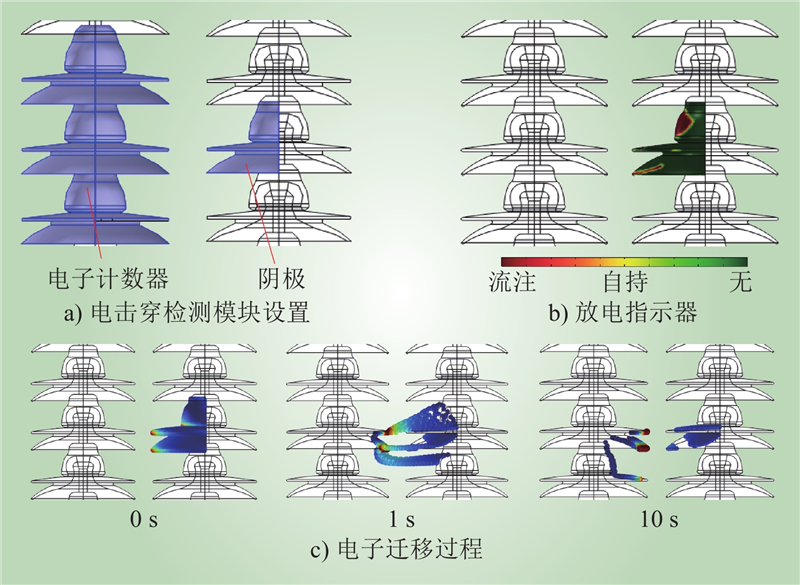

图 6 双联绝缘子串串间放电现象仿真结果

Fig.6 Simulation results of discharge phenomenon between double insulator strings

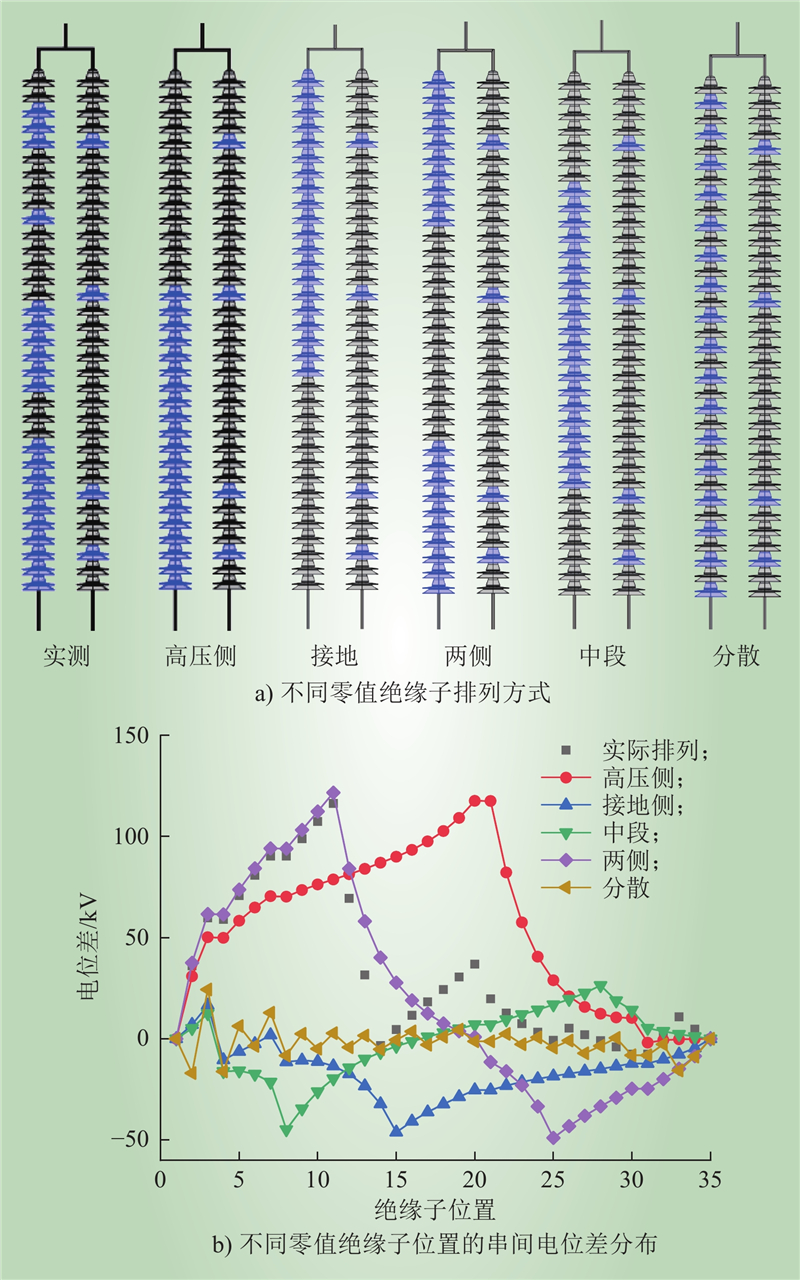

图 7 零值绝缘子位置的影响

Fig.7 The influence of zero-value insulator position

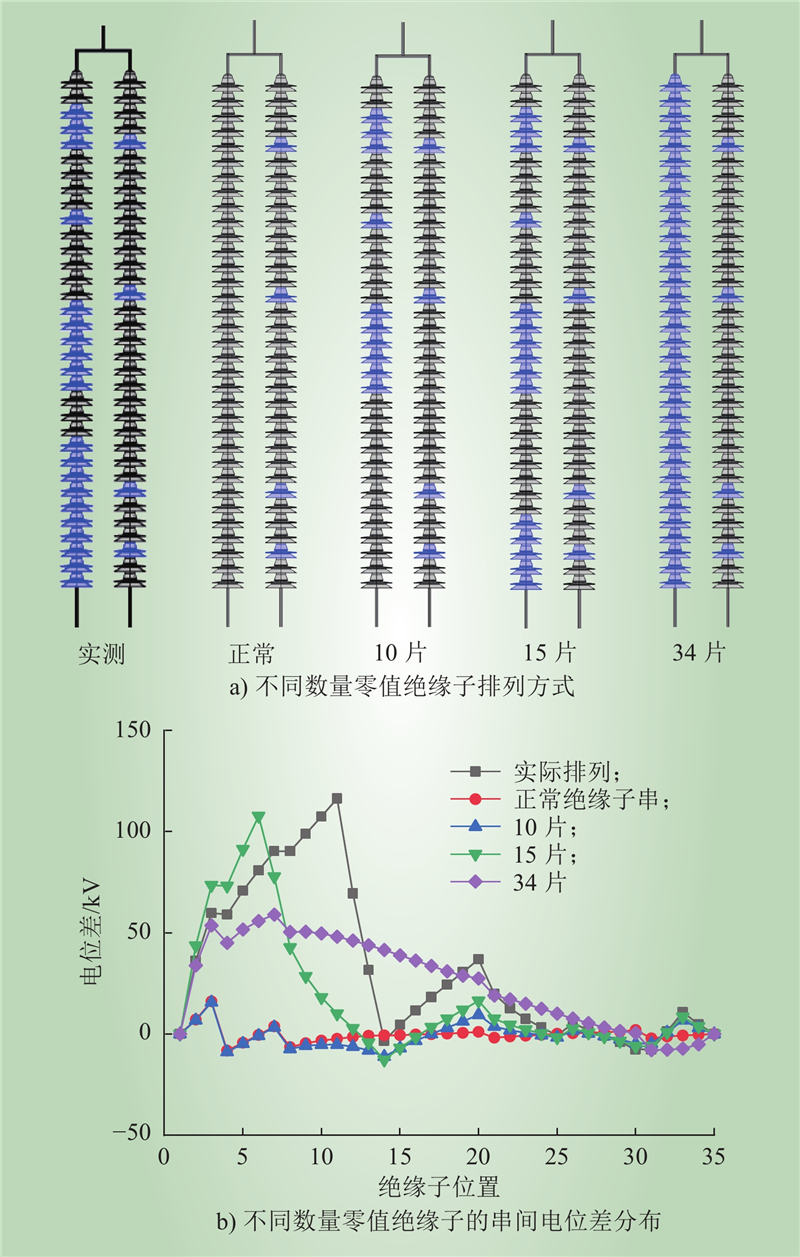

图 8 零值绝缘子数量的影响

Fig.8 The influence of zero-value insulator number

参考文献 25

1	王南极, 吴田, 江全才, 等. 基于ISSA-BPNN算法的配电线路绝缘跳线夹过热感知方法[J]. 南方电网技术, 2023, 17 (12): 135- 144.
	WANG Nanji, WU Tian, JIANG Quancai, et al. Insulated jumper clamp overheating perception method of distribution line based on ISSA-BPNN algorithm[J]. Southern Power System Technology, 2023, 17 (12): 135- 144.
2	陈璐, 李光茂, 杨森, 等. 频域响应法在电力电缆缺陷定位中的研究综述[J]. 南方电网技术, 2023, 17 (10): 53- 64.
	CHEN Lu, LI Guangmao, YANG Sen, et al. Review of research on frequency domain response method and its application in defect location of power cables[J]. Southern Power System Technology, 2023, 17 (10): 53- 64.
3	孙欣宇, 吴铮, 伍铭妍, 等. 基于小缺陷扰动模型中压电缆附件综合绝缘性能评价方法[J]. 南方电网技术, 2022, 16 (8): 142- 149.
	SUN Xinyu, WU Zheng, WU Mingyan, et al. Small defect disturbance model based comprehensive insulation performance evaluation method of medium voltage cable accessories[J]. Southern Power System Technology, 2022, 16 (8): 142- 149.
4	魏力强, 苏金刚, 韩涛, 等. 基于宽频阻抗谱的电缆绝缘水树定位机理及算法研究[J]. 电力科学与技术学报, 2024, 39 (3): 125- 133.
	WEI Liqiang, SU Jingang, HAN Tao, et al. Mechanism and location algorithm of water tree in cable insulation based on broadband impedance spectrum[J]. Journal of Electric Power Science and Technology, 2024, 39 (3): 125- 133.
5	王雪亮, 郭海全, 丁伯松, 等. 局放检测技术在电力电缆故障在线监测中研究及应用[J]. 东北电力大学学报, 2024, 44 (2): 58- 63, 87.
	WANG Xueliang, GUO Haiquan, DING Bosong, et al. Partial discharge detection technology in power cable faults research and application in online monitoring[J]. Journal of Northeast Electric Power University, 2024, 44 (2): 58- 63, 87.
6	屈子淇, 郝锦琦, 张有佳. 复合防风偏绝缘子在抑制输电线路风偏中的应用研究[J]. 东北电力大学学报, 2023, 43 (5): 93- 100.
	QU Ziqi, HAO Jinqi, ZHANG Youjia. The application of composite wind offset insulator in restraining wind deviation of transmission lines[J]. Journal of Northeast Electric Power University, 2023, 43 (5): 93- 100.
7	李群山, 刘志成, 李鑫, 等. 基于模糊逻辑算法的电力线路绝缘故障预警方法[J]. 电力科学与技术学报, 2022, 37 (6): 190- 197.
	LI Qunshan, LIU Zhicheng, LI Xin, et al. Early warning method of power line insulation fault based on fuzzy logic algorithm[J]. Journal of Electric Power Science and Technology, 2022, 37 (6): 190- 197.
8	陈立征, 姚树国, 施啸寒. 考虑风偏闪络的电力系统故障场景仿真方法研究[J]. 东北电力大学学报, 2023, 43 (5): 53- 58.
	CHEN Lizheng, YAO Shuguo, SHI Xiaohan. Research on power system fault scenario simulation approach considering wind deviation flashover[J]. Journal of Northeast Electric Power University, 2023, 43 (5): 53- 58.
9	陈彦, 阳林, 刘国特. 500kV复合绝缘子横向覆冰现象有限元分析[J]. 中国电力, 2014, 47 (10): 57- 63.
	CHEN Yan, YANG Lin, LIU Guote. FEM analysis on the lateral icing of the 500kV composite insulators[J]. Electric Power, 2014, 47 (10): 57- 63.
10	赵园喜, 邱志斌, 朱轩, 等. 基于SSIM-Sobel与多特征融合的绝缘子缺陷识别方法[J]. 智慧电力, 2023, 51 (12): 74- 79.
	ZHAO Yuanxi, QIU Zhibin, ZHU Xuan, et al. Insulator defect recognition method based on SSIM-sobel and multi-feature fusion[J]. Smart Power, 2023, 51 (12): 74- 79.
11	冯智慧, 张广洲, 吴健, 等. 超高压交流变电站金具电晕特性与选型研究[J]. 智慧电力, 2022, 50 (8): 82- 88.
	FENG Zhihui, ZHANG Guangzhou, WU Jian, et al. Corona characteristics and type selection of EHV AC substation fittings[J]. Smart Power, 2022, 50 (8): 82- 88.
12	李稳, 李化旭, 杨力, 等. 超高压输电线路复合绝缘子不同位置缺陷下发热特性研究[J]. 电力科学与技术学报, 2023, 38 (5): 246- 252.
	LI Wen, LI Huaxu, YANG Li, et al. Study on heating characteristics of composite insulators in EHV transmission lines under different position defects[J]. Journal of Electric Power Science and Technology, 2023, 38 (5): 246- 252.
13	关志成, 彭功茂, 赵锋, 等. 高海拔下双串并联瓷绝缘子串的直流污闪特性[J]. 高电压技术, 2010, 36 (11): 2613- 2620.
	GUAN Zhicheng, PENG Gongmao, ZHAO Feng, et al. DC pollution flashover characteristics on porcelain insulators of parallel double-strings form at high altitude[J]. High Voltage Engineering, 2010, 36 (11): 2613- 2620.
14	张楚岩, 王黎明, 周军, 等. 多串并联绝缘子交直流污闪特性[J]. 高电压技术, 2014, 40 (11): 3357- 3364.
	ZHANG Chuyan, WANG Liming, ZHOU Jun, et al. AC and DC pollution flashover performance of multiple parallel suspension insulators[J]. High Voltage Engineering, 2014, 40 (11): 3357- 3364.
15	ZHANG C, WANG L. Experimental investigation on pollution flashover performance of multiple parallel suspension insulators[J]. IEEE Transactions on Dielectrics and Electrical Insulation, 2016, 23 (5): 2840- 2849. DOI
16	李震宇, 崔吉峰, 周远翔, 等. 绝缘子安装结构对污闪电压的影响[J]. 电网技术, 2005, 29 (16): 52- 55, 80. DOI
	LI Zhenyu, CUI Jifeng, ZHOU Yuanxiang, et al. Influence of insulator installation form on its pollution flashover voltage[J]. Power System Technology, 2005, 29 (16): 52- 55, 80. DOI
17	张达. 湿污绝缘子发热及污秽放电机理[J]. 高电压技术, 2018, 44 (3): 787- 795.
	ZHANG Da. Heating and discharge mechanism of wet contaminated insulators[J]. High Voltage Engineering, 2018, 44 (3): 787- 795.
18	卢明, 谈发力, 何正浩, 等. 220kV复合绝缘子串联玻璃、瓷绝缘子仿真研究[J]. 高压电器, 2016, 52 (2): 128- 134.
	LU Ming, TAN Fali, HE Zhenghao, et al. Research on the simulation of glass or porcelain insulators in series with 220 kV composite insulator[J]. High Voltage Apparatus, 2016, 52 (2): 128- 134.
19	彭向阳, 陈驰, 饶章权, 等. 基于无人机多传感器数据采集的电力线路安全巡检及智能诊断[J]. 高电压技术, 2015, 41 (1): 159- 166.
	PENG Xiangyang, CHEN Chi, RAO Zhangquan, et al. Safety inspection and intelligent diagnosis of transmission line based on unmanned helicopter of multi sensor data acquisition[J]. High Voltage Engineering, 2015, 41 (1): 159- 166.
20	李婵虓, 牛犇, 曾嵘, 等. 基于光电电场传感器的复合绝缘子内部绝缘故障检测[J]. 高电压技术, 2014, 40 (8): 2422- 2428.
	LI Chanxiao, NIU Ben, ZENG Rong, et al. Detection of internal insulation defects of composite insulator based on electro-optic electric field sensor[J]. High Voltage Engineering, 2014, 40 (8): 2422- 2428.
21	张显, 罗日成, 邹明, 等. 特高压直流输电线路低零值绝缘子带电检测装置[J]. 中国电力, 2016, 49 (6): 90- 94, 100. DOI
	ZHANG Xian, LUO Richeng, ZOU Ming, et al. Online detection device of low or zero value insulators in UHVDC transmission line[J]. Electric Power, 2016, 49 (6): 90- 94, 100. DOI
22	付炜平, 王伟, 董俊虎, 等. 利用红外热像技术检测劣化绝缘子的适用性分析研究[J]. 高压电器, 2018, 54 (2): 110- 114, 120.
	FU Weiping, WANG Wei, DONG Junhu, et al. Study on the applicability of detecting deterioration insulator based on infrared thermal image[J]. High Voltage Apparatus, 2018, 54 (2): 110- 114, 120.
23	程洋, 夏令志, 李志飞, 等. 基于红外成像法的零值瓷绝缘子检测[J]. 绝缘材料, 2019, 52 (3): 74- 79.
	CHENG Yang, XIA Lingzhi, LI Zhifei, et al. Detection of faulty porcelain insulator based on infrared imaging method[J]. Insulating Materials, 2019, 52 (3): 74- 79.
24	蔡晶, 张楠, 马众, 等. 基于人工污秽试验的750kV耐张瓷绝缘子紫外检测技术[J]. 中国电力, 2016, 49 (9): 23- 29. DOI
	CAI Jing, ZHANG Nan, MA Zhong, et al. Ultraviolet detection technology of 750kV resistant to porcelain insulator based on artificial pollution test[J]. Electric Power, 2016, 49 (9): 23- 29. DOI
25	司马文霞, 谭威, 袁涛, 等. 高海拔超高压绝缘子串雷电冲击伏秒特性[J]. 高电压技术, 2012, 38 (1): 29- 34.
	SIMA Wenxia, TAN Wei, YUAN Tao, et al. Lightning impulse voltage-time characteristics of extra-high voltage insulator strings in high altitude area[J]. High Voltage Engineering, 2012, 38 (1): 29- 34.
