基于代理模型的电力电缆温度场快速计算方法及其应用

doi:10.11930/j.issn.1004-9649.202306070

中国电力 ›› 2024, Vol. 57 ›› Issue (5): 178-187.DOI: 10.11930/j.issn.1004-9649.202306070

基于代理模型的电力电缆温度场快速计算方法及其应用

黄莉¹^,²(), 梁云¹^,², 黄辉¹^,², 孙晓艳¹^,², 王珊¹^,², 杨玉强³

1. 国网智能电网研究院有限公司，北京　102209
2. 电力智能传感技术国家电网公司实验室，北京　102209
3. 国网浙江省电力有限公司，浙江杭州　310007

收稿日期:2023-06-20 接受日期:2024-01-15 出版日期:2024-05-28 发布日期:2024-05-16
作者简介:黄莉（1986—），女，通信作者，硕士，高级工程师，从事电力信息物理融合、电力通信、传感等研究，E-mail：huangli@geiri.sgcc.com.cn
基金资助:
国家电网有限公司科技项目（基于多物理场耦合分析的电力电缆感知反演模型及状态表征方法研究，5500-202258316A-2-0-QZ）。

Surrogate Model-based Fast Calculation of Power Cable Temperature Field: Method and Application

Li HUANG¹^,²(), Yun LIANG¹^,², Hui HUANG¹^,², Xiaoyan SUN¹^,², Shan WANG¹^,², Yuqiang YANG³

1. State Grid Smart Grid Research Institute Co., Ltd., Beijing 102209, China
2. Electric Power Intelligent Sensing Technology of State Grid Corporation Laboratory, Beijing 102209, China
3. State Grid Zhejiang Electric Power Co., Ltd., Hangzhou 310007, China

Received:2023-06-20 Accepted:2024-01-15 Online:2024-05-28 Published:2024-05-16
Supported by:
This work is supported by Science and Technology Project of SGCC (Research on the Inversion Model and State Representation Method of Power Cable Sensing Based on Multi-physical Field Coupling Analysis, No.5500-202258316A-2-0-QZ).

摘要/Abstract

摘要：

电缆内部温度是电缆管理的重要参数，针对高精度数值计算和实验测量均不能快速准确预测电缆内部温度的问题，提出一种基于多物理场仿真数据构建代理模型，并基于代理模型实现电缆内部温度场快速计算的方法。以110 kV单芯高压电缆为例，首先对比拉丁超立方设计和最大最小思想优化的拉丁超立方方法构造样本空间的效果，选取最优采样方案，再通过径向基神经网络构建代理模型，以环境温度和载流量为变量构建温度数据集进行测试，进一步通过粒子群算法对代理模型进行优化，最后利用网格节点数据使温度场分布可视化。对比110 kV单芯高压电缆内部温度场计算结果，表明所提的基于代理模型的电力电缆温度场快速计算方法具有较高的精度和效率。

关键词: 代理模型, 电力电缆, 有限元仿真, 快速计算

Abstract:

Accurately predicting the temperature inside cables is crucial for effective cable management. However, this process can be time-consuming through numerical calculations and experimental measurements. To address this issue, a new method for constructing surrogate model based on multi-physics field simulation data is proposed to calculate the cable's internal temperature field quickly and accurately. A single-core 110 kV high-voltage cable is taken as a study subject. Firstly, the Latin hypercube design and the Latin hypercube method optimized by the maximum-minimum idea are compared in constructing the sample space. The optimal sampling scheme is selected to construct the surrogate mode through RBF neural network, and a temperature data set is created for testing using ambient temperature and load capacity. Additionally, the surrogate model is optimized by the particle swarm algorithm, and the temperature field distribution is visualized with the grid node data. The calculation result of the internal temperature of the 110 kV single-core high-voltage cable shows that the proposed surrogate model-based fast calculation method for power cable temperature field has high accuracy and efficiency.

Key words: surrogate model, power cable, finite element simulation, fast calculation

黄莉, 梁云, 黄辉, 孙晓艳, 王珊, 杨玉强. 基于代理模型的电力电缆温度场快速计算方法及其应用[J]. 中国电力, 2024, 57(5): 178-187.

Li HUANG, Yun LIANG, Hui HUANG, Xiaoyan SUN, Shan WANG, Yuqiang YANG. Surrogate Model-based Fast Calculation of Power Cable Temperature Field: Method and Application[J]. Electric Power, 2024, 57(5): 178-187.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202306070

https://www.electricpower.com.cn/CN/Y2024/V57/I5/178

图/表 16

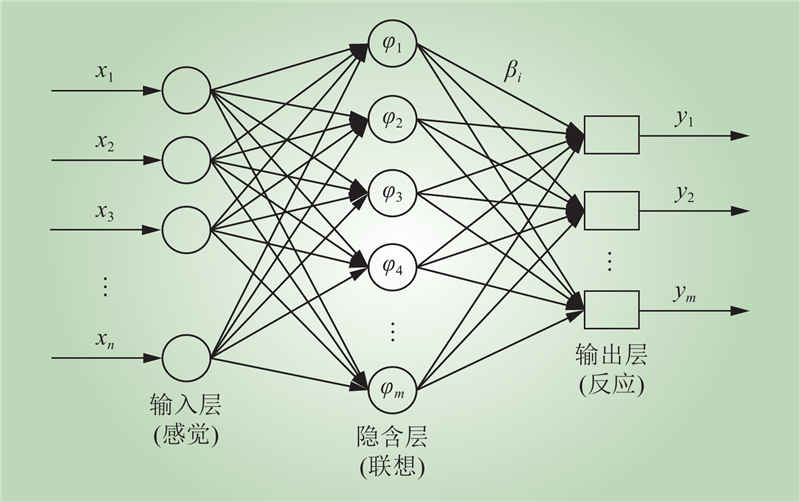

图 1 RBF神经网络结构

Fig.1 Topological structure of RBF neural network

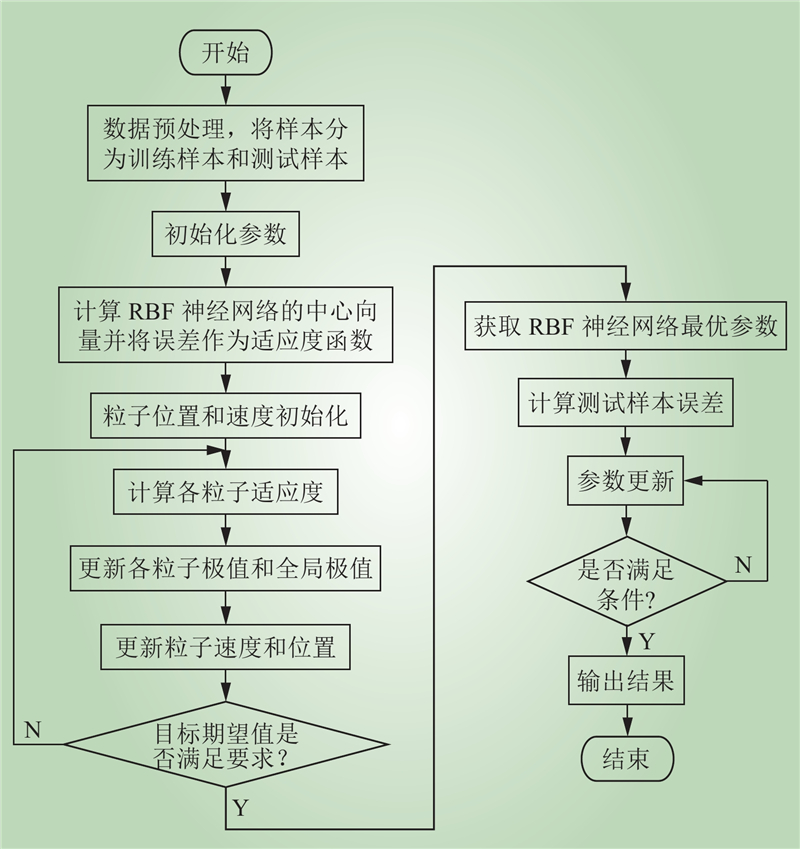

图 2 PSO-RBF算法流程

Fig.2 Flow chart of PSO-RBF algorithm

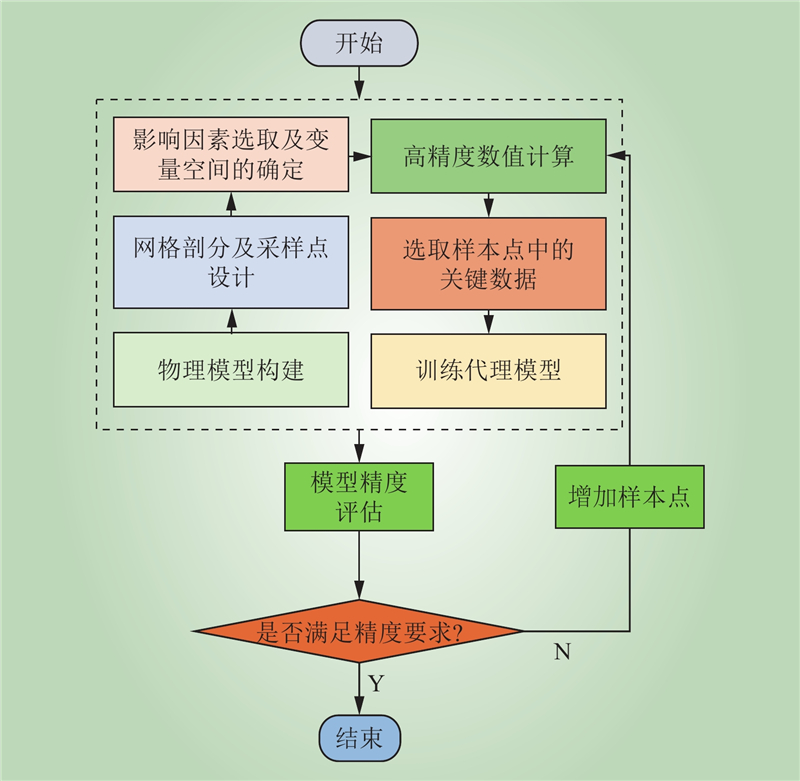

图 3 代理模型的构建流程

Fig.3 Flow chart of the surrogate model

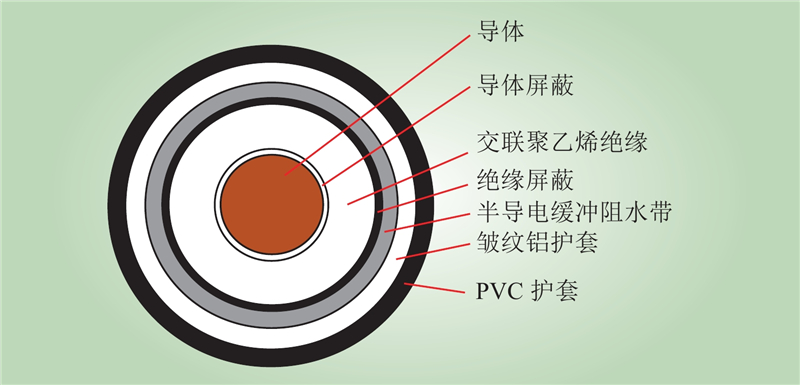

图 4 电缆结构

Fig.4 Power cable structure

表 1 电缆结构参数

Table 1 Parameters of power cable structure

序号	结构名称	标称厚度/mm	标称外径/mm
1	导体	—	29.9
2	导体屏蔽	1.35	32.6
3	交联聚乙烯绝缘	16.50	65.6
4	绝缘屏蔽	1.00	67.6
5	半导电缓冲阻水带	5.50	78.6
6	皱纹铝护套	6.70	92.0
7	PVC护套	4.50	101.0

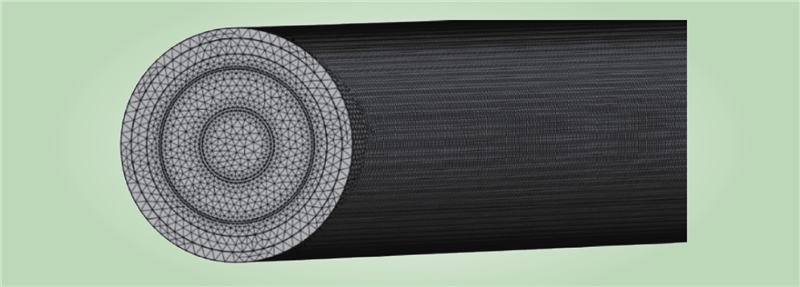

图 5 电缆模型三维有限元剖分

Fig.5 3 D finite element section of power cable model

表 2 固体传热场仿真材料参数

Table 2 Material parameters for simulating solid heat transfer field

材料	导热系数/ (W·(m·K)^–1)	密度/ (kg·m^–3)	比热容/ (J·(kg·K)^–1)
导体	400.000	8960	385
导体屏蔽	0.160	950	1005
交联聚乙烯绝缘	0.288	1200	2302
绝缘屏蔽	0.160	950	1005
半导电缓冲阻水带	0.190	520	1720
皱纹铝护套	238.000	2700	900
PVC护套	0.167	1380	2100

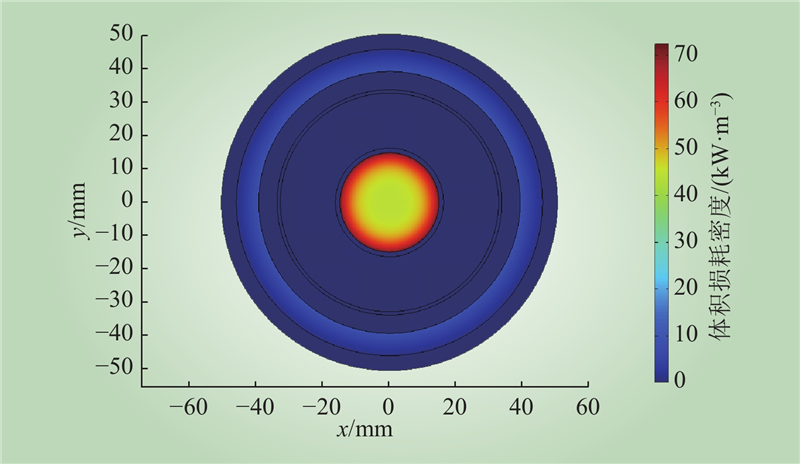

图 6 电缆损耗密度分布

Fig.6 Distribution of power cable loss density

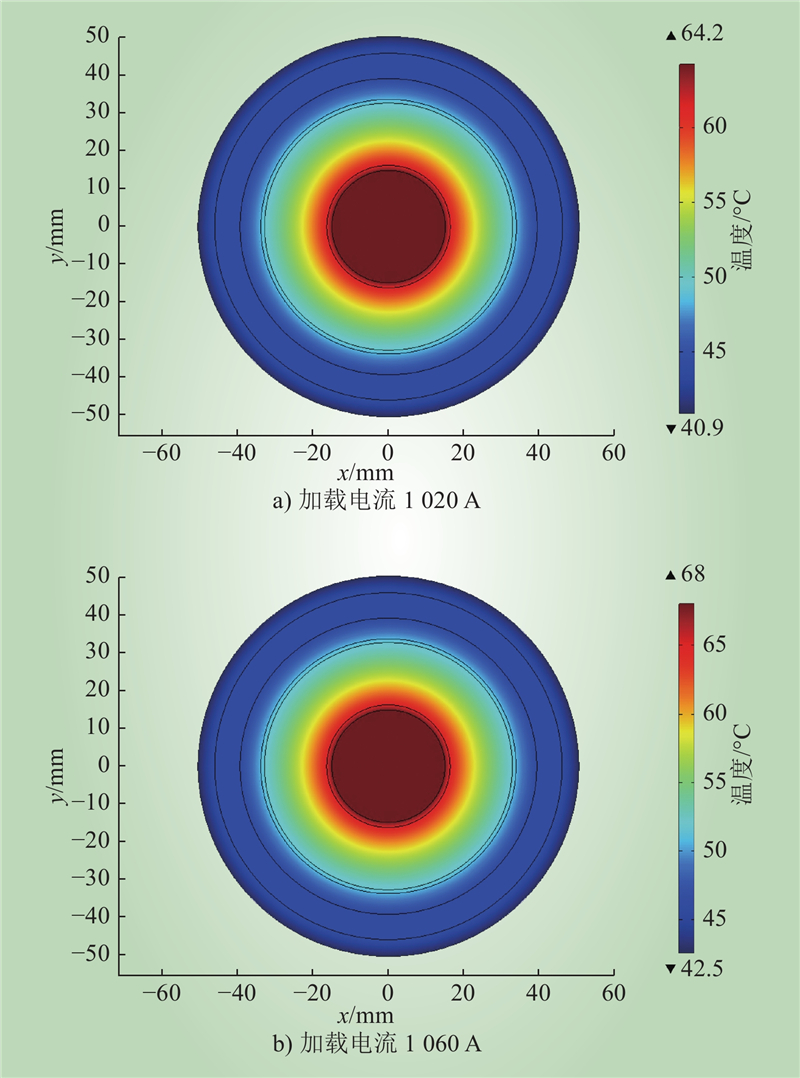

图 7 不同加载电流下电缆内部温度分布

Fig.7 Temperature distribution inside power cable under different loading currents

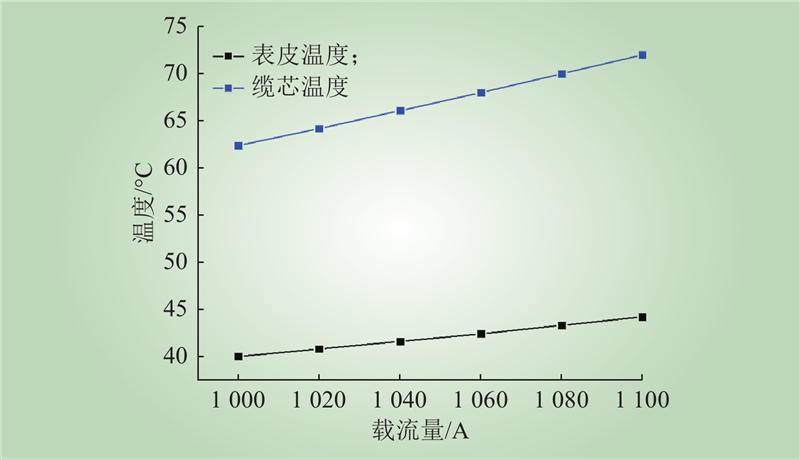

图 8 不同载流量下电缆温度变化

Fig.8 Power cable temperature variation under different load capacities

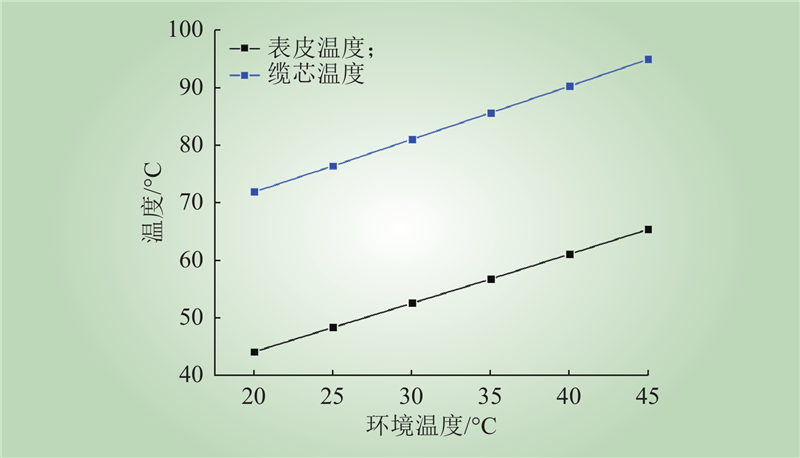

图 9 不同环境温度下电缆温度变化

Fig.9 Power cable temperature variation under different ambient temperatures

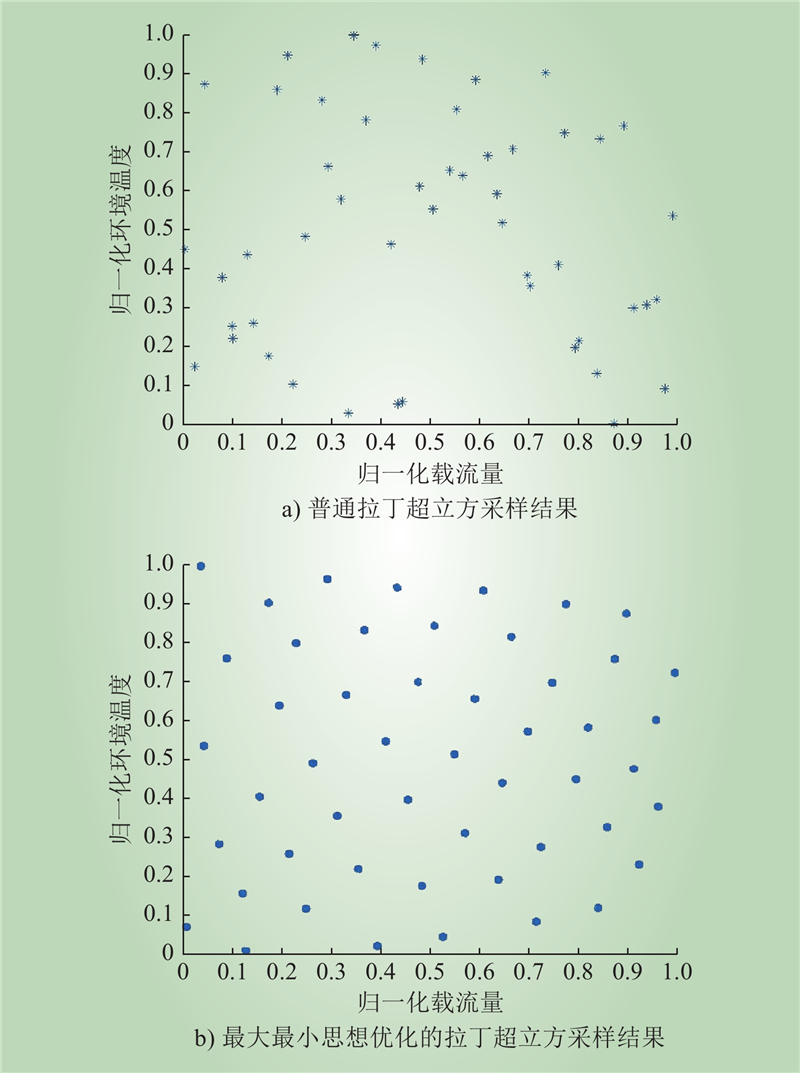

图 10 不同的拉丁超立方设计

Fig.10 Different latin hypercube designs

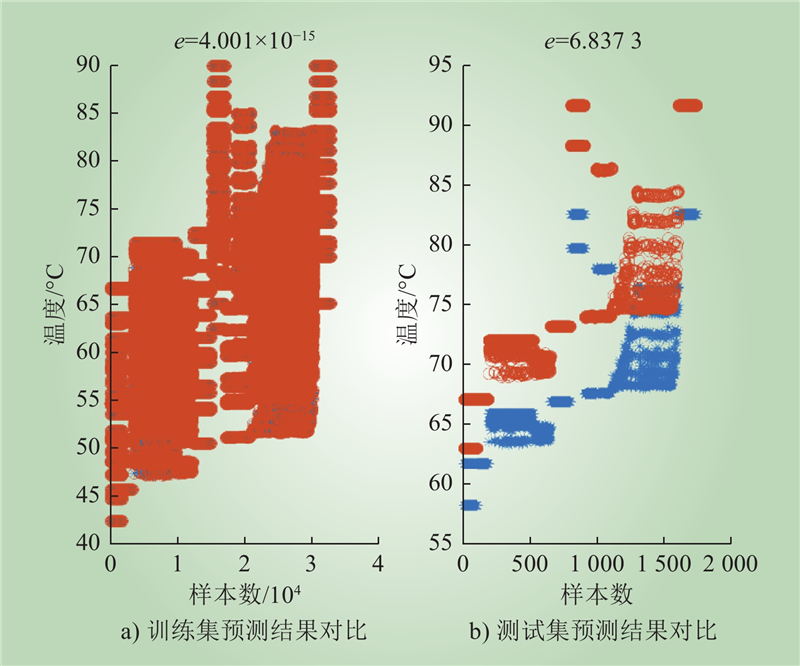

图 11 RBF代理模型计算结果及均方根误差

Fig.11 Calculation results and RMSE of the RBF surrogate model

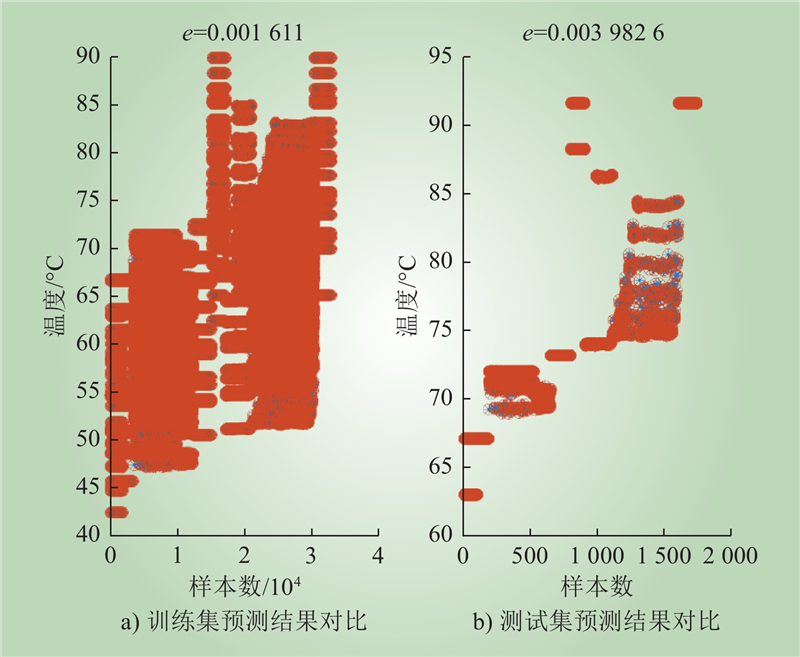

图 12 PSO-RBF代理模型计算结果及均方根误差

Fig.12 Calculation results and RMSE of the PSO-RBF surrogate model

表 3 RBF、PSO-RBF代理模型和有限元计算时间对比

Table 3 Comparison of the computation time of 3 methods

方法	CPU计算时间/s	效率提升/%
RBF	4.256363	88.18
PSO-RBF	5.292270	85.30
FEM	36.000000	—

图 13 3种方法计算的温度分布

Fig.13 Temperature distribution calculated by three methods
