基于车体接地电流的故障列车精准识别方法

doi:10.11930/j.issn.1004-9649.202306063

中国电力 ›› 2024, Vol. 57 ›› Issue (7): 143-150.DOI: 10.11930/j.issn.1004-9649.202306063

基于车体接地电流的故障列车精准识别方法

郭世成¹(), 刘永生²(), 吴晶¹, 侯炜², 江鑫¹, 张向亮³(), 陈恺¹, 石祥建²

1. 重庆市轨道交通（集团）有限公司，重庆　401120
2. 南京南瑞继保电气有限公司，江苏南京　211102
3. 湖州学院智能制造学院，浙江湖州　313000

收稿日期:2023-06-19 接受日期:2024-02-05 出版日期:2024-07-28 发布日期:2024-07-23
作者简介:郭世成（1985—），男，高级工程师，从事轨道交通车辆技术管理工作，E-mail：ybbanydn@126.com
刘永生（1986—），男，通信作者，硕士，高级工程师，从事中低压直流配电网保护、城市轨道交通交直流保护研究，E-mail：liuys@nrec.com
张向亮（1987—），男，硕士，高级工程师，从事电力系统继电保护研究，E-mail：649981528@qq.com
基金资助:
国家重点研发计划资助项目（2022YFB3303600）。

A Precise Identification Method for Fault Trains Based on Train Grounding Current

Shicheng GUO¹(), Yongsheng LIU²(), Jing WU¹, Wei HOU², Xin JIANG¹, Xiangliang ZHANG³(), Kai CHEN¹, Xiangjian SHI²

1. Chongqing Rail Transit (Group) Co., Ltd., Chongqing 401120, China
2. NR Electric Co., Ltd., Nanjing 211102, China
3. School of Intelligent Manufacturing, Huzhou College, Huzhou 313000, China

Received:2023-06-19 Accepted:2024-02-05 Online:2024-07-28 Published:2024-07-23
Supported by:
This work is supported by National Key Research and Development Program of China (No.2022YFB3303600).

摘要/Abstract

摘要：

针对专用回流轨直流牵引供电系统发生正极与车体短路故障时，故障列车不能被精准识别的问题，首先给出了双边供电牵引系统等值模型，其次分析了故障列车和正常列车的车体接地电流特征差异，最后提出了一种基于车体接地电流的故障列车精准识别方法。所提方法采用列车的车体接地电流幅值和方向作为故障识别判据，当其幅值小于整定值时判断列车正常，当大于等于整定值时继而采用其方向进行判断，电流为正方向的列车被判为故障车，电流为反方向的列车被判为正常车。该方法原理简单，实现方便，实用性强，采用双重判据能有效避免误判，可靠性高。通过Matlab仿真和现场试验录波验证了方法的可行性和有效性。

关键词: 单轨交通, 专用回流轨, 直流牵引供电系统, 车体接地电流, 故障列车, 精准识别

Abstract:

To solve the problem that faulty trains can't be accurately identified when the DC traction power supply system for the dedicated return rail has a short circuit fault between the positive pole and the train, a precise identification method is proposed for fault trains based on train grounding current. Firstly, an equivalent model is established for the bilateral power supply traction system. Secondly, the difference of train grounding current characteristics between the faulty trains and the normal trains are analyzed. Finally the precise identification method for fault trains based on the train grounding current is proposed. The proposed method uses the amplitude and direction of the train grounding current as the fault identification criteria. The train is judged as normal when the amplitude of the train grounding current is less than the setting value; the direction of the train grounding current is used as criterion when the amplitude is greater than or equal to the setting value, and the train with positive current direction is judged as faulty and the train with opposite current direction is judged as normal. This method is simple in principle and easy to implement. The adoption of bi-criterion can effectively avoid misjudgment and improve the reliability. The feasibility and effectiveness of the proposed method are verified by Matlab simulation and field test.

Key words: monorail transit, dedicated return rail, DC traction power supply system, train grounding current, fault trains, precise identification

郭世成, 刘永生, 吴晶, 侯炜, 江鑫, 张向亮, 陈恺, 石祥建. 基于车体接地电流的故障列车精准识别方法[J]. 中国电力, 2024, 57(7): 143-150.

Shicheng GUO, Yongsheng LIU, Jing WU, Wei HOU, Xin JIANG, Xiangliang ZHANG, Kai CHEN, Xiangjian SHI. A Precise Identification Method for Fault Trains Based on Train Grounding Current[J]. Electric Power, 2024, 57(7): 143-150.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202306063

https://www.electricpower.com.cn/CN/Y2024/V57/I7/143

图/表 11

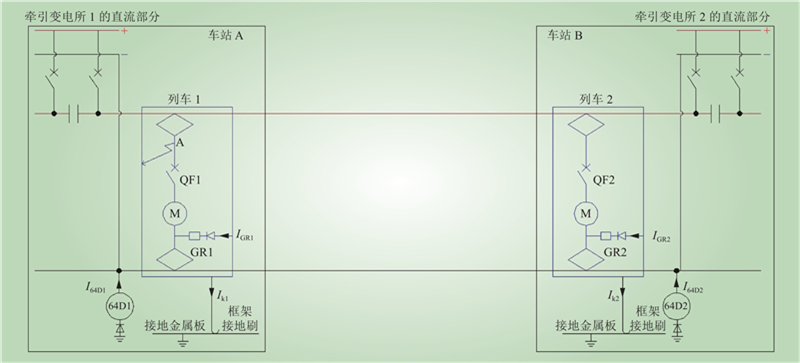

图 1 跨座式单轨交通系统直流牵引供电示意

Fig.1 Schematic diagram of DC traction power supply in straddle monorail transit system

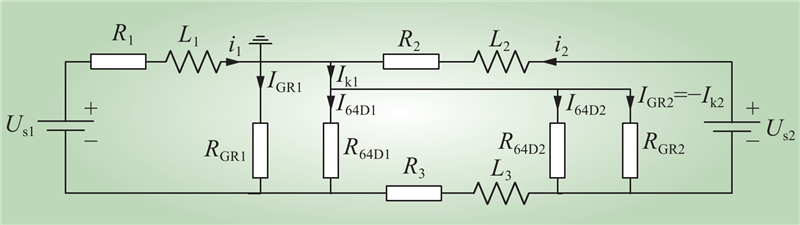

图 2 列车1正极短路后直流牵引供电系统等值模型

Fig.2 Equivalent model of DC traction power supply system after positive pole short-circuiting occurs in train 1

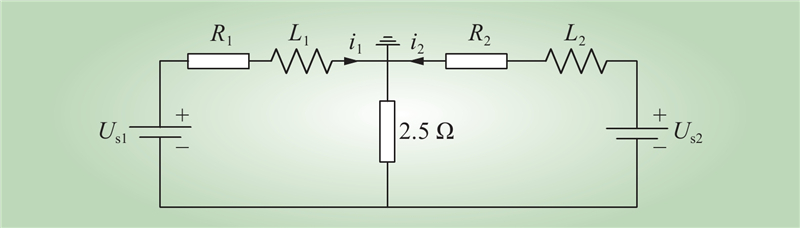

图 3 列车1正极短路后直流牵引供电系统简化等值模型

Fig.3 Simplified equivalent model of DC traction power supply system after positive pole short-circuiting occurs in train 1

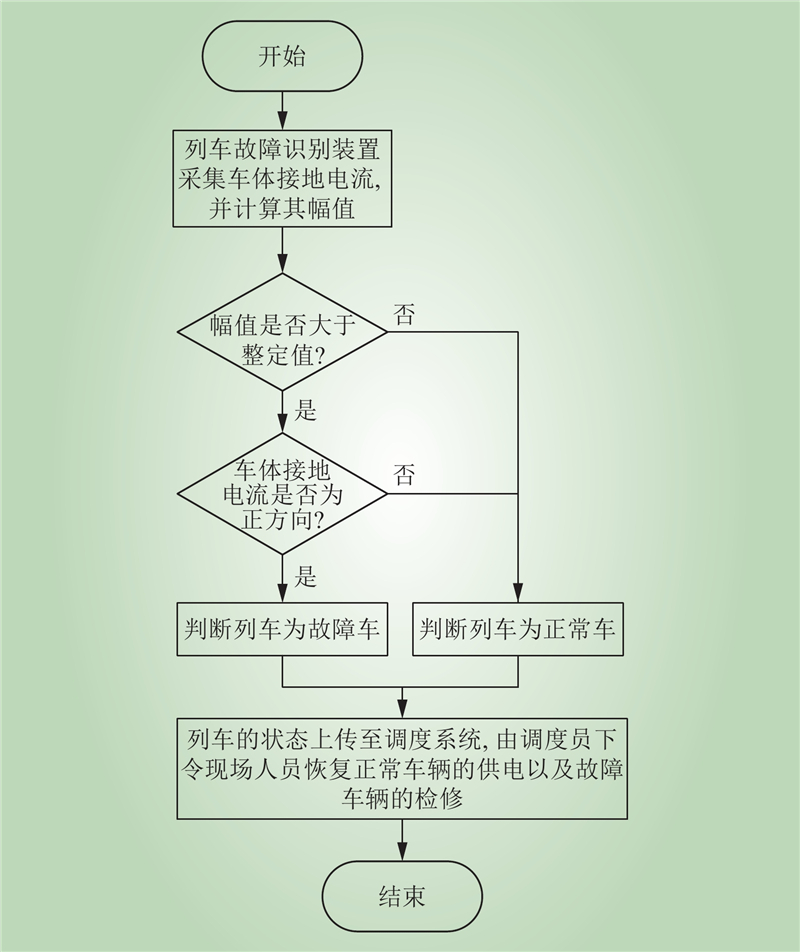

图 4 识别算法流程

Fig.4 Flowchart of identification algorithm

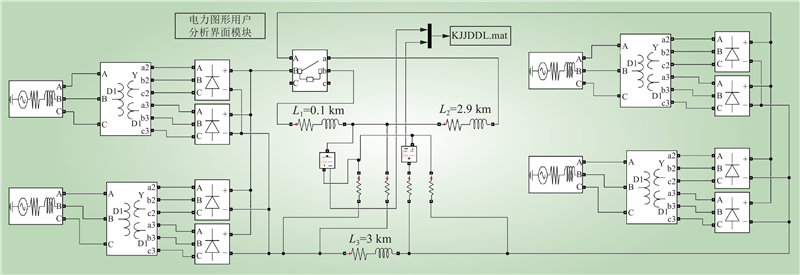

图 5 直流牵引供电系统仿真模型

Fig.5 Simulation model of DC traction power supply system

表 1 仿真模型参数

Table 1 Simulation model parameters

接触轨电阻 r₁/(Ω·km^–1)	接触轨电感 l₁/(mH·km^–1)	专用回流轨电阻 r₂/(Ω·km^–1)
0.0128^[25]	0.25^[25]	0.0128^[25]

专用回流轨电感 l₂/(mH·km^–1)	接地报警继电器电阻R_GR/Ω	接地继电器电阻R_64D/ Ω
0.25^[25]	750.00（正常时）； 10.00、0.25（故障时）	5.0^[6]

整流变压器容量S/(kV·A)	整流变压器原次边额定电压U₁/U₂/kV	整流变压器短路阻抗百分比U_k/%
3000^[18]	35/1.180^[18]	8^[16]

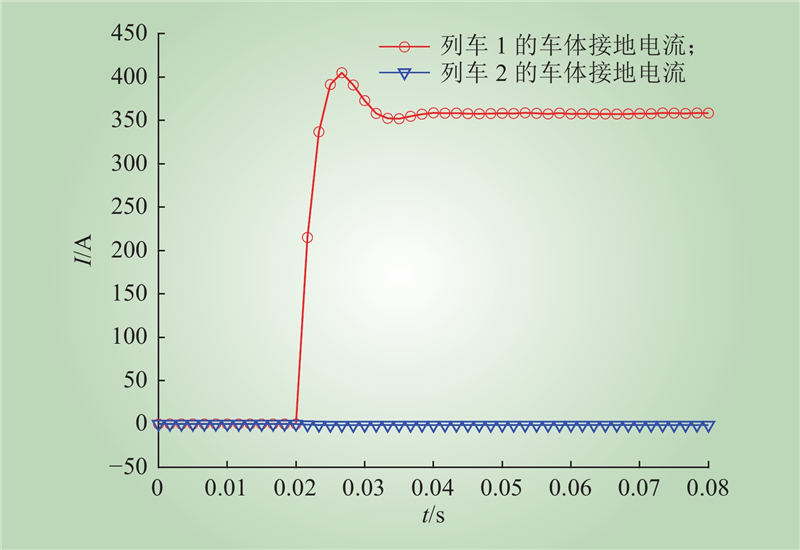

图 6 RGR2=750 Ω时两列车的车体接地电流波形

Fig.6 Waveform of train grounding current with RGR2=750 Ω

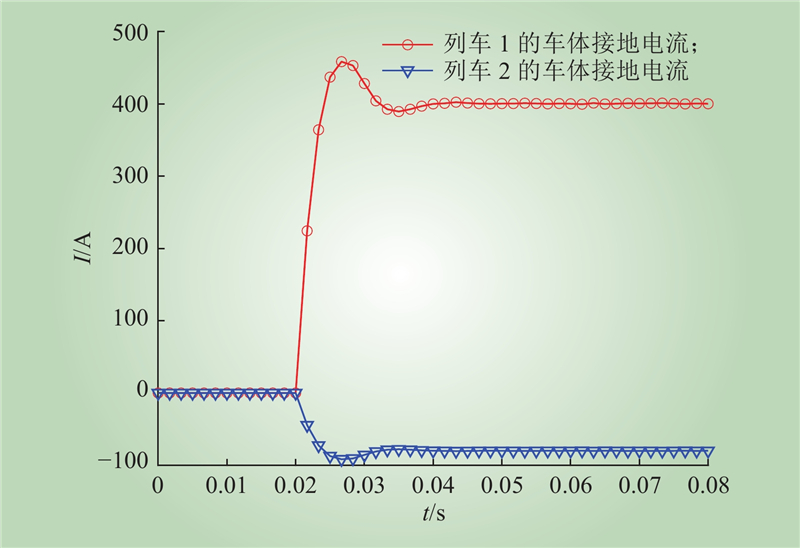

图 7 RGR2=10 Ω时两列车的车体接地电流波形

Fig.7 Waveform of train grounding current with RGR2=10 Ω

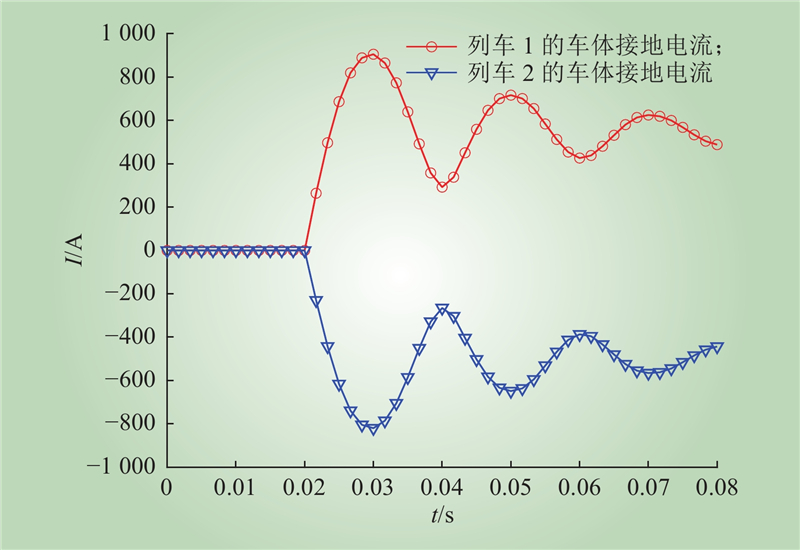

图 8 RGR2=0.25 Ω时两列车的车体接地电流波形

Fig.8 Waveform of train grounding current with RGR2=0.25 Ω

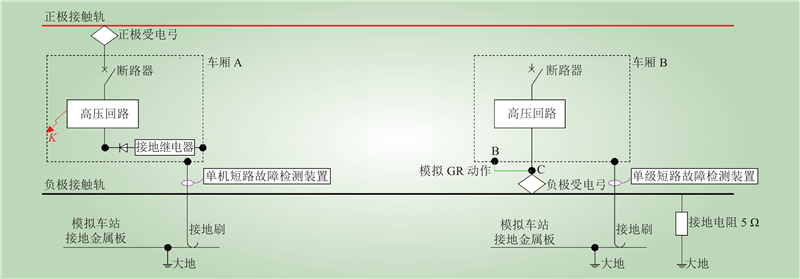

图 9 现场试验接线

Fig.9 Wiring diagram of field test

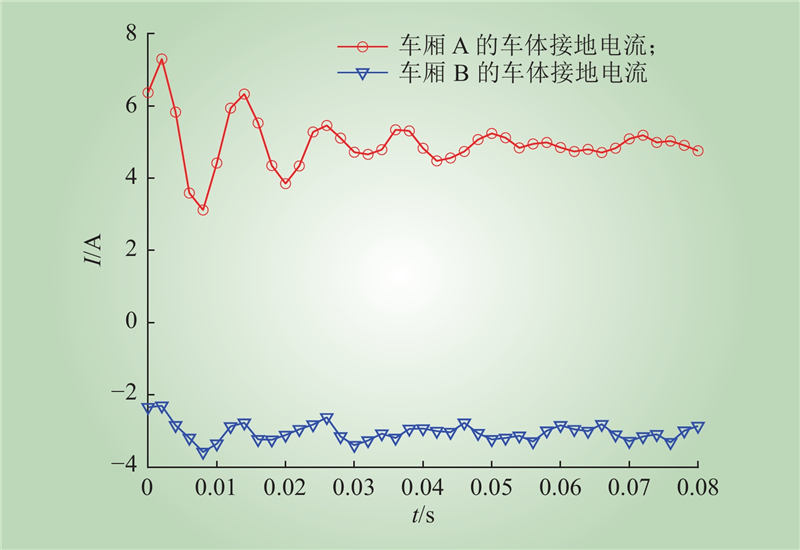

图 10 现场测试2车厢的车体接地电流波形

Fig.10 Waveform of train grounding current from field two carriages test

参考文献 25

1	韩宝明, 习喆, 孙亚洁, 等. 2022年世界城市轨道交通运营统计与分析综述[J]. 都市快轨交通, 2023, 36 (1): 1- 8.
	HAN Baoming, XI Zhe, SUN Yajie, et al. Statistical analysis of urban rail transit operation in the world in 2022: a review[J]. Urban Rapid Rail Transit, 2023, 36 (1): 1- 8.
2	陈丽华, 李学武. 城市轨道交通供电系统继电保护[M]. 北京: 科学出版社, 2014: 52-79.
3	方彦. 城市轨道交通继电保护[M]. 成都: 西南交通大学出版社, 2017: 61–86.
4	梁因. 城市轨道交通供电系统继电保护与二次回路[M]. 北京: 人民交通出版社, 2021: 108–110.
5	马燕宁. 地铁馈线保护装置设计[D]. 成都: 西南交通大学, 7–10.
	MA Yanning. Protection device design for metro feeder[D]. Chengdu: Southwest Jiaotong University, 7–10.
6	周才发. 跨座式单轨交通直流牵引系统接地保护设计[J]. 都市快轨交通, 2010, 23 (1): 93- 96.
	ZHOU Caifa. Earthing protection design of DC traction system for straddle monorail transit[J]. Urban Rapid Rail Transit, 2010, 23 (1): 93- 96.
7	叶华平, 刘志刚, 牛红霞. 城市轨道交通概论[M]. 北京: 人民交通出版社, 2011: 82–83.
8	汪武芽. 城市轨道交通概论[M]. 北京: 机械工业出版社, 2020: 6–8.
9	唐春林, 华平. 城市轨道交通车辆电气控制[M]. 3版. 北京: 机械工业出版社, 2019: 78–83.
10	张保会, 尹项根, 索南加乐, 等. 电力系统继电保护[M]. 2版. 北京: 中国电力出版社, 2010.
11	贺家李, 李永丽, 董新洲, 等. 电力系统继电保护原理[M]. 5版. 北京: 中国电力出版社, 2018.
12	江苏省电力公司. 电力系统继电保护原理与实用技术[M]. 北京: 中国电力出版社, 2006.
13	叶远波, 程晓平, 张兆云, 等. 电力系统故障区域录波自动分析关键技术[J]. 中国电力, 2022, 55 (4): 93- 99.
	YE Yuanbo, CHENG Xiaoping, ZHANG Zhaoyun, et al. Key technology of automatic analysis of fault area wave recording of power system[J]. Electric Power, 2022, 55 (4): 93- 99.
14	杨国生, 桂强, 张烈, 等. 双通道线路纵联保护应用情况分析及评价指标[J]. 中国电力, 2018, 51 (6): 77- 82.
	YANG Guosheng, GUI Qiang, ZHANG Lie, et al. Application analysis and evaluation index research of dual channel line protection[J]. Electric Power, 2018, 51 (6): 77- 82.
15	朱逸凡, 赵宏程, 陈争光, 等. 适用于逆变型电源接入的配电网故障方向判别元件[J]. 中国电力, 2019, 52 (5): 76- 82.
	ZHU Yifan, ZHAO Hongcheng, CHEN Zhengguang, et al. Fault direction discriminating element used for the distribution network with IIG integration[J]. Electric Power, 2019, 52 (5): 76- 82.
16	于群, 曹娜. Matlab/Simulink电力系统建模与仿真[M]. 2版. 北京: 机械工业出版社, 2017.
17	于群, 曹娜. 电力系统继电保护原理及仿真[M]. 北京: 机械工业出版社, 2015.
18	贺威俊, 高仕斌, 黄彦全, 等. 轨道交通牵引供变电技术[M]. 2版. 成都: 西南交通大学出版社, 2016: 149–155.
19	孟飞. 城市轨道交通24脉波整流机组的研究[J]. 电气化铁道, 2011, 22 (4): 43- 45. DOI
	MENG Fei. Study on 24 pulse rectifier set for urban rail transportation[J]. Electric Railway, 2011, 22 (4): 43- 45. DOI
20	韩政彤. 长沙市轨道交通1号线整流机组的应用研究[J]. 电气化铁道, 2018, 29 (4): 53- 57.
	HAN Zhengtong. Analysis of application of rectifier set for line 1 of Changsha urban mass transit[J]. Electric Railway, 2018, 29 (4): 53- 57.
21	许嘉轩. 基于Gauss-Seidel法的城市轨道交通直流牵引供电系统稳态短路计算方法[J]. 城市轨道交通研究, 2020, 23 (7): 138- 141.
	XU Jiaxuan. Steady state short-circuit calculation of DC traction power supply system based on gauss-seidel iteration[J]. Urban Mass Transit, 2020, 23 (7): 138- 141.
22	刘炜, 曾佳欣, 马庆安, 等. 含双向变流装置的城轨牵引供电系统协同供电潮流计算[J]. 西南交通大学学报, 2023, 58 (5): 1145- 1153.
	LIU Wei, ZENG Jiaxin, MA Qingan, et al. Calculation of collaborative power flow for urban rail traction power supply system with bidirectional converter device[J]. Journal of Southwest Jiaotong University, 2023, 58 (5): 1145- 1153.
23	徐超群, 杨俭, 袁天辰. 地铁牵引供电系统直流侧短路故障研究[J]. 计算机测量与控制, 2018, 26 (6): 32- 34, 52.
	XU Chaoqun, YANG Jian, YUAN Tianchen. Study on short-circuit fault on DC side of metro traction power system[J]. Computer Measurement & Control, 2018, 26 (6): 32- 34, 52.
24	王景芳, 陈安臣, 姚绪梁, 等. 一种直流侧串联辅助单相整流器的24脉波整流器[J]. 中国电机工程学报, 2021, 41 (23): 8120- 8129.
	WANG Jingfang, CHEN Anchen, YAO Xuliang, et al. A 24-pulse rectifier with an auxiliary single-phase rectifier in series at DC side[J]. Proceedings of the CSEE, 2021, 41 (23): 8120- 8129.
25	张峻领. 地铁供电系统直流侧短路故障研究[D]. 成都: 西南交通大学, 2011: 35–36.
	ZHANG Junling. Research on short-circuit fault of metro DC power supply system[D]. Chengdu: Southwest Jiaotong University, 2011: 35–36.
