基于有限关键节点及Wasserstein距离的配网拓扑识别

doi:10.11930/j.issn.1004-9649.202303122

中国电力 ›› 2024, Vol. 57 ›› Issue (4): 151-161.DOI: 10.11930/j.issn.1004-9649.202303122

基于有限关键节点及Wasserstein距离的配网拓扑识别

赵耀¹(), 陈永江¹(), 纪坤华²(), 王云²()

1. 上海电力大学电气工程学院，上海　200090
2. 国网上海市电力公司，上海　200122

收稿日期:2023-03-29 接受日期:2024-01-02 出版日期:2024-04-28 发布日期:2024-04-26
作者简介:赵耀（1987—），男，通信作者，博士，副教授，从事配电网态势感知、新能源发电、电力设备故障诊断研究，Email：nihaozhaoyao@163.com
陈永江（1998—），男，硕士研究生，从事配电网态势感知研究，E-mail：c15059571829@163.com
纪坤华（1980—），男，硕士，高级工程师，从事电力系统运行工作，E-mail：1093681984@qq.com
王云（1988—），男，博士，工程师，从事电力系统运行工作，E-mail：276768624@qq.com
基金资助:
国家自然科学基金资助项目（高渗透率电力系统有效惯量与一次调频相互作用机理及优化控制研究，51977128）；国家电网有限公司科技项目（基于融合终端的配网海量分布式可控资源协同优化研究，SGSH0000SCJS2100533）。

Distribution Network Topology Identification Based on Finite Key Nodes and Wasserstein Distance

Yao ZHAO¹(), Yongjiang CHEN¹(), Kunhua JI²(), Yun WANG²()

1. School of Electrical Engineering, Shanghai University of Electric Power, Shanghai 200090, China
2. State Grid Shanghai Electric Power Company, Shanghai 200122, China

Received:2023-03-29 Accepted:2024-01-02 Online:2024-04-28 Published:2024-04-26
Supported by:
This work is supported by National Natural Science Foundation of China (Research on Interaction Mechanism and Optimal Control of Effective Inertia and Primary Frequency Regulation in High Permeability Power System, No.51977128) and Science & Technology Project of SGCC (Research on Collaborative Optimization of Massive Distributed and Controllable Resources of Distribution Network Based on Converged Terminals, No.SGSH0000SCJS2100533).

摘要/Abstract

摘要：

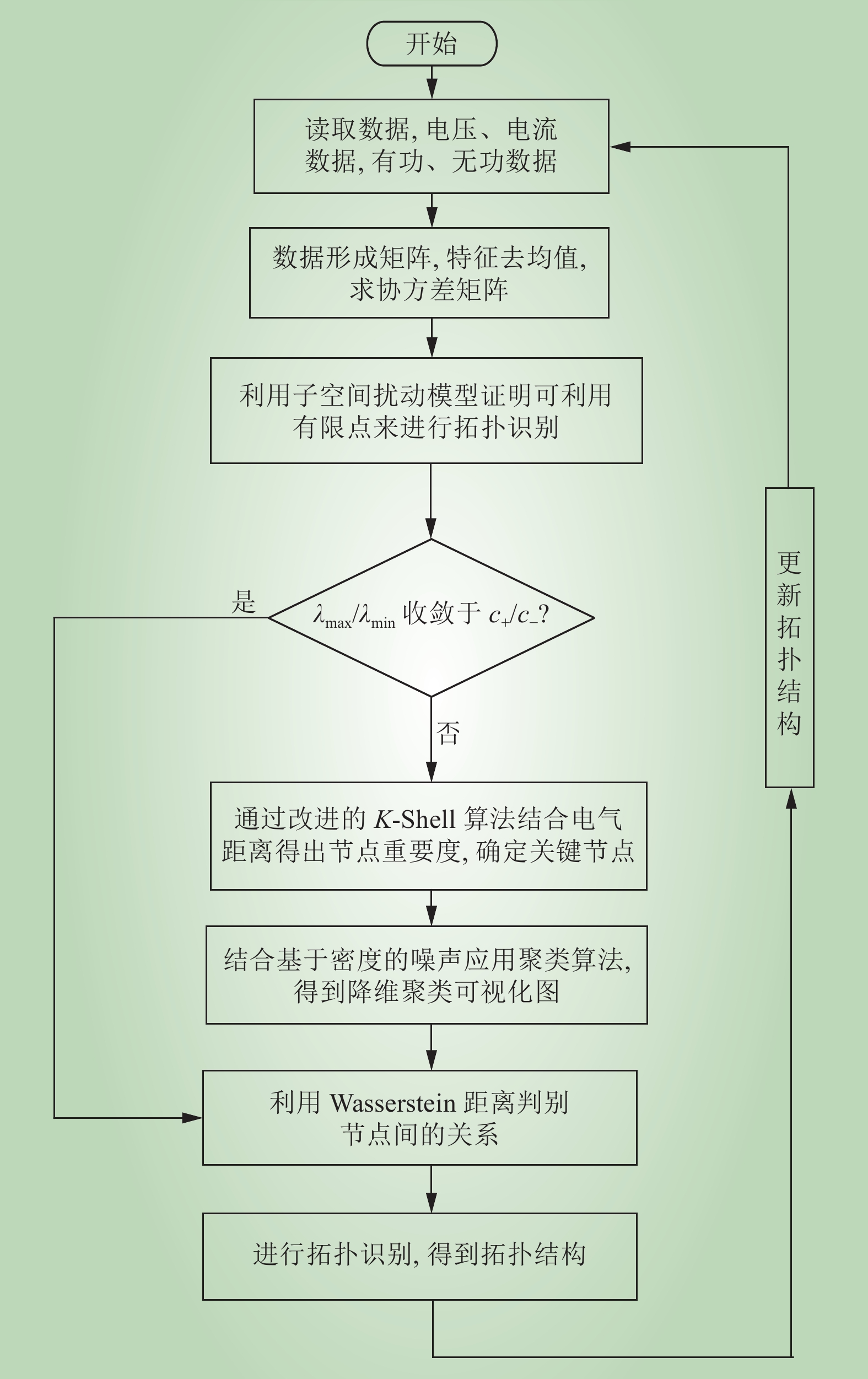

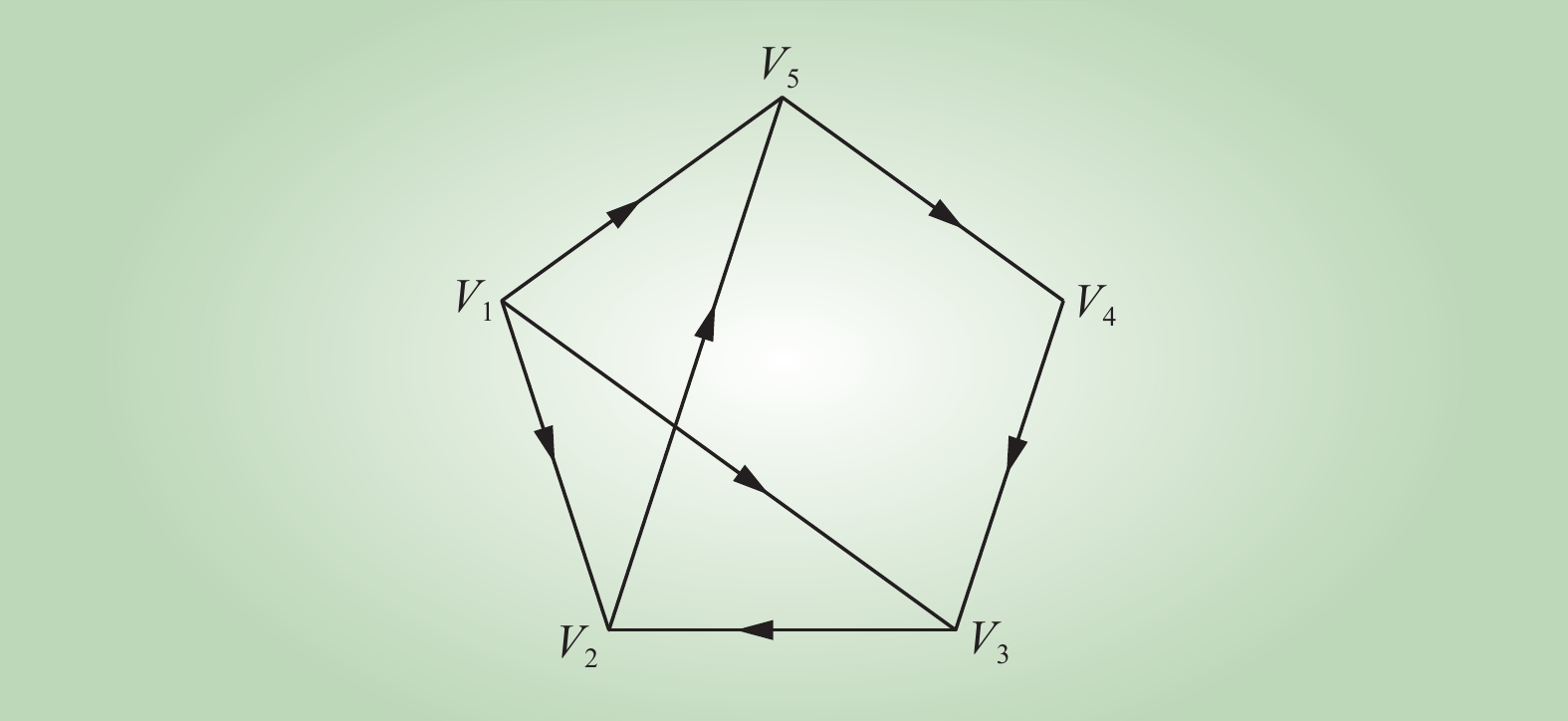

明确配电网结构是配电网最优潮流、安全评估、网络重建、故障定位的基础。针对现有配电网拓扑识别方法缺乏结合现有网络结构参数和潮流信息，仅通过量测数据来进行拓扑识别效率低的问题，提出一种基于有限关键节点及Wasserstein距离的配电网拓扑识别方法。首先，利用子空间扰动模型证明配网拓扑变化时，可以利用有限的关键节点来进行拓扑识别，基于熵值法的混合K-Shell算法引入影响度概念，通过影响度与节点电气距离得出节点的重要度，确定配电网拓扑结构中的关键节点。其次，基于密度的噪声应用聚类算法通过电压、电流、有功、无功等4个特征来进行节点的聚类，将其他节点与关键节点进行类别归属，再结合Wasserstein距离得出节点间的连接关系从而得出配电网的拓扑结构。最后，通过IEEE 33节点算例和某小区实例，验证该方法的有效性。该方法极大地提高配电网拓扑识别效率与正确率，实现了配网拓扑结构的动态识别。

关键词: 配网拓扑识别, 子空间扰动模型, 节点重要度, 关键节点, Wasserstein距离

Abstract:

Defining the distribution network structure is the basis for optimal power flow, safety assessment, network reconstruction and fault location of the distribution network. Aiming at the problem that the existing distribution network topology identification methods are poor in efficiency due to their topology identification achieved only through measurement data without combination of existing network structure parameters and power flow information, a distribution network topology identification method based on finite key nodes and Wasserstein distance is proposed. Firstly, the finite key nodes can be used to identify the topology when the subspace perturbation model is used to prove the topology change of the distribution network, and the concept of influence degree is introduced through the entropy method based hybrid K-Shell algorithm and the importance of nodes is obtained by the influence degree and the electrical distance between the nodes, thus determining the key nodes in the distribution network topology. Secondly, the nodes are clustered with the density-based noise application clustering algorithm through four characteristics of voltage, current, active and reactive power, and other nodes and key nodes are classified into nodes and key nodes. And then, the connection relationship between nodes is obtained with the Wasserstein distance, consequently obtaining the topology of distribution network. Finally, a case study of the IEEE 33 node and a residential area has verified the effectiveness of the proposed method. This method greatly improves the identification efficiency and accuracy of distribution network topology, and realizes the dynamic identification of distribution network topology.

Key words: distribution network topology identification, subspace perturbation model, node importance, key nodes, Wasserstein distance

赵耀, 陈永江, 纪坤华, 王云. 基于有限关键节点及Wasserstein距离的配网拓扑识别[J]. 中国电力, 2024, 57(4): 151-161.

Yao ZHAO, Yongjiang CHEN, Kunhua JI, Yun WANG. Distribution Network Topology Identification Based on Finite Key Nodes and Wasserstein Distance[J]. Electric Power, 2024, 57(4): 151-161.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202303122

https://www.electricpower.com.cn/CN/Y2024/V57/I4/151

图/表 10

参考文献 29

1	王成山, 李鹏. 分布式发电、微网与智能配电网的发展与挑战[J]. 电力系统自动化, 2010, 34 (2): 10- 14, 23.
	WANG Chengshan, LI Peng. Development and challenges of distributed generation, the micro-grid and smart distribution system[J]. Automation of Electric Power Systems, 2010, 34 (2): 10- 14, 23.
2	赵一男, 宋斌, 钱振宇, 等. 未来配电网的分布式形态及规划方法[J]. 中国电力, 2022, 55 (4): 70- 77. DOI
	ZHAO Yinan, SONG Bin, QIAN Zhenyu, et al. Dispatching architecture and planning method of future distribution network[J]. Electric Power, 2022, 55 (4): 70- 77. DOI
3	ALVAREZ-HERAULT M C, PICAULT D, CAIRE R, et al. A novel hybrid network architecture to increase DG insertion in electrical distribution systems[J]. IEEE Transactions on Power Systems, 2011, 26 (2): 905- 914. DOI
4	TAN Y, LI Y, CAO Y J, et al. Integrated optimization of network topology and DG outputs for MVDC distribution systems[J]. IEEE Transactions on Power Systems, 2018, 33 (1): 1121- 1123. DOI
5	徐明昕, 赵健, 王小宇, 等. 基于电压聚类和关联卷积的配电网户变关系识别方法[J]. 电力系统保护与控制, 2022, 50 (4): 92- 102. DOI
	XU Mingxin, ZHAO Jian, WANG Xiaoyu, et al. Transformer-customer identification method for a low-voltage distribution network based on voltage clustering and incidence convolution[J]. Power System Protection and Control, 2022, 50 (4): 92- 102. DOI
6	肖勇, 赵云, 涂治东, 等. 基于改进的皮尔逊相关系数的低压配电网拓扑结构校验方法[J]. 电力系统保护与控制, 2019, 47 (11): 37- 43.
	XIAO Yong, ZHAO Yun, TU Zhidong, et al. Topology checking method for low voltage distribution network based on improved Pearson correlation coefficient[J]. Power System Protection and Control, 2019, 47 (11): 37- 43.
7	张华, 龙呈, 胡思洋, 等. 基于层次聚类法与皮尔逊相关系数的配电网拓扑校验方法[J]. 电力系统保护与控制, 2021, 49 (21): 88- 96.
	ZHANG Hua, LONG Cheng, HU Siyang, et al. Topology verification method of a distribution network based on hierarchical clustering and the Pearson correlation coefficient[J]. Power System Protection and Control, 2021, 49 (21): 88- 96.
8	陈招安, 黄纯, 张志丹, 等. 基于T型灰色关联度和KNN算法的低压配电网台区拓扑识别方法[J]. 电力系统保护与控制, 2021, 49 (1): 163- 169.
	CHEN Zhaoan, HUANG Chun, ZHANG Zhidan, et al. Topology identification method of a low voltage distribution network based on T-type grey correlation degree and KNN algorithm[J]. Power System Protection and Control, 2021, 49 (1): 163- 169.
9	张磐, 黄旭, 高强伟, 等. 基于运行扰动数据分析的低压台区拓扑辨识方法研究[J/OL]. 电测与仪表, 2021: 1–8. (2021-02-24).https://kns.cnki.net/kcms/detail/23.1202.th.20210224.0910.004.html.
	ZHANG Pan, HUANG Xu, GAO Qiangwei, et al. Research on topology identification method of low-voltage station based on operational disturbance data analysis[J/OL]. Electrical Measurement & Instrumentation, 2021: 1–8. (2021-02-24).https://kns.cnki.net/kcms/detail/23.1202.th. 20210224.0910.004.html.
10	杨志淳, 沈煜, 杨帆, 等. 基于数据关联分析的低压配电网拓扑识别方法[J]. 电测与仪表, 2020, 57 (18): 5- 11, 35.
	YANG Zhichun, SHEN Yu, YANG Fan, et al. Topology identification method of low voltage distribution network based on data association analysis[J]. Electrical Measurement & Instrumentation, 2020, 57 (18): 5- 11, 35.
11	DEKA D, BACKHAUS S, CHERTKOV M. Structure learning in power distribution networks[J]. IEEE Transactions on Control of Network Systems, 2018, 5 (3): 1061- 1074. DOI
12	DEKA D, CHERTKOV M, BACKHAUS S. Topology estimation using graphical models in multi-phase power distribution grids[J]. IEEE Transactions on Power Systems, 2020, 35 (3): 1663- 1673. DOI
13	贾科, 李论, 杨哲, 等. 基于贝叶斯压缩感知理论的配网故障定位研究[J]. 中国电机工程学报, 2019, 39 (12): 3475- 3486.
	JIA Ke, LI Lun, YANG Zhe, et al. Research on distribution network fault location based on Bayesian compressed sensing theory[J]. Proceedings of the CSEE, 2019, 39 (12): 3475- 3486.
14	许栋梁, 赵健, 王小宇, 等. 基于有向邻接矩阵的配电网拓扑检测与识别[J]. 电力系统保护与控制, 2021, 49 (16): 76- 85.
	XU Dongliang, ZHAO Jian, WANG Xiaoyu, et al. Distribution network topology detection and identification based on a directed adjacency matrix[J]. Power System Protection and Control, 2021, 49 (16): 76- 85.
15	吴在军, 徐俊俊, 余星火, 等. 主动配电网状态估计技术评述[J]. 电力系统自动化, 2017, 41 (13): 182- 191.
	WU Zaijun, XU Junjun, YU Xinghuo, et al. Review on state estimation technique of active distribution network[J]. Automation of Electric Power Systems, 2017, 41 (13): 182- 191.
16	杨虎臣, 王晓东, 史志鹏, 等. 基于电压相似性评估的低压配电网户变关系和相位识别技术研究[J]. 电测与仪表, 2023, 60 (2): 91- 96.
	YANG Huchen, WANG Xiaodong, SHI Zhipeng, et al. Research on household variation relation and phase recognition technology of low voltage distribution network based on voltage similarity assessment[J]. Electrical Measurement & Instrumentation, 2023, 60 (2): 91- 96.
17	ZHAO J, XU M X, WANG X Y, et al. Data-driven based low-voltage distribution system transformer-customer relationship identification[J]. IEEE Transactions on Power Delivery, 2022, 37 (4): 2966- 2977. DOI
18	PAPPU S J, BHATT N, PASUMARTHY R, et al. Identifying topology of low voltage distribution networks based on smart meter data[J]. IEEE Transactions on Smart Grid, 2018, 9 (5): 5113- 5122. DOI
19	耿俊成, 吴博, 万迪明, 等. 基于离群点检测的低压配电网拓扑结构校验[J]. 电力信息与通信技术, 2017, 15 (5): 61- 65.
	GENG Juncheng, WU Bo, WAN Diming, et al. Low-voltage transformer area topology verification based on outlier detection[J]. Electric Power Information and Communication Technology, 2017, 15 (5): 61- 65.
20	耿俊成, 张小斐, 郭志民, 等. 基于离散Fréchet距离和剪辑近邻法的低压配电网拓扑结构校验方法[J]. 电测与仪表, 2017, 54 (5): 50- 55.
	GENG Juncheng, ZHANG Xiaofei, GUO Zhimin, et al. Topology verification of low-voltage transformer areas based on discrete Fréchet distance and editing nearest-neighbors method[J]. Electrical Measurement & Instrumentation, 2017, 54 (5): 50- 55.
21	王日宁, 武一, 魏浩铭, 等. 基于智能终端特征信号的配电网台区拓扑识别方法[J]. 电力系统保护与控制, 2021, 49 (6): 83- 89.
	WANG Rining, WU Yi, WEI Haoming, et al. Topology identification method for a distribution network area based on the characteristic signal of a smart terminal unit[J]. Power System Protection and Control, 2021, 49 (6): 83- 89.
22	钟加勇, 熊小伏, 何迎春, 等. 面向台区智能终端的即插即用和拓扑识别方法[J]. 电力系统自动化, 2021, 45 (10): 166- 173.
	ZHONG Jiayong, XIONG Xiaofu, HE Yingchun, et al. Plug-play and topology identification method for intelligent terminal in distribution station area[J]. Automation of Electric Power Systems, 2021, 45 (10): 166- 173.
23	武奕彤. 智能配电网分布式拓扑识别与应用方法[J]. 电力系统保护与控制, 2019, 47 (16): 136- 142.
	WU Yitong. Distributed topology identification and application method of smart distribution network[J]. Power System Protection and Control, 2019, 47 (16): 136- 142.
24	范开俊, 徐丙垠, 董俊, 等. 基于智能终端逐级查询的馈线拓扑识别方法[J]. 电力系统自动化, 2015, 39 (11): 180- 186.
	FAN Kaijun, XU Bingyin, DONG Jun, et al. Identification method for feeder topology based on successive polling of smart terminal unit[J]. Automation of Electric Power Systems, 2015, 39 (11): 180- 186.
25	COUILLET R, HACHEM W. Fluctuations of spiked random matrix models and failure diagnosis in sensor networks[J]. IEEE Transactions on Information Theory, 2013, 59 (1): 509- 525. DOI
26	XU Z Y. Perturbation analysis for subspace decomposition with applications in subspace-based algorithms[J]. IEEE Transactions on Signal Processing, 2002, 50 (11): 2820- 2830. DOI
27	FARAJOLLAHI M, SHAHSAVARI A, STEWART E M, et al. Locating the source of events in power distribution systems using micro-PMU data[J]. IEEE Transactions on Power Systems, 2018, 33 (6): 6343- 6354. DOI
28	XIE J R, HONG T, LAING T, et al. On normality assumption in residual simulation for probabilistic load forecasting[J]. IEEE Transactions on Smart Grid, 2017, 8 (3): 1046- 1053. DOI
29	杜胜永, 柴乔林, 王华. 基于节点聚合度的生成簇算法[J]. 计算机应用, 2006, 26 (4): 948- 950.
	DU Shengyong, CHAI Qiaolin, WANG Hua. Clustering algorithm based on convergence degree[J]. Journal of Computer Applications, 2006, 26 (4): 948- 950.

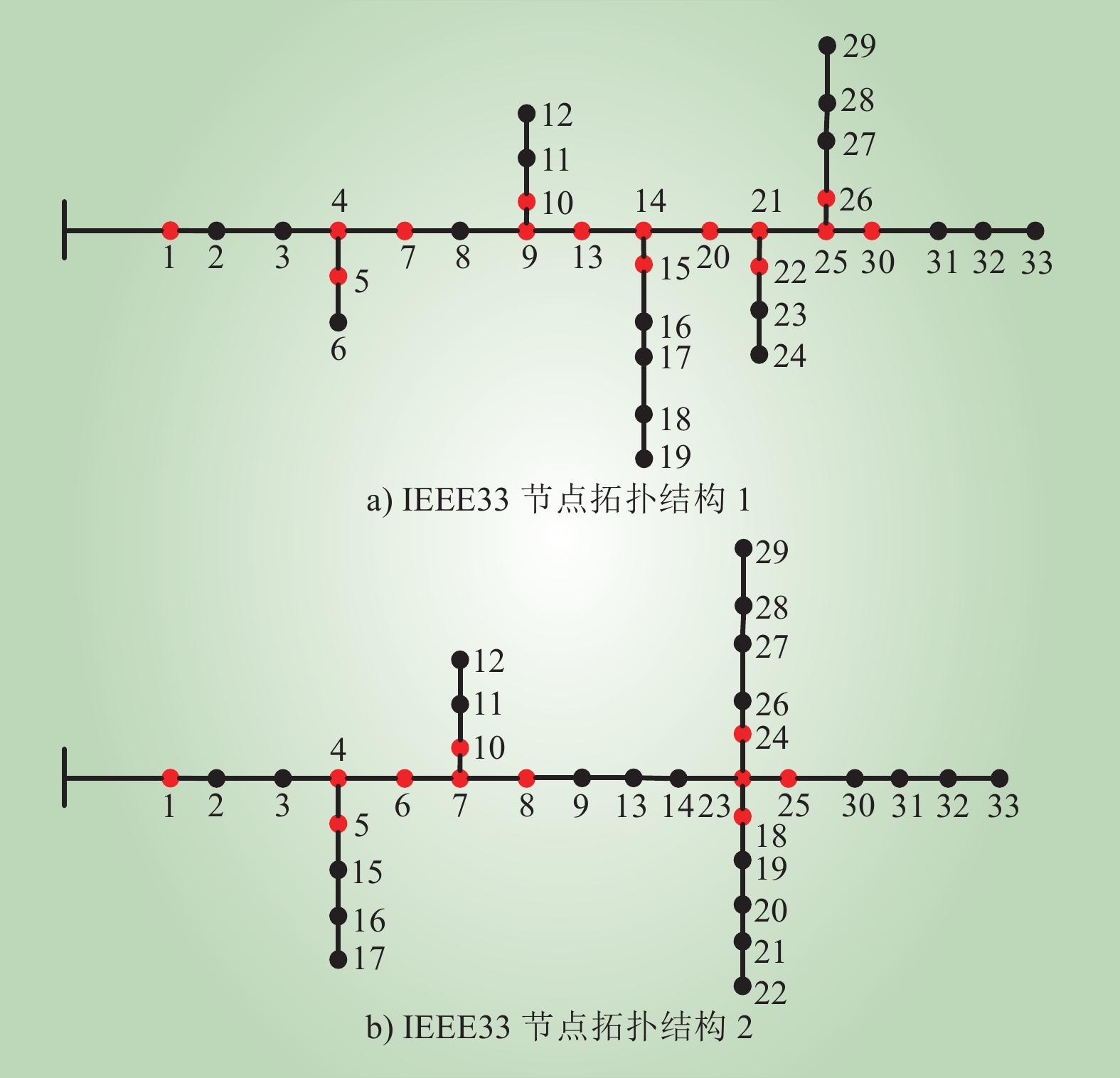

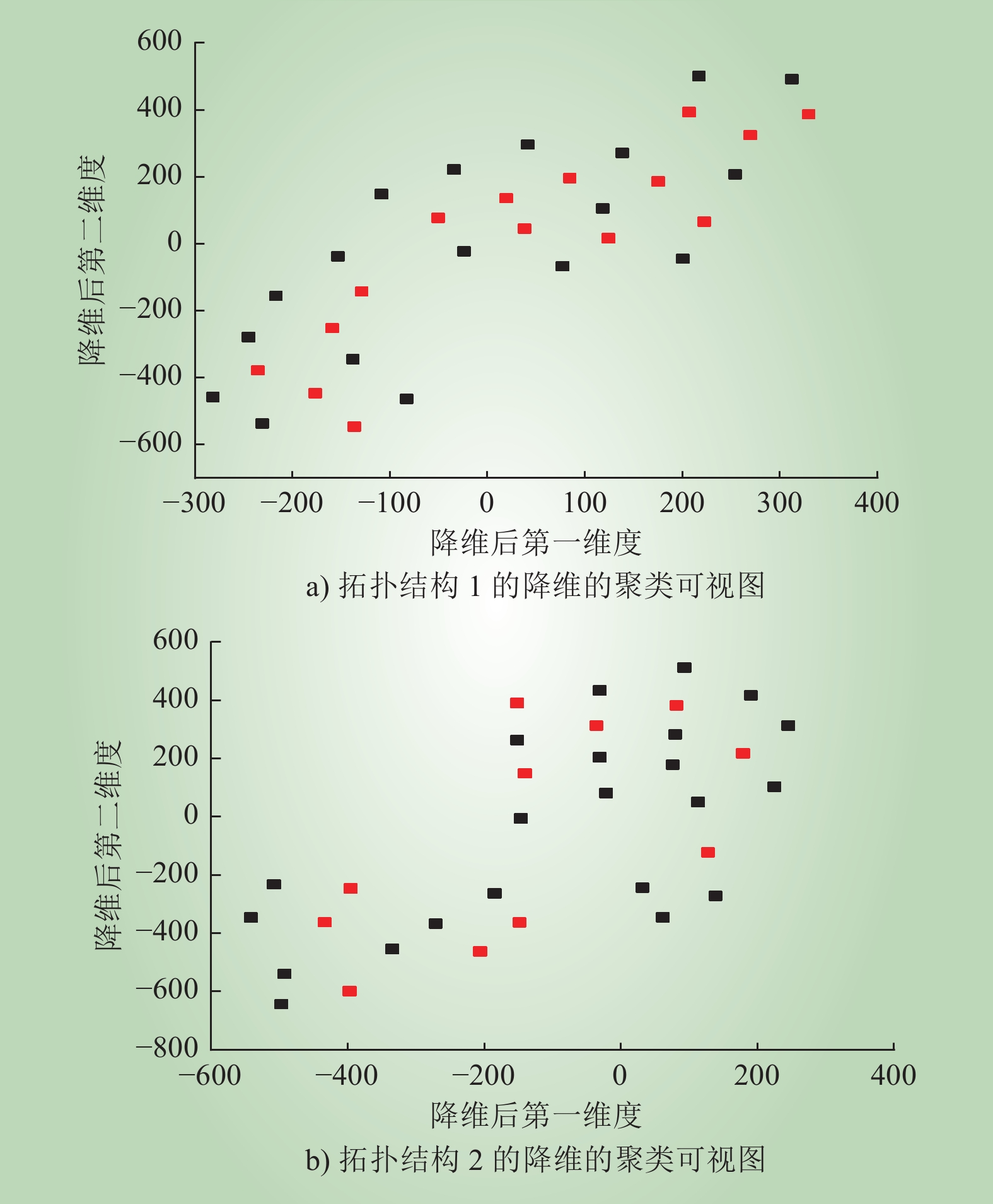

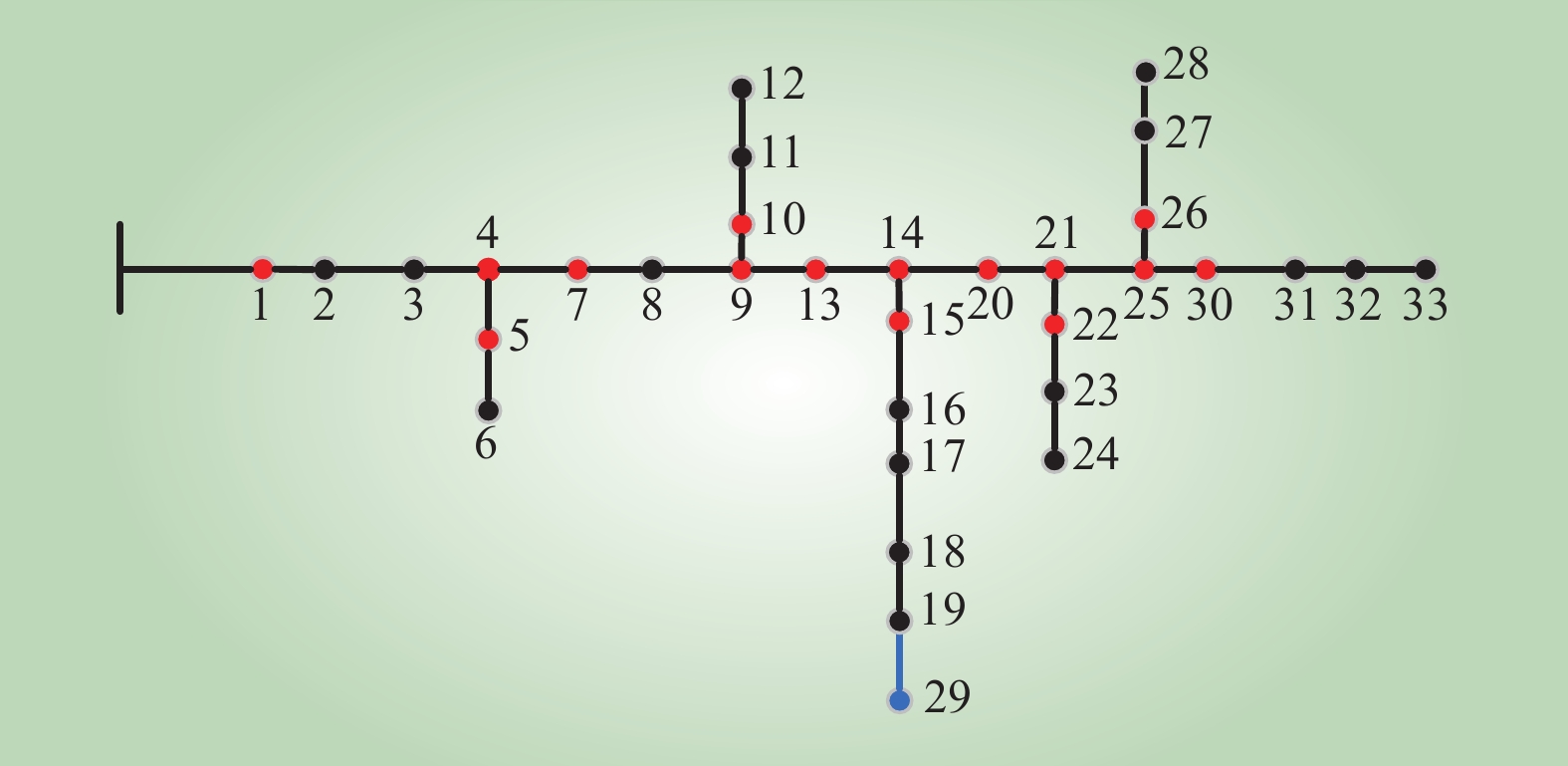

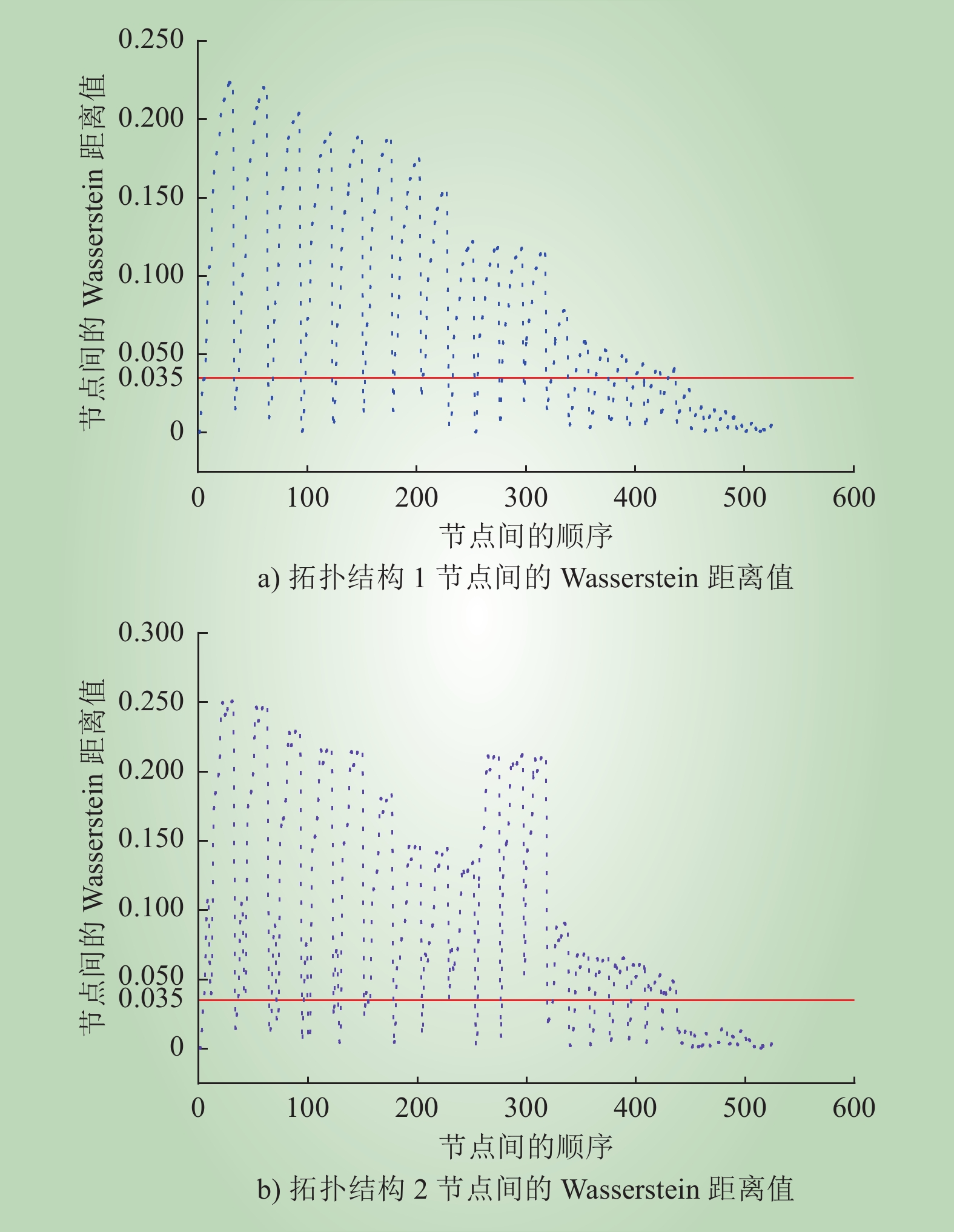

拓扑结构	关键节点	识别结果
a)	1, 4, 5, 7, 9, 10, 13, 14, 15, 20, 21, 22, 25, 26, 30	1-2, 2-3, 3-4, 4-5, 4-7, 5-6, 7-8, 8-9, 9-10, 10-11, 11-12, 9-13, 13-14, 14-15, 14-20, 15-16, 16-17, 17-18, 18-19, 19-29, 20-21, 21-22, 21-25, 22-23, 23-24, 25-26, 25-30, 26-27, 27-28, 28-29, 30-31, 31-32, 32-33
b)	1, 4, 5, 6, 14, 15, 18, 20, 23, 24, 25	1-2, 2-3, 3-4, 4-5, 4-6, 6-7, 7-8, 8-9, 9-13, 13-14, 14-15, 14-18, 15-16, 16-17, 18-19, 19-23, 23-20, 23-24, 23-25, 20-21, 21-22, 24-26, 26-27, 27-28, 28-29, 25-30, 30-31, 31-32, 32-33

拓扑结构	关键节点	识别结果
a)	1, 4, 5, 7, 9, 10, 13, 14, 15, 20, 21, 22, 25, 26, 30	1-2, 2-3, 3-4, 4-5, 4-7, 5-6, 7-8, 8-9, 9-10, 10-11, 11-12, 9-13, 13-14, 14-15, 14-20, 15-16, 16-17, 17-18, 18-19, 19-29, 20-21, 21-22, 21-25, 22-23, 23-24, 25-26, 25-30, 26-27, 27-28, 28-29, 30-31, 31-32, 32-33
b)	1, 4, 5, 6, 14, 15, 18, 20, 23, 24, 25	1-2, 2-3, 3-4, 4-5, 4-6, 6-7, 7-8, 8-9, 9-13, 13-14, 14-15, 14-18, 15-16, 16-17, 18-19, 19-23, 23-20, 23-24, 23-25, 20-21, 21-22, 24-26, 26-27, 27-28, 28-29, 25-30, 30-31, 31-32, 32-33

时刻	U₁	I₁	P₁	U₂	I₂	P₂
00:00	229.8	0.933	0.196	226.9	1.691	0.360
01:00	229.5	0.849	0.180	226.9	1.424	0.303
02:00	229.6	1.016	0.215	226.4	1.805	0.375
03:00	228.5	1.046	0.220	225.2	1.655	0.340
···	···	···	···	···	···	···
21:00	226.8	1.626	0.336	221.6	2.355	0.478
22:00	226.7	2.796	0.582	218.0	5.951	1.206
23:00	227.6	1.845	0.378	221.6	2.384	0.484

时刻	U₁	I₁	P₁	U₂	I₂	P₂
00:00	229.8	0.933	0.196	226.9	1.691	0.360
01:00	229.5	0.849	0.180	226.9	1.424	0.303
02:00	229.6	1.016	0.215	226.4	1.805	0.375
03:00	228.5	1.046	0.220	225.2	1.655	0.340
···	···	···	···	···	···	···
21:00	226.8	1.626	0.336	221.6	2.355	0.478
22:00	226.7	2.796	0.582	218.0	5.951	1.206
23:00	227.6	1.845	0.378	221.6	2.384	0.484

用户	U间Wasserstein距离值			I间Wasserstein距离值			P间Wasserstein距离值
用户	表箱1	表箱2	表箱3	表箱1	表箱2	表箱3	表箱1	表箱2	表箱3
1	0.0033	0.2046	0.2013	0.0135	0.1493	0.1293	0.0101	0.1577	0.1571
2	0.0202	0.2100	0.2068	0.0129	0.1680	0.1347	0.0145	0.1593	0.1629
3	0.0324	0.2130	0.1734	0.0173	0.1669	0.1377	0.0262	0.1648	0.1648
4	0.0448	0.1766	0.1739	0.0106	0.1758	0.1382	0.0208	0.1677	0.1677
5	0.1085	0.0170	0.1859	0.1706	0.0203	0.1139	0.1287	0.0116	0.1682
6	0.1130	0.0292	0.1760	0.1722	0.0128	0.1251	0.1341	0.0108	0.1318
7	0.1097	0.0415	0.1754	0.1805	0.0075	0.1270	0.1370	0.0233	0.1439
8	0.1213	0.0721	0.1779	0.1811	0.0027	0.1329	0.1376	0.0205	0.1340
9	0.1605	0.1771	0.0246	0.1442	0.1370	0.0045	0.1358	0.1682	0.0102
10	0.1315	0.1892	0.0251	0.1447	0.1576	0.0012	0.1245	0.1318	0.0117
11	0.1330	0.1793	0.0128	0.1568	0.1556	0.0230	0.1264	0.1439	0.0126
12	0.2030	0.1787	0.0157	0.1468	0.1635	0.0246	0.1323	0.1551	0.0191

基于有限关键节点及Wasserstein距离的配网拓扑识别

Distribution Network Topology Identification Based on Finite Key Nodes and Wasserstein Distance

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 10

参考文献 29

相关文章 1

编辑推荐

Metrics

R_SN/dB	拓扑识别准确率/%
R_SN/dB	皮尔逊相关系数法	T型灰色关联法	Wasserstein 距离值法
6	75.00	83.33	91.67
2	58.33	75.00	83.33
0	50.00	66.67	75.00
–2	41.67	58.33	66.67
