中国电力 ›› 2026, Vol. 59 ›› Issue (5): 20-32.DOI: 10.11930/j.issn.1004-9649.202412042
• 有源配电网安全高效运行与协同调控关键技术 • 上一篇 下一篇
徐恒山1(
), 柴森1(), 伍阳阳2, 李晨阳1, 张亚健3, 莫汝乔4
收稿日期:2024-12-10
修回日期:2025-05-19
发布日期:2026-05-15
出版日期:2026-05-28
作者简介:基金资助:
XU Hengshan1(), CHAI Sen1(), WU Yangyang2, LI Chenyang1, ZHANG Yajian3, MO Ruqiao4
Received:2024-12-10
Revised:2025-05-19
Online:2026-05-15
Published:2026-05-28
Supported by:摘要：
针对电氢耦合储能直流微网中母线电压易波动和储氢状态（state of hydrogen，SOH）易越限的问题，提出了一种考虑SOH和直流母线电压稳定性的电氢耦合储能直流微网协调控制策略。首先，氢储能系统（hydrogen energy storage system，HESS）采用基于模糊算法的下垂控制策略，综合考虑母线电压波动和SOH对HESS的输出功率进行动态优化。其次，电池储能系统（battery energy storage system，BESS）采用基于类似虚拟同步发电机（analogous virtual synchronous generator，AVSG）的控制策略模拟电容的充放电特性，对直流母线电压的动态性能进行优化。最后，考虑母线电压波动幅值，通过控制HESS和BESS的运行模式对母线电压进一步协调优化。在Matlab/Simulink平台中搭建了电氢耦合储能微网仿真模型，验证所提策略的有效性。结果表明：所提协调控制策略能够在源荷波动场景下提升直流微网母线电压的稳定性、改善氢储能系统的过充过放情况。
徐恒山, 柴森, 伍阳阳, 李晨阳, 张亚健, 莫汝乔. 考虑储氢状态和直流母线电压稳定性的电氢耦合储能直流微网协调控制策略[J]. 中国电力, 2026, 59(5): 20-32.
XU Hengshan, CHAI Sen, WU Yangyang, LI Chenyang, ZHANG Yajian, MO Ruqiao. Coordinated control strategy of electric-hydrogen coupled energy storage DC microgrid considering hydrogen storage state and DC bus voltage stability[J]. Electric Power, 2026, 59(5): 20-32.

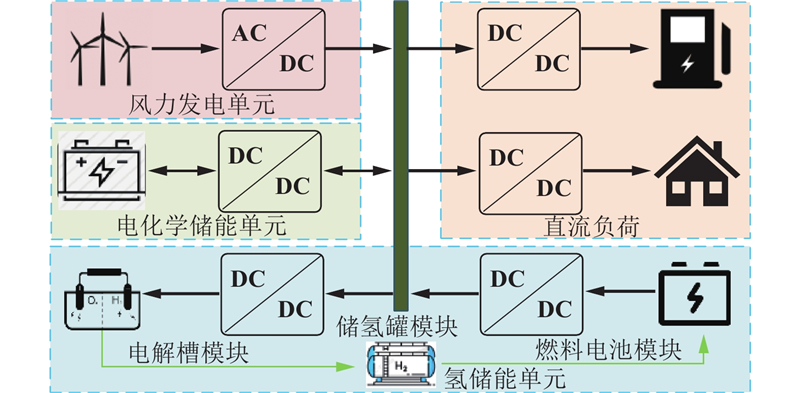

图 1 电氢耦合储能直流微网拓扑
Fig.1 Topological diagram of DC microgrid for electric-hydrogen coupled energy storage

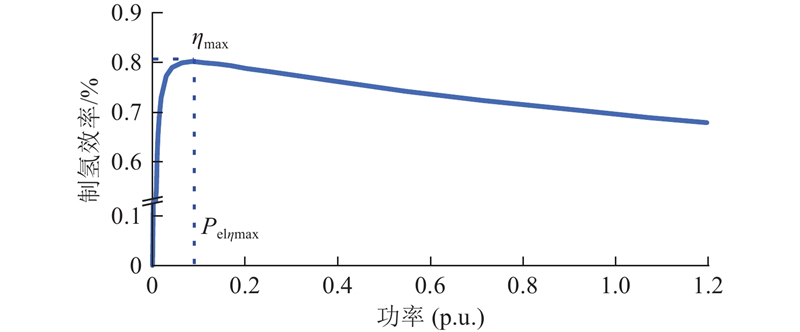

图 2 60 ℃时电解槽制氢效率特性曲线
Fig.2 Characteristic curve of hydrogen production efficiency of electrolyzer at 60 ℃

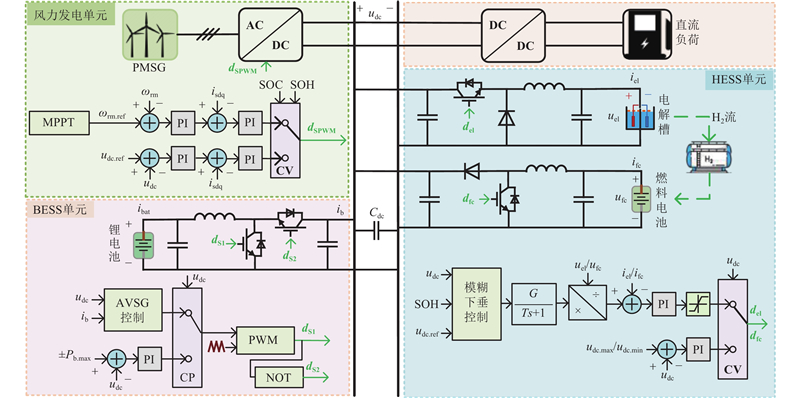

图 3 电氢耦合储能直流微网的系统控制框
Fig.3 System control block diagram of DC microgrid with electro-hydrogen coupled energy storage
| 运行模式 | udc波动范围 | 控制策略 | ||
| HESS | BESS | |||
| PEMEL | PEMFC | |||
| 1 | udc≤udc.min | 停机 | 定电压 | 定功率 |
| 2 | udc.min＜udc＜udc.L | 待机 | 下垂 | AVSG |
| 3 | udc.L≤udc≤udc.H | 下垂 | 下垂 | AVSG |
| 4 | udc.H＜udc＜udc.max | 下垂 | 待机 | AVSG |
| 5 | udc≥udc.max | 定电压 | 停机 | 定功率 |
表 1 储能系统运行模式
Table 1 Operating modes of storage system
| 运行模式 | udc波动范围 | 控制策略 | ||
| HESS | BESS | |||
| PEMEL | PEMFC | |||
| 1 | udc≤udc.min | 停机 | 定电压 | 定功率 |
| 2 | udc.min＜udc＜udc.L | 待机 | 下垂 | AVSG |
| 3 | udc.L≤udc≤udc.H | 下垂 | 下垂 | AVSG |
| 4 | udc.H＜udc＜udc.max | 下垂 | 待机 | AVSG |
| 5 | udc≥udc.max | 定电压 | 停机 | 定功率 |

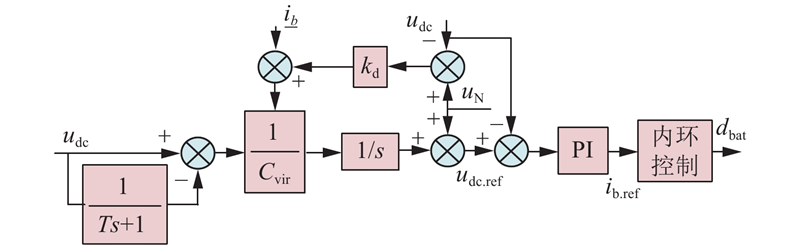

图 4 AVSG的控制框
Fig.4 Control diagram of AVSG control

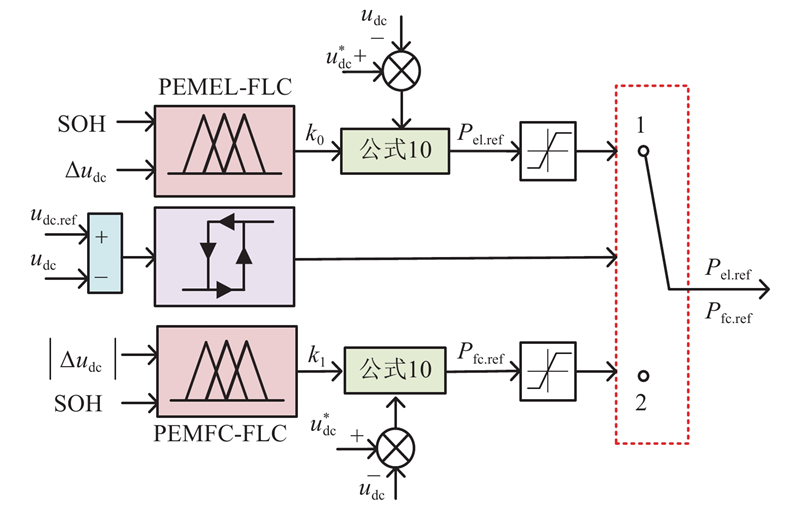

图 5 基于模糊算法的下垂控制策略
Fig.5 Drop control strategy based on fuzzy algorithm

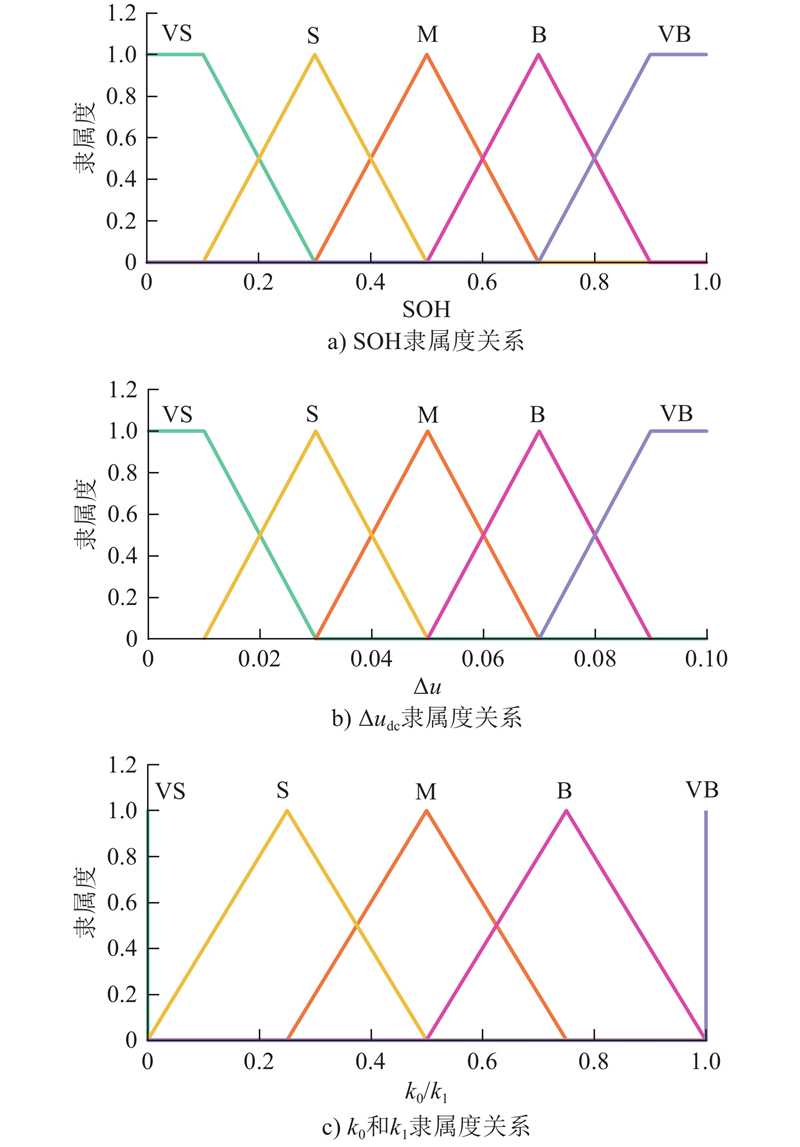

图 6 输入变量和输出变量的隶属度关系
Fig.6 Membership relationships between input variables and output variables
| Δudc＞0 | SOH | ||||
| VS | S | M | B | VB | |
| VS | VS | VS | VS | VS | VS |
| S | M | M | S | S | VS |
| M | B | B | M | S | VS |
| B | VB | B | B | M | VS |
| VB | VB | VB | B | M | VS |
表 2 PEMEL-FLC的模糊规则
Table 2 Fuzzy rules of PEMEL-FLC
| Δudc＞0 | SOH | ||||
| VS | S | M | B | VB | |
| VS | VS | VS | VS | VS | VS |
| S | M | M | S | S | VS |
| M | B | B | M | S | VS |
| B | VB | B | B | M | VS |
| VB | VB | VB | B | M | VS |

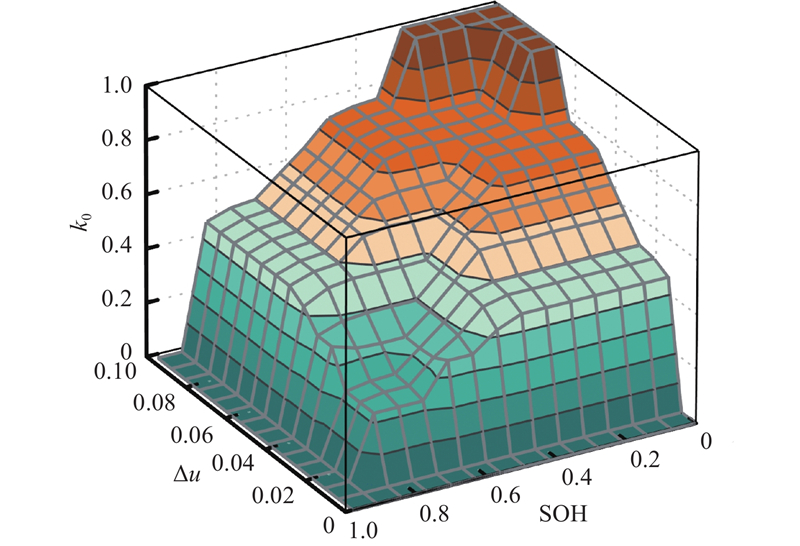

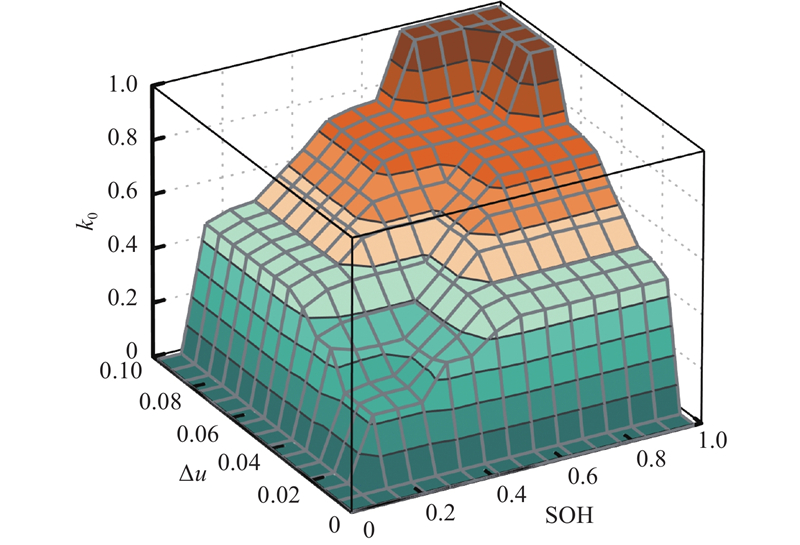

图 7 PEMEL-FLC模糊逻辑的推理结果
Fig.7 Reasoning results of PEMEL-FLC fuzzy logic
| Δudc＜0 | SOH | ||||
| VS | S | M | B | VB | |
| VS | VS | VS | VS | VS | VS |
| S | VS | S | S | M | M |
| M | VS | S | M | B | B |
| B | VS | M | B | B | VB |
| VB | VS | M | B | VB | VB |
表 3 PEMFC-FLC的模糊规则
Table 3 Fuzzy rules of PEMFC-FLC
| Δudc＜0 | SOH | ||||
| VS | S | M | B | VB | |
| VS | VS | VS | VS | VS | VS |
| S | VS | S | S | M | M |
| M | VS | S | M | B | B |
| B | VS | M | B | B | VB |
| VB | VS | M | B | VB | VB |
图 8 PEMFC-FLC模糊逻辑的推理结果
Fig.8 Reasoning results of PEMFC-FLC fuzzy logic
| 模型 | 参数 | 数值 | 参数 | 数值 | |
| 直流微网 | uN/V | 800 | Cdc/F | 0.3 | |
| udc.L (p.u.) | 0.95 | udc.H (p.u.) | 1.05 | ||
| udc.min (p.u.) | 0.9 | udc.max (p.u.) | 1.1 | ||
| 储能 | Pb/kW | 20 | Pb.max (p.u.) | 1.0 | |
| SN/(A·h) | 20 | Cvir0 (p.u.) | 4.0 | ||
| 电解槽 | Pel.N/kW | 30 | Pel.max (p.u.) | 1.2 | |
| 燃料电池 | Pfc.N/kW | 30 | Pfc.max (p.u.) | 1.2 | |
| 直驱风机 | PWind.N/kW | 60 | CP.max | 0.438 |
表 4 直流微网模型主要仿真参数
Table 4 Main simulation parameters of the DC microgrid model
| 模型 | 参数 | 数值 | 参数 | 数值 | |
| 直流微网 | uN/V | 800 | Cdc/F | 0.3 | |
| udc.L (p.u.) | 0.95 | udc.H (p.u.) | 1.05 | ||
| udc.min (p.u.) | 0.9 | udc.max (p.u.) | 1.1 | ||
| 储能 | Pb/kW | 20 | Pb.max (p.u.) | 1.0 | |
| SN/(A·h) | 20 | Cvir0 (p.u.) | 4.0 | ||
| 电解槽 | Pel.N/kW | 30 | Pel.max (p.u.) | 1.2 | |
| 燃料电池 | Pfc.N/kW | 30 | Pfc.max (p.u.) | 1.2 | |
| 直驱风机 | PWind.N/kW | 60 | CP.max | 0.438 |

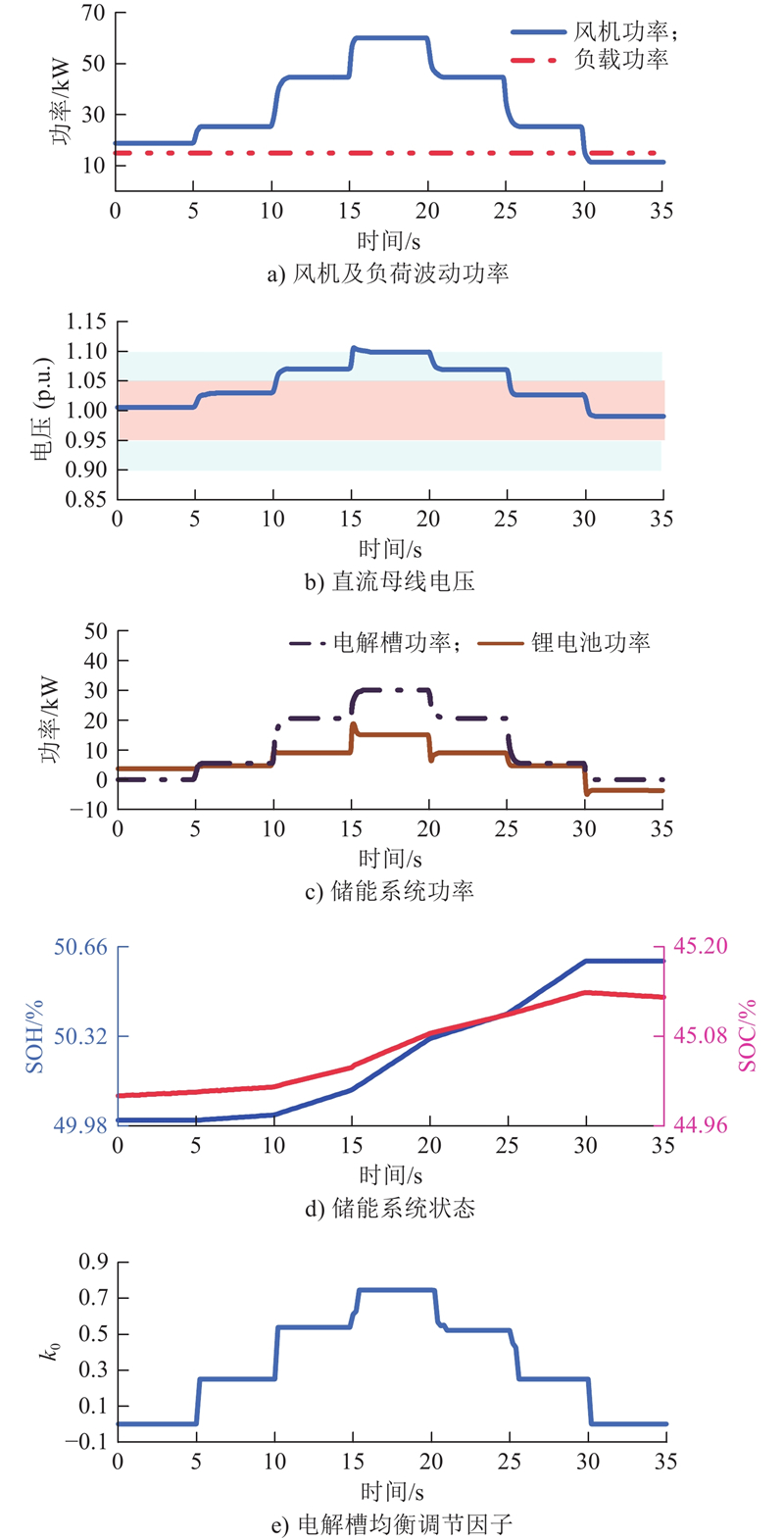

图 9 充电状态下的测试结果
Fig.9 Test results under charging condition

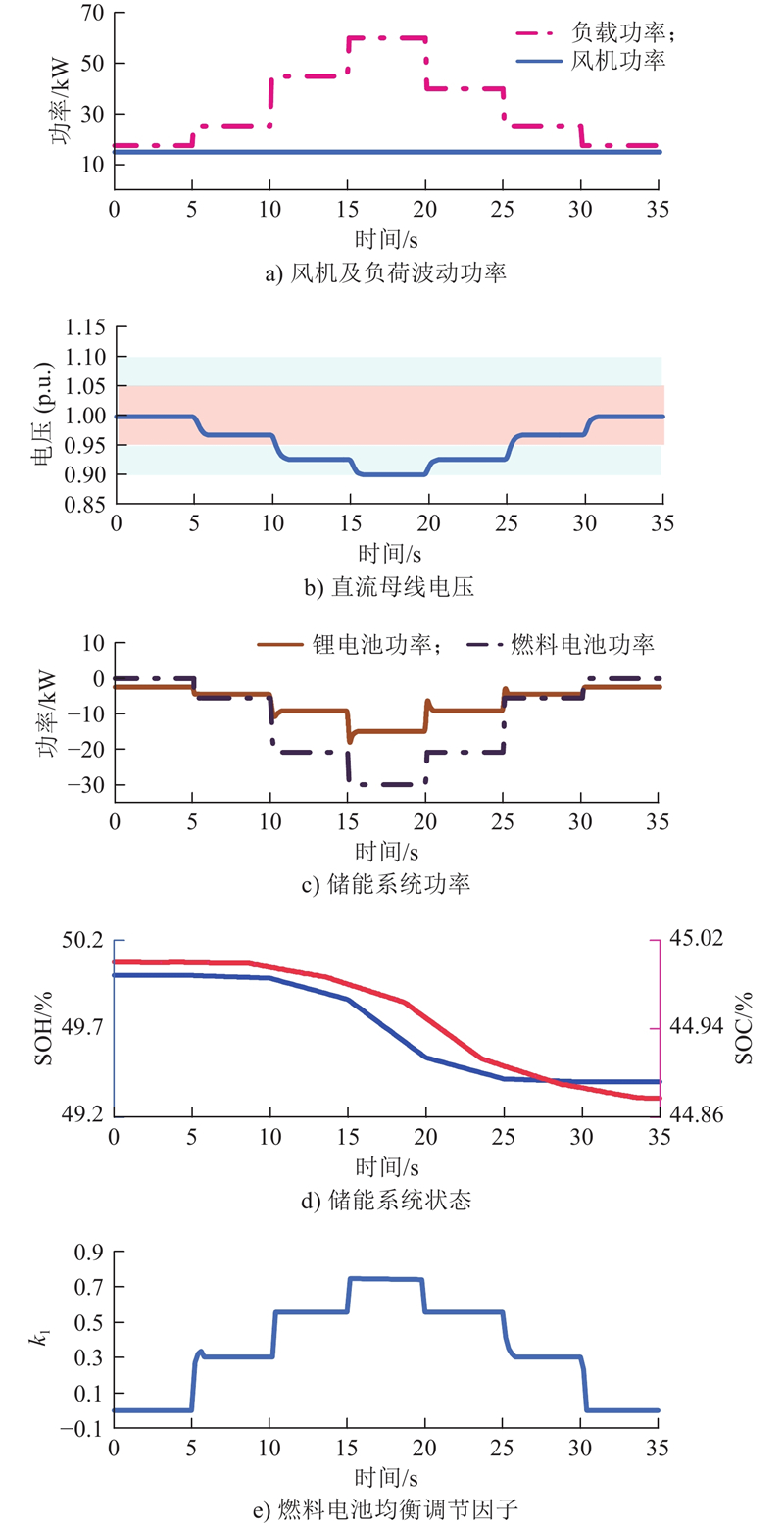

图 10 放电状态下的测试结果
Fig.10 Test results under discharging condition

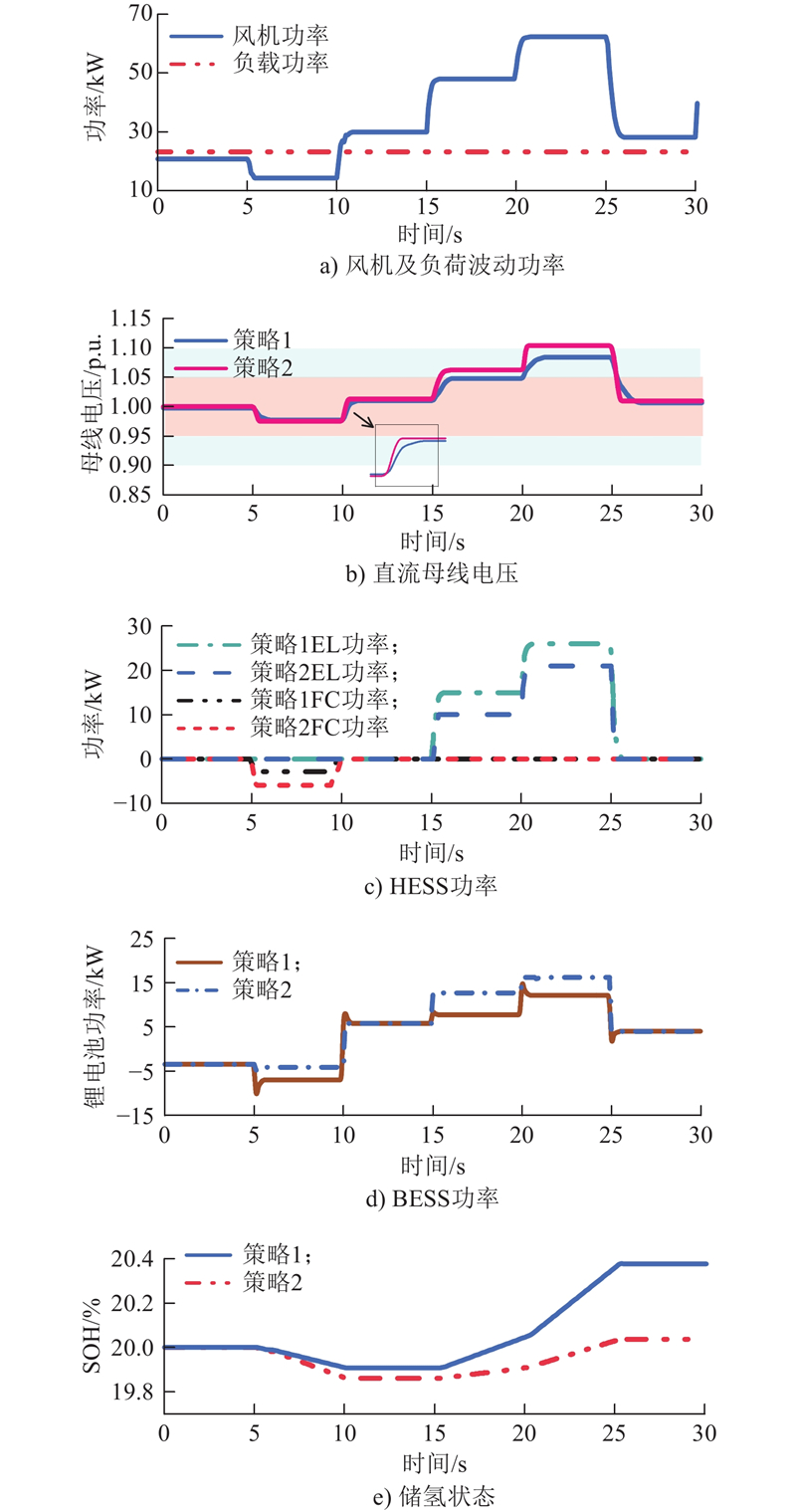

图 11 临界储氢状态运行场景1仿真结果
Fig.11 Simulation results for operation scenario 1 under critical hydrogen storage state
| 性能指标 | 策略1（所提策略） | 策略2（传统策略） |
| 母线电压波动范围/(p.u.) | （0.915, 1.011） | （0.899, 1.024） |
| 母线电压标准差 | ||
| 电压最大波动值/(p.u.) | 0.085 | 0.101 |
表 5 临界状态运行场景1电压稳定性量化对比
Table 5 Quantitative comparison of voltage stability under critical state operation scenario 1
| 性能指标 | 策略1（所提策略） | 策略2（传统策略） |
| 母线电压波动范围/(p.u.) | （0.915, 1.011） | （0.899, 1.024） |
| 母线电压标准差 | ||
| 电压最大波动值/(p.u.) | 0.085 | 0.101 |

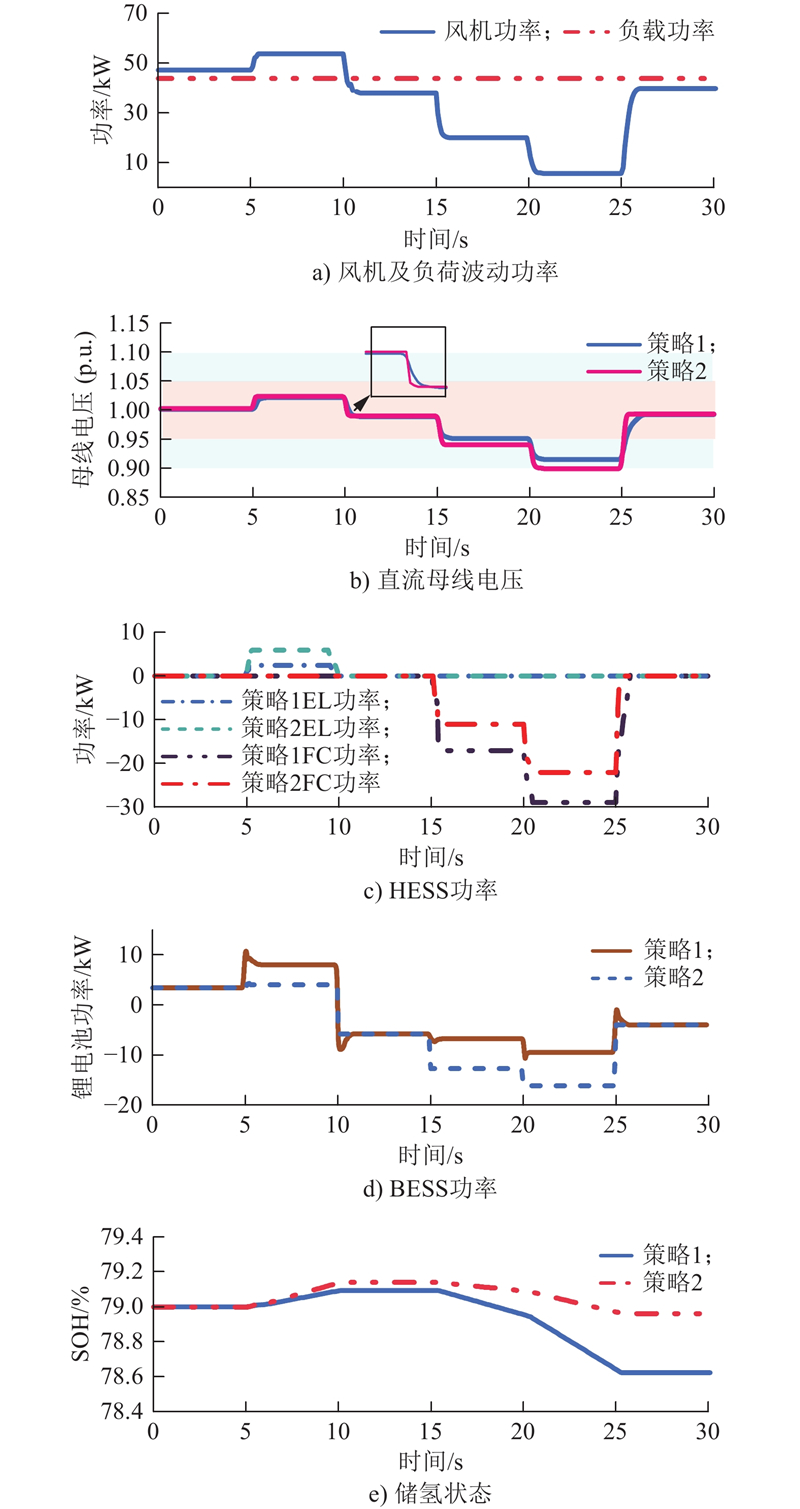

图 12 临界储氢状态运行场景2仿真结果
Fig.12 Simulation results for critical hydrogen storage state under operation scenario 2
| 性能指标 | 策略1（所提策略） | 策略2（传统策略） |
| 母线电压波动范围 (p.u.) | （0.976, 1.084） | （0.975, 1.104） |
| 母线电压标准差 | ||
| 电压最大波动值 (p.u.) | 0.084 | 0.104 |
表 6 临界状态运行场景2电压稳定性量化对比
Table 6 Quantitative comparison of voltage stability under critical state operation scenario 2
| 性能指标 | 策略1（所提策略） | 策略2（传统策略） |
| 母线电压波动范围 (p.u.) | （0.976, 1.084） | （0.975, 1.104） |
| 母线电压标准差 | ||
| 电压最大波动值 (p.u.) | 0.084 | 0.104 |
| 1 | 陈国平, 董昱, 梁志峰. 能源转型中的中国特色新能源高质量发展分析与思考[J]. 中国电机工程学报, 2020, 40 (17): 5493- 5505. |
| CHEN Guoping, DONG Yu, LIANG Zhifeng. Analysis and reflection on high-quality development of new energy with Chinese characteristics in energy transition[J]. Proceedings of the CSEE, 2020, 40 (17): 5493- 5505. | |
| 2 | 李强, 张有忠. 风电场智慧化转型的技术路径探索[J]. 中国电力企业管理, 2025 (18): 56- 58. |
| 3 | 闫亲朋. 风电场参与系统一次调频控制技术[J]. 电力设备管理, 2024 (24): 126- 128. |
| YAN Qinpeng. Primary frequency modulation control technology of wind farm participating system[J]. Electric Power Equipment Management, 2024 (24): 126- 128. | |
| 4 | 张智刚, 康重庆. 碳中和目标下构建新型电力系统的挑战与展望[J]. 中国电机工程学报, 2022, 42 (8): 2806- 2818. |
| ZHANG Zhigang, KANG Chongqing. Challenges and prospects for constructing the new-type power system towards a carbon neutrality future[J]. Proceedings of the Chinese Society for Electrical Engineering, 2022, 42 (8): 2806- 2818. | |
| 5 |
张剑, 崔明建, 何怡刚. 结合数据驱动与物理模型的主动配电网双时间尺度电压协调优化控制[J]. 电工技术学报, 2024, 39 (5): 1327- 1339.
|
|
ZHANG Jian, CUI Mingjian, HE Yigang. Dual timescales coordinated and optimal voltages control in distribution systems using data-driven and physical optimization[J]. Transactions of China Electrotechnical Society, 2024, 39 (5): 1327- 1339.
|
|
| 6 |
LI C Q, BAEK J B. The promise of hydrogen production from alkaline anion exchange membrane electrolyzers[J]. Nano Energy, 2021, 87, 106162.
|
| 7 |
付文豪, 张继红, 谢波, 等. 混合储能参与风力发电场的调频控制策略研究[J]. 电工技术, 2023 (22): 82- 86, 96.
|
|
FU Wenhao, ZHANG Jihong, XIE Bo, et al. Control strategy of wind farm frequency regulation with hybrid energy storage[J]. Electric Engineering, 2023 (22): 82- 86, 96.
|
|
| 8 |
杨黎, 兰怡希, 林玲, 等. 风储系统中储能虚拟惯量评估与频率支撑技术[J]. 浙江电力, 2024, 43 (6): 52- 60.
|
|
YANG Li, LAN Yixi, LIN Ling, et al. A virtual inertia assessment and frequency support technology for wind-storage power generation system[J]. Zhejiang Electric Power, 2024, 43 (6): 52- 60.
|
|
| 9 | 钱阳, 查雨欣, 周旭峰. 风储协同控制参与系统调频研究[J]. 电工技术, 2024 (18): 38- 41. |
| QIAN Yang, ZHA Yuxin, ZHOU Xufeng. Wind-storage collaborative control-assisted frequency regulation of power networks[J]. Electric Engineering, 2024 (18): 38- 41. | |
| 10 |
张伟. 风储系统并网控制策略研究分析[J]. 电气技术与经济, 2024 (7): 40- 44.
|
| 11 |
SCHMIDT O, MELCHIOR S, HAWKES A, et al. Projecting the future levelized cost of electricity storage technologies[J]. Joule, 2019, 3 (1): 81- 100.
|
| 12 |
曹蕃, 郭婷婷, 陈坤洋, 等. 风电耦合制氢技术进展与发展前景[J]. 中国电机工程学报, 2021, 41 (6): 2187- 2201.
|
|
CAO Fan, GUO Tingting, CHEN Kunyang, et al. Progress and development prospect of coupled wind and hydrogen systems[J]. Proceedings of the CSEE, 2021, 41 (6): 2187- 2201.
|
|
| 13 | 李建林, 梁忠豪, 李光辉, 等. 太阳能制氢关键技术研究[J]. 太阳能学报, 2022, 43 (3): 2- 11. |
| LI Jianlin, LIANG Zhonghao, LI Guanghui, et al. Analysis of key technologies for solar hydrogen production[J]. Acta Energiae Solaris Sinica, 2022, 43 (3): 2- 11. | |
| 14 | 张梓陌, 孙欣. 基于数据驱动的微电网氢储容量柔性优化配置方法[J]. 上海电力大学学报, 2025, 41 (3): 271- 280. |
| ZHANG Zimo, SUN Xin. Data-driven flexible optimal configuration method for hydrogen storage capacity in microgrids[J]. Journal of Shanghai University of Electric Power, 2025, 41 (3): 271- 280. | |
| 15 | PEI W, ZHANG X, DENG W, et al. Review of operational control strategy for DC microgrids with electric-hydrogen hybrid storage systems[J]. CSEE Journal of Power and Energy Systems, 2022, 8 (2): 329- 346. |
| 16 |
丁剑, 方晓松, 宋云亭, 等. 碳中和背景下西部新能源传输的电氢综合能源网构想[J]. 电力系统自动化, 2021, 45 (24): 1- 9.
|
|
DING Jian, FANG Xiaosong, SONG Yunting, et al. Conception of electricity and hydrogen integrated energy network for renewable energy transmission in western China under background of carbon neutralization[J]. Automation of Electric Power Systems, 2021, 45 (24): 1- 9.
|
|
| 17 | 姚钢, 石片超, 周荔丹, 等. 含氢储直流微电网的VSG协同控制策略[J]. 电力系统及其自动化学报, 2025, 37 (2): 151- 158. |
| YAO Gang, SHI Pianchao, ZHOU Lidan, et al. VSG cooperative control strategy for DC microgrids with hydrogen storage[J]. Proceedings of the CSU-EPSA, 2025, 37 (2): 151- 158. | |
| 18 | 姜建国, 姚德华, 毕洪波. 风光氢储耦合系统容量配置优化研究[J]. 电力需求侧管理, 2025, 27 (4): 98- 104. |
| JIANG Jianguo, YAO Dehua, BI Hongbo. Optimization study on capacity allocation of wind, light and hydrogen storage coupling system[J]. Power Demand Side Management, 2025, 27 (4): 98- 104. | |
| 19 | 王宇轩, 江路毅, 范雪飞. 基于氢储能的直流微电网系统功率分配策略研究[J]. 热力发电, 2023, 52 (11): 105- 114. |
| WANG Yuxuan, JIANG Luyi, FAN Xuefei. Research on power distribution strategy of DC microgrid system based on hydrogen energy storage[J]. Thermal Power Generation, 2023, 52 (11): 105- 114. | |
| 20 |
尹德强, 姚良忠, 程帆, 等. 考虑制氢效率优化的氢-储-风直流微网功率协调控制[J]. 电力系统自动化, 2024, 48 (13): 19- 29.
|
|
YIN Deqiang, YAO Liangzhong, CHENG Fan, et al. Power coordinated control for DC microgrid with hydrogen-storage-wind power considering hydrogen production efficiency optimization[J]. Automation of Electric Power Systems, 2024, 48 (13): 19- 29.
|
|
| 21 |
王激华, 叶夏明, 秦如意, 等. 基于指数型下垂控制的氢电混合储能微网协调控制策略研究[J]. 中国电力, 2023, 56 (7): 43- 53.
|
|
WANG Jihua, YE Xiaming, QIN Ruyi, et al. Research on coordinated control strategy of hydrogen-electric hybrid energy storage microgrid based on exponential-function-based droop control[J]. Electric Power, 2023, 56 (7): 43- 53.
|
|
| 22 |
李荦一, 韩莹, 李奇, 等. 计及效率特性的电-氢混合储能直流微网经济下垂控制策略[J]. 电力系统保护与控制, 2022, 50 (7): 69- 80.
|
|
LI Luoyi, HAN Ying, LI Qi, et al. Economic droop control strategy of a hybrid electric-hydrogen DC microgrid considering efficiency characteristics[J]. Power System Protection and Control, 2022, 50 (7): 69- 80.
|
|
| 23 |
邵冲, 胡荣义, 余姣, 等. 考虑荷电与储氢状态的风光氢储系统动态控制仿真模型[J]. 中国电力, 2024, 57 (7): 109- 124.
|
|
SHAO Chong, HU Rongyi, YU Jiao, et al. Dynamic modeling and control strategy for hybrid energy storage system considering state of charge and storage state of hydrogen[J]. Electric Power, 2024, 57 (7): 109- 124.
|
|
| 24 | 张学, 裴玮, 梅春晓, 等. 含电/氢复合储能系统的孤岛直流微电网模糊功率分配策略与协调控制方法[J]. 高电压技术, 2022, 48 (3): 958- 968. |
| ZHANG Xue, PEI Wei, MEI Chunxiao, et al. Fuzzy power allocation strategy and coordinated control method of islanding DC microgrid with electricity/hydrogen hybrid energy storage systems[J]. High Voltage Engineering, 2022, 48 (3): 958- 968. | |
| 25 |
李建林, 梁策, 曾飞, 等. 基于级联式模糊控制的电氢耦合直流微网能量管理策略研究[J]. 电力系统保护与控制, 2024, 52 (18): 87- 100.
|
|
LI Jianlin, LIANG Ce, ZENG Fei, et al. An energy management strategy for an electricity-hydrogen coupled DC microgrid based on cascade fuzzy control[J]. Power System Protection and Control, 2024, 52 (18): 87- 100.
|
|
| 26 |
徐万万, 王斌, 刘江, 等. 电-氢微网群功率协调与谐波补偿控制策略[J]. 太阳能学报, 2024, 45 (6): 201- 207.
|
|
XU Wanwan, WANG Bin, LIU Jiang, et al. Power coordinated control and harmonic compensation of electricity-hydrogen energy microgrid clusters[J]. Acta Energiae Solaris Sinica, 2024, 45 (6): 201- 207.
|
|
| 27 | 陈燚, 何山, 谢少华, 等. 基于合作博弈的风-光-电氢微网容量配置[J]. 太阳能学报, 2024, 45 (2): 395- 405. |
| CHEN Yi, HE Shan, XIE Shaohua, et al. Capacity configuration of wind-photovoltaic-electric hydrogen microgrid based on cooperative game[J]. Acta Energiae Solaris Sinica, 2024, 45 (2): 395- 405. | |
| 28 | 吕振宇, 丁磊, 吴在军, 等. 考虑电-氢-热多能互补的微网多目标优化配置[J]. 电力工程技术, 2024, 43 (2): 11- 20. |
| (LÜ/LV/LU/LYU) Zhenyu, DING Lei, WU Zaijun, et al. Multi-objective optimization configuration of microgrid considering electricity-hydrogen-heat multi-energy complementation[J]. Jiangsu Electrical Engineering, 2024, 43 (2): 11- 20. | |
| 29 | 王林富, 许丹枫, 赵湖珊, 等. 直驱永磁风力发电系统建模与仿真方法研究[J]. 电子测量技术, 2019, 42 (20): 44- 50. |
| WANG Linfu, XU Danfeng, ZHAO Hushan, et al. Modeling and simulation of direct-drive permanent magnet wind power generation system based on PSCAD/EMTDC[J]. Electronic Measurement Technology, 2019, 42 (20): 44- 50. | |
| 30 | 张淼, 张毅, 雷亚宁, 等. 风力发电场中风机变桨模糊自适应跟踪控制方法[J]. 计算技术与自动化, 2025, 44 (3): 77- 82. |
| ZHANG Miao, ZHANG Yi, LEI Yaning, et al. Fuzzy adaptive tracking control method for wind turbin pitch in wind farms[J]. Computing Technology and Automation, 2025, 44 (3): 77- 82. | |
| 31 | HAN Y, YANG H Q, LI Q, et al. Mode-triggered droop method for the decentralized energy management of an islanded hybrid PV/hydrogen/battery DC microgrid[J]. Energy, 2020, 199, 117441. |
| 32 | 马晓锋. PEM电解槽的阳极流道结构优化及钌/铱掺杂阳极催化剂研究[D]. 杭州: 浙江大学, 2023. |
| MA Xiaofeng. Anode runner structure optimization and ruthenium/iridium doped anode catalyst study for PEM electrolyzer[D]. Hangzhou: Zhejiang University, 2023. | |
| 33 | 张立栋, 陈怡冰, 龚明, 等. 质子交换膜电解水制氢影响因素的过程模拟[J]. 综合智慧能源, 2022, 44 (5): 88- 94. |
| ZHANG Lidong, CHEN Yibing, GONG Ming, et al. Process simulation of factors affecting proton exchange membrane water electrolysis for hydrogen production[J]. Integrated Intelligent Energy, 2022, 44 (5): 88- 94. | |
| 34 | 张继红, 赵锐, 高雷, 等. 直流微网母线电压稳定控制策略[J]. 电网技术, 2021, 45 (12): 4922- 4929. |
| ZHANG Jihong, ZHAO Rui, GAO Lei, et al. DC bus voltage stability control strategy for DC microgrid[J]. Power System Technology, 2021, 45 (12): 4922- 4929. | |
| 35 | 田艳军, 彭飞, 朱晓荣, 等. 直流微网储能单元的灵活类虚拟同步发电机控制[J]. 高电压技术, 2020, 46 (7): 2316- 2326. |
| TIAN Yanjun, PENG Fei, ZHU Xiaorong, et al. Flexible analogous virtual synchronous generator control for energy storage units in DC microgrid[J]. High Voltage Engineering, 2020, 46 (7): 2316- 2326. | |
| 36 | 国家质量监督检验检疫总局, 中国国家标准化管理委员会. 电能质量 供电电压偏差: GB/T 12325—2008[S]. 北京: 中国标准出版社, 2009. |
