考虑可变单位能量建设成本的储能规划方法

doi:10.11930/j.issn.1004-9649.202409040

摘要/Abstract

摘要：

储能是缓解新能源功率波动、支撑构建新型电力系统的关键元件。然而，现有储能规划未考虑其单位能量建设成本可能在规划周期内动态变化的特性，仅采用恒定的单位能量建设成本，不利于电力系统规划人员全面研判储能未来规划策略。因此，提出考虑可变单位能量建设成本的储能规划分析方法，旨在刻画储能单位能量建设成本与储能规划结果间的解析关系，提供更为全面和有效的研判信息。首先，针对储能规划模型中储能充放电互补约束引起的非线性特性，提出基于约束松弛技术的储能规划模型线性化构造方法，将原始非线性优化问题精确转化为线性优化问题。进而，依据线性优化问题形式的储能规划模型，将储能单位能量建设成本视作可变参数，基于多参数规划理论推导储能单位能量建设成本与储能规划结果的解析映射函数，从而实现储能单位能量建设成本与储能规划结果间的定量分析。通过IEEE 118节点测试系统验证所提方法，结果表明：所提方法可以较低计算负担精确求解原始非线性的储能规划问题，准确量化储能规划结果。

关键词: 储能规划, 可变单位能量建设成本, 充放电互补约束松弛, 多参数规划理论.

Abstract:

Energy storage is a key component in mitigating power fluctuations of renewable energy sources and supporting the construction of new power systems. However, existing energy storage planning methods do not consider the potential dynamic changes in unit energy construction costs during the planning period, but only rely on a constant unit energy construction cost, which is not conducive for power system planners to comprehensively assess energy storage planning strategies. Therefore, this paper proposes an analytical methodology for energy storage planning considering variable unit energy construction costs, aiming to analyze the relationship between the energy storage unit energy construction costs and the energy storage planning results so that power system planners can get more comprehensive and effective information. Firstly, to address the nonlinear characteristics of the energy storage planning model caused by energy storage charging/discharging complementary constraints, a constraint relaxation-based linearization framework for energy storage planning models was proposed, transforming the original nonlinear optimization problem into a precise linear optimization problem. Furthermore, based on the linear optimization formulation of the energy storage planning models, the unit energy construction cost was treated as a variable parameter. Using the multi-parameter planning theory, an analytical mapping function between the unit energy construction costs and the energy storage planning results was derived, enabling quantitative analysis of the relationship. The proposed method was verified through numerical experiments in the IEEE 118-bus test system. The results show that the proposed method can solve the original nonlinear energy storage planning problem with reduced computational burden while maintaining high precision, enabling accurate quantification of the energy storage planning results.

Key words: energy storage planning, variable unit energy construction cost, relaxation of charge/discharge complementarity constraints, multi-parametric programming theory

袁振华, 张丽娜, 张玉跃, 田鑫, 王鹏, 杜尔顺. 考虑可变单位能量建设成本的储能规划方法[J]. 中国电力, 2025, 58(7): 187-196.

YUAN Zhenhua, ZHANG Lina, ZHANG Yuyue, TIAN Xin, WANG Peng, DU Ershun. Methodology for Energy Storage Planning Considering Variable Unit Energy Construction Costs[J]. Electric Power, 2025, 58(7): 187-196.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202409040

https://www.electricpower.com.cn/CN/Y2025/V58/I7/187

图/表 5

参考文献 39

1	李军徽, 邵岩, 朱星旭, 等. 计及碳排放量约束的多区域互联电力系统分布式低碳经济调度[J]. 电工技术学报, 2023, 38 (17): 4715- 4728.
	LI Junhui, SHAO Yan, ZHU Xingxu, et al. Carbon emissions constraint distributed low-carbon economic dispatch of power system[J]. Transactions of China Electrotechnical Society, 2023, 38 (17): 4715- 4728.
2	姚明明, 张新, 杨培宏, 等. 基于改进风光场景聚类联合虚拟储能的源网荷储低碳优化调度[J]. 电力系统保护与控制, 2024, 52 (15): 115- 130.
	YAO Mingming, ZHANG Xin, YANG Peihong, et al. Low-carbon optimal scheduling of source-grid-load-storage based on improved wind-solarscene clustering combined with virtual energy storage[J]. Power System Protection and Control, 2024, 52 (15): 115- 130.
3	贺文, 陈珍萍, 胡伏原, 等. 基于一致性的综合能源系统低碳经济调度[J]. 电力系统保护与控制, 2023, 51 (19): 42- 53.
	HE Wen, CHEN Zhenping, HU Fuyuan, et al. Consensus-based low-carbon economic dispatching of integrated energy systems[J]. Power System Protection and Control, 2023, 51 (19): 42- 53.
4	郑国光. 支撑“双碳” 目标实现的问题辨识与关键举措研究[J]. 中国电力, 2023, 56 (11): 1- 8.
	ZHENG Guoguang. Problem identification and key measures to support the achievement of carbon peak and carbon neutrality[J]. Electric Power, 2023, 56 (11): 1- 8.
5	中华人民共和国中央人民政府. 中共中央国务院关于完整准确全面贯彻新发展理念做好碳达峰碳中和工作的意见[EB/OL]. https://www.gov.cn/zhengce/2021-10/24/content _5644613.htm.
6	鞠立伟, 吕硕硕, 李鹏. 新型电力系统需求侧灵活性资源时空协同优化与动态均衡机制研究综述[J]. 电力建设, 2024, 45 (9): 142- 163. DOI
	JU Liwei, Lyu Shuoshuo, LI Peng. Research review of novel demand-side flexibility resource spatial-temporal co-optimization and dynamic equilibrium mechanism of power systems[J]. Electric Power Construction, 2024, 45 (9): 142- 163. DOI
7	孙东磊, 王宪, 孙毅, 等. 基于多面体不确定集合的电力系统灵活性量化评估方法[J]. 中国电力, 2024, 57 (9): 146- 155.
	SUN Donglei, WANG Xian, SUN Yi, et al. Quantitative assessment method of power system flexibility based on polyhedral uncertainty sets[J]. Electric Power, 2024, 57 (9): 146- 155.
8	中华人民共和国中央人民政府. 中国的能源转型 [EB/OL]. https://www.gov.cn/zhengce/202408/content_6971115.htm.
9	孙建华, 王佳旭, 杜晓勇, 等. 考虑频率安全约束的高比例风电电力系统储能优化配置策略[J]. 电力科学与技术学报, 2024, 39 (5): 151- 162.
	SUN Jianhua, WANG Jiaxu, DU Xiaoyong, et al. Optimization strategy for energy storage configuration in high proportion windpower system considering frequency safety constraints[J]. Journal of Electric Power Science and Technology, 2024, 39 (5): 151- 162.
10	章枫, 樊恒建, 邓晖, 等. 基于数学形态学的电力系统灵活调节能力充裕度分析[J]. 中国电力, 2025, 58 (3): 43- 54.
	ZHANG Feng, FAN Hengjian, DENG Hui, et al. Analysis of power system flexibility adequacy based on mathematical morphology[J]. Electric Power, 2025, 58 (3): 43- 54.
11	刘抒睿, 李培强, 陈家煜, 等. 基于VMD分解下的皮尔逊相关性分析及T-tFD的混合储能容量配置[J]. 中国电力, 2024, 57 (7): 82- 97.
	LIU Shurui, LI Peiqiang, CHEN Jiayu, et al. Allocation of hybrid energy storage capacity based on Pearson correlation analysis and T-tFD algorithm under VMD decomposition[J]. Electric Power, 2024, 57 (7): 82- 97.
12	吴小刚, 刘宗歧, 田立亭, 等. 基于改进多目标粒子群算法的配电网储能选址定容[J]. 电网技术, 2014, 38 (12): 3405- 3411.
	WU Xiaogang, LIU Zongqi, TIAN Liting, et al. Location and capacity determination of energy storage in distribution network based on improved multi-objective particle swarm algorithm[J]. Power System Technology, 2014, 38 (12): 3405- 3411.
13	王彦虹, 邰能灵, 嵇康. 含大规模风光电源的配电网储能电池选址定容优化方案[J]. 电力科学与技术学报, 2017, 32 (2): 23- 30. DOI
	WANG Yanhong, TAI Nengling, JI Kang. Optimal battery storage allocation in distributed network with large-scale of wind and photovoltaic generation[J]. Journal of Electric Power Science and Technology, 2017, 32 (2): 23- 30. DOI
14	VIEIRA POMBO A, MURTA-PINA J, FERNÃO PIRES V. Multiobjective formulation of the integration of storage systems within distribution networks for improving reliability[J]. Electric Power Systems Research, 2017, 148, 87- 96. DOI
15	王梓旭, 林伟, 杨知方, 余娟. 考虑负荷弹性空间的配电网可靠性扩展规划方法[J]. 中国电机工程学报, 2022, 42 (18): 6655- 6667.
	WANG Zixu, LIN Wei, YANG Zhifang, YU Juan. A reliability-constrained distribution network expansion planning method considering flexibility space of power demand[J]. Proceedings of the CSEE, 2022, 42 (18): 6655- 6667.
16	程孟增, 唐一金, 商文颖, 等. 风-光-火-抽蓄联合系统中抽水蓄能电站最佳容量配置[J]. 电力建设, 2021, 42 (11): 72- 81. DOI
	CHENG Mengzeng, TANG Yijin, SHANG Wenying, et al. Optimal capacity configuration of pumped-storage power station in wind-PV-fire-pump storage system[J]. Electric Power Construction, 2021, 42 (11): 72- 81. DOI
17	刁涵彬, 李培强, 吕小秀, 等. 考虑多元储能差异性的区域综合能源系统储能协同优化配置[J]. 电工技术学报, 2021, 36 (1): 151- 165.
	DIAO Hanbin, LI Peiqiang, LÜ Xiaoxiu, et al. Coordinated optimal allocation of energy storage in regional integrated energy system considering the diversity of multi-energy storage[J]. Transactions of China Electrotechnical Society, 2021, 36 (1): 151- 165.
18	汤杰, 李欣然, 黄际元, 等. 以净效益最大为目标的储能电池参与二次调频的容量配置方法[J]. 电工技术学报, 2019, 34 (5): 963- 972.
	TANG Jie, LI Xinran, HUANG Jiyuan, et al. Capacity allocation of BESS in secondary frequency regulation with the goal of maximum net benefit[J]. Transactions of China Electrotechnical Society, 2019, 34 (5): 963- 972.
19	孙丙香, 李旸熙, 龚敏明, 等. 参与AGC辅助服务的锂离子电池储能系统经济性研究[J]. 电工技术学报, 2020, 35 (19): 4048- 4061.
	SUN Bingxiang, LI Yangxi, GONG Minming, et al. Study on the economy of energy storage system with lithium-ion battery participating in AGC auxiliary service[J]. Transactions of China Electrotechnical Society, 2020, 35 (19): 4048- 4061.
20	FAISAL M, HANNAN M A, KER P J, et al. Review of energy storage system technologies in microgrid applications: issues and challenges[J]. IEEE Access, 2018, 6, 35143- 35164. DOI
21	ZHANG S, BAI X Z, GE L J, et al. Optimal configuration of energy storage system considering uncertainty of load and wind generation[C]//2020 IEEE Power & Energy Society General Meeting (PESGM). Montreal, QC, Canada. IEEE, 2020: 1–5.
22	YUN P P, REN Y F, XUE Y. Energy-storage optimization strategy for reducing wind power fluctuation via Markov prediction and PSO method[J]. Energies, 2018, 11 (12): 3393. DOI
23	ARBABZADEH M, SIOSHANSI R, JOHNSON J X, et al. The role of energy storage in deep decarbonization of electricity production[J]. Nature Communications, 2019, 10 (1): 3413. DOI
24	中关村储能产业技术联盟 [EB/OL]. http://www.cnesa.org/.
25	孙伟卿, 罗静, 张婕. 高比例风电接入的电力系统储能容量配置及影响因素分析[J]. 电力系统保护与控制, 2021, 49 (15): 9- 18.
	SUN Weiqing, LUO Jing, ZHANG Jie. Energy storage capacity allocation and influence factor analysis of a power system with a high proportion of wind power[J]. Power System Protection and Control, 2021, 49 (15): 9- 18.
26	李笑蓉, 黄森, 丁健民, 等. 基于MILP的用户光储系统储能配置场景适应成本分析[J]. 电力需求侧管理, 2020, 22 (5): 25- 30. DOI
	LI Xiaorong, HUANG Sen, DING Jianmin, et al. MILP-based scenarios adaptation cost analysis of energy storage capacity sizing for user side PV and storage system[J]. Power Demand Side Management, 2020, 22 (5): 25- 30. DOI
27	LI Y H, WANG J X, GU C J, et al. Investment optimization of grid-scale energy storage for supporting different wind power utilization levels[J]. Journal of Modern Power Systems and Clean Energy, 2019, 7 (6): 1721- 1734. DOI
28	马速良, 武亦文, 李建林, 等. 面向多服务目标需求的集中式电池储能优化配置方法研究[J]. 高压电器, 2023, 59 (7): 75- 86.
	MA Suliang, WU Yiwen, LI Jianlin, et al. Research on optimal configuration of centralized battery energy storage for multiple service objectives[J]. High Voltage Apparatus, 2023, 59 (7): 75- 86.
29	胡枭, 徐国栋, 尚策, 等. 工业园区参与调峰的电池储能-需求响应联合规划[J]. 电力系统自动化, 2019, 43 (15): 116- 123. DOI
	HU Xiao, XU Guodong, SHANG Ce, et al. Joint planning of battery energy storage and demand response for industrial park participating in peak shaving[J]. Automation of Electric Power Systems, 2019, 43 (15): 116- 123. DOI
30	DL/T 2528—2022:《电力储能基本术语》[S].
31	GB/T 36549—2018:《电化学储能电站运行指标及评价》[S].
32	郭久亿, 刘洋, 郭焱林, 等. 不同典型用户储能配置评估与运行优化模型[J]. 电网技术, 2020, 44 (11): 4245- 4253.
	GUO Jiuyi, LIU Yang, GUO Yanlin, et al. Configuration evaluation and operation optimization model of energy storage in different typical user-side[J]. Power System Technology, 2020, 44 (11): 4245- 4253.
33	E. N. Pistikopoulos, M. C. GEORGIADIS, V. DUA, Multi-parametric programming volume 1: theory, algorithms, and applications[M]. London: Wiley Press, 2007.
34	刘一兵, 吴文传, 张伯明, 等. 基于混合整数二阶锥规划的主动配电网有功–无功协调多时段优化运行[J]. 中国电机工程学报, 2014, 34 (16): 2575- 2583.
	LIU Yibing, WU Wenchuan, ZHANG Boming, et al. A mixed integer second-order cone programming based active and reactive power coordinated multi-period optimization for active distribution network[J]. Proceedings of the CSEE, 2014, 34 (16): 2575- 2583.
35	黄家祺, 张宇威, 贺继锋, 等. 一种考虑极限场景的配电网鲁棒扩展规划方法[J]. 电力建设, 2020, 41 (7): 67- 74. DOI
	HUANG Jiaqi, ZHANG Yuwei, HE Jifeng, et al. A robust expansion planning method for distribution networks considering extreme scenarios[J]. Electric Power Construction, 2020, 41 (7): 67- 74. DOI
36	陈宝林. 最优化理论与算法[M]. 2版. 北京: 清华大学出版社, 2005.
37	YU J, LIN W, KAMEL S, et al. Equivalent model considering frequency characteristics and renewable uncertainties for probabilistic power flow[J]. IET Generation, Transmission & Distribution, 2018, 12 (22): 5939- 5948.
38	MIRAFTABZADEH S M, COLOMBO C G, LONGO M, et al. K-means and alternative clustering methods in modern power systems[J]. IEEE Access, 2023, 11, 119596- 119633. DOI
39	TEICHGRAEBER H, BRANDT A R. Time-series aggregation for the optimization of energy systems: Goals, challenges, approaches, and opportunities[J]. Renewable and Sustainable Energy Reviews, 2022, 157, 111984. DOI

储能类型	充放电效率	单位能量成本/(美元·(kW·h)^–1)		能量倍增率
储能类型	充放电效率	一阶段	二阶段	能量倍增率
Ⅰ类	0.70	400	350	10
Ⅱ类	0.95	500	450	10

储能类型	充放电效率	单位能量成本/(美元·(kW·h)^–1)		能量倍增率
储能类型	充放电效率	一阶段	二阶段	能量倍增率
Ⅰ类	0.70	400	350	10
Ⅱ类	0.95	500	450	10

模型	规划期间最优总成本	一阶段规划期间成本	二阶段规划期间成本
M1	2.1208×10⁸	1.1622×10⁸	9.586×10⁷
M2	2.1208×10⁸	1.1622×10⁸	9.586×10⁷

模型	规划期间最优总成本	一阶段规划期间成本	二阶段规划期间成本
M1	2.1208×10⁸	1.1622×10⁸	9.586×10⁷
M2	2.1208×10⁸	1.1622×10⁸	9.586×10⁷

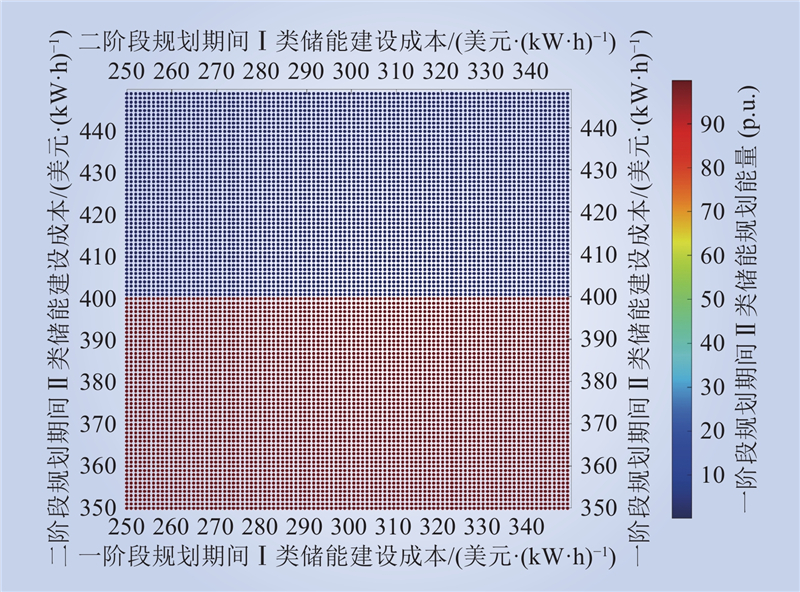

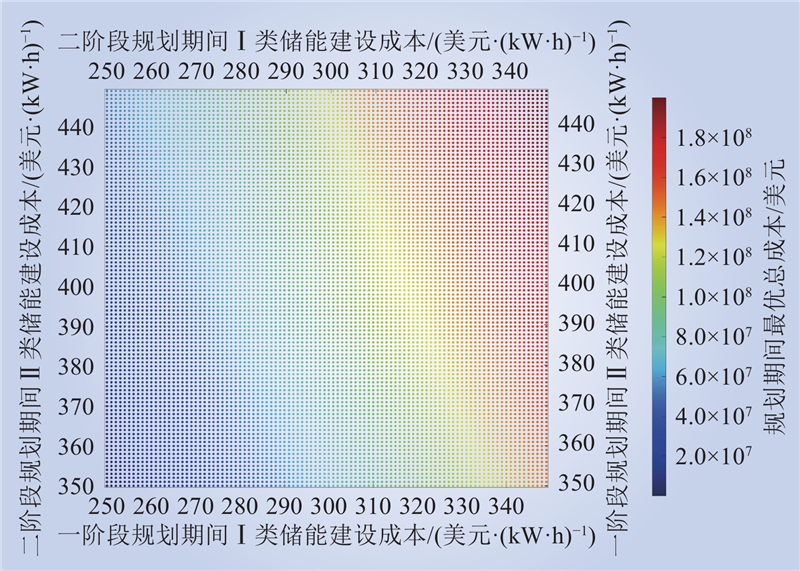

成本变化范围		解析表达式
$ \begin{aligned} &\left[ {\begin{array}{{20}{c}} 0&0&{0.707\;1}&{0.707\;1} \\ { - 1}&0&0&0 \\ 0&{ - 1}&0&0 \\ 0&0&{ - 1}&0 \\ 0&0&0&{ - 1} \\ 1&0&0&0 \\ 0&1&0&0 \end{array}} \right]\cdot\\&\left[ {\begin{array}{{20}{c}} {{C_{{{1,{{Ⅰ}}}}}}} \\ {{C_{{{2,{{Ⅰ}}}}}}} \\ {{C_{{{1,{{Ⅱ}}}}}}} \\ {{C_{{{2,{{Ⅱ}}}}}}} \end{array}} \right] \leqslant\left[ {\begin{array}{*{20}{c}} {565.685\;4} \\ { - 250} \\ { - 250} \\ { - 350} \\ { - 350} \\ {350} \\ {350} \end{array}} \right]\end{aligned} $		$\begin{aligned} &{C_{{{\rm total}}}} =\\&{\left[ {\begin{array}{{20}{c}} {168.484\;2} \\ {168.484\;2} \\ {64.792\;3} \\ {64.792\;3} \end{array}} \right]^{{\rm T}}}\left[ {\begin{array}{{20}{c}} {{C_{{{1,{{Ⅰ}}}}}}} \\ {{C_{{{2,{{Ⅰ}}}}}}} \\ {{C_{{{1,{{Ⅱ}}}}}}} \\ {{C_{{{2,{{Ⅱ}}}}}}} \end{array}} \right]\end{aligned}$
$ \begin{aligned} &\left[ {\begin{array}{{20}{c}} 0&0&{ - 0.707\;1}&{ - 0.707\;1} \\ { - 1}&0&0&0 \\ 0&{ - 1}&0&0 \\ 0&0&{ - 1}&0 \\ 0&0&0&{ - 1} \\ 1&0&0&0 \\ 0&1&0&0 \\ 0&0&1&0 \\ 0&0&0&1 \end{array}} \right]\cdot\\&\left[ {\begin{array}{{20}{c}} {{C_{{{1,{{Ⅰ}}}}}}} \\ {{C_{{{2,{{Ⅰ}}}}}}} \\ {{C_{{{1,{{Ⅱ}}}}}}} \\ {{C_{{{2,{{Ⅱ}}}}}}} \end{array}} \right] \leqslant \left[ {\begin{array}{*{20}{c}} { - 565.685\;4} \\ { - 250} \\ { - 250} \\ { - 350} \\ { - 350} \\ {350} \\ {350} \\ {450} \\ {450} \end{array}} \right]\end{aligned} $		$\begin{aligned} &{C_{{{\rm total}}}} =\\&{\left[ {\begin{array}{{20}{c}} {168.484\;2} \\ {168.484\;2} \\ {63.964\;3} \\ {64.964\;3} \end{array}} \right]^{{\rm T}}}\left[ {\begin{array}{{20}{c}} {{C_{{{1,{{Ⅰ}}}}}}} \\ {{C_{{{2,{{Ⅰ}}}}}}} \\ {{C_{{{1,{{Ⅱ}}}}}}} \\ {{C_{{{2,{{Ⅱ}}}}}}} \end{array}} \right]\end{aligned}$
