计及新能源场站黑启动时空支撑能力的分区目标网架优化

doi:10.11930/j.issn.1004-9649.202403073

中国电力 ›› 2024, Vol. 57 ›› Issue (10): 143-149.DOI: 10.11930/j.issn.1004-9649.202403073

• 应对非常规安全风险的新型电力系统规划、运行与控制关键技术 • 上一篇下一篇

计及新能源场站黑启动时空支撑能力的分区目标网架优化

王瑞欣¹(), 孙吉广²(), 刘艳²(), 程伦¹, 许婷², 孙广辉¹

1. 国网河北省电力有限公司，河北石家庄　050021
2. 华北电力大学电气与电子工程学院，河北保定　071003

收稿日期:2024-03-20 出版日期:2024-10-28 发布日期:2024-10-25
作者简介:王瑞欣（1984—），女，硕士，高级工程师，从事电力系统及其自动化研究，E -mail：wangrx@he.sgcc.com.cn
孙吉广（1999—），男，通信作者，硕士研究生，从事新能源黑启动研究，E-mail：2233175346@qq.com
刘艳（1973—），女，教授，从事电力系统安全防御与恢复控制研究，E -mail：y.liu@ncepu.edu.cn
基金资助:
国家自然科学基金（联合基金）资助项目（U22B2099）；国网河北省电力有限公司科技项目（5204BB220003）。

Optimization of Power System Black Start partition Target Network Taking into Account the Black Start Space-Time Support Capability of New Energy Station

Ruixin WANG¹(), Jiguang SUN²(), Yan LIU²(), Lun CHENG¹, Ting XU², Guanghui SUN¹

1. State Grid Hebei Electric Power Co., Ltd., Shijiazhuang 050021, China
2. School of Electrical and Electronic Engineering, North China Electric Power University, Baoding 071003, China

Received:2024-03-20 Online:2024-10-28 Published:2024-10-25
Supported by:
This work is supported by the National Key Research and Development Joint Fund Program of China (No.U22B2099) & Science and Technology Project of State Grid Hebei Electric Power Company (No.5204BB220003).

摘要/Abstract

摘要：

为提升新型电力系统的非常规安全防御能力，提出了计及新能源场站黑启动时空支撑能力的分区目标网架优化方法。首先，基于新能源场站黑启动时空支撑能力定义了扩展黑启动电源；其次，以最小化分区内电气距离之和和分区间联络线数目为优化目标，将扩展黑启动电源转化为分区数量约束，并同时计及功率平衡、分区连通性、灵活性资源等约束，建立了计及扩展黑启动电源的分区目标网架整数线性规划模型；最后通过仿真系统验证了所提方法有助于新能源场站黑启动分区恢复决策。

关键词: 新能源场站, 黑启动时空支撑能力, 黑启动分区

Abstract:

Taking into account the spatiotemporal support capacity of new energy station black start, a target network optimization method for power system black-start zoning is proposed to improve unconventional security defense ability of the new power system. Firstly, extended black-start power source (EBSPS) is defined based on the concept of spatiotemporal support capability for black start of new energy stations. Secondly, with the optimization objectives of minimizing electrical distance within the partition and the number of interconnections between partitions, an integer linear programming model for partition target network that takes into account EBSPS is established, in which EBSPS is transformed into a constraint on the number of partitions and other constraints such as power balance, partition connectivity, and flexibility resources are considered as well. Finally, the proposed method was validated through a simulation system to aid in the decision-making process for restoring black start zones in new energy stations.

Key words: new energy station, black-start space-time support capacity, black start partition

王瑞欣, 孙吉广, 刘艳, 程伦, 许婷, 孙广辉. 计及新能源场站黑启动时空支撑能力的分区目标网架优化[J]. 中国电力, 2024, 57(10): 143-149.

Ruixin WANG, Jiguang SUN, Yan LIU, Lun CHENG, Ting XU, Guanghui SUN. Optimization of Power System Black Start partition Target Network Taking into Account the Black Start Space-Time Support Capability of New Energy Station[J]. Electric Power, 2024, 57(10): 143-149.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202403073

https://www.electricpower.com.cn/CN/Y2024/V57/I10/143

图/表 7

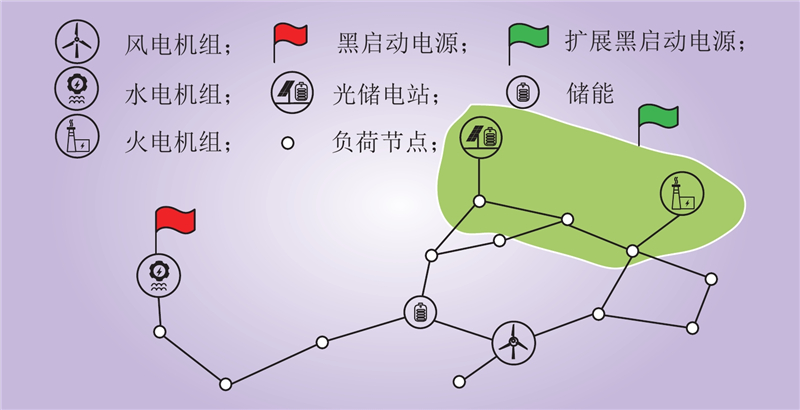

图 1 扩展黑启动电源示意

Fig.1 Schematic diagram of extended black start power supply

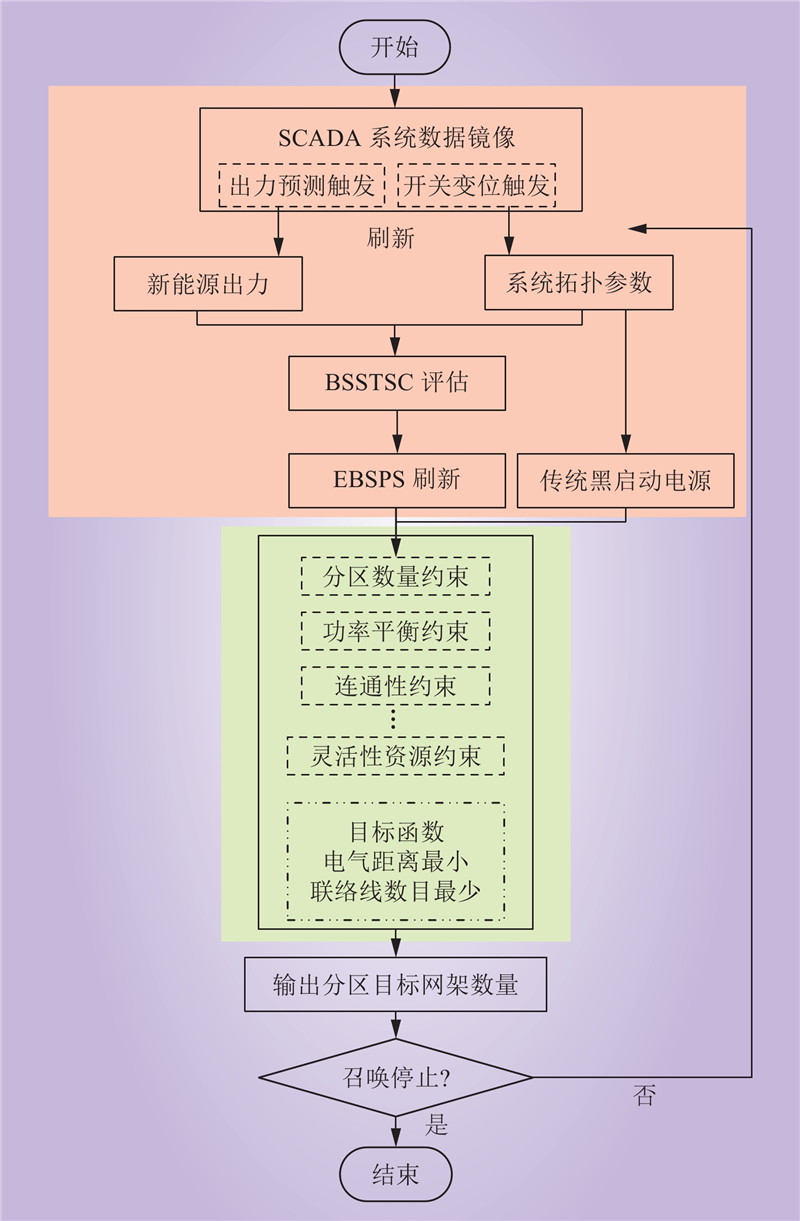

图 2 计及新扩展黑启动电源的分区目标网架优化流程

Fig.2 Optimization process for partition target network architecture considering newly expanded black start power source

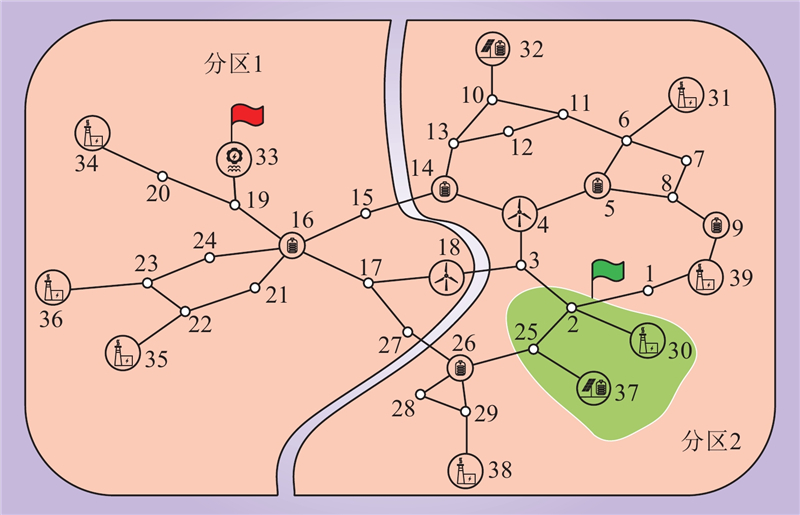

图 3 11:00新39节点系统分区结果示意

Fig.3 Schematic diagram of the partition results for the new 39 node system at 11:00

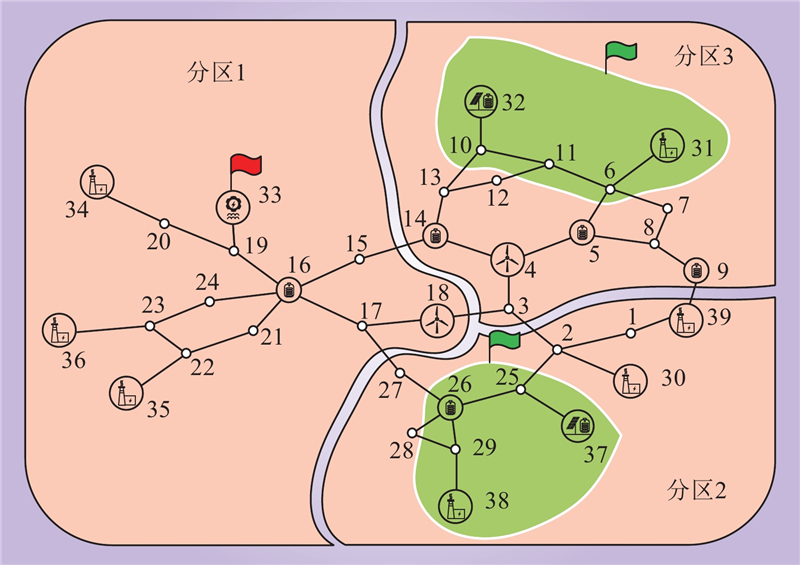

图 4 13:00新39节点系统分区结果示意

Fig.4 Schematic diagram of the partition results for the new 39 node system at 13:00

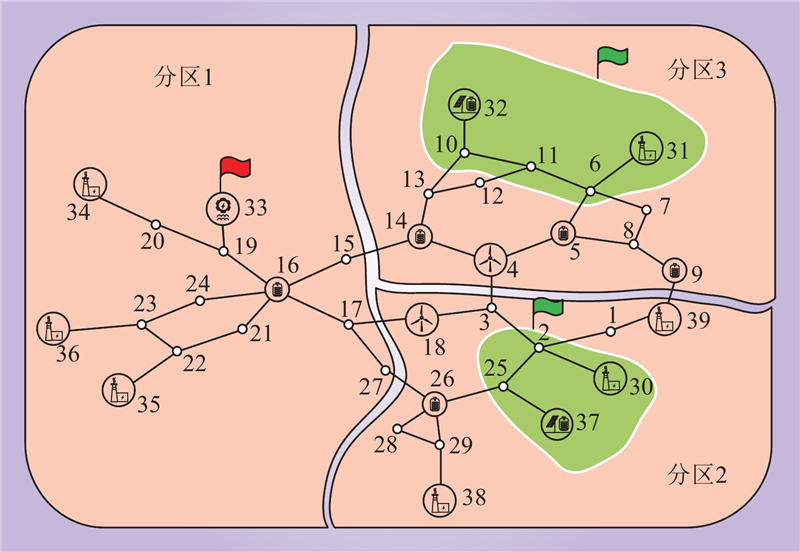

图 5 14:00新39节点系统分区结果示意

Fig.5 Schematic diagram of the partition results for the new 39 node system at 14:00

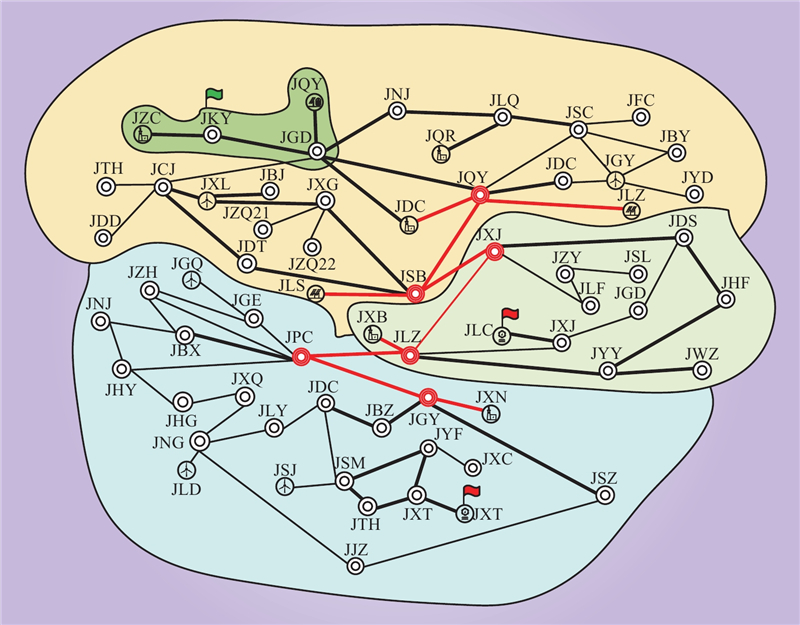

图 6 12:00该省部分区域电网分区示意

Fig.6 Schematic diagram of partial regional power grid zoning in the province at 12:00

图 7 15:00该省部分区域电网分区示意

Fig.7 Schematic diagram of partial regional power grid zoning in the province at 15:00

参考文献 20

1	刘之琳, 许传龙, 郑海峰, 等. 德国关停核电前后保供应促消纳经验分析[J]. 中国电力, 2023, 56 (10): 145- 152.
	LIU Zhilin, XU Chuanlong, ZHENG Haifeng, et al. Empirical analysis of ensuring electricity supply and promoting renewable power consumption before and after the shutdown of nuclear power plants: the Germany case[J]. Electric Power, 2023, 56 (10): 145- 152.
2	杨珂, 王栋, 李达, 等. 虚拟电厂网络安全风险评估指标体系构建及量化计算[J]. 中国电力, 2024, 57 (8): 130- 137.
	YANG Ke, WANG Dong, LI Da, et al. Network security risk assessment index system and calculation for virtual power plant[J]. Electric Power, 2024, 57 (8): 130- 137.
3	曹冬惠, 杜冬梅, 何青. 氢储能安全及其检测技术综述[J]. 发电技术, 2023, 44 (4): 431- 442.
	CAO Donghui, DU Dongmei, HE Qing. Summary of hydrogen energy storage safety and its detection technology[J]. Power Generation Technology, 2023, 44 (4): 431- 442.
4	高崇, 张俊潇, 王天霖, 等. 考虑信息系统故障的开关与配电自动化终端多目标规划方法[J]. 南方电网技术, 2023, 17 (6): 44- 51.
	GAO Chong, ZHANG Junxiao, WANG Tianlin, et al. Multi-object planning method of switch and distribution automation terminal considering information system fault[J]. Southern Power System Technology, 2023, 17 (6): 44- 51.
5	梁海平, 顾雪平. 基于谱聚类的黑启动子系统划分[J]. 电网技术, 2013, 37 (2): 372- 377.
	LIANG Haiping, GU Xueping. Black-start network partitioning based on spectral clustering[J]. Power System Technology, 2013, 37 (2): 372- 377.
6	辛保安, 李明节, 贺静波等. 新型电力系统安全防御体系探究[J]. 中国电机工程学报, 2023, 43 (15): 5723- 5732.
	XIN Baoan, LI Mingjie, HE Jingbo, et al. Research on security defense system of new power dystem[J]. Proceedings of the CSEE, 2023, 43 (15): 5723- 5732.
7	陈立征, 姚树国, 施啸寒. 考虑风偏闪络的电力系统故障场景仿真方法研究[J]. 东北电力大学学报, 2023, 43 (5): 53- 58.
	CHEN Lizheng, YAO Shuguo, SHI Xiaohan. Research on power system fault scenario simulation approach considering wind deviation flashover[J]. Journal of Northeast Electric Power University, 2023, 43 (5): 53- 58.
8	LIN Z Z, WEN F S, CHUNG C Y, et al. Division algorithm and interconnection strategy of restoration subsystems based on complex network theory[J]. IET Generation, Transmission & Distribution, 2011, 5(6): 674.
9	刘昌盛, 谢云云, 石屹岭, 等. 加快含快速切回机组电网恢复的动态分区策略[J]. 电力系统自动化, 2017, 41 (19): 46- 53.
	LIU Changsheng, XIE Yunyun, SHI Yiling, et al. Dynamic partition strategy for fast restoration of power systems with fast cut back units[J]. Automation of Electric Power Systems, 2017, 41 (19): 46- 53.
10	顾雪平, 周光奇, 李少岩. 计及系统可观测性的网络化简与黑启动分区方案制定[J]. 电力系统自动化, 2019, 43 (20): 114- 122.
	GU Xueping, ZHOU Guangqi, LI Shaoyan. Network simplification and formation of black-start zone partitioning scheme considering system observability[J]. Automation of Electric Power Systems, 2019, 43 (20): 114- 122.
11	周光奇, 顾雪平, 马世英, 等. 基于整数线性规划的恢复子系统划分与分区方案的综合评价[J]. 电力自动化设备, 2019, 39 (1): 91- 98.
	ZHOU Guangqi, GU Xueping, MA Shiying, et al. Restoration subsystem division based on integer linear programming and comprehensive evaluation of dividing schemes[J]. Electric Power Automation Equipment, 2019, 39 (1): 91- 98.
12	李婧斐, 黎琦, 罗萍萍, 等. 计及停电损失的电力系统黑启动分区策略[J]. 南方电网技术, 2022, 16 (3): 58- 66.
	LI Jingfei, LI Qi, LUO Pingping, et al. Partition strategies of power system black-start considering outage loss[J]. Southern Power System Technology, 2022, 16 (3): 58- 66.
13	孙磊, 张璨, 林振智, 等. 大停电后电力系统黑启动分区的两步策略[J]. 电力自动化设备, 2015, 35 (9): 14- 21.
	SUN Lei, ZHANG Can, LIN Zhenzhi, et al. Two-step strategy for black-start zone partitioning of power system after blackout[J]. Electric Power Automation Equipment, 2015, 35 (9): 14- 21.
14	顾雪平, 韩忠晖, 梁海平. 电力系统大停电后系统分区恢复的优化算法[J]. 中国电机工程学报, 2009, 29 (10): 41- 46.
	GU Xueping, HAN Zhonghui, LIANG Haiping. Optimization of parallel restoration through power system partitioning after blackout[J]. Proceedings of the CSEE, 2009, 29 (10): 41- 46.
15	SUN L, ZHANG C, LIN Z Z, et al. Network partitioning strategy for parallel power system restoration[J]. IET Generation, Transmission & Distribution, 2016, 10 (8): 1883- 1892.
16	闫桂红, 李丹丹, 刘小恺, 等. 分布式调相机对大规模新能源直流送端系统的稳定特性影响[J]. 内蒙古电力技术, 2024, 42 (4): 80- 86.
	YAN Guihong, LI Dandan, LIU Xiaokai, et al. Impact of distributed regulator on stability characteristics of large-scale new energy DC sending-end system[J]. Inner Mongolia Electric Power, 2024, 42 (4): 80- 86.
17	黄大为, 李子安, 孔令国. 台风灾害下提升电网韧性的实时优化调度策略[J]. 东北电力大学学报, 2024, 44 (3): 112- 120.
	HUANG Dawei, LI Zian, KONG Lingguo. Real-time optimal dispatching strategy for improving power grid resilience under typhoon disaster[J]. Journal of Northeast Electric Power University, 2024, 44 (3): 112- 120.
18	EL-ZONKOLY A M. Renewable energy sources for complete optimal power system black-start restoration[J]. IET Generation, Transmission & Distribution, 2015, 9 (6): 531- 539.
19	刘艳, 季晨阳, 马艺瑄, 等. 基于生产可能性边界的含规模风电电力系统网架重构策略[J]. 电网技术, 2022, 46 (8): 2986- 2998.
	LIU Yan, JI Chenyang, MA Yixuan, et al. Production-possibility frontier-based network reconfiguration strategy for power system integrated with scaled wind farm[J]. Power System Technology, 2022, 46 (8): 2986- 2998.
20	国家市场监督管理总局, 国家标准化管理委员会. 电力系统大面积停电恢复技术导则: GB/T 40613—2021[S]. 北京: 中国标准出版社, 2021.
