基于AKNN异常检验与ADPC聚类的低压台区拓扑识别方法

doi:10.11930/j.issn.1004-9649.202307030

摘要/Abstract

摘要：

低压台区拓扑信息的准确记录是进行台区线损分析、三相不平衡治理等工作的基础。针对目前拓扑档案排查成本高且效率低的问题，提出一种基于自适应k近邻（adaptive k nearest neighbor，AKNN）异常检验和自适应密度峰值（adaptive density peaks clustering，ADPC）聚类的低压台区拓扑识别方法。该方法利用动态时间弯曲（dynamic time warping，DTW）距离度量低压台区用户间电压序列的相似性，通过AKNN异常检验算法检验并校正异常的用户与变压器之间的关系（简称“户变关系”），在得到正确户变关系的基础上，采用ADPC聚类算法对台区内用户进行相位识别；最后，通过实际台区算例分析验证了该方法不需要人为设置参数，能有效实现低压台区的拓扑识别，具有较高的适用性与准确性。

关键词: 低压台区, 户变关系, 相位识别, 自适应k近邻, 自适应密度峰值

Abstract:

The accurate record of topology information of the low-voltage station area is the basis for line loss analysis and three-phase imbalance control. Aiming at the problem of high cost and low efficiency of topology file investigation at present, a low-voltage substation area topology recognition method is proposed based on adaptive k nearest neighbor (AKNN) anomaly detection and adaptive density peaks clustering (ADPC). The similarity of voltage series between users in the low-voltage substation area is measured using dynamic time warping (DTW), and the abnormal relationship between users and transformer is checked and corrected with the AKNN anomaly detection algorithm. After getting the right relationship, the ADPC algorithm is used to identify the phase for users in the substation area. Finally, the case study of the actual substation area proves that the proposed method can effectively realize the topology identification of the low-voltage substation area without human parameter setting, and has high applicability and accuracy.

Key words: low-voltage substation area, user-transformer relationship, phase identification, adaptive k nearest neighbor, adaptive density peaks clustering

史子轶, 夏向阳, 刘佳斌, 谷阳洋, 王玉龙, 洪佳瑶. 基于AKNN异常检验与ADPC聚类的低压台区拓扑识别方法[J]. 中国电力, 2024, 57(5): 168-177.

Ziyi SHI, Xiangyang XIA, Jiabin LIU, Yangyang GU, Yulong WANG, Jiayao HONG. Low-Voltage Substation Area Topology Recognition Method Based on AKNN Anomaly Detection and ADPC Clustering[J]. Electric Power, 2024, 57(5): 168-177.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202307030

https://www.electricpower.com.cn/CN/Y2024/V57/I5/168

图/表 12

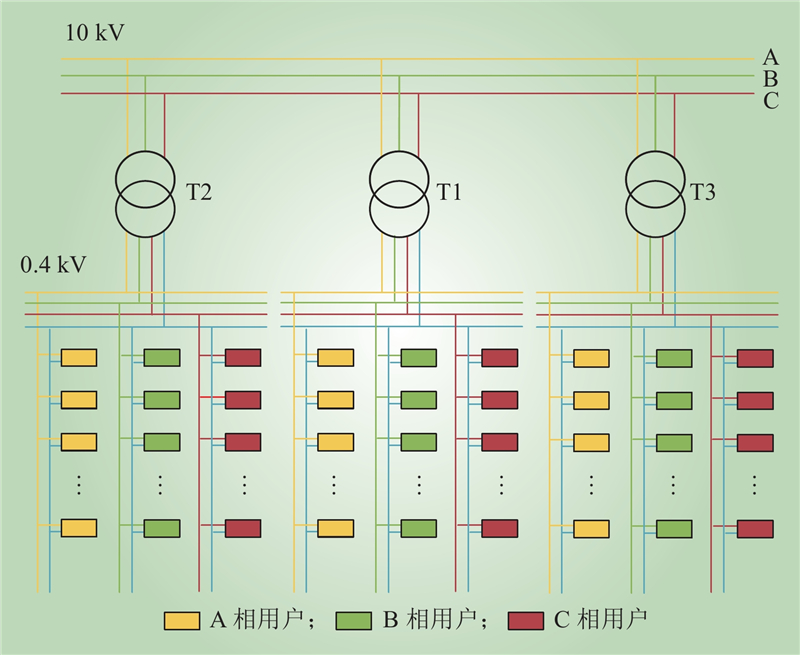

图 1 低压台区用户示意

Fig.1 User diagram of low-voltage station area

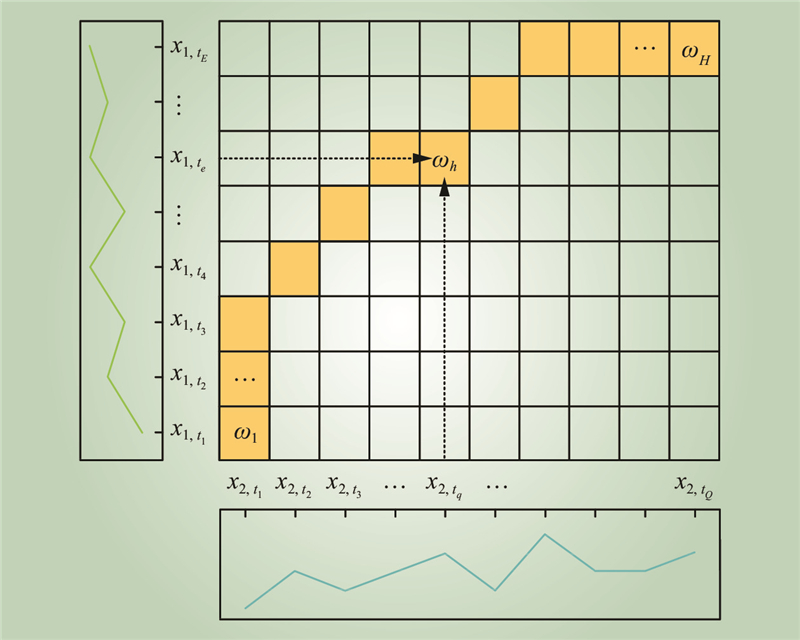

图 2 电压序列x1与x2的DTW路径

Fig.2 DTW path of voltage sequence x1 and x2

表 1 户变关系检验结果混淆矩阵

Table 1 Confusion matrix of user-transformer relationship test results

户变关系真实情况	户变关系检验情况
户变关系真实情况	异常	正常
异常	$ {\lambda _{{\text{TP}}}} $	$ {\lambda _{{\text{FN}}}} $
正常	$ {\lambda _{{\text{FP}}}} $	$ {\lambda _{{\text{TN}}}} $

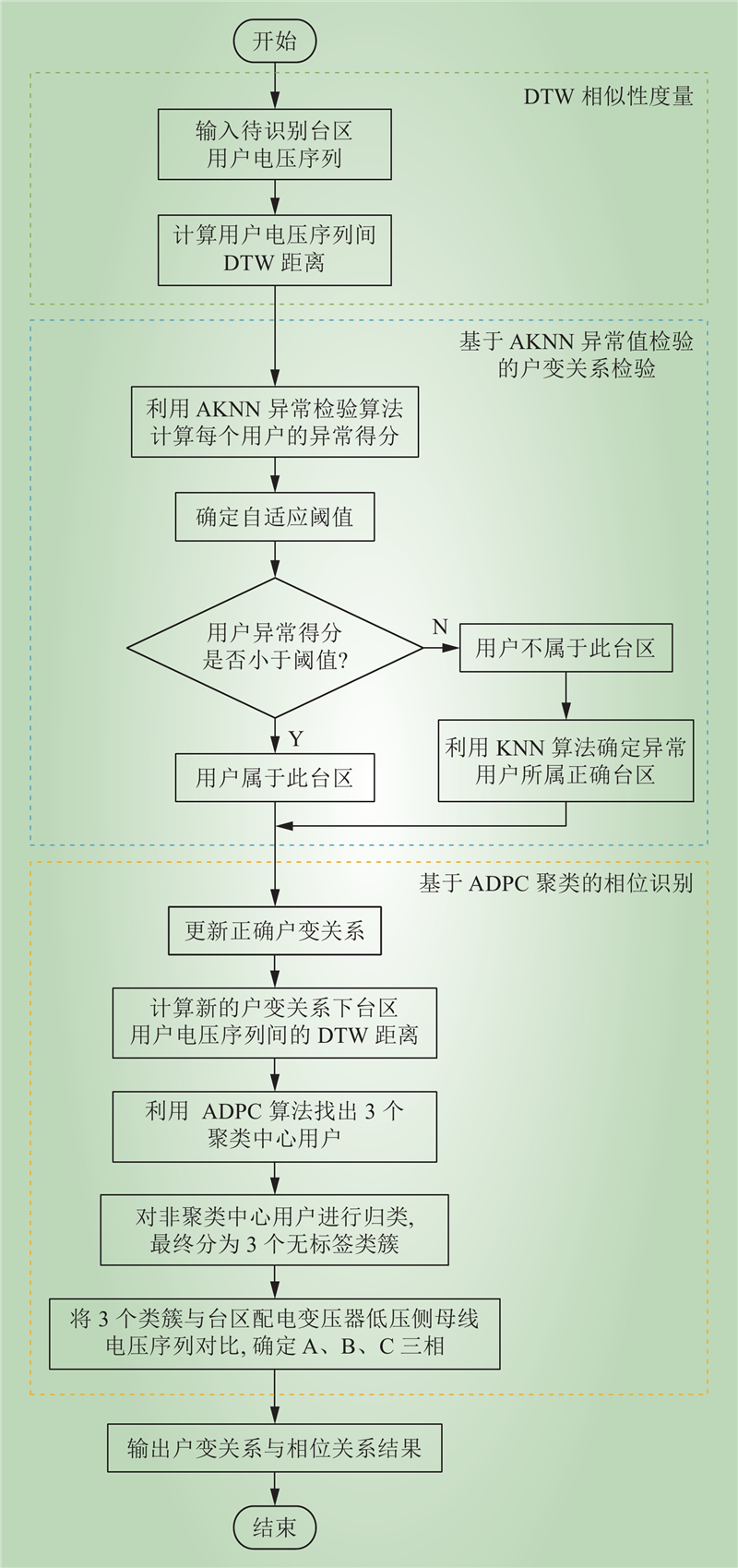

图 3 低压台区拓扑识别流程

Fig.3 Topology identification flow chart of low-voltage substation area

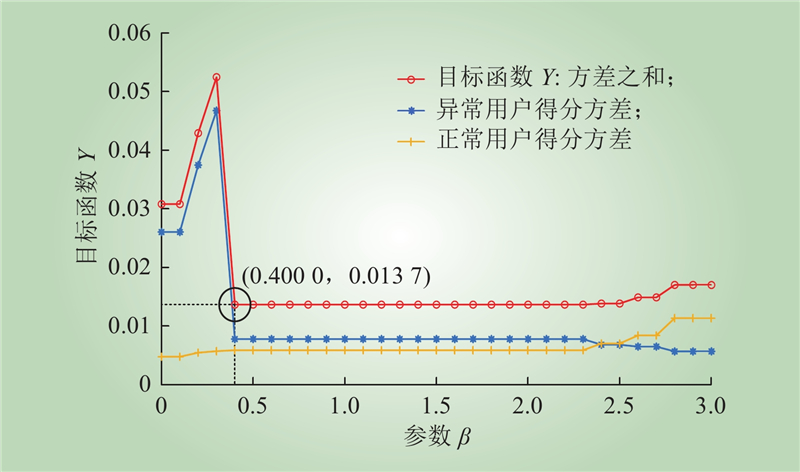

图 4 目标函数Y寻优过程

Fig.4 Objective function Y optimization process

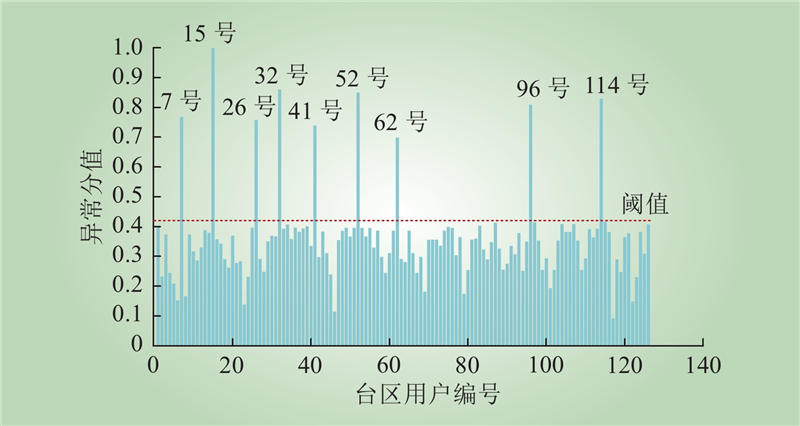

图 5 台区用户异常得分

Fig.5 Low-voltage substation area users anomaly score

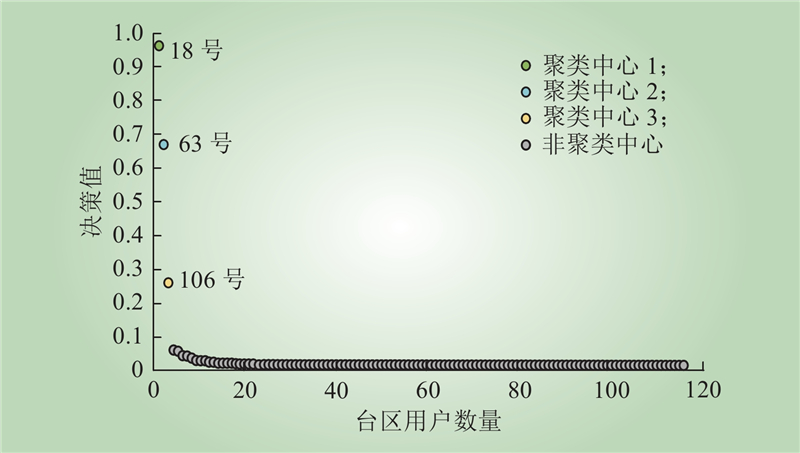

图 6 ADPC聚类中心决策图

Fig.6 ADPC clustering center decision diagram

表 2 台区用户相位识别结果

Table 2 Low-voltage station area users phase identification results

用户编号	识别结果	正确率/%
1~6号、8~14号、16~25号、27~31号、33~37号	A相	100
38~40号、42~51号、53~61号、63~86号	B相	100
87~95号、97~113号、115~126号	C相	100

表 3 不同情况下相似性度量算法对比

Table 3 Comparison of similarity measurement algorithms in different cases

方法	ARI
方法	正常情况	缺失率为5%	缺失率为10%	缺失率为15%
DTW	1.00	1.00	0.97	0.94
Pearson相似性（最近邻点插值）	1.00	0.95	0.87	0.82
Pearson相似性（线性插值）	1.00	0.97	0.92	0.85
欧式距离（最近邻点插值）	0.93	0.89	0.81	0.73
欧式距离（线性插值）	0.97	0.93	0.83	0.78

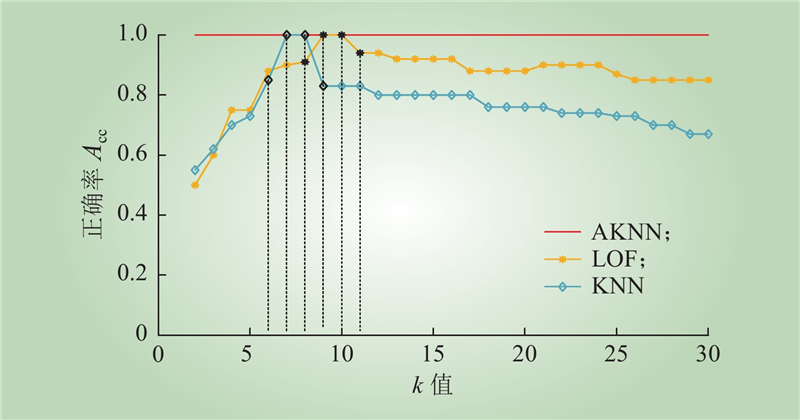

图 7 不同检验算法在取不同k值时的正确率

Fig.7 Accuracy of different detection methods with different k values

表 4 各户变关系检验算法评价指标对比

Table 4 Comparison of evaluation indexes of user-transformer relationship test algorithms

方法	正确率	精准率	召回率	F值
本文方法	1.00	1.00	1.00	1.00
LOF	0.96	0.67	0.89	0.76
KNN	0.92	0.47	0.78	0.59

表 5 各相位识别算法评价指标对比

Table 5 Comparison of evaluation indexes of phase identification algorithms

方法	ARI
方法	第1天	第2天	第3天	第4天	平均
本文方法	1.00	0.97	0.95	1.00	0.98
K-means	0.68	0.71	0.72	0.70	0.70
Birch	0.80	0.82	0.79	0.81	0.81
