考虑耦合作用的电网业务组合投资优化

doi:10.11930/j.issn.1004-9649.202301026

中国电力 ›› 2024, Vol. 57 ›› Issue (3): 197-205.DOI: 10.11930/j.issn.1004-9649.202301026

考虑耦合作用的电网业务组合投资优化

王永利¹(), 马子奔¹(), 秦雨萌¹, 卢艳超², 蔺媛³

1. 华北电力大学经济与管理学院，北京　102206
2. 国网经济技术研究院有限公司，北京　102209
3. 华北电力大学新能源学院，北京　102206

收稿日期:2023-01-11 接受日期:2023-09-06 出版日期:2024-03-28 发布日期:2024-03-26
作者简介:王永利（1980—），男，通信作者，博士，教授，从事电网投资、综合能源系统规划运行研究，E-mail：wyl_2001_ren@126.com
马子奔（1997—），男，硕士研究生，从事电网投资、综合能源系统规划运行研究，E-mail：maziben2021@163.com
基金资助:
国家社科基金重大项目资助（面向国家能源安全的智慧能源创新模式与政策协同机制研究，19ZDA081）；国家电网有限公司科技项目（双碳背景下综合能源系统多市场—多主体交易优化理论与关键技术研究及应用示范，SGJNDK00JBJS2100255）。

Optimization of Power Grid Business Portfolio Investment Considering Coupling Effects

Yongli WANG¹(), Ziben MA¹(), Yumeng QIN¹, Yanchao LU², Yuan LIN³

1. School of Economics and Management, North China Electric Power University, Beijing 102206, China
2. State Grid Economic and Technological Research Institute Co., Ltd., Beijing 102209, China
3. School of New Energy, North China Electric Power University, Beijing 102206, China

Received:2023-01-11 Accepted:2023-09-06 Online:2024-03-28 Published:2024-03-26
Supported by:
This work is supported by National Social Science Foundation of China (Research on Smart Energy Innovation Model and Policy Synergy Mechanism for National Energy Security, No.19ZDA081) and Science & Technology Project of SGCC (Research and Application Demonstration of Multi-market-multi-object Trading Optimization Theory and Key Technology for Integrated Energy System in the Context of Double Carbon, No.SGJNDK00JBJS2100255).

摘要/Abstract

摘要：

电网业务正处于传统业务向新兴业务变革的关键时期，由于电网业务发展的多样性，应考虑业务的相互影响，准确量化业务投资价值。分析业务间耦合作用，构建业务耦合作用评价体系，并通过Choquet模糊积分量化了电网业务耦合程度，构建适应未来发展新环境的电网业务投资价值评价体系，构建了考虑耦合作用的电网业务组合投资优化模型。在算例中，包含综合能源业务、储能业务、电动汽车业务的组合投资价值最高，为2.024，其中，业务基础投资价值为1.870，耦合投资价值为0.154。通过算例分析验证了考虑电网业务耦合作用的必要性与投资优化模型的适用性，支撑电网公司制定电网业务组合投资决策。

关键词: 电网业务, 耦合作用, Choquet模糊积分, 投资价值, 投资优化

Abstract:

Power grid business is in a critical period of transformation from traditional business to emerging business. Due to the diversity of grid business development, the interplay between businesses should be considered to accurately quantify the investment value of businesses. This paper analyzes the coupling effect between businesses, constructs an evaluation system of business coupling effects to quantify the degree of grid business coupling through Choquet fuzzy integral, constructs an evaluation system of grid business investment value suitable for the new environment of future development, and constructs an optimization model of grid business portfolio investment taking into account the coupling effects. In the case study, the portfolio investment value, covering the comprehensive energy business, energy storage business and electric vehicle business, is 2.024, ranking the highest, among which, the basic investment value of business is 1.87 and the coupling investment value is 0.154. The case study verifies the necessity to consider the grid business coupling and the applicability of the investment optimization model. The results of this study can provide a support for the grid company to make the grid business portfolio investment decision.

Key words: power grid business, coupling, Choquet fuzzy integral, investment value, investment optimization

王永利, 马子奔, 秦雨萌, 卢艳超, 蔺媛. 考虑耦合作用的电网业务组合投资优化[J]. 中国电力, 2024, 57(3): 197-205.

Yongli WANG, Ziben MA, Yumeng QIN, Yanchao LU, Yuan LIN. Optimization of Power Grid Business Portfolio Investment Considering Coupling Effects[J]. Electric Power, 2024, 57(3): 197-205.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202301026

https://www.electricpower.com.cn/CN/Y2024/V57/I3/197

图/表 12

参考文献 25

1	刘芳芳. 紧扣“一体四翼” 赋能价值创造: 访国家电网有限公司副总会计师兼国网财务部主任冯来法[J]. 国家电网, 2021, (12): 34- 37. DOI
2	王祺, 卢艳超, 刘一江, 等. 面向综合能源系统的投资评价方法研究[J]. 智慧电力, 2020, 48 (6): 20- 27. DOI
	WANG Qi, LU Yanchao, LIU Yijiang, et al. Investment evaluation method of integrated energy system[J]. Smart Power, 2020, 48 (6): 20- 27. DOI
3	吴鸿亮, 李东伟, 王玲. 配网投资成效动态评价体系[J]. 南方电网技术, 2019, 13 (6): 44- 49. DOI
	WU Hongliang, LI Dongwei, WANG Ling. Dynamic evaluation system of distribution network investment effect[J]. Southern Power System Technology, 2019, 13 (6): 44- 49. DOI
4	毛田, 黄宁馨, 程韧俐, 等. 虚拟电厂效益评价指标体系构建及其范例分析[J]. 南方电网技术, 2022, 16 (6): 124- 131.
	MAO Tian, HUANG Ningxin, CHENG Renli, et al. Construction of the benefit evaluation index system of virtual power plant and its example analysis[J]. Southern Power System Technology, 2022, 16 (6): 124- 131.
5	洪博文, 胡静, 王建国, 等. 面向能源互联网的用户侧分布式储能价值评估[J]. 中国电力, 2018, 51 (3): 113- 120.
	HONG Bowen, HU Jing, WANG Jianguo, et al. Energy Internet oriented evaluation of distributed energy storage utility in user-side[J]. Electric Power, 2018, 51 (3): 113- 120.
6	马倩, 王昭聪, 潘学萍, 等. 新电改环境下基于效用函数的电网投资决策评价方法[J]. 电力自动化设备, 2019, 39 (12): 198- 204. DOI
	MA Qian, WANG Zhaocong, PAN Xueping, et al. Evaluation method of power grid investment decision based on utility function under new electricity reform environment[J]. Electric Power Automation Equipment, 2019, 39 (12): 198- 204. DOI
7	黄碧斌, 胡静, 蒋莉萍, 等. 中国电网侧储能在典型场景下的应用价值评估[J]. 中国电力, 2021, 54 (7): 158- 165.
	HUANG Bibin, HU Jing, JIANG Liping, et al. Application value assessment of grid side energy storage under typical scenarios in China[J]. Electric Power, 2021, 54 (7): 158- 165.
8	戴双凤, 叶泽, 姜曼, 等. 跨省区电力交易综合效益评估模型及应用[J]. 中国电力, 2022, 55 (12): 179- 186.
	DAI Shuangfeng, YE Ze, JIANG Man, et al. Research and its application of evaluation model for comprehensive performances in trans-province power trading[J]. Electric Power, 2022, 55 (12): 179- 186.
9	许彦平, 施浩波, 秦晓辉, 等. 源-荷应用场景下储热式电锅炉投资经济性分析[J]. 中国电力, 2023, 56 (2): 123- 132.
	XU Yanping, SHI Haobo, QIN Xiaohui, et al. Analysis of investment economy of electric boilers with thermal storage in source-load application scenarios[J]. Electric Power, 2023, 56 (2): 123- 132.
10	闫湖, 黄碧斌, 洪博文, 等. 面向多主体的园区综合能源系统投资收益量化分析[J]. 中国电力, 2020, 53 (5): 122- 127.
	YAN Hu, HUANG Bibin, HONG Bowen, et al. Quantitative analysis of return on investment of park integrated energy system for multiple investors[J]. Electric Power, 2020, 53 (5): 122- 127.
11	王昭聪, 马倩. 基于层次分析和蒙特卡洛法的电网企业投资风险分析[J]. 智慧电力, 2018, 46 (7): 42- 48. DOI
	WANG Zhaocong, MA Qian. Investment risk analysis of power grid enterprises based on hierachy analysis and Monte Carlo method[J]. Smart Power, 2018, 46 (7): 42- 48. DOI
12	谭忠富, 谭彩霞, 余雪, 等. 基于混合布谷鸟算法的智能电网多业务组合投资决策优化[J]. 智慧电力, 2021, 49 (4): 51- 57. DOI
	TAN Zhongfu, TAN Caixia, YU Xue, et al. Multi-business portfolio investment decision optimization of smart grid based on hybrid cuckoo algorithm[J]. Smart Power, 2021, 49 (4): 51- 57. DOI
13	曾鸣, 于壮状, 王雨晴, 等. 基于输配电价约束的配电网投资规模优化模型[J]. 智慧电力, 2020, 48 (11): 1- 8. DOI
	ZENG Ming, YU Zhuangzhuang, WANG Yuqing, et al. Optimization model for distribution network investment scale based on transmission and distribution price constraints[J]. Smart Power, 2020, 48 (11): 1- 8. DOI
14	王泽祺, 刘友波, 沈晓东, 等. 考虑风险测度的配电网精准投资项目优选模型[J]. 电网技术, 2021, 45 (1): 216- 226. DOI
	WANG Zeqi, LIU Youbo, SHEN Xiaodong, et al. Risk constrained investment portfolio model for distribution network projects with efficiency optimization[J]. Power System Technology, 2021, 45 (1): 216- 226. DOI
15	韩冬, 何宇婷, 孙伟卿. 考虑金融/物理合约的储能装置投资组合策略研究[J]. 电网技术, 2020, 44 (10): 3908- 3915. DOI
	HAN Dong, HE Yuting, SUN Weiqing. Research on portfolio strategy of energy storage devices with financial/physical contracts[J]. Power System Technology, 2020, 44 (10): 3908- 3915. DOI
16	程智余, 朱晓虎, 李建青. 基于改进ELECTRE法的电网规划投资多准则融合决策方法[J]. 中国电力, 2022, 55 (11): 59- 65.
	CHENG Zhiyu, ZHU Xiaohu, LI Jianqing. A multi-criteria fusion decision-making method for power grid planning investment based on improved ELECTRE method[J]. Electric Power, 2022, 55 (11): 59- 65.
17	孔祥玉, 尧静涛, 崔凯, 等. 考虑分布式电源接入的区域配电网规划投资决策方法[J]. 中国电力, 2020, 53 (4): 41- 48.
	KONG Xiangyu, YAO Jingtao, CUI Kai, et al. Investment decision-making method for regional distribution network planning considering distributed generations[J]. Electric Power, 2020, 53 (4): 41- 48.
18	金智博, 李华强, 李山山, 等. 考虑投资能力反馈的电网规划项目投资时序优化方法[J]. 电力自动化设备, 2022, 42 (3): 168- 174.
	JIN Zhibo, LI Huaqiang, LI Shanshan, et al. Optimization method of investment time series of power grid planning projects considering investment ability feedback[J]. Electric Power Automation Equipment, 2022, 42 (3): 168- 174.
19	张强, 孙雨耕, 杨挺, 等. 无线传感器网络在智能电网中的应用[J]. 中国电力, 2010, 43 (6): 31- 36. DOI
	ZHANG Qiang, SUN Yugeng, YANG Ting, et al. Applications of wireless sensor networks in smart grid[J]. Electric Power, 2010, 43 (6): 31- 36. DOI
20	易锦桂, 朱自伟, 谢青. 基于改进场景聚类算法的海上风电储能优化配置研究[J]. 中国电力, 2022, 55 (12): 2- 10.
	YI Jingui, ZHU Ziwei, XIE Qing. Research on optimal configuration of offshore wind power energy storage based on improved scene clustering algorithm[J]. Electric Power, 2022, 55 (12): 2- 10.
21	彭向阳, 金亮, 王柯, 等. 变电站机器人智能巡检系统设计及应用[J]. 中国电力, 2018, 51 (2): 82- 89.
	PENG Xiangyang, JIN Liang, WANG Ke, et al. Design and application of robot inspection system in substation[J]. Electric Power, 2018, 51 (2): 82- 89.
22	古宸嘉, 王建学, 李清涛, 等. 新能源集中并网下大规模集中式储能规划研究述评[J]. 中国电力, 2022, 55 (1): 2- 12.
	GU Chenjia, WANG Jianxue, LI Qingtao, et al. Review on large-scale centralized energy storage planning under centralized grid integration of renewable energy[J]. Electric Power, 2022, 55 (1): 2- 12.
23	常娟, 杜迎雪, 刘卫锋. 直觉正态模糊数Choquet积分算子及其决策应用[J]. 浙江大学学报(理学版), 2020, 47 (6): 705- 714.
	CHANG Juan, DU Yingxue, LIU Weifeng. Intuitionistic normal fuzzy number Choquet integral operators and their application on decision making[J]. Journal of Zhejiang University (Science Edition), 2020, 47 (6): 705- 714.
24	张全, 代贤忠, 韩新阳, 等. 基于全生命周期投入产出效益的电网规划精准投资方法[J]. 中国电力, 2018, 51 (10): 171- 177.
	ZHANG Quan, DAI Xianzhong, HAN Xinyang, et al. An accurate investment method of power grid based on full life cycle input-output benefit[J]. Electric Power, 2018, 51 (10): 171- 177.
25	陈嘉杰, 王金凤. 基于蚁群算法求解Choquet模糊积分模型[J]. 山东大学学报(工学版), 2018, 48 (3): 81- 87.
	CHEN Jiajie, WANG Jinfeng. Method for solving Choquet integral model based on ant colony algorithm[J]. Journal of Shandong University (Engineering Science), 2018, 48 (3): 81- 87.

业务名称	投资额	业务名称	投资额
输电业务Q₁	1.05	储能业务Q₅	1.20
配电业务Q₂	0.82	海上风电业务Q₆	1.52
售电业务Q₃	0.85	电动汽车业务Q₇	0.86
综合能源业务Q₄	0.95	电力数据业务Q₈	0.98

业务名称	投资额	业务名称	投资额
输电业务Q₁	1.05	储能业务Q₅	1.20
配电业务Q₂	0.82	海上风电业务Q₆	1.52
售电业务Q₃	0.85	电动汽车业务Q₇	0.86
综合能源业务Q₄	0.95	电力数据业务Q₈	0.98

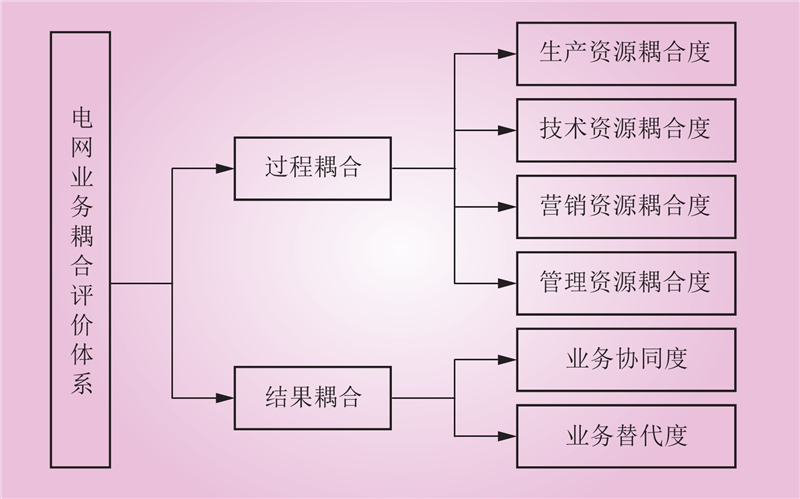

耦合评价指标	权重	耦合评价指标	权重
生产资源耦合度X₁	0.1	管理资源耦合度X₄	0.1
技术资源耦合度X₂	0.1	业务协同度X₅	0.3
营销资源耦合度X₃	0.1	业务替代度X₆	0.3

耦合评价指标	权重	耦合评价指标	权重
生产资源耦合度X₁	0.1	管理资源耦合度X₄	0.1
技术资源耦合度X₂	0.1	业务协同度X₅	0.3
营销资源耦合度X₃	0.1	业务替代度X₆	0.3

评价主体	权重	评价主体	权重	评价主体	权重	评价主体	权重
$ {e_{\rm s1}} $	0.05	${e_{\rm j1} }$	0.075	$ {e_{\rm y1}} $	0.05	$ {e_{\rm g1}} $	0.075
$ {e_{\rm s2}} $	0.05	${e_{\rm j2} }$	0.075	$ {e_{\rm y2}} $	0.05	$ {e_{\rm g2}} $	0.075
$ {e_{\rm s3}} $	0.05	${e_{\rm j3} }$	0.075	$ {e_{\rm y3}} $	0.05	$ {e_{\rm g3}} $	0.075
$ {e_{\rm s4}} $	0.05	${e_{\rm j4} }$	0.075	$ {e_{\rm y4}} $	0.05	${e_{\rm g4} }$	0.075

考虑耦合作用的电网业务组合投资优化

Optimization of Power Grid Business Portfolio Investment Considering Coupling Effects

RichHTML

PDF (PC)

可视化

摘要/Abstract

引用本文

使用本文

图/表 12

参考文献 25

相关文章 1

编辑推荐

Metrics

主体	X₁	X₂	X₃	X₄	X₅	X₆	主体	X₁	X₂	X₃	X₄	X₅	X₆
e_s1	5	12	2	4	16	0	e_y1	10	16	5	12	21	0
e_s2	8	5	3	8	23	0	e_y2	11	12	8	10	23	0
e_s3	3	8	1	3	22	0	e_y3	8	14	7	8	18	0
e_s4	7	5	4	7	20	0	e_y4	7	11	6	9	19	0
e_j1	9	9	3	2	21	0	e_g1	6	8	4	8	17	0
e_j2	4	7	0	5	23	0	e_g2	2	9	3	10	19	0
e_j3	2	12	2	8	18	0	e_g3	4	12	8	11	22	0
e_j4	3	10	4	3	23	0	e_g4	3	14	4	6	16	0

主体	评价值	主体	评价值	主体	评价值	主体	评价值
e_s1	8.42	e_j1	9.76	e_y1	11.26	e_g1	8.37
e_s2	11.67	e_j2	10.67	e_y2	10.34	e_g2	11.78
e_s3	9.67	e_j3	10.87	e_y3	8.75	e_g3	10.32
e_s4	8.37	e_j4	9.23	e_y4	9.93	e_g4	8.65

耦合业务	综合评价值/%	耦合业务	综合评价值/%	耦合业务	综合评价值/%	耦合业务	综合评价值/%
r₁₂	8.32	r₂₃	8.71	r₃₅	1.24	r₄₈	0.57
r₁₃	6.54	r₂₄	2.34	r₃₆	0.27	r₅₆	9.56
r₁₄	5.32	r₂₅	1.35	r₃₇	2.75	r₅₇	2.86
r₁₅	4.18	r₂₆	1.38	r₃₈	5.31	r₅₈	0.75
r₁₆	8.52	r₂₇	1.21	r₄₅	6.21	r₆₇	0.24
r₁₇	1.27	r₂₈	0.37	r₄₆	1.20	r₆₈	0.13
r₁₈	0.31	r₃₄	0.51	r₄₇	3.24	r₇₈	3.27

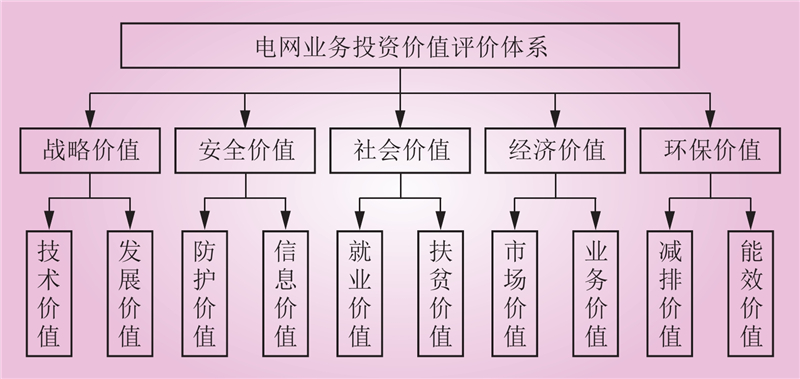

业务	战略价值	安全价值	社会价值	经济价值	环保价值	总价值
Q₁	0.09	0.18	0.16	0.08	0.06	0.57
Q₂	0.07	0.16	0.15	0.09	0.08	0.55
Q₃	0.07	0.12	0.13	0.13	0.07	0.52
Q₄	0.11	0.08	0.14	0.15	0.16	0.64
Q₅	0.14	0.10	0.12	0.12	0.14	0.62
Q₆	0.18	0.11	0.11	0.14	0.23	0.77
Q₇	0.13	0.09	0.16	0.11	0.12	0.61
Q₈	0.10	0.12	0.13	0.17	0.08	0.60

业务	边际效益	业务	边际效益
Q₁	0.54	Q₅	0.52
Q₂	0.67	Q₆	0.51
Q₃	0.61	Q₇	0.71
Q₄	0.67	Q₈	0.61

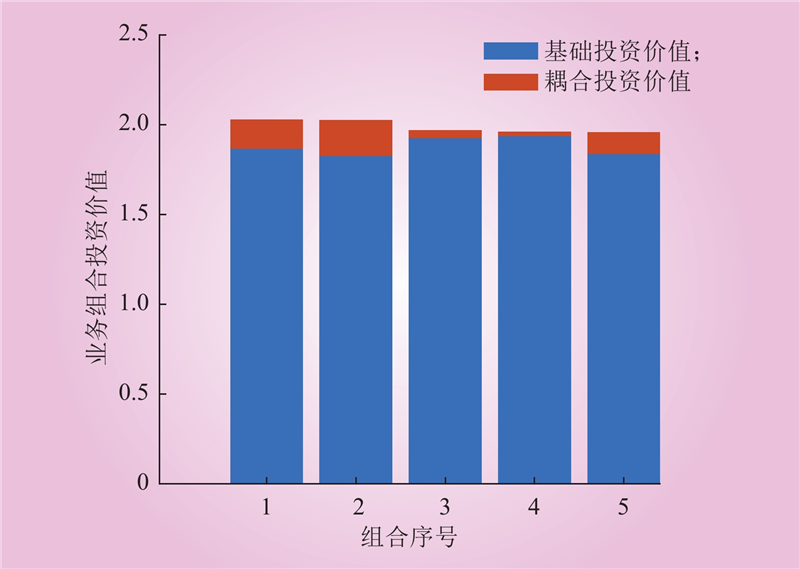

组合序号	业务组合	投资价值
1	综合能源+储能+电动汽车	2.024
2	输电+综合能源+储能	2.022
3	配电+海上风电+电动汽车	1.966
4	综合能源+储能+电力数据	1.956
5	配电+售电+海上风电	1.955
