考虑碳捕集和气网混氢的气电耦合系统低碳经济调度

doi:10.11930/j.issn.1004-9649.202210024

中国电力 ›› 2023, Vol. 56 ›› Issue (10): 1-10.DOI: 10.11930/j.issn.1004-9649.202210024

• 面向新型电力系统的氢能及其系统集成控制关键技术 • 上一篇下一篇

考虑碳捕集和气网混氢的气电耦合系统低碳经济调度

杨宇玄¹(), 高栋梁¹(), 陈一鸣¹, 周步祥², 陈阳², 臧天磊²()

1. 国网四川省电力公司经济技术研究院，四川成都　610041
2. 四川大学电气工程学院，四川成都　610065

收稿日期:2022-10-15 出版日期:2023-10-28 发布日期:2023-10-31
作者简介:杨宇玄（1992—），男，硕士，从事综合能源系统、电力系统继电保护研究，E-mail： 404937825@qq.com
高栋梁（1989—），男，硕士，从事电力通信、网络信息安全研究，E-mial： 396961683@qq.com
臧天磊（1986—），男，通信作者，博士，副教授、硕导，从事综合能源系统运行优化与控制研究，E-mail： zangtianlei@126.com
基金资助:
国家自然科学基金资助项目（人-信息-能量耦合的城市能源互联网灾变分析与动态预警，51907097）；国网四川省电力公司科技项目（应对CPS故障的综合能源系统优化调控与风险管控技术，52199620000M）。

Low Carbon Economic Dispatch of Gas Electricity Coupling System Considering Carbon Capture and Hydrogen Mixing in Gas Grid

Yuxuan YANG¹(), Dongliang GAO¹(), Yiming CHEN¹, Buxiang ZHOU², Yang CHEN², Tianlei ZANG²()

1. State Grid Sichuan Electric Power Co., Ltd., Chengdu 610041, China
2. School of Electrical Engineering, Sichuan University, Chengdu 610065, China

Received:2022-10-15 Online:2023-10-28 Published:2023-10-31
Supported by:
This work is supported by National Natural Science Foundation of China (The Human-Information-Energy Coupled Urban Energy Internet Catastrophe Analysis and Its Dynamic Early Warning, No.51907097) and State Grid Sichuan Electric Power Company Science and Technology Project (Optimal Regulation and Risk Control Technology for Integrated Energy System to Deal with Cyber Physical System Failures, No.52199620000M).

摘要/Abstract

摘要：

针对气电综合能源系统低碳调度问题，气网混氢、碳捕集、电转气均是有效的技术手段，同时碳交易机制也是控制碳排放的有效经济手段。因此，本文构建了含富液罐和贫液罐的碳捕集电厂模型，结合电转甲烷技术模型，灵活回收利用系统中的CO₂；同时，构建了气网混氢技术模型提高能效，并考虑气网混氢时节点热值变化约束，以奖励式碳交易成本和运行成本之和为目标函数；最后基于改进的比利时20节点天然气系统和IEEE 39节点电力系统模型开展算例测试，结果显示综合考虑碳捕集、气网混氢和奖励式碳交易机制能提高系统低碳经济调度水平，同时调节碳价和奖励系数能灵活调节系统碳排放水平。

关键词: 储液式碳捕集, 气网混氢, 电转气, 低碳经济调度

Abstract:

For the problem of low-carbon dispatch of gas-power integrated energy system, gas-grid hydrogen blending, carbon capture and electricity-to-gas conversion are all effective technical means. Meanwhile, carbon trading mechanism is also an effective economic means to control carbon emission. Therefore, this paper constructs a carbon capture plant model with liquid-rich and liquid-poor tanks, combined with an electric-to-methane technology model to flexibly recover and utilize CO₂ in the system. Secondly, a gas-grid hydrogen blending technology model is used to improve energy efficiency, while considering the nodal calorific value change constraint during gas-grid hydrogen blending. Then the sum of incentive carbon trading cost and operation cost is used as the objective function. Finally, an arithmetic test is carried out based on the improved Belgian 20-node natural gas system and IEEE 39-node power system models. The results verify that the integrated consideration of carbon capture, gas network hydrogen blending and incentive carbon trading mechanism can improve the low carbon economic dispatch of the system. The carbon price and incentive factor can be adjusted flexibly to regulate the system carbon emission level.

Key words: liquid storage carbon capture, mixed hydrogen in gas network, electricity to gas, low carbon economic dispatch

杨宇玄, 高栋梁, 陈一鸣, 周步祥, 陈阳, 臧天磊. 考虑碳捕集和气网混氢的气电耦合系统低碳经济调度[J]. 中国电力, 2023, 56(10): 1-10.

Yuxuan YANG, Dongliang GAO, Yiming CHEN, Buxiang ZHOU, Yang CHEN, Tianlei ZANG. Low Carbon Economic Dispatch of Gas Electricity Coupling System Considering Carbon Capture and Hydrogen Mixing in Gas Grid[J]. Electric Power, 2023, 56(10): 1-10.

导出引用管理器 EndNote|Ris|BibTeX

链接本文: https://www.electricpower.com.cn/CN/10.11930/j.issn.1004-9649.202210024

https://www.electricpower.com.cn/CN/Y2023/V56/I10/1

图/表 8

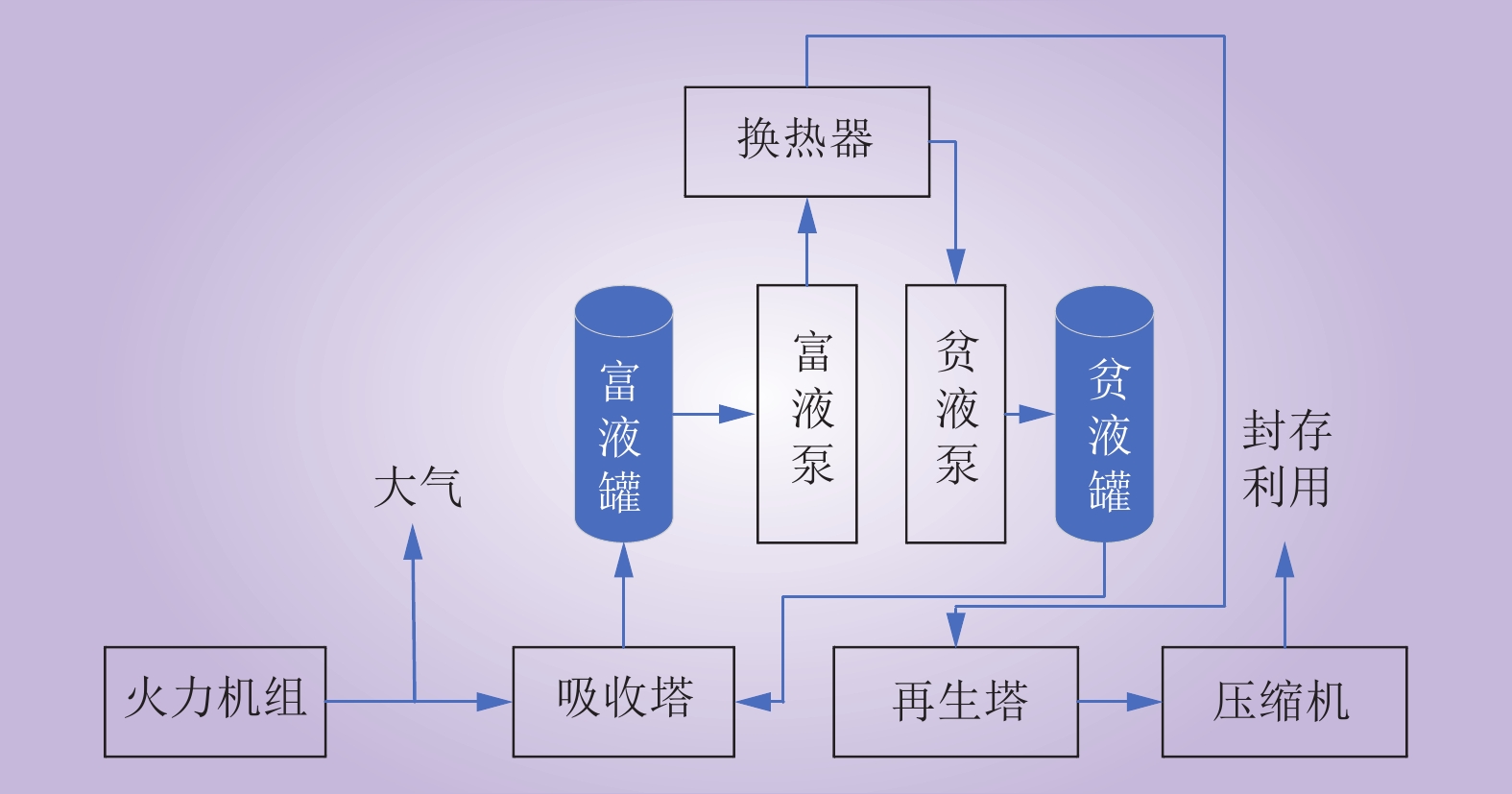

图 1 储液式碳捕集结构示意

Fig.1 Schematic diagram of liquid storage carbon capture model

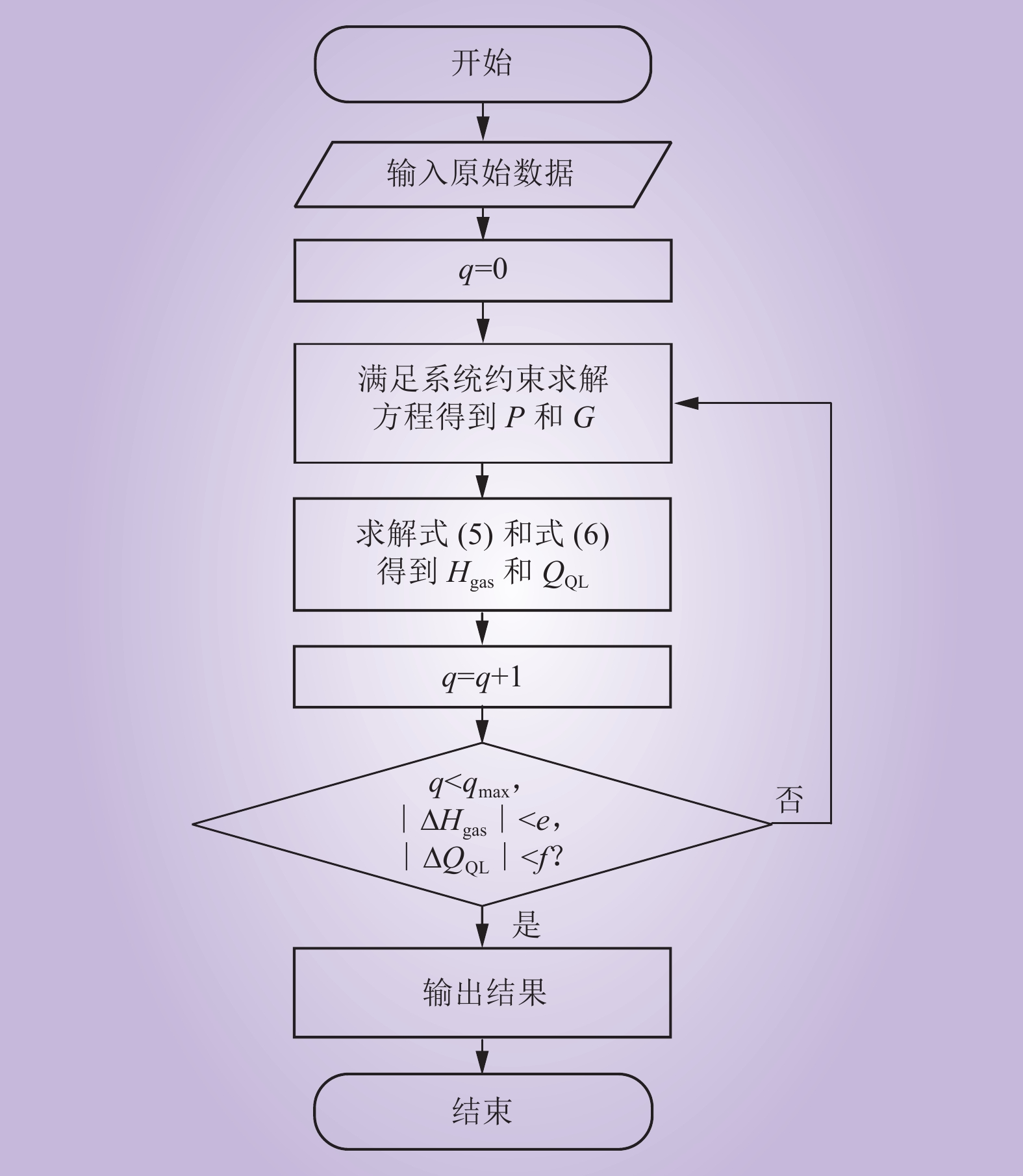

图 2 模型求解流程

Fig.2 Model solving process

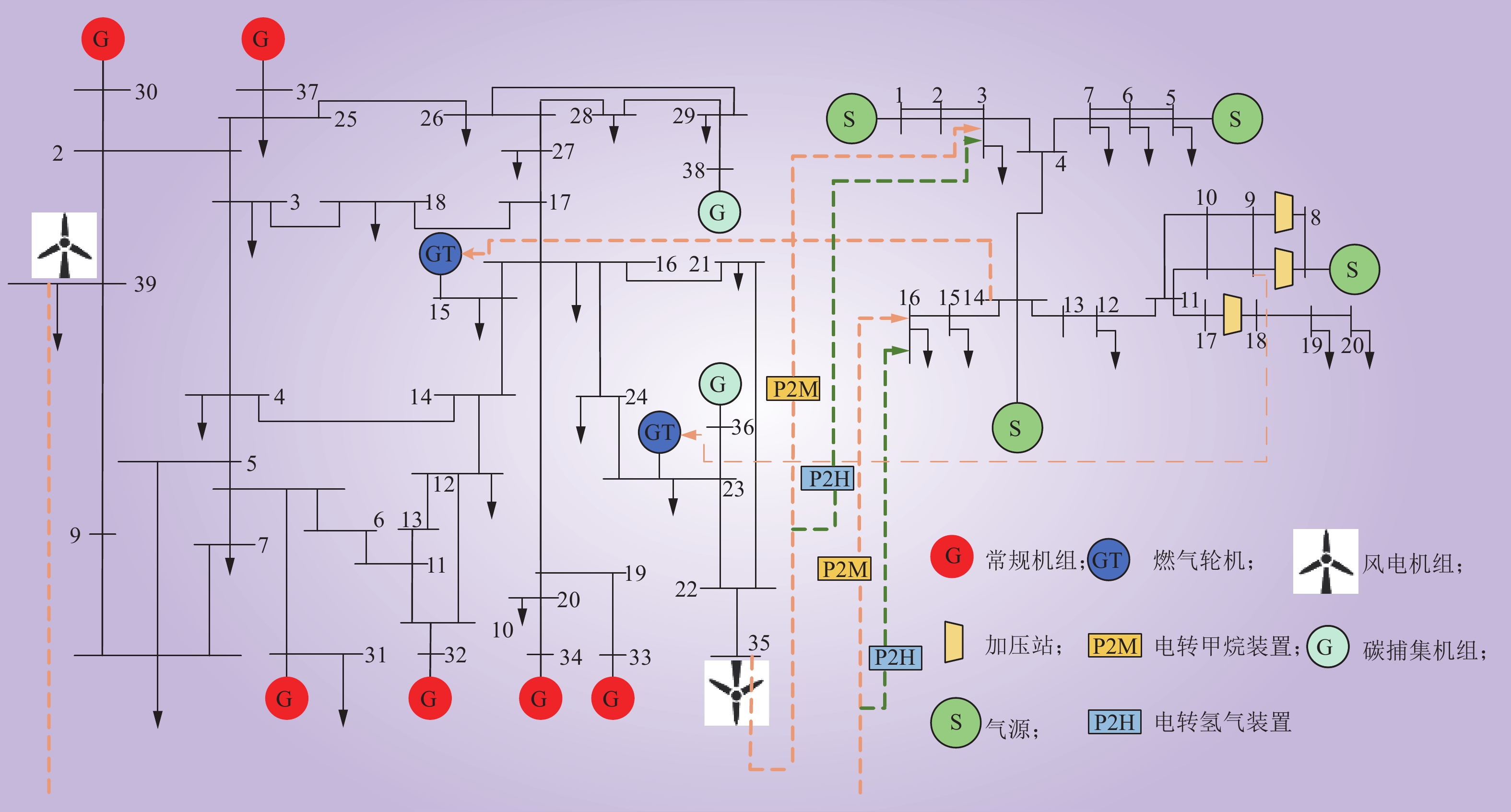

图 3 气电耦合系统测试结构

Fig.3 Test structural diagram of gas-electricity coupling system

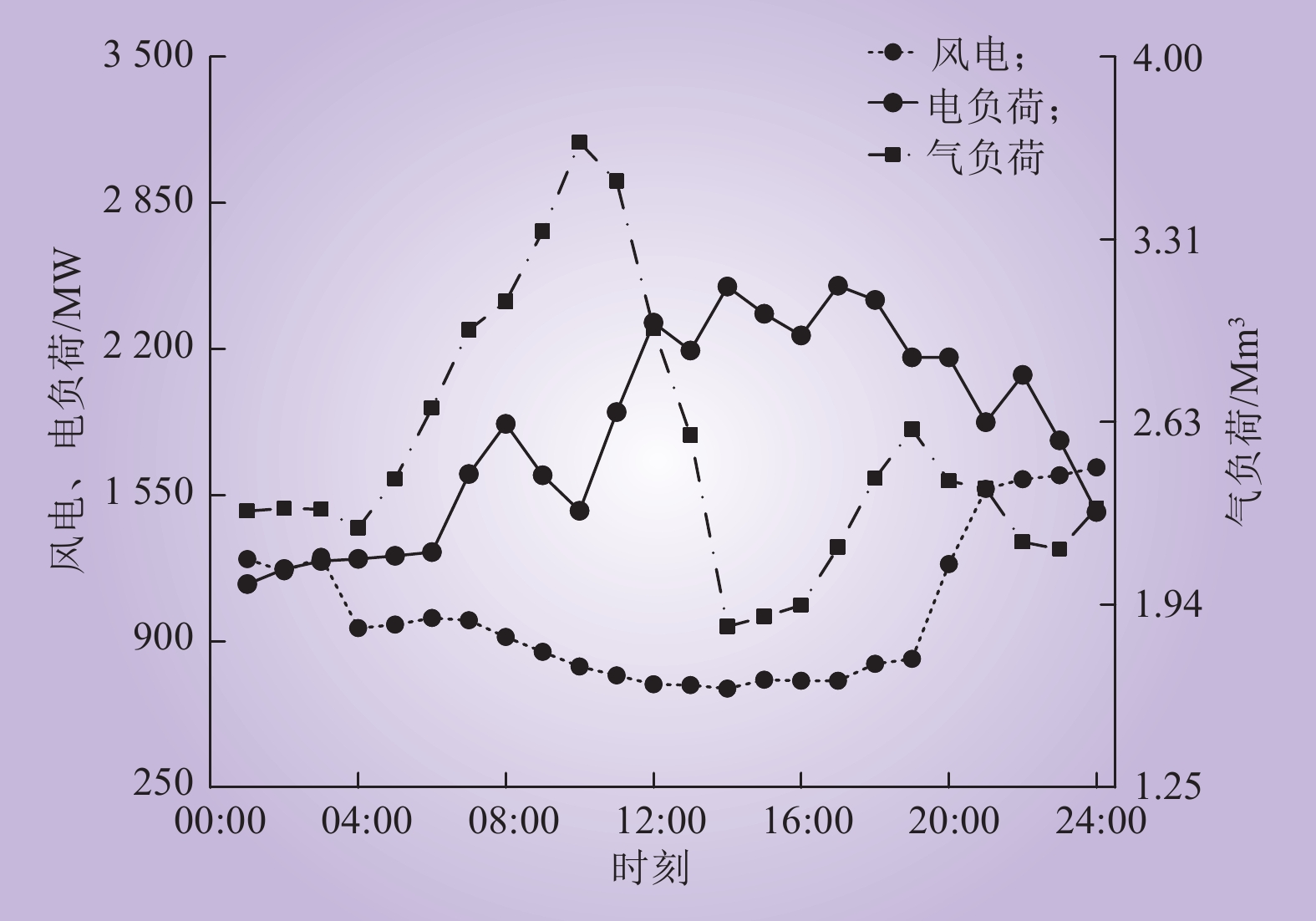

图 4 测试系统的风电预测值、电负荷和气负荷值

Fig.4 Values of wind power forecasts, electrical loads and gas loads of the test system

表 1 4种场景的调度结果

Table 1 Scheduling results for 4 scenarios

场景	碳排放/t	运行成本/万元	总成本 /万元	弃风量/MW
1	18201.83	14660.37	14657.52	2111.62
2	17934.24	14425.44	14420.63	523.34
3	17528.41	14247.81	14232.20	378.34
4	17014.95	14143.77	14122.59	245.61

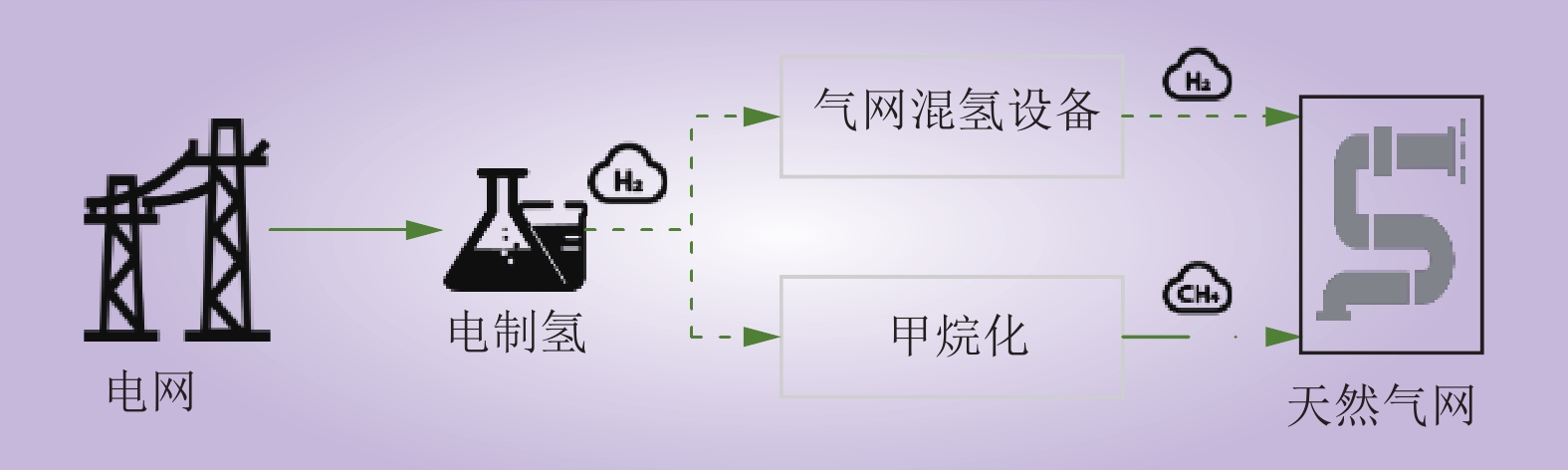

图 5 电转氢和电转甲烷流程

Fig.5 Electricity to hydrogen and electricity to methane conversion processes

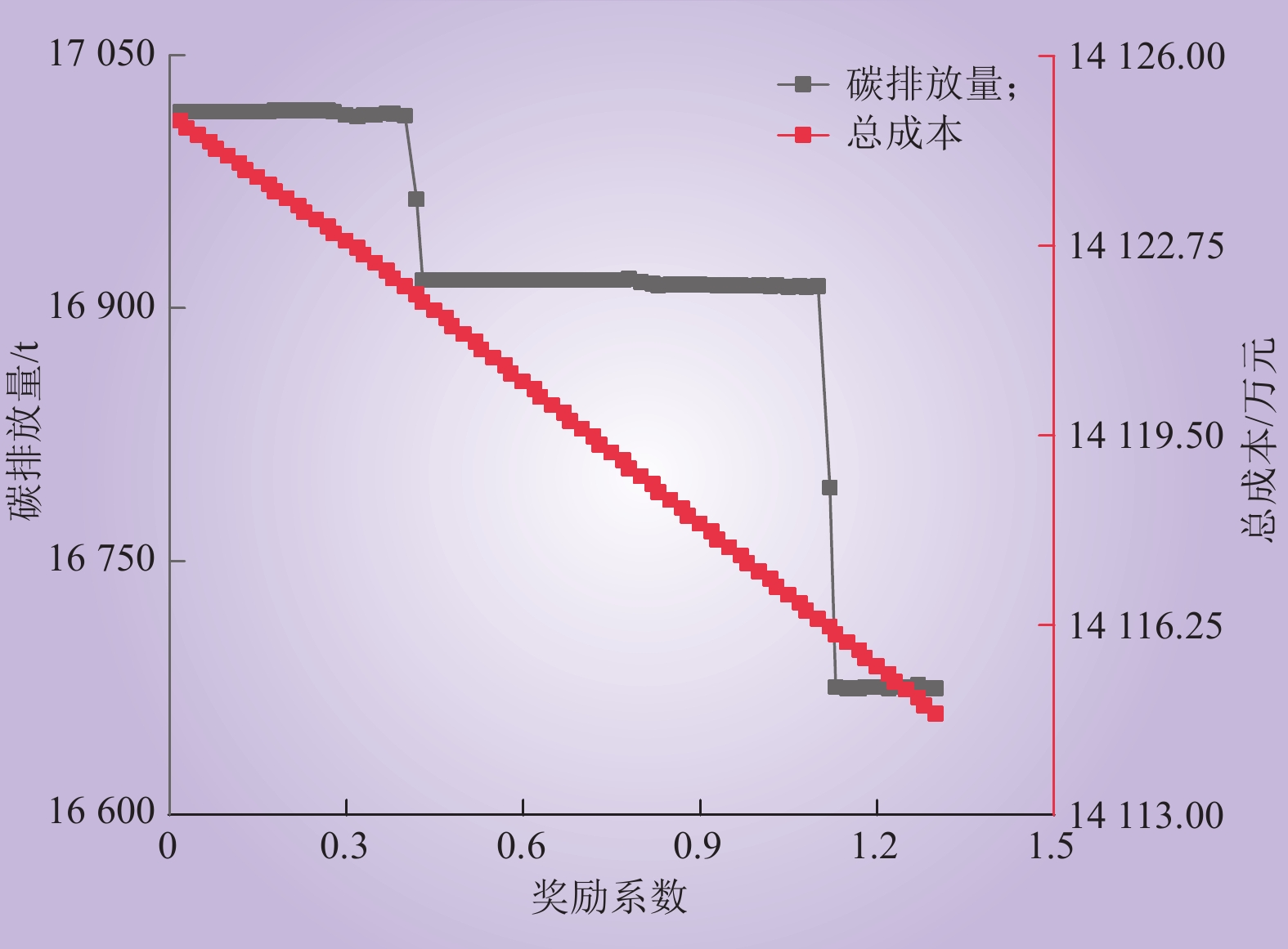

图 6 奖励系数变化对碳排放量和总成本的影响

Fig.6 Effect of change of incentive coefficient on carbon emissions and total cost

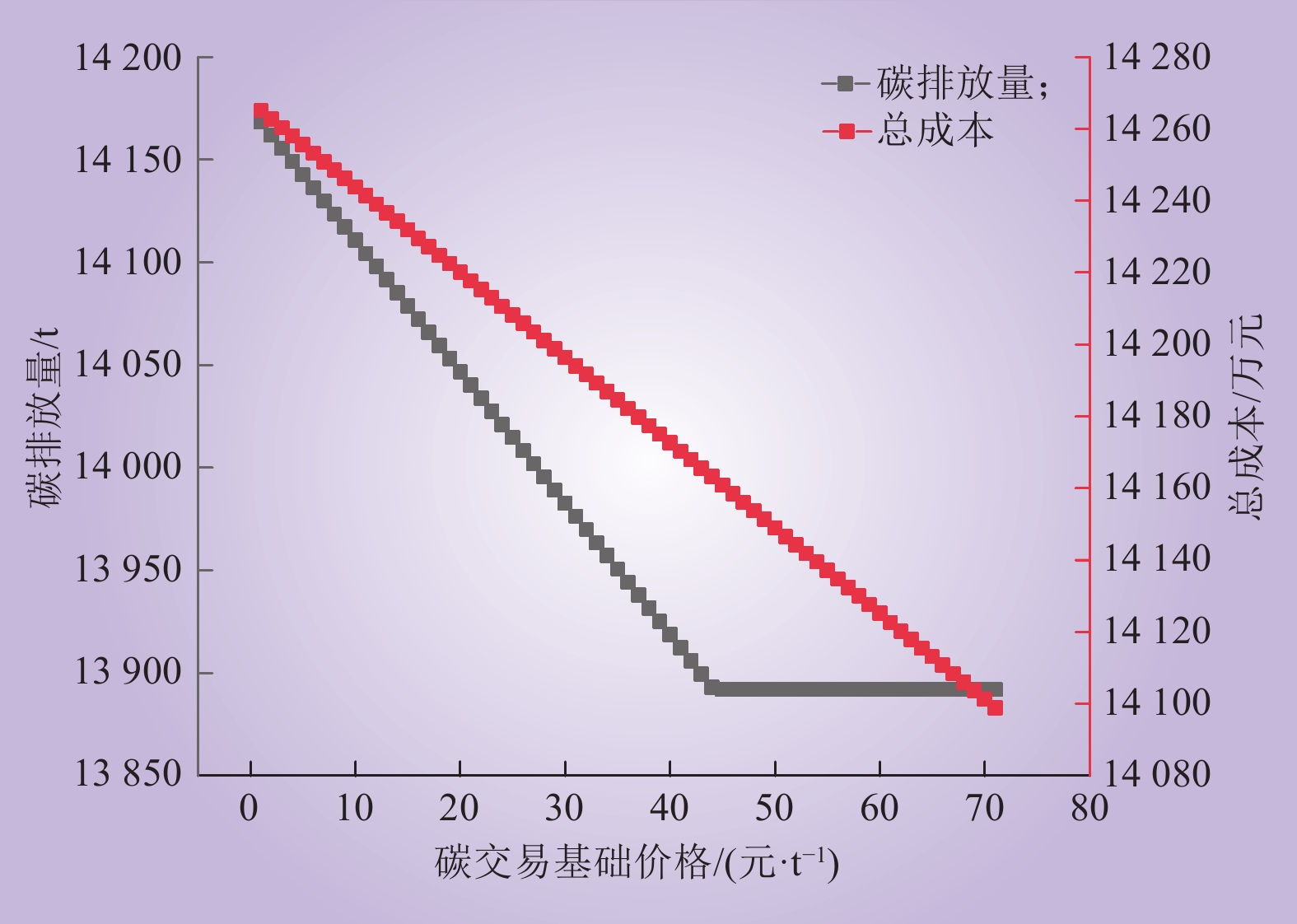

图 7 碳交易基础价格变化对碳排放量和总成本的影响

Fig.7 Impact of carbon trading price changes on carbon emissions and total costs

参考文献 28

1	李政, 陈思源, 董文娟, 等. 碳约束条件下电力行业低碳转型路径研究[J]. 中国电机工程学报, 2021, 41 (12): 3987- 4001.
	LI Zheng, CHEN Siyuan, DONG Wenjuan, et al. Low carbon transition pathway of power sector under carbon emission constraints[J]. Proceedings of the CSEE, 2021, 41 (12): 3987- 4001.
2	周原冰, 杨方, 余潇潇, 等. 中国能源电力碳中和实现路径及实施关键问题[J]. 中国电力, 2022, 55 (5): 1- 11.
	ZHOU Yuanbing, YANG Fang, YU Xiaoxiao, et al. Realization pathways and key problems of carbon neutrality in China's energy and power system[J]. Electric Power, 2022, 55 (5): 1- 11.
3	孙子茹, 艾芊, 居来提·阿不力孜, 等. 考虑季节性氢储及期货式碳交易的综合能源系统年度规划研究[J]. 中国电力, 2022, 55 (8): 2- 13.
	SUN Ziru, AI Qian, JULAITI A, et al. Annual planning study of integrated energy system considering seasonal hydrogen storage and futures carbon trading[J]. Electric Power, 2022, 55 (8): 2- 13.
4	董洁, 乔建强. “双碳”目标下先进煤炭清洁利用发电技术研究综述[J]. 中国电力, 2022, 55 (8): 202- 212.
	DONG Jie, QIAO Jianqiang, et al. A review on advanced clean coal power generation technology under "carbon peaking and carbon neutrality" goal[J]. Electric Power, 2022, 55 (8): 202- 212.
5	王彦哲, 周胜, 姚子麟, 等. 中国煤电生命周期二氧化碳和大气污染物排放相互影响建模分析[J]. 中国电力, 2021, 54 (8): 128- 135.
	WANG Yanzhe, ZHOU Sheng, YAO Zilin, et al. Life cycle modeling analysis of the interaction between carbon dioxide and air pollutant emissions of coal power in China[J]. Electric Power, 2021, 54 (8): 128- 135.
6	崔杨, 谷春池, 付小标, 等. 考虑广义电热需求响应的含碳捕集电厂综合能源系统低碳经济调度[J]. 中国电机工程学报, 2022, 42 (23): 8431- 8446.
	CUI Yang, GU Chunchi, FU Xiaobiao, et al. Low-carbon economic dispatch of integrated energy system with carbon capture power plants considering generalized electric heating demand response[J]. Proceedings of the CSEE, 2022, 42 (23): 8431- 8446.
7	崔杨, 曾鹏, 王铮, 等. 考虑碳捕集电厂能量转移特性的弃风消纳多时间尺度调度策略[J]. 中国电机工程学报, 2021, 41 (3): 946- 961.
	CUI Yang, ZENG Peng, WANG Zheng, et al. Multiple time scales scheduling strategy of wind power accommodation considering energy transfer characteristics of carbon capture power plant[J]. Proceedings of the CSEE, 2021, 41 (3): 946- 961.
8	孙惠娟, 刘昀, 彭春华, 等. 计及电转气协同的含碳捕集与垃圾焚烧虚拟电厂优化调度[J]. 电网技术, 2021, 45 (9): 3534- 3545.
	SUN Huijuan, LIU Yun, PENG Chunhua, et al. Optimization scheduling of virtual power plant with carbon capture and waste incineration considering power-to-gas coordination[J]. Power System Technology, 2021, 45 (9): 3534- 3545.
9	田丰, 贾燕冰, 任海泉, 等. 考虑碳捕集系统的综合能源系统“源–荷”低碳经济调度[J]. 电网技术, 2020, 44 (9): 3346- 3354.
	TIAN Feng, JIA Yanbing, REN Haiquan, et al. "Source-load" low-carbon economic dispatch of integrated energy system considering carbon capture system[J]. Power System Technology, 2020, 44 (9): 3346- 3354.
10	谢萍, 伍奕, 李长俊, 等. 混氢天然气管道输送技术研究进展[J]. 油气储运, 2021, 40 (4): 361- 370.
	XIE Ping, WU Yi, LI Changjun, et al. Research progress on pipeline transportation technology of hydrogen mixed natural gas[J]. Oil & Gas Storage and Transportation, 2021, 40 (4): 361- 370.
11	尚娟, 鲁仰辉, 郑津洋, 等. 掺氢天然气管道输送研究进展和挑战[J]. 化工进展, 2021, 40 (10): 5499- 5505.
	SHANG Juan, LU Yanghui, ZHENG Jinyang, et al. Research status-in-situ and key challenges in pipeline transportation of hydrogen-natural gas mixtures[J]. Chemical Industry and Engineering Progress, 2021, 40 (10): 5499- 5505.
12	孙大陆, 闫玮祎. 天然气掺氢发电发展现状及其全产业链建设研究[J]. 中国海上油气, 2023, 35 (4): 189- 197.
	SUN Dalu, YAN Weiyi. Research on hydrogen-doped natural gas power generation development status and its industrial chain construction[J]. China Offshore Oil and Gas, 2023, 35 (4): 189- 197.
13	SCAMMAN D, NEWBOROUGH M. Using surplus nuclear power for hydrogen mobility and power-to-gas in France[J]. International Journal of Hydrogen Energy, 2016, 41 (24): 10080- 10089. DOI
14	HE G X, YAN H G, CHEN L, et al. Economic dispatch analysis of regional electricity-gas system integrated with distributed gas injection[J]. Energy, 2020, 201, 117512. DOI
15	黄宇, 吴思橙, 徐璟, 等. 计及碳交易的区域综合能源不完全信息博弈优化调度[J]. 华北电力大学学报(自然科学版), 2023, 50 (4): 69- 80.
	HUANG Yu, WU Sicheng, XU Jing, et al. Optimal scheduling of regional integrated energy systems with carbon trading based on incomplete information game[J]. Journal of North China Electric Power University(Natural Science Edition), 2023, 50 (4): 69- 80.
16	陈锦鹏, 胡志坚, 陈颖光, 等. 考虑阶梯式碳交易机制与电制氢的综合能源系统热电优化[J]. 电力自动化设备, 2021, 41 (9): 48- 55.
	CHEN Jinpeng, HU Zhijian, CHEN Yingguang, et al. Thermoelectric optimization of integrated energy system considering ladder-type carbon trading mechanism and electric hydrogen production[J]. Electric Power Automation Equipment, 2021, 41 (9): 48- 55.
17	陈海鹏, 陈晋冬, 张忠, 等. 计及灵活运行碳捕集电厂捕获能耗的电力系统低碳经济调度[J]. 电力自动化设备, 2021, 41 (9): 133- 139.
	CHEN Haipeng, CHEN Jindong, ZHANG Zhong, et al. Low-carbon economic dispatching of power system considering capture energy consumption of carbon capture power plants with flexible operation mode[J]. Electric Power Automation Equipment, 2021, 41 (9): 133- 139.
18	高鹏飞, 周孝信, 杨小煜, 等. 计及异质气体混合的电-气-热综合能源系统能量流计算方法[J]. 电网技术, 2021, 45 (7): 2523- 2533.
	GAO Pengfei, ZHOU Xiaoxin, YANG Xiaoyu, et al. Energy flow calculation of integrated electricity, natural gas and heating systems considering mixtures of gas with alternative qualities[J]. Power System Technology, 2021, 45 (7): 2523- 2533.
19	LIU J, SUN W, HARRISON G P. The economic and environmental impact of power to hydrogen/power to methane facilities on hybrid power-natural gas energy systems[J]. International Journal of Hydrogen Energy, 2020, 45 (39): 20200- 20209. DOI
20	高鹏飞, 周孝信, 杨小煜, 等. 考虑氢气注入的电-气综合能源系统电制气设备容量规划[J]. 电网技术, 2021, 45 (10): 3781- 3791.
	GAO Pengfei, ZHOU Xiaoxin, YANG Xiaoyu, et al. Optimal capacity planning of power-to-gas in the integrated electricity and natural gas systems considering hydrogen injections[J]. Power System Technology, 2021, 45 (10): 3781- 3791.
21	邹宇航, 曾艾东, 郝思鹏, 等. 阶梯式碳交易机制下综合能源系统多时间尺度优化调度[J]. 电网技术, 2023, 47 (6): 2185- 2198.
	ZOU Yuhang, ZENG Aidong, HAO Sipeng, et al. Multi-time-scale optimal dispatch of integrated energy systems under stepped carbon trading mechanism[J]. Power System Technology, 2023, 47 (6): 2185- 2198.
22	魏震波, 魏平桉, 郭毅, 等. 考虑需求侧管理和碳交易的电-气互联网络分散式低碳经济调度[J]. 高电压技术, 2021, 47 (1): 33- 44.
	WEI Zhenbo, WEI Pingan, GUO Yi, et al. Decentralized low-carbon economic dispatch of electricity-gas network in consideration of demand-side management and carbon trading[J]. High Voltage Engineering, 2021, 47 (1): 33- 44.
23	王义军, 李梦涵, 齐岩. 计及碳捕集电厂综合灵活运行方式的含P2G综合能源系统低碳经济调度[J]. 电力自动化设备, 2023, 43 (1): 1- 8.
	WANG Yijun, LI Menghan, QI Yan. Low-carbon economic dispatching of integrated energy system with P2G considering comprehensive and flexible operation mode of carbon capture power plant[J]. Electric Power Automation Equipment, 2023, 43 (1): 1- 8.
24	赵建勇, 年珩, 马润生, 等. 基于改进雷达图模型的热电联供型微网系统多目标优化配置[J]. 电力自动化设备, 2020, 40 (12): 31- 45.
	ZHAO Jianyong, NIAN Heng, MA Runsheng, et al. Multi-objective optimization configuration for combined heat and power microgrid system based on improved radar chart model[J]. Electric Power Automation Equipment, 2020, 40 (12): 31- 45.
25	王泽镝, 滕云, 回茜, 等. 考虑垃圾处理与调峰需求的可持续化城市多能源系统规划[J]. 中国电机工程学报, 2021, 41 (11): 3781- 3797.
	WANG Zedi, TENG Yun, HUI Qian, et al. A sustainable development multi-energy system planning method incorporating the demand of waste disposal and peak shaving[J]. Proceedings of the CSEE, 2021, 41 (11): 3781- 3797.
26	蒋东方, 贾跃龙, 鲁强, 等. 氢能在综合能源系统中的应用前景[J]. 中国电力, 2020, 53 (5): 135- 142.
	JIANG Dongfang, JIA Yuelong, LU Qiang, et al. Application prospect of hydrogen energy in integrated energy systems[J]. Electric Power, 2020, 53 (5): 135- 142.
27	谢小荣, 马宁嘉, 刘威, 等. 新型电力系统中储能应用功能的综述与展望[J]. 中国电机工程学报, 2023, 43 (1): 158- 169.
	XIE Xiaorong, MA Ningjia, LIU Wei, et al. Functions of energy storage in renewable energy dominated power systems: review and prospect[J]. Proceedings of the CSEE, 2023, 43 (1): 158- 169.
28	袁铁江, 万志, 王进君, 等. 考虑电解槽启停特性的制氢系统日前出力计划[J]. 中国电力, 2022, 55 (1): 101- 109.
	YUAN Tiejiang, WAN Zhi, WANG Jinjun, et al. The day-ahead output plan of hydrogen production system considering the start-stop characteristics of electrolytic cell[J]. Electric Power, 2022, 55 (1): 101- 109.
